U-Boot 2017.01-rc2-00073-gdd6e874-dirty (Apr 13 2018 - 13:04:14 +0800) Allwinner Technology

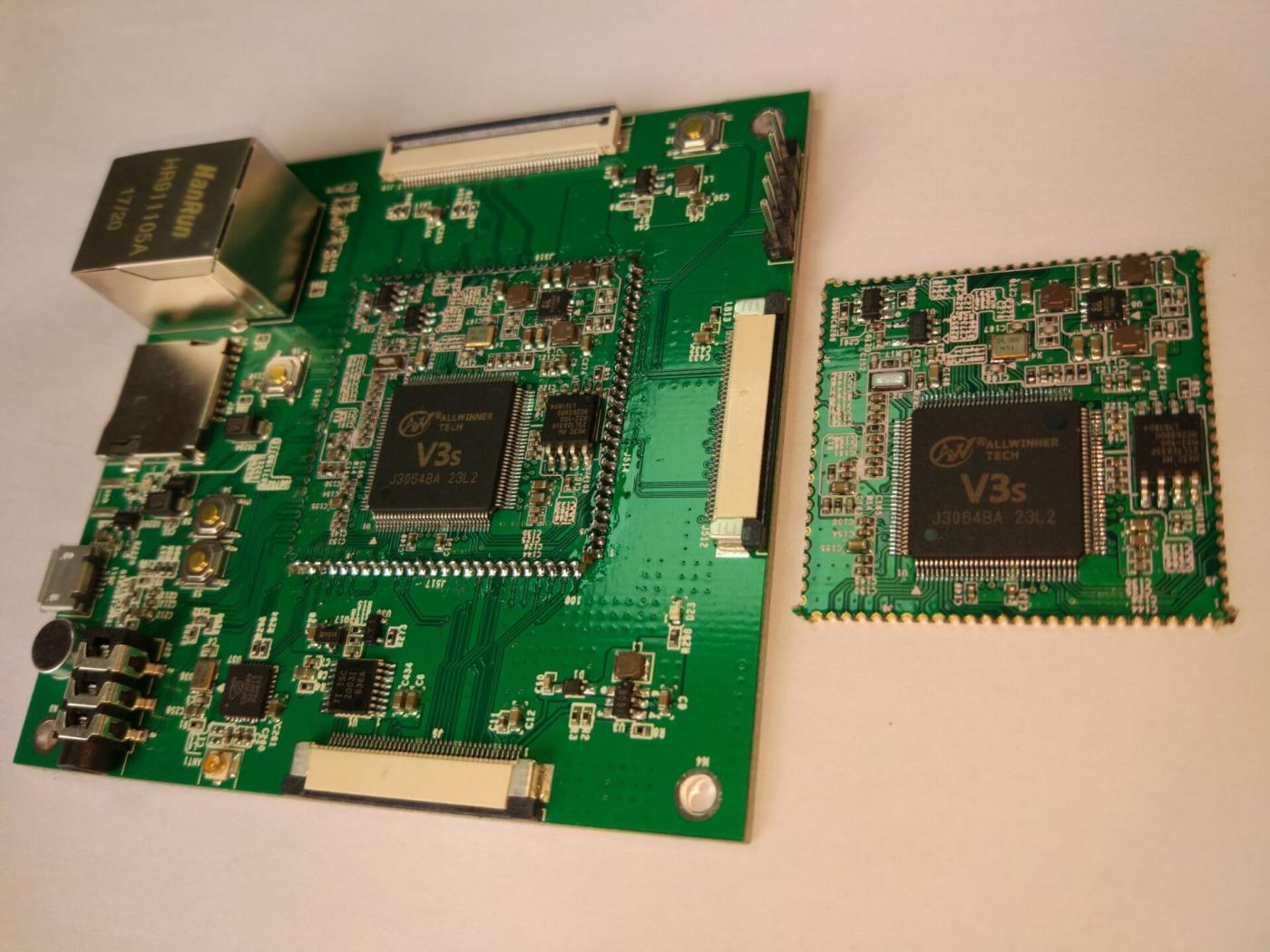

CPU:   Allwinner V3s (SUN8I 1681)
Model: Lichee Pi Zero
DRAM:  64 MiB
MMC:   SUNXI SD/MMC: 0
SF: Detected mx25l12805 with page size 256 Bytes, erase size 64 KiB, total 16 MiB
*** Warning - bad CRC, using default environment
In:    serial@01c28000
Out:   serial@01c28000
Err:   serial@01c28000
Net:   No ethernet found.
starting USB...
No controllers found
Hit any key to stop autoboot:  0
SF: Detected mx25l12805 with page size 256 Bytes, erase size 64 KiB, total 16 MiB
device 0 offset 0x100000, size 0x10000
SF: 65536 bytes @ 0x100000 Read: OK
device 0 offset 0x110000, size 0x400000
SF: 4194304 bytes @ 0x110000 Read: OK

=> bootm 0x41000000
## Booting kernel from Legacy Image at 41000000 ...
   Image Name:   Linux-3.4.39
   Image Type:   ARM Linux Kernel Image (uncompressed)
   Data Size:    2434096 Bytes = 2.3 MiB
   Load Address: 40008000
   Entry Point:  40008000
   Verifying Checksum ... OK
   Loading Kernel Image ... OK
Starting kernel ...

starting USB...
No controllers found
Hit any key to stop autoboot:  0
switch to partitions #0, OK
mmc0 is current device
Scanning mmc 0:1...
Found U-Boot script /boot.scr
reading /boot.scr
290 bytes read in 18 ms (15.6 KiB/s)
## Executing script at 41900000
reading uImage
Invalid FAT entry
262144 bytes read in 31 ms (8.1 MiB/s)
reading script.bin
Invalid FAT entry
2048 bytes read in 20 ms (99.6 KiB/s)
## Booting kernel from Legacy Image at 41000000 ...
   Image Name:   Linux-3.4.39
   Image Type:   ARM Linux Kernel Image (uncompressed)
   Data Size:    2451016 Bytes = 2.3 MiB
   Load Address: 40008000
   Entry Point:  40008000
   Verifying Checksum ... Bad Data CRC
ERROR: can't get kernel image!
SCRIPT FAILED: continuing...
starting USB...
No controllers found
USB is stopped. Please issue 'usb start' first.
starting USB...
No controllers found
No ethernet found.
missing environment variable: pxeuuid
missing environment variable: bootfile
Retrieving file: pxelinux.cfg/00000000
No ethernet found.
missing environment variable: bootfile
Retrieving file: pxelinux.cfg/0000000
No ethernet found.

Uncompressing Linux... done, booting the kernel.

Starting kernel ...

[    0.000000] Booting Linux on physical CPU 0
[    0.000000] Linux version 3.4.39 (root@ubuntu) (gcc version 4.6.3 20120201 (prerelease) (crosstool-NG linaro-1.13.1-2012.02-20120222 - Linaro GCC 2012.02) ) #23 Wed May 30 00:39:54 PDT 2018
[    0.000000] Initialized persistent memory from 41d20800-41d307ff
[    0.000000] Kernel command line: console=ttyS0,115200 panic=5 earlyprintk rw
[    0.000000] PID hash table entries: 256 (order: -2, 1024 bytes)
[    0.000000] Dentry cache hash table entries: 8192 (order: 3, 32768 bytes)
[    0.000000] Inode-cache hash table entries: 4096 (order: 2, 16384 bytes)
[    0.000000] Memory: 64MB = 64MB total
[    0.000000] Memory: 30720k/30720k available, 34816k reserved, 0K highmem
[    0.000000] Virtual kernel memory layout:
[    0.000000]     vector  : 0xffff0000 - 0xffff1000   (   4 kB)
[    0.000000]     fixmap  : 0xfff00000 - 0xfffe0000   ( 896 kB)
[    0.000000]     vmalloc : 0xc4800000 - 0xff000000   ( 936 MB)
[    0.000000]     lowmem  : 0xc0000000 - 0xc4000000   (  64 MB)
[    0.000000]     modules : 0xbf000000 - 0xc0000000   (  16 MB)
[    0.000000]       .text : 0xc0008000 - 0xc042e000   (4248 kB)
[    0.000000]       .init : 0xc042e000 - 0xc044f000   ( 132 kB)
[    0.000000]       .data : 0xc0450000 - 0xc04934c0   ( 270 kB)
[    0.000000]        .bss : 0xc04934e4 - 0xc052c84c   ( 613 kB)
[    0.000000] NR_IRQS:544
[    0.000000] Architected local timer running at 24.00MHz.
[    0.000000] Switching to timer-based delay loop
[    0.000000] sched_clock: 32 bits at 24MHz, resolution 41ns, wraps every 178956ms
[    0.000000] Console: colour dummy device 80x30
[    0.000159] Calibrating delay loop (skipped), value calculated using timer frequency.. 4800.00 BogoMIPS (lpj=24000000)
[    0.000182] pid_max: default: 32768 minimum: 301
[    0.000322] Mount-cache hash table entries: 512
[    0.000825] CPU: Testing write buffer coherency: ok
[    0.001084] Setting up static identity map for 0x403189e0 - 0x40318a38
[    0.001733] devtmpfs: initialized
[    0.003320] pinctrl core: initialized pinctrl subsystem
[    0.003809] NET: Registered protocol family 16
[    0.004077] DMA: preallocated 128 KiB pool for atomic coherent allocations
[    0.004127] script_sysfs_init success
[    0.004876] gpiochip_add: registered GPIOs 0 to 223 on device: sunxi-pinctrl
[    0.005764] sunxi-pinctrl sunxi-pinctrl: initialized sunXi PIO driver
[    0.006133] gpiochip_add: registered GPIOs 1024 to 1031 on device: axp-pinctrl
[    0.006861] persistent_ram: found existing buffer, size 17671, start 17671
[    0.086674] console [ram-1] enabled
[    0.087570] Not Found clk pll_isp in script
[    0.087685] Not Found clk pll_video in script
[    0.087876] Not Found clk pll_ve in script
[    0.087980] Not Found clk pll_periph0 in script
[    0.088084] Not Found clk pll_de in script
<[    0.091696] bio: create slab <bio-0> at 0
[    0.092061] pwm module init!
[    0.094252] SCSI subsystem initialized
[    0.094599] usbcore: registered new interface driver usbfs
[    0.094769] usbcore: registered new interface driver hub
[    0.095097] usbcore: registered new device driver usb
[    0.095322] twi_chan_cfg()340 - [twi0] has no twi_regulator.
[    0.095516] twi_chan_cfg()340 - [twi1] has no twi_regulator.
[    0.096315] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x34)
[    0.096524] axp20_board 0-0034: failed reading at 0x03
[    0.096656] axp20_board: probe of 0-0034 failed with error -70
[    0.096889] Linux video capture interface: v2.00
[    0.097085] gpiochip_add: gpios 1024..1028 (axp_pin) failed to register
[    0.097591] Advanced Linux Sound Architecture Driver Version 1.0.25.
[    0.098308] Switching to clocksource arch_sys_counter
[    0.100000] NET: Registered protocol family 2
[    0.100000] IP route cache hash table entries: 1024 (order: 0, 4096 bytes)
[    0.100000] TCP established hash table entries: 2048 (order: 2, 16384 bytes)
[    0.100104] TCP bind hash table entries: 2048 (order: 1, 8192 bytes)
[    0.100312] TCP: Hash tables configured (established 2048 bind 2048)
[    0.100418] TCP: reno registered
[    0.100610] UDP hash table entries: 256 (order: 0, 4096 bytes)
[    0.100726] UDP-Lite hash table entries: 256 (order: 0, 4096 bytes)
[    0.101190] NET: Registered protocol family 1
[    0.101482] standby_mode = 1.
[    0.101587] wakeup src cnt is : 3.
[    0.101797] pmu1_enable = 0x1.
[    0.101899] pmux_id = 0x1.
[    0.102011] config_pmux_para: script_parser_fetch err.
[    0.102199] pmu2_enable = 0x0.
[    0.102306] add_sys_pwr_dm: get ldo name failed
[    0.102409] add_sys_pwr_dm: get ldo name failed
[    0.102598] add_sys_pwr_dm: get ldo name failed
[    0.102701] add_sys_pwr_dm: get ldo name failed
[    0.102891] add_sys_pwr_dm: get ldo name failed
[    0.102992] add_sys_pwr_dm: get ldo name failed
[    0.103094] add_sys_pwr_dm: get ldo name failed
[    0.103283] add_sys_pwr_dm: get ldo name failed
[    0.103388] add_sys_pwr_dm: get ldo name failed
[    0.103577] add_sys_pwr_dm: get ldo name failed
[    0.103680] after inited: sys_mask config = 0x0.
[    0.103785] dynamic_standby enalbe = 0x0.
[    0.104029] sunxi_reg_init enter
[    0.105788] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[    0.106028] jffs2: version 2.2. (NAND) (SUMMARY)  © 2001-2006 Red Hat, Inc.
[    0.106320] msgmni has been set to 60
[    0.107482] io scheduler noop registered
[    0.107599] io scheduler deadline registered
[    0.107773] io scheduler cfq registered (default)
[    0.108357] [DISP]disp_module_init
[    0.108844] cmdline,disp=
[    0.109491] [DISP] disp_get_rotation_sw,line:68:disp 0 out of range? g_rot_sw=0
[    0.109789] [DISP] disp_init_connections,line:289:NULL pointer: 0, 0
[    0.111668] [DISP] Fb_map_kernel_logo,line:924:Fb_map_kernel_logo failed!
[    0.114312] [DISP] disp_sys_power_enable,line:387:some error happen, fail to get regulator
[    0.115392] [DISP]disp_module_init finish
[    0.115788] sw_uart_get_devinfo()1503 - uart0 has no uart_regulator.
[    0.116307] uart0: ttyS0 at MMIO 0x1c28000 (irq = 32) is a SUNXI
[    0.116422] sw_uart_pm()890 - uart0 clk is already enable
[    0.116622] sw_console_setup()1233 - console setup baud 115200 parity n bits 8, flow n
[    0.230271] console [ttyS0] enabled
[    0.747767] sunxi_spi_chan_cfg()1376 - [spi-0] has no spi_regulator.
[    0.755748] spi spi0: master is unqueued, this is deprecated
[    0.762416] m25p_probe()966 - Use the Dual Mode Read.
[    0.768219] m25p80 spi0.0: found mx25l12805d, expected at25df641
[    0.775097] m25p80 spi0.0: mx25l12805d (16384 Kbytes)
[    0.782311] partitions_register()853 - Invalid partitions count: -352315891
[    0.790542] Creating 1 MTD partitions on "spi0.0":
[    0.795992] 0x000000000000-0x000001000000 : "NorFlash part0"
[    0.803537] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[    0.831051] sunxi-ehci sunxi-ehci.1: SW USB2.0 'Enhanced' Host Controller (EHCI) Driver
[    0.840272] sunxi-ehci sunxi-ehci.1: new USB bus registered, assigned bus number 1
[    0.848893] sunxi-ehci sunxi-ehci.1: irq 104, io mem 0xf1c1a000
[    0.870033] sunxi-ehci sunxi-ehci.1: USB 0.0 started, EHCI 1.00
[    0.877438] hub 1-0:1.0: USB hub found
[    0.881758] hub 1-0:1.0: 1 port detected
[    0.886627] sunxi-ehci sunxi-ehci.1: remove, state 1
[    0.892359] usb usb1: USB disconnect, device number 1
[    0.898749] sunxi-ehci sunxi-ehci.1: USB bus 1 deregistered
[    0.915289] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
[    0.942366] sunxi-ohci sunxi-ohci.1: SW USB2.0 'Open' Host Controller (OHCI) Driver
[    0.951091] sunxi-ohci sunxi-ohci.1: new USB bus registered, assigned bus number 1
[    0.959626] sunxi-ohci sunxi-ohci.1: irq 105, io mem 0xf1c1a400
[    1.024621] hub 1-0:1.0: USB hub found
[    1.028898] hub 1-0:1.0: 1 port detected
[    1.033837] sunxi-ohci sunxi-ohci.1: remove, state 1
[    1.039478] usb usb1: USB disconnect, device number 1
[    1.045999] sunxi-ohci sunxi-ohci.1: USB bus 1 deregistered
[    1.062487] Initializing USB Mass Storage driver...
[    1.068083] usbcore: registered new interface driver usb-storage
[    1.074951] USB Mass Storage support registered.
[    1.080473] file system registered
[    1.085884] android_usb gadget: Mass Storage Function, version: 2009/09/11
[    1.093674] android_usb gadget: Number of LUNs=1
[    1.098997]  lun0: LUN: removable file: (no medium)
[    1.104965] android_usb gadget: android_usb ready
[    1.110532] sunxikbd_script_init: key para not found, used default para.
[    1.119140] sunxi-rtc sunxi-rtc: rtc core: registered sunxi-rtc as rtc0
[    1.127629] platform reg-20-cs-dcdc2: Driver reg-20-cs-dcdc2 requests probe deferral
[    1.136532] platform reg-20-cs-dcdc3: Driver reg-20-cs-dcdc3 requests probe deferral
[    1.145450] platform reg-20-cs-ldo1: Driver reg-20-cs-ldo1 requests probe deferral
[    1.154163] platform reg-20-cs-ldo2: Driver reg-20-cs-ldo2 requests probe deferral
[    1.162794] platform reg-20-cs-ldo3: Driver reg-20-cs-ldo3 requests probe deferral
[    1.171494] platform reg-20-cs-ldo4: Driver reg-20-cs-ldo4 requests probe deferral
[    1.180205] platform reg-20-cs-ldoio0: Driver reg-20-cs-ldoio0 requests probe deferral
[    1.189179] sunxi_wdt_init_module: sunxi WatchDog Timer Driver v1.0
[    1.196437] sunxi_wdt_probe: devm_ioremap return wdt_reg 0xf1c20ca0, res->start 0x01c20ca0, res->end 0x01c20cbf
[    1.207854] sunxi_wdt_probe: initialized (g_timeout=16s, g_nowayout=0)
[    1.215599] wdt_enable, write reg 0xf1c20cb8 val 0x00000000
[    1.221898] wdt_set_tmout, write 0x000000b0 to mode reg 0xf1c20cb8, actual timeout 16 sec
[    1.235513] sunxi_leds_fetch_sysconfig_para leds is not used in config
[    1.242929] =========script_get_err============
[    1.248351] usbcore: registered new interface driver usbhid
[    1.254666] usbhid: USB HID core driver
[    1.259740] ashmem: initialized
[    1.263516] logger: created 256K log 'log_main'
[    1.268807] logger: created 32K log 'log_events'
[    1.274268] logger: created 32K log 'log_radio'
[    1.279497] logger: created 32K log 'log_system'
[    1.286139] script_get_item return audio_pa_ctrl type err
[    1.293134] asoc: sndcodec <-> sunxi-codec mapping ok
[    1.300906] TCP: cubic registered
[    1.304790] NET: Registered protocol family 17
[    1.309915] VFP support v0.3: implementor 41 architecture 2 part 30 variant 7 rev 5
[    1.318761] ThumbEE CPU extension supported.
[    1.323622] Registering SWP/SWPB emulation handler
[    1.330074] platform reg-20-cs-ldoio0: Driver reg-20-cs-ldoio0 requests probe deferral
[    1.339028] platform reg-20-cs-ldo4: Driver reg-20-cs-ldo4 requests probe deferral
[    1.347722] platform reg-20-cs-ldo3: Driver reg-20-cs-ldo3 requests probe deferral
[    1.356362] platform reg-20-cs-ldo2: Driver reg-20-cs-ldo2 requests probe deferral
[    1.364910] platform reg-20-cs-ldo1: Driver reg-20-cs-ldo1 requests probe deferral
[    1.373610] platform reg-20-cs-dcdc3: Driver reg-20-cs-dcdc3 requests probe deferral
[    1.382440] platform reg-20-cs-dcdc2: Driver reg-20-cs-dcdc2 requests probe deferral
[    1.391229] sunxi-rtc sunxi-rtc: setting system clock to 1970-01-01 05:36:33 UTC (20193)
[    1.401724] ALSA device list:
[    1.405171]   #0: audiocodec
[    1.409071] Kernel panic - not syncing: VFS: Unable to mount root fs on unknown-block(0,0)
[    1.418402] Backtrace:
[    1.421365] [<c0013410>] (dump_backtrace+0x0/0x110) from [<c031387c>] (dump_stack+0x18/0x1c)
[    1.430925]  r6:00008000 r5:c183d000 r4:c183d000 r3:00000001
[    1.437793] [<c0313864>] (dump_stack+0x0/0x1c) from [<c0313c60>] (panic+0x78/0x1cc)
[    1.446407] [<c0313be8>] (panic+0x0/0x1cc) from [<c042ecc4>] (mount_block_root+0x240/0x290)
[    1.455868]  r3:00000000 r2:00000001 r1:c1821f38 r0:c03bb299
[    1.462730]  r7:c044a258
[    1.465742] [<c042ea84>] (mount_block_root+0x0/0x290) from [<c042ed6c>] (mount_root+0x58/0x68)
[    1.475496] [<c042ed14>] (mount_root+0x0/0x68) from [<c042eea0>] (prepare_namespace+0x124/0x184)
[    1.485350]  r5:c044a250 r4:c0493564
[    1.489704] [<c042ed7c>] (prepare_namespace+0x0/0x184) from [<c042e8f0>] (kernel_init+0x16c/0x1a8)
[    1.499837]  r5:c044a250 r4:00000007
[    1.504106] [<c042e784>] (kernel_init+0x0/0x1a8) from [<c0031d20>] (do_exit+0x0/0x660)
[    1.513090] Rebooting in 5 seconds..

Starting kernel ...

[    0.000000] Booting Linux on physical CPU 0
[    0.000000] Linux version 3.4.39 (root@ubuntu) (gcc version 4.6.3 20120201 (prerelease) (crosstool-NG linaro-1.13.1-2012.02-20120222 - Linaro GCC 2012.02) ) #26 Wed May 30 02:08:21 PDT 2018
[    0.000000] Initialized persistent memory from 41d20800-41d307ff
[    0.000000] Kernel command line: console=ttyS0,115200 panic=5 rootwait root=/dev/mmcblk0p2 earlyprintk rw
[    0.000000] PID hash table entries: 256 (order: -2, 1024 bytes)
[    0.000000] Dentry cache hash table entries: 8192 (order: 3, 32768 bytes)
[    0.000000] Inode-cache hash table entries: 4096 (order: 2, 16384 bytes)
[    0.000000] Memory: 64MB = 64MB total
[    0.000000] Memory: 30388k/30388k available, 35148k reserved, 0K highmem
[    0.000000] Virtual kernel memory layout:
[    0.000000]     vector  : 0xffff0000 - 0xffff1000   (   4 kB)
[    0.000000]     fixmap  : 0xfff00000 - 0xfffe0000   ( 896 kB)
[    0.000000]     vmalloc : 0xc4800000 - 0xff000000   ( 936 MB)
[    0.000000]     lowmem  : 0xc0000000 - 0xc4000000   (  64 MB)
[    0.000000]     modules : 0xbf000000 - 0xc0000000   (  16 MB)
[    0.000000]       .text : 0xc0008000 - 0xc047f000   (4572 kB)
[    0.000000]       .init : 0xc047f000 - 0xc04a2000   ( 140 kB)
[    0.000000]       .data : 0xc04a2000 - 0xc04e67e0   ( 274 kB)
[    0.000000]        .bss : 0xc04e6804 - 0xc057fda4   ( 614 kB)
[    0.000000] NR_IRQS:544
[    0.000000] Architected local timer running at 24.00MHz.
[    0.000000] Switching to timer-based delay loop
[    0.000000] sched_clock: 32 bits at 24MHz, resolution 41ns, wraps every 178956ms
[    0.000000] Console: colour dummy device 80x30
[    0.000160] Calibrating delay loop (skipped), value calculated using timer frequency.. 4800.00 BogoMIPS (lpj=24000000)
[    0.000182] pid_max: default: 32768 minimum: 301
[    0.000309] Mount-cache hash table entries: 512
[    0.000817] CPU: Testing write buffer coherency: ok
[    0.001089] Setting up static identity map for 0x4035b768 - 0x4035b7c0
[    0.001751] devtmpfs: initialized
[    0.003431] pinctrl core: initialized pinctrl subsystem
[    0.003914] NET: Registered protocol family 16
[    0.004219] DMA: preallocated 128 KiB pool for atomic coherent allocations
[    0.004275] script_sysfs_init success
[    0.005026] gpiochip_add: registered GPIOs 0 to 223 on device: sunxi-pinctrl
[    0.005917] sunxi-pinctrl sunxi-pinctrl: initialized sunXi PIO driver
[    0.006287] gpiochip_add: registered GPIOs 1024 to 1031 on device: axp-pinctrl
[    0.007036] persistent_ram: found existing buffer, size 18860, start 18860
[    0.091124] console [ram-1] enabled
[    0.091940] Not Found clk pll_isp in script
[    0.092057] Not Found clk pll_video in script
[    0.092248] Not Found clk pll_ve in script
[    0.092353] Not Found clk pll_periph0 in script
[    0.092542] Not Found clk pll_de in script
[    0.096422] bio: create slab <bio-0> at 0
[    0.096792] pwm module init!
[    0.099093] SCSI subsystem initialized
[    0.099424] usbcore: registered new interface driver usbfs
[    0.099595] usbcore: registered new interface driver hub
[    0.099919] usbcore: registered new device driver usb
[    0.100161] twi_chan_cfg()340 - [twi0] has no twi_regulator.
[    0.100359] twi_chan_cfg()340 - [twi1] has no twi_regulator.
[    0.101135] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x34)
[    0.101346] axp20_board 0-0034: failed reading at 0x03
[    0.101480] axp20_board: probe of 0-0034 failed with error -70
[    0.101713] Linux video capture interface: v2.00
[    0.101918] gpiochip_add: gpios 1024..1028 (axp_pin) failed to register
[    0.102428] Advanced Linux Sound Architecture Driver Version 1.0.25.
[    0.103530] cfg80211: Calling CRDA to update world regulatory domain
[    0.104485] Switching to clocksource arch_sys_counter
[    0.109978] NET: Registered protocol family 2
[    0.109978] IP route cache hash table entries: 1024 (order: 0, 4096 bytes)
[    0.109978] TCP established hash table entries: 2048 (order: 2, 16384 bytes)
[    0.110154] TCP bind hash table entries: 2048 (order: 1, 8192 bytes)
[    0.110365] TCP: Hash tables configured (established 2048 bind 2048)
[    0.110473] TCP: reno registered
[    0.110669] UDP hash table entries: 256 (order: 0, 4096 bytes)
[    0.110785] UDP-Lite hash table entries: 256 (order: 0, 4096 bytes)
[    0.111252] NET: Registered protocol family 1
[    0.111689] standby_mode = 1.
[    0.111796] wakeup src cnt is : 3.
[    0.112003] pmu1_enable = 0x1.
[    0.112108] pmux_id = 0x1.
[    0.112220] config_pmux_para: script_parser_fetch err.
[    0.112409] pmu2_enable = 0x0.
[    0.112515] add_sys_pwr_dm: get ldo name failed
[    0.112619] add_sys_pwr_dm: get ldo name failed
[    0.112807] add_sys_pwr_dm: get ldo name failed
[    0.112911] add_sys_pwr_dm: get ldo name failed
[    0.113015] add_sys_pwr_dm: get ldo name failed
[    0.113203] add_sys_pwr_dm: get ldo name failed
[    0.113306] add_sys_pwr_dm: get ldo name failed
[    0.113495] add_sys_pwr_dm: get ldo name failed
[    0.113598] add_sys_pwr_dm: get ldo name failed
[    0.113701] add_sys_pwr_dm: get ldo name failed
[    0.113890] after inited: sys_mask config = 0x0.
[    0.113994] dynamic_standby enalbe = 0x0.
[    0.114228] sunxi_reg_init enter
[    0.116032] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[    0.116200] jffs2: version 2.2. (NAND) (SUMMARY)  © 2001-2006 Red Hat, Inc.
[    0.116566] msgmni has been set to 59
[    0.117601] io scheduler noop registered
[    0.117807] io scheduler deadline registered
[    0.117990] io scheduler cfq registered (default)
[    0.118484] [DISP]disp_module_init
[    0.119075] cmdline,disp=
[    0.119712] [DISP] disp_get_rotation_sw,line:68:disp 0 out of range? g_rot_sw=0
[    0.120068] [DISP] disp_init_connections,line:289:NULL pointer: 0, 0
[    0.121889] [DISP] Fb_map_kernel_logo,line:924:Fb_map_kernel_logo failed!
[    0.124516] [DISP] disp_sys_power_enable,line:387:some error happen, fail to get regulator
[    0.125584] [DISP]disp_module_init finish
[    0.125984] sw_uart_get_devinfo()1503 - uart0 has no uart_regulator.
[    0.126439] uart0: ttyS0 at MMIO 0x1c28000 (irq = 32) is a SUNXI
[    0.126641] sw_uart_pm()890 - uart0 clk is already enable
[    0.126756] sw_console_setup()1233 - console setup baud 115200 parity n bits 8, flow n
[    0.240393] console [ttyS0] enabled
[    0.768017] sunxi_spi_chan_cfg()1376 - [spi-0] has no spi_regulator.
[    0.775963] spi spi0: master is unqueued, this is deprecated
[    0.782562] m25p_probe()986 - Use the Dual Mode Read.
[    0.788456] m25p80 spi0.0: found mx25l12805d, expected at25df641
[    0.795261] m25p80 spi0.0: mx25l12805d (16384 Kbytes)
[    0.803002] Creating 4 MTD partitions on "spi0.0":
[    0.808430] 0x000000000000-0x000000100000 : "uboot"
[    0.814972] 0x000000100000-0x000000110000 : "script"
[    0.821561] 0x000000110000-0x000000510000 : "kernel"
[    0.828210] 0x000000510000-0x000001000000 : "rootfs"
[    0.836322] Failed to alloc md5
[    0.839961] eth0: Use random mac address
[    0.844546] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[    0.872206] sunxi-ehci sunxi-ehci.1: SW USB2.0 'Enhanced' Host Controller (EHCI) Driver
[    0.881336] sunxi-ehci sunxi-ehci.1: new USB bus registered, assigned bus number 1
[    0.889959] sunxi-ehci sunxi-ehci.1: irq 104, io mem 0xf1c1a000
[    0.910030] sunxi-ehci sunxi-ehci.1: USB 0.0 started, EHCI 1.00
[    0.917443] hub 1-0:1.0: USB hub found
[    0.921872] hub 1-0:1.0: 1 port detected
[    0.926768] sunxi-ehci sunxi-ehci.1: remove, state 1
[    0.932418] usb usb1: USB disconnect, device number 1
[    0.939803] sunxi-ehci sunxi-ehci.1: USB bus 1 deregistered
[    0.956252] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
[    0.983429] sunxi-ohci sunxi-ohci.1: SW USB2.0 'Open' Host Controller (OHCI) Driver
[    0.992164] sunxi-ohci sunxi-ohci.1: new USB bus registered, assigned bus number 1
[    1.000744] sunxi-ohci sunxi-ohci.1: irq 105, io mem 0xf1c1a400
[    1.064777] hub 1-0:1.0: USB hub found
[    1.069059] hub 1-0:1.0: 1 port detected
[    1.073970] sunxi-ohci sunxi-ohci.1: remove, state 1
[    1.079675] usb usb1: USB disconnect, device number 1
[    1.085971] sunxi-ohci sunxi-ohci.1: USB bus 1 deregistered
[    1.102480] Initializing USB Mass Storage driver...
[    1.108082] usbcore: registered new interface driver usb-storage
[    1.114950] USB Mass Storage support registered.
[    1.120515] file system registered
[    1.126014] android_usb gadget: Mass Storage Function, version: 2009/09/11
[    1.133866] android_usb gadget: Number of LUNs=1
[    1.139202]  lun0: LUN: removable file: (no medium)
[    1.145206] android_usb gadget: android_usb ready
[    1.150713] sunxikbd_script_init: key para not found, used default para.
[    1.159334] sunxi-rtc sunxi-rtc: rtc core: registered sunxi-rtc as rtc0
[    1.167829] platform reg-20-cs-dcdc2: Driver reg-20-cs-dcdc2 requests probe deferral
[    1.176698] platform reg-20-cs-dcdc3: Driver reg-20-cs-dcdc3 requests probe deferral
[    1.185629] platform reg-20-cs-ldo1: Driver reg-20-cs-ldo1 requests probe deferral
[    1.194336] platform reg-20-cs-ldo2: Driver reg-20-cs-ldo2 requests probe deferral
[    1.202973] platform reg-20-cs-ldo3: Driver reg-20-cs-ldo3 requests probe deferral
[    1.211682] platform reg-20-cs-ldo4: Driver reg-20-cs-ldo4 requests probe deferral
[    1.220376] platform reg-20-cs-ldoio0: Driver reg-20-cs-ldoio0 requests probe deferral
[    1.229276] sunxi_wdt_init_module: sunxi WatchDog Timer Driver v1.0
[    1.236605] sunxi_wdt_probe: devm_ioremap return wdt_reg 0xf1c20ca0, res->start 0x01c20ca0, res->end 0x01c20cbf
[    1.248011] sunxi_wdt_probe: initialized (g_timeout=16s, g_nowayout=0)
[    1.255678] wdt_enable, write reg 0xf1c20cb8 val 0x00000000
[    1.262066] wdt_set_tmout, write 0x000000b0 to mode reg 0xf1c20cb8, actual timeout 16 sec
[    1.275749] sunxi_leds_fetch_sysconfig_para leds is not used in config
[    1.283144] =========script_get_err============
[    1.288582] usbcore: registered new interface driver usbhid
[    1.294889] usbhid: USB HID core driver
[    1.299882] ashmem: initialized
[    1.303775] logger: created 256K log 'log_main'
[    1.309012] logger: created 32K log 'log_events'
[    1.314383] logger: created 32K log 'log_radio'
[    1.319726] logger: created 32K log 'log_system'
[    1.326407] script_get_item return audio_pa_ctrl type err
[    1.333543] asoc: sndcodec <-> sunxi-codec mapping ok
[    1.341342] TCP: cubic registered
[    1.345136] NET: Registered protocol family 17
[    1.350453] VFP support v0.3: implementor 41 architecture 2 part 30 variant 7 rev 5
[    1.359238] ThumbEE CPU extension supported.
[    1.364113] Registering SWP/SWPB emulation handler
[    1.370550] platform reg-20-cs-ldoio0: Driver reg-20-cs-ldoio0 requests probe deferral
[    1.379624] platform reg-20-cs-ldo4: Driver reg-20-cs-ldo4 requests probe deferral
[    1.388314] platform reg-20-cs-ldo3: Driver reg-20-cs-ldo3 requests probe deferral
[    1.396879] platform reg-20-cs-ldo2: Driver reg-20-cs-ldo2 requests probe deferral
[    1.405509] platform reg-20-cs-ldo1: Driver reg-20-cs-ldo1 requests probe deferral
[    1.414143] platform reg-20-cs-dcdc3: Driver reg-20-cs-dcdc3 requests probe deferral
[    1.422881] platform reg-20-cs-dcdc2: Driver reg-20-cs-dcdc2 requests probe deferral
[    1.431757] sunxi-rtc sunxi-rtc: setting system clock to 1970-01-01 07:00:57 UTC (25257)
[    1.442314] ALSA device list:
[    1.445711]   #0: audiocodec
[    1.449386] Waiting for root device /dev/mmcblk0p2...

;A23 PAD application
;---------------------------------------------------------------------------------------------------------
; port configuration:
; port_name = port:GPIO<mux><pull up/down><driver level><default value>
; mux: GPIO function configuration, 0-input, 1-output, 2+: special funciton for modules
; pull up/down: 1-pull up, 2-pull down
; driver level: 0,1,2,3. 2 is recommended
; default value: default output value when this IO is configured as an output IO
;---------------------------------------------------------------------------------------------------------

[product]
version = "100"
machine = "tiger-cdr"

[platform]
eraseflag   = 0

;----------------------------------------------------------------------------------
;[target]  system bootup configuration
;boot_clock	= CPU boot frequency, Unit: MHz
;storage_type	= boot medium, 0-nand, 1-card0, 2-card2, -1(defualt)auto scan
;speed_mod    0 : normal read ; 1 dual line fast read
;----------------------------------------------------------------------------------
[target]
boot_clock   	= 1008
storage_type  	= -1

[boot_spi_board0]
boot_spi_speed_hz = 60000000
speed_mod         = 1

;----------------------------------------------------------------------------------
;dcdc1_vol	---set dcdc1 voltage,mV,1600-3400,100mV/step
;dcdc2_vol	---set dcdc2 voltage,mV,600-1540,20mV/step
;dcdc3_vol	---set dcdc3 voltage,mV,600-1860,20mV/step
;dcdc4_vol	---set dcdc4 voltage,mV,600-1540,20mV/step
;dcdc5_vol	---set dcdc5 voltage,mV,1000-2550,50mV/step
;aldo2_vol	---set aldo2 voltage,mV,700-3300,100mV/step
;aldo3_vol	---set aldo3 voltage,mV,700-3300,100mV/step
;----------------------------------------------------------------------------------
[power_sply]
dcdc2_vol       = 1200
dcdc3_vol       = 3300
aldo2_vol       = 2500
aldo3_vol       = 3000
ldo1_vol        = 3300
ldo2_vol        = 3000
;ldo3_vol        = 2800
;ldo4_vol        = 1800


;----------------------------------------------------------------------------------
;card boot
;----------------------------------------------------------------------------------
[card_boot]
logical_start   = 40960
spinor_verify   = 1
sprite_gpio0    =

;----------------------------------------------------------------------------------
;[cardx_boot_para] boot card configuration
;card_ctrl 	 = boot card NO. 0 or 2
;card_high_speed = speed mode, 0-normal mode(up to 25MHz), 1-high speed mode(up to 50MHz)
;card_line       = boot card buswidth(1 or 4)
;----------------------------------------------------------------------------------
[card0_boot_para]
card_ctrl       = 0
card_high_speed = 1
card_line       = 4
sdc_d1          = port:PF0<2><1><default><default>
sdc_d0          = port:PF1<2><1><default><default>
sdc_clk         = port:PF2<2><1><default><default>
sdc_cmd         = port:PF3<2><1><default><default>
sdc_d3          = port:PF4<2><1><default><default>
sdc_d2          = port:PF5<2><1><default><default>

;[card2_boot_para]
;card_ctrl       = 2
;card_high_speed = 1
;card_line       = 4
;sdc_cmd         = port:PC00<2><1><2><default>
;sdc_clk         = port:PC01<2><1><2><default>
;sdc_d0          = port:PC03<2><1><2><default>
;sdc_d1          = port:PC04<2><1><2><default>
;sdc_d2          = port:PC05<2><1><2><default>
;sdc_d3          = port:PC06<2><1><2><default>

;----------------------------------------------------------------------------------
;[twi_para] twi for boot code
;twi_port	= twi controller ID
;----------------------------------------------------------------------------------
[twi_para]
twi_port        = 0
twi_scl         = port:PB06<2><default><default><default>
twi_sda         = port:PB07<2><default><default><default>

;----------------------------------------------------------------------------------
;[uart_para] boot debug port configuration
;uart_debug_port = uart port ID for boot debug
;----------------------------------------------------------------------------------
;origin
;[uart_para]
;uart_debug_port = 1
;uart_debug_tx   = port:PE21<4><1><default><default>
;uart_debug_rx   = port:PE22<4><1><default><default>

[uart_para]
uart_debug_port = 2
uart_debug_tx   = port:PB00<3><1><default><default>
uart_debug_rx   = port:PB01<3><1><default><default>

;uart_debug_port = 2
;uart_debug_tx   = port:PB00<2><1><default><default>
;uart_debug_rx   = port:PB01<2><1><default><default>


;card print
;uart_debug_tx    = port:PF02<3><1><default><default>
;uart_debug_rx    = port:PF04<3><1><default><default>


;----------------------------------------------------------------------------------
;[jtag_para] jtag configuration
;jtag_enable     = 0-disable jtag, 1-enable jtag
;----------------------------------------------------------------------------------
[jtag_para]
jtag_enable     = 0
jtag_ms         = port:PF00<3><default><default><default>
jtag_ck         = port:PF05<3><default><default><default>
jtag_do         = port:PF03<3><default><default><default>
jtag_di         = port:PF01<3><default><default><default>

;----------------------------------------------------------------------------------
;[clock] pll configuration
;----------------------------------------------------------------------------------
[clock]
pll3            = 297
pll4            = 300
pll6            = 600
pll8            = 360
pll9            = 480
pll10           = 297

;---------------------------------------------------------------------------------------------------------
;[pm_para] power management
;standby_mode = 0-normal standby, 1-super standby
;---------------------------------------------------------------------------------------------------------
[pm_para]
standby_mode		= 1

;----------------------------------------------------------------------------------
;sys_pwr_dm_para
;this para is used to change default sys_pwr_dm config when necessary.
;   allowed sys_pwr_dm is such as follow:
;		vdd-cpua
; 		vdd-cpub
; 		vdd-gpu
; 		vcc-dram
; 		vdd-sys
; 		which is compatible with pmu regu config. see: [pmu1_regu] for more info.
;   value: 0: del the pwr_dm from sys_pwr_dm_mask;
;	   1: add the pwr_dm into sys_pwr_dm_mask;
;----------------------------------------------------------------------------------
[sys_pwr_dm_para]
;vdd-cpua = 1
;vdd-sys  = 1

;----------------------------------------------------------------------------------
;dynamic_standby_para
;   enable:
;	value: 0: all config is ignored.
;	       1: all config is effective.
;   dram_selfresh_flag:
;	value: 0: dram will not enter selfresh,
;		    this config is used for stop dram entering selfresh, in case of dram memory have bug.
;	       1: dram will enter slefresh.
;
;----------------------------------------------------------------------------------
[dynamic_standby_para]
enable = 0
dram_selfresh_flag = 1
vdd_cpua_vol     = 1200
vdd_sys_vol      = 1200

;*****************************************************************************
;sdram configuration
;
;*****************************************************************************
[dram_para]
dram_clk        = 360
dram_type       = 2
dram_zq         = 0x39bb
dram_odt_en     = 0
dram_para1      = 0x10E20000
dram_para2      = 0x0000
dram_mr0        = 0x1840
dram_mr1        = 0x4
dram_mr2        = 0x18
dram_mr3        = 0x4
dram_tpr0       = 0x00832087
dram_tpr1       = 0x01C24085
dram_tpr2       = 0x0002A01D
dram_tpr3       = 0x0
dram_tpr4       = 0x0
dram_tpr5       = 0x0
dram_tpr6       = 0x0
dram_tpr7       = 0x0
dram_tpr8       = 0x0
dram_tpr9       = 0x0
dram_tpr10      = 0x0
dram_tpr11      = 0x220000
dram_tpr12      = 0x78
dram_tpr13      = 0x0d000000

;---------------------------------------------------------------------------------------------------------
; if 1 == standby_mode, then support super standby;
; else, support normal standby.
;---------------------------------------------------------------------------------------------------------
[pm_para]
standby_mode		= 0

;---------------------------------------------------------------------------------------------------------
; wakeup_src_para:
;	sometimes, u would like to add more wakeup src in standby mode, these para will be
;	help;
;	u need to make sure the standby mode support the wakeup src. Also, some hw
;	condition must be guaranteed.
;	including:
;	cpu_en: power on or off.
;		1: mean power on
;		0: mean power off
;	cpu_freq: indicating lowest freq. unit is Mhz;
;	dram selfresh_en: selfresh or not.
;		1: enable enter selfresh
;		0: disable enter selfresh
;	dram_pll: if not enter selfresh, indicating lowest freq. unit is Mhz;
;	wakeup_src: to make the scenario work, the wakeup src is needed.
;---------------------------------------------------------------------------------------------------------
[wakeup_src_para]
cpu_en		= 0
cpu_freq	= 48
; (cpu:apb:ahb)
pll_ratio	= 0x111
dram_selfresh_en= 1
dram_freq	= 36
wakeup_src_wl 	= port:PL07<4><default><default><0>
wakeup_src_bt 	= port:PL09<4><default><default><0>
bb_wake_ap	= port:PL02<4><default><default><0>

;----------------------------------------------------------------------------------
;i2c configuration
; twi_used = twix enable    ;; twi0->use pmu axp209 ,  twi1->use gsenor
;----------------------------------------------------------------------------------
[twi0]
twi_used        = 1
twi_scl         = port:PB06<2><default><default><default>
twi_sda         = port:PB07<2><default><default><default>

[twi1]
twi_used        = 0
twi_scl         = port:PB08<2><default><default><default>
twi_sda         = port:PB09<2><default><default><default>

;----------------------------------------------------------------------------------
;uart configuration
;uart_used = uart x enable
;uart_port = x; x is order number of ttySx
;uart_type       = 2:2 wire,4:4 wire,8:8 wire, full function
;----------------------------------------------------------------------------------
[uart0]
uart_used       = 1
uart_port       = 0
uart_type       = 2
uart_tx         = port:PB08<3><1><default><default>
uart_rx         = port:PB09<3><1><default><default>
;card print
;uart_tx         = port:PF02<3><1><default><default>
;uart_rx         = port:PF04<3><1><default><default>

[uart1]
uart_used       = 1
uart_port	    = 1
uart_type       = 2
uart_tx         = port:PE21<4><1><default><default>
uart_rx         = port:PE22<4><1><default><default>

[uart2]
uart_used       = 1
uart_port	    = 2
uart_type       = 2
uart_tx         = port:PB00<2><1><default><default>
uart_rx         = port:PB01<2><1><default><default>

;----------------------------------------------------------------------------------
;SPI controller configuration
;spi_used       = SPIx enable
;spi_cs_bitmap  = SPI bit mapping
;----------------------------------------------------------------------------------
[spi0]
spi_used       = 1
spi_cs_bitmap  = 1
spi_mosi       = port:PC03<3><default><default><default>
spi_miso       = port:PC00<3><default><default><default>
spi_sclk       = port:PC01<3><default><default><default>
spi_cs0        = port:PC02<3><1><default><default>

;----------------------------------------------------------------------------------
;SPI device configuration
;spi_dev_num: number of spi devices
;----------------------------------------------------------------------------------
[spi_devices]
spi_dev_num = 1

;----------------------------------------------------------------------------------
;[spi_board0] spi device configuration
;modalias      = spi device name
;max_speed_hz  = max transfer speed
;bus_num       = bus ID
;chip_select   = chip select, 0,1
;mode          = SPI transfer mode
; sflash_size- 16 : 16M nor flash size , 8 : 8M nor flash size
;----------------------------------------------------------------------------------
[spi_board0]
modalias      = "w25q128"
max_speed_hz  = 50000000
bus_num       = 0
chip_select   = 0
mode          = 0
sflash_size   = 16


;----------------------------------------------------------------------------------
;capacitor tp configuration
;ctp_twi_id : twi controller ID
;ctp_twi_addr : I2C slave address, 7bit
;ctp_screen_max_x/_y : resolution of touch panel
;ctp_revert_x/_y_flag : whether need to revert x/y
;ctp_exchange_x_y_flag: whether need to exchange the value of x and y
;ctp_int_port : port for tp's interrupt signal
;ctp_wakeup : port for wakeup tp
;----------------------------------------------------------------------------------
[ctp_para]
ctp_used            = 1
ctp_name            = "gt911_m785q6"
ctp_twi_id          = 0
ctp_twi_addr        = 0x48
ctp_screen_max_x    = 800
ctp_screen_max_y    = 480
ctp_revert_x_flag   = 0
ctp_revert_y_flag   = 0
ctp_exchange_x_y_flag = 1

ctp_int_port        = port:PG04<6><default><default><default>
ctp_wakeup          = port:PG03<1><default><default><1>

;--------------------------------------------------------------------------------
; CTP automatic detection configuration
;ctp_detect_used  --- Whether startup automatic inspection function. 1:used,0:unused
;Module name postposition 1 said detection, 0 means no detection.
;--------------------------------------------------------------------------------
[ctp_list_para]
ctp_det_used              = 0
gt911_ts                  = 1
ft5x_ts                   = 1
gt82x                     = 1
gslX680                   = 1
gt9xx_ts                  = 1
gt811                     = 1
zet622x                   = 1
aw5306_ts                 = 1

;----------------------------------------------------------------------------------
;touch key configuration
;tkey_twi_id : twi controller ID
;tkey_twi_addr : I2C slave address, 7bit
;tkey_int : port for touch key's interrupt signal
;----------------------------------------------------------------------------------
[tkey_para]
tkey_used           = 0
tkey_twi_id         =
tkey_twi_addr       =
tkey_int            =

;----------------------------------------------------------------------------------
;motor configuration
;motor_shake : port for making the moto shaking
;----------------------------------------------------------------------------------
[motor_para]
motor_used          = 0
motor_shake         = port:power3<1><default><default><1>

;----------------------------------------------------------------------------------
;cooler_table  cooler_count <=32
;----------------------------------------------------------------------------------
[cooler_table]
cooler_count = 4
cooler0 = "1340000 4 4294967295 0"
cooler1 = "1200000 4 4294967295 0"
cooler2 = "1008000 4 4294967295 0"
cooler3 =  "648000 4 4294967295 0"

;----------------------------------------------------------------------------------
;disp init configuration
;
;disp_mode             (0:screen0<screen0,fb0>)
;screenx_output_type   (0:none; 1:lcd; 3:hdmi;)
;screenx_output_mode   (used for hdmi output, 0:480i 1:576i 2:480p 3:576p 4:720p50)
;                      (5:720p60 6:1080i50 7:1080i60 8:1080p24 9:1080p50 10:1080p60)
;fbx format            (4:RGB655 5:RGB565 6:RGB556 7:ARGB1555 8:RGBA5551 9:RGB888 10:ARGB8888 12:ARGB4444)
;fbx pixel sequence    (0:ARGB 1:BGRA 2:ABGR 3:RGBA)
;fb0_scaler_mode_enable(scaler mode enable, used FE)
;fbx_width,fbx_height  (framebuffer horizontal/vertical pixels, fix to output resolution while equal 0)
;lcdx_backlight        (lcd init backlight,the range:[0,256],default:197
;lcdx_yy               (lcd init screen bright/contrast/saturation/hue, value:0~100, default:50/50/57/50)
;lcd0_contrast         (LCD contrast, 0~100)
;lcd0_saturation       (LCD saturation, 0~100)
;lcd0_hue              (LCD hue, 0~100)
;----------------------------------------------------------------------------------
[disp_init]
disp_init_enable         = 1
disp_mode                = 0

screen0_output_type      = 1
screen0_output_mode      = 4

screen1_output_type      = 1
screen1_output_mode      = 4

fb0_format               = 10
fb0_pixel_sequence       = 0
fb0_scaler_mode_enable   = 0
fb0_width                = 0
fb0_height               = 0

fb1_format               = 10
fb1_pixel_sequence       = 0
fb1_scaler_mode_enable   = 0
fb1_width                = 0
fb1_height               = 0

lcd0_backlight           = 102
lcd1_backlight           = 102

lcd0_bright              = 50
lcd0_contrast            = 50
lcd0_saturation          = 57
lcd0_hue                 = 50

lcd1_bright              = 50
lcd1_contrast            = 50
lcd1_saturation          = 57
lcd1_hue                 = 50

;----------------------------------------------------------------------------------
;lcd0 configuration

;lcd_if:               0:hv(sync+de); 1:8080; 2:ttl; 3:lvds; 4:dsi; 5:edp; 6:extend dsi
;lcd_x:                lcd horizontal resolution
;lcd_y:                lcd vertical resolution
;lcd_width:            width of lcd in mm
;lcd_height:           height of lcd in mm
;lcd_dclk_freq:        in MHZ unit
;lcd_pwm_freq:         in HZ unit
;lcd_pwm_pol:          lcd backlight PWM polarity
;lcd_pwm_max_limit     lcd backlight PWM max limit(<=255)
;lcd_hbp:              hsync back porch
;lcd_ht:               hsync total cycle
;lcd_vbp:              vsync back porch
;lcd_vt:               vysnc total cycle
;lcd_hspw:             hsync plus width
;lcd_vspw:             vysnc plus width
;lcd_lvds_if:          0:single link;  1:dual link
;lcd_lvds_colordepth:  0:8bit; 1:6bit
;lcd_lvds_mode:        0:NS mode; 1:JEIDA mode
;lcd_frm:              0:disable; 1:enable rgb666 dither; 2:enable rgb656 dither
;lcd_io_phase:         0:noraml; 1:intert phase(0~3bit: vsync phase; 4~7bit:hsync phase;
;                      8~11bit:dclk phase; 12~15bit:de phase)
;lcd_gamma_en          lcd gamma correction enable
;lcd_bright_curve_en   lcd bright curve correction enable
;lcd_cmap_en           lcd color map function enable
;deu_mode              0:smoll lcd screen; 1:large lcd screen(larger than 10inch)
;lcdgamma4iep:         Smart Backlight parameter, lcd gamma vale * 10;
;                      decrease it while lcd is not bright enough; increase while lcd is too bright
;smart_color           90:normal lcd screen 65:retina lcd screen(9.7inch)
;----------------------------------------------------------------------------------
[lcd0_para]
lcd_used            = 1

lcd_driver_name     = "default_lcd"
lcd_if              = 0
lcd_x               = 800
lcd_y               = 480
lcd_width           =
lcd_height          =
lcd_dclk_freq       = 33
lcd_pwm_used        = 1
lcd_pwm_ch          = 0
lcd_pwm_freq        = 50000
lcd_pwm_pol         = 1
lcd_hbp             = 46
lcd_ht              = 1055
lcd_hspw            = 0
lcd_vbp             = 23
lcd_vt              = 525
lcd_vspw            = 5
lcd_lvds_if         = 0
lcd_lvds_colordepth = 0
lcd_lvds_mode       = 0
lcd_frm             = 1
lcd_io_phase        = 0x0100
lcd_gamma_en        = 0
lcd_bright_curve_en = 0
lcd_cmap_en         = 0

deu_mode            = 0
lcdgamma4iep        = 22
smart_color        = 90

lcd_bl_en           = port:PB4<1><0><default><1>
lcd_power           = ""

lcdd2               = port:PE04<3><0><default><default>
lcdd3               = port:PE05<3><0><default><default>
lcdd4               = port:PE06<3><0><default><default>
lcdd5               = port:PE07<3><0><default><default>
lcdd6               = port:PE08<3><0><default><default>
lcdd7               = port:PE09<3><0><default><default>
lcdd10              = port:PE10<3><0><default><default>
lcdd11              = port:PE11<3><0><default><default>
lcdd12              = port:PE12<3><0><default><default>
lcdd13              = port:PE13<3><0><default><default>
lcdd14              = port:PE14<3><0><default><default>
lcdd15              = port:PE15<3><0><default><default>
lcdd18              = port:PE16<3><0><default><default>
lcdd19              = port:PE17<3><0><default><default>
lcdd20              = port:PE18<3><0><default><default>
lcdd21              = port:PE19<3><0><default><default>

lcdd22              = port:PE23<3><0><default><default>
lcdd23              = port:PE24<3><0><default><default>

lcdclk              = port:PE00<3><0><3><default>
lcdde               = port:PE01<3><0><3><default>
lcdhsync            = port:PE02<3><0><3><default>
lcdvsync            = port:PE03<3><0><3><default>
;----------------------------------------------------------------------------------
;pwm config
;----------------------------------------------------------------------------------
[pwm0_para]
pwm_used            = 1
pwm_positive        = port:PB04<2><0><default><default>

[pwm1_para]
pwm_used            = 0
pwm_positive        = port:PH01<2><0><default><default>

;------------------------------------------------------------------------------;
; 10/100/100Mbps Ethernet MAC Controller Configure                             ;
;------------------------------------------------------------------------------;
;   Options:                                                                   ;
;   gmac_used  ---  0: not used, 1: external phy, 2: internal phy              ;
;   gmac_powerx --  A[:B] A: axp channel, B: voltage value                     ;
;       If set gamc_phy to use internal PHY, do not config port                ;
;------------------------------------------------------------------------------;
;         MII        RMII         MII        RMII         MII        RMII      ;
;   PD00  *                 PD06   *           *    PD12   *           *       ;
;   PD01  *                 PD07   *                PD13   *           *       ;
;   PD02  *            *    PD08   *                PD14   *                   ;
;   PD03  *            *    PD09   *           *    PD15   *                   ;
;   PD04  *                 PD10   *           *    PD16   *           *       ;
;   PD05  *                 PD11   *           *    PD17   *           *       ;
;------------------------------------------------------------------------------;
[gmac0]
gmac_used          = 2
gmac_power1        =

;--------------------------------------------------------------------------------
;vip (video input port) configuration
;vip_used: 0:disable 1:enable
;vip_mode: 0:sample one interface to one buffer 1:sample two interface to one buffer
;vip_dev_qty: The quantity of devices linked to capture bus
;
;vip_define_sensor_list: If you want use sensor detect function, please set vip_define_sensor_list = 1, and
;                                    verify that file /system/etc/hawkview/sensor_list_cfg.ini is properly configured!
;
;vip_dev(x)_pos: sensor position, "rear" or "front", if vip_define_sensor_list = 1,vip_dev(x)_pos must be configured!
;
;vip_dev(x)_isp_used 0:not use isp 1:use isp
;vip_dev(x)_fmt: 0:yuv 1:bayer raw rgb
;vip_dev(x)_stby_mode: 0:not shut down power at standby 1:shut down power at standby
;vip_dev(x)_vflip: flip in vertical direction 0:disable 1:enable
;vip_dev(x)_hflip: flip in horizontal direction 0:disable 1:enable
;vip_dev(x)_iovdd: camera module io power handle string, pmu power supply
;vip_dev(x)_iovdd_vol: camera module io power voltage, pmu power supply
;vip_dev(x)_avdd: camera module analog power handle string, pmu power supply
;vip_dev(x)_avdd_vol: camera module analog power voltage, pmu power supply
;vip_dev(x)_dvdd: camera module core power handle string, pmu power supply
;vip_dev(x)_dvdd_vol: camera module core power voltage, pmu power supply
;vip_dev(x)_afvdd: camera module vcm power handle string, pmu power supply
;vip_dev(x)_afvdd_vol: camera module vcm power voltage, pmu power supply
;x indicates the index of the devices which are linked to the same capture bus
;fill voltage in uV, e.g. iovdd = 2.8V, vip_devx_iovdd_vol = 2800000
;fill handle string as below:
;axp22_eldo3
;axp22_dldo4
;axp22_eldo2
;fill handle string "" when not using any pmu power supply
;--------------------------------------------------------------------------------

[csi0]
vip_used                 = 1
vip_mode                 = 0
vip_dev_qty              = 1
vip_define_sensor_list   = 0
vip_csi_mck              = port:PE20<3><default><default><default>
vip_csi_sck              = port:PE21<2><default><default><default>
vip_csi_sda              = port:PE22<2><default><default><default>
vip_dev0_mname           = "h22_mipi"
vip_dev0_pos             = "rear"
vip_dev0_lane            = 1
vip_dev0_twi_id          = 0
vip_dev0_twi_addr        = 0x60
vip_dev0_isp_used        = 1
vip_dev0_fmt             = 1
vip_dev0_stby_mode       = 0
vip_dev0_vflip           = 0
vip_dev0_hflip           = 0
vip_dev0_iovdd           = ""
vip_dev0_iovdd_vol       = 3000000
vip_dev0_avdd            = "csi-avdd"
vip_dev0_avdd_vol        = 3000000
vip_dev0_dvdd            = "csi-dvdd"
vip_dev0_dvdd_vol        = 3000000
vip_dev0_afvdd           = ""
vip_dev0_afvdd_vol       = 2800000
vip_dev0_power_en        =
vip_dev0_reset           = port:PG00<1><default><default><default>
vip_dev0_pwdn            = port:PG01<1><default><default><default>
vip_dev0_flash_en        =
vip_dev0_flash_mode      =
vip_dev0_af_pwdn         =
vip_dev0_act_used        = 0
vip_dev0_act_name        = "dw9714_act"
vip_dev0_act_slave       = 0x18
vip_dev1_mname           = ""
vip_dev1_pos                 = "front"
vip_dev1_lane            = 1
vip_dev1_twi_id          = 0
vip_dev1_twi_addr        =
vip_dev1_isp_used        = 0
vip_dev1_fmt             = 1
vip_dev1_stby_mode       = 0
vip_dev1_vflip           = 0
vip_dev1_hflip           = 0
vip_dev1_iovdd           = ""
vip_dev1_iovdd_vol       = 2800000
vip_dev1_avdd            = ""
vip_dev1_avdd_vol        = 2800000
vip_dev1_dvdd            = ""
vip_dev1_dvdd_vol        = 1500000
vip_dev1_afvdd           = ""
vip_dev1_afvdd_vol       = 2800000
vip_dev1_power_en        =
vip_dev1_reset           =
vip_dev1_pwdn            =
vip_dev1_flash_en        =
;fill handle string as below:
;axp22_eldo3
;axp22_dldo4
;axp22_eldo2
;fill handle string "" when not using any pmu power supply
;--------------------------------------------------------------------------------

[csi0]

vip_used                 = 1
vip_mode                 = 0
vip_dev_qty              = 1
vip_define_sensor_list   = 0
vip_csi_mck              = port:PE20<3><default><default><default>
vip_csi_sck              = port:PE21<2><default><default><default>
vip_csi_sda              = port:PE22<2><default><default><default>
vip_dev0_mname           = "h22_mipi"
vip_dev0_pos             = "rear"
vip_dev0_lane            = 1
vip_dev0_twi_id          = 0
vip_dev0_twi_addr        = 0x60
vip_dev0_isp_used        = 1
vip_dev0_fmt             = 1
vip_dev0_stby_mode       = 0
vip_dev0_vflip           = 0
vip_dev0_hflip           = 0
vip_dev0_iovdd           = ""
vip_dev0_iovdd_vol       = 3000000
vip_dev0_avdd            = "csi-avdd"
vip_dev0_avdd_vol        = 3000000
vip_dev0_dvdd            = "csi-dvdd"
vip_dev0_dvdd_vol        = 3000000
vip_dev0_afvdd           = ""
vip_dev0_afvdd_vol       = 2800000
vip_dev0_power_en        =
vip_dev0_reset           = port:PG00<1><default><default><default>
vip_dev0_pwdn            = port:PG01<1><default><default><default>
vip_dev0_flash_en        =
vip_dev0_flash_mode      =
vip_dev0_af_pwdn         =
vip_dev0_act_used        = 0
vip_dev0_act_name        = "dw9714_act"
vip_dev0_act_slave       = 0x18
vip_dev1_mname           = ""
vip_dev1_pos                 = "front"
vip_dev1_lane            = 1
vip_dev1_twi_id          = 0
vip_dev1_twi_addr        =
vip_dev1_isp_used        = 0
vip_dev1_fmt             = 1
vip_dev1_stby_mode       = 0
vip_dev1_vflip           = 0
vip_dev1_hflip           = 0
vip_dev1_iovdd           = ""
vip_dev1_iovdd_vol       = 2800000
vip_dev1_avdd            = ""
vip_dev1_avdd_vol        = 2800000
vip_dev1_dvdd            = ""
vip_dev1_dvdd_vol        = 1500000
vip_dev1_afvdd           = ""
vip_dev1_afvdd_vol       = 2800000
vip_dev1_power_en        =
vip_dev1_reset           =
vip_dev1_pwdn            =
vip_dev1_flash_en        =
vip_dev1_flash_mode      =
vip_dev1_af_pwdn         =

[csi1]
vip_used                 = 0
vip_mode                 = 0
vip_dev_qty              = 1
vip_define_sensor_list   = 0
vip_csi_pck              = port:PE00<2><default><default><default>
vip_csi_mck              = port:PE01<2><default><default><default>
vip_csi_hsync            = port:PE02<2><default><default><default>
vip_csi_vsync            = port:PE03<2><default><default><default>
vip_csi_d0               = port:PE04<2><default><default><default>
vip_csi_d1               = port:PE05<2><default><default><default>
vip_csi_d2               = port:PE06<2><default><default><default>
vip_csi_d3               = port:PE07<2><default><default><default>
vip_csi_d4               = port:PE08<2><default><default><default>
vip_csi_d5               = port:PE09<2><default><default><default>
vip_csi_d6               = port:PE10<2><default><default><default>
vip_csi_d7               = port:PE11<2><default><default><default>
vip_csi_d8               = port:PE12<2><default><default><default>
;vip_csi_d9               = port:PE13<2><default><default><default>
vip_csi_d10               = port:PE14<2><default><default><default>
vip_csi_d11               = port:PE15<2><default><default><default>

vip_csi_sck               = port:PE21<2><default><default><default>
vip_csi_sda               = port:PE22<2><default><default><default>

vip_dev0_mname           = "ov5640"
vip_dev0_pos             = "front"
vip_dev0_twi_id          = 4
vip_dev0_twi_addr        = 0x78
vip_dev0_isp_used        = 0
vip_dev0_fmt             = 0
vip_dev0_stby_mode       = 0
vip_dev0_vflip           = 0
vip_dev0_hflip           = 0
vip_dev0_iovdd           = ""
vip_dev0_iovdd_vol       = 2800000
vip_dev0_avdd            = ""
vip_dev0_avdd_vol        = 2800000
vip_dev0_dvdd            = ""
vip_dev0_dvdd_vol        = 1500000
vip_dev0_afvdd           = ""
vip_dev0_afvdd_vol       = 2800000
vip_dev0_power_en        =
vip_dev0_reset           = port:PE23<1><default><default><default>
vip_dev0_pwdn            = port:PE24<1><default><default><default>
vip_dev0_flash_en        =
vip_dev0_flash_mode      =
vip_dev0_af_pwdn         =

vip_dev0_act_used        = 0
vip_dev0_act_name        = "ad5820_act"
vip_dev0_act_slave       = 0x18

vip_dev1_mname           = "gc2035"
vip_dev1_pos                 = "front"
vip_dev1_lane            = 1
vip_dev1_twi_id          = 4
vip_dev1_twi_addr        = 0x78
vip_dev1_isp_used        = 0
vip_dev1_fmt             = 1
vip_dev1_stby_mode       = 0
vip_dev1_vflip           = 0
vip_dev1_hflip           = 0
vip_dev1_iovdd           = ""
vip_dev1_iovdd_vol       = 2800000
vip_dev1_avdd            = ""
vip_dev1_avdd_vol        = 2800000
vip_dev1_dvdd            = ""
vip_dev1_dvdd_vol        = 1500000
vip_dev1_afvdd           = ""
vip_dev1_afvdd_vol       = 2800000
vip_dev1_power_en        =
vip_dev1_reset           =
vip_dev1_pwdn            =
vip_dev1_flash_en        =
vip_dev1_flash_mode      =
vip_dev1_af_pwdn         =
;-------------------------------------------------------------------------------
;   mmc configuration
;
;   Config Guide
;   sdc_used:      1-enable card, 0-disable card
;   sdc_detmode:   card detect mode
;                  1-detect card by gpio polling
;                  2-detect card by gpio irq(must use IO with irq function)
;                  3-no detect, always in for boot card
;                  4-manually insert and remove by /proc/driver/sunxi-mmc.x/insert
;   sdc_buswidth:  card bus width, 1-1bit, 4-4bit, 8-8bit
;   sdc_use_wp:    1-with write protect IO, 0-no write protect IO
;   sdc_isio:      for sdio card
;   sdc_regulator: power control.if card supports UHS-I/DDR and HS200 timing for
;                  SD3.0 or eMMC4.5, regulator must be configured. the value is
;                  the ldo name of AXP221, eg: sdc_regulator = "axp22_eldo2"
;   other: GPIO Mapping configuration
;
;   Note:
;   1 if detmode=2, sdc_det's config=6
;     else if detmode=1, sdc_det's config=0
;     else sdc_det IO is not necessary
;   2 if the customer wants to support UHS-I and HS200 features, he must provide
;     an independent power supply for the card. This is only used in platforms
;     that supports SD3.0 cards and eMMC4.4+ flashes
;-------------------------------------------------------------------------------
[mmc0_para]
sdc_used          = 1
sdc_detmode       = 3
sdc_buswidth      = 4
sdc_d1            = port:PF00<2><1><2><default>
sdc_d0            = port:PF01<2><1><2><default>
sdc_clk           = port:PF02<2><1><2><default>
sdc_cmd           = port:PF03<2><1><2><default>
sdc_d3            = port:PF04<2><1><2><default>
sdc_d2            = port:PF05<2><1><2><default>
sdc_det           = port:PF06<0><1><default><default>
sdc_use_wp        = 0
sdc_wp            =
sdc_isio          = 0
sdc_regulator     = "none"

[mmc1_para]
sdc_used          = 0
sdc_detmode       = 4
sdc_buswidth      = 4
sdc_clk           = port:PG00<2><1><1><default>
sdc_cmd           = port:PG01<2><1><1><default>
sdc_d0            = port:PG02<2><1><1><default>
sdc_d1            = port:PG03<2><1><1><default>
sdc_d2            = port:PG04<2><1><1><default>
sdc_d3            = port:PG05<2><1><1><default>
sdc_det           =
sdc_use_wp        = 0
sdc_wp            =
sdc_isio          = 1
sdc_regulator     = "none"

[mmc2_para]
sdc_used          = 0
sdc_detmode       = 3
sdc_buswidth      = 8
sdc_clk           = port:PC00<2><1><2><default>
sdc_cmd           = port:PC01<2><1><2><default>
sdc_d0            = port:PC03<2><1><2><default>
sdc_d1            = port:PC04<2><1><2><default>
sdc_d2            = port:PC05<2><1><2><default>
sdc_d3            = port:PC06<2><1><2><default>
sdc_d4            = port:PC07<2><1><2><default>
sdc_d5            = port:PC08<2><1><2><default>
sdc_d6            = port:PC09<2><1><2><default>
sdc_d7            = port:PC10<2><1><2><default>
emmc_rst          = port:PC02<2><1><2><default>
sdc_det           =
sdc_use_wp        = 0
sdc_wp            =
sdc_isio          = 0
sdc_regulator     = "none"

;----------------------------------------------------------------------------------
;usb configuration
;usb_used:          usb controller enable, 0-disable, 1-enable
;usb_port_type:     usb mode: 0-device, 1-host, 2-otg
;usb_detect_type:   usb hotplug detect mode, 0-none, 1-vbus/id detect, 2-id/dpdm detect
;usb_id_gpio:       usb id detect IO
;usb_det_vbus_gpio: usb vbus detect IO, "axp_ctrl" for axp
;usb_drv_vbus_gpio: usb dirve vbus IO
;usb_restrict_gpio: usb current restrict IO
;usb_restric_flag:  usb current restrict flag
;----------------------------------------------------------------------------------
[usbc0]
usb_used            = 1
usb_port_type       = 2
usb_detect_type     = 1
usb_id_gpio         = port:PF6<0><1><default><default>
usb_det_vbus_gpio   = port:PF6<0><1><default><default>
usb_drv_vbus_gpio   = port:PG3<1><0><default><0>
usb_restrict_gpio   =
usb_host_init_state = 0
usb_restric_flag    = 0
usb_restric_voltage = 3550000
usb_restric_capacity= 5
usb_regulator_io    = "nocare"
usb_regulator_vol   = 0
usb_not_suspend     = 0
;----------------------------------------------------------------------------------

; USB Device vendor Info.
;----------------------------------------------------------------------------------
[usb_feature]
vendor_id           = 0x18D1
mass_storage_id     = 0x0001
adb_id              = 0x0002

manufacturer_name   = "USB Developer"
product_name        = "Android"
serial_number       = "20080411"

[msc_feature]
vendor_name         = "USB 2.0"
product_name        = "USB Flash Driver"
release             = 100
luns                = 1

[serial_feature]
serial_unique       = 0

;--------------------------------------------------------------------------------
; G sensor configuration
; gs_twi_id	---  TWI ID for controlling Gsensor (0: TWI0, 1: TWI1, 2: TWI2)
;--------------------------------------------------------------------------------
[gsensor_para]
gsensor_used        = 0
gsensor_twi_id      = 0
;gsensor_twi_addr    = 0x18
gsensor_twi_addr    = 0x27
gsensor_int1        =
gsensor_int2        =

;--------------------------------------------------------------------------------
; G sensor automatic detection configuration
;gsensor_detect_used  --- Whether startup automatic inspection function. 1:used,0:unused
;Module name postposition 1 said detection, 0 means no detection.
;--------------------------------------------------------------------------------
[gsensor_list_para]
gsensor_det_used          = 0
bma250                    = 1
da380					  = 1
mma8452                   = 1
mma7660                   = 1
mma865x                   = 1
afa750                    = 1
lis3de_acc                = 1
lis3dh_acc                = 1
kxtik                     = 1
dmard10                   = 0
dmard06                   = 1
mxc622x                   = 1
fxos8700                  = 1
lsm303d                   = 1

;--------------------------------------------------------------------------------
; gps gpio configuration
; gps_spi_id:     the index of SPI controller. 0: SPI0, 1: SPI1, 2: SPI2, 15: no SPI used
; gps_spi_cs_num: the chip select number of SPI controller. 0: SPI CS0, 1: SPI CS1
; gps_lradc:      the lradc number for GPS used. 0 and 1 is valid, set 2 if not use lradc
;--------------------------------------------------------------------------------
[gps_para]

;--------------------------------------------------------------------------------
;wifi configuration
;wifi_sdc_id:    0- SDC0, 1- SDC1, 2- SDC2, 3- SDC3
;wifi_usbc_id:   0- USB0, 1- USB1, 2- USB2
;wifi_usbc_type: 1- EHCI(speed 2.0), 2- OHCI(speed 1.0)
;wifi_mod_sel:   0- none, 1- ap6181, 2- ap6210(wifi+bt),
;                3 - rtl8188eu, 4- rtl8723au(wifi+bt)
;--------------------------------------------------------------------------------
[wifi_para]
wifi_used          = 0
wifi_sdc_id        = 1
wifi_usbc_id       = 1
wifi_usbc_type     = 1
wifi_mod_sel       = 2
wifi_power         = ""

; 1 - ap6181 sdio wifi gpio config
;ap6xxx_wl_regon      = port:PL06<1><default><default><0>
;ap6xxx_wl_host_wake  = port:PL07<4><default><default><0>

; 2 - ap6210 sdio wifi gpio config
ap6xxx_wl_regon      = port:PL06<1><default><default><0>
ap6xxx_wl_host_wake  = port:PL07<4><default><default><0>
ap6xxx_bt_regon      = port:PL08<1><default><default><0>
ap6xxx_bt_wake       = port:PL10<1><default><default><0>
ap6xxx_bt_host_wake  = port:PL09<4><default><default><0>
ap6xxx_lpo_use_apclk = 1

; 3 - rtl8188eu usb wifi gpio conifg

; 4 - rtl8723au usb wifi + bt

;--------------------------------------------------------------------------------
;light sensor
;--------------------------------------------------------------------------------
[ls_para]
ls_used             = 0
ls_twi_id           = 1
ls_twi_addr         = 0x23
ls_int              = port:PB07<4><1><default><default>

;--------------------------------------------------------------------------------
; lsensor automatic detection configuration
;ls_detect_used  --- Whether startup automatic inspection function. 1:used,0:unused
;Module name postposition 1 said detection, 0 means no detection.
;--------------------------------------------------------------------------------
[ls_list_para]
ls_det_used          = 0
ltr_501als           = 1
jsa1212              = 1

;--------------------------------------------------------------------------------
;compass
;--------------------------------------------------------------------------------
[compass_para]
compass_used        = 0
compass_twi_id      = 1
compass_twi_addr    = 0x0d
compass_int         =

;--------------------------------------------------------------------------------
;daudio_master:1: SND_SOC_DAIFMT_CBM_CFM(codec clk & FRM master)        use
;			2: SND_SOC_DAIFMT_CBS_CFM(codec clk slave & FRM master)  not use
;			3: SND_SOC_DAIFMT_CBM_CFS(codec clk master & frame slave) not use
;			4: SND_SOC_DAIFMT_CBS_CFS(codec clk & FRM slave)         use
;daudio_select:0 is pcm.1 is i2s
;audio_format: 1:SND_SOC_DAIFMT_I2S(standard i2s format).            use
;			   2:SND_SOC_DAIFMT_RIGHT_J(right justfied format).
;			   3:SND_SOC_DAIFMT_LEFT_J(left justfied format)
;			   4:SND_SOC_DAIFMT_DSP_A(pcm. MSB is available on 2nd BCLK rising edge after LRC rising edge). use
;			   5:SND_SOC_DAIFMT_DSP_B(pcm. MSB is available on 1nd BCLK rising edge after LRC rising edge)
;signal_inversion:1:SND_SOC_DAIFMT_NB_NF(normal bit clock + frame)  use
;				  2:SND_SOC_DAIFMT_NB_IF(normal BCLK + inv FRM)
;				  3:SND_SOC_DAIFMT_IB_NF(invert BCLK + nor FRM)  use
;				  4:SND_SOC_DAIFMT_IB_IF(invert BCLK + FRM)
;over_sample_rate: support 128fs/192fs/256fs/384fs/512fs/768fs
;sample_resolution	:16bits/20bits/24bits
;word_select_size 	:16bits/20bits/24bits/32bits
;pcm_sync_period 	:16/32/64/128/256
;msb_lsb_first 		:0: msb first; 1: lsb first
;sign_extend 		:0: zero pending; 1: sign extend
;slot_index 		:slot index: 0: the 1st slot - 3: the 4th slot
;slot_width 		:8 bit width / 16 bit width
;frame_width 		:0: long frame = 2 clock width;  1: short frame
;tx_data_mode 		:0: 16bit linear PCM; 1: 8bit linear PCM; 2: 8bit u-law; 3: 8bit a-law
;rx_data_mode 		:0: 16bit linear PCM; 1: 8bit linear PCM; 2: 8bit u-law; 3: 8bit a-law
;--------------------------------------------------------------------------------
[tdm0]
daudio_used         = 0
daudio_master       = 4
daudio_select       = 1
audio_format        = 1
signal_inversion    = 1
mclk_fs             = 512
sample_resolution   = 16
slot_width_select   = 16
pcm_lrck_period     = 32
pcm_lrckr_period    = 1
msb_lsb_first 	    = 0
sign_extend         = 0
slot_index          = 0
slot_width          = 16
frame_width         = 1
tx_data_mode        = 0
rx_data_mode        = 0
;i2s_mclk           = port:PB08<2><1><default><default>
i2s_bclk            = port:PG11<2><1><default><default>
i2s_lrclk           = port:PG10<2><1><default><default>
i2s_dout0           = port:PG12<2><1><default><default>
i2s_dout1           =
i2s_dout2           =
i2s_dout3           =
i2s_din             = port:PG13<2><1><default><default>

;--------------------------------------------------------------------------------------
;pa_single_vol,pa_double_vol: 31 level,1.5db/step.0x1f is the large volume.
;cap_val:use for system record,0x0--0db,0x1--24db,0x2--27db,0x3--30db,0x4--33db,0x5--36db,0x6--39db,0x7--42db
;headphone_vol,earpiece_vol: must least than 0x3b. 0x1 is a step.
;headset_mic_vol: headset mic(mic2) vol,use for phone headset mic call
;main_mic_vol: main mic(mic1) vol,use for phone main mic call
;version_v3_used : 1:v3,0:v3s
[audio0]
;audio_used           = 1
headphone_vol			= 0x3b

cap_vol					= 0x5
Differential_output    = 1
pa_single_vol			= 0x3d
pa_double_used			= 0
pa_double_vol			= 0x1f
headphone_direct_used	= 0
phone_mic_vol = 0x6
version_v3_used = 0
headphone_mute_used = 0
audio_hp_ldo       = 0
;v3s
audio_pa_ctrl         = port:PB05<1><default><default><0>

adcagc_used       = 0
adcdrc_used       = 0
dacdrc_used       = 0
adchpf_used       = 0
dachpf_used       = 0

;----------------------------------------------------------------------------------
;ir --- infra remote configuration
;----------------------------------------------------------------------------------
[s_ir0]
ir_used             = 0
ir_rx               = port:PL04<2><1><default><default>


;-------------------------------------------------------------------------------------
;pmu_used                    ---0:not used,1:used
;pmu_id                      ---0:axp19x,1:axp209,2:axp22x,3:axp806,4:axp808,5:axp809,6:axp803,7:axp813
;pmu_twi_addr                ---slave address
;pmu_twi_id                  ---i2c bus number (0 TWI0, 1 TWI2, 2 TWI3)
;pmu_irq_id		     ---irq number (0 irq0,1 irq1,…\E2\80?
;pmu_battery_rdc             ---battery initial resistance
;pmu_battery_cap             ---battery capability,mAh
;pmu_batdeten		     ---battery detect en;0:disable 1:enable
;pmu_runtime_chgcur          ---set initial charging current limite,mA\EF\BC?00/450/600/750/900/1050/1200/1350/1500/1650/1800/1950/
;pmu_earlysuspend_chgcur     ---set earlysuspend charging current limite,mA\EF\BC?00/450/600/750/900/1050/1200/1350/1500/1650/1800/1950/
;pmu_suspend_chgcur          ---set suspend charging current limite,mA\EF\BC?00/450/600/750/900/1050/1200/1350/1500/1650/1800/1950/
;pmu_shutdown_chgcur         ---set shutdown charging current limite,mA\EF\BC?00/450/600/750/900/1050/1200/1350/1500/1650/1800/1950/
;pmu_init_chgvol             ---set initial charing target voltage,mV,4100/4220/4200/4240
;pmu_init_chgend_rate        ---set initial charing end current  rate,10/15
;pmu_init_chg_enabled        ---set initial charing enabled,0:disable,1:enable
;pmu_init_adc_freq           ---set initial adc frequency,Hz,100/200/400/800
;pmu_init_adcts_freq         ---set initial adc TS,Hz,100/200/400/800
;pmu_init_chg_pretime        ---set initial pre-charging time,min,40/50/60/70
;pmu_init_chg_csttime        ---set initial constance-charging time,min,360/480/600/720
;pmu_batt_cap_correct	     ---correct the battery capacity or not when one charge cycle 0:not correct 1:correct
;pmu_bat_regu_en			 ---bat regulator is enable or not when charge done 0:disable 1:enable
;pmu_bat_para1 		     			 ---battery indication at 3.13V
;pmu_bat_para2               ---battery indication at 3.27V
;pmu_bat_para3               ---battery indication at 3.34V
;pmu_bat_para4               ---battery indication at 3.41V
;pmu_bat_para5               ---battery indication at 3.48V
;pmu_bat_para6               ---battery indication at 3.52V
;pmu_bat_para7               ---battery indication at 3.55V
;pmu_bat_para8               ---battery indication at 3.57V
;pmu_bat_para9               ---battery indication at 3.59V
;pmu_bat_para10              ---battery indication at 3.61V
;pmu_bat_para11              ---battery indication at 3.63V
;pmu_bat_para12              ---battery indication at 3.64V
;pmu_bat_para13              ---battery indication at 3.66V
;pmu_bat_para14              ---battery indication at 3.7V
;pmu_bat_para15              ---battery indication at 3.73V
;pmu_bat_para16              ---battery indication at 3.77V
;pmu_bat_para17              ---battery indication at 3.78V
;pmu_bat_para18              ---battery indication at 3.8V
;pmu_bat_para19              ---battery indication at 3.82V
;pmu_bat_para20              ---battery indication at 3.84V
;pmu_bat_para21              ---battery indication at 3.85V
;pmu_bat_para22              ---battery indication at 3.87V
;pmu_bat_para23              ---battery indication at 3.91V
;pmu_bat_para24              ---battery indication at 3.94V
;pmu_bat_para25              ---battery indication at 3.98V
;pmu_bat_para26              ---battery indication at 4.01V
;pmu_bat_para27              ---battery indication at 4.05V
;pmu_bat_para28              ---battery indication at 4.08V
;pmu_bat_para29              ---battery indication at 4.1V
;pmu_bat_para30              ---battery indication at 4.12V
;pmu_bat_para31              ---battery indication at 4.14V
;pmu_bat_para32              ---battery indication at 4.15V
;pmu_usbvol_limit            ---set usb-ac limited voltage enable,1:enable\EF\BC?：disable
;pmu_usbcur_limit            ---set usb-ac limited current enable,1:enable\EF\BC?：disable
;pmu_usbvol                  ---set usb-ac limited voltage level,mV,4000/4100/4200/4300/4400/4500/4600/4700,0 - not limite
;pmu_usbcur                  ---set usb-ac limited current level,mA,500/900, 0 - not limite
;pmu_usbvol_pc	             ---set usb-pc limited voltage level,mV,4000/4100/4200/4300/4400/4500/4600/4700,0 - not limite
;pmu_usbcur_pc               ---set usb-pc limited current level,mA,500/900, 0 - not limite
;pmu_pwroff_vol              ---set protect voltage when system start up,mV,2600/2700/2800/2900/3000/3100/3200/3300
;pmu_pwron_vol               ---set protect voltage after system start up,mV,2600/2700/2800/2900/3000/3100/3200/3300
;pmu_pekoff_time             ---set pek off time,ms, 4000/6000/8000/10000
;pmu_pekoff_func             ---set pek off func, 0:shutdown,1:restart
;pmu_pekoff_en		     ---set pek offlevel powerdown or not, 0:not powerdown,1:powerdown
;pmu_peklong_time            ---set pek pek long irq time,ms,1000/1500/2000/2500
;pmu_pekon_time              ---set pek on time,ms,128/1000/2000/3000
;pmu_pwrok_time              ---set pmu pwrok delay time,ms,8/16/32/64
;pmu_battery_warning_level1  ---low power warning high level,5%-20%,1%/step
;pmu_battery_warning_level2  ---low power warning low level,0%-15%,1%/step
;pmu_restvol_time            ---battery indicaton reflash time,30/60/120/
;pmu_ocv_cou_adjust_time     ---ocv battery indication reflash time,60/120/30
;pmu_chgled_func             ---CHGKED pin control\EF\BC?:controlled by pmu,1:controlled by Charger
;pmu_chgled_type             ---CHGLED Type select when pmu_chgled_func=0,0:Type A\EF\BC?：Type B
;pmu_vbusen_func	     ---N_VBUSEN function select,0:as an output,1:as an input
;pmu_reset                   ---when power key press longer than 16's,PMU reset or not.0:not reset 1:reset
;pmu_IRQ_wakeup		     ---press IRQ wakeup or not when sleep or power down.0:not wakeup 1:wakeup
;pmu_hot_shutdowm            ---when PMU over temperature protect or not;0:disable 1:enable
;pmu_inshort		     ---ACIN and VBUS inshort or not by software;0:auto detect 1:inshort
;pmu_temp_enable             ---temp detect enable
;pmu_charge_ltf              ---charge temp low threshold voltage
;pmu_charge_htf              ---charge temp high threshold voltage
;pmu_discharge_ltf           ---shutdown temp low threshold voltage
;pmu_discharge_htf           ---shutdown temp high threshold voltage
;pmu_temp_para1              --- temp -25 voltage
;pmu_temp_para2              --- temp -15 voltage
;pmu_temp_para3              --- temp -10 voltage
;pmu_temp_para4              --- temp -5  voltage
;pmu_temp_para5              --- temp  0  voltage
;pmu_temp_para6              --- temp  5  voltage
;pmu_temp_para7              --- temp  10 voltage
;pmu_temp_para8              --- temp  20 voltage
;pmu_temp_para9              --- temp  30 voltage
;pmu_temp_para10             --- temp  40 voltage
;pmu_temp_para11             --- temp  45 voltage
;pmu_temp_para12             --- temp  50 voltage
;pmu_temp_para13             --- temp  55 voltage
;pmu_temp_para14             --- temp  60 voltage
;pmu_temp_para15             --- temp  70 voltage
;pmu_temp_para16             --- temp  80 voltage
;--------------------------------------------------------------------------------------------------------
[pmu1_para]
pmu_used                   = 1
pmu_id                     = 1
pmu_twi_addr               = 0x34
pmu_twi_id                 = 0
pmu_irq_id                 = 0
pmu_irq_gpio			   = port:PG05<6><default><default><default>
pmu_battery_rdc            = 249
pmu_battery_cap            = 183
pmu_batdeten               = 1
pmu_runtime_chgcur         = 150
pmu_earlysuspend_chgcur    = 150
pmu_suspend_chgcur         = 150
pmu_shutdown_chgcur        = 150
pmu_init_chgvol            = 4200
pmu_init_chgend_rate       = 15
pmu_init_chg_enabled       = 1
pmu_init_adc_freq          = 100
pmu_init_chg_pretime       = 50
pmu_init_chg_csttime       = 720
pmu_battery_warning1        = 3650
pmu_battery_warning2       = 3600


pmu_bat_para1=0
pmu_bat_para2=0
pmu_bat_para3=0
pmu_bat_para4=0
pmu_bat_para5=8
pmu_bat_para6=16
pmu_bat_para7=25
pmu_bat_para8=37
pmu_bat_para9=47
pmu_bat_para10=55
pmu_bat_para11=61
pmu_bat_para12=68
pmu_bat_para13=79
pmu_bat_para14=87
pmu_bat_para15=94
pmu_bat_para16=100

pmu_usbvol_limit           = 1
pmu_usbcur_limit           = 0
pmu_usbvol                 = 4000
pmu_usbcur                 = 0
pmu_usbvol_pc            = 4000
pmu_usbcur_pc            = 0
pmu_pwroff_vol             = 3300
pmu_pwron_vol            = 2900
pmu_pekoff_time            = 6000
pmu_pekoff_en              = 1
pmu_peklong_time           = 1500
pmu_pekon_time             = 1000
pmu_pwrok_time             = 64
pmu_pwrnoe_time          = 2000
pmu_hot_shutdown            = 1
pmu_suspendpwroff_vol    = 3500
power_start              = 1

[pmu1_regu]
regulator_count = 7
regulator1      = "axp20_dcdc2 none vdd-sys vdd-cpu vdd-ephy"
regulator2      = "axp20_dcdc3 none vcc-io hpvcc vcc-pd vcc-usb vcc-ephy vcc-mcsi vcc-lcd vcc-wifi vcc-device vcc-csi vcc-ctp"
regulator3      = "axp20_ldo1 none vcc-rtc"
regulator4      = "axp20_ldo2 none  vcc-avcc vcc-pll"
regulator5      = "axp20_ldo3 none vcc-pe csi-avdd"
regulator6      = "axp20_ldo4 none csi-dvdd"
regulator7      = "axp20_ldoio0 none"

;----------------------------------------------------------------------------------
; dvfs voltage-frequency table configuration
;
; extremity_freq(Hz): cpu extremity frequency when run benckmark or demo apk
;                     1536MHz@1500mV with radiator, 1296MHz@1340mV without radiator
; max_freq: cpu maximum frequency, based on Hz, can not be more than 1200MHz
; min_freq: cpu minimum frequency, based on Hz, can not be less than 60MHz
;
; LV_count: count of LV_freq/LV_volt, must be < 16
;
; LV1: core vdd is 1.50v if cpu frequency is (1296Mhz,  1536Mhz]
; LV2: core vdd is 1.34v if cpu frequency is (1200Mhz,  1296Mhz]
; LV3: core vdd is 1.32v if cpu frequency is (1008Mhz,  1200Mhz]
; LV4: core vdd is 1.20v if cpu frequency is (816Mhz,   1008Mhz]
; LV5: core vdd is 1.10v if cpu frequency is (648Mhz,    816Mhz]
; LV6: core vdd is 1.04v if cpu frequency is (0Mhz,      648Mhz]
; LV7: core vdd is 1.04v if cpu frequency is (0Mhz,      648Mhz]
; LV8: core vdd is 1.04v if cpu frequency is (0Mhz,      648Mhz]
;
;----------------------------------------------------------------------------------
[dvfs_table]
extremity_freq = 1008000000
max_freq = 1008000000
min_freq = 60000000

LV_count = 8

LV1_freq = 1008000000
LV1_volt = 1200

LV2_freq = 1008000000
LV2_volt = 1200

LV3_freq = 940000000
LV3_volt = 1200

LV4_freq = 940000000
LV4_volt = 1200

LV5_freq = 816000000
LV5_volt = 1100

LV6_freq = 648000000
LV6_volt = 1040

LV7_freq = 0
LV7_volt = 1040

LV8_freq = 0
LV8_volt = 1040

;----------------------------------------------------------------------------------
;virtual device
;virtual device for pinctrl testing
;device have pin PA1 PA2
;----------------------------------------------------------------------------------
[Vdevice]
Vdevice_used        = 1
Vdevice_0           = port:PA01<5><1><2><default>
Vdevice_1           = port:PA02<5><1><2><default>

;----------------------------------------------------------------------------------
; dram dvfs voltage-frequency table configuration
;
; LV_count: count of LV_freq/LV_volt
;
; LV1: core vdd is 1.1v if dram frequency is (360Mhz, 552Mhz]
; LV2: core vdd is 1.0v if dram frequency is (  0Mhz, 360Mhz]
; LV3: core vdd is 1.0v if dram frequency is (  0Mhz, 360Mhz]
;
;----------------------------------------------------------------------------------
[dram_dvfs_table]
LV_count = 3

LV1_freq = 552000000
LV1_volt = 1100

LV2_freq = 360000000
LV2_volt = 1000

LV3_freq = 0
LV3_volt = 1000


[fel_key]
fel_key_used =  1
fel_key_min  =  0
fel_key_max  = 	60

[leds_para]
leds_used = 1
led_0 = port:PG00<1><default><default><0>
led_0_active_low = 0
led_1 = port:PG01<1><default><default><0>
led_1_active_low = 0
led_2 = port:PG02<1><default><default><0>
led_2_active_low = 0
;led_3 = port:PA00<1><default><default><0>
;led_3_active_low = 0
;led_4 = port:PA00<1><default><default><0>
;led_4_active_low = 0
;led_5 = port:PA00<1><default><default><0>
;led_5_active_low = 0
;led_6 = port:PA00<1><default><default><0>
;led_6_active_low = 0
;led_7 = port:PA00<1><default><default><0>
;led_7_active_low = 0

;A23 PAD application
;---------------------------------------------------------------------------------------------------------
; port configuration:
; port_name = port:GPIO<mux><pull up/down><driver level><default value>
; mux: GPIO function configuration, 0-input, 1-output, 2+: special funciton for modules
; pull up/down: 1-pull up, 2-pull down
; driver level: 0,1,2,3. 2 is recommended
; default value: default output value when this IO is configured as an output IO
;---------------------------------------------------------------------------------------------------------

[product]
version = "100"
machine = "tiger-cdr"

[platform]
eraseflag   = 0

;----------------------------------------------------------------------------------
;[target]  system bootup configuration
;boot_clock	= CPU boot frequency, Unit: MHz
;storage_type	= boot medium, 0-nand, 1-card0, 2-card2, -1(defualt)auto scan
;speed_mod    0 : normal read ; 1 dual line fast read
;----------------------------------------------------------------------------------
[target]
boot_clock   	= 1008
storage_type  	= -1

[boot_spi_board0]
boot_spi_speed_hz = 60000000
speed_mod         = 1

;----------------------------------------------------------------------------------
;dcdc1_vol	---set dcdc1 voltage,mV,1600-3400,100mV/step
;dcdc2_vol	---set dcdc2 voltage,mV,600-1540,20mV/step
;dcdc3_vol	---set dcdc3 voltage,mV,600-1860,20mV/step
;dcdc4_vol	---set dcdc4 voltage,mV,600-1540,20mV/step
;dcdc5_vol	---set dcdc5 voltage,mV,1000-2550,50mV/step
;aldo2_vol	---set aldo2 voltage,mV,700-3300,100mV/step
;aldo3_vol	---set aldo3 voltage,mV,700-3300,100mV/step
;----------------------------------------------------------------------------------
[power_sply]
dcdc2_vol       = 1200
dcdc3_vol       = 3300
aldo2_vol       = 2500
aldo3_vol       = 3000
ldo1_vol        = 3300
ldo2_vol        = 3000
;ldo3_vol        = 2800
;ldo4_vol        = 1800


;----------------------------------------------------------------------------------
;card boot
;----------------------------------------------------------------------------------
[card_boot]
logical_start   = 40960
spinor_verify   = 1
sprite_gpio0    =

;----------------------------------------------------------------------------------
;[cardx_boot_para] boot card configuration
;card_ctrl 	 = boot card NO. 0 or 2
;card_high_speed = speed mode, 0-normal mode(up to 25MHz), 1-high speed mode(up to 50MHz)
;card_line       = boot card buswidth(1 or 4)
;----------------------------------------------------------------------------------
[card0_boot_para]
card_ctrl       = 0
card_high_speed = 1
card_line       = 4
sdc_d1          = port:PF0<2><1><default><default>
sdc_d0          = port:PF1<2><1><default><default>
sdc_clk         = port:PF2<2><1><default><default>
sdc_cmd         = port:PF3<2><1><default><default>
sdc_d3          = port:PF4<2><1><default><default>
sdc_d2          = port:PF5<2><1><default><default>

;[card2_boot_para]
;card_ctrl       = 2
;card_high_speed = 1
;card_line       = 4
;sdc_cmd         = port:PC00<2><1><2><default>
;sdc_clk         = port:PC01<2><1><2><default>
;sdc_d0          = port:PC03<2><1><2><default>
;sdc_d1          = port:PC04<2><1><2><default>
;sdc_d2          = port:PC05<2><1><2><default>
;sdc_d3          = port:PC06<2><1><2><default>

;----------------------------------------------------------------------------------
;[twi_para] twi for boot code
;twi_port	= twi controller ID
;----------------------------------------------------------------------------------
[twi_para]
twi_port        = 0
twi_scl         = port:PB06<2><default><default><default>
twi_sda         = port:PB07<2><default><default><default>

;----------------------------------------------------------------------------------
;[uart_para] boot debug port configuration
;uart_debug_port = uart port ID for boot debug
;----------------------------------------------------------------------------------
;origin
;[uart_para]
;uart_debug_port = 1
;uart_debug_tx   = port:PE21<4><1><default><default>
;uart_debug_rx   = port:PE22<4><1><default><default>

[uart_para]
uart_debug_port = 2
uart_debug_tx   = port:PB00<3><1><default><default>
uart_debug_rx   = port:PB01<3><1><default><default>

;uart_debug_port = 2
;uart_debug_tx   = port:PB00<2><1><default><default>
;uart_debug_rx   = port:PB01<2><1><default><default>


;card print
;uart_debug_tx    = port:PF02<3><1><default><default>
;uart_debug_rx    = port:PF04<3><1><default><default>


;----------------------------------------------------------------------------------
;[jtag_para] jtag configuration
;jtag_enable     = 0-disable jtag, 1-enable jtag
;----------------------------------------------------------------------------------
[jtag_para]
jtag_enable     = 0
jtag_ms         = port:PF00<3><default><default><default>
jtag_ck         = port:PF05<3><default><default><default>
jtag_do         = port:PF03<3><default><default><default>
jtag_di         = port:PF01<3><default><default><default>

;----------------------------------------------------------------------------------
;[clock] pll configuration
;----------------------------------------------------------------------------------
[clock]
pll3            = 297
pll4            = 300
pll6            = 600
pll8            = 360
pll9            = 480
pll10           = 297

;---------------------------------------------------------------------------------------------------------
;[pm_para] power management
;standby_mode = 0-normal standby, 1-super standby
;---------------------------------------------------------------------------------------------------------
[pm_para]
standby_mode		= 1

;----------------------------------------------------------------------------------
;sys_pwr_dm_para
;this para is used to change default sys_pwr_dm config when necessary.
;   allowed sys_pwr_dm is such as follow:
;		vdd-cpua
; 		vdd-cpub
; 		vdd-gpu
; 		vcc-dram
; 		vdd-sys
; 		which is compatible with pmu regu config. see: [pmu1_regu] for more info.
;   value: 0: del the pwr_dm from sys_pwr_dm_mask;
;	   1: add the pwr_dm into sys_pwr_dm_mask;
;----------------------------------------------------------------------------------
[sys_pwr_dm_para]
;vdd-cpua = 1
;vdd-sys  = 1

;----------------------------------------------------------------------------------
;dynamic_standby_para
;   enable:
;	value: 0: all config is ignored.
;	       1: all config is effective.
;   dram_selfresh_flag:
;	value: 0: dram will not enter selfresh,
;		    this config is used for stop dram entering selfresh, in case of dram memory have bug.
;	       1: dram will enter slefresh.
;
;----------------------------------------------------------------------------------
[dynamic_standby_para]
enable = 0
dram_selfresh_flag = 1
vdd_cpua_vol     = 1200
vdd_sys_vol      = 1200

;*****************************************************************************
;sdram configuration
;
;*****************************************************************************
[dram_para]
dram_clk        = 360
dram_type       = 2
dram_zq         = 0x39bb
dram_odt_en     = 0
dram_para1      = 0x10E20000
dram_para2      = 0x0000
dram_mr0        = 0x1840
dram_mr1        = 0x4
dram_mr2        = 0x18
dram_mr3        = 0x4
dram_tpr0       = 0x00832087
dram_tpr1       = 0x01C24085
dram_tpr2       = 0x0002A01D
dram_tpr3       = 0x0
dram_tpr4       = 0x0
dram_tpr5       = 0x0
dram_tpr6       = 0x0
dram_tpr7       = 0x0
dram_tpr8       = 0x0
dram_tpr9       = 0x0
dram_tpr10      = 0x0
dram_tpr11      = 0x220000
dram_tpr12      = 0x78
dram_tpr13      = 0x0d000000

;---------------------------------------------------------------------------------------------------------
; if 1 == standby_mode, then support super standby;
; else, support normal standby.
;---------------------------------------------------------------------------------------------------------
[pm_para]
standby_mode		= 0

;---------------------------------------------------------------------------------------------------------
; wakeup_src_para:
;	sometimes, u would like to add more wakeup src in standby mode, these para will be
;	help;
;	u need to make sure the standby mode support the wakeup src. Also, some hw
;	condition must be guaranteed.
;	including:
;	cpu_en: power on or off.
;		1: mean power on
;		0: mean power off
;	cpu_freq: indicating lowest freq. unit is Mhz;
;	dram selfresh_en: selfresh or not.
;		1: enable enter selfresh
;		0: disable enter selfresh
;	dram_pll: if not enter selfresh, indicating lowest freq. unit is Mhz;
;	wakeup_src: to make the scenario work, the wakeup src is needed.
;---------------------------------------------------------------------------------------------------------
[wakeup_src_para]
cpu_en		= 0
cpu_freq	= 48
; (cpu:apb:ahb)
pll_ratio	= 0x111
dram_selfresh_en= 1
dram_freq	= 36
wakeup_src_wl 	= port:PL07<4><default><default><0>
wakeup_src_bt 	= port:PL09<4><default><default><0>
bb_wake_ap	= port:PL02<4><default><default><0>

;----------------------------------------------------------------------------------
;i2c configuration
; twi_used = twix enable    ;; twi0->use pmu axp209 ,  twi1->use gsenor
;----------------------------------------------------------------------------------
[twi0]
twi_used        = 1
twi_scl         = port:PB06<2><default><default><default>
twi_sda         = port:PB07<2><default><default><default>

[twi1]
twi_used        = 0
twi_scl         = port:PB08<2><default><default><default>
twi_sda         = port:PB09<2><default><default><default>

;----------------------------------------------------------------------------------
;uart configuration
;uart_used = uart x enable
;uart_port = x; x is order number of ttySx
;uart_type       = 2:2 wire,4:4 wire,8:8 wire, full function
;----------------------------------------------------------------------------------
[uart0]
uart_used       = 1
uart_port       = 0
uart_type       = 2
uart_tx         = port:PB08<3><1><default><default>
uart_rx         = port:PB09<3><1><default><default>
;card print
;uart_tx         = port:PF02<3><1><default><default>
;uart_rx         = port:PF04<3><1><default><default>

[uart1]
uart_used       = 1
uart_port	    = 1
uart_type       = 2
uart_tx         = port:PE21<4><1><default><default>
uart_rx         = port:PE22<4><1><default><default>

[uart2]
uart_used       = 1
uart_port	    = 2
uart_type       = 2
uart_tx         = port:PB00<2><1><default><default>
uart_rx         = port:PB01<2><1><default><default>

;----------------------------------------------------------------------------------
;SPI controller configuration
;spi_used       = SPIx enable
;spi_cs_bitmap  = SPI bit mapping
;----------------------------------------------------------------------------------
[spi0]
spi_used       = 1
spi_cs_bitmap  = 1
spi_mosi       = port:PC03<3><default><default><default>
spi_miso       = port:PC00<3><default><default><default>
spi_sclk       = port:PC01<3><default><default><default>
spi_cs0        = port:PC02<3><1><default><default>

;----------------------------------------------------------------------------------
;SPI device configuration
;spi_dev_num: number of spi devices
;----------------------------------------------------------------------------------
[spi_devices]
spi_dev_num = 1

;----------------------------------------------------------------------------------
;[spi_board0] spi device configuration
;modalias      = spi device name
;max_speed_hz  = max transfer speed
;bus_num       = bus ID
;chip_select   = chip select, 0,1
;mode          = SPI transfer mode
; sflash_size- 16 : 16M nor flash size , 8 : 8M nor flash size
;----------------------------------------------------------------------------------
[spi_board0]
modalias      = "w25q128"
max_speed_hz  = 50000000
bus_num       = 0
chip_select   = 0
mode          = 0
sflash_size   = 16


;----------------------------------------------------------------------------------
;capacitor tp configuration
;ctp_twi_id : twi controller ID
;ctp_twi_addr : I2C slave address, 7bit
;ctp_screen_max_x/_y : resolution of touch panel
;ctp_revert_x/_y_flag : whether need to revert x/y
;ctp_exchange_x_y_flag: whether need to exchange the value of x and y
;ctp_int_port : port for tp's interrupt signal
;ctp_wakeup : port for wakeup tp
;----------------------------------------------------------------------------------
[ctp_para]
ctp_used            = 1
ctp_name            = "gt911_m785q6"
ctp_twi_id          = 0
ctp_twi_addr        = 0x48
ctp_screen_max_x    = 800
ctp_screen_max_y    = 480
ctp_revert_x_flag   = 0
ctp_revert_y_flag   = 0
ctp_exchange_x_y_flag = 1

ctp_int_port        = port:PG04<6><default><default><default>
ctp_wakeup          = port:PG03<1><default><default><1>

;--------------------------------------------------------------------------------
; CTP automatic detection configuration
;ctp_detect_used  --- Whether startup automatic inspection function. 1:used,0:unused
;Module name postposition 1 said detection, 0 means no detection.
;--------------------------------------------------------------------------------
[ctp_list_para]
ctp_det_used              = 0
gt911_ts                  = 1
ft5x_ts                   = 1
gt82x                     = 1
gslX680                   = 1
gt9xx_ts                  = 1
gt811                     = 1
zet622x                   = 1
aw5306_ts                 = 1

;----------------------------------------------------------------------------------
;touch key configuration
;tkey_twi_id : twi controller ID
;tkey_twi_addr : I2C slave address, 7bit
;tkey_int : port for touch key's interrupt signal
;----------------------------------------------------------------------------------
[tkey_para]
tkey_used           = 0
tkey_twi_id         =
tkey_twi_addr       =
tkey_int            =

;----------------------------------------------------------------------------------
;motor configuration
;motor_shake : port for making the moto shaking
;----------------------------------------------------------------------------------
[motor_para]
motor_used          = 0
motor_shake         = port:power3<1><default><default><1>

;----------------------------------------------------------------------------------
;cooler_table  cooler_count <=32
;----------------------------------------------------------------------------------
[cooler_table]
cooler_count = 4
cooler0 = "1340000 4 4294967295 0"
cooler1 = "1200000 4 4294967295 0"
cooler2 = "1008000 4 4294967295 0"
cooler3 =  "648000 4 4294967295 0"

;----------------------------------------------------------------------------------
;disp init configuration
;
;disp_mode             (0:screen0<screen0,fb0>)
;screenx_output_type   (0:none; 1:lcd; 3:hdmi;)
;screenx_output_mode   (used for hdmi output, 0:480i 1:576i 2:480p 3:576p 4:720p50)
;                      (5:720p60 6:1080i50 7:1080i60 8:1080p24 9:1080p50 10:1080p60)
;fbx format            (4:RGB655 5:RGB565 6:RGB556 7:ARGB1555 8:RGBA5551 9:RGB888 10:ARGB8888 12:ARGB4444)
;fbx pixel sequence    (0:ARGB 1:BGRA 2:ABGR 3:RGBA)
;fb0_scaler_mode_enable(scaler mode enable, used FE)
;fbx_width,fbx_height  (framebuffer horizontal/vertical pixels, fix to output resolution while equal 0)
;lcdx_backlight        (lcd init backlight,the range:[0,256],default:197
;lcdx_yy               (lcd init screen bright/contrast/saturation/hue, value:0~100, default:50/50/57/50)
;lcd0_contrast         (LCD contrast, 0~100)
;lcd0_saturation       (LCD saturation, 0~100)
;lcd0_hue              (LCD hue, 0~100)
;----------------------------------------------------------------------------------
[disp_init]
disp_init_enable         = 1
disp_mode                = 0

screen0_output_type      = 1
screen0_output_mode      = 4

screen1_output_type      = 1
screen1_output_mode      = 4

fb0_format               = 10
fb0_pixel_sequence       = 0
fb0_scaler_mode_enable   = 0
fb0_width                = 0
fb0_height               = 0

fb1_format               = 10
fb1_pixel_sequence       = 0
fb1_scaler_mode_enable   = 0
fb1_width                = 0
fb1_height               = 0

lcd0_backlight           = 102
lcd1_backlight           = 102

lcd0_bright              = 50
lcd0_contrast            = 50
lcd0_saturation          = 57
lcd0_hue                 = 50

lcd1_bright              = 50
lcd1_contrast            = 50
lcd1_saturation          = 57
lcd1_hue                 = 50

;----------------------------------------------------------------------------------
;lcd0 configuration

;lcd_if:               0:hv(sync+de); 1:8080; 2:ttl; 3:lvds; 4:dsi; 5:edp; 6:extend dsi
;lcd_x:                lcd horizontal resolution
;lcd_y:                lcd vertical resolution
;lcd_width:            width of lcd in mm
;lcd_height:           height of lcd in mm
;lcd_dclk_freq:        in MHZ unit
;lcd_pwm_freq:         in HZ unit
;lcd_pwm_pol:          lcd backlight PWM polarity
;lcd_pwm_max_limit     lcd backlight PWM max limit(<=255)
;lcd_hbp:              hsync back porch
;lcd_ht:               hsync total cycle
;lcd_vbp:              vsync back porch
;lcd_vt:               vysnc total cycle
;lcd_hspw:             hsync plus width
;lcd_vspw:             vysnc plus width
;lcd_lvds_if:          0:single link;  1:dual link
;lcd_lvds_colordepth:  0:8bit; 1:6bit
;lcd_lvds_mode:        0:NS mode; 1:JEIDA mode
;lcd_frm:              0:disable; 1:enable rgb666 dither; 2:enable rgb656 dither
;lcd_io_phase:         0:noraml; 1:intert phase(0~3bit: vsync phase; 4~7bit:hsync phase;
;                      8~11bit:dclk phase; 12~15bit:de phase)
;lcd_gamma_en          lcd gamma correction enable
;lcd_bright_curve_en   lcd bright curve correction enable
;lcd_cmap_en           lcd color map function enable
;deu_mode              0:smoll lcd screen; 1:large lcd screen(larger than 10inch)
;lcdgamma4iep:         Smart Backlight parameter, lcd gamma vale * 10;
;                      decrease it while lcd is not bright enough; increase while lcd is too bright
;smart_color           90:normal lcd screen 65:retina lcd screen(9.7inch)
;----------------------------------------------------------------------------------
[lcd0_para]
lcd_used            = 1
lcd_driver_name     = "wtq05027d01"
lcd_if              = 0
lcd_x               = 480
lcd_y               = 272
lcd_width           = 0
lcd_height          = 0
lcd_dclk_freq       = 9
lcd_pwm_used        = 0
lcd_pwm_ch          = 0
lcd_pwm_freq        = 50000
lcd_pwm_pol         = 1
lcd_pwm_max_limit   = 255
lcd_hbp             = 37
lcd_ht              = 531
lcd_hspw            = 6
lcd_vbp             = 12
lcd_vt              = 288
lcd_vspw            = 10
lcd_frm             = 0
lcd_hv_clk_phase    = 0
lcd_hv_sync_polarity = 0
lcd_gamma_en        = 0
lcd_bright_curve_en = 1
lcd_cmap_en         = 0

lcd_hv_if	    	= 0
lcd_hv_srgb_seq	    = 0
lcd_rb_swap			= 0


lcdgamma4iep        = 22
smart_color        = 90

lcd_bl_en           = port:PB9<1><0><default><1>
lcd_power           = ""

lcdd2               = port:PE04<3><0><default><default>
lcdd3               = port:PE05<3><0><default><default>
lcdd4               = port:PE06<3><0><default><default>
lcdd5               = port:PE07<3><0><default><default>
lcdd6               = port:PE08<3><0><default><default>
lcdd7               = port:PE09<3><0><default><default>
lcdd10              = port:PE10<3><0><default><default>
lcdd11              = port:PE11<3><0><default><default>
lcdd12              = port:PE12<3><0><default><default>
lcdd13              = port:PE13<3><0><default><default>
lcdd14              = port:PE14<3><0><default><default>
lcdd15              = port:PE15<3><0><default><default>
lcdd18              = port:PE16<3><0><default><default>
lcdd19              = port:PE17<3><0><default><default>
lcdd20              = port:PE18<3><0><default><default>
lcdd21              = port:PE19<3><0><default><default>

lcdd22              = port:PE23<3><0><default><default>
lcdd23              = port:PE24<3><0><default><default>

lcdclk              = port:PE00<3><0><3><default>
lcdde               = port:PE01<3><0><3><default>
lcdhsync            = port:PE02<3><0><3><default>
lcdvsync            = port:PE03<3><0><3><default>
;----------------------------------------------------------------------------------
;pwm config
;----------------------------------------------------------------------------------
[pwm0_para]
pwm_used            = 1
pwm_positive        = port:PB04<2><0><default><default>

[pwm1_para]
pwm_used            = 0
pwm_positive        = port:PH01<2><0><default><default>

;------------------------------------------------------------------------------;
; 10/100/100Mbps Ethernet MAC Controller Configure                             ;
;------------------------------------------------------------------------------;
;   Options:                                                                   ;
;   gmac_used  ---  0: not used, 1: external phy, 2: internal phy              ;
;   gmac_powerx --  A[:B] A: axp channel, B: voltage value                     ;
;       If set gamc_phy to use internal PHY, do not config port                ;
;------------------------------------------------------------------------------;
;         MII        RMII         MII        RMII         MII        RMII      ;
;   PD00  *                 PD06   *           *    PD12   *           *       ;
;   PD01  *                 PD07   *                PD13   *           *       ;
;   PD02  *            *    PD08   *                PD14   *                   ;
;   PD03  *            *    PD09   *           *    PD15   *                   ;
;   PD04  *                 PD10   *           *    PD16   *           *       ;
;   PD05  *                 PD11   *           *    PD17   *           *       ;
;------------------------------------------------------------------------------;
[gmac0]
gmac_used          = 2
gmac_power1        =

;--------------------------------------------------------------------------------
;vip (video input port) configuration
;vip_used: 0:disable 1:enable
;vip_mode: 0:sample one interface to one buffer 1:sample two interface to one buffer
;vip_dev_qty: The quantity of devices linked to capture bus
;
;vip_define_sensor_list: If you want use sensor detect function, please set vip_define_sensor_list = 1, and
;                                    verify that file /system/etc/hawkview/sensor_list_cfg.ini is properly configured!
;
;vip_dev(x)_pos: sensor position, "rear" or "front", if vip_define_sensor_list = 1,vip_dev(x)_pos must be configured!
;
;vip_dev(x)_isp_used 0:not use isp 1:use isp
;vip_dev(x)_fmt: 0:yuv 1:bayer raw rgb
;vip_dev(x)_stby_mode: 0:not shut down power at standby 1:shut down power at standby
;vip_dev(x)_vflip: flip in vertical direction 0:disable 1:enable
;vip_dev(x)_hflip: flip in horizontal direction 0:disable 1:enable
;vip_dev(x)_iovdd: camera module io power handle string, pmu power supply
;vip_dev(x)_iovdd_vol: camera module io power voltage, pmu power supply
;vip_dev(x)_avdd: camera module analog power handle string, pmu power supply
;vip_dev(x)_avdd_vol: camera module analog power voltage, pmu power supply
;vip_dev(x)_dvdd: camera module core power handle string, pmu power supply
;vip_dev(x)_dvdd_vol: camera module core power voltage, pmu power supply
;vip_dev(x)_afvdd: camera module vcm power handle string, pmu power supply
;vip_dev(x)_afvdd_vol: camera module vcm power voltage, pmu power supply
;x indicates the index of the devices which are linked to the same capture bus
;fill voltage in uV, e.g. iovdd = 2.8V, vip_devx_iovdd_vol = 2800000
;fill handle string as below:
;axp22_eldo3
;axp22_dldo4
;axp22_eldo2
;fill handle string "" when not using any pmu power supply
;--------------------------------------------------------------------------------

[csi0]
vip_used                 = 1
vip_mode                 = 0
vip_dev_qty              = 1
vip_define_sensor_list   = 0
vip_csi_mck              = port:PE20<3><default><default><default>
vip_csi_sck              = port:PE21<2><default><default><default>
vip_csi_sda              = port:PE22<2><default><default><default>
vip_dev0_mname           = "h22_mipi"
vip_dev0_pos             = "rear"
vip_dev0_lane            = 1
vip_dev0_twi_id          = 0
vip_dev0_twi_addr        = 0x60
vip_dev0_isp_used        = 1
vip_dev0_fmt             = 1
vip_dev0_stby_mode       = 0
vip_dev0_vflip           = 0
vip_dev0_hflip           = 0
vip_dev0_iovdd           = ""
vip_dev0_iovdd_vol       = 3000000
vip_dev0_avdd            = "csi-avdd"
vip_dev0_avdd_vol        = 3000000
vip_dev0_dvdd            = "csi-dvdd"
vip_dev0_dvdd_vol        = 3000000
vip_dev0_afvdd           = ""
vip_dev0_afvdd_vol       = 2800000
vip_dev0_power_en        =
vip_dev0_reset           = port:PG00<1><default><default><default>
vip_dev0_pwdn            = port:PG01<1><default><default><default>
vip_dev0_flash_en        =
vip_dev0_flash_mode      =
vip_dev0_af_pwdn         =
vip_dev0_act_used        = 0
vip_dev0_act_name        = "dw9714_act"
vip_dev0_act_slave       = 0x18
vip_dev1_mname           = ""
vip_dev1_pos                 = "front"
vip_dev1_lane            = 1
vip_dev1_twi_id          = 0
vip_dev1_twi_addr        =
vip_dev1_isp_used        = 0
vip_dev1_fmt             = 1
vip_dev1_stby_mode       = 0
vip_dev1_vflip           = 0
vip_dev1_hflip           = 0
vip_dev1_iovdd           = ""
vip_dev1_iovdd_vol       = 2800000
vip_dev1_avdd            = ""
vip_dev1_avdd_vol        = 2800000
vip_dev1_dvdd            = ""
vip_dev1_dvdd_vol        = 1500000
vip_dev1_afvdd           = ""
vip_dev1_afvdd_vol       = 2800000
vip_dev1_power_en        =
vip_dev1_reset           =
vip_dev1_pwdn            =
vip_dev1_flash_en        =
;fill handle string as below:
;axp22_eldo3
;axp22_dldo4
;axp22_eldo2
;fill handle string "" when not using any pmu power supply
;--------------------------------------------------------------------------------

[csi0]

vip_used                 = 1
vip_mode                 = 0
vip_dev_qty              = 1
vip_define_sensor_list   = 0
vip_csi_mck              = port:PE20<3><default><default><default>
vip_csi_sck              = port:PE21<2><default><default><default>
vip_csi_sda              = port:PE22<2><default><default><default>
vip_dev0_mname           = "h22_mipi"
vip_dev0_pos             = "rear"
vip_dev0_lane            = 1
vip_dev0_twi_id          = 0
vip_dev0_twi_addr        = 0x60
vip_dev0_isp_used        = 1
vip_dev0_fmt             = 1
vip_dev0_stby_mode       = 0
vip_dev0_vflip           = 0
vip_dev0_hflip           = 0
vip_dev0_iovdd           = ""
vip_dev0_iovdd_vol       = 3000000
vip_dev0_avdd            = "csi-avdd"
vip_dev0_avdd_vol        = 3000000
vip_dev0_dvdd            = "csi-dvdd"
vip_dev0_dvdd_vol        = 3000000
vip_dev0_afvdd           = ""
vip_dev0_afvdd_vol       = 2800000
vip_dev0_power_en        =
vip_dev0_reset           = port:PG00<1><default><default><default>
vip_dev0_pwdn            = port:PG01<1><default><default><default>
vip_dev0_flash_en        =
vip_dev0_flash_mode      =
vip_dev0_af_pwdn         =
vip_dev0_act_used        = 0
vip_dev0_act_name        = "dw9714_act"
vip_dev0_act_slave       = 0x18
vip_dev1_mname           = ""
vip_dev1_pos                 = "front"
vip_dev1_lane            = 1
vip_dev1_twi_id          = 0
vip_dev1_twi_addr        =
vip_dev1_isp_used        = 0
vip_dev1_fmt             = 1
vip_dev1_stby_mode       = 0
vip_dev1_vflip           = 0
vip_dev1_hflip           = 0
vip_dev1_iovdd           = ""
vip_dev1_iovdd_vol       = 2800000
vip_dev1_avdd            = ""
vip_dev1_avdd_vol        = 2800000
vip_dev1_dvdd            = ""
vip_dev1_dvdd_vol        = 1500000
vip_dev1_afvdd           = ""
vip_dev1_afvdd_vol       = 2800000
vip_dev1_power_en        =
vip_dev1_reset           =
vip_dev1_pwdn            =
vip_dev1_flash_en        =
vip_dev1_flash_mode      =
vip_dev1_af_pwdn         =

[csi1]
vip_used                 = 0
vip_mode                 = 0
vip_dev_qty              = 1
vip_define_sensor_list   = 0
vip_csi_pck              = port:PE00<2><default><default><default>
vip_csi_mck              = port:PE01<2><default><default><default>
vip_csi_hsync            = port:PE02<2><default><default><default>
vip_csi_vsync            = port:PE03<2><default><default><default>
vip_csi_d0               = port:PE04<2><default><default><default>
vip_csi_d1               = port:PE05<2><default><default><default>
vip_csi_d2               = port:PE06<2><default><default><default>
vip_csi_d3               = port:PE07<2><default><default><default>
vip_csi_d4               = port:PE08<2><default><default><default>
vip_csi_d5               = port:PE09<2><default><default><default>
vip_csi_d6               = port:PE10<2><default><default><default>
vip_csi_d7               = port:PE11<2><default><default><default>
vip_csi_d8               = port:PE12<2><default><default><default>
;vip_csi_d9               = port:PE13<2><default><default><default>
vip_csi_d10               = port:PE14<2><default><default><default>
vip_csi_d11               = port:PE15<2><default><default><default>

vip_csi_sck               = port:PE21<2><default><default><default>
vip_csi_sda               = port:PE22<2><default><default><default>

vip_dev0_mname           = "ov5640"
vip_dev0_pos             = "front"
vip_dev0_twi_id          = 4
vip_dev0_twi_addr        = 0x78
vip_dev0_isp_used        = 0
vip_dev0_fmt             = 0
vip_dev0_stby_mode       = 0
vip_dev0_vflip           = 0
vip_dev0_hflip           = 0
vip_dev0_iovdd           = ""
vip_dev0_iovdd_vol       = 2800000
vip_dev0_avdd            = ""
vip_dev0_avdd_vol        = 2800000
vip_dev0_dvdd            = ""
vip_dev0_dvdd_vol        = 1500000
vip_dev0_afvdd           = ""
vip_dev0_afvdd_vol       = 2800000
vip_dev0_power_en        =
vip_dev0_reset           = port:PE23<1><default><default><default>
vip_dev0_pwdn            = port:PE24<1><default><default><default>
vip_dev0_flash_en        =
vip_dev0_flash_mode      =
vip_dev0_af_pwdn         =

vip_dev0_act_used        = 0
vip_dev0_act_name        = "ad5820_act"
vip_dev0_act_slave       = 0x18

vip_dev1_mname           = "gc2035"
vip_dev1_pos                 = "front"
vip_dev1_lane            = 1
vip_dev1_twi_id          = 4
vip_dev1_twi_addr        = 0x78
vip_dev1_isp_used        = 0
vip_dev1_fmt             = 1
vip_dev1_stby_mode       = 0
vip_dev1_vflip           = 0
vip_dev1_hflip           = 0
vip_dev1_iovdd           = ""
vip_dev1_iovdd_vol       = 2800000
vip_dev1_avdd            = ""
vip_dev1_avdd_vol        = 2800000
vip_dev1_dvdd            = ""
vip_dev1_dvdd_vol        = 1500000
vip_dev1_afvdd           = ""
vip_dev1_afvdd_vol       = 2800000
vip_dev1_power_en        =
vip_dev1_reset           =
vip_dev1_pwdn            =
vip_dev1_flash_en        =
vip_dev1_flash_mode      =
vip_dev1_af_pwdn         =
;-------------------------------------------------------------------------------
;   mmc configuration
;
;   Config Guide
;   sdc_used:      1-enable card, 0-disable card
;   sdc_detmode:   card detect mode
;                  1-detect card by gpio polling
;                  2-detect card by gpio irq(must use IO with irq function)
;                  3-no detect, always in for boot card
;                  4-manually insert and remove by /proc/driver/sunxi-mmc.x/insert
;   sdc_buswidth:  card bus width, 1-1bit, 4-4bit, 8-8bit
;   sdc_use_wp:    1-with write protect IO, 0-no write protect IO
;   sdc_isio:      for sdio card
;   sdc_regulator: power control.if card supports UHS-I/DDR and HS200 timing for
;                  SD3.0 or eMMC4.5, regulator must be configured. the value is
;                  the ldo name of AXP221, eg: sdc_regulator = "axp22_eldo2"
;   other: GPIO Mapping configuration
;
;   Note:
;   1 if detmode=2, sdc_det's config=6
;     else if detmode=1, sdc_det's config=0
;     else sdc_det IO is not necessary
;   2 if the customer wants to support UHS-I and HS200 features, he must provide
;     an independent power supply for the card. This is only used in platforms
;     that supports SD3.0 cards and eMMC4.4+ flashes
;-------------------------------------------------------------------------------
[mmc0_para]
sdc_used          = 1
sdc_detmode       = 3
sdc_buswidth      = 4
sdc_d1            = port:PF00<2><1><2><default>
sdc_d0            = port:PF01<2><1><2><default>
sdc_clk           = port:PF02<2><1><2><default>
sdc_cmd           = port:PF03<2><1><2><default>
sdc_d3            = port:PF04<2><1><2><default>
sdc_d2            = port:PF05<2><1><2><default>
sdc_det           = port:PF06<0><1><default><default>
sdc_use_wp        = 0
sdc_wp            =
sdc_isio          = 0
sdc_regulator     = "none"

[mmc1_para]
sdc_used          = 0
sdc_detmode       = 4
sdc_buswidth      = 4
sdc_clk           = port:PG00<2><1><1><default>
sdc_cmd           = port:PG01<2><1><1><default>
sdc_d0            = port:PG02<2><1><1><default>
sdc_d1            = port:PG03<2><1><1><default>
sdc_d2            = port:PG04<2><1><1><default>
sdc_d3            = port:PG05<2><1><1><default>
sdc_det           =
sdc_use_wp        = 0
sdc_wp            =
sdc_isio          = 1
sdc_regulator     = "none"

[mmc2_para]
sdc_used          = 0
sdc_detmode       = 3
sdc_buswidth      = 8
sdc_clk           = port:PC00<2><1><2><default>
sdc_cmd           = port:PC01<2><1><2><default>
sdc_d0            = port:PC03<2><1><2><default>
sdc_d1            = port:PC04<2><1><2><default>
sdc_d2            = port:PC05<2><1><2><default>
sdc_d3            = port:PC06<2><1><2><default>
sdc_d4            = port:PC07<2><1><2><default>
sdc_d5            = port:PC08<2><1><2><default>
sdc_d6            = port:PC09<2><1><2><default>
sdc_d7            = port:PC10<2><1><2><default>
emmc_rst          = port:PC02<2><1><2><default>
sdc_det           =
sdc_use_wp        = 0
sdc_wp            =
sdc_isio          = 0
sdc_regulator     = "none"

;----------------------------------------------------------------------------------
;usb configuration
;usb_used:          usb controller enable, 0-disable, 1-enable
;usb_port_type:     usb mode: 0-device, 1-host, 2-otg
;usb_detect_type:   usb hotplug detect mode, 0-none, 1-vbus/id detect, 2-id/dpdm detect
;usb_id_gpio:       usb id detect IO
;usb_det_vbus_gpio: usb vbus detect IO, "axp_ctrl" for axp
;usb_drv_vbus_gpio: usb dirve vbus IO
;usb_restrict_gpio: usb current restrict IO
;usb_restric_flag:  usb current restrict flag
;----------------------------------------------------------------------------------
[usbc0]
usb_used            = 1
usb_port_type       = 2
usb_detect_type     = 1
usb_id_gpio         = port:PF6<0><1><default><default>
usb_det_vbus_gpio   = port:PF6<0><1><default><default>
usb_drv_vbus_gpio   = port:PG3<1><0><default><0>
usb_restrict_gpio   =
usb_host_init_state = 0
usb_restric_flag    = 0
usb_restric_voltage = 3550000
usb_restric_capacity= 5
usb_regulator_io    = "nocare"
usb_regulator_vol   = 0
usb_not_suspend     = 0
;----------------------------------------------------------------------------------

; USB Device vendor Info.
;----------------------------------------------------------------------------------
[usb_feature]
vendor_id           = 0x18D1
mass_storage_id     = 0x0001
adb_id              = 0x0002

manufacturer_name   = "USB Developer"
product_name        = "Android"
serial_number       = "20080411"

[msc_feature]
vendor_name         = "USB 2.0"
product_name        = "USB Flash Driver"
release             = 100
luns                = 1

[serial_feature]
serial_unique       = 0

;--------------------------------------------------------------------------------
; G sensor configuration
; gs_twi_id	---  TWI ID for controlling Gsensor (0: TWI0, 1: TWI1, 2: TWI2)
;--------------------------------------------------------------------------------
[gsensor_para]
gsensor_used        = 0
gsensor_twi_id      = 0
;gsensor_twi_addr    = 0x18
gsensor_twi_addr    = 0x27
gsensor_int1        =
gsensor_int2        =

;--------------------------------------------------------------------------------
; G sensor automatic detection configuration
;gsensor_detect_used  --- Whether startup automatic inspection function. 1:used,0:unused
;Module name postposition 1 said detection, 0 means no detection.
;--------------------------------------------------------------------------------
[gsensor_list_para]
gsensor_det_used          = 0
bma250                    = 1
da380					  = 1
mma8452                   = 1
mma7660                   = 1
mma865x                   = 1
afa750                    = 1
lis3de_acc                = 1
lis3dh_acc                = 1
kxtik                     = 1
dmard10                   = 0
dmard06                   = 1
mxc622x                   = 1
fxos8700                  = 1
lsm303d                   = 1

;--------------------------------------------------------------------------------
; gps gpio configuration
; gps_spi_id:     the index of SPI controller. 0: SPI0, 1: SPI1, 2: SPI2, 15: no SPI used
; gps_spi_cs_num: the chip select number of SPI controller. 0: SPI CS0, 1: SPI CS1
; gps_lradc:      the lradc number for GPS used. 0 and 1 is valid, set 2 if not use lradc
;--------------------------------------------------------------------------------
[gps_para]

;--------------------------------------------------------------------------------
;wifi configuration
;wifi_sdc_id:    0- SDC0, 1- SDC1, 2- SDC2, 3- SDC3
;wifi_usbc_id:   0- USB0, 1- USB1, 2- USB2
;wifi_usbc_type: 1- EHCI(speed 2.0), 2- OHCI(speed 1.0)
;wifi_mod_sel:   0- none, 1- ap6181, 2- ap6210(wifi+bt),
;                3 - rtl8188eu, 4- rtl8723au(wifi+bt)
;--------------------------------------------------------------------------------
[wifi_para]
wifi_used          = 0
wifi_sdc_id        = 1
wifi_usbc_id       = 1
wifi_usbc_type     = 1
wifi_mod_sel       = 2
wifi_power         = ""

; 1 - ap6181 sdio wifi gpio config
;ap6xxx_wl_regon      = port:PL06<1><default><default><0>
;ap6xxx_wl_host_wake  = port:PL07<4><default><default><0>

; 2 - ap6210 sdio wifi gpio config
ap6xxx_wl_regon      = port:PL06<1><default><default><0>
ap6xxx_wl_host_wake  = port:PL07<4><default><default><0>
ap6xxx_bt_regon      = port:PL08<1><default><default><0>
ap6xxx_bt_wake       = port:PL10<1><default><default><0>
ap6xxx_bt_host_wake  = port:PL09<4><default><default><0>
ap6xxx_lpo_use_apclk = 1

; 3 - rtl8188eu usb wifi gpio conifg

; 4 - rtl8723au usb wifi + bt

;--------------------------------------------------------------------------------
;light sensor
;--------------------------------------------------------------------------------
[ls_para]
ls_used             = 0
ls_twi_id           = 1
ls_twi_addr         = 0x23
ls_int              = port:PB07<4><1><default><default>

;--------------------------------------------------------------------------------
; lsensor automatic detection configuration
;ls_detect_used  --- Whether startup automatic inspection function. 1:used,0:unused
;Module name postposition 1 said detection, 0 means no detection.
;--------------------------------------------------------------------------------
[ls_list_para]
ls_det_used          = 0
ltr_501als           = 1
jsa1212              = 1

;--------------------------------------------------------------------------------
;compass
;--------------------------------------------------------------------------------
[compass_para]
compass_used        = 0
compass_twi_id      = 1
compass_twi_addr    = 0x0d
compass_int         =

;--------------------------------------------------------------------------------
;daudio_master:1: SND_SOC_DAIFMT_CBM_CFM(codec clk & FRM master)        use
;			2: SND_SOC_DAIFMT_CBS_CFM(codec clk slave & FRM master)  not use
;			3: SND_SOC_DAIFMT_CBM_CFS(codec clk master & frame slave) not use
;			4: SND_SOC_DAIFMT_CBS_CFS(codec clk & FRM slave)         use
;daudio_select:0 is pcm.1 is i2s
;audio_format: 1:SND_SOC_DAIFMT_I2S(standard i2s format).            use
;			   2:SND_SOC_DAIFMT_RIGHT_J(right justfied format).
;			   3:SND_SOC_DAIFMT_LEFT_J(left justfied format)
;			   4:SND_SOC_DAIFMT_DSP_A(pcm. MSB is available on 2nd BCLK rising edge after LRC rising edge). use
;			   5:SND_SOC_DAIFMT_DSP_B(pcm. MSB is available on 1nd BCLK rising edge after LRC rising edge)
;signal_inversion:1:SND_SOC_DAIFMT_NB_NF(normal bit clock + frame)  use
;				  2:SND_SOC_DAIFMT_NB_IF(normal BCLK + inv FRM)
;				  3:SND_SOC_DAIFMT_IB_NF(invert BCLK + nor FRM)  use
;				  4:SND_SOC_DAIFMT_IB_IF(invert BCLK + FRM)
;over_sample_rate: support 128fs/192fs/256fs/384fs/512fs/768fs
;sample_resolution	:16bits/20bits/24bits
;word_select_size 	:16bits/20bits/24bits/32bits
;pcm_sync_period 	:16/32/64/128/256
;msb_lsb_first 		:0: msb first; 1: lsb first
;sign_extend 		:0: zero pending; 1: sign extend
;slot_index 		:slot index: 0: the 1st slot - 3: the 4th slot
;slot_width 		:8 bit width / 16 bit width
;frame_width 		:0: long frame = 2 clock width;  1: short frame
;tx_data_mode 		:0: 16bit linear PCM; 1: 8bit linear PCM; 2: 8bit u-law; 3: 8bit a-law
;rx_data_mode 		:0: 16bit linear PCM; 1: 8bit linear PCM; 2: 8bit u-law; 3: 8bit a-law
;--------------------------------------------------------------------------------
[tdm0]
daudio_used         = 0
daudio_master       = 4
daudio_select       = 1
audio_format        = 1
signal_inversion    = 1
mclk_fs             = 512
sample_resolution   = 16
slot_width_select   = 16
pcm_lrck_period     = 32
pcm_lrckr_period    = 1
msb_lsb_first 	    = 0
sign_extend         = 0
slot_index          = 0
slot_width          = 16
frame_width         = 1
tx_data_mode        = 0
rx_data_mode        = 0
;i2s_mclk           = port:PB08<2><1><default><default>
i2s_bclk            = port:PG11<2><1><default><default>
i2s_lrclk           = port:PG10<2><1><default><default>
i2s_dout0           = port:PG12<2><1><default><default>
i2s_dout1           =
i2s_dout2           =
i2s_dout3           =
i2s_din             = port:PG13<2><1><default><default>

;--------------------------------------------------------------------------------------
;pa_single_vol,pa_double_vol: 31 level,1.5db/step.0x1f is the large volume.
;cap_val:use for system record,0x0--0db,0x1--24db,0x2--27db,0x3--30db,0x4--33db,0x5--36db,0x6--39db,0x7--42db
;headphone_vol,earpiece_vol: must least than 0x3b. 0x1 is a step.
;headset_mic_vol: headset mic(mic2) vol,use for phone headset mic call
;main_mic_vol: main mic(mic1) vol,use for phone main mic call
;version_v3_used : 1:v3,0:v3s
[audio0]
;audio_used           = 1
headphone_vol			= 0x3b

cap_vol					= 0x5
Differential_output    = 1
pa_single_vol			= 0x3d
pa_double_used			= 0
pa_double_vol			= 0x1f
headphone_direct_used	= 0
phone_mic_vol = 0x6
version_v3_used = 0
headphone_mute_used = 0
audio_hp_ldo       = 0
;v3s
audio_pa_ctrl         = port:PB05<1><default><default><0>

adcagc_used       = 0
adcdrc_used       = 0
dacdrc_used       = 0
adchpf_used       = 0
dachpf_used       = 0

;----------------------------------------------------------------------------------
;ir --- infra remote configuration
;----------------------------------------------------------------------------------
[s_ir0]
ir_used             = 0
ir_rx               = port:PL04<2><1><default><default>


;-------------------------------------------------------------------------------------
;pmu_used                    ---0:not used,1:used
;pmu_id                      ---0:axp19x,1:axp209,2:axp22x,3:axp806,4:axp808,5:axp809,6:axp803,7:axp813
;pmu_twi_addr                ---slave address
;pmu_twi_id                  ---i2c bus number (0 TWI0, 1 TWI2, 2 TWI3)
;pmu_irq_id		     ---irq number (0 irq0,1 irq1,…\E2\80?
;pmu_battery_rdc             ---battery initial resistance
;pmu_battery_cap             ---battery capability,mAh
;pmu_batdeten		     ---battery detect en;0:disable 1:enable
;pmu_runtime_chgcur          ---set initial charging current limite,mA\EF\BC?00/450/600/750/900/1050/1200/1350/1500/1650/1800/1950/
;pmu_earlysuspend_chgcur     ---set earlysuspend charging current limite,mA\EF\BC?00/450/600/750/900/1050/1200/1350/1500/1650/1800/1950/
;pmu_suspend_chgcur          ---set suspend charging current limite,mA\EF\BC?00/450/600/750/900/1050/1200/1350/1500/1650/1800/1950/
;pmu_shutdown_chgcur         ---set shutdown charging current limite,mA\EF\BC?00/450/600/750/900/1050/1200/1350/1500/1650/1800/1950/
;pmu_init_chgvol             ---set initial charing target voltage,mV,4100/4220/4200/4240
;pmu_init_chgend_rate        ---set initial charing end current  rate,10/15
;pmu_init_chg_enabled        ---set initial charing enabled,0:disable,1:enable
;pmu_init_adc_freq           ---set initial adc frequency,Hz,100/200/400/800
;pmu_init_adcts_freq         ---set initial adc TS,Hz,100/200/400/800
;pmu_init_chg_pretime        ---set initial pre-charging time,min,40/50/60/70
;pmu_init_chg_csttime        ---set initial constance-charging time,min,360/480/600/720
;pmu_batt_cap_correct	     ---correct the battery capacity or not when one charge cycle 0:not correct 1:correct
;pmu_bat_regu_en			 ---bat regulator is enable or not when charge done 0:disable 1:enable
;pmu_bat_para1 		     			 ---battery indication at 3.13V
;pmu_bat_para2               ---battery indication at 3.27V
;pmu_bat_para3               ---battery indication at 3.34V
;pmu_bat_para4               ---battery indication at 3.41V
;pmu_bat_para5               ---battery indication at 3.48V
;pmu_bat_para6               ---battery indication at 3.52V
;pmu_bat_para7               ---battery indication at 3.55V
;pmu_bat_para8               ---battery indication at 3.57V
;pmu_bat_para9               ---battery indication at 3.59V
;pmu_bat_para10              ---battery indication at 3.61V
;pmu_bat_para11              ---battery indication at 3.63V
;pmu_bat_para12              ---battery indication at 3.64V
;pmu_bat_para13              ---battery indication at 3.66V
;pmu_bat_para14              ---battery indication at 3.7V
;pmu_bat_para15              ---battery indication at 3.73V
;pmu_bat_para16              ---battery indication at 3.77V
;pmu_bat_para17              ---battery indication at 3.78V
;pmu_bat_para18              ---battery indication at 3.8V
;pmu_bat_para19              ---battery indication at 3.82V
;pmu_bat_para20              ---battery indication at 3.84V
;pmu_bat_para21              ---battery indication at 3.85V
;pmu_bat_para22              ---battery indication at 3.87V
;pmu_bat_para23              ---battery indication at 3.91V
;pmu_bat_para24              ---battery indication at 3.94V
;pmu_bat_para25              ---battery indication at 3.98V
;pmu_bat_para26              ---battery indication at 4.01V
;pmu_bat_para27              ---battery indication at 4.05V
;pmu_bat_para28              ---battery indication at 4.08V
;pmu_bat_para29              ---battery indication at 4.1V
;pmu_bat_para30              ---battery indication at 4.12V
;pmu_bat_para31              ---battery indication at 4.14V
;pmu_bat_para32              ---battery indication at 4.15V
;pmu_usbvol_limit            ---set usb-ac limited voltage enable,1:enable\EF\BC?：disable
;pmu_usbcur_limit            ---set usb-ac limited current enable,1:enable\EF\BC?：disable
;pmu_usbvol                  ---set usb-ac limited voltage level,mV,4000/4100/4200/4300/4400/4500/4600/4700,0 - not limite
;pmu_usbcur                  ---set usb-ac limited current level,mA,500/900, 0 - not limite
;pmu_usbvol_pc	             ---set usb-pc limited voltage level,mV,4000/4100/4200/4300/4400/4500/4600/4700,0 - not limite
;pmu_usbcur_pc               ---set usb-pc limited current level,mA,500/900, 0 - not limite
;pmu_pwroff_vol              ---set protect voltage when system start up,mV,2600/2700/2800/2900/3000/3100/3200/3300
;pmu_pwron_vol               ---set protect voltage after system start up,mV,2600/2700/2800/2900/3000/3100/3200/3300
;pmu_pekoff_time             ---set pek off time,ms, 4000/6000/8000/10000
;pmu_pekoff_func             ---set pek off func, 0:shutdown,1:restart
;pmu_pekoff_en		     ---set pek offlevel powerdown or not, 0:not powerdown,1:powerdown
;pmu_peklong_time            ---set pek pek long irq time,ms,1000/1500/2000/2500
;pmu_pekon_time              ---set pek on time,ms,128/1000/2000/3000
;pmu_pwrok_time              ---set pmu pwrok delay time,ms,8/16/32/64
;pmu_battery_warning_level1  ---low power warning high level,5%-20%,1%/step
;pmu_battery_warning_level2  ---low power warning low level,0%-15%,1%/step
;pmu_restvol_time            ---battery indicaton reflash time,30/60/120/
;pmu_ocv_cou_adjust_time     ---ocv battery indication reflash time,60/120/30
;pmu_chgled_func             ---CHGKED pin control\EF\BC?:controlled by pmu,1:controlled by Charger
;pmu_chgled_type             ---CHGLED Type select when pmu_chgled_func=0,0:Type A\EF\BC?：Type B
;pmu_vbusen_func	     ---N_VBUSEN function select,0:as an output,1:as an input
;pmu_reset                   ---when power key press longer than 16's,PMU reset or not.0:not reset 1:reset
;pmu_IRQ_wakeup		     ---press IRQ wakeup or not when sleep or power down.0:not wakeup 1:wakeup
;pmu_hot_shutdowm            ---when PMU over temperature protect or not;0:disable 1:enable
;pmu_inshort		     ---ACIN and VBUS inshort or not by software;0:auto detect 1:inshort
;pmu_temp_enable             ---temp detect enable
;pmu_charge_ltf              ---charge temp low threshold voltage
;pmu_charge_htf              ---charge temp high threshold voltage
;pmu_discharge_ltf           ---shutdown temp low threshold voltage
;pmu_discharge_htf           ---shutdown temp high threshold voltage
;pmu_temp_para1              --- temp -25 voltage
;pmu_temp_para2              --- temp -15 voltage
;pmu_temp_para3              --- temp -10 voltage
;pmu_temp_para4              --- temp -5  voltage
;pmu_temp_para5              --- temp  0  voltage
;pmu_temp_para6              --- temp  5  voltage
;pmu_temp_para7              --- temp  10 voltage
;pmu_temp_para8              --- temp  20 voltage
;pmu_temp_para9              --- temp  30 voltage
;pmu_temp_para10             --- temp  40 voltage
;pmu_temp_para11             --- temp  45 voltage
;pmu_temp_para12             --- temp  50 voltage
;pmu_temp_para13             --- temp  55 voltage
;pmu_temp_para14             --- temp  60 voltage
;pmu_temp_para15             --- temp  70 voltage
;pmu_temp_para16             --- temp  80 voltage
;--------------------------------------------------------------------------------------------------------
[pmu1_para]
pmu_used                   = 1
pmu_id                     = 1
pmu_twi_addr               = 0x34
pmu_twi_id                 = 0
pmu_irq_id                 = 0
pmu_irq_gpio			   = port:PG05<6><default><default><default>
pmu_battery_rdc            = 249
pmu_battery_cap            = 183
pmu_batdeten               = 1
pmu_runtime_chgcur         = 150
pmu_earlysuspend_chgcur    = 150
pmu_suspend_chgcur         = 150
pmu_shutdown_chgcur        = 150
pmu_init_chgvol            = 4200
pmu_init_chgend_rate       = 15
pmu_init_chg_enabled       = 1
pmu_init_adc_freq          = 100
pmu_init_chg_pretime       = 50
pmu_init_chg_csttime       = 720
pmu_battery_warning1        = 3650
pmu_battery_warning2       = 3600


pmu_bat_para1=0
pmu_bat_para2=0
pmu_bat_para3=0
pmu_bat_para4=0
pmu_bat_para5=8
pmu_bat_para6=16
pmu_bat_para7=25
pmu_bat_para8=37
pmu_bat_para9=47
pmu_bat_para10=55
pmu_bat_para11=61
pmu_bat_para12=68
pmu_bat_para13=79
pmu_bat_para14=87
pmu_bat_para15=94
pmu_bat_para16=100

pmu_usbvol_limit           = 1
pmu_usbcur_limit           = 0
pmu_usbvol                 = 4000
pmu_usbcur                 = 0
pmu_usbvol_pc            = 4000
pmu_usbcur_pc            = 0
pmu_pwroff_vol             = 3300
pmu_pwron_vol            = 2900
pmu_pekoff_time            = 6000
pmu_pekoff_en              = 1
pmu_peklong_time           = 1500
pmu_pekon_time             = 1000
pmu_pwrok_time             = 64
pmu_pwrnoe_time          = 2000
pmu_hot_shutdown            = 1
pmu_suspendpwroff_vol    = 3500
power_start              = 1

[pmu1_regu]
regulator_count = 7
regulator1      = "axp20_dcdc2 none vdd-sys vdd-cpu vdd-ephy"
regulator2      = "axp20_dcdc3 none vcc-io hpvcc vcc-pd vcc-usb vcc-ephy vcc-mcsi vcc-lcd vcc-wifi vcc-device vcc-csi vcc-ctp"
regulator3      = "axp20_ldo1 none vcc-rtc"
regulator4      = "axp20_ldo2 none  vcc-avcc vcc-pll"
regulator5      = "axp20_ldo3 none vcc-pe csi-avdd"
regulator6      = "axp20_ldo4 none csi-dvdd"
regulator7      = "axp20_ldoio0 none"

;----------------------------------------------------------------------------------
; dvfs voltage-frequency table configuration
;
; extremity_freq(Hz): cpu extremity frequency when run benckmark or demo apk
;                     1536MHz@1500mV with radiator, 1296MHz@1340mV without radiator
; max_freq: cpu maximum frequency, based on Hz, can not be more than 1200MHz
; min_freq: cpu minimum frequency, based on Hz, can not be less than 60MHz
;
; LV_count: count of LV_freq/LV_volt, must be < 16
;
; LV1: core vdd is 1.50v if cpu frequency is (1296Mhz,  1536Mhz]
; LV2: core vdd is 1.34v if cpu frequency is (1200Mhz,  1296Mhz]
; LV3: core vdd is 1.32v if cpu frequency is (1008Mhz,  1200Mhz]
; LV4: core vdd is 1.20v if cpu frequency is (816Mhz,   1008Mhz]
; LV5: core vdd is 1.10v if cpu frequency is (648Mhz,    816Mhz]
; LV6: core vdd is 1.04v if cpu frequency is (0Mhz,      648Mhz]
; LV7: core vdd is 1.04v if cpu frequency is (0Mhz,      648Mhz]
; LV8: core vdd is 1.04v if cpu frequency is (0Mhz,      648Mhz]
;
;----------------------------------------------------------------------------------
[dvfs_table]
extremity_freq = 1008000000
max_freq = 1008000000
min_freq = 60000000

LV_count = 8

LV1_freq = 1008000000
LV1_volt = 1200

LV2_freq = 1008000000
LV2_volt = 1200

LV3_freq = 940000000
LV3_volt = 1200

LV4_freq = 940000000
LV4_volt = 1200

LV5_freq = 816000000
LV5_volt = 1100

LV6_freq = 648000000
LV6_volt = 1040

LV7_freq = 0
LV7_volt = 1040

LV8_freq = 0
LV8_volt = 1040

;----------------------------------------------------------------------------------
;virtual device
;virtual device for pinctrl testing
;device have pin PA1 PA2
;----------------------------------------------------------------------------------
[Vdevice]
Vdevice_used        = 1
Vdevice_0           = port:PA01<5><1><2><default>
Vdevice_1           = port:PA02<5><1><2><default>

;----------------------------------------------------------------------------------
; dram dvfs voltage-frequency table configuration
;
; LV_count: count of LV_freq/LV_volt
;
; LV1: core vdd is 1.1v if dram frequency is (360Mhz, 552Mhz]
; LV2: core vdd is 1.0v if dram frequency is (  0Mhz, 360Mhz]
; LV3: core vdd is 1.0v if dram frequency is (  0Mhz, 360Mhz]
;
;----------------------------------------------------------------------------------
[dram_dvfs_table]
LV_count = 3

LV1_freq = 552000000
LV1_volt = 1100

LV2_freq = 360000000
LV2_volt = 1000

LV3_freq = 0
LV3_volt = 1000


[fel_key]
fel_key_used =  1
fel_key_min  =  0
fel_key_max  = 	60

[leds_para]
leds_used = 1
led_0 = port:PG00<1><default><default><0>
led_0_active_low = 0
led_1 = port:PG01<1><default><default><0>
led_1_active_low = 0
led_2 = port:PG02<1><default><default><0>
led_2_active_low = 0
;led_3 = port:PA00<1><default><default><0>
;led_3_active_low = 0
;led_4 = port:PA00<1><default><default><0>
;led_4_active_low = 0
;led_5 = port:PA00<1><default><default><0>
;led_5_active_low = 0
;led_6 = port:PA00<1><default><default><0>
;led_6_active_low = 0
;led_7 = port:PA00<1><default><default><0>
;led_7_active_low = 0

## Booting kernel from Legacy Image at 41000000 ...
   Image Name:   Linux-3.4.39
   Image Type:   ARM Linux Kernel Image (uncompressed)
   Data Size:    2626784 Bytes = 2.5 MiB
   Load Address: 40008000
   Entry Point:  40008000
   Verifying Checksum ... OK
   Loading Kernel Image ... OK
Using machid 0x1029 from environment

Starting kernel ...

[    0.000000] Booting Linux on physical CPU 0
[    0.000000] Linux version 3.4.39 (he@he) (gcc version 4.8.3 20140320 (prerelease) (Sourcery CodeBench Lite 2014.05-29) ) #2 Mon Apr 8 17:56:33 CST 2019
[    0.000000] Initialized persistent memory from 41d20800-41d307ff
[    0.000000] Kernel command line: console=ttyS0,115200 panic=5 rootwait root=/dev/mmcblk0p2 earlyprintk rw
[    0.000000] PID hash table entries: 256 (order: -2, 1024 bytes)
[    0.000000] Dentry cache hash table entries: 8192 (order: 3, 32768 bytes)
[    0.000000] Inode-cache hash table entries: 4096 (order: 2, 16384 bytes)
[    0.000000] Memory: 64MB = 64MB total
[    0.000000] Memory: 29340k/29340k available, 36196k reserved, 0K highmem
[    0.000000] Virtual kernel memory layout:
[    0.000000]     vector  : 0xffff0000 - 0xffff1000   (   4 kB)
[    0.000000]     fixmap  : 0xfff00000 - 0xfffe0000   ( 896 kB)
[    0.000000]     vmalloc : 0xc4800000 - 0xff000000   ( 936 MB)
[    0.000000]     lowmem  : 0xc0000000 - 0xc4000000   (  64 MB)
[    0.000000]     modules : 0xbf000000 - 0xc0000000   (  16 MB)
[    0.000000]       .text : 0xc0008000 - 0xc0502000   (5096 kB)
[    0.000000]       .init : 0xc0502000 - 0xc0525000   ( 140 kB)
[    0.000000]       .data : 0xc0526000 - 0xc05a27f0   ( 498 kB)
[    0.000000]        .bss : 0xc05a2814 - 0xc0683514   ( 900 kB)
[    0.000000] NR_IRQS:544
[    0.000000] Architected local timer running at 24.00MHz.
[    0.000000] Switching to timer-based delay loop
[    0.000000] sched_clock: 32 bits at 24MHz, resolution 41ns, wraps every 178956ms
[    0.000000] Console: colour dummy device 80x30
[    0.000150] Calibrating delay loop (skipped), value calculated using timer frequency.. 4800.00 BogoMIPS (lpj=24000000)
[    0.000171] pid_max: default: 32768 minimum: 301
[    0.000307] Mount-cache hash table entries: 512
[    0.000869] CPU: Testing write buffer coherency: ok
[    0.001130] Setting up static identity map for 0x4038cf68 - 0x4038cfc0
[    0.001804] devtmpfs: initialized
[    0.003519] pinctrl core: initialized pinctrl subsystem
[    0.004015] NET: Registered protocol family 16
[    0.004321] DMA: preallocated 128 KiB pool for atomic coherent allocations
[    0.004381] script_sysfs_init success
[    0.005173] gpiochip_add: registered GPIOs 0 to 223 on device: sunxi-pinctrl
[    0.006114] sunxi-pinctrl sunxi-pinctrl: initialized sunXi PIO driver
[    0.006489] gpiochip_add: registered GPIOs 1024 to 1031 on device: axp-pinctrl
[    0.007339] persistent_ram: uncorrectable error in header
[    0.007354] persistent_ram: no valid data in buffer (sig = 0x55175517)
[    0.013821] console [ram-1] enabled
[    0.014632] Not Found clk pll_isp in script
[    0.014864] Not Found clk pll_video in script
[    0.014989] Not Found clk pll_ve in script
[    0.015112] Not Found clk pll_periph0 in script
[    0.015339] Not Found clk pll_de in script
[    0.019533] bio: create slab <bio-0> at 0
[    0.019920] pwm module init!
[    0.022142] SCSI subsystem initialized
[    0.022504] usbcore: registered new interface driver usbfs
[    0.022708] usbcore: registered new interface driver hub
[    0.023079] usbcore: registered new device driver usb
[    0.023339] twi_chan_cfg()340 - [twi0] has no twi_regulator.
[    0.023570] twi_chan_cfg()340 - [twi1] has no twi_regulator.
[    0.024397] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x34)
[    0.024644] axp20_board 0-0034: failed reading at 0x03
[    0.024899] axp20_board: probe of 0-0034 failed with error -70
[    0.025067] Linux video capture interface: v2.00
[    0.025384] gpiochip_add: gpios 1024..1028 (axp_pin) failed to register
[    0.025844] Advanced Linux Sound Architecture Driver Version 1.0.25.
[    0.026749] Switching to clocksource arch_sys_counter
[    0.029961] NET: Registered protocol family 2
[    0.029961] IP route cache hash table entries: 1024 (order: 0, 4096 bytes)
[    0.030278] TCP established hash table entries: 2048 (order: 2, 16384 bytes)
[    0.030552] TCP bind hash table entries: 2048 (order: 1, 8192 bytes)
[    0.030695] TCP: Hash tables configured (established 2048 bind 2048)
[    0.030923] TCP: reno registered
[    0.031049] UDP hash table entries: 256 (order: 0, 4096 bytes)
[    0.031287] UDP-Lite hash table entries: 256 (order: 0, 4096 bytes)
[    0.031664] NET: Registered protocol family 1
[    0.032228] standby_mode = 1.
[    0.032354] wakeup src cnt is : 3.
[    0.032496] pmu1_enable = 0x1.
[    0.032618] pmux_id = 0x1.
[    0.032855] config_pmux_para: script_parser_fetch err.
[    0.032980] pmu2_enable = 0x0.
[    0.033108] add_sys_pwr_dm: get ldo name failed
[    0.033335] add_sys_pwr_dm: get ldo name failed
[    0.033458] add_sys_pwr_dm: get ldo name failed
[    0.033686] add_sys_pwr_dm: get ldo name failed
[    0.033808] add_sys_pwr_dm: get ldo name failed
[    0.033930] add_sys_pwr_dm: get ldo name failed
[    0.034154] add_sys_pwr_dm: get ldo name failed
[    0.034278] add_sys_pwr_dm: get ldo name failed
[    0.034505] add_sys_pwr_dm: get ldo name failed
[    0.034628] add_sys_pwr_dm: get ldo name failed
[    0.034749] after inited: sys_mask config = 0x0.
[    0.034975] dynamic_standby enalbe = 0x0.
[    0.035146] sunxi_reg_init enter
[    0.037213] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[    0.037498] jffs2: version 2.2. (NAND) (SUMMARY)  © 2001-2006 Red Hat, Inc.
[    0.037913] msgmni has been set to 57
[    0.038965] io scheduler noop registered
[    0.039104] io scheduler deadline registered
[    0.039413] io scheduler cfq registered (default)
[    0.039953] [DISP]disp_module_init
[    0.040532] cmdline,disp=
[    0.041315] [DISP] disp_get_rotation_sw,line:68:disp 0 out of range? g_rot_sw=0
[    0.041562] [DISP] disp_init_connections,line:289:NULL pointer: 0, 0
[    0.044209] [DISP] Fb_map_kernel_logo,line:924:Fb_map_kernel_logo failed!
[    0.046857] [DISP] disp_sys_power_enable,line:387:some error happen, fail to get regulator
[    0.047992] [DISP]disp_module_init finish
[    0.048409] sw_uart_get_devinfo()1503 - uart0 has no uart_regulator.
[    0.048998] uart0: ttyS0 at MMIO 0x1c28000 (irq = 32) is a SUNXI
[    0.049240] sw_uart_pm()890 - uart0 clk is already enable
[    0.049377] sw_console_setup()1233 - console setup baud 115200 parity n bits 8, flow n
[    0.162851] console [ttyS0] enabled
[    0.687969] sunxi_spi_chan_cfg()1376 - [spi-0] has no spi_regulator.
[    0.695952] spi spi0: master is unqueued, this is deprecated
[    0.702543] m25p_probe()982 - Use the Dual Mode Read.
[    0.708496] m25p80 spi0.0: found m25p05-nonjedec, expected w25q128
[    0.715501] m25p80 spi0.0: m25p05-nonjedec (64 Kbytes)
[    0.722920] partitions_register()865 - m25p80_read() ret 0, PartCnt: 0
[    0.730315] m25p80: probe of spi0.0 failed with error -22
[    0.738149] Failed to alloc md5
[    0.741854] eth0: Use random mac address
[    0.746381] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[    0.774050] sunxi-ehci sunxi-ehci.1: SW USB2.0 'Enhanced' Host Controller (EHCI) Driver
[    0.783297] sunxi-ehci sunxi-ehci.1: new USB bus registered, assigned bus number 1
[    0.791970] sunxi-ehci sunxi-ehci.1: irq 104, io mem 0xf1c1a000
[    0.810033] sunxi-ehci sunxi-ehci.1: USB 0.0 started, EHCI 1.00
[    0.817421] hub 1-0:1.0: USB hub found
[    0.821882] hub 1-0:1.0: 1 port detected
[    0.826768] sunxi-ehci sunxi-ehci.1: remove, state 1
[    0.832544] usb usb1: USB disconnect, device number 1
[    0.839826] sunxi-ehci sunxi-ehci.1: USB bus 1 deregistered
[    0.856286] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
[    0.883492] sunxi-ohci sunxi-ohci.1: SW USB2.0 'Open' Host Controller (OHCI) Driver
[    0.892260] sunxi-ohci sunxi-ohci.1: new USB bus registered, assigned bus number 1
[    0.900828] sunxi-ohci sunxi-ohci.1: irq 105, io mem 0xf1c1a400
[    0.964625] hub 1-0:1.0: USB hub found
[    0.968924] hub 1-0:1.0: 1 port detected
[    0.973935] sunxi-ohci sunxi-ohci.1: remove, state 1
[    0.979577] usb usb1: USB disconnect, device number 1
[    0.985891] sunxi-ohci sunxi-ohci.1: USB bus 1 deregistered
[    1.002442] Initializing USB Mass Storage driver...
[    1.008061] usbcore: registered new interface driver usb-storage
[    1.014960] USB Mass Storage support registered.
[    1.020517] file system registered
[    1.026010] android_usb gadget: Mass Storage Function, version: 2009/09/11
[    1.033815] android_usb gadget: Number of LUNs=1
[    1.039247]  lun0: LUN: removable file: (no medium)
[    1.045398] android_usb gadget: android_usb ready
[    1.050896] sunxikbd_script_init: key para not found, used default para.
[    1.059666] sunxi-rtc sunxi-rtc: rtc core: registered sunxi-rtc as rtc0
[    1.067571] [VFE]cci probe start cci_sel = 0!
[    1.072663] [VFE]cci probe end cci_sel = 0!
[    1.077456] [VFE]cci_init end
[    1.080997] [VFE]Welcome to Video Front End driver
[    1.086720] [VFE]pdev->id = 0
[    1.090179] [VFE]dev->mipi_sel = 0
[    1.094171] [VFE]dev->vip_sel = 0
[    1.097956] [VFE]dev->isp_sel = 0
[    1.107860] [VFE_WARN]vfe vpu clock is null
[    1.119393] [VFE]vfe_init end
[    1.122900] [VFE]probe_work_handle start!
[    1.127464] [VFE]..........................vfe clk open!.......................
[    1.136801] platform reg-20-cs-dcdc2: Driver reg-20-cs-dcdc2 requests probe deferral
[    1.145840] platform reg-20-cs-dcdc3: Driver reg-20-cs-dcdc3 requests probe deferral
[    1.154887] [VFE]v4l2 subdev register input_num = 0
[    1.160547] [VFE_ERR]get regulator csi_avdd error!
[    1.165976] [VFE_ERR]vfe_device_regulator_get error at input_num = 0
[    1.173485] platform reg-20-cs-ldo1: Driver reg-20-cs-ldo1 requests probe deferral
[    1.182151] platform reg-20-cs-ldo2: Driver reg-20-cs-ldo2 requests probe deferral
[    1.191034] [VFE]V4L2 device registered as video0
[    1.196404] [VFE]..........................vfe clk close!.......................
[    1.205051] platform reg-20-cs-ldo3: Driver reg-20-cs-ldo3 requests probe deferral
[    1.213725] [VFE]probe_work_handle end!
[    1.218261] platform reg-20-cs-ldo4: Driver reg-20-cs-ldo4 requests probe deferral
[    1.227038] platform reg-20-cs-ldoio0: Driver reg-20-cs-ldoio0 requests probe deferral
[    1.235966] sunxi_wdt_init_module: sunxi WatchDog Timer Driver v1.0
[    1.243359] sunxi_wdt_probe: devm_ioremap return wdt_reg 0xf1c20ca0, res->start 0x01c20ca0, res->end 0x01c20cbf
[    1.254801] sunxi_wdt_probe: initialized (g_timeout=16s, g_nowayout=0)
[    1.262518] wdt_enable, write reg 0xf1c20cb8 val 0x00000000
[    1.268921] wdt_set_tmout, write 0x000000b0 to mode reg 0xf1c20cb8, actual timeout 16 sec
[    1.280898] no led_3, ignore it!
[    1.284618] no led_4, ignore it!
[    1.288308] no led_5, ignore it!
[    1.292146] no led_6, ignore it!
[    1.295848] no led_7, ignore it!
[    1.300865] leds-gpio: probe of leds-gpio failed with error -16
[    1.307942] usbcore: registered new interface driver usbhid
[    1.314282] usbhid: USB HID core driver
[    1.319392] ashmem: initialized
[    1.323297] logger: created 256K log 'log_main'
[    1.328609] logger: created 32K log 'log_events'
[    1.334319] logger: created 32K log 'log_radio'
[    1.339590] logger: created 32K log 'log_system'
[    1.346344] script_get_item return type err, consider it no ldo
[    1.354269] asoc: sndcodec <-> sunxi-codec mapping ok
[    1.364164] *******************Try sdio*******************
[    1.372064] TCP: cubic registered
[    1.375906] NET: Registered protocol family 17
[    1.381143] VFP support v0.3: [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 5,  RTO !!
[    1.391474] ThumbEE CPU extension supported.
[    1.396482] Registering SWP/SWPB emulation handler
[    1.402826] *******************Try sd *******************
[    1.409280] platform reg-20-cs-ldoio0: Driver reg-20-cs-ldoio0 requests probe deferral
[    1.418344] platform reg-20-cs-ldo4: Driver reg-20-cs-ldo4 requests probe deferral
[    1.428375] platform reg-20-cs-ldo3: Driver reg-20-cs-ldo3 requests probe deferral
[    1.439226] platform reg-20-cs-ldo2: Driver reg-20-cs-ldo2 requests probe deferral
[    1.447837] platform reg-20-cs-ldo1: Driver reg-20-cs-ldo1 requests probe deferral
[    1.456529] platform reg-20-cs-dcdc3: Driver reg-20-cs-dcdc3 requests probe deferral
[    1.465411] platform reg-20-cs-dcdc2: Driver reg-20-cs-dcdc2 requests probe deferral
[    1.474217] sunxi-rtc sunxi-rtc: setting system clock to 1970-01-01 00:16:34 UTC (994)
[    1.484665] ALSA device list:
[    1.488097]   #0: audiocodec
[    1.491832] Waiting for root device /dev/mmcblk0p2...
[    1.527504] mmc0: new high speed SDHC card at address aaaa
[    1.534210] mmcblk0: mmc0:aaaa SC16G 14.8 GiB
[    1.543890]  mmcblk0: p1 p2
[    1.547910] mmcblk mmc0:aaaa: Card claimed for testing.
[    1.553990] mmc0:aaaa: SC16G 14.8 GiB
[    1.558383] platform reg-20-cs-dcdc2: Driver reg-20-cs-dcdc2 requests probe deferral
[    1.567273] *******************sd init ok*******************
[    1.573765] platform reg-20-cs-dcdc3: Driver reg-20-cs-dcdc3 requests probe deferral
[    1.582659] platform reg-20-cs-ldo1: Driver reg-20-cs-ldo1 requests probe deferral
[    1.591222] platform reg-20-cs-ldo2: Driver reg-20-cs-ldo2 requests probe deferral
[    1.599880] platform reg-20-cs-ldo3: Driver reg-20-cs-ldo3 requests probe deferral
[    1.608573] platform reg-20-cs-ldo4: Driver reg-20-cs-ldo4 requests probe deferral
[    1.617143] platform reg-20-cs-ldoio0: Driver reg-20-cs-ldoio0 requests probe deferral
[    1.712926] EXT4-fs (mmcblk0p2): couldn't mount as ext3 due to feature incompatibilities
[    1.724765] EXT4-fs (mmcblk0p2): couldn't mount as ext2 due to feature incompatibilities
[    1.761795] EXT4-fs (mmcblk0p2): mounted filesystem with ordered data mode. Opts: (null)
[    1.771002] VFS: Mounted root (ext4 filesystem) on device 179:2.
[    1.782364] devtmpfs: mounted
[    1.785975] Freeing init memory: 140K
[    1.905285] EXT4-fs (mmcblk0p2): re-mounted. Opts: data=ordered
Starting logging: OK
Initializing random number generator... done.
Starting network: OK

Welcome to Buildroot
buildroot login:
Welcome to Buildroot
buildroot login: root
# ls
111   test
# dmesg  | grep ov5647
#
#
# lsmod
Module                  Size  Used by    Not tainted
#

# ./newtest
[   34.653288] [VFE]vfe_open
[   34.656469] [VFE]..........................vfe clk open!.......................
[   34.665674] [VFE]vfe_open ok
[   34.669100] [VFE_ERR]try yuv422 bus error when pix fmt is yuv422 interleaved at try_fmt_internal!
[   34.679238] [VFE_ERR]pixel format (0x56595559) width 320 height 240 invalid at vidioc_s_fmt_vid_cap.
[   34.690262] [VFE]buffer_setup, buffer count=4, size=0
mmap failed[   34.696346] [VFE_ERR]videobuf_buffer->priv is NULL!

mmap failed
mmap failed
mmap failed
VIDIOC_QBUF failed
VIDIOC_QBUF failed
VIDIOC_QBUF failed
VIDIOC_QBUF failed
buf.index dq is 0,[   34.714109] [VFE]vfe_close

[   34.718734] [VFE]vfe select input flag = 0, s_input have not be used .
[   34.726312] [VFE]..........................vfe clk close!.......................
[   34.735047] [VFE]vfe_close end

starting USB...
No controllers found
Hit any key to stop autoboot:  0
=> setenv bootargs console=ttyS0,115200 panic=5 rootwait root=/dev/mmcblk0p2 earlyprintk rw
=> setenv bootm_boot_mode sec
=> setenv machid 1029
=> load mmc 0:1 0x41000000 uImage
reading uImage
2626848 bytes read in 153 ms (16.4 MiB/s)
=> load mmc 0:1 0x41d00000 script.bin
reading script.bin
32628 bytes read in 24 ms (1.3 MiB/s)
=> bootm 0x41000000
## Booting kernel from Legacy Image at 41000000 ...
   Image Name:   Linux-3.4.39
   Image Type:   ARM Linux Kernel Image (uncompressed)
   Data Size:    2626784 Bytes = 2.5 MiB
   Load Address: 40008000
   Entry Point:  40008000
   Verifying Checksum ... OK
   Loading Kernel Image ... OK
Using machid 0x1029 from environment

Starting kernel ...

[    0.000000] Booting Linux on physical CPU 0
[    0.000000] Linux version 3.4.39 (he@he) (gcc version 4.8.3 20140320 (prerelease) (Sourcery CodeBench Lite 2014.05-29) ) #2 Mon Apr 8 17:56:33 CST 2019
[    0.000000] Initialized persistent memory from 41d20800-41d307ff
[    0.000000] Kernel command line: console=ttyS0,115200 panic=5 rootwait root=/dev/mmcblk0p2 earlyprintk rw
[    0.000000] PID hash table entries: 256 (order: -2, 1024 bytes)
[    0.000000] Dentry cache hash table entries: 8192 (order: 3, 32768 bytes)
[    0.000000] Inode-cache hash table entries: 4096 (order: 2, 16384 bytes)
[    0.000000] Memory: 64MB = 64MB total
[    0.000000] Memory: 29348k/29348k available, 36188k reserved, 0K highmem
[    0.000000] Virtual kernel memory layout:
[    0.000000]     vector  : 0xffff0000 - 0xffff1000   (   4 kB)
[    0.000000]     fixmap  : 0xfff00000 - 0xfffe0000   ( 896 kB)
[    0.000000]     vmalloc : 0xc4800000 - 0xff000000   ( 936 MB)
[    0.000000]     lowmem  : 0xc0000000 - 0xc4000000   (  64 MB)
[    0.000000]     modules : 0xbf000000 - 0xc0000000   (  16 MB)
[    0.000000]       .text : 0xc0008000 - 0xc0502000   (5096 kB)
[    0.000000]       .init : 0xc0502000 - 0xc0525000   ( 140 kB)
[    0.000000]       .data : 0xc0526000 - 0xc05a27f0   ( 498 kB)
[    0.000000]        .bss : 0xc05a2814 - 0xc0683514   ( 900 kB)
[    0.000000] NR_IRQS:544
[    0.000000] Architected local timer running at 24.00MHz.
[    0.000000] Switching to timer-based delay loop
[    0.000000] sched_clock: 32 bits at 24MHz, resolution 41ns, wraps every 178956ms
[    0.000000] Console: colour dummy device 80x30
[    0.000153] Calibrating delay loop (skipped), value calculated using timer frequency.. 4800.00 BogoMIPS (lpj=24000000)
[    0.000172] pid_max: default: 32768 minimum: 301
[    0.000314] Mount-cache hash table entries: 512
[    0.000874] CPU: Testing write buffer coherency: ok
[    0.001134] Setting up static identity map for 0x4038cf68 - 0x4038cfc0
[    0.001815] devtmpfs: initialized
[    0.003517] pinctrl core: initialized pinctrl subsystem
[    0.004014] NET: Registered protocol family 16
[    0.004317] DMA: preallocated 128 KiB pool for atomic coherent allocations
[    0.004377] script_sysfs_init success
[    0.005163] gpiochip_add: registered GPIOs 0 to 223 on device: sunxi-pinctrl
[    0.006063] sunxi-pinctrl sunxi-pinctrl: initialized sunXi PIO driver
[    0.006441] gpiochip_add: registered GPIOs 1024 to 1031 on device: axp-pinctrl
[    0.007295] persistent_ram: uncorrectable error in header
[    0.007311] persistent_ram: no valid data in buffer (sig = 0xd5175701)
[    0.013814] console [ram-1] enabled
[    0.014636] Not Found clk pll_isp in script
[    0.014871] Not Found clk pll_video in script
[    0.014994] Not Found clk pll_ve in script
[    0.015116] Not Found clk pll_periph0 in script
[    0.015342] Not Found clk pll_de in script
[    0.019519] bio: create slab <bio-0> at 0
[    0.019900] pwm module init!
[    0.022177] SCSI subsystem initialized
[    0.022531] usbcore: registered new interface driver usbfs
[    0.022729] usbcore: registered new interface driver hub
[    0.023108] usbcore: registered new device driver usb
[    0.023369] twi_chan_cfg()340 - [twi0] has no twi_regulator.
[    0.023603] twi_chan_cfg()340 - [twi1] has no twi_regulator.
[    0.024427] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x34)
[    0.024671] axp20_board 0-0034: failed reading at 0x03
[    0.024923] axp20_board: probe of 0-0034 failed with error -70
[    0.025092] Linux video capture interface: v2.00
[    0.025402] gpiochip_add: gpios 1024..1028 (axp_pin) failed to register
[    0.025860] Advanced Linux Sound Architecture Driver Version 1.0.25.
[    0.026749] Switching to clocksource arch_sys_counter
[    0.029942] NET: Registered protocol family 2
[    0.029942] IP route cache hash table entries: 1024 (order: 0, 4096 bytes)
[    0.030210] TCP established hash table entries: 2048 (order: 2, 16384 bytes)
[    0.030482] TCP bind hash table entries: 2048 (order: 1, 8192 bytes)
[    0.030627] TCP: Hash tables configured (established 2048 bind 2048)
[    0.030854] TCP: reno registered
[    0.030980] UDP hash table entries: 256 (order: 0, 4096 bytes)
[    0.031216] UDP-Lite hash table entries: 256 (order: 0, 4096 bytes)
[    0.031586] NET: Registered protocol family 1
[    0.032151] standby_mode = 1.
[    0.032278] wakeup src cnt is : 3.
[    0.032421] pmu1_enable = 0x1.
[    0.032544] pmux_id = 0x1.
[    0.032781] config_pmux_para: script_parser_fetch err.
[    0.032903] pmu2_enable = 0x0.
[    0.033029] add_sys_pwr_dm: get ldo name failed
[    0.033255] add_sys_pwr_dm: get ldo name failed
[    0.033377] add_sys_pwr_dm: get ldo name failed
[    0.033602] add_sys_pwr_dm: get ldo name failed
[    0.033725] add_sys_pwr_dm: get ldo name failed
[    0.033847] add_sys_pwr_dm: get ldo name failed
[    0.034074] add_sys_pwr_dm: get ldo name failed
[    0.034197] add_sys_pwr_dm: get ldo name failed
[    0.034427] add_sys_pwr_dm: get ldo name failed
[    0.034549] add_sys_pwr_dm: get ldo name failed
[    0.034670] after inited: sys_mask config = 0x0.
[    0.034897] dynamic_standby enalbe = 0x0.
[    0.035068] sunxi_reg_init enter
[    0.037132] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[    0.037414] jffs2: version 2.2. (NAND) (SUMMARY)  © 2001-2006 Red Hat, Inc.
[    0.037836] msgmni has been set to 57
[    0.038886] io scheduler noop registered
[    0.039025] io scheduler deadline registered
[    0.039329] io scheduler cfq registered (default)
[    0.039868] [DISP]disp_module_init
[    0.040451] cmdline,disp=
[    0.041231] [DISP] disp_get_rotation_sw,line:68:disp 0 out of range? g_rot_sw=0
[    0.041478] [DISP] disp_init_connections,line:289:NULL pointer: 0, 0
[    0.044126] [DISP] Fb_map_kernel_logo,line:924:Fb_map_kernel_logo failed!
[    0.046787] [DISP] disp_sys_power_enable,line:387:some error happen, fail to get regulator
[    0.047920] [DISP]disp_module_init finish
[    0.048334] sw_uart_get_devinfo()1503 - uart0 has no uart_regulator.
[    0.048916] uart0: ttyS0 at MMIO 0x1c28000 (irq = 32) is a SUNXI
[    0.049152] sw_uart_pm()890 - uart0 clk is already enable
[    0.049291] sw_console_setup()1233 - console setup baud 115200 parity n bits 8, flow n
[    0.162764] console [ttyS0] enabled
[    0.687859] sunxi_spi_chan_cfg()1376 - [spi-0] has no spi_regulator.
[    0.695828] spi spi0: master is unqueued, this is deprecated
[    0.702423] m25p_probe()982 - Use the Dual Mode Read.
[    0.708371] m25p80 spi0.0: found m25p05-nonjedec, expected w25q128
[    0.715375] m25p80 spi0.0: m25p05-nonjedec (64 Kbytes)
[    0.722791] partitions_register()865 - m25p80_read() ret 0, PartCnt: 0
[    0.730187] m25p80: probe of spi0.0 failed with error -22
[    0.738042] Failed to alloc md5
[    0.741745] eth0: Use random mac address
[    0.746275] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[    0.773946] sunxi-ehci sunxi-ehci.1: SW USB2.0 'Enhanced' Host Controller (EHCI) Driver
[    0.783197] sunxi-ehci sunxi-ehci.1: new USB bus registered, assigned bus number 1
[    0.791860] sunxi-ehci sunxi-ehci.1: irq 104, io mem 0xf1c1a000
[    0.810033] sunxi-ehci sunxi-ehci.1: USB 0.0 started, EHCI 1.00
[    0.817406] hub 1-0:1.0: USB hub found
[    0.821876] hub 1-0:1.0: 1 port detected
[    0.826768] sunxi-ehci sunxi-ehci.1: remove, state 1
[    0.832543] usb usb1: USB disconnect, device number 1
[    0.839714] sunxi-ehci sunxi-ehci.1: USB bus 1 deregistered
[    0.856180] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
[    0.883382] sunxi-ohci sunxi-ohci.1: SW USB2.0 'Open' Host Controller (OHCI) Driver
[    0.892148] sunxi-ohci sunxi-ohci.1: new USB bus registered, assigned bus number 1
[    0.900713] sunxi-ohci sunxi-ohci.1: irq 105, io mem 0xf1c1a400
[    0.964629] hub 1-0:1.0: USB hub found
[    0.968926] hub 1-0:1.0: 1 port detected
[    0.973934] sunxi-ohci sunxi-ohci.1: remove, state 1
[    0.979573] usb usb1: USB disconnect, device number 1
[    0.985875] sunxi-ohci sunxi-ohci.1: USB bus 1 deregistered
[    1.002424] Initializing USB Mass Storage driver...
[    1.008042] usbcore: registered new interface driver usb-storage
[    1.014937] USB Mass Storage support registered.
[    1.020482] file system registered
[    1.025989] android_usb gadget: Mass Storage Function, version: 2009/09/11
[    1.033795] android_usb gadget: Number of LUNs=1
[    1.039220]  lun0: LUN: removable file: (no medium)
[    1.045375] android_usb gadget: android_usb ready
[    1.050868] sunxikbd_script_init: key para not found, used default para.
[    1.059622] sunxi-rtc sunxi-rtc: rtc core: registered sunxi-rtc as rtc0
[    1.067525] [VFE]cci probe start cci_sel = 0!
[    1.072626] [VFE]cci probe end cci_sel = 0!
[    1.077422] [VFE]cci_init end
[    1.080964] [VFE]Welcome to Video Front End driver
[    1.086691] [VFE]pdev->id = 0
[    1.090143] [VFE]dev->mipi_sel = 0
[    1.094135] [VFE]dev->vip_sel = 0
[    1.097919] [VFE]dev->isp_sel = 0
[    1.107818] [VFE_WARN]vfe vpu clock is null
[    1.119192] [VFE]vfe_init end
[    1.122660] [VFE]probe_work_handle start!
[    1.127242] [VFE]..........................vfe clk open!.......................
[    1.136562] platform reg-20-cs-dcdc2: Driver reg-20-cs-dcdc2 requests probe deferral
[    1.145592] platform reg-20-cs-dcdc3: Driver reg-20-cs-dcdc3 requests probe deferral
[    1.154630] [VFE]v4l2 subdev register input_num = 0
[    1.160287] [VFE]vfe sensor detect start! input_num = 0
[    1.166203] [VFE]Find sensor name is "ov5647_mipi", i2c address is 6c, type is "RAW" !
[    1.175259] [VFE]Sub device register "ov5647_mipi" i2c_addr = 0x6c start!
[    1.182923] [VFE]v4l2_device_register_subdev return 0
[    1.188744] [VFE]registered sensor subdev is OK!
[    1.193991] [VFE]Check sensor!
[    1.197595] [VFE]Sub device register "ov5647_mipi" is OK!
[    1.203889] platform reg-20-cs-ldo1: Driver reg-20-cs-ldo1 requests probe deferral
[    1.212669] platform reg-20-cs-ldo2: Driver reg-20-cs-ldo2 requests probe deferral
[    1.221321] platform reg-20-cs-ldo3: Driver reg-20-cs-ldo3 requests probe deferral
[    1.230099] platform reg-20-cs-ldo4: Driver reg-20-cs-ldo4 requests probe deferral
[    1.238845] platform reg-20-cs-ldoio0: Driver reg-20-cs-ldoio0 requests probe deferral
[    1.247816] [VFE]Check open /system/etc/hawkview/ov5647_mipi/isp_test_param.ini failed!
[    1.247825] Match isp cfg  start!
[    1.260744] [VFE]read ini start
[    1.264518] [VFE]Fetch ini file form "/system/etc/hawkview/ov5647_mipi/isp_test_param.ini"
[    1.273910] sunxi_wdt_init_module: sunxi WatchDog Timer Driver v1.0
[    1.281371] sunxi_wdt_probe: devm_ioremap return wdt_reg 0xf1c20ca0, res->start 0x01c20ca0, res->end 0x01c20cbf
[    1.292853] sunxi_wdt_probe: initialized (g_timeout=16s, g_nowayout=0)
[    1.300565] wdt_enable, write reg 0xf1c20cb8 val 0x00000000
[    1.306969] wdt_set_tmout, write 0x000000b0 to mode reg 0xf1c20cb8, actual timeout 16 sec
[    1.319007] [VFE_WARN]read ini info fail
[    1.323876] [VFE]V4L2 device registered as video0
[    1.329298] [VFE]..........................vfe clk close!.......................
[    1.340387] [VFE]probe_work_handle end!
[    1.346162] no led_3, ignore it!
[    1.346171] no led_4, ignore it!
[    1.346178] no led_5, ignore it!
[    1.346184] no led_6, ignore it!
[    1.346189] no led_7, ignore it!
[    1.346887] usbcore: registered new interface driver usbhid
[    1.346895] usbhid: USB HID core driver
[    1.347542] ashmem: initialized
[    1.347669] logger: created 256K log 'log_main'
[    1.347788] logger: created 32K log 'log_events'
[    1.347900] logger: created 32K log 'log_radio'
[    1.348005] logger: created 32K log 'log_system'
[    1.349446] script_get_item return type err, consider it no ldo
[    1.350424] asoc: sndcodec <-> sunxi-codec mapping ok
[    1.419120] TCP: cubic registered
[    1.422979] NET: Registered protocol family 17
[    1.428193] VFP support v0.3: implementor 41 architecture 2 part 30 variant 7 rev 5
[    1.437066] ThumbEE CPU extension supported.
[    1.442025] Registering SWP/SWPB emulation handler
[    1.448590] platform reg-20-cs-ldoio0: Driver reg-20-cs-ldoio0 requests probe deferral
[    1.457676] platform reg-20-cs-ldo4: Driver reg-20-cs-ldo4 requests probe deferral
[    1.467619] platform reg-20-cs-ldo3: Driver reg-20-cs-ldo3 requests probe deferral
[    1.478494] platform reg-20-cs-ldo2: Driver reg-20-cs-ldo2 requests probe deferral
[    1.487052] *******************Try sdio*******************
[    1.493420] platform reg-20-cs-ldo1: Driver reg-20-cs-ldo1 requests probe deferral
[    1.502125] platform reg-20-cs-dcdc3: Driver reg-20-cs-dcdc3 requests probe deferral
[    1.510940] platform reg-20-cs-dcdc2: Driver reg-20-cs-dcdc2 requests probe deferral
[    1.519868] sunxi-rtc sunxi-rtc: setting system clock to 1970-01-01 00:00:33 UTC (33)
[    1.528835] *******************Try sd *******************
[    1.536302] ALSA device list:
[    1.539735]   #0: audiocodec
[    1.544994] Waiting for root device /dev/mmcblk0p2...
[    1.617421] mmc0: new high speed SDHC card at address aaaa
[    1.624209] mmcblk0: mmc0:aaaa SC16G 14.8 GiB
[    1.633836]  mmcblk0: p1 p2
[    1.637862] mmcblk mmc0:aaaa: Card claimed for testing.
[    1.643964] mmc0:aaaa: SC16G 14.8 GiB
[    1.648363] platform reg-20-cs-dcdc2: Driver reg-20-cs-dcdc2 requests probe deferral
[    1.657230] *******************sd init ok*******************
[    1.663739] platform reg-20-cs-dcdc3: Driver reg-20-cs-dcdc3 requests probe deferral
[    1.672616] platform reg-20-cs-ldo1: Driver reg-20-cs-ldo1 requests probe deferral
[    1.681188] platform reg-20-cs-ldo2: Driver reg-20-cs-ldo2 requests probe deferral
[    1.689840] platform reg-20-cs-ldo3: Driver reg-20-cs-ldo3 requests probe deferral
[    1.698512] platform reg-20-cs-ldo4: Driver reg-20-cs-ldo4 requests probe deferral
[    1.707072] platform reg-20-cs-ldoio0: Driver reg-20-cs-ldoio0 requests probe deferral
[    1.772909] EXT4-fs (mmcblk0p2): couldn't mount as ext3 due to feature incompatibilities
[    1.784765] EXT4-fs (mmcblk0p2): couldn't mount as ext2 due to feature incompatibilities
[    1.819148] EXT4-fs (mmcblk0p2): mounted filesystem with ordered data mode. Opts: (null)
[    1.828446] VFS: Mounted root (ext4 filesystem) on device 179:2.
[    1.839571] devtmpfs: mounted
[    1.843212] Freeing init memory: 140K
[    1.969289] EXT4-fs (mmcblk0p2): re-mounted. Opts: data=ordered
Starting logging: OK
Initializing random number generator... done.
Starting network: OK

Welcome to Buildroot
buildroot login: root
# ls
