#1 感芯科技 » MC3712 GPIO点个灯 » 2022-08-29 16:30:55

tlled
回复: 4

申请到了MC3172测试板,下面按照教程来搭建编译环境,并GPIO点灯。

    一、安装软件
    1.1、编译软件MounRiver Studio
    下载地址:http://www.mounriver.com/download

    1.2、下载官方的软件
    下载地址:http://www.gxchip.cn/down/show-70.html,下载资料合集,软件在里面

    二、编译代码

    2.1、配置线程

    2.2、代码

    2.3、编译代码

    三、下载运行

    3.1、下载程序

    3.2、运行视频

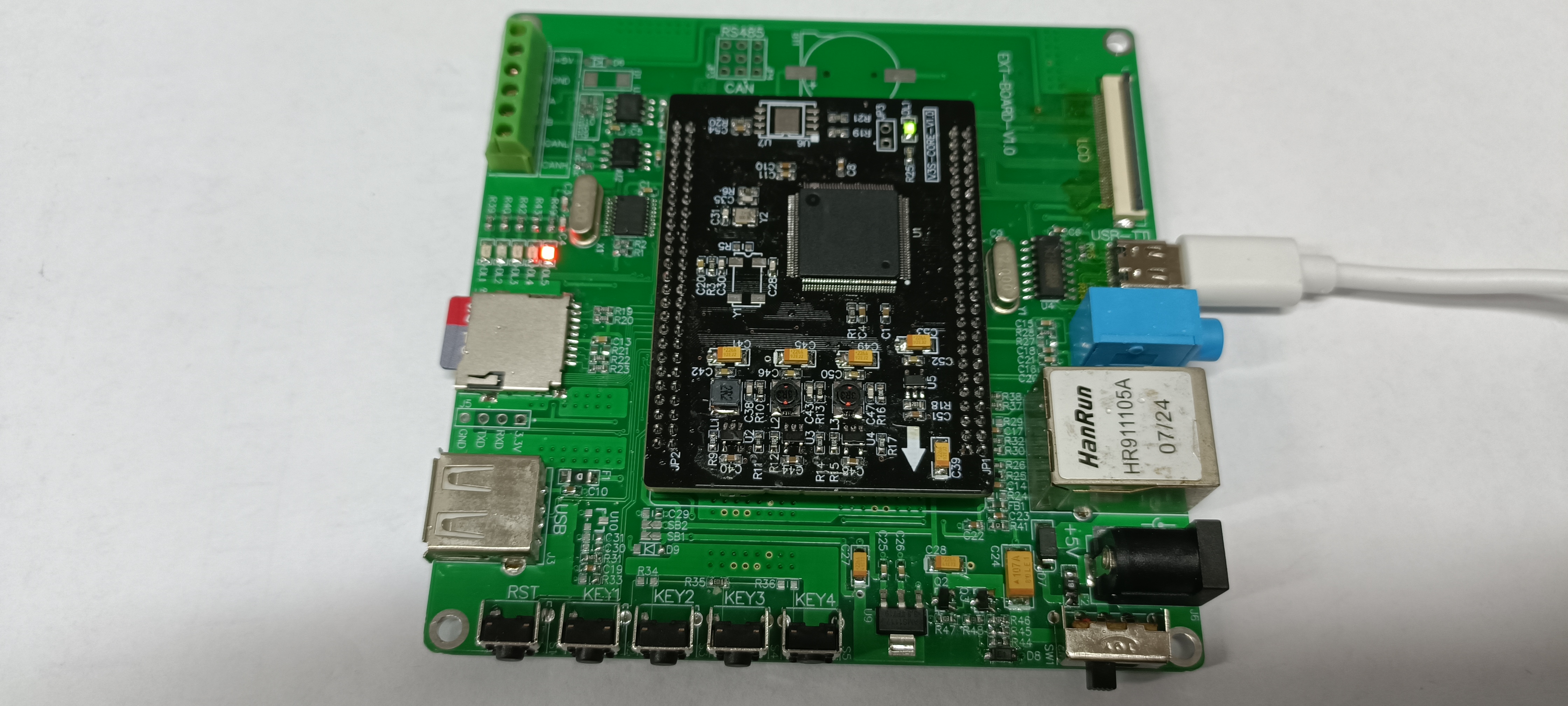

#2 Re: 上海航芯 » DIY-ACM32F403测试板 » 2022-07-05 16:55:50

车载宝马头4P母头连接器

#3 Re: 上海航芯 » DIY-ACM32F403测试板 » 2022-07-05 10:08:01

打样回来的电路板
焊接后
上电连接后,检测到芯片内核

#5 上海航芯 » DIY-ACM32F403测试板 » 2022-07-01 08:31:48

tlled
回复: 5

DIY-ACM32F403测试板, 板卡功能:
1、4位LED数码管
2、2路CAN通信接口
3、5个按键
4、4个LED指示灯
6、空闲所有IO口全部引出

电路图图片:
电路图源文件:ACM32F403-BOARD-V1.0.rar
sch文件:ACM32F403-BORAD-V1.0.pdf

#6 Re: 上海航芯 » 上海航芯 ACM32F403RET7 开发板, 促销价 28.8元 » 2022-06-21 16:59:03

ACM32F403芯片,RTC备用电池怎么连接,没有看到VBAT引脚。

#8 全志 SOC » DIY-R11核心板 » 2022-05-12 08:27:44

tlled
回复: 2

使用全志R11芯片设计一款核心板,和之前设计的V3S核心板部分引脚兼容

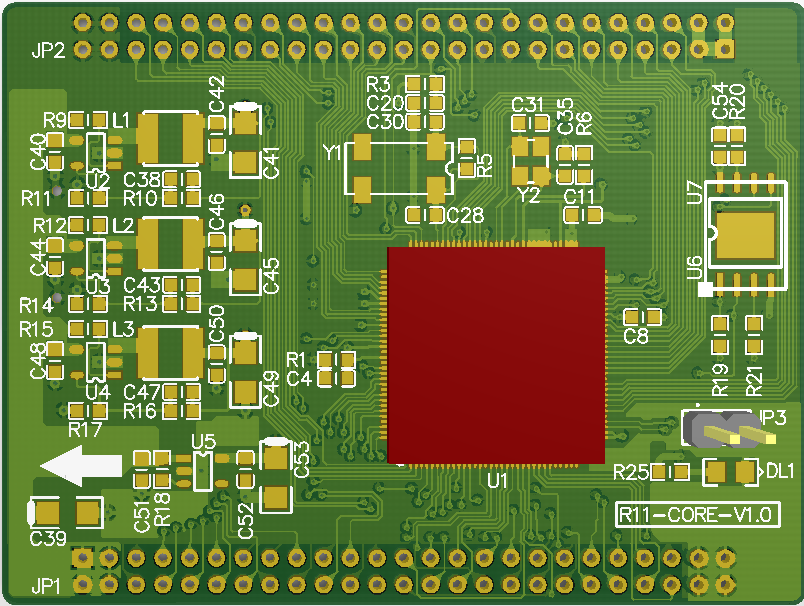

1、PCB 3D效果图

2、PCB源码
R11-CORE-V1.0.rar

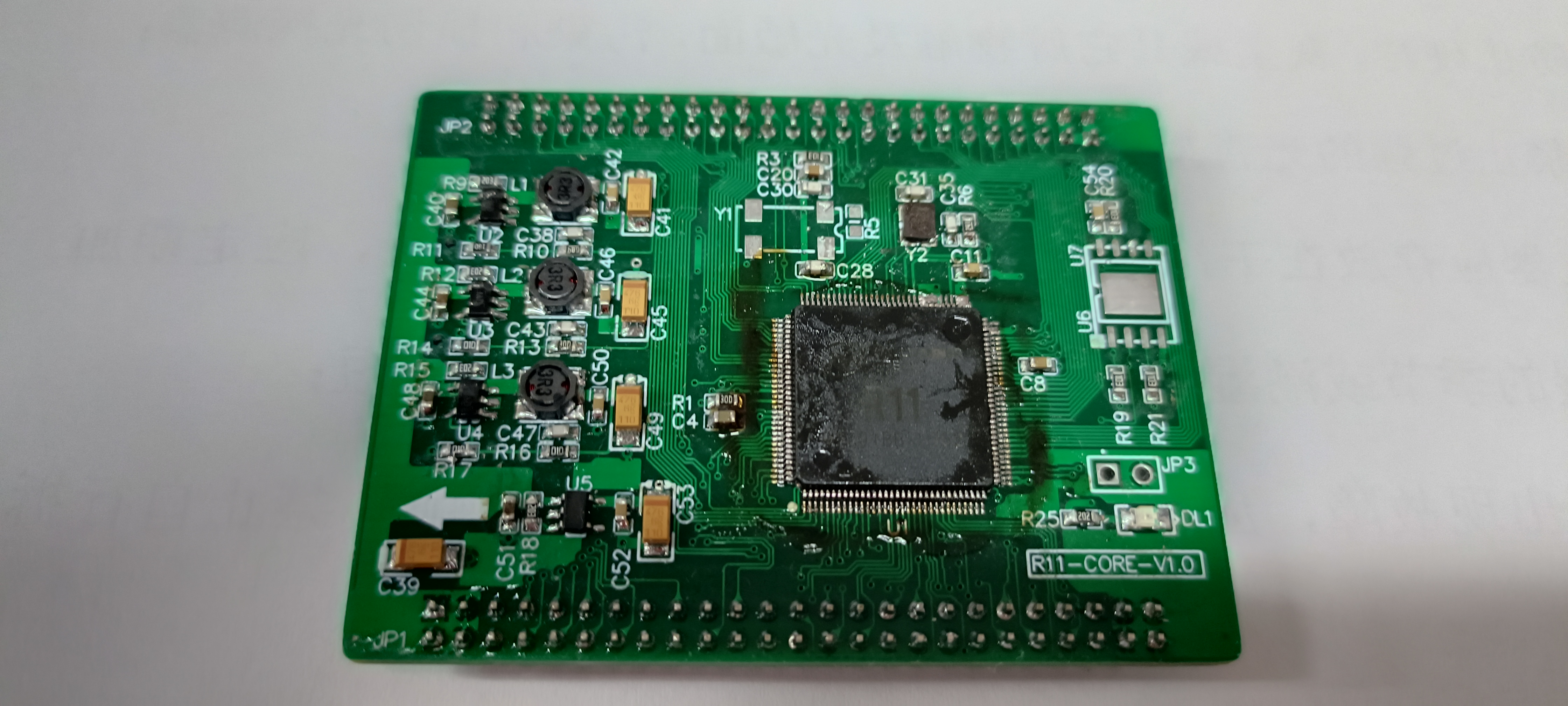

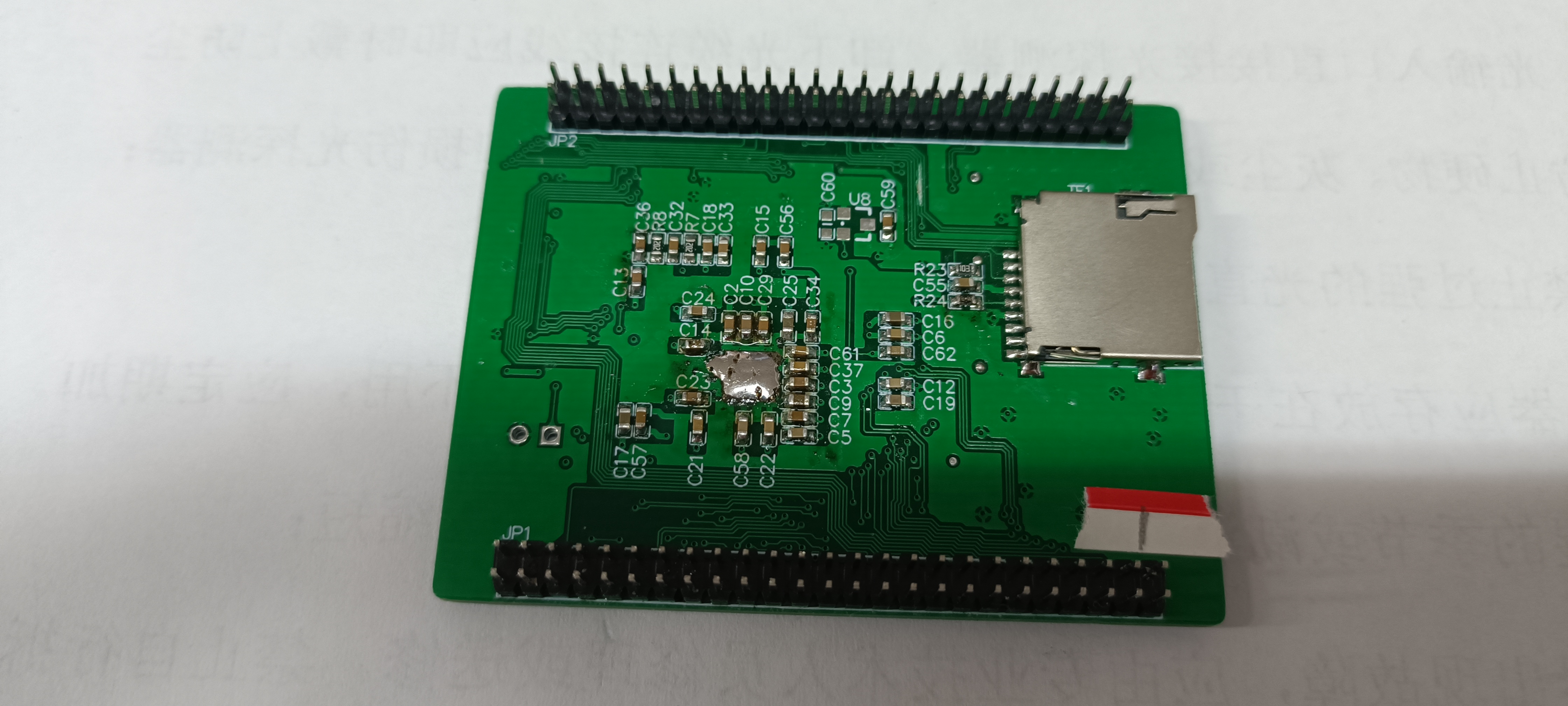

3、焊接后的图片

4、测试
使用V3S芯片的固件,在R11运行

串口运行输出

调试中,核心板就是不能从TF卡启动,焊接芯片多次后,还是不行,最后发现加工的板子上TF卡两根走线有短接,刮开后,可以正常启动。

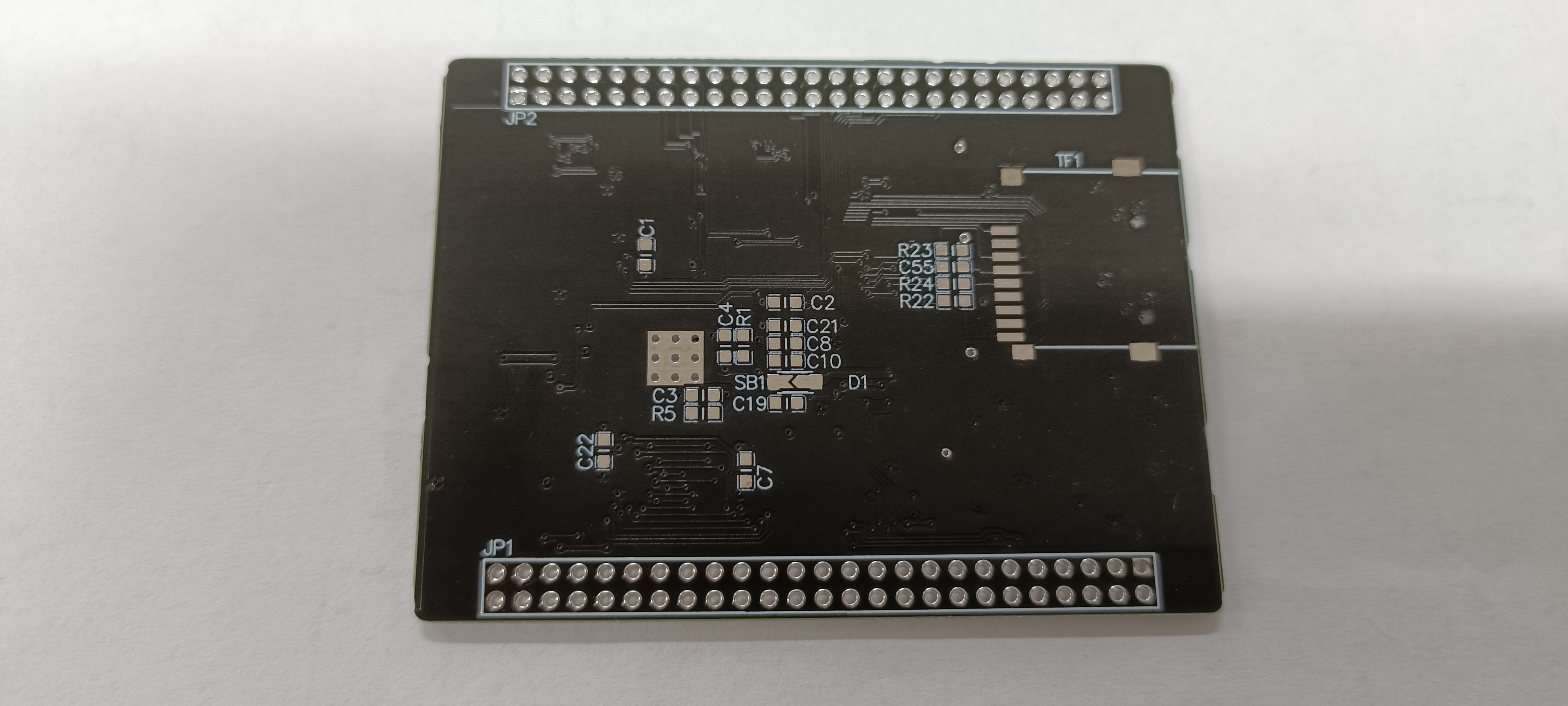

#10 全志 SOC » 开源设计的F1C200S板子 » 2022-03-18 09:02:48

tlled
回复: 0

开源设计的F1C200S板子

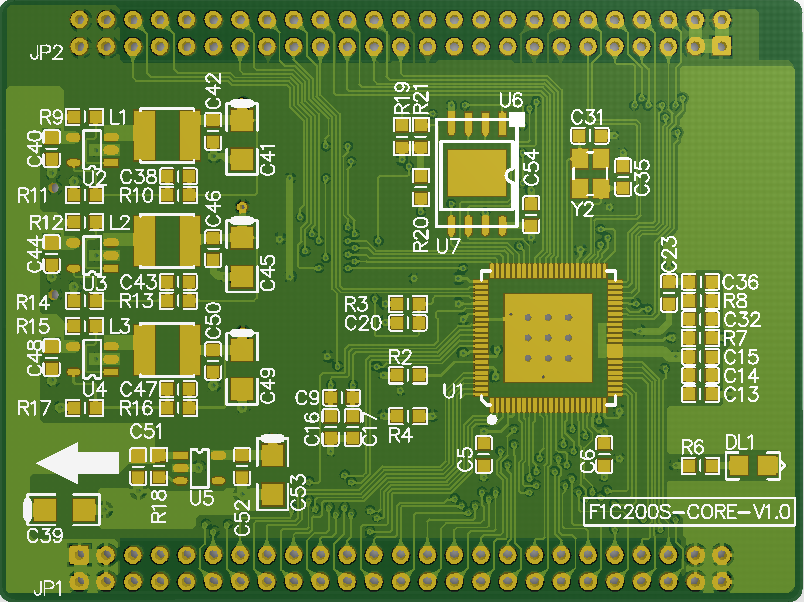

    1、板子的设计源码
    F1C200S-CORE-V1.0-20220227.rar

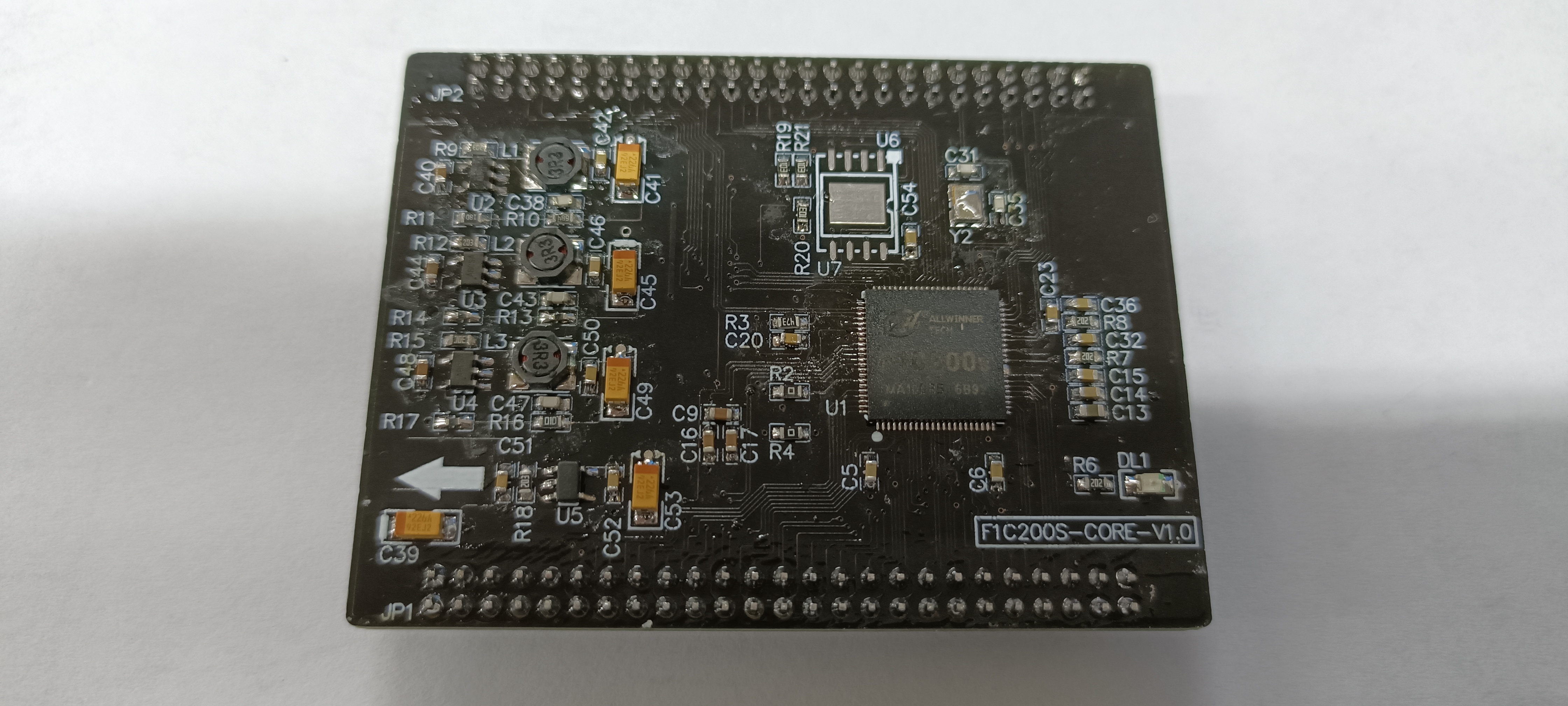

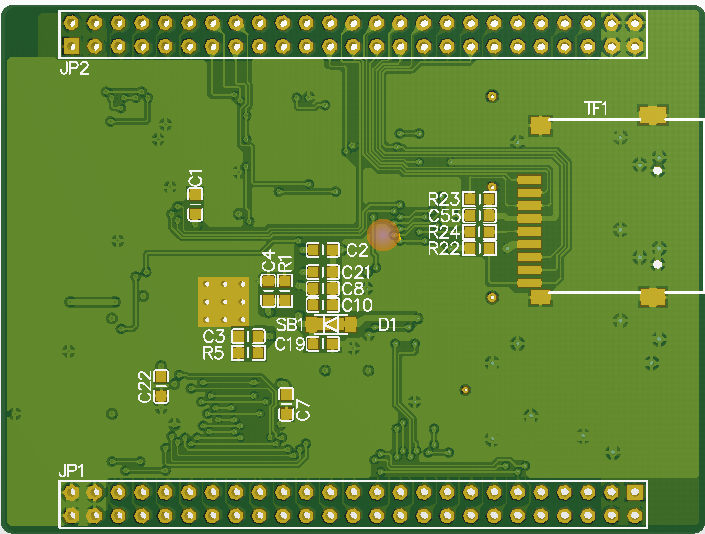

    2、板子的正反面

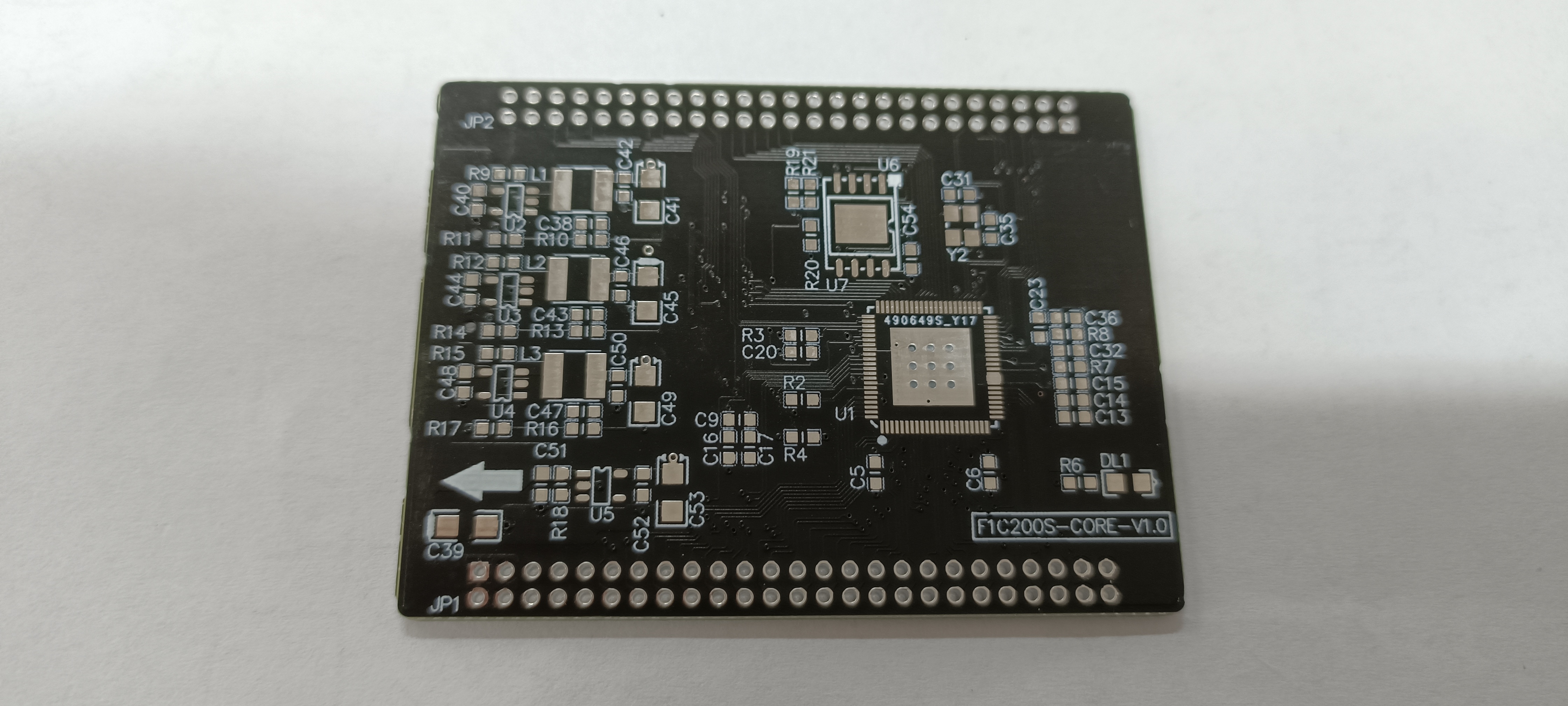

    3、打样回来的空板子图片

    4、焊接好的板子

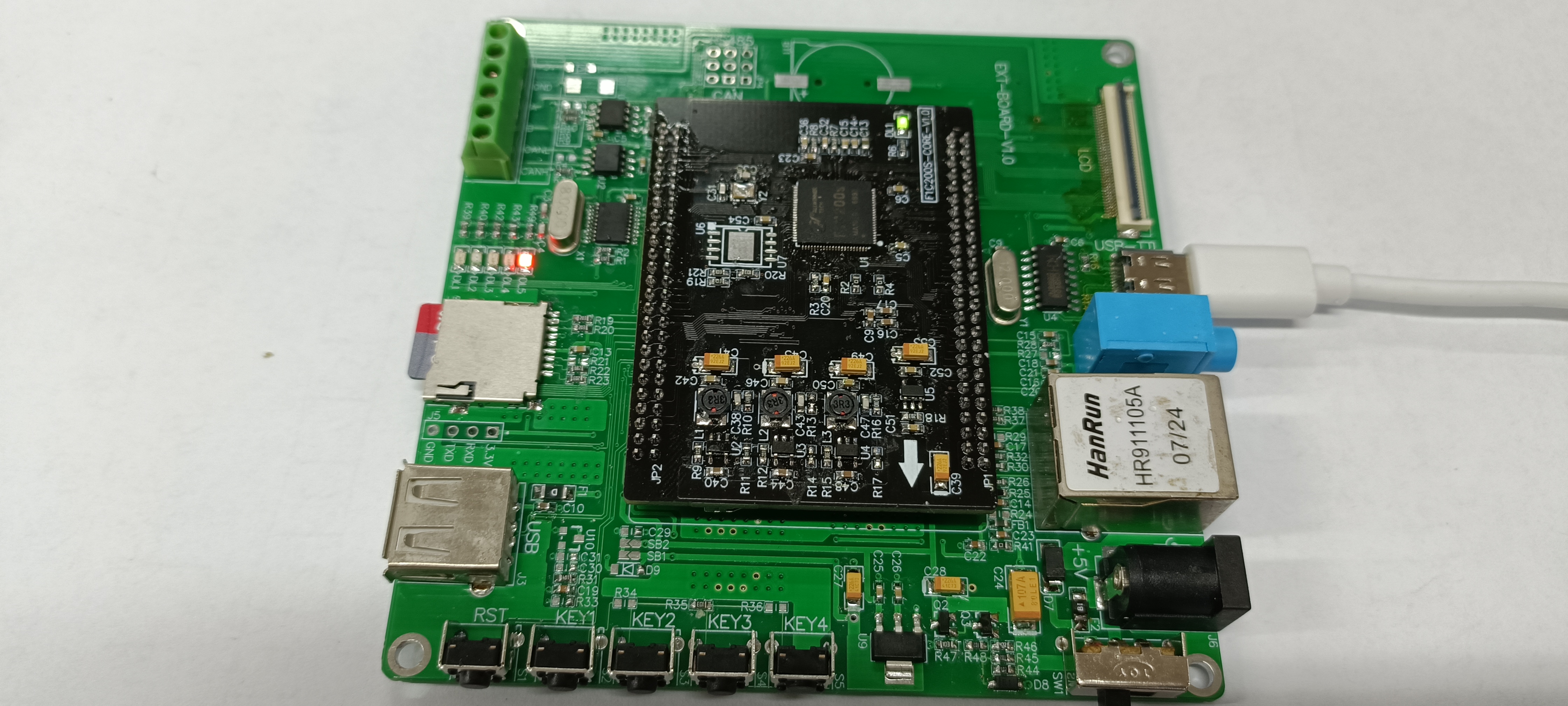

    5、连接板卡

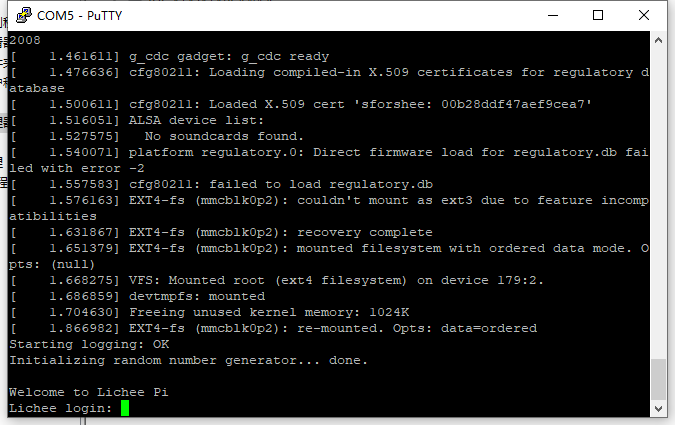

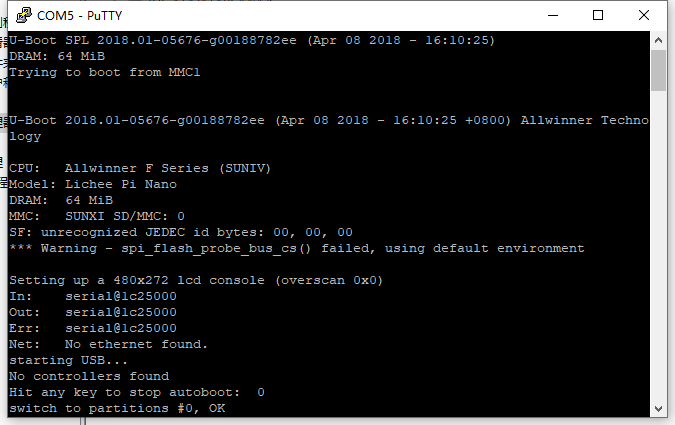

    6、使用lichee nano固件来启动

#11 Re: 全志 SOC » 分享V3S开源核心板 » 2022-03-17 17:12:53

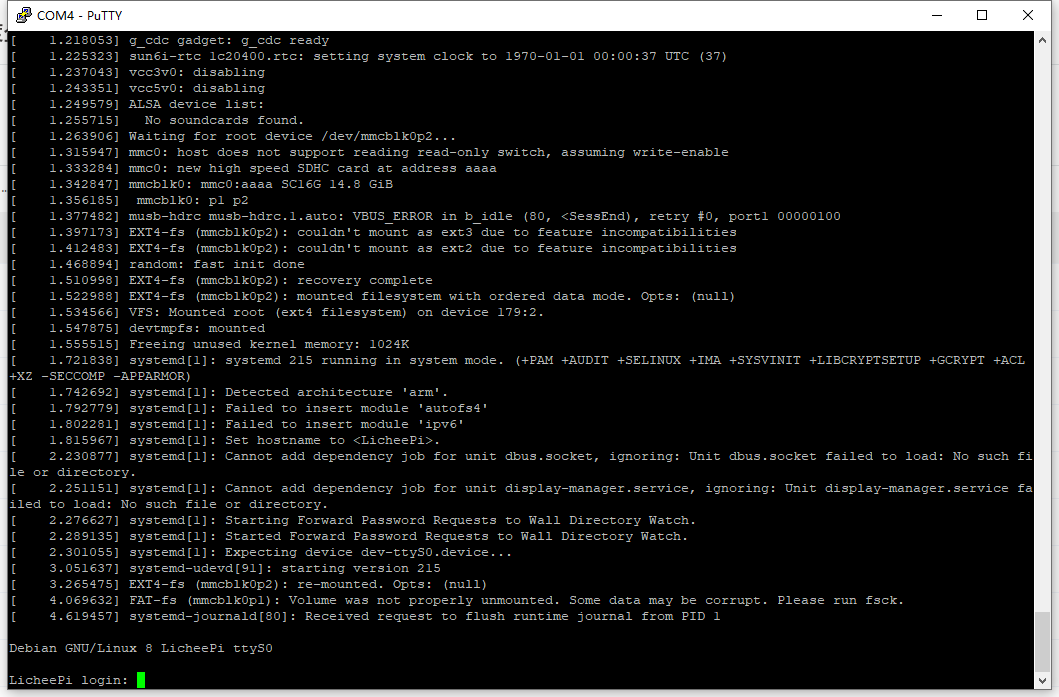

使用LICHEE ZERO镜像文件来测试下板子运行情况

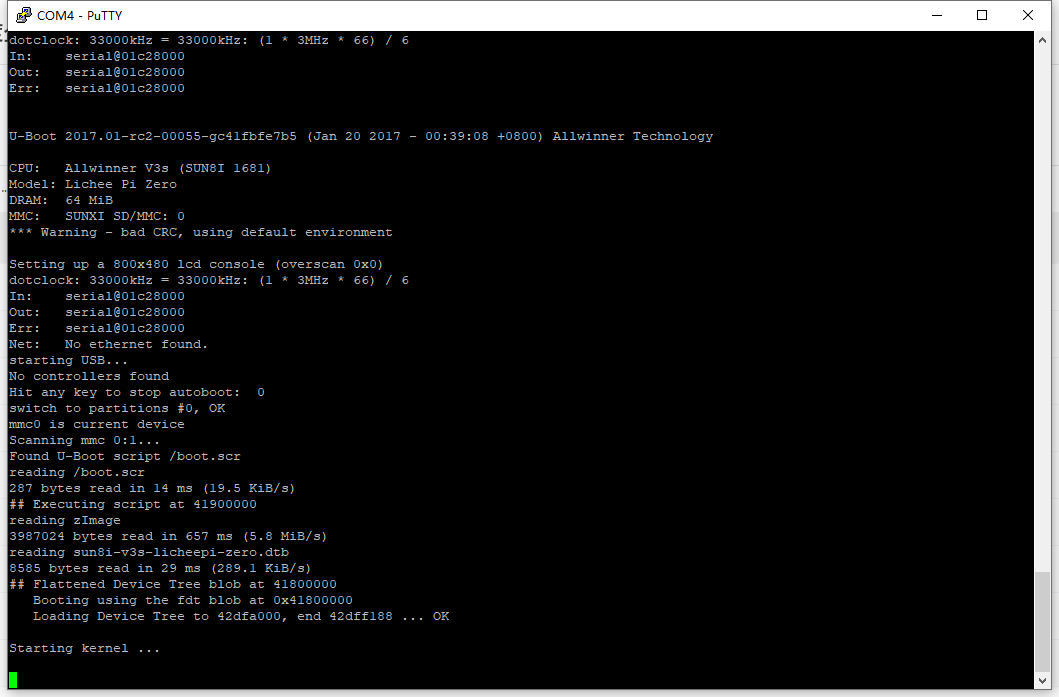

连接硬件
串口输出

#14 全志 SOC » 分享V3S开源核心板 » 2022-03-16 10:22:06

tlled
回复: 3

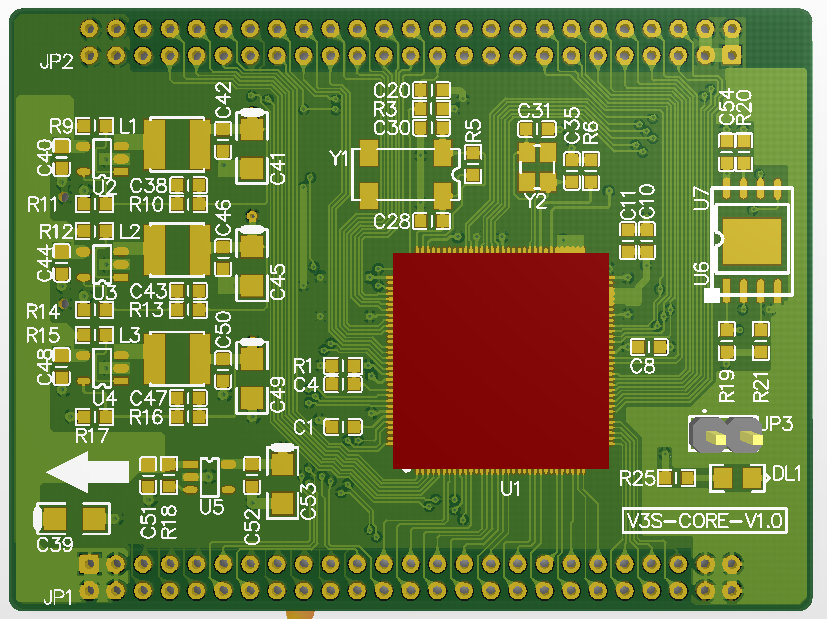

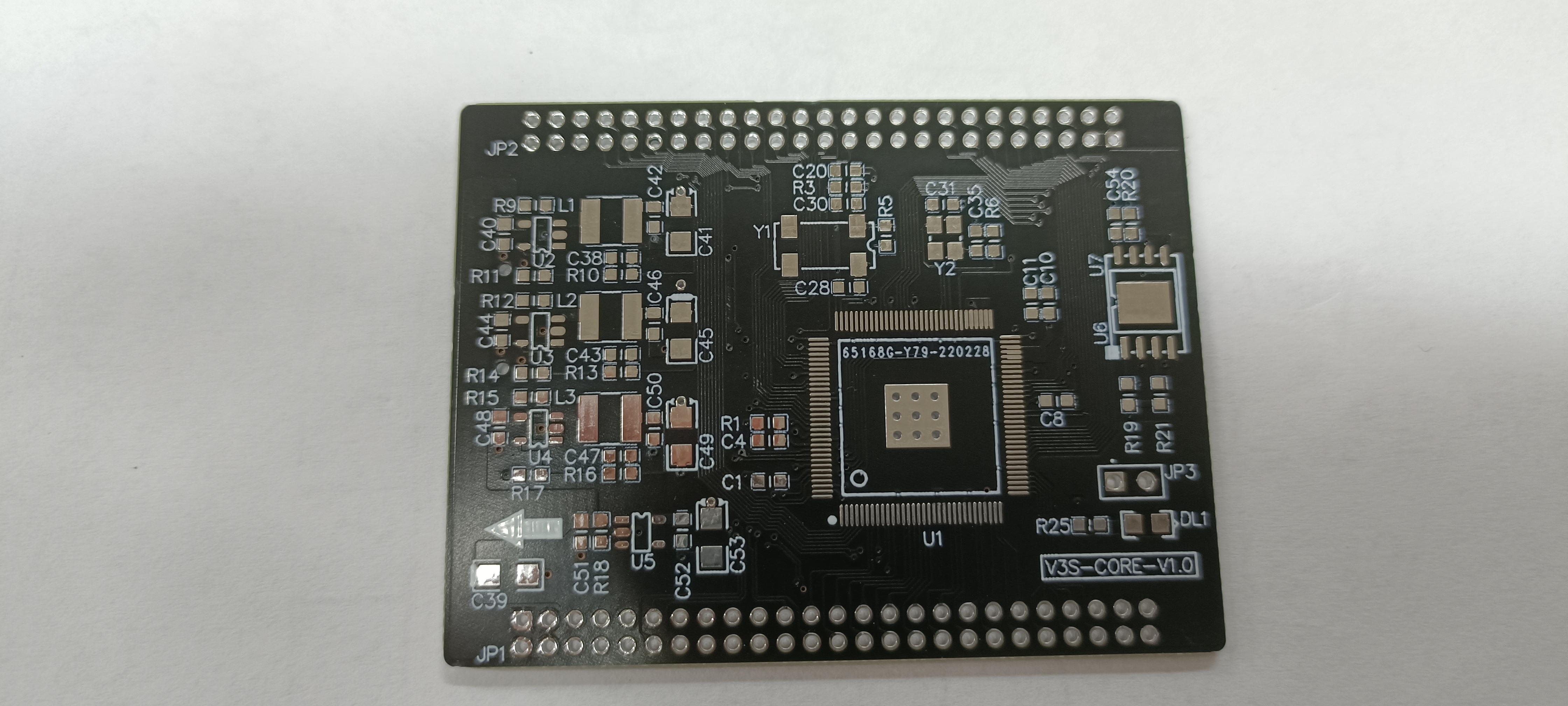

自己设计的一款V3S核心板

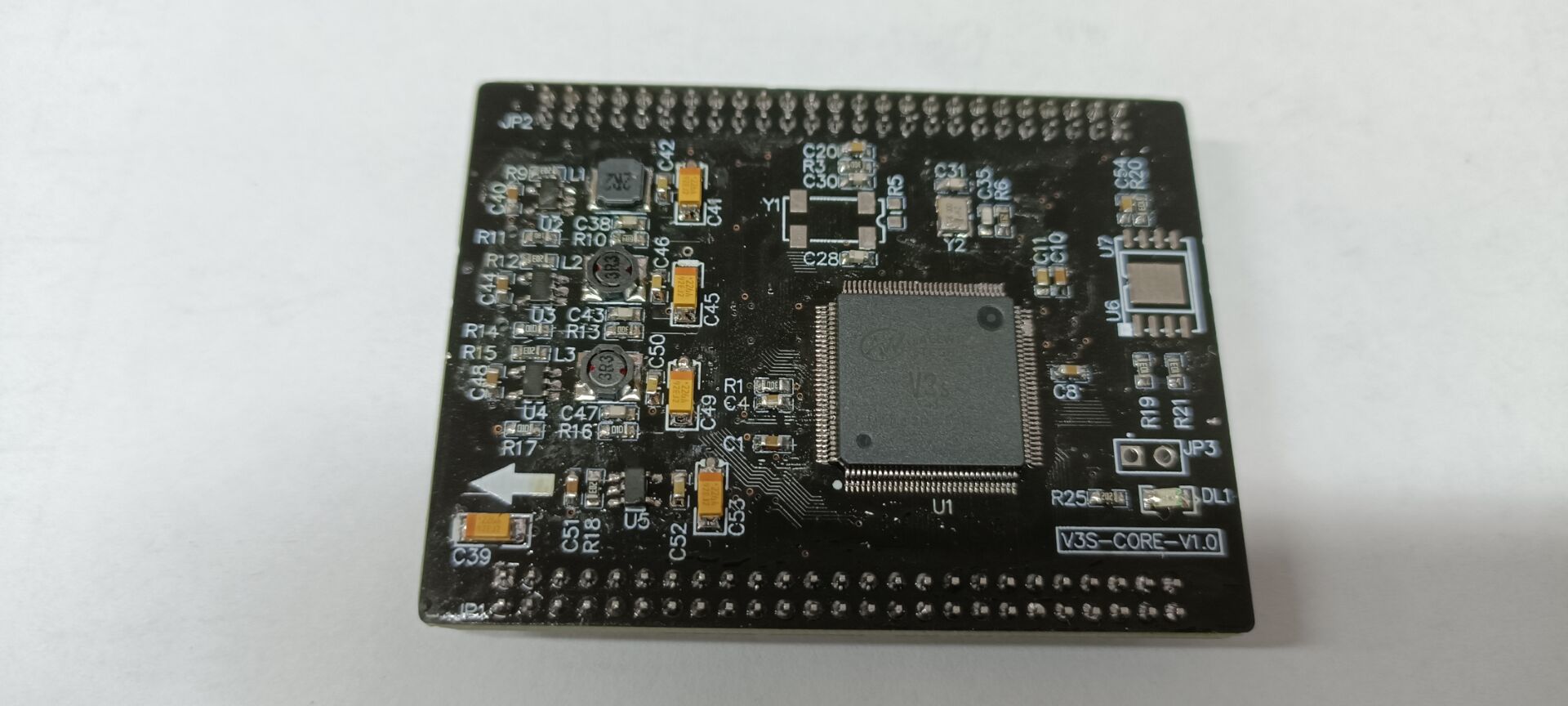

源文件:V3S-CORE-V1.0-20220227.rar

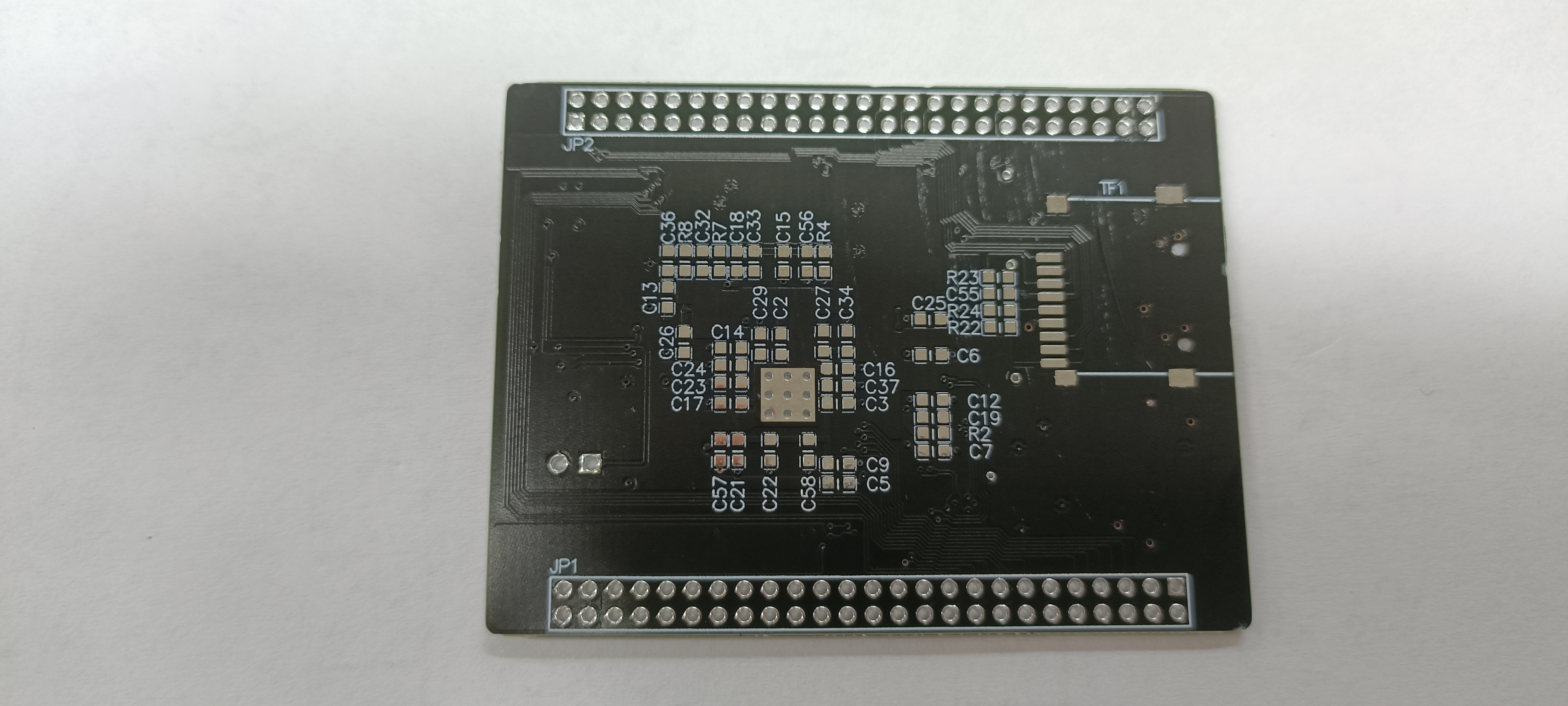

板子打样花费了较长的时间,今天板子收到了。

#15 Re: 全志 SOC » 分享开源的V3X核心板 » 2022-03-04 19:03:30

核心板焊接好后,连接底板,

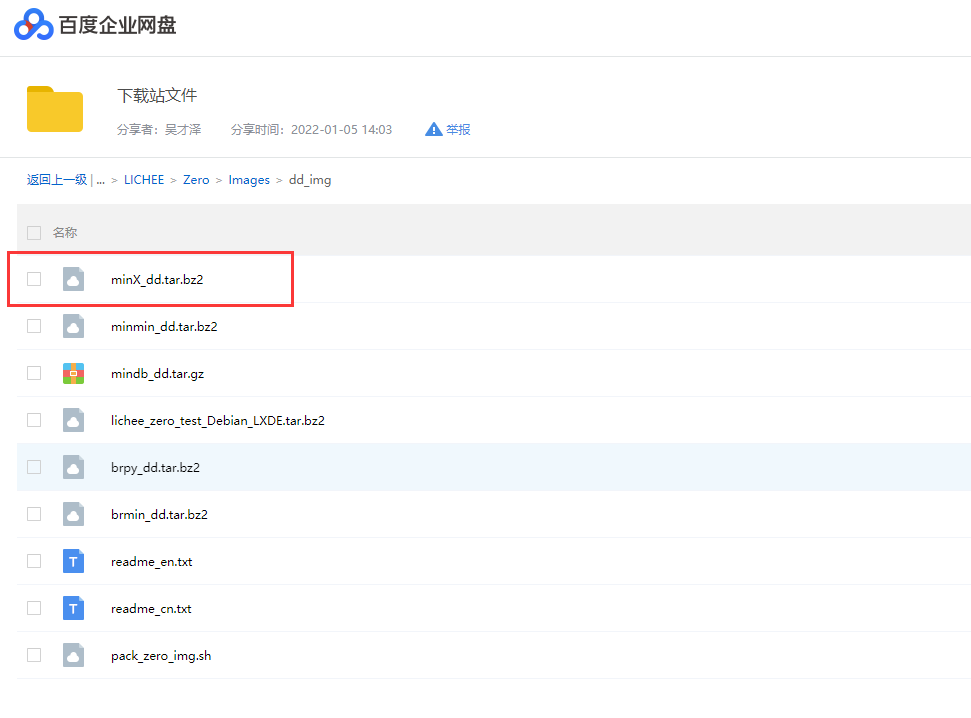

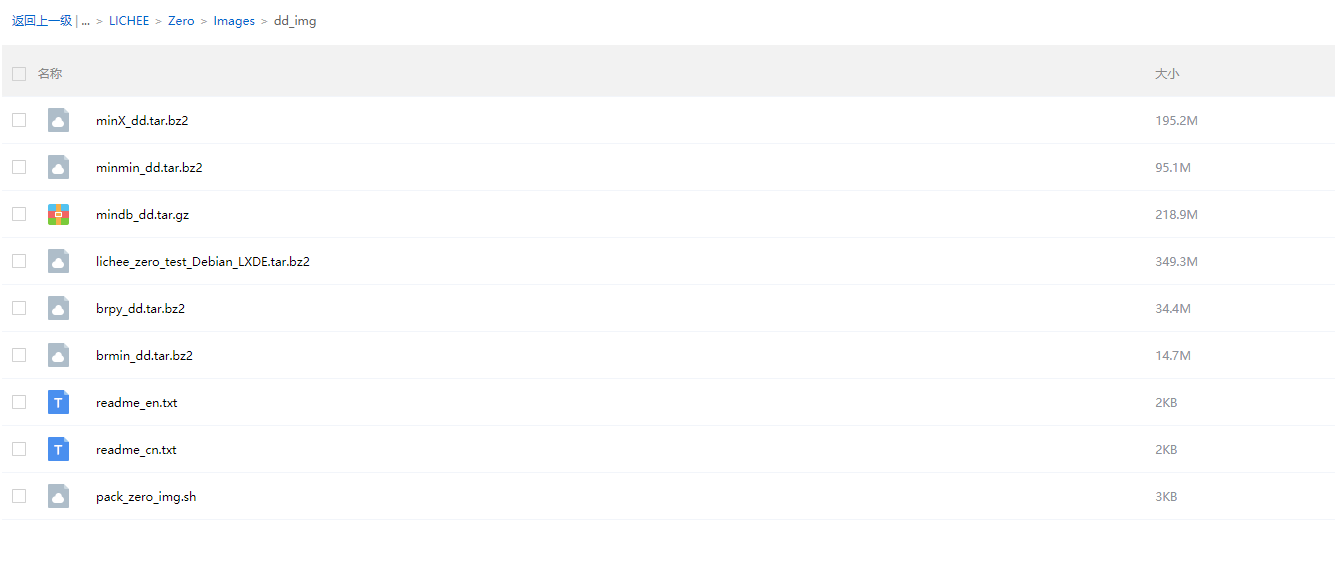

使用大佬的镜像 https://whycan.com/t_7571.html 测试下硬件

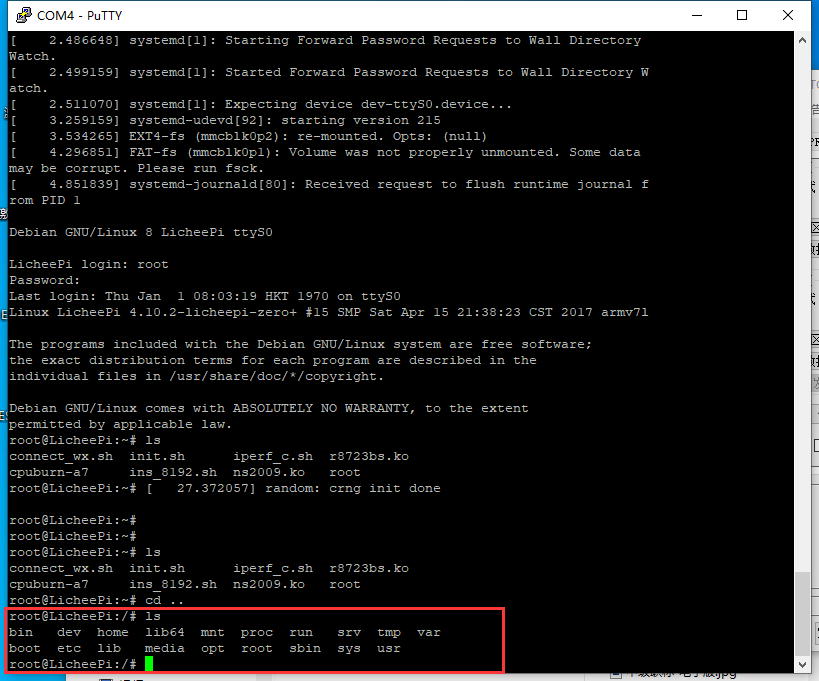

串口输出
输入账户和密码,进入文件系统

#16 Re: 全志 SOC » 分享开源的V3X核心板 » 2022-03-04 15:13:12

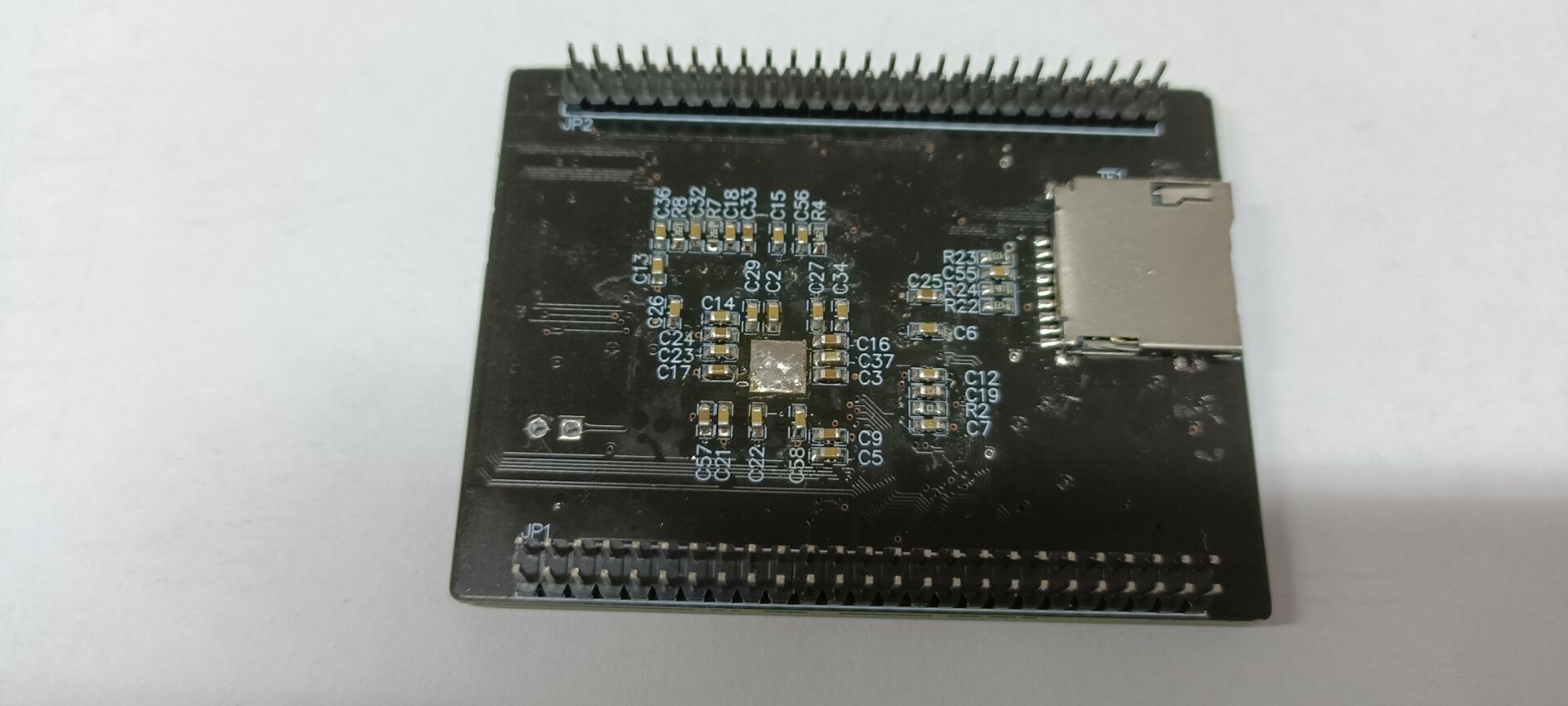

元器件焊接完成,SPI flash芯片没有焊接

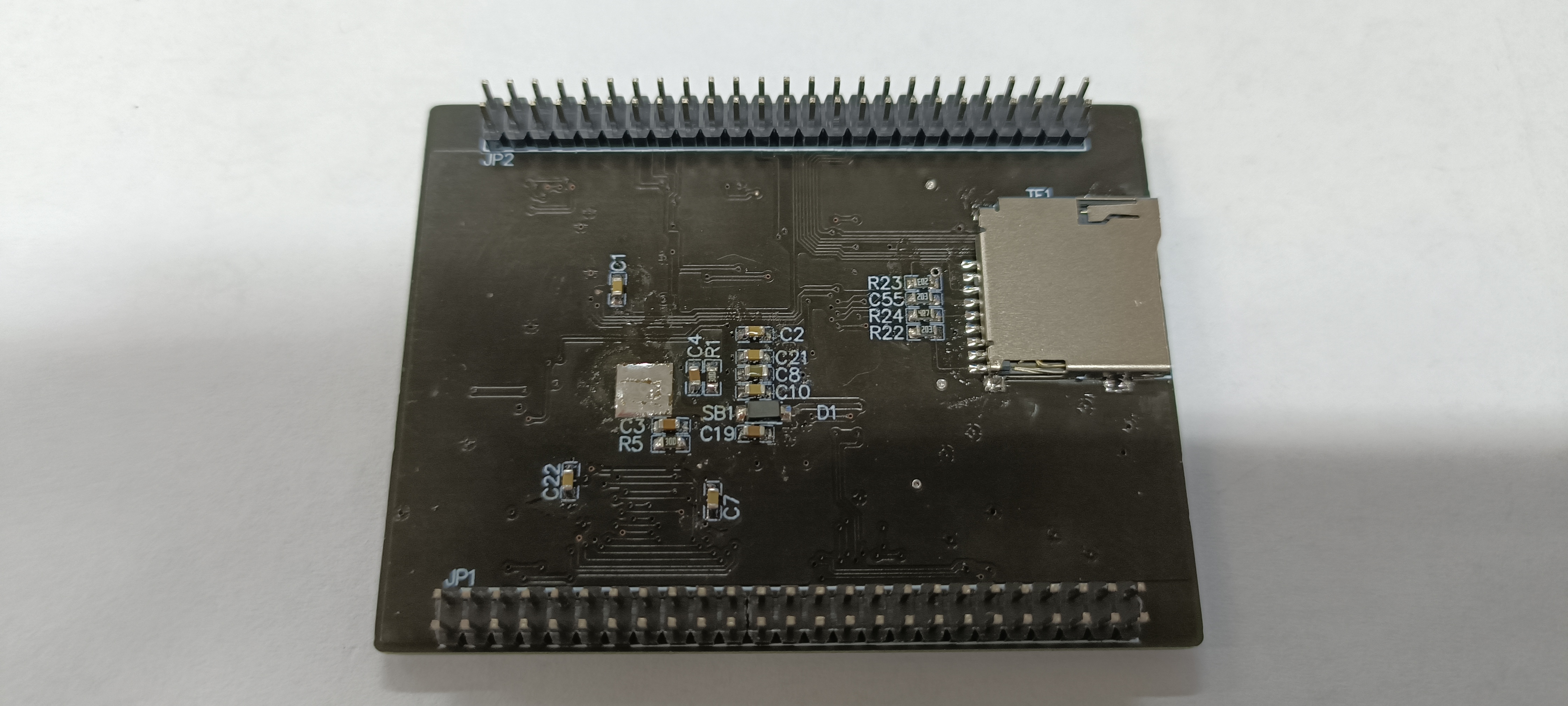

#17 Re: 全志 SOC » 分享开源的V3X核心板 » 2022-03-04 09:28:23

等了几天,打样的板子终于回来了

#19 全志 SOC » 分享开源的V3X核心板 » 2022-02-24 22:26:51

tlled
回复: 4

开源自己设计的核心板电路图和PCB,来验证下V3X芯片的应用。

板层图

板子3D图

电路图和PCB源文件
V3X-CORE-V1.0-20220224.rar

#21 DIY/综合/Arduino/写字机/3D打印机/智能小车/平衡车/四轴飞行/MQTT/物联网 » YLX_SSNUC980板卡上电 » 2021-12-08 11:49:02

tlled
回复: 0

参与 https://whycan.com/t_7473.html 帖子的活动,有幸拿到一块YLX_SSNUC980板卡,感谢社区和云联芯科技提供的NUC980板卡的学习机会。

    今天收到板卡快递,了解板卡的硬件后,来看下板卡的上电情况。

    一、外观

    1.1、打开包装后,内部有板卡、电源和清单、名片。



    1.2、开发板正反面


    二、上电串口信息

    板子的uart0位置有三个焊盘孔,应该是调试串口,这里焊接三个针连接UB-TTL串口模块上,上电查看串口信息

NUC980 IBR 20180813
Boot from NAND
DDR-OK
finish NAND dow頲{
NAND boot!        #S


U-Boot 2016.11-g4680eed (Aug 12 2021 - 11:00:18 +0800)

CPU: NUC980
Board: NUC980
DRAM:  64 MiB
NAND:  128 MiB

NUC980 IBR 20180813
Boot from NAND
DDR-OK
finish NAND dow頲{
NAND boot!        #S


U-Boot 2016.11-g4680eed (Aug 12 2021 - 11:00:18 +0800)

CPU: NUC980
Board: NUC980
DRAM:  64 MiB
NAND:  128 MiB
In:    serial
Out:   serial
Err:   serial
Net:   emac
Warning: emac (eth0) using random MAC address - 7e:a4:bf:c0:cd:30

Hit any key to stop autoboot:  0

NAND read: device 0 offset 0x200000, size 0x760000
 7733248 bytes read: OK
## Booting kernel from Legacy Image at 00007fc0 ...
   Image Name:   OpenWrt ARM 4.4.194
   Image Type:   ARM Linux Kernel Image (uncompressed)
   Data Size:    3038889 Bytes = 2.9 MiB
   Load Address: 00008000
   Entry Point:  00008000
   Verifying Checksum ... OK
   XIP Kernel Image ... OK

Starti    0.000000] Booting Linux on physical CPU 0x0
[    0.000000] Linux version 4.4.194 (zf@debian9) (gcc version 5.4.0 (LEDE GCC 5.4.0 r0-f446e8e) ) #0 PREEMPT Sat May 9 15:23:54 2020
[    0.000000] CPU: ARM926EJ-S [41069265] revision 5 (ARMv5TEJ), cr=0005317f
[    0.000000] CPU: VIVT data cache, VIVT instruction cache
[    0.000000] Machine model: Nuvoton NUC980 IOT-GateWay Version: 0.1
[    0.000000] Memory policy: Data cache writeback
[    0.000000] Built 1 zonelists in Zone order, mobility grouping on.  Total pages: 16256
[    0.000000] Kernel command line: noinitrd ubi.mtd=2 root=ubi0:rootfs rw rootfstype=ubifs console=ttyS0,115200n8 rdinit=/sbin/init mem=64M mtdparts=nand0:0x200000@0x0(u-boot),0x1400000@0x200000(kernel),-(rootfs)
[    0.000000] PID hash table entries: 256 (order: -2, 1024 bytes)
[    0.000000] Dentry cache hash table entries: 8192 (order: 3, 32768 bytes)
[    0.000000] Inode-cache hash table entries: 4096 (order: 2, 16384 bytes)
[    0.000000] Memory: 57992K/65536K available (4366K kernel code, 301K rwdata, 1656K rodata, 184K init, 244K bss, 7544K reserved, 0K cma-reserved)
[    0.000000] Virtual kernel memory layout:
[    0.000000]     vector  : 0xffff0000 - 0xffff1000   (   4 kB)
[    0.000000]     fixmap  : 0xffc00000 - 0xfff00000   (3072 kB)
[    0.000000]     vmalloc : 0xc4800000 - 0xff800000   ( 944 MB)
[    0.000000]     lowmem  : 0xc0000000 - 0xc4000000   (  64 MB)
[    0.000000]     modules : 0xbf000000 - 0xc0000000   (  16 MB)
[    0.000000]       .text : 0xc0008000 - 0xc05e9f04   (6024 kB)
[    0.000000]       .init : 0xc05ea000 - 0xc0618000   ( 184 kB)
[    0.000000]       .data : 0xc0618000 - 0xc06636c4   ( 302 kB)
[    0.000000]        .bss : 0xc06636c4 - 0xc06a07e0   ( 245 kB)
[    0.000000] SLUB: HWalign=32, Order=0-3, MinObjects=0, CPUs=1, Nodes=1
[    0.000000] Preemptible hierarchical RCU implementation.
[    0.000000]  Build-time adjustment of leaf fanout to 32.
[    0.000000] NR_IRQS:545
[    0.000000] clocksource: nuc980-timer5: mask: 0xffffff max_cycles: 0xffffff, max_idle_ns: 62215505635 ns
[    0.000033] sched_clock: 24 bits at 120kHz, resolution 8333ns, wraps every 69905062489ns
[    0.000733] Console: colour dummy device 80x30
[    0.195441] console [ttyS0] enabled
[    0.198924] Calibrating delay loop... 148.88 BogoMIPS (lpj=744448)
