#6 全志 V3S/F1C100s/X3 » 【求助】V3s系统reboot时反复重启,需要多次重启,最后进入系统 » 2020-08-04 10:27:43

ifree64
回复: 4

今天遇到一个奇怪的问题,我32M SPI Flash上刷入的系统,在串口终端下输入reboot重启系统,结果系统会反复重启,重启若干次以后(次数不一定)最后进入到系统。进入到系统后,貌似正常运行。

启动日志:

[    1.471784] usb_phy_generic usb_phy_generic.0.auto: usb_phy_generic.0.auto supply vcc not found, using dummy regulator
[    1.483289] musb-hdrc musb-hdrc.1.auto: MUSB HDRC host driver
[    1.489140] musb-hdrc musb-hdrc.1.auto: new USB bus registered, assigned bus number 3
[    1.498612] hub 3-0:1.0: USB hub found
[    1.502524] hub 3-0:1.0: 1 port detected
[    1.507903] sun6i-rtc 1c20400.rtc: setting system clock to 1970-01-01T19:25:12 UTC (69912)
[    1.516544] vcc3v0: disabling
[    1.519587] vcc5v0: disabling
[    1.522556] ALSA device list:
[    1.525520]   No soundcards found.
[    1.531353] random: fast init done
[    1.575947] random: crng init done
[    1.978432] usb 1-1: new high-speed USB device number 2 using ehci-platform
[    2.191968] hub 1-1:1.0: USB hub found
[    2.196112] hub 1-1:1.0: 4 ports detected
[    2.618933] usb 1-1.1: new full-speed USB device number 3 using ehci-platform
[    2.889517] cdc_acm 1-1.1:1.0: ttyACM0: USB ACM device
[    3.098792] usb 1-1.3: new high-speed USB device number 4 using ehci-platform
[    3.364986] usb-storage 1-1.3:1.0: USB Mass Storage device detected
[    3.379465] scsi host0: usb-storage 1-1.3:1.0
[    4.410958] scsi 0:0:0:0: Direct-Access     USB      SG Flash         1.00 PQ: 0 ANSI: 6
[    4.423302] sd 0:0:0:0: [sda] 62914560 512-byte logical blocks: (32.2 GB/30.0 GiB)
[    4.436926] sd 0:0:0:0: [sda] Write Protect is off
[    4.447657] sd 0:0:0:0: [sda] No Caching mode page found
[    4.453108] sd 0:0:0:0: [sda] Assuming drive cache: write through
[    4.478072]  sda: sda1
[    4.489290] sd 0:0:0:0: [sda] Attached SCSI removable disk
[    4.920960] VFS: Mounted root (jffs2 filesystem) on device 31:3.
[    4.928814] devtmpfs: mounted

U-Boot SPL 2017.01-rc2-00073-gdd6e8740dc-dirty (Apr 22 2020 - 09:13:27)
DRAM: 64 MiB
Trying to boot from sunxi SPI

U-Boot 2017.01-rc2-00073-gdd6e8740dc-dirty (Apr 22 2020 - 09:13:27 +0800) Allwinner Technology

CPU:   Allwinner V3s (SUN8I 1681)
Model: Lichee Pi Zero
DRAM:  64 MiB
MMC:   SUNXI SD/MMC: 0
SF: Detected mx25l25635f with page size 256 Bytes, erase size 64 KiB, total 32 MiB
*** Warning - bad CRC, using default environment

Setting up a 800x480 lcd console (overscan 0x0)
dotclock: 33000kHz = 33000kHz: (1 * 3MHz * 66) / 6
In:    serial@01c28000
Out:   serial@01c28000
Err:   serial@01c28000


U-Boot 2017.01-rc2-00073-gdd6e8740dc-dirty (Apr 22 2020 - 09:13:27 +0800) Allwinner Technology

CPU:   Allwinner V3s (SUN8I 1681)
Model: Lichee Pi Zero
DRAM:  64 MiB
MMC:   SUNXI SD/MMC: 0
SF: Detected mx25l25635f with page size 256 Bytes, erase size 64 KiB, total 32 MiB
*** Warning - bad CRC, using default environment

Setting up a 800x480 lcd console (overscan 0x0)
dotclock: 33000kHz = 33000kHz: (1 * 3MHz * 66) / 6
In:    serial@01c28000
Out:   serial@01c28000
Err:   serial@01c28000
Net:   No ethernet found.
starting USB...
No controllers found
Hit any key to stop autoboot:  0
SF: Detected mx25l25635f with page size 256 Bytes, erase size 64 KiB, total 32 MiB
device 0 offset 0x80000, size 0x4000
SF: 16384 bytes @ 0x80000 Read: OK
device 0 offset 0x90000, size 0x470000
SF: 4653056 bytes @ 0x90000 Read: OK
## Flattened Device Tree blob at 41800000
   Booting using the fdt blob at 0x41800000
   Loading Device Tree to 42dfa000, end 42dffd80 ... OK

Starting kernel ...

[    0.000000] Booting Linux on physical CPU 0x0
[    0.000000] Linux version 5.2.0-licheepi-zero+ (xlee@ubuntu) (gcc version 9.3.0 (Ubuntu 9.3.0-10ubuntu1)) #16 SMP Sun Aug 2 12:45:11 CST 2020
[    0.000000] CPU: ARMv7 Processor [410fc075] revision 5 (ARMv7), cr=10c5387d
[    0.000000] CPU: div instructions available: patching division code
[    0.000000] CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache
[    0.000000] OF: fdt: Machine model: Lichee Pi Zero
[    0.000000] Memory policy: Data cache writealloc
[    0.000000] percpu: Embedded 16 pages/cpu s34508 r8192 d22836 u65536
[    0.000000] Built 1 zonelists, mobility grouping on.  Total pages: 15883
[    0.000000] Kernel command line: console=ttyS0,115200 earlyprintk panic=5 rootwait mtdparts=spi0.0:512k(uboot),64k(dtb)ro,4544k(kernel)ro,-(rootfs) root=/dev/mtdblock3 rw rootfstype=jffs2 init=/linuxrc vt.global_cur
sor_default=0
[    0.000000] Dentry cache hash table entries: 8192 (order: 3, 32768 bytes, linear)
[    0.000000] Inode-cache hash table entries: 4096 (order: 2, 16384 bytes, linear)
[    0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off
[    0.000000] Memory: 52512K/64036K available (7168K kernel code, 311K rwdata, 1820K rodata, 1024K init, 253K bss, 11524K reserved, 0K cma-reserved, 0K highmem)
[    0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=1, Nodes=1
[    0.000000] rcu: Hierarchical RCU implementation.
[    0.000000] rcu: 	RCU event tracing is enabled.
[    0.000000] rcu: 	RCU restricting CPUs from NR_CPUS=8 to nr_cpu_ids=1.
[    0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 10 jiffies.
[    0.000000] rcu: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=1
[    0.000000] NR_IRQS: 16, nr_irqs: 16, preallocated irqs: 16
[    0.000000] random: get_random_bytes called from start_kernel+0x2f8/0x494 with crng_init=0
[    0.000000] arch_timer: cp15 timer(s) running at 24.00MHz (virt).
[    0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns
[    0.000007] sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns
[    0.000019] Switching to timer-based delay loop, resolution 41ns
[    0.000206] clocksource: timer: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 79635851949 ns
[    0.000441] Console: colour dummy device 80x30
[    0.000499] Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=240000)
[    0.000514] pid_max: default: 32768 minimum: 301
[    0.000681] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
[    0.000694] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
[    0.001497] CPU: Testing write buffer coherency: ok
[    0.002023] /cpus/cpu@0 missing clock-frequency property
[    0.002050] CPU0: thread -1, cpu 0, socket 0, mpidr 80000000
[    0.002825] Setting up static identity map for 0x40100000 - 0x40100060
[    0.003035] rcu: Hierarchical SRCU implementation.
[    0.003558] smp: Bringing up secondary CPUs ...
[    0.003581] smp: Brought up 1 node, 1 CPU
[    0.003590] SMP: Total of 1 processors activated (48.00 BogoMIPS).
[    0.003597] CPU: All CPU(s) started in SVC mode.
[    0.004680] devtmpfs: initialized
[    0.008215] VFP support v0.3: implementor 41 architecture 2 part 30 variant 7 rev 5
[    0.008513] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
[    0.008544] futex hash table entries: 256 (order: 2, 16384 bytes, linear)
[    0.008807] pinctrl core: initialized pinctrl subsystem
[    0.009857] NET: Registered protocol family 16
[    0.010547] DMA: preallocated 256 KiB pool for atomic coherent allocations
[    0.011867] hw-breakpoint: found 5 (+1 reserved) breakpoint and 4 watchpoint registers.
[    0.011886] hw-breakpoint: maximum watchpoint size is 8 bytes.
[    0.036084] SCSI subsystem initialized
[    0.036379] usbcore: registered new interface driver usbfs
[    0.036435] usbcore: registered new interface driver hub
[    0.036538] usbcore: registered new device driver usb
[    0.036743] mc: Linux media interface: v0.10
[    0.036788] videodev: Linux video capture interface: v2.00
[    0.037031] Advanced Linux Sound Architecture Driver Initialized.
[    0.038386] clocksource: Switched to clocksource arch_sys_counter
[    0.050993] NET: Registered protocol family 2
[    0.051807] tcp_listen_portaddr_hash hash table entries: 512 (order: 0, 6144 bytes, linear)
[    0.051847] TCP established hash table entries: 1024 (order: 0, 4096 bytes, linear)
[    0.051870] TCP bind hash table entries: 1024 (order: 1, 8192 bytes, linear)
[    0.051892] TCP: Hash tables configured (established 1024 bind 1024)
[    0.052040] UDP hash table entries: 256 (order: 1, 8192 bytes, linear)
[    0.052089] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes, linear)
[    0.052392] NET: Registered protocol family 1
[    0.054358] Initialise system trusted keyrings
[    0.054752] workingset: timestamp_bits=30 max_order=14 bucket_order=0
[    0.061979] ntfs: driver 2.1.32 [Flags: R/W].
[    0.062329] jffs2: version 2.2. (NAND) © 2001-2006 Red Hat, Inc.
[    0.098138] Key type asymmetric registered
[    0.098163] Asymmetric key parser 'x509' registered
[    0.098283] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 250)
[    0.098297] io scheduler mq-deadline registered
[    0.098304] io scheduler kyber registered
[    0.099433] sun4i-usb-phy 1c19400.phy: Couldn't request ID GPIO
[    0.103240] sun8i-v3s-pinctrl 1c20800.pinctrl: initialized sunXi PIO driver
[    0.172045] Serial: 8250/16550 driver, 8 ports, IRQ sharing disabled
[    0.174478] sun8i-v3s-pinctrl 1c20800.pinctrl: 1c20800.pinctrl supply vcc-pb not found, using dummy regulator
[    0.175605] printk: console [ttyS0] disabled
[    0.195919] 1c28000.serial: ttyS0 at MMIO 0x1c28000 (irq = 33, base_baud = 1500000) is a U6_16550A
[    0.722612] printk: console [ttyS0] enabled
[    0.727415] sun8i-v3s-pinctrl 1c20800.pinctrl: 1c20800.pinctrl supply vcc-pe not found, using dummy regulator
[    0.758850] 1c28400.serial: ttyS1 at MMIO 0x1c28400 (irq = 34, base_baud = 1500000) is a U6_16550A
[    0.789739] 1c28800.serial: ttyS2 at MMIO 0x1c28800 (irq = 35, base_baud = 1500000) is a U6_16550A
[    0.825470] sun8i-v3s-pinctrl 1c20800.pinctrl: 1c20800.pinctrl supply vcc-pc not found, using dummy regulator
[    0.837276] m25p80 spi0.0: mx25l25635e (32768 Kbytes)
[    0.842435] 4 cmdlinepart partitions found on MTD device spi0.0
[    0.848373] Creating 4 MTD partitions on "spi0.0":
[    0.853170] 0x000000000000-0x000000080000 : "uboot"
[    0.860016] 0x000000080000-0x000000090000 : "dtb"
[    0.866530] 0x000000090000-0x000000500000 : "kernel"
[    0.873399] 0x000000500000-0x000002000000 : "rootfs"
[    0.880923] libphy: Fixed MDIO Bus: probed
[    0.885628] dwmac-sun8i 1c30000.ethernet: PTP uses main clock
[    0.891537] dwmac-sun8i 1c30000.ethernet: No regulator found
[    0.897760] dwmac-sun8i 1c30000.ethernet: Current syscon value is not the default 38000 (expect 58000)
[    0.907164] dwmac-sun8i 1c30000.ethernet: No HW DMA feature register supported
[    0.914406] dwmac-sun8i 1c30000.ethernet: RX Checksum Offload Engine supported
[    0.921638] dwmac-sun8i 1c30000.ethernet: COE Type 2
[    0.926598] dwmac-sun8i 1c30000.ethernet: TX Checksum insertion supported
[    0.933390] dwmac-sun8i 1c30000.ethernet: Normal descriptors
[    0.939054] dwmac-sun8i 1c30000.ethernet: Chain mode enabled
[    0.944957] libphy: stmmac: probed
[    0.949197] dwmac-sun8i 1c30000.ethernet: Found internal PHY node
[    0.955483] libphy: mdio_mux: probed
[    0.959177] dwmac-sun8i 1c30000.ethernet: Switch mux to internal PHY
[    0.965533] dwmac-sun8i 1c30000.ethernet: Powering internal PHY
[    0.972714] libphy: mdio_mux: probed
[    0.976647] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[    0.983291] ehci-platform: EHCI generic platform driver
[    0.988839] ehci-platform 1c1a000.usb: EHCI Host Controller
[    0.994481] ehci-platform 1c1a000.usb: new USB bus registered, assigned bus number 1
[    1.002474] ehci-platform 1c1a000.usb: irq 25, io mem 0x01c1a000
[    1.038389] ehci-platform 1c1a000.usb: USB 2.0 started, EHCI 1.00
[    1.045599] hub 1-0:1.0: USB hub found
[    1.049568] hub 1-0:1.0: 1 port detected
[    1.054185] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
[    1.060518] ohci-platform: OHCI generic platform driver
[    1.066090] ohci-platform 1c1a400.usb: Generic Platform OHCI controller
[    1.072823] ohci-platform 1c1a400.usb: new USB bus registered, assigned bus number 2
[    1.080812] ohci-platform 1c1a400.usb: irq 26, io mem 0x01c1a400
[    1.153509] hub 2-0:1.0: USB hub found
[    1.157371] hub 2-0:1.0: 1 port detected
[    1.164675] usbcore: registered new interface driver cdc_acm
[    1.170452] cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters
[    1.178599] usbcore: registered new interface driver usb-storage
[    1.184718] usbcore: registered new interface driver usbserial_generic
[    1.191345] usbserial: USB Serial support registered for generic
[    1.197384] usbcore: registered new interface driver ch341
[    1.202958] usbserial: USB Serial support registered for ch341-uart
[    1.209309] usbcore: registered new interface driver usb_serial_simple
[    1.215856] usbserial: USB Serial support registered for carelink
[    1.222000] usbserial: USB Serial support registered for zio
[    1.227676] usbserial: USB Serial support registered for funsoft
[    1.233721] usbserial: USB Serial support registered for flashloader
[    1.240109] usbserial: USB Serial support registered for google
[    1.246045] usbserial: USB Serial support registered for libtransistor
[    1.252622] usbserial: USB Serial support registered for vivopay
[    1.258664] usbserial: USB Serial support registered for moto_modem
[    1.264946] usbserial: USB Serial support registered for motorola_tetra
[    1.271618] usbserial: USB Serial support registered for novatel_gps
[    1.277988] usbserial: USB Serial support registered for hp4x
[    1.283770] usbserial: USB Serial support registered for suunto
[    1.289722] usbserial: USB Serial support registered for siemens_mpi
[    1.298082] sun6i-rtc 1c20400.rtc: registered as rtc0
[    1.303260] sun6i-rtc 1c20400.rtc: RTC enabled
[    1.307929] i2c /dev entries driver
[    1.312936] input: ns2009_ts as /devices/platform/soc/1c2ac00.i2c/i2c-0/0-0048/input/input0
[    1.322691] sunxi-wdt 1c20ca0.watchdog: Watchdog enabled (timeout=16 sec, nowayout=0)
[    1.331400] sun8i-v3s-pinctrl 1c20800.pinctrl: 1c20800.pinctrl supply vcc-pf not found, using dummy regulator
[    1.367896] sunxi-mmc 1c0f000.mmc: initialized, max. request size: 16384 KB
[    1.375461] sun8i-v3s-pinctrl 1c20800.pinctrl: 1c20800.pinctrl supply vcc-pg not found, using dummy regulator
[    1.386877] usbcore: registered new interface driver usbhid
[    1.392548] usbhid: USB HID core driver
[    1.398851] Initializing XFRM netlink socket
[    1.403168] NET: Registered protocol family 17
[    1.408231] Registering SWP/SWPB emulation handler
[    1.414298] Loading compiled-in X.509 certificates
[    1.424375] simple-framebuffer 43e89000.framebuffer: framebuffer at 0x43e89000, 0x177000 bytes, mapped to 0x(ptrval)
[    1.435028] simple-framebuffer 43e89000.framebuffer: format=x8r8g8b8, mode=800x480x32, linelength=3200
[    1.450906] Console: switching to colour frame buffer device 100x30
[    1.462995] simple-framebuffer 43e89000.framebuffer: fb0: simplefb registered!
[    1.471873] usb_phy_generic usb_phy_generic.0.auto: usb_phy_generic.0.auto supply vcc not found, using dummy regulator
[    1.483384] musb-hdrc musb-hdrc.1.auto: MUSB HDRC host driver
[    1.489241] musb-hdrc musb-hdrc.1.auto: new USB bus registered, assigned bus number 3
[    1.498743] hub 3-0:1.0: USB hub found
[    1.502626] hub 3-0:1.0: 1 port detected
[    1.507991] sun6i-rtc 1c20400.rtc: setting system clock to 1970-01-01T19:25:22 UTC (69922)
[    1.516624] vcc3v0: disabling
[    1.519671] vcc5v0: disabling
[    1.522642] ALSA device list:
[    1.525607]   No soundcards found.
[    1.531464] random: fast init done
[    1.576059] random: crng init done
[    1.978976] usb 1-1: new high-speed USB device number 2 using ehci-platform
[    2.191870] hub 1-1:1.0: USB hub found
[    2.198210] hub 1-1:1.0: 4 ports detected
[    2.628983] usb 1-1.1: new full-speed USB device number 3 using ehci-platform
[    2.899513] cdc_acm 1-1.1:1.0: ttyACM0: USB ACM device
[    3.108818] usb 1-1.3: new high-speed USB device number 4 using ehci-platform
[    3.374599] usb-storage 1-1.3:1.0: USB Mass Storage device detected
[    3.387379] scsi host0: usb-storage 1-1.3:1.0
[    4.411310] scsi 0:0:0:0: Direct-Access     USB      SG Flash         1.00 PQ: 0 ANSI: 6
[    4.422302] sd 0:0:0:0: [sda] 62914560 512-byte logical blocks: (32.2 GB/30.0 GiB)
[    4.435889] sd 0:0:0:0: [sda] Write Protect is off
[    4.448119] sd 0:0:0:0: [sda] No Caching mode page found
[    4.453546] sd 0:0:0:0: [sda] Assuming drive cache: write through
[    4.476976]  sda: sda1
[    4.488158] sd 0:0:0:0: [sda] Attached SCSI removable disk
[    4.920343] VFS: Mounted root (jffs2 filesystem) on device 31:3.
[    4.928088] devtmpfs: mounted
[    4.932613] Freeing unused kernel memory: 1024K
[    4.937313] Run /linuxrc as init process
Starting syslogd: OK
Starting klogd: OK
Running sysctl: OK
Populating /dev using udev: [    6.000578] udevd[111]: starting version 3.2.9
[    6.930564] udevd[112]: starting eudev-3.2.9
[    9.848390] i2c i2c-0: mv64xxx: I2C bus locked, block: 1, time_left: 0
[    9.854945] input input0: Poll touch data failed: -110
done
Initializing random number generator: OK
Saving random seed: OK
Starting network: [   10.047364] dwmac-sun8i 1c30000.ethernet eth0: PHY [0.1:01] driver [Generic PHY]
[   10.056360] dwmac-sun8i 1c30000.ethernet eth0: No Safety Features support found
[   10.063781] dwmac-sun8i 1c30000.ethernet eth0: No MAC Management Counters available
[   10.071460] dwmac-sun8i 1c30000.ethernet eth0: PTP not supported by HW
[   10.077990] dwmac-sun8i 1c30000.ethernet eth0: configuring for phy/mii link mode
[   10.089548] dwmac-sun8i 1c30000.ethernet eth0: Link is Up - 100Mbps/Full - flow control rx/tx
OK
Starting dropbear sshd: OK
[   10.755898] FAT-fs (sda1): Volume was not properly unmounted. Some data may be corrupt. Please run fsck.
modify ip address
Stopping network: [   10.871990] dwmac-sun8i 1c30000.ethernet eth0: Link is Down
OK
Starting network: [   10.990080] dwmac-sun8i 1c30000.ethernet eth0: PHY [0.1:01] driver [Generic PHY]
[   10.999058] dwmac-sun8i 1c30000.ethernet eth0: No Safety Features support found
[   11.006381] dwmac-sun8i 1c30000.ethernet eth0: No MAC Management Counters available
[   11.014079] dwmac-sun8i 1c30000.ethernet eth0: PTP not supported by HW
[   11.020631] dwmac-sun8i 1c30000.ethernet eth0: configuring for phy/mii link mode
OK

Welcome to Buildroot for the LicheePi Zero
licheepi-zero login:

从启动信息看,好像没有看出哪里出错了,请教一下这是什么问题?

#7 Re: 全志 V3S/F1C100s/X3 » 关于V3s的串口使用 » 2020-08-04 07:42:53

哈哈,只有我偷懒,为了访问串口,直接用Qt,库中的QSerialPort比上面的代码感觉好懂多了。

#8 全志 V3S/F1C100s/X3 » 【分享】V3s Licheepi上控制LED灯的方法 » 2020-08-04 07:35:43

ifree64
回复: 7

今天分享一个简单,但也许很实用的功能,大神请飘过。


## 设备树中与LED有关的内容

在设备树文件arch/arm/boot/dts/sun8i-v3s-licheepi-zero.dts中,有以下内容

leds {
		compatible = "gpio-leds";

		blue_led {
			label = "licheepi:blue:usr";
			gpios = <&pio 6 1 GPIO_ACTIVE_LOW>; /* PG1 */
		};

		green_led {
			label = "licheepi:green:usr";
			gpios = <&pio 6 0 GPIO_ACTIVE_LOW>; /* PG0 */
			default-state = "on";
		};

		red_led {
			label = "licheepi:red:usr";
			gpios = <&pio 6 2 GPIO_ACTIVE_LOW>; /* PG2 */
		};
	};

其中

gpios = <&pio 6 1 GPIO_ACTIVE_LOW>; /* PG1 */

代表引脚 6 * 32 + 1  也就是 PG1( A~G: 0~6)
其名字为:licheepi:blue:usr

## 系统启动后与LED控制有关的文件

系统启动后,将看到这样的文件

# ls /sys/class/leds/
licheepi:blue:usr   licheepi:green:usr  licheepi:red:usr

这里三个文件夹分别对应设备树中定义的三个LED。

## 如何控制LED灯亮灭
点亮LED

echo 1 > /sys/class/leds/licheepi\:green\:usr/brightness

熄灭LED

echo 0 > /sys/class/leds/licheepi\:green\:usr/brightness

控制LED闪烁

# ls /sys/class/leds/licheepi\:blue\:usr/
brightness      max_brightness  subsystem       uevent
device          power           trigger
# cat /sys/class/leds/licheepi\:blue\:usr/trigger
[none] kbd-scrolllock kbd-numlock kbd-capslock kbd-kanalock kbd-shiftlock kbd-altgrlock kbd-ctrllock kbd-altlock kbd-shiftllock kbd-shiftrlock kbd-ctrlllock kbd-ctrlrlock mmc0 heartbeat default-on
这里可以看到当前的值为none,表示没有trigger,将其值改成heartbeat就可以看到闪烁了
# echo heartbeat > /sys/class/leds/licheepi\:blue\:usr/trigger

#9 Re: 全志 V3S/F1C100s/X3 » 各位大神,全志Allwinner V3s的板子,怎么样才能自动挂载u盘,读卡器? » 2020-08-02 12:27:00

自己编译的kernel,没有/proc/sys/kernel/hotplug文件,搜索内核的.config文件,也没有CONFIG_HOTPLUG选项,看到有人说新内核已经取消了这个CONFIG_HOTPLUG选项,默认已经开启了。
有哪位大神能指导一下?

#10 Re: 全志 V3S/F1C100s/X3 » 请教SPI Flash的量产烧录方法 » 2020-07-31 18:24:01

路人甲 说:

特殊的TF卡固件,启动Linux就烧spiflash

有两个问题请教一下。
1、如果spi flash里面有系统(包括uboot),插入一个tf卡后,是不是默认优先从tf卡启动呢?
2、tf卡系统启动后如何烧录spi flash呢?是直接使用dd命令吗?

#11 Re: 全志 V3S/F1C100s/X3 » 请教SPI Flash的量产烧录方法 » 2020-07-31 18:21:12

Quotation 说:

哪有这么慢?32Mbit还是byte的flash?

32M Byte,用的是sunxi-fel方式,要10来分钟。

#13 Re: 全志 V3S/F1C100s/X3 » F1C200S 移植完Linux后怎么做应用开发 » 2020-07-31 11:13:00

buildroot里面把Qt的库安装好,然后下一个Qt Creator编程,Qt Creator可以直接把应用上传到开发板上跑。

#14 全志 V3S/F1C100s/X3 » 请教SPI Flash的量产烧录方法 » 2020-07-31 11:05:20

ifree64
回复: 8

请教各位达人,SPI Flash用来存放系统,量产时用什么方案烧录更好呢?
SUNXI-FEL烧录32M,要烧录10多分钟。

#16 全志 V3S/F1C100s/X3 » V3s的DRAM供电的问题 » 2020-06-06 17:19:21

ifree64
回复: 1

参考Linux Card的原理图,也用的JW5211转1.8V给DRAM供电,但发现跑一会儿DCDC就输出0V了。

DRAM供电需要多高的要求啊?

#18 Re: 全志 V3S/F1C100s/X3 » DIY一块全志V3S的学习板,尽量引出所有功能(感谢晕哥支持) » 2020-05-25 11:43:29

mysteryli 说:

楼上两位留qq邮箱的朋友我加你们了,方便的话通过下,我们拉个群讨论

把我也拉群里吧,向你们学习一下。4530180@qq.com
如果还有多余的板子,可否给我一块

#20 Re: 全志 V3S/F1C100s/X3 » 开源自己画的一个F1C100S板子和原理图,摄像头和屏幕同时引出,所有io引出 » 2020-05-23 22:53:19

grantho 说:

我的板子现在VCC-DRAM是2.52v,VCC-CORE是1.09v(电源改了个电阻,按说明书上的),AVCC是3.34v。晶振有起振,24M。插上USB,SPI0的CS有被拉高,手动接地也没反应。USB数据线没有数据,没有反应,使用ubuntu,windows两个系统试了都没反应。焊接过几块板子都一样。还有什么需要注意的吗?

请问你现在问题解决了没有?USB ID是怎么处理的呢?

#21 Re: 全志 V3S/F1C100s/X3 » DIY一块全志V3S的学习板,尽量引出所有功能(感谢晕哥支持) » 2020-05-23 19:15:56

谢谢楼上指点。我板子上Vrtc通过一个0欧电阻和3v3连接的,先前这个电阻确实没焊。

但焊上以后,又出了一点状况,1.2V电压没有了,直接为0,量了一下对地,1.2V对地只有200欧左右电阻,是不是芯片坏了?
对了没焊0欧电阻时,芯片没啥反应,焊了Vrtc这里的0欧电阻后,芯片有“发热”的反应了。

#22 Re: 全志 V3S/F1C100s/X3 » DIY一块全志V3S的学习板,尽量引出所有功能(感谢晕哥支持) » 2020-05-23 17:53:28

楼主板子焊完没有?

我也做了一个V3s的板子,不知道是不是布线太烂,还是原理图画错,仿佛没有工作起来。
其实我也不知道怎么算工作起来,我的理解是,板子上没有任何启动介质的话,芯片会进入FEL模式,用sunxi-fel工具可以发现设备,但是现在USB一点反应也没有,晶振好像也没有振起来。

PS:V3s说是LQFP封装,但芯片底下一个焊盘接地,用烙铁不知道如何下手焊接。

#23 Re: 全志 V3S/F1C100s/X3 » 跟论坛大佬学习自己画了一块F1C200S板,USB无法识别,请各位大佬帮分析一下可能存在问题 » 2020-05-21 07:47:21

请教一下,模拟部分AVCC、VR1、VR2是否一定要全接上,芯片才能工作。
我现在一个板子也是上电后好像完全没有反应,晶振都没振起来,板子因为模拟部分没有用到,VR1这几个没接。

#24 Re: 全志 V3S/F1C100s/X3 » 抄作业了,我也发一个V3s的系统原理图,请各位大侠指正 » 2020-05-20 23:19:01

我又来了。
板子打样回来了。接好USB接口,没有任何反应,这是否说明系统没有工作起来呢?按照我的理解,系统加载如果无法找到引导程序,将进入FEL模式,这个时候可以使用sunxi-fel工具连接上设备。
这样的板子没有调试经历,该如何判断芯片开始工作了呢?

#25 Re: 全志 V3S/F1C100s/X3 » 抄作业了,我也发一个V3s的系统原理图,请各位大侠指正 » 2020-05-09 17:53:59

wonrowl 说:

第一个问题考虑所谓的阻抗?

反正没接网络变压器,

第二个问题和第三个问题我也想知道,尤其是第三个

HR91105A不是自带了网络变压器吗?

#26 Re: DIY/综合/Arduino/写字机/3D打印机/智能小车/平衡车/四轴飞行/MQTT/物联网 » CH552 版 CMSIS-DAP v2 » 2020-05-08 09:07:22

演技担当黄晓明 说:

编译器不支持双DPTR?

一直好奇stc等51都吹嘘双dptr,什么编译器可以支持双dptr?难道用到这个功能的人都玩汇编的吗?

#28 Re: 全志 V3S/F1C100s/X3 » 尝试从一开发F1C100s应用 » 2020-05-07 08:41:24

我比较懒,选择了32M的Flash做存储,所以还勉强能装下Qt的库,所以就用Qt来开发应用了。
配置好网络与Qt Creator后,可以直接在Qt Creator中将应用发布到开发板上运行。

#29 Re: 全志 V3S/F1C100s/X3 » 抄作业了,我也发一个V3s的系统原理图,请各位大侠指正 » 2020-05-06 17:46:00

这个部分,我按照那个帖子的说明,将荔枝派的网络部分的电阻给去掉了。

#30 全志 V3S/F1C100s/X3 » 抄作业了,我也发一个V3s的系统原理图,请各位大侠指正 » 2020-05-06 15:10:36

ifree64
回复: 6

还没有做过能跑Linux的电路板,到处抄作业,拼出一个原理图,贴出来请大大门指正!

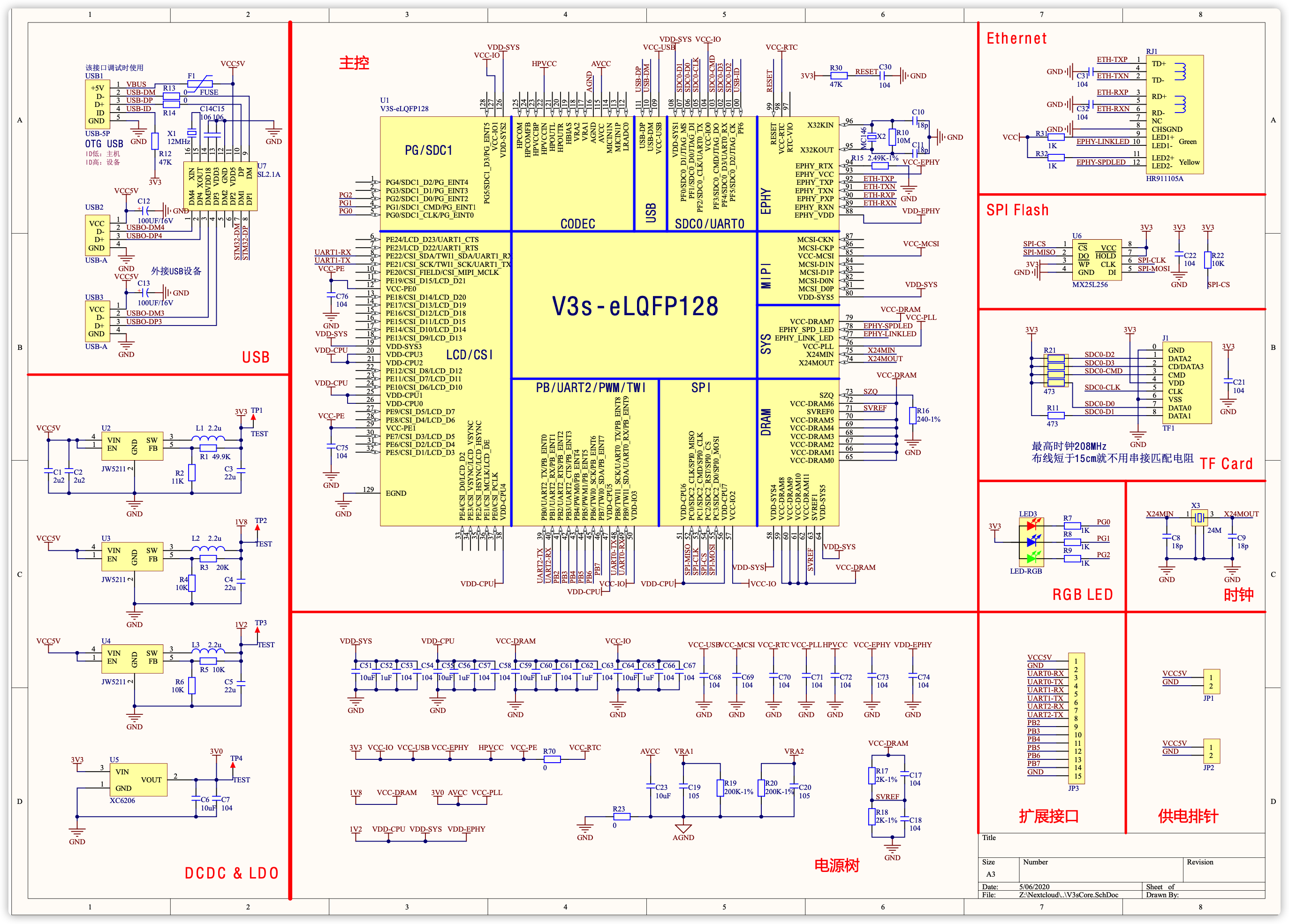

V3s电路原理图
电路原理图
顺便问一下:
1. EPHY-RTX脚为啥要接一个电阻到地呢?还标着1%,需要一个精密的电阻?
2. DRAM区有一个SVREF,这个信号是啥作用?SZQ为啥也要接一个电阻到地呢?

#32 Re: Cortex M0/M3/M4/M7 » STM32 usb虚拟串口 最大速度可以达到多少 波特率可以设置到多少? » 2020-05-04 08:15:35

我也折腾了stm32的VCP几天,发现STM32与PC机之间数据传输速率,除了与STM32有关与外,还与PC机有关。因为USB是一个主机控制的协议,假如STM32向PC机发数据的话,需要主机不停的发IN才能达到最大速率,用串口助手时,可能因为要做显示刷新,速度往往受限与串口助手。
用Qt的QSerialPort读数据,通常是连接readReady信号来读,就不知道QSerialPort多久发一次IN令牌包了。

#34 Re: 全志 V3S/F1C100s/X3 » 终于把V3s三个串口全部榨干, 控制台只能用 ssh 了, 泪崩 (dropbear大法好,还能秘钥登录) » 2020-04-25 07:56:04

我思故我在 说:

dropbear 密钥对登录没搞定,悲伤

我目前新建一个用户,在这个用户下创建.ssh/authorized_keys文件,写入pub key就可以用这个用户来登陆了。

#35 Re: 全志 V3S/F1C100s/X3 » 荔枝派zero 系统 » 2020-04-23 16:34:46

whoam1 说:

您好,那个镜像不是flash的吗,tf卡能刷吗?

如果是tf卡的话,你用最新的buildroot,默认配置就可以得到一个tf可用的系统,然后把内核和设备树文件替换为这个帖子里的文件就可以了。

#36 Re: 全志 V3S/F1C100s/X3 » 尝试使用Ubuntu20.04从零构建Licheepi V3s Zero的SPI Flash系统镜像(32M) » 2020-04-23 16:30:29

LinjieGuo 说:

我,你这个标题,我怎么感觉这么熟悉呢?感谢分享,/笑。

big_smile 其实我就是根你学的,不好意思侵权了。

#37 Re: 全志 V3S/F1C100s/X3 » 尝试使用Ubuntu20.04从零构建Licheepi V3s Zero的SPI Flash系统镜像(32M) » 2020-04-23 15:45:38

后记

本笔记资料来源于whycan网的多位大神,感谢晕哥这个平台提供了大量资料。我这篇帖子只能算一篇笔记吧,把这几天各种尝试、爬楼的结果记录下来,一来给自己做一个备忘,如果能帮助到更多向我这样的新手,就不胜荣幸了。

另目前还有一些自觉不够完美的地方,现在自己的技术实力又搞不定,留坑待以后再填吧。
1. 是不是能够通过boot.scr脚本文件设置bootcmd、bootargs参数;不能老是去改uboot的代码吧?
2. 创建UBIFS文件系统,存放除了uboot以外所有需要的文件;用文件系统存放启动脚本boot.scr和设备树文件,分区规划应该更自由,只需要1个分区存放uboot镜像,剩下的都留给根文件系统,修改起来好像更方便?
3. 使用buildroot的genimage工具生成系统镜像,这个方法感觉更好,genimage的脚本制作启动镜像,看上去更易懂一些。
4. 如果完全从主线uboot、kernel、buildroot拉代码,要在荔枝派上跑起来,该如何修改呢,原理又是啥,这个坑好大。

#38 Re: 全志 V3S/F1C100s/X3 » 尝试使用Ubuntu20.04从零构建Licheepi V3s Zero的SPI Flash系统镜像(32M) » 2020-04-23 15:39:51

打包生成Flash镜像

1. 打包脚本
按照分区规划,将上面得到的文件,用dd写入到指定的位置就可以得到需要的镜像文件。打包命令如下:

#!/bin/bash

dd if=/dev/zero bs=1MiB count=32 | tr "\000" "\377" > flash_32m.bin

mkfs.jffs2 --pad=0x1B00000 -d rootfs/ -o jffs2.bin

dd if=notrunc if=u-boot-sunxi-with-spl.bin of=flash_32m.bin seek=0
dd if=notrunc if=sun8i-v3s-licheepi-zero.dtb	of=flash_32m.bin bs=$((0x80000)) seek=1
dd if=notrunc if=zImage of=flash_32m.bin bs=$((0x90000)) seek=1
dd if=notrunc if=jffs2.bin of=flash_32m.bin bs=$((0x500000)) seek=1

*PS: 不懂 bs=$((0x80000))这个地方的语法,为啥要用$符号还要加两个括号,照着大神的抄过来的。*

2. 烧录Flash镜像
让开发板进入FEL模式,使用sunxi-fel工具,将镜像写入SPI Flash。
2.1 烧录整个flash

$ sudo sunxi-fel -p spiflash-write 0 flash_32m.bin

2.2 也可以独立烧录

下面的命令是根据前面的分区规划来的,如果你的分区规划不一样,需要修改一下地址。独立烧录的价值在于调试阶段,因为sunxi-fel的烧录非常的慢,如果能少写入一点数据可以提高不少的性能。

$sudo sunxi-fel -p spiflash-write 0 u-boot-sunxi-with-spl.bin
$sudo sunxi-fel -p spiflash-write 0xF0000 sun8i-v3s-licheepi-zero-dock.dtb
$sudo sunxi-fel -p spiflash-write 0x100000 zImage
$sudo sunxi-fel -p spiflash-write 0x600000 jffs2.bin

3. 编写自己的Hello,World

系统启动来以后,总是要自己写点程序试一下的,先来一个Hello,World

$ cat myapp/hello.c
#include <stdio.h>
int main(void)
{
	printf("Hello,World!\n");
	return 0;
}
$ arm-linux-gnueabihf-gcc myapp/hello.c -o myapp/hello

将交叉编译得到的hello直接拷贝到rootfs目录里面,重新生成根文件系统,烧录进去就OK了。
但文件系统非常大,烧录太慢,看来还得支持scp拷贝才行。后面慢慢折腾吧。

#39 Re: 全志 V3S/F1C100s/X3 » 尝试使用Ubuntu20.04从零构建Licheepi V3s Zero的SPI Flash系统镜像(32M) » 2020-04-23 15:35:15

使用buildroot制作根文件系统
其实buildroot可以直接制作uboot和内核的,但是国内通过git下载uboot和kernel的代码实在太慢,几乎无法成功,所以前面已经独立的下载了这两个仓库,所以这里就不使用buildroot来生成uboot和kernel了。

1. 获取buildroot源代码

git clone git://git.busybox.net/buildroot

2. 配置
在最新的buildroot有一个licheepi的默认配置文件

$ make licheepi_zero_defconfig

通过这个配置文件,可以得到一个sdcard.img的文件,直接dd烧录进入sd卡,就可以启动Linux系统。
使用这个默认配置的好处在于,如果从零开始,对我这样的初学者实在不知道该选择那些选项,不该选择那些选项,使用默认配置至少可以得到一个基本能用的起点,后面在这个基础上慢慢改就可以了。
但是这个默认配置的uboot不能支持spi(其实是我不会),linux内核使用的5.3.5版本,默认配置还不支持网卡(我也不会添加修改),暂时先用前面两个步骤得到的uboot和kernel,只用其得到的根文件系统。

3. 工具链设置
默认的配置使用ulibc作为C库,我猜测这个库不能支持Qt,所以要换掉。
可以使用buildroot来生成工具链,但是下载实在是太慢了,几乎不会下载成功。干脆配置buildroot使用系统自带的工具链。(其实前面编译uboot和kernel也是使用系统自带的工具链。)

更新:工具链最终还是使用的buildroot构建的工具链。系统自带工具链会产生错误。

4. 软件包
软件包目前还没有太多需求,默认配置能够得到一个可用的rootfs,先把系统启动起来,后面再研究一下Qt如何配置。

#40 Re: 全志 V3S/F1C100s/X3 » 尝试使用Ubuntu20.04从零构建Licheepi V3s Zero的SPI Flash系统镜像(32M) » 2020-04-23 15:04:33

Linux内核编译

1. 获取源代码

git clone https://github.com/Lichee-Pi/linux.git -b zero-5.2.y

这里切换到了该仓库中,内核最新的分支,经测试该分支已经包含了Ethernet的支持,满足我自己的需要。

2. 配置源代码

2.1 首先导入默认配置

CROSS_COMPILE=arm-linux-gnueabihf- ARCH=arm make licheepi_zero_defconfig

2.2 修改设备树,加入SPI Flash和Ethernet的支持

修改文件`arch/arm/boot/dts/sun8i-v3s-licheepi-zero.dts`,在该文件适当的位置加入以下内容。(PS:我现在也不懂设备树,但是打开这个文件后,按照以下内容提示应该知道改哪些部分吧?)

	aliases {
		serial0 = &uart0;
		ethernet0 = &emac;
	};

&emac {
	phy-handle = <&int_mii_phy>;
	phy-mode = "mii";
	allwinner,leds-active-low;
	status = "okay";
};

&spi0 {
        status ="okay";
        mx25l25635e:mx25l25635e@0 {
                compatible = "jedec,spi-nor";
                reg = <0x0>;
                spi-max-frequency = <50000000>;
                #address-cells = <1>;
                #size-cells = <1>;
        };

};

2.3 配置选项

* 加入SPI Flash的支持

Device Drivers  --->
	<*> Memory Technology Device (MTD) support  --->
 		<*>   Command line partition table parsing   (用以支持命令行参数 mtdparts=spi0.0:512k(uboot)ro, … )
		<*>   Caching block device access to MTD devices
		<*>   SPI-NOR device support  --->
			 [ ]   Use small 4096 B erase sectors  	(取消这个选型,否则jffs2文件系统会报错)

特别注意这里的两个选项Command line partition table parsing,如果不选中这个,加无法识别mtd分区,启动系统时回报错

 Wait for root filesystem /dev/mtdblock3

第二个选项是Use small 4096 B erase sectors,必须取消选中它,否则jffs2文件系统会大量报错,而无法加载进入系统。

* 加入jffs2文件系统支持

File systems  --->
	[*] Miscellaneous filesystems  --->
		<*>   Journalling Flash File System v2 (JFFS2) support
  		(0)     JFFS2 debugging verbosity (0 = quiet, 2 = noisy)
  		[*]     JFFS2 write-buffering support
  		[ ]       Verify JFFS2 write-buffer reads
		[ ]     JFFS2 summary support
  		[ ]     JFFS2 XATTR support
  		[ ]     Advanced compression options for JFFS2

* 加入Ethernet支持

Device Drivers  --->
	[*] Network device support  --->
		 [*]   Ethernet driver support  --->
			[*]   STMicroelectronics devices
				<*>     STMicroelectronics Multi-Gigabit Ethernet driver
				[ ]       Support for STMMAC Selftests
				<*>       STMMAC Platform bus support
				< >         Support for snps,dwc-qos-ethernet.txt DT binding.
				<*>         Generic driver for DWMAC
				<*>         Allwinner GMAC support
				<*>         Allwinner sun8i GMAC support

(很奇怪,全志的芯片网络支持会在STMicroelectronics deveices配置菜单下面。)

3. 编译

make ARCH=arm CROSS_COMPILE=arm-linux-gnueabihf- -j4
make ARCH=arm CROSS_COMPILE=arm-linux-gnueabihf- dtbs

最后生成的文件在下面路径

$ ls -lh arch/arm/boot/zImage
-rwxrwxr-x 1 xlee xlee 4.2M Apr 23 10:41 arch/arm/boot/zImage
$ ls -lh arch/arm/boot/dts/sun8i-v3s-licheepi-zero.dtb
-rw-rw-r-- 1 xlee xlee 12K Apr 22 23:33 arch/arm/boot/dts/sun8i-v3s-licheepi-zero.dtb

#41 Re: 全志 V3S/F1C100s/X3 » 尝试使用Ubuntu20.04从零构建Licheepi V3s Zero的SPI Flash系统镜像(32M) » 2020-04-23 14:56:48

uboot的配置和编译

V3s启动时,首先是芯片内的BROM运行,这个启动代码会搜索SD卡,SPI Flash特定位置,加载BootLoader中的SPL部分,
再由SPL加载完整的uboot镜像,由uboot加载内核和设备树文件。

1. 获取支持SPI Flash的uboot代码

由于制作完成的镜像存放在SPI Flash中,uboot需要支持从SPI Flash设备,以实现加载过程。从以下仓库中获取代码,并切换到v3s-spi-experimental分支。

$ git clone https://github.com/Lichee-Pi/u-boot.git -b v3s-spi-experimental

可通过`git branch -r `命令查看代码仓库所有的分支

$ git branch -r
  origin/HEAD -> origin/master
  origin/master
  origin/nano-lcd800480
  origin/nano-v2018.01
  origin/next
  origin/origin
  origin/s3-l0p-exp
  origin/u-boot-2009.11.y
  origin/u-boot-2013.01.y
  origin/u-boot-2016.09.y
  origin/v3s-current
  origin/v3s-spi-experimental

2. 配置uboot

该仓库的代码与Licheepi开发板有关的配置文件有以下三个,可根据需要选择,我选择支持800x480LCD的这个配置

$ cd u-boot
$ ls -1 configs/LicheePi*
configs/LicheePi_Zero_480x272LCD_defconfig
configs/LicheePi_Zero_800x480LCD_defconfig
configs/LicheePi_Zero_defconfig
$ make LicheePi_Zero_800x480LCD_defconfig

使用32M Flash需要加入Bank/Extended支持,make menuconfig,加入以下选项

Device Drivers  --->
	   SPI Flash Support  --->
			[*] Enable Driver Model for SPI flash
			[*] Legacy SPI Flash Interface support
			[*]   SPI flash Bank/Extended address register support
			[*]   Macronix SPI flash support
			[*]   Spansion SPI flash support
			[*]   STMicro SPI flash support
			[*]   Winbond SPI flash support
			[*] Support for SPI Flash on Allwinner SoCs in SPL

3. 修改uboot,设置bootcmd和bootargs参数

uboot加载完毕后,会运行环境变量bootcmd中存放的命令,通过这些命令加载内核和设备树文件到内存,并启动内核。Uboot可以通过读取启动分区(?)中的boot.scr脚本文件来设置bootcmd、bootargs变量,也可以修改代码,硬编码设置这几个变量的值。这里是通过修改`include/configs/sun8i.h`这个头文件,硬编码设置这两个变量的值(实际上,我不懂如何做才能让uboot搜索分区中的文件,以加载变量的值,显然通过文件加载变量的值更好,因为不需要重新编译uboot就可以修改bootcmd变量,更加灵活)。

#define CONFIG_BOOTCOMMAND  "sf probe 0:0 6000000; " \
			     "sf read 0x41800000 0x80000 0x4000; " \
			     "sf read 0x41000000 0x90000 0x470000;" \
			     "bootz 0x41000000 - 0x41800000;"


#define CONFIG_BOOTARGS     "console=ttyS0,115200 earlyprintk panic=5 rootwait mtdparts=spi0.0:512k(uboot),64k(dtb)ro,4544k(kernel)ro,-(rootfs) root=/dev/mtdblock3 rw rootfstype=jffs2 init=/linuxrc vt.global_cursor_default=0"

命令的功能解释如下:
* sf probe 0:0 60000000  挂载SPI Flash设备(PS:后面这个60000000不知道什么意思,好像不加也可以)
* sf read 0x4100000 0x90000 0x470000,该命令加载内核, 从SPI Flash的0x90000地址处,读取0x470000字节内容到内存0x41000000处,完成内核加载;
* sf read 0x41800000 0x80000 0x4000 该命令加载设备树文件到0x41800000内存地址处。
由此可见,根据分区规划的不同,内核文件的尺寸的不同,需要修改这些数值。

4. 设置bootargs参数

这里仍然选择硬编码的方法,修改bootargs参数,该参数是启动内核时,传递给内核的命令行参数,目的在于将SPI的分区结构传递给内核,以便于内核从正确的位置加载根文件系统。

console=ttyS0,115200 earlyprintk panic=5 rootwait mtdparts=spi32766.0:512k(uboot),64k(dtb)ro,4544k(kernel)ro,-(rootfs) root=/dev/mtdblock3 rw rootfstype=jffs2 init=/linuxrc vt.global_cursor_default=0

在这个命令行参数中,使用mtdparts参数传递了flash的分区信息,其参数的语法格式在文件linux/drivers/mtd/cmdlinepart.c中描述如下:

/*
 * mtdparts=<mtddef>[;<mtddef]
 * <mtddef>  := <mtd-id>:<partdef>[,<partdef>]
 * <partdef> := <size>[@<offset>][<name>][ro][lk]
 * <mtd-id>  := unique name used in mapping driver/device (mtd->name)
 * <size>    := standard linux memsize OR "-" to denote all remaining space
 *              size is automatically truncated at end of device
 *              if specified or truncated size is 0 the part is skipped
 * <offset>  := standard linux memsize
 *              if omitted the part will immediately follow the previous part
 *              or 0 if the first part
 * <name>    := '(' NAME ')'
 *              NAME will appear in /proc/mtd
 *
 * <size> and <offset> can be specified such that the parts are out of order
 * in physical memory and may even overlap.
 *
 * The parts are assigned MTD numbers in the order they are specified in the
 * command line regardless of their order in physical memory.
 */

由上可知,命令行

mtdparts=spi0.0:512k(uboot),64k(dtb)ro,4544k(kernel)ro,-(rootfs)

可以解释为:
* spi0.0   <mtd-id>,这个是内核识别到的spi flash设备号
参考[荔枝派zero linux5.2,spi flash启动识别不到分区](https://whycan.cn/t_4119.html),从内核启动信息中,可以看到这个mtd-id为spi0.0

[    0.769344] m25p80 spi0.0: mx25l25635e (32768 Kbytes)
[    0.774436] 4 cmdlinepart partitions found on MTD device spi0.0
[    0.780416] Creating 4 MTD partitions on "spi0.0":
[    0.785214] 0x000000000000-0x000000080000 : "uboot"
[    0.792040] 0x000000080000-0x000000090000 : "dtb"
[    0.798618] 0x000000090000-0x000000500000 : "kernel"
[    0.805369] 0x000000500000-0x000002000000 : "rootfs"

* 512k(uboot)   这个部分定义了一个partdef,size为512k,name为uboot,其余类推
进入Linux后,可以看到如下信息

# cat /proc/mtd
dev:    size   erasesize  name
mtd0: 00080000 00010000 "uboot"
mtd1: 00010000 00010000 "dtb"
mtd2: 00470000 00010000 "kernel"
mtd3: 01b00000 00010000 "rootfs"

#42 Re: 全志 V3S/F1C100s/X3 » 尝试使用Ubuntu20.04从零构建Licheepi V3s Zero的SPI Flash系统镜像(32M) » 2020-04-23 11:46:11

原理及分区规划

制作原理

一个系统镜像由BootLoader、Kernel Image、dtb file、Root Filesystem构成,所以制作一个系统镜像第一步就是要制作这几个文件。

-rw-r--r--  1 xlee xlee 28311552 Apr 23 11:17 jffs2.bin      根文件系统制作的磁盘镜像
drwxr-xr-x 17 xlee xlee     4096 Apr 21 21:04 rootfs			 根文件系统
-rw-rw-r--  1 xlee xlee    11413 Apr 22 23:34 sun8i-v3s-licheepi-zero.dtb 设备树文件
-rw-rw-r--  1 xlee xlee   418388 Apr 22 23:03 u-boot-sunxi-with-spl.bin   uboot启动镜像
-rwxrwxr-x  1 xlee xlee  4315384 Apr 23 11:17 zImage						  Linux Kernel内核

分区规划
这个系统镜像最终是存储在SPI Flash上的,通常只有16M、32M的大小,需要仔细规划有限的存储空间。

# 总共32MiB 0x000000 - 0x1FFFFFF
uboot			 0x0000		-		 0x7FFFF (512KiB)
dtb			0x80000 	- 		 0x8FFFF (64KiB)
zImage			 0x90000 	- 		0x4FFFFF (4MiB+448Kib)
rootfs			0x500000 	- 		0x1FFFFFF (27MiB = 32MiB - 5MiB)

#43 Re: 全志 V3S/F1C100s/X3 » 尝试使用Ubuntu20.04从零构建Licheepi V3s Zero的SPI Flash系统镜像(32M) » 2020-04-23 11:42:04

Sunxi-tools的安装

1. 依赖包

$ apt-get install libusb-1.0-0-dev

2. clone代码包
官网给出的地址如下

git clone https://github.com/linux-sunxi/sunxi-tools

但以上地址,V3s上实验发现不支持SPI Flash,应从以下地址下载

git clone https://github.com/Icenowy/sunxi-tools.git -b spi-rebase

注意使用spi-rebase分支

3. 支持32M的SPI Flash
由于SPI flash 的地址是24bit,也就是最大16M 地址空间,所以对于32M flash,需要增加bank切换支持。
uboot中有CONFIG_SPI_FLASH_BAR选项可以使能bank切换。
但是sunxi-fel中尚未支持,所以下载的时候超出16M会循环覆盖掉。
这里介绍对sunxi-fel增加16M以上flash支持的方法。

Filename: fel-spiflash.c

/*
 * Write data to the SPI flash. Use the first 4KiB of SRAM as the data buffer.
 */

#define CMD_WRITE_ENABLE 0x06
#define SPI_FLASH_16MB_BOUN  0x1000000
# define CMD_BANKADDR_BRWR              0x17	//only SPANSION flash use it
# define CMD_BANKADDR_BRRD              0x16
# define CMD_EXTNADDR_WREAR             0xC5
# define CMD_EXTNADDR_RDEAR             0xC8
size_t bank_curr = 0;

void aw_fel_spiflash_write_helper(feldev_handle *dev,
				  uint32_t offset, void *buf, size_t len,
				  size_t erase_size, uint8_t erase_cmd,
				  size_t program_size, uint8_t program_cmd)
{
	uint8_t *buf8 = (uint8_t *)buf;
	size_t max_chunk_size = dev->soc_info->scratch_addr - dev->soc_info->spl_addr;
	size_t cmd_idx, bank_sel;

	if (max_chunk_size > 0x1000)
		max_chunk_size = 0x1000;
	uint8_t *cmdbuf = malloc(max_chunk_size);
	cmd_idx = 0;

	prepare_spi_batch_data_transfer(dev, dev->soc_info->spl_addr);

	//add bank support
	{
		cmd_idx = 0;
		bank_sel = offset /SPI_FLASH_16MB_BOUN;
		if (bank_sel == bank_curr)
			goto bar_end;

		/* Emit write enable command */
		cmdbuf[cmd_idx++] = 0;
		cmdbuf[cmd_idx++] = 1;
		cmdbuf[cmd_idx++] = CMD_WRITE_ENABLE;
		/* Emit write bank */
		cmdbuf[cmd_idx++] = 0;
		cmdbuf[cmd_idx++] = 2;
		cmdbuf[cmd_idx++] = CMD_EXTNADDR_WREAR;
		cmdbuf[cmd_idx++] = offset >> 24;
		/* Emit wait for completion */
		cmdbuf[cmd_idx++] = 0xFF;
		cmdbuf[cmd_idx++] = 0xFF;
		/* Emit the end marker */
		cmdbuf[cmd_idx++] = 0;
		cmdbuf[cmd_idx++] = 0;
		aw_fel_write(dev, cmdbuf, dev->soc_info->spl_addr, cmd_idx);
		aw_fel_remotefunc_execute(dev, NULL);
		bar_end:
			bank_curr = bank_sel;
	}

	cmd_idx = 0;

	prepare_spi_batch_data_transfer(dev, dev->soc_info->spl_addr);

	while (len > 0) {
		while (len > 0 && max_chunk_size - cmd_idx > program_size + 64) {
			if (offset % erase_size == 0) {
				/* Emit write enable command */
				cmdbuf[cmd_idx++] = 0;
				cmdbuf[cmd_idx++] = 1;
				cmdbuf[cmd_idx++] = CMD_WRITE_ENABLE;
				/* Emit erase command */
				cmdbuf[cmd_idx++] = 0;
				cmdbuf[cmd_idx++] = 4;
				cmdbuf[cmd_idx++] = erase_cmd;
				cmdbuf[cmd_idx++] = offset >> 16;
				cmdbuf[cmd_idx++] = offset >> 8;
				cmdbuf[cmd_idx++] = offset;
				/* Emit wait for completion */
				cmdbuf[cmd_idx++] = 0xFF;
				cmdbuf[cmd_idx++] = 0xFF;
			}
			/* Emit write enable command */
			cmdbuf[cmd_idx++] = 0;
			cmdbuf[cmd_idx++] = 1;
			cmdbuf[cmd_idx++] = CMD_WRITE_ENABLE;
			/* Emit page program command */
			size_t write_count = program_size;
			if (write_count > len)
				write_count = len;
			cmdbuf[cmd_idx++] = (4 + write_count) >> 8;
			cmdbuf[cmd_idx++] = 4 + write_count;
			cmdbuf[cmd_idx++] = program_cmd;
			cmdbuf[cmd_idx++] = offset >> 16;
			cmdbuf[cmd_idx++] = offset >> 8;
			cmdbuf[cmd_idx++] = offset;
			memcpy(cmdbuf + cmd_idx, buf8, write_count);
			cmd_idx += write_count;
			buf8    += write_count;
			len     -= write_count;
			offset  += write_count;
			/* Emit wait for completion */
			cmdbuf[cmd_idx++] = 0xFF;
			cmdbuf[cmd_idx++] = 0xFF;
		}
		/* Emit the end marker */
		cmdbuf[cmd_idx++] = 0;
		cmdbuf[cmd_idx++] = 0;

		/* Flush */
		aw_fel_write(dev, cmdbuf, dev->soc_info->spl_addr, cmd_idx);
		aw_fel_remotefunc_execute(dev, NULL);
		cmd_idx = 0;
	}

	free(cmdbuf);
}

4. 编译安装

$ sudo make
$ sudo make install

5. 烧录系统的方法
烧录整个flash:

$ sudo sunxi-fel -p spiflash-write 0 v3s_flash_32m.bin

独立烧录:

$ sudo sunxi-fel -p spiflash-write 0 u-boot-sunxi-with-spl.bin
$ sudo sunxi-fel -p spiflash-write 0x50000 whycan.bmp.gz
$ sudo sunxi-fel -p spiflash-write 0xF0000 sun8i-v3s-licheepi-zero-dock.dtb
$ sudo sunxi-fel -p spiflash-write 0x100000 zImage
$ sudo sunxi-fel -p spiflash-write 0x600000 jffs2.bin

读取flash

# 读取flash从0地址开始100个字节,读到read.bin文件
$ sudo sunxi-fel -p spiflash-read 0 0x100 read.bin

6. 如何查看是否进入FEL模式

方法一,查看是否检测到一个新的USB设备
在命令行输入lsusb,将看到一下输出

Bus 001 Device 074: ID 1f3a:efe8

关注设备号 1f3a:efe8

V3s看到的是如下信息

Bus 002 Device 005: ID 1f3a:efe8 Onda (unverified) V972 tablet in flashing mode

方法二,运行sunxi-fel工具

$ sudo sunxi-fel version
AWUSBFEX soc=00162500(A13) 00000001 ver=0001 44 08 scratchpad=00007e00 00000000 00000000

7. 如何进入FEL模式
7.1. 通过一个特殊的FEL 按钮

7.2. 按住standard button

7.3  通过串口
上电启动过程中,通过发送字符’1’(有的设备是’2’),采用该方法调用了Boot1代码。
在较新的SoCs,U-Boot支持一个 “efex” 命令,可以进入到FEL模式
如果不支持efex命令,可以使用 go命令
Go 0xffff0020

7.4 通过一个特殊的SD 卡映像。
官方的sunxi-tools仓库中,有一个小的SD卡启动镜像,其功能仅仅是跳到FEL

wget https://github.com/linux-sunxi/sunxi-tools/raw/master/bin/fel-sdboot.sunxi
dd if=fel-sdboot.sunxi of=/dev/sdX bs=1024 seek=8

7.5 没有找到有效的boot image
如果BROM没有找到有效的启动镜像,会自动进入FEL模式

#44 全志 V3S/F1C100s/X3 » 尝试使用Ubuntu20.04从零构建Licheepi V3s Zero的SPI Flash系统镜像(32M) » 2020-04-23 11:34:03

ifree64
回复: 33

ubuntu20.04 快发布了,作为一个爱折腾新系统的人,自然要使用最新的系统了。
这里就发帖记录一下从头制作Licheepi V3s Zero的SPI Flash系统镜像(32M)的过程,把每个步骤的个人理解和疑惑记录下来,给我一样的新手作为参考。

(PS:ubuntu下需要的工具软件安装就不记录了,以下过程如果运行报错,可能是某个工具没有安装,直接sudo apt install xxx就可以了。)

内容目录大致包括:
1. sunxi-fel
2. uboot (2017.01)
3. Linux kernel(使用的5.2)
4. rootfs制作(使用的buildroot 2020.02)
5. 烧录镜像制作
6. 后记

#45 Re: 全志 V3S/F1C100s/X3 » V3s licheepi板子启动失败, jffs2: jffs2_scan_eraseblock():Magic bitmask 0x198 » 2020-04-23 10:21:00

OK,搞定了,谢谢!
下一步搞定5.2内核的以太网支持,默认进系统后没有网络,不知道这个版本的内核是否支持网络。

#46 Re: 全志 V3S/F1C100s/X3 » 荔枝派zero 系统 » 2020-04-23 10:18:23

我刚试过,上面2楼的固件有以太网和usb模拟的网络。但是需要进入系统后自己配置IP。

#48 全志 V3S/F1C100s/X3 » V3s licheepi板子启动失败, jffs2: jffs2_scan_eraseblock():Magic bitmask 0x198 » 2020-04-22 22:44:18

ifree64
回复: 5

打算从uboot、kernel、rootfs自己做一个32M Flash上的系统,折腾好几天了,期间遇到各种问题,现在感觉已经看到曙光了,但还是启动失败。
从启动信息来看,应该是jffs2.bin制作的参数不对。jffs2.bin的制作是仿照晕哥的命令来制作的。

mkfs.jffs2 --pad 0x1A00000 -d output/target

所用的flash芯片为32M的Nor Flash,型号为:MX25L256
启动信息为

Starting kernel ...

[    0.000000] Booting Linux on physical CPU 0x0
[    0.000000] Linux version 5.2.0-licheepi-zero+ (xlee@ubuntu) (gcc version 9.3.0 (Ubuntu 9.3.0-10ubuntu1)) #3 SMP Wed Apr 22 20:06:32 CST 2020
[    0.000000] CPU: ARMv7 Processor [410fc075] revision 5 (ARMv7), cr=10c5387d
[    0.000000] CPU: div instructions available: patching division code
[    0.000000] CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache
[    0.000000] OF: fdt: Machine model: Lichee Pi Zero
[    0.000000] Memory policy: Data cache writealloc
[    0.000000] percpu: Embedded 16 pages/cpu s34508 r8192 d22836 u65536
[    0.000000] Built 1 zonelists, mobility grouping on.  Total pages: 15883
[    0.000000] Kernel command line: console=ttyS0,115200 mtdparts=spi0.0:512k(uboot)ro,512k(dtb)ro,5120k(kernel)ro,-(rootfs) root=/dev/mtdblock3 rw rootfstype=jffs2 init=/linuxrc
[    0.000000] Dentry cache hash table entries: 8192 (order: 3, 32768 bytes, linear)
[    0.000000] Inode-cache hash table entries: 4096 (order: 2, 16384 bytes, linear)
[    0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off
[    0.000000] Memory: 53544K/64036K available (6144K kernel code, 303K rwdata, 1740K rodata, 1024K init, 253K bss, 10492K reserved, 0K cma-reserved, 0K highmem)
[    0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=1, Nodes=1
[    0.000000] rcu: Hierarchical RCU implementation.
[    0.000000] rcu: 	RCU event tracing is enabled.
[    0.000000] rcu: 	RCU restricting CPUs from NR_CPUS=8 to nr_cpu_ids=1.
[    0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 10 jiffies.
[    0.000000] rcu: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=1
[    0.000000] NR_IRQS: 16, nr_irqs: 16, preallocated irqs: 16
[    0.000000] random: get_random_bytes called from start_kernel+0x2f8/0x494 with crng_init=0
[    0.000000] arch_timer: cp15 timer(s) running at 24.00MHz (virt).
[    0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns
[    0.000007] sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns
[    0.000020] Switching to timer-based delay loop, resolution 41ns
[    0.000208] clocksource: timer: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 79635851949 ns
[    0.000444] Console: colour dummy device 80x30
[    0.000500] Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=240000)
[    0.000515] pid_max: default: 32768 minimum: 301
[    0.000677] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
[    0.000694] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
[    0.001522] CPU: Testing write buffer coherency: ok
[    0.002048] /cpus/cpu@0 missing clock-frequency property
[    0.002076] CPU0: thread -1, cpu 0, socket 0, mpidr 80000000
[    0.002901] Setting up static identity map for 0x40100000 - 0x40100060
[    0.003119] rcu: Hierarchical SRCU implementation.
[    0.003671] smp: Bringing up secondary CPUs ...
[    0.003695] smp: Brought up 1 node, 1 CPU
[    0.003705] SMP: Total of 1 processors activated (48.00 BogoMIPS).
[    0.003713] CPU: All CPU(s) started in SVC mode.
[    0.004809] devtmpfs: initialized
[    0.008207] VFP support v0.3: implementor 41 architecture 2 part 30 variant 7 rev 5
[    0.008543] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
[    0.008576] futex hash table entries: 256 (order: 2, 16384 bytes, linear)
[    0.008834] pinctrl core: initialized pinctrl subsystem
[    0.010033] NET: Registered protocol family 16
[    0.010581] DMA: preallocated 256 KiB pool for atomic coherent allocations
[    0.011881] hw-breakpoint: found 5 (+1 reserved) breakpoint and 4 watchpoint registers.
[    0.011899] hw-breakpoint: maximum watchpoint size is 8 bytes.
[    0.035669] SCSI subsystem initialized
[    0.035938] usbcore: registered new interface driver usbfs
[    0.036016] usbcore: registered new interface driver hub
[    0.036129] usbcore: registered new device driver usb
[    0.036353] mc: Linux media interface: v0.10
[    0.036395] videodev: Linux video capture interface: v2.00
[    0.036633] Advanced Linux Sound Architecture Driver Initialized.
[    0.037981] clocksource: Switched to clocksource arch_sys_counter
[    0.051124] NET: Registered protocol family 2
[    0.051944] tcp_listen_portaddr_hash hash table entries: 512 (order: 0, 6144 bytes, linear)
[    0.051986] TCP established hash table entries: 1024 (order: 0, 4096 bytes, linear)
[    0.052011] TCP bind hash table entries: 1024 (order: 1, 8192 bytes, linear)
[    0.052035] TCP: Hash tables configured (established 1024 bind 1024)
[    0.052183] UDP hash table entries: 256 (order: 1, 8192 bytes, linear)
[    0.052235] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes, linear)
[    0.052540] NET: Registered protocol family 1
[    0.054482] Initialise system trusted keyrings
[    0.054875] workingset: timestamp_bits=30 max_order=14 bucket_order=0
[    0.062077] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[    0.062295] jffs2: version 2.2. (NAND) © 2001-2006 Red Hat, Inc.
[    0.098852] Key type asymmetric registered
[    0.098877] Asymmetric key parser 'x509' registered
[    0.098980] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 250)
[    0.098993] io scheduler mq-deadline registered
[    0.099000] io scheduler kyber registered
[    0.100066] sun4i-usb-phy 1c19400.phy: Couldn't request ID GPIO
[    0.103821] sun8i-v3s-pinctrl 1c20800.pinctrl: initialized sunXi PIO driver
[    0.177283] Serial: 8250/16550 driver, 8 ports, IRQ sharing disabled
[    0.179932] sun8i-v3s-pinctrl 1c20800.pinctrl: 1c20800.pinctrl supply vcc-pb not found, using dummy regulator
[    0.181079] printk: console [ttyS0] disabled
[    0.201397] 1c28000.serial: ttyS0 at MMIO 0x1c28000 (irq = 33, base_baud = 1500000) is a U6_16550A
[    0.724959] printk: console [ttyS0] enabled
[    0.755647] sun8i-v3s-pinctrl 1c20800.pinctrl: 1c20800.pinctrl supply vcc-pc not found, using dummy regulator
[    0.767376] m25p80 spi0.0: mx25l25635e (32768 Kbytes)
[    0.772538] 4 cmdlinepart partitions found on MTD device spi0.0
[    0.778476] Creating 4 MTD partitions on "spi0.0":
[    0.783275] 0x000000000000-0x000000080000 : "uboot"
[    0.790101] 0x000000080000-0x000000100000 : "dtb"
[    0.796601] 0x000000100000-0x000000600000 : "kernel"
[    0.803489] 0x000000600000-0x000002000000 : "rootfs"
[    0.811053] libphy: Fixed MDIO Bus: probed
[    0.815288] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[    0.821907] ehci-platform: EHCI generic platform driver
[    0.827406] ehci-platform 1c1a000.usb: EHCI Host Controller
[    0.833077] ehci-platform 1c1a000.usb: new USB bus registered, assigned bus number 1
[    0.841045] ehci-platform 1c1a000.usb: irq 25, io mem 0x01c1a000
[    0.868009] ehci-platform 1c1a000.usb: USB 2.0 started, EHCI 1.00
[    0.875250] hub 1-0:1.0: USB hub found
[    0.879215] hub 1-0:1.0: 1 port detected
[    0.883841] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
[    0.890178] ohci-platform: OHCI generic platform driver
[    0.895744] ohci-platform 1c1a400.usb: Generic Platform OHCI controller
[    0.902478] ohci-platform 1c1a400.usb: new USB bus registered, assigned bus number 2
[    0.910466] ohci-platform 1c1a400.usb: irq 26, io mem 0x01c1a400
[    0.983092] hub 2-0:1.0: USB hub found
[    0.986937] hub 2-0:1.0: 1 port detected
[    0.994249] usbcore: registered new interface driver usb-storage
[    1.001881] sun6i-rtc 1c20400.rtc: registered as rtc0
[    1.006947] sun6i-rtc 1c20400.rtc: RTC enabled
[    1.011672] i2c /dev entries driver
[    1.016594] input: ns2009_ts as /devices/platform/soc/1c2ac00.i2c/i2c-0/0-0048/input/input0
[    1.026294] sunxi-wdt 1c20ca0.watchdog: Watchdog enabled (timeout=16 sec, nowayout=0)
[    1.034965] sun8i-v3s-pinctrl 1c20800.pinctrl: 1c20800.pinctrl supply vcc-pf not found, using dummy regulator
[    1.070622] sunxi-mmc 1c0f000.mmc: initialized, max. request size: 16384 KB
[    1.078185] sun8i-v3s-pinctrl 1c20800.pinctrl: 1c20800.pinctrl supply vcc-pg not found, using dummy regulator
[    1.089610] usbcore: registered new interface driver usbhid
[    1.095192] usbhid: USB HID core driver
[    1.101882] Initializing XFRM netlink socket
[    1.106198] NET: Registered protocol family 17
[    1.111332] Registering SWP/SWPB emulation handler
[    1.117215] Loading compiled-in X.509 certificates
[    1.127287] simple-framebuffer 43e89000.framebuffer: framebuffer at 0x43e89000, 0x177000 bytes, mapped to 0x(ptrval)
[    1.137984] simple-framebuffer 43e89000.framebuffer: format=x8r8g8b8, mode=800x480x32, linelength=3200
[    1.154206] Console: switching to colour frame buffer device 100x30
[    1.166345] simple-framebuffer 43e89000.framebuffer: fb0: simplefb registered!
[    1.175200] usb_phy_generic usb_phy_generic.0.auto: usb_phy_generic.0.auto supply vcc not found, using dummy regulator
[    1.186725] musb-hdrc musb-hdrc.1.auto: MUSB HDRC host driver
[    1.192577] musb-hdrc musb-hdrc.1.auto: new USB bus registered, assigned bus number 3
[    1.201686] hub 3-0:1.0: USB hub found
[    1.205564] hub 3-0:1.0: 1 port detected
[    1.211074] sun6i-rtc 1c20400.rtc: setting system clock to 1970-01-01T02:35:28 UTC (9328)
[    1.219621] vcc3v0: disabling
[    1.222604] vcc5v0: disabling
[    1.225571] ALSA device list:
[    1.228600]   No soundcards found.
[    1.236091] jffs2: Node at 0x00000c38 with length 0x00000752 would run over the end of the erase block
[    1.245538] jffs2: Perhaps the file system was created with the wrong erase size?
[    1.253191] jffs2: jffs2_scan_eraseblock(): Magic bitmask 0x1985 not found at 0x00000c3c: 0x0752 instead
[    1.262793] jffs2: jffs2_scan_eraseblock(): Magic bitmask 0x1985 not found at 0x00000c40: 0xe5db instead
[    1.272355] jffs2: jffs2_scan_eraseblock(): Magic bitmask 0x1985 not found at 0x00000c44: 0x0017 instead
[    1.281847] jffs2: jffs2_scan_eraseblock(): Magic bitmask 0x1985 not found at 0x00000c48: 0x0001 instead
[    1.291325] jffs2: jffs2_scan_eraseblock(): Magic bitmask 0x1985 not found at 0x00000c4c: 0x81ed instead
[    1.300801] jffs2: jffs2_scan_eraseblock(): Magic bitmask 0x1985 not found at 0x00000c50: 0x03e8 instead
[    1.310278] jffs2: jffs2_scan_eraseblock(): Magic bitmask 0x1985 not found at 0x00000c54: 0x4bdc instead

请教一下,是什么地方做错了?

#49 Re: 全志 V3S/F1C100s/X3 » 使用逻辑分析仪探测全志Allwinner V3s SPI FLASH启动过程 » 2020-04-17 10:15:03

晕哥,uboot-sunxi-with-spl这个文件是不是包含两部分内容,文件前面32k是spl后面是uboot?

#50 Re: 8051/STC8/AT89C51/N76E003 » 【愚人千虑】C51 编程中的常见陷阱 » 2020-04-16 19:23:07

n76e就是51啊,以前stm8s003确实很便宜,但有一段时间涨到了3元左右,一大票的003兼容国产51出来。

#51 Re: 全志 V3S/F1C100s/X3 » V3s buildroot 一键生成打包生成32M spi flash 镜像, jffs2 文件系统, 默认启动 Qt 模拟时钟demo, » 2020-04-13 12:47:08

求助晕哥,初学菜鸟陷入死循环,想要下载本帖配置文件测试学习,但按照默认设置需要发一个精华帖子才能下载,但初学菜鸟不敢发帖子,怎么发精华帖子呢。

#52 Re: 8051/STC8/AT89C51/N76E003 » 【愚人千虑】C51 编程中的常见陷阱 » 2020-04-13 12:40:19

51确实太多不方便的地方,但是架不住便宜啊,有的小项目,51单片机只要1元左右。

#53 8051/STC8/AT89C51/N76E003 » 【愚人千虑】C51 编程中的常见陷阱 » 2020-04-11 23:02:06

ifree64
回复: 6

以前没有怎么用C51写过较大的程序,这次因为一个项目的原因,用C51写程序,踩了很多坑,这里总结分享一下,愚人千虑必有一得。

## 常见的中断陷阱之一: volatile变量

如果,中断中修改了一个变量的值,这个变量会被另外的函数访问,这个变量应该声明为 volatile

## 常见的中断陷阱: 临界区

用于中断的引入,程序中产生了真正的并发。
假设有一个变量a,在中断服务isr和funA中都访问了同一个变量a,而对a的操作是非原子的(即对a的操作需要多于1条指令),那么可能发生的情况是funA对a的操作还没有完成,中断发生了,等中断返回,回到funA后,变量a的值已经被破坏了,但funA并不知道,因此将得到了一个错误结果。

对中断和普通函数共享变量的访问,应该是原子操作。如果不是原子操作,那么对变量访问期间,应该关闭中断。

显然,16或32bit 变量操作,在8位CPU中,是非原子的,对他们的操作应该关闭中断。
还有一些8位变量的操作也是非原子操作。操作flags |= 0x80在51单片机中,是非原子的。

## 常见的中断陷阱: 堆栈溢出
中断的返回地址和寄存器是保存在堆栈之中的,所以中断执行时,应该有足够的堆栈空间。

堆栈溢出通常发生在非常深的子程序调用中。

## 常见的中断陷阱: 使用不可重入的函数
特别值得说明的是,整数乘法、浮点数操作可能使用外部的支持函数来实现的。

尽可能避免在中断中调用不可重入的函数,因为这很可能产生难以发现的bug
函数funA是不可重入的,在其内部使用了固定地址的存储空间;若funA在执行过程中,被某一个中断打断,而该中断服务函数又调用了funA,那么中断将破坏原本funA的执行现场,导致错误。这种错误不一定会发生,但如果发生,将非常难于发现。

### 不可重入的函数什么时候会导致错误
C51在固定的位置分配变量的存储空间。一个函数,如果在执行中途,被中断打断,而且中断中又再次调用该函数,那么中断就可能破坏掉原来的执行现场(分配在固定空间的值)导致执行出错。

#58 Re: 全志 V3S/F1C100s/X3 » 常用cpu性能大比拼 » 2019-11-11 08:56:55

我来发一个PC机上的测试数据,配置为R7 2700的KVM虚拟机,分配了8核和8G内存。不考虑sysbench的版本的话,速度是V3s的70倍。

sysbench --test=cpu --cpu-max-prime=20000 run
WARNING: the --test option is deprecated. You can pass a script name or path on the command line without any options.
sysbench 1.0.15 (using system LuaJIT 2.0.5)

Running the test with following options:
Number of threads: 1
Initializing random number generator from current time


Prime numbers limit: 20000

Initializing worker threads...

Threads started!

CPU speed:
    events per second:   686.40

General statistics:
    total time:                          10.0002s
    total number of events:              6865

Latency (ms):
         min:                                    1.31
         avg:                                    1.45
         max:                                    1.85
         95th percentile:                        1.52
         sum:                                 9947.28

Threads fairness:
    events (avg/stddev):           6865.0000/0.00
    execution time (avg/stddev):   9.9473/0.00

#59 Re: 全志 V3S/F1C100s/X3 » H5的spi控制器驱动, 可以通过 gpio 控制 spi 片选 (转载) » 2019-11-09 11:33:43

我看了韦东山的SPI驱动视频,不知道是否视频使用的版本太老了,没有用到设备树,我在内核代码里也没有找到(不会找)V3s的SPI驱动代码。不知道现在的内核版本,想使用SPI来驱动一个外设芯片,该怎么做。
期待大神能指点一二。

#60 Re: 全志 V3S/F1C100s/X3 » 各位F1C100s有研究过怎样加密吗?? » 2019-11-01 08:59:50

达克罗德 说:

虚拟机其实就是个壳。最近找到个c4的虚拟机,超简单

是那个c in four function吗?

#62 Re: 全志 V3S/F1C100s/X3 » 打造f1c100s上最牛系统 » 2019-10-24 01:16:55

真能在32m的片内内存中跑起来吗?有多卡?楼主再吧samba装上,挂一个大容量移动硬盘跑一下?

页脚

工信部备案:粤ICP备20025096号 Powered by FluxBB

感谢为中文互联网持续输出优质内容的各位老铁们。 QQ: 516333132, 微信(wechat): whycan_cn (哇酷网/挖坑网/填坑网) service@whycan.cn
