#5 Re: 全志 SOC » 小菜鸟又有新问题了, tinyalsa如何编译成arm-linux 静态链接版本 » 2022-12-06 12:47:23
yixiuge 说：
$ aplay ymxl.wav
Playing WAVE 'ymxl.wav' : Signed 16 bit Little Endian, Rate 44100 Hz, Stereo$ ./utils/tinyplay ymxl.wav
failed to open for pcm 0,0奇怪了，ubuntu 18也是这样。
./utils/tinyplay /dev/urandom
playing '/dev/urandom': 2 ch, 48000 hz, 16 bit
./utils/tinyplay /dev/zero
playing '/dev/urandom': 2 ch, 48000 hz, 16 bit
奇怪，播放这些设备却是正常的。
#9 Re: 全志 SOC » R16的Tina编译出现下面的问题怎样解决？？？ » 2022-07-10 23:08:38
哇酷小二 说：
@yixiuge
试一试 Ubuntu 18.04 编译f1c200s tina 3.x
https://whycan.com/t_3270.html#p68835原因： 查看 tina目录下 scripts/get_source_date_epoch.sh
解决方案： 可以修改在tina目录执行 date +%s > version.date 来生成一个日期值
问题解决， 谢谢大佬！
#10 Re: 全志 SOC » R16的Tina编译出现下面的问题怎样解决？？？ » 2022-07-10 23:06:53
make[3]: Leaving directory '/opt/f1c100s/tina/tina/package/libs/sbc'
make[3]: Entering directory '/opt/f1c100s/tina/tina/package/multimedia/fdk-aac'
rm -rf /opt/f1c100s/tina/tina/out/bangu-h300/staging_dir/target/rootfs/tmp-fdk-aac
mkdir -p /opt/f1c100s/tina/tina/out/bangu-h300/staging_dir/target/rootfs/stamp /opt/f1c100s/tina/tina/out/bangu-h300/staging_dir/target/rootfs/tmp-fdk-aac
install -d -m0755 /opt/f1c100s/tina/tina/out/bangu-h300/staging_dir/target/rootfs/tmp-fdk-aac/usr/lib/
cp -fpR /opt/f1c100s/tina/tina/out/bangu-h300/compile_dir/target/fdk-aac-0.1.6/ipkg-install/usr/lib/libfdk-aac.so* /opt/f1c100s/tina/tina/out/bangu-h300/staging_dir/target/rootfs/tmp-fdk-aac/usr/lib/
SHELL= flock /opt/f1c100s/tina/tina/tmp/.root-copy.flock -c 'cp -fpR /opt/f1c100s/tina/tina/out/bangu-h300/staging_dir/target/rootfs/tmp-fdk-aac/. /opt/f1c100s/tina/tina/out/bangu-h300/staging_dir/target/rootfs/'
rm -rf /opt/f1c100s/tina/tina/out/bangu-h300/staging_dir/target/rootfs/tmp-fdk-aac
touch /opt/f1c100s/tina/tina/out/bangu-h300/staging_dir/target/rootfs/stamp/.fdk-aac_installed
if [ -f /opt/f1c100s/tina/tina/out/bangu-h300/staging_dir/target/pkginfo/fdk-aac.default.install.clean ]; then rm -f /opt/f1c100s/tina/tina/out/bangu-h300/staging_dir/target/pkginfo/fdk-aac.default.install /opt/f1c100s/tina/tina/out/bangu-h300/staging_dir/target/pkginfo/fdk-aac.default.install.clean; fi; echo "fdk-aac" >> /opt/f1c100s/tina/tina/out/bangu-h300/staging_dir/target/pkginfo/fdk-aac.default.install
make[3]: Leaving directory '/opt/f1c100s/tina/tina/package/multimedia/fdk-aac'
make[3]: Entering directory '/opt/f1c100s/tina/tina/package/libs/expat'
make[3]: Leaving directory '/opt/f1c100s/tina/tina/package/libs/expat'
make[3]: Entering directory '/opt/f1c100s/tina/tina/package/utils/bzip2'
make[3]: Leaving directory '/opt/f1c100s/tina/tina/package/utils/bzip2'
make[3]: Entering directory '/opt/f1c100s/tina/tina/package/lang/python'
make -C /opt/f1c100s/tina/tina/out/bangu-h300/compile_dir/target/host/Python-2.7.15
make[4]: Entering directory '/opt/f1c100s/tina/tina/out/bangu-h300/compile_dir/target/host/Python-2.7.15'
gcc -pthread -c -fno-strict-aliasing -O2 -I/opt/f1c100s/tina/tina/out/host/include -I/opt/f1c100s/tina/tina/out/host/usr/include -I/opt/f1c100s/tina/tina/out/bangu-h300/staging_dir/target/host/include -I/usr/include/ncursesw -I/usr/include/ncurses -DNDEBUG -g -fwrapv -O3 -Wall -Wstrict-prototypes -I. -IInclude -I./Include -I/opt/f1c100s/tina/tina/out/host/include -I/opt/f1c100s/tina/tina/out/host/usr/include -I/opt/f1c100s/tina/tina/out/bangu-h300/staging_dir/target/host/include -DPy_BUILD_CORE \
-DGITVERSION="\"`LC_ALL=C `\"" \
-DGITTAG="\"`LC_ALL=C `\"" \
-DGITBRANCH="\"`LC_ALL=C `\"" \
-o Modules/getbuildinfo.o ./Modules/getbuildinfo.c
./Modules/getbuildinfo.c: In function 'Py_GetBuildInfo':
./Modules/getbuildinfo.c:47:19: error: environment variable SOURCE_DATE_EPOCH must expand to a non-negative integer less than or equal to 253402300799
DATE, TIME);
^~~~
Makefile:661: recipe for target 'Modules/getbuildinfo.o' failed
make[4]: *** [Modules/getbuildinfo.o] Error 1
make[4]: Leaving directory '/opt/f1c100s/tina/tina/out/bangu-h300/compile_dir/target/host/Python-2.7.15'
Makefile:246: recipe for target '/opt/f1c100s/tina/tina/out/bangu-h300/compile_dir/target/host/Python-2.7.15/.built' failed
make[3]: *** [/opt/f1c100s/tina/tina/out/bangu-h300/compile_dir/target/host/Python-2.7.15/.built] Error 2
make[3]: Leaving directory '/opt/f1c100s/tina/tina/package/lang/python'
package/Makefile:192: recipe for target 'package/lang/python/host/compile' failed
make[2]: *** [package/lang/python/host/compile] Error 2
make[2]: Leaving directory '/opt/f1c100s/tina/tina'
package/Makefile:189: recipe for target '/opt/f1c100s/tina/tina/out/bangu-h300/staging_dir/target/stamp/.package_compile' failed
make[1]: *** [/opt/f1c100s/tina/tina/out/bangu-h300/staging_dir/target/stamp/.package_compile] Error 2
make[1]: Leaving directory '/opt/f1c100s/tina/tina'
/opt/f1c100s/tina/tina/build/toplevel.mk:301: recipe for target 'world' failed
make: *** [world] Error 2
#### make failed to build some targets (17 seconds) ####我也出现了
#11 Re: 全志 SOC » 试一试 Ubuntu 18.04 编译f1c200s tina 3.x » 2022-07-10 17:37:24
@无根浮萍
大家也不用费事去找了: ubuntu1804_build_tina35_patch_files.tgz
直接解压就好了。
cp out/violin-F1C200s/compile_dir/host/pkg-config-0.29/glib/glib/gdate.c out/bangu-86panelA/compile_dir/host/pkg-config-0.29/glib/glib/gdate.c
cp out/violin-F1C200s/compile_dir/host/automake-1.15/bin/automake.in out/bangu-86panelA/compile_dir/host/automake-1.15/bin/automake.in
cp ./out/violin-F1C200s/compile_dir/host/u-boot-2014.10/include/linux/compiler-gcc5.h ./out/bangu-86panelA/compile_dir/host/u-boot-2014.10/include/linux/compiler-gcc7.h借用借用
#12 Re: 全志 SOC » F1C100S几个频率的coremark分数 » 2022-07-08 17:10:08
#13 Re: 上海航芯 » Linux开发环境下试玩ACM32F403RET7开发板 » 2022-07-03 00:41:58
#14 Re: 全志 SOC » 同学们，你们用镊子碰晶振脚，系统会挂掉吗？ » 2022-07-01 21:58:36
#15 Re: 全志 SOC » 收到小智SW106开发板到手，试着玩一玩 » 2022-06-30 22:07:35
#16 Re: 全志 SOC » 收到小智SW106开发板到手，试着玩一玩 » 2022-06-28 19:02:20
#17 Re: 全志 SOC » 收到小智SW106开发板到手，试着玩一玩 » 2022-06-28 19:00:59
#18 Re: 全志 SOC » 收到小智SW106开发板到手，试着玩一玩 » 2022-06-27 22:45:17
#21 Re: 全志 SOC » 收到小智SW106开发板到手，试着玩一玩 » 2022-06-27 11:57:47
#22 Re: 全志 SOC » 收到小智SW106开发板到手，试着玩一玩 » 2022-06-27 10:40:43

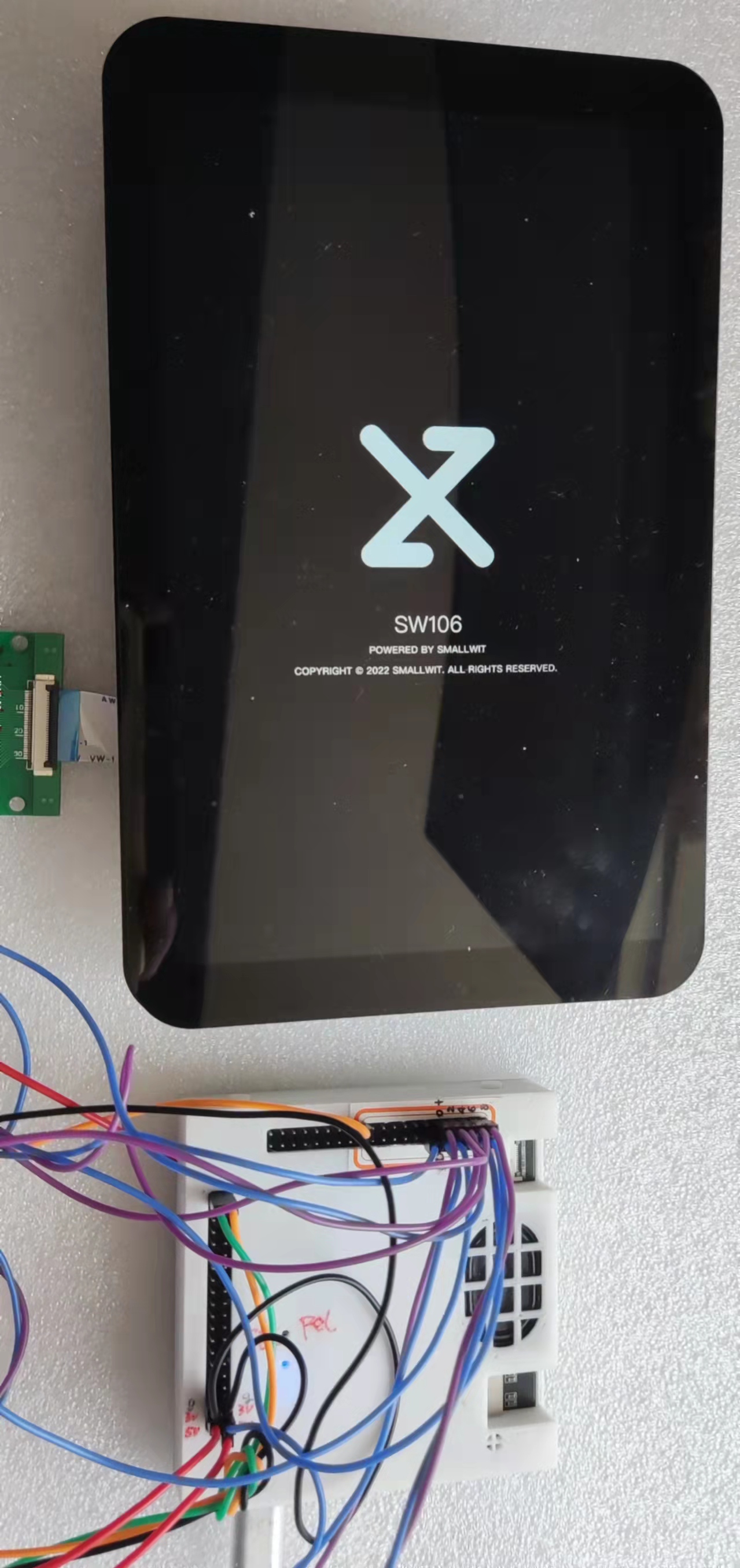

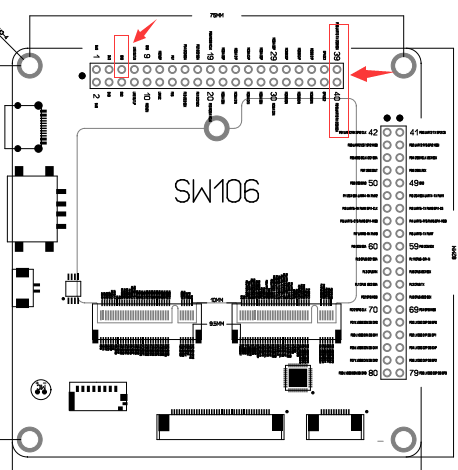

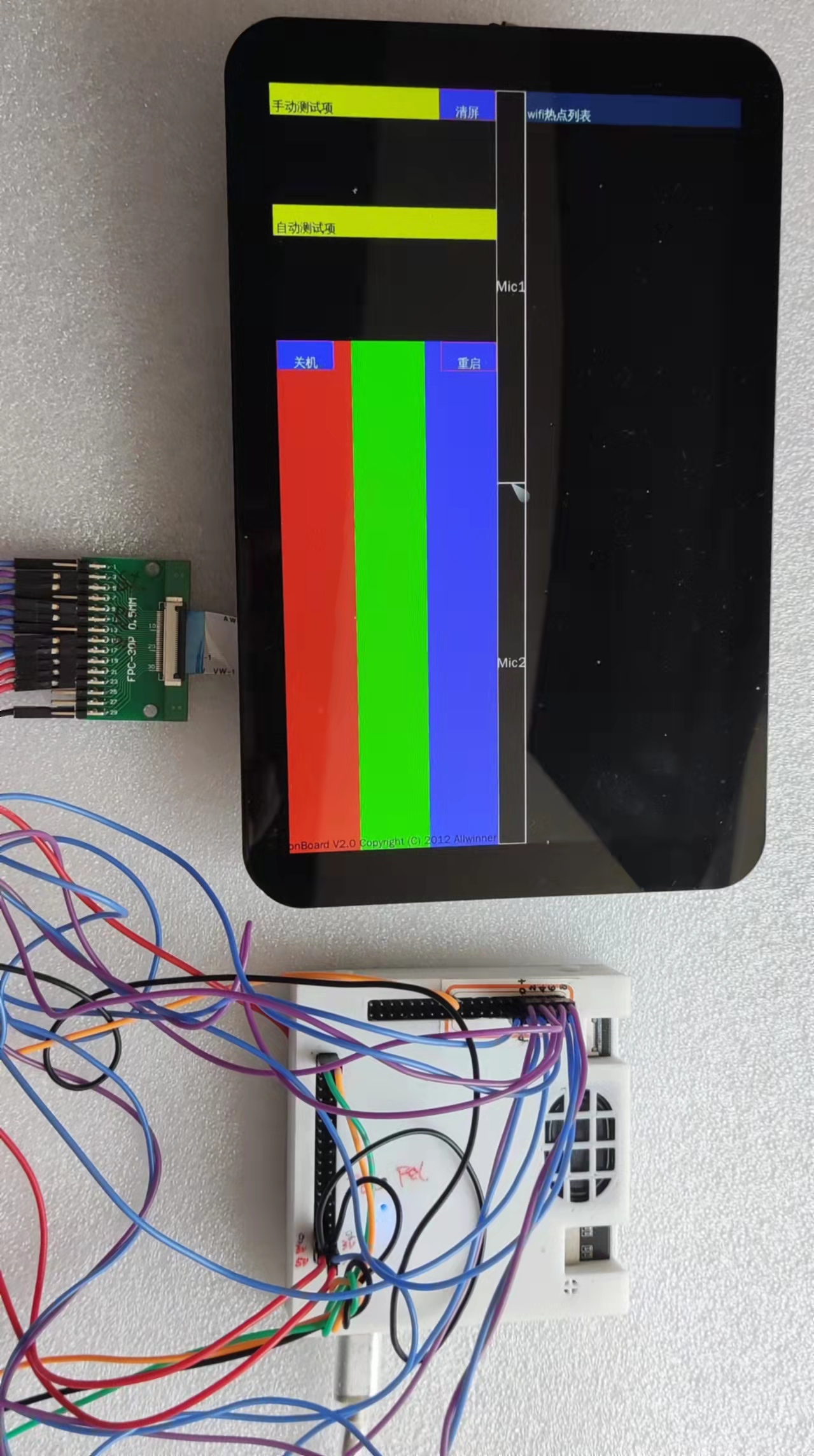

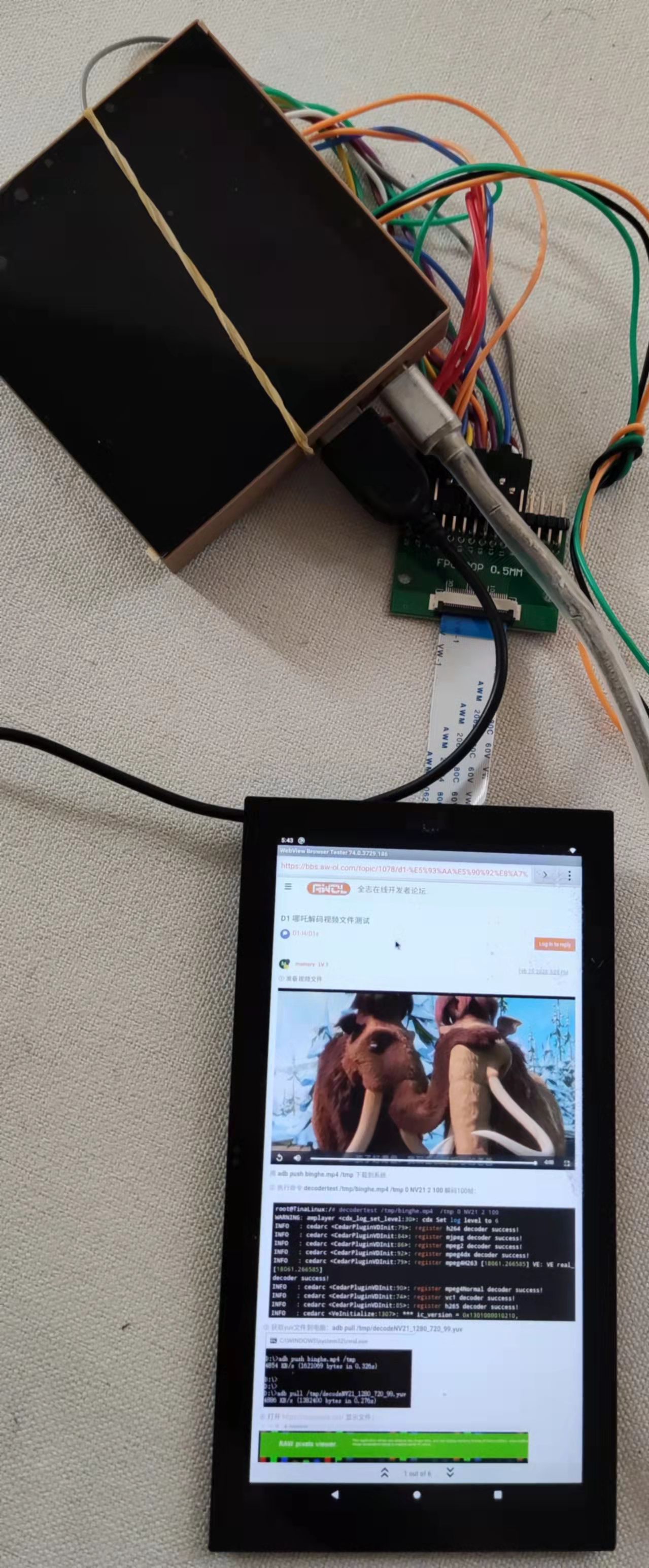

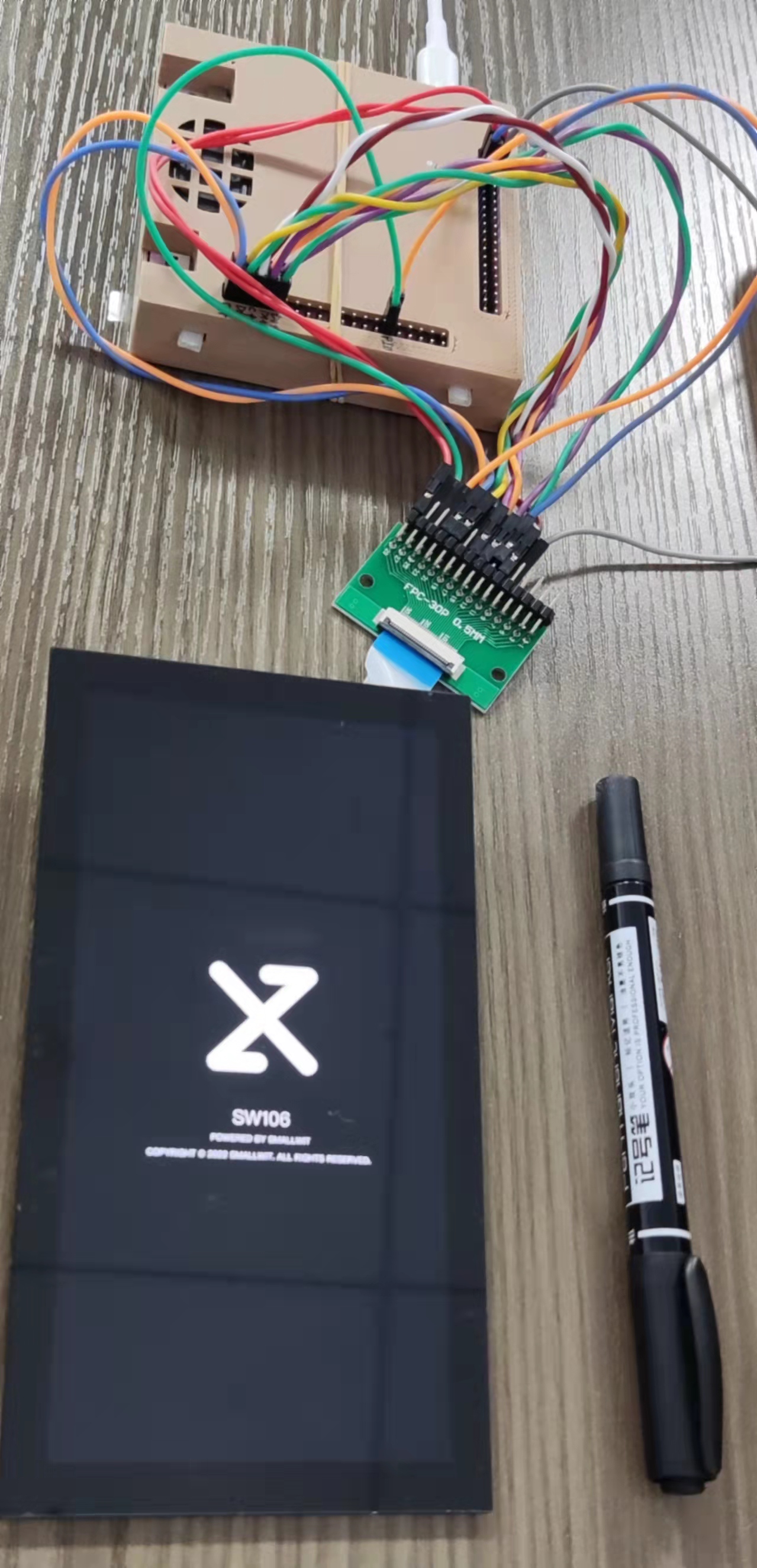

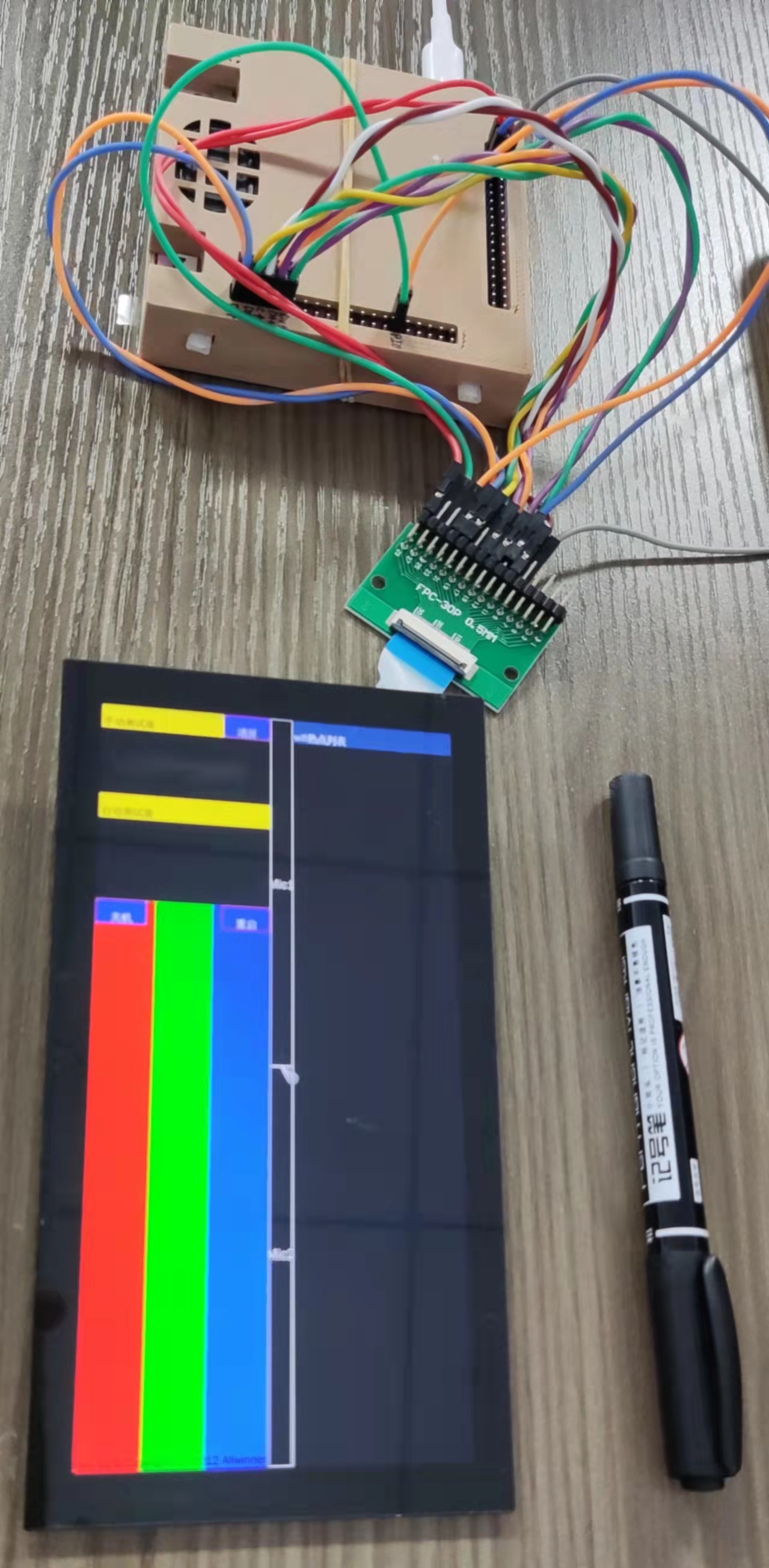

这玩意的脾气有点捉摸不定，我先记录一下吧：
/*
* Allwinner Technology CO., Ltd. sun50iw10p1 soc board.
*
* soc board support.
*/
/dts-v1/;
#include <dt-bindings/input/input.h>
#include "sun50iw10p1.dtsi"
/{
model = "sun50iw10";
compatible = "allwinner,a3", "arm,sun50iw10p1";
reg_usb1_vbus: usb1-vbus {
compatible = "regulator-fixed";
gpio = <&pio PI 12 1 2 0 1>;
regulator-name = "usb1-vbus";
regulator-min-microvolt = <5000000>;
regulator-max-microvolt = <5000000>;
enable-active-high;
};
reg_3v3: vdd_3v3 {
compatible = "regulator-fixed";
regulator-name = "vdd_3v3";
regulator-min-microvolt = <3300000>;
regulator-max-microvolt = <3300000>;
regulator-enable-ramp-delay = <1000>;
enable-active-high;
};

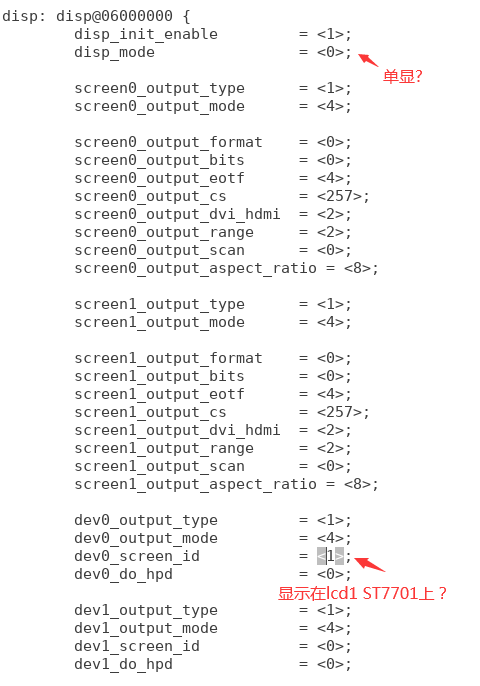

soc@03000000 {
r_pio: pinctrl@07022000 {
s_twi0_pins_a: s_twi0@0 {
allwinner,pins = "PL0", "PL1";
allwinner,pname = "s_twi0_scl", "s_twi0_sda";
allwinner,function = "s_twi0";
allwinner,muxsel = <2>;
allwinner,drive = <1>;
allwinner,pull = <1>;
};
s_twi0_pins_b: s_twi0@1 {
allwinner,pins = "PL0", "PL1";
allwinner,function = "io_disabled";
allwinner,muxsel = <7>;
allwinner,drive = <1>;
allwinner,pull = <0>;
};
s_twi1_pins_a: s_twi1@0 {
allwinner,pins = "PL8", "PL9";
allwinner,pname = "s_twi1_scl", "s_twi1_sda";
allwinner,function = "s_twi1";
allwinner,muxsel = <2>;
allwinner,drive = <1>;
allwinner,pull = <1>;
};
s_twi1_pins_b: s_twi1@1 {
allwinner,pins = "PL8", "PL9";
allwinner,function = "io_disabled";
allwinner,muxsel = <7>;
allwinner,drive = <1>;
allwinner,pull = <0>;
};
};
pio: pinctrl@0300b000 {
twi0_pins_a: twi0@0 {
allwinner,pins = "PD22", "PD23";
allwinner,pname = "twi0_scl", "twi0_sda";
allwinner,function = "twi0";
allwinner,muxsel = <4>;
allwinner,drive = <1>;
allwinner,pull = <0>;
};
twi0_pins_b: twi0@1 {
allwinner,pins = "PD22", "PD23";
allwinner,function = "io_disabled";
allwinner,muxsel = <7>;
allwinner,drive = <1>;
allwinner,pull = <0>;
};
twi1_pins_a: twi1@0 {
allwinner,pins = "PB4", "PB5";
allwinner,pname = "twi1_scl", "twi1_sda";
allwinner,function = "twi1";
allwinner,muxsel = <2>;
allwinner,drive = <1>;
allwinner,pull = <0>;
};
twi1_pins_b: twi1@1 {
allwinner,pins = "PB4", "PB5";
allwinner,function = "io_disabled";
allwinner,muxsel = <7>;
allwinner,drive = <1>;
allwinner,pull = <0>;
};
twi2_pins_a: twi2@0 {
allwinner,pins = "PE1", "PE2";
allwinner,pname = "twi2_scl", "twi2_sda";
allwinner,function = "twi2";
allwinner,muxsel = <2>;
allwinner,drive = <1>;
allwinner,pull = <0>;
};
twi2_pins_b: twi2@1 {
allwinner,pins = "PE1", "PE2";
allwinner,function = "io_disabled";
allwinner,muxsel = <7>;
allwinner,drive = <1>;
allwinner,pull = <0>;
};
twi3_pins_a: twi3@0 {
allwinner,pins = "PE3", "PE4";
allwinner,pname = "twi3_scl", "twi3_sda";
allwinner,function = "twi3";
allwinner,muxsel = <2>;
allwinner,drive = <1>;
allwinner,pull = <1>;
};
twi3_pins_b: twi3@1 {
allwinner,pins = "PE3", "PE4";
allwinner,function = "io_disabled";
allwinner,muxsel = <7>;
allwinner,drive = <1>;
allwinner,pull = <0>;
};
twi5_pins_a: twi5@0 {
allwinner,pins = "PI8", "PI9";
allwinner,pname = "twi5_scl", "twi5_sda";
allwinner,function = "twi5";
allwinner,muxsel = <2>;
allwinner,drive = <1>;
allwinner,pull = <0>;
};
twi5_pins_b: twi5@1 {
allwinner,pins = "PI8", "PI9";
allwinner,function = "io_disabled";
allwinner,muxsel = <7>;
allwinner,drive = <1>;
allwinner,pull = <0>;
};
pwm0_pin_a: pwm0@0 {
allwinner,pins = "PD23";
allwinner,function = "pwm0";
allwinner,muxsel = <0x02>;
allwinner,drive = <0x2>;
allwinner,pull = <0>;
allwinner,data = <0xffffffff>;
};
pwm0_pin_b: pwm0@1 {
allwinner,pins = "PD23";
allwinner,function = "io_disabled";
allwinner,muxsel = <0x07>;
allwinner,drive = <0x2>;
allwinner,pull = <0>;
allwinner,data = <0xffffffff>;
};
pwm1_pin_a: pwm1@0 {
allwinner,pins = "PI0";
allwinner,function = "pwm1";
allwinner,muxsel = <0x04>;
allwinner,drive = <0x2>;
allwinner,pull = <0>;
allwinner,data = <0xffffffff>;
};
pwm1_pin_b: pwm1@1 {
allwinner,pins = "PI0";
allwinner,function = "io_disabled";
allwinner,muxsel = <0x07>;
allwinner,drive = <0x2>;
allwinner,pull = <0>;
allwinner,data = <0xffffffff>;
};
pwm2_pin_a: pwm2@0 {
allwinner,pins = "PI1";
allwinner,function = "pwm2";
allwinner,muxsel = <0x04>;
allwinner,drive = <0x2>;
allwinner,pull = <0>;
allwinner,data = <0xffffffff>;
};
pwm2_pin_b: pwm2@1 {
allwinner,pins = "PI1";
allwinner,function = "io_disabled";
allwinner,muxsel = <0x07>;
allwinner,drive = <0x2>;
allwinner,pull = <0>;
allwinner,data = <0xffffffff>;
};
pwm3_pin_a: pwm3@0 {
allwinner,pins = "PD21";
allwinner,function = "pwm3";
allwinner,muxsel = <0x02>;
allwinner,drive = <0x2>;
allwinner,pull = <0>;
allwinner,data = <0xffffffff>;
};
pwm3_pin_b: pwm3@1 {
allwinner,pins = "PD21";
allwinner,function = "io_disabled";
allwinner,muxsel = <0x07>;
allwinner,drive = <0x2>;
allwinner,pull = <0>;
allwinner,data = <0xffffffff>;
};
pwm7_pin_a: pwm7@0 {
allwinner,pins = "PI6";
allwinner,function = "pwm7";
allwinner,muxsel = <0x04>;
allwinner,drive = <0x2>;
allwinner,pull = <0>;
allwinner,data = <0xffffffff>;
};
pwm7_pin_b: pwm7@1 {
allwinner,pins = "PI6";
allwinner,function = "io_disabled";
allwinner,muxsel = <0x07>;
allwinner,drive = <0x2>;
allwinner,pull = <0>;
allwinner,data = <0xffffffff>;
};
pwm8_pin_a: pwm8@0 {
allwinner,pins = "PI7";
allwinner,function = "pwm8";
allwinner,muxsel = <0x04>;
allwinner,drive = <0x2>;
allwinner,pull = <0>;
allwinner,data = <0xffffffff>;
};
pwm8_pin_b: pwm8@1 {
allwinner,pins = "PI7";
allwinner,function = "io_disabled";
allwinner,muxsel = <0x07>;
allwinner,drive = <0x2>;
allwinner,pull = <0>;
allwinner,data = <0xffffffff>;
};
ledc_pins_a: ledc@0 {
allwinner,pins = "PH19";
allwinner,function = "ledc";
allwinner,muxsel = <5>;
};
ledc_pins_b: ledc@1 {
allwinner,pins = "PH19";
allwinner,function = "io_disabled";
allwinner,muxsel = <7>;
};
key_pj1: key_pj1@0 {
allwinner,pins = "PJ1";
allwinner,function = "gpio_in";
allwinner,muxsel = <0x00>;
allwinner,drive = <0x2>;
allwinner,pull = <1>;
allwinner,data = <0x1>;
};
usb1_vbus_pin_a: usb1_vbus_pin@0 {
allwinner,pins = "PH10";
allwinner,function = "gpio_out";
allwinner,muxsel = <0x01>;
allwinner,drive = <0x2>;
allwinner,pull = <0>;
allwinner,data = <0x0>;
};
spi0_pins_a: spi0@0 {
allwinner,pins = "PC2", "PC4", "PC12", "PC15", "PC16";
allwinner,pname = "spi0_mosi", "spi0_miso",
"spi0_sclk", "spi0_wp", "spi0_hold";
allwinner,function = "spi0";
allwinner,muxsel = <4>;
allwinner,drive = <1>;
allwinner,pull = <0>;
};
spi0_pins_b: spi0@1 {
allwinner,pins = "PC3", "PC7";
allwinner,pname = "spi0_cs0", "spi0_cs1";
allwinner,function = "spi0";
allwinner,muxsel = <4>;
allwinner,drive = <1>;
allwinner,pull = <1>; /* only CS should be pulled up */
};
spi0_pins_c: spi0@2 {
allwinner,pins = "PC2", "PC3", "PC4", "PC7", "PC12", "PC15", "PC16";
allwinner,function = "io_disabled";
allwinner,muxsel = <7>;
allwinner,drive = <1>;
allwinner,pull = <0>;
};
spi1_pins_a: spi1@0 {
allwinner,pins = "PD11", "PD12", "PD13";
allwinner,pname = "spi1_sclk", "spi1_mosi",
"spi1_miso";
allwinner,function = "spi1";
allwinner,muxsel = <4>;
allwinner,drive = <1>;
allwinner,pull = <0>;
};
spi1_pins_b: spi1@1 {
allwinner,pins = "PD10";
allwinner,pname = "spi1_cs0";
allwinner,function = "spi1";
allwinner,muxsel = <4>;
allwinner,drive = <1>;
allwinner,pull = <1>; /* only CS should be pulled up */
};
spi1_pins_c: spi1@2 {
allwinner,pins = "PD10", "PD11", "PD12", "PD13";
allwinner,function = "io_disabled";
allwinner,muxsel = <7>;
allwinner,drive = <1>;
allwinner,pull = <0>;
};
spi2_pins_a: spi2@0 {
allwinner,pins = "PB1", "PB2", "PB3";
allwinner,pname = "spi2_sclk", "spi2_mosi",
"spi2_miso";
allwinner,function = "spi2";
allwinner,muxsel = <3>;
allwinner,drive = <1>;
allwinner,pull = <0>;
};
spi2_pins_b: spi2@1 {
allwinner,pins = "PB0";
allwinner,pname = "spi2_cs0";
allwinner,function = "spi2";
allwinner,muxsel = <3>;
allwinner,drive = <1>;
allwinner,pull = <1>; /* only CS should be pulled up */
};
spi2_pins_c: spi2@2 {
allwinner,pins = "PB0", "PB1", "PB2", "PB3";
allwinner,function = "io_disabled";
allwinner,muxsel = <7>;
allwinner,drive = <1>;
allwinner,pull = <0>;
};
};
rotary {
compatible = "rotary-encoder";
pinctrl-names = "default";
/*pinctrl-0 = <&rotary_pins>;*/
gpios = <&pio PJ 0 6 1 3 0xffffffff>, <&pio PJ 1 6 1 3 0xffffffff>; /* PJ0, PJ1 */
linux,axis = <0>; /* REL_X */
rotary-encoder,encoding = "gray";
rotary-encoder,relative-axis;
};
gpio_keys_polled {
compatible = "gpio-keys-polled";
pinctrl-names = "default";
pinctrl-0 = <&key_pj1>;
#address-cells = <1>;
#size-cells = <0>;
poll-interval = <100>;
button@0 {
label = "mute";
linux,code = <KEY_MUTE>;
gpios = <&pio PJ 0 6 1 1 1>; //PJ0
};
button@1 {
label = "power";
linux,code = <KEY_POWER>;
gpios = <&pio PJ 1 0 1 1 1>;
};
};
gpio_keys {
device_type = "gpiokey";
compatible = "gpio-keys";
// pinctrl-names = "default";
// pinctrl-0 = <&key_pj1>;
// #address-cells = <1>;
// #size-cells = <0>;
// autorepeat;
status = "disabled";
power_key {
label = "volume down";
linux,code = <KEY_VOLUMEDOWN>;
// gpios = <&pio PJ 0 6 1 1 1>;
// gpios = <&pio PJ 0 6 GPIO_ACTIVE_LOW>;
gpios = <&pio PJ 1 0 1 0 1>;
// debounce-interval = <100>;
// wakeup-source;
wakeup-source = <0x1>;
};
volume_down_key {
label = "volume up";
linux,code = <KEY_VOLUMEUP>;
// gpios = <&pio PJ 1 6 1 1 1>;
// gpios = <&pio PJ 1 GPIO_ACTIVE_LOW>;
gpios = <&pio PJ 0 0 1 0 1>;
//debounce-interval = <100>;
wakeup-source = <0x1>;
};
};
gmac0: eth@05020000 {
phy-mode = "rgmii";
use_ephy25m = <1>;
tx-delay = <7>;
rx-delay = <4>;
phy-rst = <&pio PH 19 1 1 1 0>;
status = "okay";
};
gmac1: eth@05030000 {
phy-mode = "rgmii";
use_ephy25m = <1>;
tx-delay = <7>;
rx-delay = <4>;
gmac-mtu = <900>;
phy-rst = <&pio PI 14 1 1 1 0>;
/*
gmac-power0-supply = <>;
gmac-power0-vol = <3300000>;
*/
status = "disabled";
};
twi0: twi@0x05002000{
clock-frequency = <400000>;
pinctrl-0 = <&twi0_pins_a>;
pinctrl-1 = <&twi0_pins_b>;
status = "disabled";
/* audio: add ac108 capture */
/*
ac108@3B {
compatible = "Allwinner,MicArray_0";
device_type = "MicArray_0";
reg = <0x3B>;
regulator_used = <0x0>;
power_gpio_used = <0x0>;
reset_gpio_used = <0x0>;
twi_bus = <0x1>;
pga_gain = <0x1F>;
slot_width = <0x20>;
lrck_period = <0x80>;
ref_pga_used = <0x1>;
ref_pga_gain = <0x10>;
ref_channel = <0x3>;
debug_mode = <0x0>;
};
*/
/*ctp {
compatible = "allwinner,goodix";
reg = <0x5d>;
device_type = "ctp";
status = "disabled";
ctp_twi_id = <0x0>;
ctp_twi_addr = <0x5d>;
ctp_screen_max_x = <0x500>;
ctp_screen_max_y = <0x320>;
ctp_revert_x_flag = <0x0>;
ctp_revert_y_flag = <0x0>;
ctp_exchange_x_y_flag = <0x0>;
ctp_int_port = <&pio PB 7 6 0xffffffff 0xffffffff 0>;
ctp_wakeup = <&pio PB 8 1 0xffffffff 0xffffffff 1>;
ctp-supply = <>;
ctp_power_ldo_vol = <3300>;
};*/
};
twi1: twi@0x05002400{
clock-frequency = <200000>;
pinctrl-0 = <&twi1_pins_a>;
pinctrl-1 = <&twi1_pins_b>;
status = "disabled";
/*
ctp {
compatible = "allwinner,goodix";
ctp_name = "gt9xxnew_ts";
reg = <0x5d>;
device_type = "ctp";
status = "okay";
ctp_twi_id = <0x1>;
ctp_twi_addr = <0x5d>;
ctp_screen_max_x = <0x500>;
ctp_screen_max_y = <0x320>;
ctp_revert_x_flag = <0x0>;
ctp_revert_y_flag = <0x0>;
ctp_exchange_x_y_flag = <0x0>;
ctp_int_port = <&pio PI 0 6 0xffffffff 0xffffffff 0>;
ctp_wakeup = <&pio PI 1 1 0xffffffff 0xffffffff 1>;
ctp-supply = <>;
ctp_power_ldo_vol = <3300>;
};
*/
};
twi2: twi@0x05002800{
clock-frequency = <200000>;
pinctrl-0 = <&twi2_pins_a>;
pinctrl-1 = <&twi2_pins_b>;
status = "disabled";
};
twi3: twi@0x05002c00{
clock-frequency = <200000>;
pinctrl-0 = <&twi3_pins_a>;
pinctrl-1 = <&twi3_pins_b>;
status = "disabled";
};
twi5: twi@0x05003400{
clock-frequency = <400000>;
pinctrl-0 = <&twi5_pins_a>;
pinctrl-1 = <&twi5_pins_b>;
pinctrl-names = "default", "sleep";
status = "okay";
/*
ft6x06@48 {
compatible = "focaltech,ft6236";
reg = <0x48>;
interrupt-parent = <&pio>;
interrupts = <PJ 8 IRQ_TYPE_LEVEL_LOW>;
reset-gpios = <&pio PJ 9 1 0xffffffff 0xffffffff 1>;
touchscreen-size-x = <720>;
touchscreen-size-y = <720>;
// touchscreen-inverted-x;
// touchscreen-swapped-x-y;
status = "disabled";
};
*/
ctp {
compatible = "allwinner,goodix";
ctp_name = "gt9xxnew_ts";
reg = <0x14>;
device_type = "ctp";
status = "okay";
ctp_twi_id = <0x1>;
ctp_twi_addr = <0x14>;
ctp_screen_max_x = <480>;
ctp_screen_max_y = <480>;
ctp_revert_x_flag = <0x0>;
ctp_revert_y_flag = <0x0>;
ctp_exchange_x_y_flag = <0x0>;
ctp_int_port = <&pio PJ 8 6 0xffffffff 0xffffffff 0>;
ctp_wakeup = <&pio PJ 9 1 0xffffffff 0xffffffff 1>;
ctp-supply = <>;
ctp_power_ldo_vol = <3300>;
};
};
twi6: s_twi@0x07081400{
clock-frequency = <200000>;
pinctrl-0 = <&s_twi0_pins_a>;
pinctrl-1 = <&s_twi0_pins_b>;
twi_drv_used = <1>;
status = "disabled";
no_suspend = <1>;
};
standby_param: standby_param {
vdd-cpu = <0x00000006>;
vdd-sys = <0x00000008>;
vcc-pll = <0x00000100>;
osc24m-on = <0x0>;
};
twi7: s_twi@0x07081800{
clock-frequency = <200000>;
pinctrl-0 = <&s_twi1_pins_a>;
pinctrl-1 = <&s_twi1_pins_b>;
status = "disabled";
};
spi0: spi@05010000 {
pinctrl-0 = <&spi0_pins_a &spi0_pins_b>;
pinctrl-1 = <&spi0_pins_c>;
spi_slave_mode = <0>;
status = "disabled";
spi_board0 {
device_type = "spi_board0";
compatible = "rohm,dh2228fv";
spi-max-frequency = <0x5f5e100>;
reg = <0x0>;
spi-rx-bus-width = <0x1>;
spi-tx-bus-width = <0x1>;
status = "disabled";
};
};
spi1: spi@05011000 {
pinctrl-0 = <&spi1_pins_a &spi1_pins_b>;
pinctrl-1 = <&spi1_pins_c>;
spi_slave_mode = <0>;
status = "disabled";
spi_board1 {
device_type = "spi_board1";
compatible = "rohm,dh2228fv";
spi-max-frequency = <0x5f5e100>;
reg = <0x0>;
spi-rx-bus-width = <0x1>;
spi-tx-bus-width = <0x1>;
status = "disabled";
};
};
spi2: spi@05012000 {
pinctrl-0 = <&spi2_pins_a &spi2_pins_b>;
pinctrl-1 = <&spi2_pins_c>;
spi_slave_mode = <0>;
status = "disabled";
spi_board1 {
device_type = "spi_board2";
compatible = "rohm,dh2228fv";
spi-max-frequency = <0x5f5e100>;
reg = <0x0>;
spi-rx-bus-width = <0x1>;
spi-tx-bus-width = <0x1>;
status = "disabled";
};
};
pwm0: pwm0@0300a000 {
pinctrl-names = "active", "sleep";
pinctrl-0 = <&pwm0_pin_a>;
pinctrl-1 = <&pwm0_pin_b>;
};
pwm1: pwm1@0300a000 {
pinctrl-names = "active", "sleep";
pinctrl-0 = <&pwm1_pin_a>;
pinctrl-1 = <&pwm1_pin_b>;
};
pwm2: pwm2@0300a000 {
pinctrl-names = "active", "sleep";
pinctrl-0 = <&pwm2_pin_a>;
pinctrl-1 = <&pwm2_pin_b>;
};
pwm7: pwm7@0300a000 {
pinctrl-names = "active", "sleep";
pinctrl-0 = <&pwm7_pin_a>;
pinctrl-1 = <&pwm7_pin_b>;
};
pwm8: pwm8@0300a000 {
pinctrl-names = "active", "sleep";
pinctrl-0 = <&pwm8_pin_a>;
pinctrl-1 = <&pwm8_pin_b>;
};
ledc: ledc@0x05018000 {
pinctrl-0 = <&ledc_pins_a>;
pinctrl-1 = <&ledc_pins_b>;
status = "disabled";
};
gpadc:gpadc{
channel_num = <1>;
channel_select = <0x01>;
channel_data_select = <0>;
channel_compare_select = <0x01>;
channel_cld_select = <0x01>;
channel_chd_select = <0>;
channel0_compare_lowdata = <1700000>;
channel0_compare_higdata = <1200000>;
key_cnt = <5>;
key0_vol = <115>;
key0_val = <115>;
key1_vol = <240>;
key1_val = <114>;
key2_vol = <360>;
key2_val = <139>;
key3_vol = <480>;
key3_val = <28>;
key4_vol = <600>;
key4_val = <102>;
status = "okay";
};
sdc2: sdmmc@04022000 {
non-removable;
bus-width = <8>;
mmc-ddr-1_8v;
mmc-hs200-1_8v;
mmc-hs400-1_8v;
no-sdio;
no-sd;
cap-mmc-highspeed;
sunxi-power-save-mode;
sunxi-dis-signal-vol-sw;
max-frequency = <100000000>;
vmmc-supply = <>;
vqmmc-supply = <>;
status = "okay";
};
sdc0: sdmmc@04020000 {
bus-width = <4>;
cd-gpios = <&pio PF 6 6 1 3 0xffffffff>;
/*non-removable;*/
/*broken-cd;*/
/*cd-inverted*/
/*data3-detect;*/
/*card-pwr-gpios = <&pio PH 14 1 1 2 0xffffffff>;*/
cd-used-24M;
cap-sd-highspeed;
sd-uhs-sdr50;
sd-uhs-ddr50;
sd-uhs-sdr104;
no-sdio;
no-mmc;
sunxi-power-save-mode;
/*sunxi-dis-signal-vol-sw;*/
max-frequency = <150000000>;
ctl-spec-caps = <0x8>;
vmmc-supply = <>;
vqmmc33sw-supply = <>;
vdmmc33sw-supply = <>;
vqmmc18sw-supply = <>;
vdmmc18sw-supply = <>;
status = "okay";
};
sdc1: sdmmc@04021000 {
bus-width = <4>;
no-mmc;
no-sd;
cap-sd-highspeed;
/*sd-uhs-sdr12*/
/*sd-uhs-sdr25*/
/*sd-uhs-sdr50;*/
/*sd-uhs-ddr50;*/
/*sd-uhs-sdr104*/
/*sunxi-power-save-mode;*/
/*sunxi-dis-signal-vol-sw;*/
cap-sdio-irq;
keep-power-in-suspend;
ignore-pm-notify;
max-frequency = <50000000>;
ctl-spec-caps = <0x8>;
status = "okay";
};
/*
*usb_used: usb controller enable. 0-disable, 1-enable.
*usb_port_type: usb mode. 0-device, 1-host, 2-otg.
*usb_detect_type: usb hotplug detect mode. 0-none, 1-vbus/id detect, 2-id/dpdm detect.
*usb_drv_vbus_gpio：USB DRY_VBUS pin config or "axp_ctrl"
*/
usbc0:usbc0@0 {
device_type = "usbc0";
usb_port_type = <0x2>;
usb_detect_type = <0x1>;
usb_id_gpio = <&pio PH 11 0 0 0xffffffff 0xffffffff>;
usb_det_vbus_gpio = <&pio PH 12 0 0 0xffffffff 0xffffffff>;
usb_regulator_io = "nocare";
usb_wakeup_suspend = <0>;
usb_luns = <3>;
usb_serial_unique = <0>;
usb_serial_number = "20080411";
rndis_wceis = <1>;
status = "okay";
};
ehci0:ehci0-controller@0x05101000 {
drvvbus-supply = <®_usb1_vbus>;
};
ohci0:ohci0-controller@0x05101400 {
drvvbus-supply = <®_usb1_vbus>;
};
usbc1:usbc1@0 {
device_type = "usbc1";
usb_regulator_io = "nocare";
usb_wakeup_suspend = <1>;
wakeup-source;
status = "okay";
};
/* Audio Driver Modules */
codec:codec@0x05096000 {
/* MIC and headphone gain setting */
mic1gain = <0x1F>;
mic2gain = <0x1F>;
/* ADC/DAC DRC/HPF func enabled */
/* 0x1:DAP_HP_EN; 0x2:DAP_SPK_EN; 0x3:DAP_HPSPK_EN */
adcdrc_cfg = <0x0>;
adchpf_cfg = <0x0>;
dacdrc_cfg = <0x0>;
dachpf_cfg = <0x0>;
/* Volume about */
digital_vol = <0x00>;
lineout_vol = <0x1a>;
headphonegain = <0x00>;
/* Pa enabled about */
pa_level = <0x01>;
pa_msleep_time = <0x78>;
/* gpio-spk = <&pio PH 19 1 1 1 1>;*/
/* regulator about */
avcc-supply = <>;
status = "okay";
};
sndcodec:sound@0 {
noheadphonemic = <0x01>;
status = "okay";
};
spdif:spdif-controller@0x05094000{
status = "disabled";
};
sndspdif:sound@1{
status = "disabled";
};
dmic:dmic-controller@0x05095000{
status = "disabled";
};
snddmic:sound@2{
status = "disabled";
};
daudio0:daudio@0x05090000 {
mclk_div = <0x01>;
frametype = <0x00>;
tdm_config = <0x01>;
sign_extend = <0x00>;
tx_data_mode = <0x00>;
rx_data_mode = <0x00>;
msb_lsb_first = <0x00>;
pcm_lrck_period = <0x80>;
audio_format = <0x01>;
daudio_master = <0x04>;
signal_inversion = <0x01>;
slot_width_select = <0x20>;
status = "disabled";
};
snddaudio0:sound@3 {
/*
sunxi,snddaudio-codec = "ac108.0-003b";
sunxi,snddaudio-codec-dai = "ac108-pcm0";
*/
status = "disabled";
};
daudio1:daudio@0x05091000 {
mclk_div = <0x01>;
frametype = <0x00>;
tdm_config = <0x01>;
sign_extend = <0x00>;
tx_data_mode = <0x00>;
rx_data_mode = <0x00>;
msb_lsb_first = <0x00>;
pcm_lrck_period = <0x20>;
audio_format = <0x01>;
daudio_master = <0x04>;
signal_inversion = <0x01>;
slot_width_select = <0x20>;
status = "disabled";
};
snddaudio1:sound@4 {
status = "disabled";
};
daudio2:daudio@0x05092000 {
mclk_div = <0x01>;
frametype = <0x00>;
tdm_config = <0x01>;
sign_extend = <0x00>;
tx_data_mode = <0x00>;
rx_data_mode = <0x00>;
msb_lsb_first = <0x00>;
pcm_lrck_period = <0x20>;
audio_format = <0x01>;
daudio_master = <0x04>;
signal_inversion = <0x01>;
slot_width_select = <0x20>;
status = "disabled";
};
snddaudio2:sound@5 {
status = "disabled";
};
daudio3:daudio@0x05093000 {
mclk_div = <0x01>;
frametype = <0x00>;
tdm_config = <0x01>;
sign_extend = <0x00>;
tx_data_mode = <0x00>;
rx_data_mode = <0x00>;
msb_lsb_first = <0x00>;
pcm_lrck_period = <0x20>;
audio_format = <0x01>;
daudio_master = <0x04>;
signal_inversion = <0x01>;
slot_width_select = <0x20>;
status = "disabled";
};
snddaudio3:sound@6 {
status = "disabled";
};
vind0:vind@0 {
vind0_clk = <336000000>;
vind0_isp = <300000000>;
status = "okay";
actuator0:actuator@0 {
device_type = "actuator0";
actuator0_name = "ad5820_act";
actuator0_slave = <0x18>;
actuator0_af_pwdn = <>;
actuator0_afvdd = "afvcc-csi";
actuator0_afvdd_vol = <2800000>;
status = "disabled";
};
flash0:flash@0 {
device_type = "flash0";
flash0_type = <2>;
flash0_en = <>;
flash0_mode = <>;
flash0_flvdd = "";
flash0_flvdd_vol = <>;
device_id = <0>;
status = "disabled";
};
sensor0:sensor@0 {
device_type = "sensor0";
sensor0_mname = "imx278_mipi";
sensor0_twi_cci_id = <2>;
sensor0_twi_addr = <0x20>;
sensor0_mclk_id = <0>;
sensor0_pos = "rear";
sensor0_isp_used = <1>;
sensor0_fmt = <1>;
sensor0_stby_mode = <0>;
sensor0_vflip = <0>;
sensor0_hflip = <0>;
sensor0_iovdd-supply = <>;
sensor0_iovdd_vol = <1800000>;
sensor0_avdd-supply = <>;
sensor0_avdd_vol = <2800000>;
sensor0_dvdd-supply = <>;
sensor0_dvdd_vol = <1200000>;
sensor0_power_en = <>;
sensor0_reset = <&pio PE 7 1 0 1 0>;
sensor0_pwdn = <&pio PE 6 1 0 1 0>;
status = "disabled";
};
sensor1:sensor@1 {
device_type = "sensor1";
sensor1_mname = "imx386_mipi";
sensor1_twi_cci_id = <3>;
sensor1_twi_addr = <0x20>;
sensor1_mclk_id = <1>;
sensor1_pos = "front";
sensor1_isp_used = <1>;
sensor1_fmt = <1>;
sensor1_stby_mode = <0>;
sensor1_vflip = <0>;
sensor1_hflip = <0>;
sensor1_iovdd-supply = <>;
sensor1_iovdd_vol = <1800000>;
sensor1_avdd-supply = <>;
sensor1_avdd_vol = <2800000>;
sensor1_dvdd-supply = <>;
sensor1_dvdd_vol = <>;
sensor1_power_en = <>;
sensor1_reset = <&pio PE 9 1 0 1 0>;
sensor1_pwdn = <&pio PE 8 1 0 1 0>;
status = "disabled";
};
vinc0:vinc@0 {
vinc0_csi_sel = <0>;
vinc0_mipi_sel = <0>;
vinc0_isp_sel = <0>;
vinc0_isp_tx_ch = <0>;
vinc0_tdm_rx_sel = <0>;
vinc0_rear_sensor_sel = <0>;
vinc0_front_sensor_sel = <1>;
vinc0_sensor_list = <0>;
status = "disabled";
};
vinc1:vinc@1 {
vinc1_csi_sel = <0>;
vinc1_mipi_sel = <0>;
vinc1_isp_sel = <0>;
vinc1_isp_tx_ch = <0>;
vinc1_tdm_rx_sel = <0>;
vinc1_rear_sensor_sel = <0>;
vinc1_front_sensor_sel = <1>;
vinc1_sensor_list = <0>;
status = "disabled";
};
vinc2:vinc@2 {
vinc2_csi_sel = <1>;
vinc2_mipi_sel = <1>;
vinc2_isp_sel = <1>;
vinc2_isp_tx_ch = <0>;
vinc2_tdm_rx_sel = <1>;
vinc2_rear_sensor_sel = <0>;
vinc2_front_sensor_sel = <1>;
vinc2_sensor_list = <0>;
status = "disabled";
};
vinc3:vinc@3 {
vinc3_csi_sel = <1>;
vinc3_mipi_sel = <1>;
vinc3_isp_sel = <1>;
vinc3_isp_tx_ch = <0>;
vinc3_tdm_rx_sel = <0xff>;
vinc3_rear_sensor_sel = <0>;
vinc3_front_sensor_sel = <1>;
vinc3_sensor_list = <0>;
status = "disabled";
};
};
/*----------------------------------------------------------------------------------
disp init configuration
disp_mode (0:screen0<screen0,fb0>)
screenx_output_type (0:none; 1:lcd; 2:tv; 3:hdmi;5:vdpo)
screenx_output_mode (used for hdmi output, 0:480i 1:576i 2:480p 3:576p 4:720p50)
(5:720p60 6:1080i50 7:1080i60 8:1080p24 9:1080p50 10:1080p60)
screenx_output_format (for hdmi, 0:RGB 1:yuv444 2:yuv422 3:yuv420)
screenx_output_bits (for hdmi, 0:8bit 1:10bit 2:12bit 2:16bit)
screenx_output_eotf (for hdmi, 0:reserve 4:SDR 16:HDR10 18:HLG)
screenx_output_cs (for hdmi, 0:undefined 257:BT709 260:BT601 263:BT2020)
screenx_output_dvi_hdmi (for hdmi, 0:undefined 1:dvi mode 2:hdmi mode)
screen0_output_range (for hdmi, 0:default 1:full 2:limited)
screen0_output_scan (for hdmi, 0:no data 1:overscan 2:underscan)
screen0_output_aspect_ratio (for hdmi, 8-same as original picture 9-4:3 10-16:9 11-14:9)
fbx format (4:RGB655 5:RGB565 6:RGB556 7:ARGB1555 8:RGBA5551 9:RGB888 10:ARGB8888 12:ARGB4444)
fbx pixel sequence (0:ARGB 1:BGRA 2:ABGR 3:RGBA)
fb0_scaler_mode_enable(scaler mode enable, used FE)
fbx_width,fbx_height (framebuffer horizontal/vertical pixels, fix to output resolution while equal 0)
lcdx_backlight (lcd init backlight,the range:[0,256],default:197
lcdx_yy (lcd init screen bright/contrast/saturation/hue, value:0~100, default:50/50/57/50)
lcd0_contrast (LCD contrast, 0~100)
lcd0_saturation (LCD saturation, 0~100)
lcd0_hue (LCD hue, 0~100)
framebuffer software rotation setting:
disp_rotation_used: (0:disable; 1:enable,you must set fbX_width to lcd_y,
set fbX_height to lcd_x)
degreeX: (X:screen index; 0:0 degree; 1:90 degree; 3:270 degree)
degreeX_Y: (X:screen index; Y:layer index 0~15; 0:0 degree; 1:90 degree; 3:270 degree)
devX_output_type : config output type in bootGUI framework in UBOOT-2018.
(0:none; 1:lcd; 2:tv; 4:hdmi;)
devX_output_mode : config output resolution(see include/video/sunxi_display2.h) of bootGUI framework in UBOOT-2018
devX_screen_id : config display index of bootGUI framework in UBOOT-2018
devX_do_hpd : whether do hpd detectation or not in UBOOT-2018
chn_cfg_mode : Hardware DE channel allocation config. 0:single display with 6
channel, 1:dual display with 4 channel in main display and 2 channel in second
display, 2:dual display with 3 channel in main display and 3 channel in second
in display.
----------------------------------------------------------------------------------*/
disp: disp@06000000 {
disp_init_enable = <1>;
disp_mode = <1>;
screen0_output_type = <1>;
screen0_output_mode = <4>;
screen0_output_format = <0>;
screen0_output_bits = <0>;
screen0_output_eotf = <4>;
screen0_output_cs = <257>;
screen0_output_dvi_hdmi = <2>;
screen0_output_range = <2>;
screen0_output_scan = <0>;
screen0_output_aspect_ratio = <8>;
screen1_output_type = <1>;
screen1_output_mode = <4>;
screen1_output_format = <0>;
screen1_output_bits = <0>;
screen1_output_eotf = <4>;
screen1_output_cs = <257>;
screen1_output_dvi_hdmi = <2>;
screen1_output_range = <2>;
screen1_output_scan = <0>;
screen1_output_aspect_ratio = <8>;
dev0_output_type = <1>;
dev0_output_mode = <4>;
dev0_screen_id = <0>;
dev0_do_hpd = <0>;
dev1_output_type = <1>;
dev1_output_mode = <4>;
dev1_screen_id = <1>;
dev1_do_hpd = <0>;
def_output_dev = <0>;
hdmi_mode_check = <1>;
fb0_format = <0>;
fb0_width = <0>;
fb0_height = <0>;
fb1_format = <0>;
fb1_width = <0>;
fb1_height = <0>;
chn_cfg_mode = <1>;
disp_para_zone = <1>;
/*VCC-LCD*/
dc1sw-supply = <>;
/*VCC-DSI*/
eldo3-supply = <>;
/*VCC-PD*/
dcdc1-supply = <>;
status = "okay";
};
/*----------------------------------------------------------------------------------
;lcd0 configuration
;lcd_if: 0:hv(sync+de); 1:8080; 2:ttl; 3:lvds; 4:dsi; 5:edp; 6:extend dsi
;lcd_hv_if 0:Parallel RGB; 8:Serial RGB; 10:Dummy RGB; 11: RGB Dummy;12:CCIR656
;lcd_hv_clk_phase 0:0 degree;1:90 degree;2:180 degree;3:270 degree
;lcd_hv_sync_polarity 0:vs low,hs low; 1:vs high,hslow; 2:vs low,hs high; 3:vs high,hs high
;lcd_hv_syuv_seq 0:YUYV; 1:YVYU; 2:UYVY; 3:VYUY
;lcd_cpu_if 0:18bit/1 cycle parallel(RGB666); 4:16bit/1cycle parallel (RGB565)
; 6:18bit/3 cycle parallel(RGB666); 7:16bit/2cycle parallel (RGB565)
;lcd_cpu_te 0:frame auto trigger; 1:frame triggered by te rising edge; 2:frame triggered by te falling edge;
;lcd_dsi_if 0:video mode; 1: Command mode; 2:video burst mode
;lcd_dsi_te 0:frame auto trigger; 1:frame triggered by te rising edge; 2:frame triggered by te falling edge;
;lcd_x: lcd horizontal resolution
;lcd_y: lcd vertical resolution
;lcd_width: width of lcd in mm
;lcd_height: height of lcd in mm
;lcd_dclk_freq: in MHZ unit
;lcd_pwm_freq: in HZ unit
;lcd_pwm_pol: lcd backlight PWM polarity
;lcd_pwm_max_limit lcd backlight PWM max limit(<=255)
;lcd_hbp: hsync back porch(pixel) + hsync plus width(pixel);
;lcd_ht: hsync total cycle(pixel)
;lcd_vbp: vsync back porch(line) + vysnc plus width(line)
;lcd_vt: vysnc total cycle(line)
;lcd_hspw: hsync plus width(pixel)
;lcd_vspw: vysnc plus width(pixel)
;lcd_lvds_if: 0:single link; 1:dual link(odd and even); 2:dual link(same pixel)
;lcd_lvds_colordepth: 0:8bit; 1:6bit
;lcd_lvds_mode: 0:NS mode; 1:JEIDA mode
;lcd_frm: 0:disable; 1:enable rgb666 dither; 2:enable rgb656 dither
;lcd_io_phase: 0:noraml; 1:intert phase(0~3bit: vsync phase; 4~7bit:hsync phase;
; 8~11bit:dclk phase; 12~15bit:de phase)
;lcd_gamma_en lcd gamma correction enable
;lcd_bright_curve_en lcd bright curve correction enable
;lcd_cmap_en lcd color map function enable
;deu_mode 0:smoll lcd screen; 1:large lcd screen(larger than 10inch)
;lcdgamma4iep: Smart Backlight parameter, lcd gamma vale * 10;
; decrease it while lcd is not bright enough; increase while lcd is too bright
;smart_color 90:normal lcd screen 65:retina lcd screen(9.7inch)
;Pin setting for special function ie.LVDS, RGB data or vsync
; name(donot care) = port:PD12<pin function><pull up or pull down><drive ability><output level>
;Pin setting for gpio:
; lcd_gpio_X = port:PD12<pin function><pull up or pull down><drive ability><output level>
;Pin setting for backlight enable pin
; lcd_bl_en = port:PD12<pin function><pull up or pull down><drive ability><output level>
;fsync setting, pulse to csi
;lcd_fsync_en (0:disable fsync,1:enable)
;lcd_fsync_act_time (active time of fsync, unit:pixel)
;lcd_fsync_dis_time (disactive time of fsync, unit:pixel)
;lcd_fsync_pol (0:positive;1:negative)
;gpio config: <&pio for cpu or &r_pio for cpus, port, port num, pio function,
pull up or pull down(default 0), driver level(default 1), data>
;For dual link lvds: use lvds2link_pins_a and lvds2link_pins_b instead
;For rgb24: use rgb24_pins_a and rgb24_pins_b instead
;For lvds1: use lvds1_pins_a and lvds1_pins_b instead
;For lvds0: use lvds0_pins_a and lvds0_pins_b instead
;----------------------------------------------------------------------------------*/
lcd0: lcd0@01c0c000 {
lcd_used = <1>;
lcd_driver_name = "tft08006";
lcd_backlight = <100>;
lcd_if = <4>;
lcd_x = <800>;
lcd_y = <1280>;
lcd_width = <52>;
lcd_height = <52>;
lcd_dclk_freq = <70>;
lcd_pwm_used = <0>;
lcd_pwm_ch = <0>;
lcd_pwm_freq = <1000>;
lcd_pwm_pol = <0>;
lcd_pwm_max_limit = <255>;
lcd_hbp = <32>;
lcd_ht = <868>;
lcd_hspw = <4>;
lcd_vbp = <12>;
lcd_vt = <1311>;
lcd_vspw = <4>;
lcd_dsi_if = <0>;
lcd_dsi_lane = <4>;
lcd_lvds_if = <0>;
lcd_lvds_colordepth = <0>;
lcd_lvds_mode = <0>;
lcd_frm = <0>;
lcd_hv_clk_phase = <0>;
lcd_hv_sync_polarity= <0>;
lcd_io_phase = <0x0000>;
lcd_gamma_en = <0>;
lcd_bright_curve_en = <0>;
lcd_cmap_en = <0>;
lcd_fsync_en = <0>;
lcd_fsync_act_time = <1000>;
lcd_fsync_dis_time = <1000>;
lcd_fsync_pol = <0>;
deu_mode = <0>;
lcdgamma4iep = <22>;
smart_color = <90>;
lcd_pin_power;
lcd_power;
/*lcd_bl_en = <&pio PB 8 1 0 3 1>;*/
/*lcd_gpio_1 = <&pio PD 23 1 0 3 1>;*/
lcd_gpio_0 = <&pio PC 12 1 0 3 1>;
pinctrl-0 = <&dsi4lane_pins_a>;
pinctrl-1 = <&dsi4lane_pins_b>;
status = "okay";
};
lcd1: lcd1@01c0c001 {
lcd_used = <1>;
lcd_driver_name = "st7701s_rgb";
lcd_if = <0>;
lcd_hv_if = <0>;
lcd_width = <70>;
lcd_height = <72>;
lcd_x = <480>;
lcd_y = <480>;
lcd_dclk_freq = <11>;
lcd_hbp = <60>;
lcd_ht = <612>;
lcd_hspw = <12>;
lcd_vbp = <18>;
lcd_vt = <520>;
lcd_vspw = <4>;
lcd_backlight = <250>;// 0 ~ 255
lcd_pwm_used = <1>;
lcd_pwm_ch = <8>;
lcd_pwm_freq = <20000>;
lcd_pwm_pol = <1>;
lcd_pwm_max_limit = <255>;
lcd_bright_curve_en = <0>;
lcd_frm = <1>;
lcd_io_phase = <0x0000>;
lcd_gamma_en = <0>;
lcd_cmap_en = <0>;
lcd_hv_clk_phase = <1>;
lcd_hv_sync_polarity= <0>;
lcd_rb_swap = <0>;
//lcd_bl_en = <&pio PI 7 1 1 3 1>;
lcd_gpio_0 = <&pio PJ 16 1 1 3 1>;//reset
lcd_gpio_1 = <&pio PJ 17 1 1 3 1>;//cs
lcd_gpio_2 = <&pio PC 2 1 1 3 1>;//sdi
lcd_gpio_3 = <&pio PC 12 1 1 3 1>;//scl
/*
lcd_gpio_2 = <&r_pio PL 2 1 1 3 1>;//sdi
lcd_gpio_3 = <&r_pio PL 3 1 1 3 1>;//scl
*/
lcd_pin_power;
lcd_power;
pinctrl-0 = <&rgb18_pins_c>;
pinctrl-1 = <&rgb18_pins_d>;
status = "okay";
};
wlan: wlan@0 {
compatible = "allwinner,sunxi-wlan";
pinctrl-0;
pinctrl-names;
wlan_busnum = <0x1>;
wlan_power;
wlan_io_regulator;
wlan_regon = <&r_pio PL 10 1 0xffffffff 0xffffffff 0>;
wlan_hostwake = <&r_pio PL 7 1 0xffffffff 0xffffffff 0>;
chip_en;
power_en;
status = "okay";
};
bt: bt@0 {
compatible = "allwinner,sunxi-bt";
clocks = <&clk_losc_out>, <&clk_dcxo_out>;
bt_power;
bt_io_regulator;
bt_rst_n = <&r_pio PL 5 1 0xffffffff 0xffffffff 0>;
bt_wake = <&r_pio PL 4 1 0xffffffff 0xffffffff 0>;
bt_hostwake = <&r_pio PL 6 1 0xffffffff 0xffffffff 0>;
status = "okay";
};
modem: modem@0 {
compatible = "allwinner,sunxi-modem";
modem_power;
modem_rst = <&pio PB 3 1 0xffffffff 0xffffffff 1>;
status = "disabled";
};
btlpm: btlpm@0 {
compatible = "allwinner,sunxi-btlpm";
uart_index = <0x1>;
bt_wake = <&r_pio PL 4 1 0xffffffff 0xffffffff 1>;//AP-WAKE-BT
bt_hostwake = <&r_pio PL 6 1 0xffffffff 0xffffffff 1>;//BT-WAKE-AP
status = "okay";
};
/*
btlpm: btlpm@0 {
compatible = "allwinner,sunxi-btlpm";
uart_index = <0x1>;
bt_wake = <&r_pio PL 3 1 0xffffffff 0xffffffff 1>;
bt_hostwake = <&r_pio PL 4 6 0xffffffff 0xffffffff 1>;
status = "disabled";
};
*/
addr_mgt: addr_mgt@0 {
compatible = "allwinner,sunxi-addr_mgt";
type_addr_wifi = <0x0>;
type_addr_bt = <0x0>;
type_addr_eth = <0x0>;
status = "okay";
};
uart0: uart@05000000 {
uart-supply = <>;
};
uart1: uart@05000400 {
status = "okay";
};
uart5: uart@05001400 {
status = "disabled";
};
uart6: uart@05001800 {
status = "disabled";
rs485-en = <&pio PI 11 1 1 0xffffffff 1>;
};
ncs8801s {
status = "disabled";
ncs8801s_reset = <&pio PI 14 1 0xffffffff 0xffffffff 0>;
};
};
gpu: gpu@0x01800000 {
gpu_idle = <0>;
dvfs_status = <1>;
pll_rate = <504000>;
independent_power = <0>;
operating-points = <
/* KHz uV */
504000 950000
472500 950000
441000 950000
252000 950000
>;
gpu-supply = <>;
};
opp_dvfs_table:opp_dvfs_table {
cluster_num = <1>;
opp_table_count = <1>;
};
};
&cpu0 {
cpu-supply = <>;
};日志：
[37]HELLO! BOOT0 is starting!
[40]BOOT0 commit : dc54be6
[43]set pll start
[45]periph0 has been enabled
[48]set pll end
[50][pmu]: bus read error
[52][pmu]: bus read error
[60]vaild para:1 select dram para0
[63]board init ok
[65]DRAM BOOT DRIVE INFO: V0.19
[68]the chip id is 0x2400
[71]the chip id is 0x2400
[73]the chip id is 0x2400
[76]the chip id is 0x2400
[79]the chip id is 0x2400
[81]chip id check OK
[83]DRAM_VCC set to 1100 mv
[86]DRAM CLK =792 MHZ
[88]DRAM Type =8 (3:DDR3,4:DDR4,7:LPDDR3,8:LPDDR4)
[96]DRAM SIZE =1024 MBytes, para1 = 30fa, para2 = 4000000, dram_tpr13 = 6063
[109]DRAM simple test OK.
[111]dram size =1024
[113]chipid = 53002400
[115]nsi init ok 2020-4-7
[119]card no is 2
[120]sdcard 2 line count 8
[123][mmc]: mmc driver ver 2020-05-25 09:40
[133][mmc]: Wrong media type 0x0
[136][mmc]: ***Try SD card 2***
[140][mmc]: mmc 2 cmd 8 timeout, err 100
[144][mmc]: mmc 2 cmd 8 err 100
[147][mmc]: mmc 2 send if cond failed
[152][mmc]: mmc 2 cmd 55 timeout, err 100
[156][mmc]: mmc 2 cmd 55 err 100
[159][mmc]: mmc 2 send app cmd failed
[163][mmc]: ***Try MMC card 2***
[187][mmc]: RMCA OK!
[189][mmc]: mmc 2 bias 4
[192][mmc]: MMC 5.1
[194][mmc]: HSSDR52/SDR25 8 bit
[197][mmc]: 50000000 Hz
[200][mmc]: 14910 MB
[202][mmc]: ***SD/MMC 2 init OK!!!***
[258]Loading boot-pkg Succeed(index=0).
[262]Entry_name = u-boot
[269]Entry_name = monitor
[273]Entry_name = scp
[281]set arisc reset to de-assert state
[285]Entry_name = dtb
[288]tunning data addr:0x4a0003e8
[292]Jump to second Boot.
NOTICE: BL3-1: v1.0(debug):cc1f5d7
NOTICE: BL3-1: Built : 10:23:25, 2020-04-08
NOTICE: BL3-1 commit: 8
ERROR: Error initializing runtime service tspd_fast
NOTICE: BL3-1: Preparing for EL3 exit to normal world
NOTICE: BL3-1: Next image address = 0x4a000000
▒OTICE: BL3-1: Next image spsr = 0x1d3
U-Boot 2018.05 (Apr 17 2022 - 05:02:05 +0000) Allwinner Technology
[00.371]CPU: Allwinner Family
[00.374]Model: sun50iw10
I2C: ready
[00.626]DRAM: 1 GiB
[00.629]Relocation Offset is: 35f13000
[00.659]secure enable bit: 0
[00.661][ARISC] :arisc initialize
[00.666][ARISC ERROR] :get [allwinner,sunxi-hwspinlock] device node error
CACHE: Misaligned operation at range [7ffa6d88, 7ffa70a0]
[00.678][ARISC] :arisc para ok
[SCP] :sunxi-arisc driver begin startup 2
[SCP] :0x1
[SCP] :arisc version: [ca79327ac09021f1a13c79dd97da281c7be9a63arid-]
[SCP] :arisc startup ready
[SCP] :arisc startup notify message feedback
[SCP] :send hard sync feedback message: 0x900200
[SCP] :sunxi-arisc driver v1.10 is starting
[00.709][ARISC] :sunxi-arisc driver startup succeeded
[00.714]pmu_axp81X_probe pmic_bus_read fail
[00.718]pmu_axp858_probe pmic_bus_read fail
[00.722]PMU: no found
[00.724]CPU=1008 MHz,PLL6=600 Mhz,AHB=200 Mhz, APB1=100Mhz MBus=400Mhz
[00.731]init_clocks:finish
[00.733]not need merged sunxi overlay
[00.737]drv_disp_init
request pwm success, pwm8:pwm8:0x300a000.
[00.768]drv_disp_init finish
[00.776]gic: sec monitor mode
[00.779]flash init start
[00.781]workmode = 0,storage type = 2
[00.785][mmc]: mmc driver ver uboot2018:2020-5-25 9:26:00-20201021190
[00.798][mmc]: SUNXI SDMMC Controller Version:0x50300
[00.823][mmc]: Best spd md: 2-HSDDR52/DDR50, freq: 2-50000000, Bus width: 8
[00.830]sunxi flash init ok
[00.833]Loading Environment from SUNXI_FLASH... OK
[00.841]no secure os for keybox operation
[00.845]try to burn key
[00.848]out of usb burn from boot: not need burn key
[00.853]boot_gui_init:start
[00.857]set disp.dev2_output_type fail. using defval=0
[00.862]disp 0, clk: pll(420000000),clk(420000000),dclk(70000000) dsi_rate(150000000)
clk real:pll(420000000),clk(420000000),dclk(105000000) dsi_rate(150000000)
[00.900]switch device: sel=0, type=1, mode=4, format=0, bits=0, eotf=4, cs=260
[00.907]boot_gui_init:finish
[00.910[00.910]tft8006 .................... ...............
[00.915]tft8006 .................... ...............
[00.920]tft8006 .................... ...............
[00.924]tft8006 .................... ...............
[00.929]tft8006 .................... ...............
[00.934]tft8006 .................... ...............
[00.938]tft8006 .................... ...............
[00.943]tft8006 .................... ...............
partno erro : can't find partition bootloader
[01.120]soc ic_ver:0x0, qa_val:0x0, markid:0x53002400 dclk[0-9999]
691254 bytes read in 8 ms (82.4 MiB/s)
[01.136]read item0 copy0
[01.138]Item0 (Map) magic is bad
[01.141]the secure storage item0 copy0 magic is bad
[01.146]Item0 (Map) magic is bad
[01.149]the secure storage item0 copy1 magic is bad
[01.153]Item0 (Map) magic is bad
[01.156]the secure storage map is empty
[01.160]no item name device_unlock in the map
[01.164]no item name fastboot_status_flag in the map
[01.168]sunxi secure storage has no flag
[01.174][mmc]: delete mmc-h[01.176]pwm device hdl is NULL
[01.179]LCD open finish
s400-1_8v from dtb
[01.183][mmc]: delete mmc-hs200-1_8v from dtb
[01.187][mmc]: get max-frequency ok 50000000 Hz
[01.193](weak)update dtb dram start
[01.197]update dtb dram end
[01.199]update dts
[01.201]no item name snum in the map
partno erro : can't find partition private
[01.211]no item name mac in the map
partno erro : can't find partition private
[01.221]no item name wifi_mac in the map
partno erro : can't find partition private
[01.231]no item name bt_mac in the map
partno erro : can't find partition private
[01.241]no item name specialstr in the map
partno erro : can't find partition private
[01.254]update part info
[01.257]key 0
[01.260]no misc partition is found
[01.263]update bootcmd
[01.265]serial num is: 0c001415a0c086d218d
Hit any key to stop autoboot: 0
[01.279]partinfo: name boot, start 0x22000, size 0x10000
[01.443]in boot normal mode,pass normal para to cmdline
[01.449]android.hardware = sun50iw10p1
[01.452]androidboot.dtbo_idx can't findAndroid's image name: sun50i_arm64
[01.522]Starting kernel ...
[01.524][mmc]: mmc exit start
[01.543][mmc]: mmc 2 exit ok
[ 0.000000] Booting Linux on physical CPU 0x0
[ 0.000000] Linux version 4.9.170 (whycan@ubuntu) (gcc version 5.3.1 20160412 (Linaro GCC 5.3-2016.05) ) #9 SMP PREEMPT Sun Jun 26 21:55:05 CST 2022
[ 0.000000] Boot CPU: AArch64 Processor [410fd034]
[ 0.000000] bootconsole [earlycon0] enabled
[ 0.000000] disp reserve base 0x7bf61080 ,size 0x3e8000
[ 0.000000] cma: Reserved 8 MiB at 0x000000007f800000
[ 0.000000] On node 0 totalpages: 262144
[ 0.000000] DMA zone: 4096 pages used for memmap
[ 0.000000] DMA zone: 0 pages reserved
[ 0.000000] DMA zone: 262144 pages, LIFO batch:31
[ 0.000000] psci: probing for conduit method from DT.
[ 0.000000] psci: PSCIv1.0 detected in firmware.
[ 0.000000] psci: Using standard PSCI v0.2 function IDs
[ 0.000000] psci: Trusted OS migration not required
[ 0.000000] psci: SMC Calling Convention v1.0
[ 0.000000] percpu: Embedded 21 pages/cpu @ffffffc03f70b000 s45696 r8192 d32128 u86016
[ 0.000000] pcpu-alloc: s45696 r8192 d32128 u86016 alloc=21*4096
[ 0.000000] pcpu-alloc: [0] 0 [0] 1 [0] 2 [0] 3
[ 0.000000] Detected VIPT I-cache on CPU0
[ 0.000000] CPU features: enabling workaround for ARM erratum 845719
[ 0.000000] Built 1 zonelists in Zone order, mobility grouping on. Total pages: 258048
[ 0.000000] Kernel command line: earlyprintk=sunxi-uart,0x05000000 initcall_debug=0 console=ttyS0,115200 loglevel=8 root=/dev/mmcblk0p4 init=/init partitions=boot-resource@mmcblk0p1:env@mmcblk0p2:boot@mmcblk0p3:rootfs@mmcblk0p4:klog@mmcblk0p5:UDISK@mmcblk0p6 cma=8M snum=0c001415a0c086d218d mac_addr= wifi_mac= bt_mac= specialstr= gpt=1 androidboot.mode=normal androidboot.serialno=0c001415a0c086d218d androidboot.hardware=sun50iw10p1 boot_type=2 androidboot.boot_type=2 androidboot.secure_os_exist=0 androidboot.trustchain=false gpt=1 uboot_message=2018.05(04/17/2022-05:02:05) disp_reserve=4096000,0x7bf61080 bootreason=unknow
[ 0.000000] log_buf_len individual max cpu contribution: 4096 bytes
[ 0.000000] log_buf_len total cpu_extra contributions: 12288 bytes
[ 0.000000] log_buf_len min size: 16384 bytes
[ 0.000000] log_buf_len: 32768 bytes
[ 0.000000] early log buf free: 14220(86%)
[ 0.000000] PID hash table entries: 4096 (order: 3, 32768 bytes)
[ 0.000000] Dentry cache hash table entries: 131072 (order: 8, 1048576 bytes)
[ 0.000000] Inode-cache hash table entries: 65536 (order: 7, 524288 bytes)
[ 0.000000] Memory: 987664K/1048576K available (6590K kernel code, 1310K rwdata, 2020K rodata, 448K init, 267K bss, 52720K reserved, 8192K cma-reserved)
[ 0.000000] Virtual kernel memory layout:
[ 0.000000] modules : 0xffffff8000000000 - 0xffffff8008000000 ( 128 MB)
[ 0.000000] vmalloc : 0xffffff8008000000 - 0xffffffbebfff0000 ( 250 GB)
[ 0.000000] .text : 0xffffff8008080000 - 0xffffff80086f0000 ( 6592 KB)
[ 0.000000] .rodata : 0xffffff80086f0000 - 0xffffff80088f0000 ( 2048 KB)
[ 0.000000] .init : 0xffffff80088f0000 - 0xffffff8008960000 ( 448 KB)
[ 0.000000] .data : 0xffffff8008960000 - 0xffffff8008aa7808 ( 1311 KB)
[ 0.000000] .bss : 0xffffff8008aa7808 - 0xffffff8008aea4c8 ( 268 KB)
[ 0.000000] fixed : 0xffffffbefe7fb000 - 0xffffffbefec00000 ( 4116 KB)
[ 0.000000] PCI I/O : 0xffffffbefee00000 - 0xffffffbeffe00000 ( 16 MB)
[ 0.000000] vmemmap : 0xffffffbf00000000 - 0xffffffc000000000 ( 4 GB maximum)
[ 0.000000] 0xffffffbf00000000 - 0xffffffbf01000000 ( 16 MB actual)
[ 0.000000] memory : 0xffffffc000000000 - 0xffffffc040000000 ( 1024 MB)
[ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1
[ 0.000000] Preemptible hierarchical RCU implementation.
[ 0.000000] Build-time adjustment of leaf fanout to 64.
[ 0.000000] NR_IRQS:64 nr_irqs:64 0
[ 0.000000] arm_arch_timer: Architected cp15 timer(s) running at 24.00MHz (virt).
[ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns
[ 0.000004] sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns
[ 0.008199] Console: colour dummy device 80x25
[ 0.012414] Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=96000)
[ 0.022619] pid_max: default: 32768 minimum: 301
[ 0.027668] Mount-cache hash table entries: 2048 (order: 2, 16384 bytes)
[ 0.033897] Mountpoint-cache hash table entries: 2048 (order: 2, 16384 bytes)
[ 0.043988] sched-energy: CPU device node has no sched-energy-costs
[ 0.047281] Invalid sched_group_energy for CPU0
[ 0.051748] CPU0: update cpu_capacity 1024
[ 0.067890] ASID allocator initialised with 32768 entries
[ 0.124102] Detected VIPT I-cache on CPU1
[ 0.124154] Invalid sched_group_energy for CPU1
[ 0.124157] CPU1: update cpu_capacity 1024
[ 0.124160] CPU1: Booted secondary processor [410fd034]
[ 0.152145] Detected VIPT I-cache on CPU2
[ 0.152176] Invalid sched_group_energy for CPU2
[ 0.152179] CPU2: update cpu_capacity 1024
[ 0.152182] CPU2: Booted secondary processor [410fd034]
[ 0.180209] Detected VIPT I-cache on CPU3
[ 0.180237] Invalid sched_group_energy for CPU3
[ 0.180239] CPU3: update cpu_capacity 1024
[ 0.180242] CPU3: Booted secondary processor [410fd034]
[ 0.180316] Brought up 4 CPUs
[ 0.230952] SMP: Total of 4 processors activated.
[ 0.235641] CPU features: detected feature: 32-bit EL0 Support
[ 0.241446] CPU features: detected feature: Kernel page table isolation (KPTI)
[ 0.251494] CPU: All CPU(s) started at EL1
[ 0.252727] alternatives: patching kernel code
[ 0.257633] Invalid sched_group_energy for CPU3
[ 0.261644] Invalid sched_group_energy for Cluster3
[ 0.266493] Invalid sched_group_energy for CPU2
[ 0.271000] Invalid sched_group_energy for Cluster2
[ 0.275852] Invalid sched_group_energy for CPU1
[ 0.280359] Invalid sched_group_energy for Cluster1
[ 0.285212] Invalid sched_group_energy for CPU0
[ 0.289719] Invalid sched_group_energy for Cluster0
[ 0.295715] devtmpfs: initialized
[ 0.542423] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041785100000 ns
[ 0.546552] futex hash table entries: 1024 (order: 5, 131072 bytes)
[ 0.553398] atomic64_test: passed
[ 0.556054] pinctrl core: initialized pinctrl subsystem
[ 0.566132] NET: Registered protocol family 16
[ 0.570227] dump_class_init,861, success
[ 0.573453] sunxi iommu: irq = 8
[ 0.574277] vdso: 2 pages (1 code @ ffffff80086f7000, 1 data @ ffffff8008964000)
[ 0.581485] DMA: preallocated 256 KiB pool for atomic allocations
[ 0.598339] sun50iw10p1-r-pinctrl r_pio: initialized sunXi PIO driver
[ 0.673640] sun50iw10p1-pinctrl pio: initialized sunXi PIO driver
[ 0.686618] iommu: Adding device 1c0e000.ve to group 0
[ 0.704907] iommu: Adding device 6000000.disp to group 0
[ 0.707498] iommu: Adding device 6480000.g2d to group 0
[ 0.723869] iommu: Adding device csi0 to group 0
[ 0.725071] iommu: Adding device csi1 to group 0
[ 0.730391] iommu: Adding device 2108000.tdm to group 0
[ 0.733859] iommu: Adding device 2100000.isp to group 0
[ 0.739064] iommu: Adding device 2102000.isp to group 0
[ 0.743912] iommu: Adding device 2110000.scaler to group 0
[ 0.749331] iommu: Adding device 2110400.scaler to group 0
[ 0.754841] iommu: Adding device 2110800.scaler to group 0
[ 0.760255] iommu: Adding device 2110c00.scaler to group 0
[ 0.849008] pwm module init!
[ 0.859541] sunxi-pm debug v3.10
[ 0.865829] SCSI subsystem initialized
[ 0.867916] usbcore: registered new interface driver usbfs
[ 0.869709] usbcore: registered new interface driver hub
[ 0.874974] usbcore: registered new device driver usb
[ 0.880335] sunxi_i2c_adap_init()2649 - init
[ 0.885204] sunxi_i2c_probe()2372 - [i2c5] twi_drv_used = 0
[ 0.889537] sunxi_i2c_probe()2379 - [i2c5] twi_pkt_interval = 0
[ 0.895440] twi5 supply twi not found, using dummy regulator
[ 0.901281] twi_request_gpio()458 - [i2c5] init name: (null)
[ 0.908813] media: Linux media interface: v0.10
[ 0.911463] Linux video capture interface: v2.00
[ 0.918078] ion_parse_dt_heap_common: id 0 type 0 name sys_user align 1000
[ 0.923275] ion_parse_dt_heap_common: id 4 type 4 name cma align 1000
[ 0.929641] ion_parse_dt_heap_common: id 6 type 6 name secure align 1000
[ 0.936601] ion_heap_create: Invalid heap type 6
[ 0.940847] Advanced Linux Sound Architecture Driver Initialized.
[ 0.949304] Bluetooth: Core ver 2.22
[ 0.950040] NET: Registered protocol family 31
[ 0.954365] Bluetooth: HCI device and connection manager initialized
[ 0.960712] Bluetooth: HCI socket layer initialized
[ 0.965562] Bluetooth: L2CAP socket layer initialized
[ 0.970702] Bluetooth: SCO socket layer initialized
[ 0.978072] clocksource: Switched to clocksource arch_sys_counter
[ 1.034485] udc_init,0
[ 1.034904] NET: Registered protocol family 2
[ 1.062522] TCP established hash table entries: 8192 (order: 4, 65536 bytes)
[ 1.064009] TCP bind hash table entries: 8192 (order: 5, 131072 bytes)
[ 1.070634] TCP: Hash tables configured (established 8192 bind 8192)
[ 1.076909] UDP hash table entries: 512 (order: 2, 16384 bytes)
[ 1.082693] UDP-Lite hash table entries: 512 (order: 2, 16384 bytes)
[ 1.089792] NET: Registered protocol family 1
[ 1.094072] Unpacking initramfs...
[ 1.301763] Freeing initrd memory: 2544K
[ 1.309341] workingset: timestamp_bits=61 max_order=18 bucket_order=0
[ 1.401642] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[ 1.403718] ntfs: driver 2.1.32 [Flags: R/W].
[ 1.415553] io scheduler noop registered
[ 1.415597] io scheduler deadline registered
[ 1.420015] io scheduler cfq registered (default)
[ 1.429013] [DISP]disp_module_init
[ 1.431216] [DISP] disp_init,line:2260:
[ 1.431254] smooth display screen:0 type:1 mode:4
[ 1.519794] [DISP] lcd_clk_config,line:665:
[ 1.519839] disp 0, clk: pll(420000000),clk(420000000),dclk(70000000) dsi_rate(70000000)
[ 1.519839] clk real:pll(420000000),clk(420000000),dclk(105000000) dsi_rate(150000000)
[ 1.523126] [DISP]disp_module_init finish
[ 1.546406] uart uart0: get regulator failed
[ 1.546466] uart0 supply uart not found, using dummy regulator
[ 1.551542] uart0: ttyS0 at MMIO 0x5000000 (irq = 349, base_baud = 1500000) is a SUNXI
[ 1.558779] sw_console_▒[ 1.566763] console [ttyS0] enabled
[ 1.566763] console [ttyS0] enabled
[ 1.570758] bootconsole [earlycon0] disabled
[ 1.570758] bootconsole [earlycon0] disabled
[ 1.581238] uart uart1: get regulator failed
[ 1.588062] uart1 supply uart not found, using dummy regulator
[ 1.595230] uart1: ttyS1 at MMIO 0x5000400 (irq = 350, base_baud = 1500000) is a SUNXI
[ 1.606709] misc dump reg init
[ 1.614059] [drm] Initialized
[ 1.618184] Unable to detect cache hierarchy for CPU 0
[ 1.624148] [NAND][NE] Not found valid nand node on dts
[ 1.630567] sunxi-bt soc@03000000:bt@0: Missing bt_power.
[ 1.636653] sunxi-bt soc@03000000:bt@0: bt_power_name ((null))
[ 1.643240] sunxi-bt soc@03000000:bt@0: Missing bt_io_regulator.
[ 1.650006] sunxi-bt soc@03000000:bt@0: io_regulator_name ((null))
[ 1.657018] sunxi-bt soc@03000000:bt@0: bt_rst gpio=357 mul-sel=1 pull=-1 drv_level=-1 data=0
[ 1.667167] sunxi-bt soc@03000000:bt@0: devm_pinctrl_get() failed!
[ 1.675598] sunxi-wlan soc@03000000:wlan@0: wlan_busnum (1)
[ 1.681883] sunxi-wlan soc@03000000:wlan@0: Missing wlan_power.
[ 1.688553] sunxi-wlan soc@03000000:wlan@0: wlan_power_name ((null))
[ 1.695722] sunxi-wlan soc@03000000:wlan@0: Missing wlan_io_regulator.
[ 1.703080] sunxi-wlan soc@03000000:wlan@0: io_regulator_name ((null))
[ 1.710466] sunxi-wlan soc@03000000:wlan@0: wlan_regon gpio=362 mul-sel=1 pull=-1 drv_level=-1 data=0
[ 1.721278] sunxi-wlan soc@03000000:wlan@0: get gpio chip_en failed
[ 1.728348] sunxi-wlan soc@03000000:wlan@0: get gpio power_en failed
[ 1.735522] sunxi-wlan soc@03000000:wlan@0: wlan_hostwake gpio=359 mul-sel=1 pull=-1 drv_level=-1 data=0
[ 1.746919] sunxi-wlan soc@03000000:wlan@0: clk not config
[ 1.753103] sunxi-wlan soc@03000000:wlan@0: dcxo not config
[ 1.759491] sunxi-wlan soc@03000000:wlan@0: pinctrl_lookup_state(default) failed! return ffffffffffffffed
[ 1.772335] [ADDR_MGT] addr_mgt_probe: success.
[ 1.782834] libphy: Fixed MDIO Bus: probed
[ 1.787509] tun: Universal TUN/TAP device driver, 1.6
[ 1.793204] tun: (C) 1999-2004 Max Krasnyansky <maxk@qualcomm.com>
[ 1.803703] gmac-power0: NULL
[ 1.807058] gmac-power1: NULL
[ 1.810403] gmac-power2: NULL
[ 1.816868] PPP generic driver version 2.4.2
[ 1.822683] PPP BSD Compression module registered
[ 1.827997] PPP Deflate Compression module registered
[ 1.833737] PPP MPPE Compression module registered
[ 1.839152] NET: Registered protocol family 24
[ 1.844244] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[ 1.852072] get ehci0-controller, regulator_io is no nocare
[ 1.858356] get ehci0-controller wakeup-source is fail.
[ 1.864575] sunxi ehci0-controller don't init wakeup source
[ 1.870870] [sunxi-ehci0]: probe, pdev->name: 5101000.ehci0-controller, sunxi_ehci: 0xffffff8008adc048, 0x:ffffff8008b13000, irq_no:161
[ 1.884574] [sunxi-ehci0]: Not init ehci0
[ 1.889326] get ehci1-controller, regulator_io is no nocare
[ 1.896060] [sunxi-ehci1]: probe, pdev->name: 5200000.ehci1-controller, sunxi_ehci: 0xffffff8008adc758, 0x:ffffff8008b1d000, irq_no:163
[ 1.909840] 5200000.ehci1-controller supply drvvbus not found, using dummy regulator
[ 1.918841] sunxi-ehci 5200000.ehci1-controller: SW USB2.0 'Enhanced' Host Controller (EHCI) Driver
[ 1.929108] sunxi-ehci 5200000.ehci1-controller: new USB bus registered, assigned bus number 1
[ 1.939588] sunxi-ehci 5200000.ehci1-controller: irq 355, io mem 0xffffff80088f0458
[ 1.962093] sunxi-ehci 5200000.ehci1-controller: USB 0.0 started, EHCI 1.00
[ 1.973621] hub 1-0:1.0: USB hub found
[ 1.977939] hub 1-0:1.0: 1 port detected
[ 1.984943] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
[ 1.992397] get ohci0-controller, regulator_io is no nocare
[ 1.998717] get ohci0-controller wakeup-source is fail.
[ 2.004933] sunxi ohci0-controller don't init wakeup source
[ 2.011354] [sunxi-ohci0]: probe, pdev->name: 5101000.ohci0-controller, sunxi_ohci: 0xffffff8008adc3d0
[ 2.021841] [sunxi-ohci0]: Not init ohci0
[ 2.026604] get ohci1-controller, regulator_io is no nocare
[ 2.033501] [sunxi-ohci1]: probe, pdev->name: 5200000.ohci1-controller, sunxi_ohci: 0xffffff8008adcae0
[ 2.044051] 5200000.ohci1-controller supply drvvbus not found, using dummy regulator
[ 2.053065] sunxi-ohci 5200000.ohci1-controller: SW USB2.0 'Open' Host Controller (OHCI) Driver
[ 2.062932] sunxi-ohci 5200000.ohci1-controller: new USB bus registered, assigned bus number 2
[ 2.072948] sunxi-ohci 5200000.ohci1-controller: irq 356, io mem 0xffffff80088f0458
[ 2.145684] hub 2-0:1.0: USB hub found
[ 2.150024] hub 2-0:1.0: 1 port detected
[ 2.157367] usbcore: registered new interface driver uas
[ 2.163733] usbcore: registered new interface driver usb-storage
[ 2.170679] usbcore: registered new interface driver ums-alauda
[ 2.177531] usbcore: registered new interface driver ums-cypress
[ 2.184481] usbcore: registered new interface driver ums-datafab
[ 2.191426] usbcore: registered new interface driver ums_eneub6250
[ 2.198560] usbcore: registered new interface driver ums-freecom
[ 2.205507] usbcore: registered new interface driver ums-isd200
[ 2.212356] usbcore: registered new interface driver ums-jumpshot
[ 2.219397] usbcore: registered new interface driver ums-karma
[ 2.226156] usbcore: registered new interface driver ums-onetouch
[ 2.233317] usbcore: registered new interface driver ums-realtek
[ 2.240262] usbcore: registered new interface driver ums-sddr09
[ 2.247108] usbcore: registered new interface driver ums-sddr55
[ 2.253946] usbcore: registered new interface driver ums-usbat
[ 2.260819] usb_serial_number:20080411
[ 2.266395] sunxikbd_key_init: key0 vol= 210 code= 115
[ 2.272190] sunxikbd_key_init: key1 vol= 410 code= 114
[ 2.277983] sunxikbd_key_init: key2 vol= 590 code= 139
[ 2.283771] sunxikbd_key_init: key3 vol= 750 code= 28
[ 2.289465] sunxikbd_key_init: key4 vol= 880 code= 102
[ 2.296631] input: sunxi-keyboard as /devices/virtual/input/input0
[ 2.305256] sun50iw10p1-pinctrl pio: pin PH3 already requested by gmac0; cannot claim for ir0
[ 2.314864] sun50iw10p1-pinctrl pio: pin-227 (ir0) status -22
[ 2.321343] sun50iw10p1-pinctrl pio: could not request pin 227 (PH3) from group PH3 on device pio
[ 2.331432] sunxi-ir-tx ir0: Error applying setting, reverse things back
[ 2.339082] sunxi-ir-tx: probe of ir0 failed with error -22
[ 2.347276] sunxi_gpadc_init,1536, success
[ 2.353622] input: sunxi-gpadc0 as /devices/virtual/input/input1
[ 2.363516] sunxi-rtc rtc: rtc core: registered sunxi-rtc as rtc0
[ 2.370621] sunxi-rtc rtc: RTC enabled
[ 2.375351] i2c /dev entries driver
[ 2.380440] IR NEC protocol handler initialized
[ 2.385548] IR RC5(x/sz) protocol handler initialized
[ 2.391240] IR RC6 protocol handler initialized
[ 2.396343] IR JVC protocol handler initialized
[ 2.401448] IR Sony protocol handler initialized
[ 2.406648] IR SANYO protocol handler initialized
[ 2.411949] IR Sharp protocol handler initialized
[ 2.417248] IR MCE Keyboard/mouse protocol handler initialized
[ 2.423821] IR XMP protocol handler initialized
[ 2.429331] usbcore: registered new interface driver uvcvideo
[ 2.435804] USB Video Class driver (1.1.1)
[ 2.440419] sunxi cedar version 0.1
[ 2.444631] VE: install start!!!
[ 2.444631]
[ 2.450165] cedar_ve: cedar-ve the get irq is 347
[ 2.456652] VE: get debugfs_mpp_root is NULL, please check mpp
[ 2.456652]
[ 2.464891] VE: sunxi ve debug register driver failed!
[ 2.464891]
[ 2.473905] Bluetooth: HCI UART driver ver 2.3
[ 2.478928] Bluetooth: HCI UART protocol H4 registered
[ 2.484717] Bluetooth: HCI UART protocol Three-wire (H5) registered
[ 2.495132] sunxi-mmc sdc2: SD/MMC/SDIO Host Controller Driver(v3.46 2020-6-1 11:33-202006021635)
[ 2.505411] sunxi-mmc sdc2: No vmmc regulator found
[ 2.510912] sunxi-mmc sdc2: No vqmmc regulator found
[ 2.516512] sunxi-mmc sdc2: No vdmmc regulator found
[ 2.522106] sunxi-mmc sdc2: No vd33sw regulator found
[ 2.527802] sunxi-mmc sdc2: No vd18sw regulator found
[ 2.533493] sunxi-mmc sdc2: No vq33sw regulator found
[ 2.539189] sunxi-mmc sdc2: No vq18sw regulator found
[ 2.545734] sunxi-mmc sdc2: set host busy
[ 2.550349] mmc:failed to get gpios
[ 2.552599] random: fast init done
[ 2.558859] sunxi-mmc sdc2: sdc set ios:clk 0Hz bm PP pm UP vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.586091] sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.614101] sunxi-mmc sdc2: detmode:alway in(non removable)
[ 2.614122] sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.622507] sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.623594] sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm OD pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.634458] sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm OD pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.634544] sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm OD pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.647405] sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm OD pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.692229] sun50iw10p1-pinctrl pio: expect_func as:uart0_jtag, but muxsel(3) is func:jtag0
[ 2.701643] sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.712536] sun50iw10p1-pinctrl pio: expect_func as:uart0_jtag, but muxsel(3) is func:jtag0
[ 2.712547] sun50iw10p1-pinctrl pio: expect_func as:uart0_jtag, but muxsel(3) is func:uart0
[ 2.712558] sun50iw10p1-pinctrl pio: expect_func as:uart0_jtag, but muxsel(3) is func:jtag0
[ 2.712569] sun50iw10p1-pinctrl pio: expect_func as:uart0_jtag, but muxsel(3) is func:uart0
[ 2.712580] sun50iw10p1-pinctrl pio: expect_func as:uart0_jtag, but muxsel(3) is func:jtag0
[ 2.713314] sunxi-mmc sdc0: SD/MMC/SDIO Host Controller Driver(v3.46 2020-6-1 11:33-202006021635)
[ 2.713460] sunxi-mmc sdc0: ***ctl-spec-caps*** 8
[ 2.713520] sunxi-mmc sdc0: No vmmc regulator found
[ 2.713525] sunxi-mmc sdc0: No vqmmc regulator found
[ 2.713529] sunxi-mmc sdc0: No vdmmc regulator found
[ 2.713534] sunxi-mmc sdc0: No vd33sw regulator found
[ 2.713538] sunxi-mmc sdc0: No vd18sw regulator found
[ 2.713543] sunxi-mmc sdc0: No vq33sw regulator found
[ 2.713547] sunxi-mmc sdc0: No vq18sw regulator found
[ 2.714391] sunxi-mmc sdc0: set host busy
[ 2.714481] sunxi-mmc sdc0: Got CD GPIO
[ 2.715324] sunxi-mmc sdc0: sdc set ios:clk 0Hz bm PP pm UP vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.715351] sunxi-mmc sdc0: no vqmmc,Check if there is regulator
[ 2.734093] sunxi-mmc sdc0: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.754451] sunxi-mmc sdc0: detmode:gpio irq
[ 2.754475] sunxi-mmc sdc0: sdc set ios:clk 0Hz bm PP pm OFF vdd 0 width 1 timing LEGACY(SDR12) dt B
[ 2.756641] sunxi-mmc sdc1: SD/MMC/SDIO Host Controller Driver(v3.46 2020-6-1 11:33-202006021635)
[ 2.756761] sunxi-mmc sdc1: ***ctl-spec-caps*** 8
[ 2.756821] sunxi-mmc sdc1: No vmmc regulator found
[ 2.756825] sunxi-mmc sdc1: No vqmmc regulator found
[ 2.756830] sunxi-mmc sdc1: No vdmmc regulator found
[ 2.756834] sunxi-mmc sdc1: No vd33sw regulator found
[ 2.756838] sunxi-mmc sdc1: No vd18sw regulator found
[ 2.756843] sunxi-mmc sdc1: No vq33sw regulator found
[ 2.756847] sunxi-mmc sdc1: No vq18sw regulator found
[ 2.757663] sunxi-mmc sdc1: set host busy
[ 2.757763] mmc:failed to get gpios
[ 2.757790] sunxi-mmc sdc1: min-frequency:400000
[ 2.758483] sunxi-mmc sdc1: sdc set ios:clk 0Hz bm PP pm UP vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.758505] sunxi-mmc sdc1: no vqmmc,Check if there is regulator
[ 2.769658] sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing MMC-HS(SDR20) dt B
[ 2.774984] sunxi-mmc sdc2: sdc set ios:clk 50000000Hz bm PP pm ON vdd 21 width 1 timing MMC-HS(SDR20) dt B
[ 2.778093] sunxi-mmc sdc1: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.780496] sunxi-mmc sdc2: sdc set ios:clk 50000000Hz bm PP pm ON vdd 21 width 8 timing MMC-HS(SDR20) dt B
[ 2.797400] sunxi-mmc sdc2: sdc set ios:clk 50000000Hz bm PP pm ON vdd 21 width 8 timing MMC-DDR52 dt B
[ 2.798097] sunxi-mmc sdc1: detmode:manually by software
[ 2.800400] usbcore: registered new interface driver usbhid
[ 2.800403] usbhid: USB HID core driver
[ 2.803194] codec supply avcc not found, using dummy regulator
[ 2.803214] mmc0: new DDR MMC card at address 0001
[ 2.803467] [sunxi_internal_codec_probe]: audiocodec avcc set vol failed
[ 2.803479] codec supply cpvin not found, using dummy regulator
[ 2.803687] [sunxi_internal_codec_probe]: audiocodec cpvin set vol failed
[ 2.804322] sunxi-internal-codec codec: pa_power_always_on get failed and set it off.
[ 2.804329] digital_vol:0, lineout_vol:26, mic1gain:31, mic2gain:31 pa_msleep:120, pa_level:1, pa_power_always_on:0
[ 2.804337] adcdrc_cfg:0, adchpf_cfg:0, dacdrc_cfg:0, dachpf:0
[ 2.804542] sunxi-internal-codec codec: [sunxi_internal_codec_probe] codec probe finished.
[ 2.806450] [sunxi_card_init] card init finished.
[ 2.806915] Audio: [soc_new_pcm] -> 2699
[ 2.806919] Audio: [soc_new_pcm] -> 2718
[ 2.807684] Audio: [soc_new_pcm] -> 2746
[ 2.808938] sunxi-mmc sdc1: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.809581] mmcblk0: mmc0:0001 AJTD4R 14.6 GiB
[ 2.810153] sunxi-codec-machine sndcodec: sun50iw10codec <-> codec mapping ok
[ 2.814383] mmcblk0boot0: mmc0:0001 AJTD4R partition 1 4.00 MiB
[ 2.815047] mmcblk0boot1: mmc0:0001 AJTD4R partition 2 4.00 MiB
[ 2.815655] sunxi-mmc sdc1: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.817157] input: sun50iw10-codec sunxi Audio Jack as /devices/platform/soc/sndcodec/sound/card0/input2
[ 2.818361] [audio] hp_detect_case: 0
[ 2.818827] sunxi-codec-machine sndcodec: [sunxi_card_dev_probe] register card finished.
[ 2.819225] sunxi-mmc sdc1: card claims to support voltages below defined range
[ 2.819399] u32 classifier
[ 2.819401] Actions configured
[ 2.819408] Netfilter messages via NETLINK v0.30.
[ 2.819786] mmcblk0rpmb: mmc0:0001 AJTD4R partition 3 4.00 MiB
[ 2.820660] nf_conntrack version 0.5.0 (8192 buckets, 32768 max)
[ 2.822238] ctnetlink v0.93: registering with nfnetlink.
[ 2.851586] mmcblk0: p1 p2 p3 p4 p5 p6
[ 2.851701] ip_tables: (C) 2000-2006 Netfilter Core Team
[ 2.856346] Initializing XFRM netlink socket
[ 2.864155] NET: Registered protocol family 10
[ 2.871073] NET: Registered protocol family 17
[ 2.872101] 8021q: 802.1Q VLAN Support v1.8
[ 2.913149] get usb_detect_mode is fail, 22
[ 2.916029] sunxi-rtc rtc: setting system clock to 1970-01-01 00:00:04 UTC (4)
[ 2.916738] usb1-vbus: disabling
[ 2.916743] vdd_3v3: disabling
[ 2.916748] ALSA device list:
[ 2.916751] #0: sun50iw10-codec
[ 2.917106] Freeing unused kernel memory: 448K
[ 3.029967] sunxi-mmc sdc1: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing SD-HS(SDR25) dt B
[ 3.030127] sunxi-mmc sdc1: sdc set ios:clk 50000000Hz bm PP pm ON vdd 21 width 1 timing SD-HS(SDR25) dt B
[ 3.035384] sunxi-mmc sdc1: sdc set ios:clk 50000000Hz bm PP pm ON vdd 21 width 4 timing SD-HS(SDR25) dt B
[ 3.318595] mmc2: new high speed SDIO card at address 0001
[/init]: getty is ttyS0
[/init]: RootDevice is "/dev/mmcblk0p4" , GPT_SUPPORT=1
[/init]: Try to load EMMC ...
e2fsck 1.42.12 (29-Aug-2014)
/dev/mmcblk0p4: recovering journal
Setting free inodes count to 8006 (was 8007)
Setting free blocks count to 4106 (was 4107)
/dev/mmcblk0p4: clean, 1210/9216 files, 32758/368[ 3.389694] EXT4-fs (mmcblk0p4): barriers disabled
64 blocks
[ 3.400083] EXT4-fs (mmcblk0p4): mounted filesystem with ordered data mode. Opts: noauto_da_alloc,barrier=0,data=ordered
mount: mounting proc on /proc failed: Device or resource busy
mount: mounting sysfs on /sys fa[ 3.545627] EXT4-fs (mmcblk0p4): re-mounted. Opts: nobarrier,noauto_da_alloc,data=ordered
iled: Device or resource busy
insmod: can't insert '/lib/modules/4.9.170/disp.ko': No such file or directory
boot-res device: /dev/mmcblk0p1
[ 3.597350] FAT-fs (mmcblk0p1): Volume was not properly unmounted. Some data may be corrupt. Please run fsck.
login[906]: root login on 'ttyS0'
nand activated #0
[ 3.768686] get ctp_power is fail, -22
[ 3.773044] sunxi_ctp_startup: ctp_power_io is invalid.
[ 3.778995] get ctp_gesture_wakeup fail, no gesture wakeup
[ 3.785188] 5-0014 supply ctp not found, using dummy regulator
[ 3.938301] sunxi_i2c_do_xfer()1923 - [i2c5] incomplete xfer (status: 0x20, dev addr: 0x14)
[ 3.947878] sunxi_i2c_do_xfer()1923 - [i2c5] incomplete xfer (status: 0x20, dev addr: 0x14)
[ 3.957452] sunxi_i2c_do_xfer()1923 - [i2c5] incomplete xfer (status: 0x20, dev addr: 0x14)
[ 3.967024] sunxi_i2c_do_xfer()1923 - [i2c5] incomplete xfer (status: 0x20, dev addr: 0x14)
[ 3.976628] sunxi_i2c_do_xfer()1923 - [i2c5] incomplete xfer (status: 0x20, dev addr: 0x14)
[ 3.986050] <<-GTP-ERROR->> I2C Read: 0x8140, 6 bytes failed, errcode: -70! Process reset.
[ 4.102120] <<-GTP-ERROR->> GTP read version failed
[ 4.107621] Read version failed.
[ 4.135322] input: gt9xxnew_ts as /devices/virtual/input/input3
script_fetch device name is ft6236
[ 9.298087]
[ 9.298087] insmod_device_driver
[ 9.298087]
-------swith to adb....
[ 9.793978] file system registered
init adb main
[ 9.833917] read descriptors
Handling main()
[ 9.837605] read strings
Time out,can not find tp event num /dev/input/event
camera activated #0
camera not activated
root@dragonboard:~# dragonboard(msg): core: parse script /boot/test_config.fex...
dragonboard(debug): the length of script is 10137
dragonboard(debug): script shmid = 0
dragonboard(msg): core: init script...
dragonboard(debug): script: main key count #23
dragonboard(msg): script: V1.0.0
dragonboard(msg): core: init view...
dragonboard(msg): core: parse test case from script...
dragonboard(msg): core: total test cases #10
dragonboard(msg): core: total test cases_auto #6
dragonboard(msg): core: total test cases_manual #4
dragonboard(debug): view: init...
dragonboard(msg): directfb view init...
dragonboard(msg): disp_output_type=1
~~~~~~~~~~~~~~~~~~~~~~~~~~| DirectFB 1.4.11 |~~~~~~~~~~~~~~~~~~~~~~~~~~
(c) 2001-2010 The world wide DirectFB Open Source Community
(c) 2000-2004 Convergence (integrated media) GmbH
----------------------------------------------------------------
(*) DirectFB/Core: Single Application Core. (2012-05-04 09:52)
(*) Direct/Memcpy: Using libc memcpy()
(*) DirectFB/FBDev: Found '' (ID 0) with frame buffer at 0xff800000, 8000k (MMIO 0x00000000, 0k)
(*) Direct/Thread: Started 'Keyboard Input' (-1) [INPUT OTHER/OTHER 0/0] <8388608>...
(*) DirectFB/Input: Keyboard 0.9 (directfb.org)
(*) DirectFB/Graphics: Generic Software Rasterizer 0.6 (directfb.org)
(*) DirectFB/Core/WM: Default 0.3 (directfb.org)
(*) FBDev/Mode: Setting 800x1280 RGB32
(*) FBDev/Mode: Switched to 800x1280 (virtual 800x1280) at 32 bit (RGB32), pitch 3200
(*) FBDev/Mode: Setting 800x1280 RGB32
(*) FBDev/Mode: Switched to 800x1280 (virtual 800x1280) at 32 bit (RGB32), pitch 3200
dragonboard(msg): screen_width: 800, sceen_height: 1280
(*) Direct/Interface: Loaded 'FT2' implementation of 'IDirectFBFont'.
dragonboard(debug): manual test case window init...
dragonboard(debug): manual_window.desc.height=188
dragonboard(debug): auto test case window init...
dragonboard(debug): misc window init...
dragonboard(debug): reboot button init...
dragonboard(debug): poweroff button init...
dragonboard(debug): mic window init...
dragonboard(debug): wifi list window init...
this is the mic_audio_receive thread...
this is the wifi_hot_point_proccess thread...
dragonboard(msg): ########screen_width=800
dragonboard(msg): ########screen_height=1280
dragonboard(msg): tp draw color: 0xffffffff
------------- to open video node
-------swith to adb done!
[ 11.004083] sunxi_set_cur_vol_work()403 WARN: get power supply failed
[ 11.094550] android_work: sent uevent USB_STATE=CONNECTED
[ 11.100650] sunxi_set_cur_vol_work()403 WARN: get power supply failed
[ 11.224352] configfs-gadget gadget: high-speed config #1: c
[ 11.230745] android_work: sent uevent USB_STATE=CONFIGURED
[ 12.406947] adbd (1023): /proc/1023/oom_adj is deprecated, please use /proc/1023/oom_score_adj instead.
[ 13.831565] random: crng init done
dragonboard(error): Can't not open /dev/video0
dragonboard(msg): buildin_tc_init...
view/df_view_pad.c <2071>:
(#) DirectFBError [dfb->GetInputDevice(dfb, 1, &tp_dev)]: Requested ID not found!
(!!!) *** WARNING [Application exited without deinitialization of DirectFB!] *** [core.c:881 in dfb_core_deinit_check()]
(!!!) *** WARNING [still objects in 'Window Pool'] *** [object.c:241 in fusion_object_pool_destroy()]
(!!!) *** WARNING [still objects in 'Layer Region Pool'] *** [object.c:241 in fusion_object_pool_destroy()]
(!!!) *** WARNING [still objects in 'Layer Context Pool'] *** [object.c:241 in fusion_object_pool_destroy()]
(!!!) *** WARNING [still objects in 'Surface Pool'] *** [object.c:241 in fusion_object_pool_destroy()]
root@dragonboard:~#开机画面显示在 tft08006 上面，测试画面也显示在tft08006上面，
st7701 无背光，估计也没显示。
cat /dev/urandom > /dev/fb0 tft08006无反应
cat /dev/urandom > /dev/fb1 tft08006有雪花
#23 Re: 全志 SOC » 收到小智SW106开发板到手，试着玩一玩 » 2022-06-27 10:03:10
#24 Re: 全志 SOC » 收到小智SW106开发板到手，试着玩一玩 » 2022-06-27 09:57:53
在楼上 board.dts 基础上
改为：
disp_mode = <0>;[253]HELLO! BOOT0 is starting!
[256]BOOT0 commit : dc54be6
[258]set pll start
[260]periph0 has been enabled
[264]set pll end
[266][pmu]: bus read error
[268][pmu]: bus read error
[276]vaild para:1 select dram para0
[280]board init ok
[282]DRAM BOOT DRIVE INFO: V0.19
[285]the chip id is 0x2400
[287]the chip id is 0x2400
[290]the chip id is 0x2400
[293]the chip id is 0x2400
[295]the chip id is 0x2400
[298]chip id check OK
[300]DRAM_VCC set to 1100 mv
[303]DRAM CLK =792 MHZ
[305]DRAM Type =8 (3:DDR3,4:DDR4,7:LPDDR3,8:LPDDR4)
[313]DRAM SIZE =1024 MBytes, para1 = 30fa, para2 = 4000000, dram_tpr13 = 6063
[326]DRAM simple test OK.
[328]dram size =1024
[331]chipid = 53002400
[333]nsi init ok 2020-4-7
[336]card no is 2
[338]sdcard 2 line count 8
[341][mmc]: mmc driver ver 2020-05-25 09:40
[350][mmc]: Wrong media type 0x0
[353][mmc]: ***Try SD card 2***
[357][mmc]: mmc 2 cmd 8 timeout, err 100
[361][mmc]: mmc 2 cmd 8 err 100
[364][mmc]: mmc 2 send if cond failed
[369][mmc]: mmc 2 cmd 55 timeout, err 100
[373][mmc]: mmc 2 cmd 55 err 100
[376][mmc]: mmc 2 send app cmd failed
[380][mmc]: ***Try MMC card 2***
[405][mmc]: RMCA OK!
[407][mmc]: mmc 2 bias 4
[410][mmc]: MMC 5.1
[412][mmc]: HSSDR52/SDR25 8 bit
[415][mmc]: 50000000 Hz
[417][mmc]: 14910 MB
[419][mmc]: ***SD/MMC 2 init OK!!!***
[476]Loading boot-pkg Succeed(index=0).
[480]Entry_name = u-boot
[487]Entry_name = monitor
[490]Entry_name = scp
[498]set arisc reset to de-assert state
[502]Entry_name = dtb
[506]tunning data addr:0x4a0003e8
[509]Jump to second Boot.
NOTICE: BL3-1: v1.0(debug):cc1f5d7
NOTICE: BL3-1: Built : 10:23:25, 2020-04-08
NOTICE: BL3-1 commit: 8
ERROR: Error initializing runtime service tspd_fast
NOTICE: BL3-1: Preparing for EL3 exit to normal world
NOTICE: BL3-1: Next image address = 0x4a000000
NOTICE: BL3-1: Next image spsr = 0x1d3
U-Boot 2018.05 (Apr 17 2022 - 05:02:05 +0000) Allwinner Technology
[00.588]CPU: Allwinner Family
[00.590]Model: sun50iw10
I2C: ready
[00.842]DRAM: 1 GiB
[00.845]Relocation Offset is: 35f13000
[00.875]secure enable bit: 0
[00.877][ARISC] :arisc initialize
[00.882][ARISC ERROR] :get [allwinner,sunxi-hwspinlock] device node error
CACHE: Misaligned operation at range [7ffa6d88, 7ffa70a0]
[00.894][ARISC] :arisc para ok
[SCP] :sunxi-arisc driver begin startup 2
[SCP] :0x1
[SCP] :arisc version: [ca79327ac09021f1a13c79dd97da281c7be9a63arid-]
[SCP] :arisc startup ready
[SCP] :arisc startup notify message feedback
[SCP] :send hard sync feedback message: 0x900200
[SCP] :sunxi-arisc driver v1.10 is starting
[00.925][ARISC] :sunxi-arisc driver startup succeeded
[00.930]pmu_axp81X_probe pmic_bus_read fail
[00.934]pmu_axp858_probe pmic_bus_read fail
[00.938]PMU: no found
[00.940]CPU=1008 MHz,PLL6=600 Mhz,AHB=200 Mhz, APB1=100Mhz MBus=400Mhz
[00.947]init_clocks:finish
[00.949]not need merged sunxi overlay
[00.953]drv_disp_init
request pwm success, pwm7:pwm7:0x300a000.
request pwm success, pwm8:pwm8:0x300a000.
[00.991]drv_disp_init finish
[00.999]gic: sec monitor mode
[01.002]flash init start
[01.004]workmode = 0,storage type = 2
[01.007][mmc]: mmc driver ver uboot2018:2020-5-25 9:26:00-20201021190
[01.021][mmc]: SUNXI SDMMC Controller Version:0x50300
[01.046][mmc]: Best spd md: 2-HSDDR52/DDR50, freq: 2-50000000, Bus width: 8
[01.053]sunxi flash init ok
[01.056]Loading Environment from SUNXI_FLASH... OK
[01.064]no secure os for keybox operation
[01.068]try to burn key
[01.071]out of usb burn from boot: not need burn key
[01.076]boot_gui_init:start
[01.080]set disp.dev2_output_type fail. using defval=0
[01.085]ST7701 =====================LCD_open_flow
[01.089]disp 1, clk: pll(176000000),clk(176000000),dclk(11000000) dsi_rate(176000000)
clk real:pll(288000000),clk(288000000),dclk(18000000) dsi_rate(0)
[01.103]ST7701 =====================LCD_open_flow
[01.107]ST7701 =====================LCD_power_on
[01.415]switch device: sel=1, type=1, mode=4, format=0, bits=0, eotf=4, cs=260
[01.422]boot_gui_init:finish
partno erro : can't find partition bootloader
[01.435]ST7701 =====================LCD_open_flow
[01.440]2022-06-19 22:37 build ST7701 =====================LCD_panel_init
[01.446]2022-06-19 22:37 build ST7701 =====================LCD_panel_init
[01.453]2022-06-19 22:37 build ST7701 =====================LCD_panel_init
[01.459]2022-06-19 22:37 build ST7701 =====================LCD_panel_init
[01.466]2022-06-19 22:37 build ST7701 =====================LCD_panel_init
[01.472]2022-06-19 22:37 build ST7701 =====================LCD_panel_init
691254 bytes read in 244 ms (2.7 MiB/s)
[01.687]read item0 copy0
[01.689]Item0 (Map) magic is bad
[01.692]the secure storage item0 copy0 magic is bad
[01.697]Item0 (Map) m[01.698]ST7701 =====================LCD_open_flow
[01.703]soc ic_ver:0x0, qa_val:0x0, markid:0x53002400 dclk[0-9999]
agic is bad
[01.710]the secure storage item0 copy1 magic is bad
[01.714]Item0 (Map) magic is bad
[01.717]the secure storage map is empty
[01.721]no item name device_unlock in the map
[01.725]no item name fastboot_status_flag in the map
[01.730]sunxi secure storage has no flag
[01.735][mmc]: delete mmc-hs400-1_8v from dtb
[01.739][mmc]: delete mmc-hs200-1_8v from dtb
[01.743][mmc]: get max-frequency ok 50000000 Hz
[01.749](weak)update dtb dram start
[01.753]update dtb dram end
[01.756]update dts
[01.758]no item name snum in the map
partno erro : can't find partition private
[01.768]no item name mac in the map
partno erro : can't find partition private
[01.778]no item name wifi_mac in the map
partno erro : can't find partition private
[01.788]no item name bt_mac in the map
partno erro : can't find partition private
[01.799]no item name specialstr in the map
partno erro : can't find partition[01.809]ST7701 =====================LCD_open_flow
[01.813]ST7701 =====================LCD_bl_open
[01.820]ST7701 =====================LCD_open_flow
[01.825]ST7701 =====================LCD_open_flow
[01.829]LCD open finish
private
[01.834]update part info
[01.838]key 0
[01.841]no misc partition is found
[01.844]update bootcmd
[01.846]serial num is: 0c001415a0c086d218d
Hit any key to stop autoboot: 0
[01.859]partinfo: name boot, start 0x22000, size 0x10000
[02.024]in boot normal mode,pass normal para to cmdline
[02.030]android.hardware = sun50iw10p1
[02.033]androidboot.dtbo_idx can't findAndroid's image name: sun50i_arm64
[02.102]Starting kernel ...
[02.105][mmc]: mmc exit start
[02.124][mmc]: mmc 2 exit ok
[ 0.000000] Booting Linux on physical CPU 0x0
[ 0.000000] Linux version 4.9.170 (whycan@ubuntu) (gcc version 5.3.1 20160412 (Linaro GCC 5.3-2016.05) ) #9 SMP PREEMPT Sun Jun 26 21:55:05 CST 2022
[ 0.000000] Boot CPU: AArch64 Processor [410fd034]
[ 0.000000] bootconsole [earlycon0] enabled
[ 0.000000] disp reserve base 0x7bf61080 ,size 0x300000
[ 0.000000] cma: Reserved 8 MiB at 0x000000007f800000
[ 0.000000] On node 0 totalpages: 262144
[ 0.000000] DMA zone: 4096 pages used for memmap
[ 0.000000] DMA zone: 0 pages reserved
[ 0.000000] DMA zone: 262144 pages, LIFO batch:31
[ 0.000000] psci: probing for conduit method from DT.
[ 0.000000] psci: PSCIv1.0 detected in firmware.
[ 0.000000] psci: Using standard PSCI v0.2 function IDs
[ 0.000000] psci: Trusted OS migration not required
[ 0.000000] psci: SMC Calling Convention v1.0
[ 0.000000] percpu: Embedded 21 pages/cpu @ffffffc03f70b000 s45696 r8192 d32128 u86016
[ 0.000000] pcpu-alloc: s45696 r8192 d32128 u86016 alloc=21*4096
[ 0.000000] pcpu-alloc: [0] 0 [0] 1 [0] 2 [0] 3
[ 0.000000] Detected VIPT I-cache on CPU0
[ 0.000000] CPU features: enabling workaround for ARM erratum 845719
[ 0.000000] Built 1 zonelists in Zone order, mobility grouping on. Total pages: 258048
[ 0.000000] Kernel command line: earlyprintk=sunxi-uart,0x05000000 initcall_debug=0 console=ttyS0,115200 loglevel=8 root=/dev/mmcblk0p4 init=/init partitions=boot-resource@mmcblk0p1:env@mmcblk0p2:boot@mmcblk0p3:rootfs@mmcblk0p4:klog@mmcblk0p5:UDISK@mmcblk0p6 cma=8M snum=0c001415a0c086d218d mac_addr= wifi_mac= bt_mac= specialstr= gpt=1 androidboot.mode=normal androidboot.serialno=0c001415a0c086d218d androidboot.hardware=sun50iw10p1 boot_type=2 androidboot.boot_type=2 androidboot.secure_os_exist=0 androidboot.trustchain=false gpt=1 uboot_message=2018.05(04/17/2022-05:02:05) disp_reserve=3145728,0x7bf61080 bootreason=unknow
[ 0.000000] log_buf_len individual max cpu contribution: 4096 bytes
[ 0.000000] log_buf_len total cpu_extra contributions: 12288 bytes
[ 0.000000] log_buf_len min size: 16384 bytes
[ 0.000000] log_buf_len: 32768 bytes
[ 0.000000] early log buf free: 14220(86%)
[ 0.000000] PID hash table entries: 4096 (order: 3, 32768 bytes)
[ 0.000000] Dentry cache hash table entries: 131072 (order: 8, 1048576 bytes)
[ 0.000000] Inode-cache hash table entries: 65536 (order: 7, 524288 bytes)
[ 0.000000] Memory: 988592K/1048576K available (6590K kernel code, 1310K rwdata, 2020K rodata, 448K init, 267K bss, 51792K reserved, 8192K cma-reserved)
[ 0.000000] Virtual kernel memory layout:
[ 0.000000] modules : 0xffffff8000000000 - 0xffffff8008000000 ( 128 MB)
[ 0.000000] vmalloc : 0xffffff8008000000 - 0xffffffbebfff0000 ( 250 GB)
[ 0.000000] .text : 0xffffff8008080000 - 0xffffff80086f0000 ( 6592 KB)
[ 0.000000] .rodata : 0xffffff80086f0000 - 0xffffff80088f0000 ( 2048 KB)
[ 0.000000] .init : 0xffffff80088f0000 - 0xffffff8008960000 ( 448 KB)
[ 0.000000] .data : 0xffffff8008960000 - 0xffffff8008aa7808 ( 1311 KB)
[ 0.000000] .bss : 0xffffff8008aa7808 - 0xffffff8008aea4c8 ( 268 KB)
[ 0.000000] fixed : 0xffffffbefe7fb000 - 0xffffffbefec00000 ( 4116 KB)
[ 0.000000] PCI I/O : 0xffffffbefee00000 - 0xffffffbeffe00000 ( 16 MB)
[ 0.000000] vmemmap : 0xffffffbf00000000 - 0xffffffc000000000 ( 4 GB maximum)
[ 0.000000] 0xffffffbf00000000 - 0xffffffbf01000000 ( 16 MB actual)
[ 0.000000] memory : 0xffffffc000000000 - 0xffffffc040000000 ( 1024 MB)
[ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1
[ 0.000000] Preemptible hierarchical RCU implementation.
[ 0.000000] Build-time adjustment of leaf fanout to 64.
[ 0.000000] NR_IRQS:64 nr_irqs:64 0
[ 0.000000] arm_arch_timer: Architected cp15 timer(s) running at 24.00MHz (virt).
[ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns
[ 0.000004] sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns
[ 0.008203] Console: colour dummy device 80x25
[ 0.012414] Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=96000)
[ 0.022619] pid_max: default: 32768 minimum: 301
[ 0.027667] Mount-cache hash table entries: 2048 (order: 2, 16384 bytes)
[ 0.033897] Mountpoint-cache hash table entries: 2048 (order: 2, 16384 bytes)
[ 0.043976] sched-energy: CPU device node has no sched-energy-costs
[ 0.047280] Invalid sched_group_energy for CPU0
[ 0.051749] CPU0: update cpu_capacity 1024
[ 0.067888] ASID allocator initialised with 32768 entries
[ 0.124098] Detected VIPT I-cache on CPU1
[ 0.124150] Invalid sched_group_energy for CPU1
[ 0.124153] CPU1: update cpu_capacity 1024
[ 0.124156] CPU1: Booted secondary processor [410fd034]
[ 0.152142] Detected VIPT I-cache on CPU2
[ 0.152171] Invalid sched_group_energy for CPU2
[ 0.152174] CPU2: update cpu_capacity 1024
[ 0.152177] CPU2: Booted secondary processor [410fd034]
[ 0.180207] Detected VIPT I-cache on CPU3
[ 0.180234] Invalid sched_group_energy for CPU3
[ 0.180236] CPU3: update cpu_capacity 1024
[ 0.180239] CPU3: Booted secondary processor [410fd034]
[ 0.180313] Brought up 4 CPUs
[ 0.230949] SMP: Total of 4 processors activated.
[ 0.235638] CPU features: detected feature: 32-bit EL0 Support
[ 0.241443] CPU features: detected feature: Kernel page table isolation (KPTI)
[ 0.251461] CPU: All CPU(s) started at EL1
[ 0.252724] alternatives: patching kernel code
[ 0.257623] Invalid sched_group_energy for CPU3
[ 0.261641] Invalid sched_group_energy for Cluster3
[ 0.266490] Invalid sched_group_energy for CPU2
[ 0.270997] Invalid sched_group_energy for Cluster2
[ 0.275849] Invalid sched_group_energy for CPU1
[ 0.280356] Invalid sched_group_energy for Cluster1
[ 0.285209] Invalid sched_group_energy for CPU0
[ 0.289716] Invalid sched_group_energy for Cluster0
[ 0.295709] devtmpfs: initialized
[ 0.541872] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041785100000 ns
[ 0.546000] futex hash table entries: 1024 (order: 5, 131072 bytes)
[ 0.552846] atomic64_test: passed
[ 0.555502] pinctrl core: initialized pinctrl subsystem
[ 0.565605] NET: Registered protocol family 16
[ 0.569539] dump_class_init,861, success
[ 0.572853] sunxi iommu: irq = 8
[ 0.573685] vdso: 2 pages (1 code @ ffffff80086f7000, 1 data @ ffffff8008964000)
[ 0.580938] DMA: preallocated 256 KiB pool for atomic allocations
[ 0.597673] sun50iw10p1-r-pinctrl r_pio: initialized sunXi PIO driver
[ 0.673008] sun50iw10p1-pinctrl pio: initialized sunXi PIO driver
[ 0.685998] iommu: Adding device 1c0e000.ve to group 0
[ 0.704267] iommu: Adding device 6000000.disp to group 0
[ 0.706843] iommu: Adding device 6480000.g2d to group 0
[ 0.723171] iommu: Adding device csi0 to group 0
[ 0.724404] iommu: Adding device csi1 to group 0
[ 0.729688] iommu: Adding device 2108000.tdm to group 0
[ 0.733133] iommu: Adding device 2100000.isp to group 0
[ 0.738406] iommu: Adding device 2102000.isp to group 0
[ 0.743176] iommu: Adding device 2110000.scaler to group 0
[ 0.748699] iommu: Adding device 2110400.scaler to group 0
[ 0.754116] iommu: Adding device 2110800.scaler to group 0
[ 0.759554] iommu: Adding device 2110c00.scaler to group 0
[ 0.847158] pwm module init!
[ 0.857331] sunxi-pm debug v3.10
[ 0.863980] SCSI subsystem initialized
[ 0.865964] usbcore: registered new interface driver usbfs
[ 0.867913] usbcore: registered new interface driver hub
[ 0.873106] usbcore: registered new device driver usb
[ 0.878481] sunxi_i2c_adap_init()2649 - init
[ 0.883372] sunxi_i2c_probe()2372 - [i2c5] twi_drv_used = 0
[ 0.887688] sunxi_i2c_probe()2379 - [i2c5] twi_pkt_interval = 0
[ 0.893591] twi5 supply twi not found, using dummy regulator
[ 0.899466] twi_request_gpio()458 - [i2c5] init name: (null)
[ 0.906944] media: Linux media interface: v0.10
[ 0.909588] Linux video capture interface: v2.00
[ 0.916320] ion_parse_dt_heap_common: id 0 type 0 name sys_user align 1000
[ 0.921426] ion_parse_dt_heap_common: id 4 type 4 name cma align 1000
[ 0.927801] ion_parse_dt_heap_common: id 6 type 6 name secure align 1000
[ 0.934769] ion_heap_create: Invalid heap type 6
[ 0.938950] Advanced Linux Sound Architecture Driver Initialized.
[ 0.947461] Bluetooth: Core ver 2.22
[ 0.948205] NET: Registered protocol family 31
[ 0.952516] Bluetooth: HCI device and connection manager initialized
[ 0.958868] Bluetooth: HCI socket layer initialized
[ 0.963722] Bluetooth: L2CAP socket layer initialized
[ 0.968872] Bluetooth: SCO socket layer initialized
[ 0.976203] clocksource: Switched to clocksource arch_sys_counter
[ 1.032598] udc_init,0
[ 1.033006] NET: Registered protocol family 2
[ 1.048725] TCP established hash table entries: 8192 (order: 4, 65536 bytes)
[ 1.050211] TCP bind hash table entries: 8192 (order: 5, 131072 bytes)
[ 1.056823] TCP: Hash tables configured (established 8192 bind 8192)
[ 1.063123] UDP hash table entries: 512 (order: 2, 16384 bytes)
[ 1.068891] UDP-Lite hash table entries: 512 (order: 2, 16384 bytes)
[ 1.075979] NET: Registered protocol family 1
[ 1.080275] Unpacking initramfs...
[ 1.287010] Freeing initrd memory: 2544K
[ 1.294519] workingset: timestamp_bits=61 max_order=18 bucket_order=0
[ 1.385552] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[ 1.387560] ntfs: driver 2.1.32 [Flags: R/W].
[ 1.399031] io scheduler noop registered
[ 1.399076] io scheduler deadline registered
[ 1.403435] io scheduler cfq registered (default)
[ 1.412582] [DISP]disp_module_init
[ 1.414743] [DISP] disp_init,line:2260:
[ 1.414780] smooth display screen:1 type:1 mode:4
[ 1.494229] [DISP] lcd_clk_config,line:665:
[ 1.494274] disp 1, clk: pll(176000000),clk(176000000),dclk(11000000) dsi_rate(176000000)
[ 1.494274] clk real:pll(288000000),clk(288000000),dclk(18000000) dsi_rate(0)
[ 1.497357] [DISP]disp_module_init finish
[ 1.521002] uart uart0: get regulator failed
[ 1.521062] uart0 supply uart not found, using dummy regulator
[ 1.526000] uart0: ttyS0 at MMIO 0x5000000 (irq = 349, base_baud = 1500000) is a SUNXI
[ 1.533372] sw_console_s▒[ 1.541445] console [ttyS0] enabled
[ 1.541445] console [ttyS0] enabled
[ 1.545458] bootconsole [earlycon0] disabled
[ 1.545458] bootconsole [earlycon0] disabled
[ 1.555873] uart uart1: get regulator failed
[ 1.562717] uart1 supply uart not found, using dummy regulator
[ 1.569833] uart1: ttyS1 at MMIO 0x5000400 (irq = 350, base_baud = 1500000) is a SUNXI
[ 1.581347] misc dump reg init
[ 1.588660] [drm] Initialized
[ 1.592771] Unable to detect cache hierarchy for CPU 0
[ 1.598736] [NAND][NE] Not found valid nand node on dts
[ 1.605089] sunxi-bt soc@03000000:bt@0: Missing bt_power.
[ 1.611175] sunxi-bt soc@03000000:bt@0: bt_power_name ((null))
[ 1.617749] sunxi-bt soc@03000000:bt@0: Missing bt_io_regulator.
[ 1.624520] sunxi-bt soc@03000000:bt@0: io_regulator_name ((null))
[ 1.631525] sunxi-bt soc@03000000:bt@0: bt_rst gpio=357 mul-sel=1 pull=-1 drv_level=-1 data=0
[ 1.641690] sunxi-bt soc@03000000:bt@0: devm_pinctrl_get() failed!
[ 1.650144] sunxi-wlan soc@03000000:wlan@0: wlan_busnum (1)
[ 1.656429] sunxi-wlan soc@03000000:wlan@0: Missing wlan_power.
[ 1.663103] sunxi-wlan soc@03000000:wlan@0: wlan_power_name ((null))
[ 1.670260] sunxi-wlan soc@03000000:wlan@0: Missing wlan_io_regulator.
[ 1.677616] sunxi-wlan soc@03000000:wlan@0: io_regulator_name ((null))
[ 1.684991] sunxi-wlan soc@03000000:wlan@0: wlan_regon gpio=362 mul-sel=1 pull=-1 drv_level=-1 data=0
[ 1.695807] sunxi-wlan soc@03000000:wlan@0: get gpio chip_en failed
[ 1.702868] sunxi-wlan soc@03000000:wlan@0: get gpio power_en failed
[ 1.710042] sunxi-wlan soc@03000000:wlan@0: wlan_hostwake gpio=359 mul-sel=1 pull=-1 drv_level=-1 data=0
[ 1.721410] sunxi-wlan soc@03000000:wlan@0: clk not config
[ 1.727594] sunxi-wlan soc@03000000:wlan@0: dcxo not config
[ 1.733954] sunxi-wlan soc@03000000:wlan@0: pinctrl_lookup_state(default) failed! return ffffffffffffffed
[ 1.746709] [ADDR_MGT] addr_mgt_probe: success.
[ 1.757236] libphy: Fixed MDIO Bus: probed
[ 1.761863] tun: Universal TUN/TAP device driver, 1.6
[ 1.767556] tun: (C) 1999-2004 Max Krasnyansky <maxk@qualcomm.com>
[ 1.777982] gmac-power0: NULL
[ 1.781338] gmac-power1: NULL
[ 1.784684] gmac-power2: NULL
[ 1.791164] PPP generic driver version 2.4.2
[ 1.796951] PPP BSD Compression module registered
[ 1.802262] PPP Deflate Compression module registered
[ 1.807988] PPP MPPE Compression module registered
[ 1.813387] NET: Registered protocol family 24
[ 1.818463] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[ 1.826263] get ehci0-controller, regulator_io is no nocare
[ 1.832545] get ehci0-controller wakeup-source is fail.
[ 1.838768] sunxi ehci0-controller don't init wakeup source
[ 1.845056] [sunxi-ehci0]: probe, pdev->name: 5101000.ehci0-controller, sunxi_ehci: 0xffffff8008adc048, 0x:ffffff8008afd000, irq_no:161
[ 1.858759] [sunxi-ehci0]: Not init ehci0
[ 1.863514] get ehci1-controller, regulator_io is no nocare
[ 1.870274] [sunxi-ehci1]: probe, pdev->name: 5200000.ehci1-controller, sunxi_ehci: 0xffffff8008adc758, 0x:ffffff8008b19000, irq_no:163
[ 1.884027] 5200000.ehci1-controller supply drvvbus not found, using dummy regulator
[ 1.893002] sunxi-ehci 5200000.ehci1-controller: SW USB2.0 'Enhanced' Host Controller (EHCI) Driver
[ 1.903287] sunxi-ehci 5200000.ehci1-controller: new USB bus registered, assigned bus number 1
[ 1.913785] sunxi-ehci 5200000.ehci1-controller: irq 355, io mem 0xffffff80088f0458
[ 1.936222] sunxi-ehci 5200000.ehci1-controller: USB 0.0 started, EHCI 1.00
[ 1.947759] hub 1-0:1.0: USB hub found
[ 1.952091] hub 1-0:1.0: 1 port detected
[ 1.959044] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
[ 1.966498] get ohci0-controller, regulator_io is no nocare
[ 1.972783] get ohci0-controller wakeup-source is fail.
[ 1.979016] sunxi ohci0-controller don't init wakeup source
[ 1.985444] [sunxi-ohci0]: probe, pdev->name: 5101000.ohci0-controller, sunxi_ohci: 0xffffff8008adc3d0
[ 1.995924] [sunxi-ohci0]: Not init ohci0
[ 2.000674] get ohci1-controller, regulator_io is no nocare
[ 2.007515] [sunxi-ohci1]: probe, pdev->name: 5200000.ohci1-controller, sunxi_ohci: 0xffffff8008adcae0
[ 2.018089] 5200000.ohci1-controller supply drvvbus not found, using dummy regulator
[ 2.027112] sunxi-ohci 5200000.ohci1-controller: SW USB2.0 'Open' Host Controller (OHCI) Driver
[ 2.036985] sunxi-ohci 5200000.ohci1-controller: new USB bus registered, assigned bus number 2
[ 2.046966] sunxi-ohci 5200000.ohci1-controller: irq 356, io mem 0xffffff80088f0458
[ 2.119888] hub 2-0:1.0: USB hub found
[ 2.124226] hub 2-0:1.0: 1 port detected
[ 2.131559] usbcore: registered new interface driver uas
[ 2.137941] usbcore: registered new interface driver usb-storage
[ 2.144892] usbcore: registered new interface driver ums-alauda
[ 2.151742] usbcore: registered new interface driver ums-cypress
[ 2.158684] usbcore: registered new interface driver ums-datafab
[ 2.165649] usbcore: registered new interface driver ums_eneub6250
[ 2.172792] usbcore: registered new interface driver ums-freecom
[ 2.179743] usbcore: registered new interface driver ums-isd200
[ 2.186590] usbcore: registered new interface driver ums-jumpshot
[ 2.193647] usbcore: registered new interface driver ums-karma
[ 2.200404] usbcore: registered new interface driver ums-onetouch
[ 2.207568] usbcore: registered new interface driver ums-realtek
[ 2.214513] usbcore: registered new interface driver ums-sddr09
[ 2.221381] usbcore: registered new interface driver ums-sddr55
[ 2.228245] usbcore: registered new interface driver ums-usbat
[ 2.235114] usb_serial_number:20080411
[ 2.240715] sunxikbd_key_init: key0 vol= 210 code= 115
[ 2.246513] sunxikbd_key_init: key1 vol= 410 code= 114
[ 2.252302] sunxikbd_key_init: key2 vol= 590 code= 139
[ 2.258094] sunxikbd_key_init: key3 vol= 750 code= 28
[ 2.263785] sunxikbd_key_init: key4 vol= 880 code= 102
[ 2.270926] input: sunxi-keyboard as /devices/virtual/input/input0
[ 2.279574] sun50iw10p1-pinctrl pio: pin PH3 already requested by gmac0; cannot claim for ir0
[ 2.289182] sun50iw10p1-pinctrl pio: pin-227 (ir0) status -22
[ 2.295662] sun50iw10p1-pinctrl pio: could not request pin 227 (PH3) from group PH3 on device pio
[ 2.305750] sunxi-ir-tx ir0: Error applying setting, reverse things back
[ 2.313402] sunxi-ir-tx: probe of ir0 failed with error -22
[ 2.321572] sunxi_gpadc_init,1536, success
[ 2.327899] input: sunxi-gpadc0 as /devices/virtual/input/input1
[ 2.337774] sunxi-rtc rtc: rtc core: registered sunxi-rtc as rtc0
[ 2.344890] sunxi-rtc rtc: RTC enabled
[ 2.349603] i2c /dev entries driver
[ 2.354718] IR NEC protocol handler initialized
[ 2.359827] IR RC5(x/sz) protocol handler initialized
[ 2.365521] IR RC6 protocol handler initialized
[ 2.370624] IR JVC protocol handler initialized
[ 2.375728] IR Sony protocol handler initialized
[ 2.380929] IR SANYO protocol handler initialized
[ 2.386231] IR Sharp protocol handler initialized
[ 2.391529] IR MCE Keyboard/mouse protocol handler initialized
[ 2.398100] IR XMP protocol handler initialized
[ 2.403605] usbcore: registered new interface driver uvcvideo
[ 2.410081] USB Video Class driver (1.1.1)
[ 2.414697] sunxi cedar version 0.1
[ 2.418910] VE: install start!!!
[ 2.418910]
[ 2.424430] cedar_ve: cedar-ve the get irq is 347
[ 2.430891] VE: get debugfs_mpp_root is NULL, please check mpp
[ 2.430891]
[ 2.439128] VE: sunxi ve debug register driver failed!
[ 2.439128]
[ 2.448108] Bluetooth: HCI UART driver ver 2.3
[ 2.453122] Bluetooth: HCI UART protocol H4 registered
[ 2.458911] Bluetooth: HCI UART protocol Three-wire (H5) registered
[ 2.469342] sunxi-mmc sdc2: SD/MMC/SDIO Host Controller Driver(v3.46 2020-6-1 11:33-202006021635)
[ 2.479606] sunxi-mmc sdc2: No vmmc regulator found
[ 2.485111] sunxi-mmc sdc2: No vqmmc regulator found
[ 2.490703] sunxi-mmc sdc2: No vdmmc regulator found
[ 2.496298] sunxi-mmc sdc2: No vd33sw regulator found
[ 2.501989] sunxi-mmc sdc2: No vd18sw regulator found
[ 2.507682] sunxi-mmc sdc2: No vq33sw regulator found
[ 2.513372] sunxi-mmc sdc2: No vq18sw regulator found
[ 2.519939] sunxi-mmc sdc2: set host busy
[ 2.524551] mmc:failed to get gpios
[ 2.529197] sunxi-mmc sdc2: sdc set ios:clk 0Hz bm PP pm UP vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.531898] random: fast init done
[ 2.560222] sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.588231] sunxi-mmc sdc2: detmode:alway in(non removable)
[ 2.588252] sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.596630] sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.597715] sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm OD pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.608576] sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm OD pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.608657] sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm OD pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.621517] sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm OD pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.666335] sun50iw10p1-pinctrl pio: expect_func as:uart0_jtag, but muxsel(3) is func:jtag0
[ 2.675748] sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.686646] sun50iw10p1-pinctrl pio: expect_func as:uart0_jtag, but muxsel(3) is func:jtag0
[ 2.686658] sun50iw10p1-pinctrl pio: expect_func as:uart0_jtag, but muxsel(3) is func:uart0
[ 2.686668] sun50iw10p1-pinctrl pio: expect_func as:uart0_jtag, but muxsel(3) is func:jtag0
[ 2.686679] sun50iw10p1-pinctrl pio: expect_func as:uart0_jtag, but muxsel(3) is func:uart0
[ 2.686690] sun50iw10p1-pinctrl pio: expect_func as:uart0_jtag, but muxsel(3) is func:jtag0
[ 2.687415] sunxi-mmc sdc0: SD/MMC/SDIO Host Controller Driver(v3.46 2020-6-1 11:33-202006021635)
[ 2.687554] sunxi-mmc sdc0: ***ctl-spec-caps*** 8
[ 2.687614] sunxi-mmc sdc0: No vmmc regulator found
[ 2.687619] sunxi-mmc sdc0: No vqmmc regulator found
[ 2.687623] sunxi-mmc sdc0: No vdmmc regulator found
[ 2.687627] sunxi-mmc sdc0: No vd33sw regulator found
[ 2.687632] sunxi-mmc sdc0: No vd18sw regulator found
[ 2.687636] sunxi-mmc sdc0: No vq33sw regulator found
[ 2.687640] sunxi-mmc sdc0: No vq18sw regulator found
[ 2.688512] sunxi-mmc sdc0: set host busy
[ 2.688596] sunxi-mmc sdc0: Got CD GPIO
[ 2.689422] sunxi-mmc sdc0: sdc set ios:clk 0Hz bm PP pm UP vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.689445] sunxi-mmc sdc0: no vqmmc,Check if there is regulator
[ 2.708223] sunxi-mmc sdc0: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.728572] sunxi-mmc sdc0: detmode:gpio irq
[ 2.728596] sunxi-mmc sdc0: sdc set ios:clk 0Hz bm PP pm OFF vdd 0 width 1 timing LEGACY(SDR12) dt B
[ 2.730753] sunxi-mmc sdc1: SD/MMC/SDIO Host Controller Driver(v3.46 2020-6-1 11:33-202006021635)
[ 2.730875] sunxi-mmc sdc1: ***ctl-spec-caps*** 8
[ 2.730934] sunxi-mmc sdc1: No vmmc regulator found
[ 2.730938] sunxi-mmc sdc1: No vqmmc regulator found
[ 2.730943] sunxi-mmc sdc1: No vdmmc regulator found
[ 2.730947] sunxi-mmc sdc1: No vd33sw regulator found
[ 2.730951] sunxi-mmc sdc1: No vd18sw regulator found
[ 2.730956] sunxi-mmc sdc1: No vq33sw regulator found
[ 2.730960] sunxi-mmc sdc1: No vq18sw regulator found
[ 2.731743] sunxi-mmc sdc1: set host busy
[ 2.731849] mmc:failed to get gpios
[ 2.731875] sunxi-mmc sdc1: min-frequency:400000
[ 2.732584] sunxi-mmc sdc1: sdc set ios:clk 0Hz bm PP pm UP vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.732607] sunxi-mmc sdc1: no vqmmc,Check if there is regulator
[ 2.743757] sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing MMC-HS(SDR20) dt B
[ 2.749067] sunxi-mmc sdc2: sdc set ios:clk 50000000Hz bm PP pm ON vdd 21 width 1 timing MMC-HS(SDR20) dt B
[ 2.752224] sunxi-mmc sdc1: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.754585] sunxi-mmc sdc2: sdc set ios:clk 50000000Hz bm PP pm ON vdd 21 width 8 timing MMC-HS(SDR20) dt B
[ 2.771481] sunxi-mmc sdc2: sdc set ios:clk 50000000Hz bm PP pm ON vdd 21 width 8 timing MMC-DDR52 dt B
[ 2.772228] sunxi-mmc sdc1: detmode:manually by software
[ 2.774743] usbcore: registered new interface driver usbhid
[ 2.774746] usbhid: USB HID core driver
[ 2.777170] sunxi-mmc sdc1: smc 2 p1 err, cmd 52, RTO !!
[ 2.777599] codec supply avcc not found, using dummy regulator
[ 2.777818] [sunxi_internal_codec_probe]: audiocodec avcc set vol failed
[ 2.777828] codec supply cpvin not found, using dummy regulator
[ 2.778013] [sunxi_internal_codec_probe]: audiocodec cpvin set vol failed
[ 2.778676] sunxi-internal-codec codec: pa_power_always_on get failed and set it off.
[ 2.778683] digital_vol:0, lineout_vol:26, mic1gain:31, mic2gain:31 pa_msleep:120, pa_level:1, pa_power_always_on:0
[ 2.778692] adcdrc_cfg:0, adchpf_cfg:0, dacdrc_cfg:0, dachpf:0
[ 2.778880] sunxi-internal-codec codec: [sunxi_internal_codec_probe] codec probe finished.
[ 2.780757] [sunxi_card_init] card init finished.
[ 2.781198] Audio: [soc_new_pcm] -> 2699
[ 2.781203] Audio: [soc_new_pcm] -> 2718
[ 2.781892] Audio: [soc_new_pcm] -> 2746
[ 2.782917] sunxi-mmc sdc1: smc 2 p1 err, cmd 52, RTO !!
[ 2.782957] sunxi-mmc sdc1: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.784436] sunxi-codec-machine sndcodec: sun50iw10codec <-> codec mapping ok
[ 2.788722] mmc0: new DDR MMC card at address 0001
[ 2.789694] sunxi-mmc sdc1: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.791217] mmcblk0: mmc0:0001 AJTD4R 14.6 GiB
[ 2.791964] mmcblk0boot0: mmc0:0001 AJTD4R partition 1 4.00 MiB
[ 2.792301] input: sun50iw10-codec sunxi Audio Jack as /devices/platform/soc/sndcodec/sound/card0/input2
[ 2.792653] mmcblk0boot1: mmc0:0001 AJTD4R partition 2 4.00 MiB
[ 2.793221] sunxi-mmc sdc1: card claims to support voltages below defined range
[ 2.793244] mmcblk0rpmb: mmc0:0001 AJTD4R partition 3 4.00 MiB
[ 2.796458] [audio] hp_detect_case: 0
[ 2.796922] sunxi-codec-machine sndcodec: [sunxi_card_dev_probe] register card finished.
[ 2.797597] u32 classifier
[ 2.797599] Actions configured
[ 2.797606] Netfilter messages via NETLINK v0.30.
[ 2.799010] nf_conntrack version 0.5.0 (8192 buckets, 32768 max)
[ 2.800349] ctnetlink v0.93: registering with nfnetlink.
[ 2.825600] mmcblk0: p1 p2 p3 p4 p5 p6
[ 2.840841] ip_tables: (C) 2000-2006 Netfilter Core Team
[ 2.850709] Initializing XFRM netlink socket
[ 2.857549] NET: Registered protocol family 10
[ 2.863915] NET: Registered protocol family 17
[ 2.864931] 8021q: 802.1Q VLAN Support v1.8
[ 2.906079] get usb_detect_mode is fail, 22
[ 2.909297] sunxi-rtc rtc: setting system clock to 1970-01-01 00:00:04 UTC (4)
[ 2.910028] usb1-vbus: disabling
[ 2.910034] vdd_3v3: disabling
[ 2.910038] ALSA device list:
[ 2.910041] #0: sun50iw10-codec
[ 2.910398] Freeing unused kernel memory: 448K
[ 3.003201] sunxi-mmc sdc1: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing SD-HS(SDR25) dt B
[ 3.003344] sunxi-mmc sdc1: sdc set ios:clk 50000000Hz bm PP pm ON vdd 21 width 1 timing SD-HS(SDR25) dt B
[ 3.017324] sunxi-mmc sdc1: sdc set ios:clk 50000000Hz bm PP pm ON vdd 21 width 4 timing SD-HS(SDR25) dt B
[ 3.304330] mmc2: new high speed SDIO card at address 0001
[/init]: getty is ttyS0
[/init]: RootDevice is "/dev/mmcblk0p4" , GPT_SUPPORT=1
[/init]: Try to load EMMC ...
e2fsck 1.42.12 (29-Aug-2014)
/dev/mmcblk0p4: recovering journal
Setting free inodes count to 8005 (was 8021)
Setting free blocks count to 4108 (was 4116)
/dev/mmcblk0p4: clean, 1211/9216 files, 32756/368[ 3.379856] EXT4-fs (mmcblk0p4): barriers disabled
64 blocks
[ 3.390033] EXT4-fs (mmcblk0p4): mounted filesystem with ordered data mode. Opts: noauto_da_alloc,barrier=0,data=ordered
mount: mounting proc on /proc failed: Device or resource busy
mount: mounting sysfs on /sys fa[ 3.538073] EXT4-fs (mmcblk0p4): re-mounted. Opts: nobarrier,noauto_da_alloc,data=ordered
iled: Device or resource busy
insmod: can't insert '/lib/modules/4.9.170/disp.ko': No such file or directory
boot-res device: /dev/mmcblk0p1
[ 3.589004] FAT-fs (mmcblk0p1): Volume was not properly unmounted. Some data may be corrupt. Please run fsck.
login[908]: root login on 'ttyS0'
nand activated #0
[ 3.760060] get ctp_power is fail, -22
[ 3.764315] sunxi_ctp_startup: ctp_power_io is invalid.
[ 3.770299] get ctp_gesture_wakeup fail, no gesture wakeup
[ 3.776499] 5-0014 supply ctp not found, using dummy regulator
[ 3.928448] sunxi_i2c_do_xfer()1923 - [i2c5] incomplete xfer (status: 0x20, dev addr: 0x14)
[ 3.938068] sunxi_i2c_do_xfer()1923 - [i2c5] incomplete xfer (status: 0x20, dev addr: 0x14)
[ 3.947636] sunxi_i2c_do_xfer()1923 - [i2c5] incomplete xfer (status: 0x20, dev addr: 0x14)
[ 3.957207] sunxi_i2c_do_xfer()1923 - [i2c5] incomplete xfer (status: 0x20, dev addr: 0x14)
[ 3.966782] sunxi_i2c_do_xfer()1923 - [i2c5] incomplete xfer (status: 0x20, dev addr: 0x14)
[ 3.976239] <<-GTP-ERROR->> I2C Read: 0x8140, 6 bytes failed, errcode: -70! Process reset.
[ 4.092251] <<-GTP-ERROR->> GTP read version failed
[ 4.097786] Read version failed.
[ 4.125395] input: gt9xxnew_ts as /devices/virtual/input/input3
script_fetch device name is ft6236
[ 9.264218]
[ 9.264218] insmod_device_driver
[ 9.264218]
-------swith to adb....
[ 9.787442] file system registered
init adb main
Handling main()
[ 9.828337] read descriptors
[ 9.833322] read strings
Time out,can not find tp event num /dev/input/event
camera activated #0
camera not activated
root@dragonboard:~# dragonboard(msg): core: parse script /boot/test_config.fex...
dragonboard(debug): the length of script is 10137
dragonboard(debug): script shmid = 0
dragonboard(msg): core: init script...
dragonboard(debug): script: main key count #23
dragonboard(msg): script: V1.0.0
dragonboard(msg): core: init view...
dragonboard(msg): core: parse test case from script...
dragonboard(msg): core: total test cases #10
dragonboard(msg): core: total test cases_auto #6
dragonboard(msg): core: total test cases_manual #4
dragonboard(debug): view: init...
dragonboard(msg): directfb view init...
dragonboard(msg): disp_output_type=0
~~~~~~~~~~~~~~~~~~~~~~~~~~| DirectFB 1.4.11 |~~~~~~~~~~~~~~~~~~~~~~~~~~
(c) 2001-2010 The world wide DirectFB Open Source Community
(c) 2000-2004 Convergence (integrated media) GmbH
----------------------------------------------------------------
(*) DirectFB/Core: Single Application Core. (2012-05-04 09:52)
(*) Direct/Memcpy: Using libc memcpy()
(*) DirectFB/FBDev: Found '' (ID 0) with frame buffer at 0xffe00000, 1800k (MMIO 0x00000000, 0k)
(*) Direct/Thread: Started 'Keyboard Input' (-1) [INPUT OTHER/OTHER 0/0] <8388608>...
(*) DirectFB/Input: Keyboard 0.9 (directfb.org)
(*) DirectFB/Graphics: Generic Software Rasterizer 0.6 (directfb.org)
(*) DirectFB/Core/WM: Default 0.3 (directfb.org)
(*) FBDev/Mode: Setting 480x480 RGB32
(*) FBDev/Mode: Switched to 480x480 (virtual 480x480) at 32 bit (RGB32), pitch 1920
(*) FBDev/Mode: Setting 480x480 RGB32
(*) FBDev/Mode: Switched to 480x480 (virtual 480x480) at 32 bit (RGB32), pitch 1920
dragonboard(msg): screen_width: 480, sceen_height: 480
(*) Direct/Interface: Loaded 'FT2' implementation of 'IDirectFBFont'.
dragonboard(debug): manual test case window init...
dragonboard(debug): manual_window.desc.height=160
dragonboard(debug): auto test case window init...
dragonboard(debug): misc window init...
dragonboard(debug): reboot button init...
dragonboard(debug): poweroff button init...
dragonboard(debug): mic window init...
dragonboard(debug): wifi list window init...
this is the mic_audio_receive thread...
------------- to open video node
this is the wifi_hot_point_proccess thread...
-------swith to adb done!
[ 10.998112] sunxi_set_cur_vol_work()403 WARN: get power supply failed
[ 11.088386] android_work: sent uevent USB_STATE=CONNECTED
[ 11.094490] sunxi_set_cur_vol_work()403 WARN: get power supply failed
[ 11.219058] configfs-gadget gadget: high-speed config #1: c
[ 11.225462] android_work: sent uevent USB_STATE=CONFIGURED
[ 12.251079] adbd (1025): /proc/1025/oom_adj is deprecated, please use /proc/1025/oom_score_adj instead.
[ 13.871868] random: crng init done
dragonboard(error): Can't not open /dev/video0
dragonboard(msg): core: draw test case to view...
dragonboard(debug): core: draw test case: dram, display name: 内存, category: auto
dragonboard(debug): core: draw test case: rtc, display name: 时钟, category: auto
dragonboard(debug): core: draw test case: wifi, display name: WIFI, category: auto
dragonboard(debug): core: draw test case: ethernet, display name: 以太网, category: auto
dragonboard(debug): core: draw test case: bluetooth, display name: 蓝牙, category: auto
dragonboard(debug): core: draw test case: emmc, display name: emmc闪存, category: auto
dragonboard(debug): core: draw test case: mmc, display name: SD卡, category: manual
dragonboard(debug): core: draw test case: udisk, display name: U盘, category: manual
dragonboard(debug): core: draw test case: Usb_HOST1, display name: USB主机1, category: manual
dragonboard(debug): core: draw test case: mic, display name: 音频基本功能测试, category: manual
dragonboard(msg): core: fork launcher process...
dragonboard(msg): core: listening to child process, starting...
dragonboard(msg): launcher: runing...
dragonboard(debug): launcher: total test cases #10
dragonboard(msg): launcher: starting memtester.sh
dragonboard(msg): launcher: starting rtctester.sh
dragonboard(msg): launcher: starting wifitester.sh
dragonboard(msg): launcher: starting ethtester.sh
dragonboard(msg): launcher: starting bttester.sh
dragonboard(msg): launcher: starting emmctester.sh
dragonboard(msg): launcher: starting udisktester.sh
dragonboard(msg): launcher: wait mictester completion
dragonboard(msg): launcher: starting mmctester.sh
dragonboard(msg): launcher: starting mictester
dragonboard(msg): launcher: starting host1tester.sh
dragonboard(debug): script: main key count #23
dragonboard(msg): script: V1.0.0
>>>>>> test audio ......
jack_deamon : event found /dev/input/event2!
01-01 00:00:16 1076 D host1teste: vid=1d6b
02-14 00:00:00 1070 D emmctester: emmc boot,boot_type = 2
mount: mounting /dev/mmcblk0p2 on /boot failed: Invalid argument
02-14 00:00:00 1065 D ethtester : ethernet driver buildin
eth0 Link encap:Ethernet HWaddr 36:C9:E3:F1:B8:05
cat: can't open '/sys/devices/platform/sunxi-ddrfreq/devfreq/sunxi-ddrfreq/cur_freq': No such file or directory
/dragonboard/bin/memtester.sh: let: line 44: arithmetic syntax error
02-14 00:00:00 1061 D memtester : dram_freq=
02-14 00:00:00 1061 D memtester : config dram_size=1024M
02-14 00:00:00 1061 D memtester : actual_size=1024M
02-14 00:00:00 1061 D memtester : test_size=8M
[ 14.826009] libphy: gmac0: probed
[ 14.878079] sunxi-wlan soc@03000000:wlan@0: bus_index: 1
02-14 00:00:00 1068 D bttester : module_path :
02-14 00:00:00 1068 D bttester [ 14.908770] sunxi-gmac gmac0 eth0: eth0: Type(7) PHY ID 001cc916 at 0 IRQ poll (gmac0-0:00)
: loop_time : 30
02-14 00:00:00 1068 D bttester : destination_bt: :
02-14 00:00:00 1068 D bttester : device_node : ttyS1
02-14 00:00:00 1068 D bttester : baud_rate : 115200
02-14 00:00:00 1065 D ethtester : ifconfig eth0 up done
02-14 00:00:00 1068 D bttester : bt_vnd : realtek
02-14 00:00:00 1065 D ethtester : eth0 running....
[ 15.020708] sunxi-bt soc@03000000:bt@0: block state already is 1
[ 15.028770] sunxi-bt soc@03000000:bt@0: set block: 0
[ 15.853078] __hci_init(814), err = -56, EINVAL.
02-14 00:00:01 1068 D bttester : Firmware load finish, time: 1s
02-14 00:00:02 1068 D bttester : hci0 state path: /sys/class/rfkill/rfkill1
dragonboard(msg): mictester: music_playtime=20
dragonboard(msg): mictester:prepare play sound...
dragonboard(msg): samplerate #48000
dragonboard(msg): mictester:open test pcm file: /dragonboard/data/test48000.pcm
dragonboard(msg): mictester:play it...
wlan0 Link encap:Ethernet HWaddr 00:E0:4C:4F:03:A7
[ 21.165269] IPv6: ADDRCONF(NETDEV_UP): wlan0: link is not ready
02-14 00:00:08 1063 D wifitester: No Test AP SSID configured
02-14 00:00:16 1061 D memtester : memtest success!
dragonboard(msg): play end...
dragonboard(msg): mictester: sound play thread exit code #0
dragonboard(msg): let's open the mic pipe
Capturing sample: 2 ch, 48000 hz, 16 bit
root@dragonboard:~#
root@dragonboard:~#开机显示在 ST7701上，且开机画面正常，开机测试程序显示在ST7701上
cat /dev/urandom > /dev/fb1ST7701 显示雪花
root@dragonboard:~# cat /sys/class/disp/disp/attr/sys
screen 1:
de_rate 300000000 hz, ref_fps:35
mgr1: 480x480 fmt[rgb] cs[0x204] range[full] eotf[0x4] bits[8bits] err[0] force_sync[0] unblank direct_show[false] iommu[1]
dmabuf: cache[0] cache max[0] umap skip[0] overflow[0]
lcd output backlight(250) fps:57.0 480x 480
err:0 skip:40 irq:18075 vsync:0 vsync_skip:0
BUF enable ch[1] lyr[0] z[0] prem[N] a[globl 255] fmt[ 0] fb[ 480, 480; 480, 480; 480, 480] crop[ 0, 0, 480, 480] frame[ 0, 0, 480, 480] addr[ffc00000, 0, 0] flags[0x 0] trd[0,0] depth[ 0]#25 Re: 全志 SOC » 收到小智SW106开发板到手，试着玩一玩 » 2022-06-27 09:46:51
修改了 board.dts disp 节点 一点点：
/*----------------------------------------------------------------------------------
disp init configuration
disp_mode (0:screen0<screen0,fb0>)
screenx_output_type (0:none; 1:lcd; 2:tv; 3:hdmi;5:vdpo)
screenx_output_mode (used for hdmi output, 0:480i 1:576i 2:480p 3:576p 4:720p50)
(5:720p60 6:1080i50 7:1080i60 8:1080p24 9:1080p50 10:1080p60)
screenx_output_format (for hdmi, 0:RGB 1:yuv444 2:yuv422 3:yuv420)
screenx_output_bits (for hdmi, 0:8bit 1:10bit 2:12bit 2:16bit)
screenx_output_eotf (for hdmi, 0:reserve 4:SDR 16:HDR10 18:HLG)
screenx_output_cs (for hdmi, 0:undefined 257:BT709 260:BT601 263:BT2020)
screenx_output_dvi_hdmi (for hdmi, 0:undefined 1:dvi mode 2:hdmi mode)
screen0_output_range (for hdmi, 0:default 1:full 2:limited)
screen0_output_scan (for hdmi, 0:no data 1:overscan 2:underscan)
screen0_output_aspect_ratio (for hdmi, 8-same as original picture 9-4:3 10-16:9 11-14:9)
fbx format (4:RGB655 5:RGB565 6:RGB556 7:ARGB1555 8:RGBA5551 9:RGB888 10:ARGB8888 12:ARGB4444)
fbx pixel sequence (0:ARGB 1:BGRA 2:ABGR 3:RGBA)
fb0_scaler_mode_enable(scaler mode enable, used FE)
fbx_width,fbx_height (framebuffer horizontal/vertical pixels, fix to output resolution while equal 0)
lcdx_backlight (lcd init backlight,the range:[0,256],default:197
lcdx_yy (lcd init screen bright/contrast/saturation/hue, value:0~100, default:50/50/57/50)
lcd0_contrast (LCD contrast, 0~100)
lcd0_saturation (LCD saturation, 0~100)
lcd0_hue (LCD hue, 0~100)
framebuffer software rotation setting:
disp_rotation_used: (0:disable; 1:enable,you must set fbX_width to lcd_y,
set fbX_height to lcd_x)
degreeX: (X:screen index; 0:0 degree; 1:90 degree; 3:270 degree)
degreeX_Y: (X:screen index; Y:layer index 0~15; 0:0 degree; 1:90 degree; 3:270 degree)
devX_output_type : config output type in bootGUI framework in UBOOT-2018.
(0:none; 1:lcd; 2:tv; 4:hdmi;)
devX_output_mode : config output resolution(see include/video/sunxi_display2.h) of bootGUI framework in UBOOT-2018
devX_screen_id : config display index of bootGUI framework in UBOOT-2018
devX_do_hpd : whether do hpd detectation or not in UBOOT-2018
chn_cfg_mode : Hardware DE channel allocation config. 0:single display with 6
channel, 1:dual display with 4 channel in main display and 2 channel in second
display, 2:dual display with 3 channel in main display and 3 channel in second
in display.
----------------------------------------------------------------------------------*/
disp: disp@06000000 {
disp_init_enable = <1>;
disp_mode = <3>;
screen0_output_type = <1>;
screen0_output_mode = <4>;
screen0_output_format = <0>;
screen0_output_bits = <0>;
screen0_output_eotf = <4>;
screen0_output_cs = <257>;
screen0_output_dvi_hdmi = <2>;
screen0_output_range = <2>;
screen0_output_scan = <0>;
screen0_output_aspect_ratio = <8>;
screen1_output_type = <1>;
screen1_output_mode = <4>;
screen1_output_format = <0>;
screen1_output_bits = <0>;
screen1_output_eotf = <4>;
screen1_output_cs = <257>;
screen1_output_dvi_hdmi = <2>;
screen1_output_range = <2>;
screen1_output_scan = <0>;
screen1_output_aspect_ratio = <8>;
dev0_output_type = <1>;
dev0_output_mode = <4>;
dev0_screen_id = <1>;
dev0_do_hpd = <0>;
dev1_output_type = <1>;
dev1_output_mode = <4>;
dev1_screen_id = <0>;
dev1_do_hpd = <0>;
def_output_dev = <0>;
hdmi_mode_check = <1>;
fb0_format = <0>;
fb0_width = <0>;
fb0_height = <0>;
fb1_format = <0>;
fb1_width = <0>;
fb1_height = <0>;
chn_cfg_mode = <1>;
disp_para_zone = <1>;
/*VCC-LCD*/
dc1sw-supply = <>;
/*VCC-DSI*/
eldo3-supply = <>;
/*VCC-PD*/
dcdc1-supply = <>;
status = "okay";
};
/*----------------------------------------------------------------------------------
;lcd0 configuration
;lcd_if: 0:hv(sync+de); 1:8080; 2:ttl; 3:lvds; 4:dsi; 5:edp; 6:extend dsi
;lcd_hv_if 0:Parallel RGB; 8:Serial RGB; 10:Dummy RGB; 11: RGB Dummy;12:CCIR656
;lcd_hv_clk_phase 0:0 degree;1:90 degree;2:180 degree;3:270 degree
;lcd_hv_sync_polarity 0:vs low,hs low; 1:vs high,hslow; 2:vs low,hs high; 3:vs high,hs high
;lcd_hv_syuv_seq 0:YUYV; 1:YVYU; 2:UYVY; 3:VYUY
;lcd_cpu_if 0:18bit/1 cycle parallel(RGB666); 4:16bit/1cycle parallel (RGB565)
; 6:18bit/3 cycle parallel(RGB666); 7:16bit/2cycle parallel (RGB565)
;lcd_cpu_te 0:frame auto trigger; 1:frame triggered by te rising edge; 2:frame triggered by te falling edge;
;lcd_dsi_if 0:video mode; 1: Command mode; 2:video burst mode
;lcd_dsi_te 0:frame auto trigger; 1:frame triggered by te rising edge; 2:frame triggered by te falling edge;
;lcd_x: lcd horizontal resolution
;lcd_y: lcd vertical resolution
;lcd_width: width of lcd in mm
;lcd_height: height of lcd in mm
;lcd_dclk_freq: in MHZ unit
;lcd_pwm_freq: in HZ unit
;lcd_pwm_pol: lcd backlight PWM polarity
;lcd_pwm_max_limit lcd backlight PWM max limit(<=255)
;lcd_hbp: hsync back porch(pixel) + hsync plus width(pixel);
;lcd_ht: hsync total cycle(pixel)
;lcd_vbp: vsync back porch(line) + vysnc plus width(line)
;lcd_vt: vysnc total cycle(line)
;lcd_hspw: hsync plus width(pixel)
;lcd_vspw: vysnc plus width(pixel)
;lcd_lvds_if: 0:single link; 1:dual link(odd and even); 2:dual link(same pixel)
;lcd_lvds_colordepth: 0:8bit; 1:6bit
;lcd_lvds_mode: 0:NS mode; 1:JEIDA mode
;lcd_frm: 0:disable; 1:enable rgb666 dither; 2:enable rgb656 dither
;lcd_io_phase: 0:noraml; 1:intert phase(0~3bit: vsync phase; 4~7bit:hsync phase;
; 8~11bit:dclk phase; 12~15bit:de phase)
;lcd_gamma_en lcd gamma correction enable
;lcd_bright_curve_en lcd bright curve correction enable
;lcd_cmap_en lcd color map function enable
;deu_mode 0:smoll lcd screen; 1:large lcd screen(larger than 10inch)
;lcdgamma4iep: Smart Backlight parameter, lcd gamma vale * 10;
; decrease it while lcd is not bright enough; increase while lcd is too bright
;smart_color 90:normal lcd screen 65:retina lcd screen(9.7inch)
;Pin setting for special function ie.LVDS, RGB data or vsync
; name(donot care) = port:PD12<pin function><pull up or pull down><drive ability><output level>
;Pin setting for gpio:
; lcd_gpio_X = port:PD12<pin function><pull up or pull down><drive ability><output level>
;Pin setting for backlight enable pin
; lcd_bl_en = port:PD12<pin function><pull up or pull down><drive ability><output level>
;fsync setting, pulse to csi
;lcd_fsync_en (0:disable fsync,1:enable)
;lcd_fsync_act_time (active time of fsync, unit:pixel)
;lcd_fsync_dis_time (disactive time of fsync, unit:pixel)
;lcd_fsync_pol (0:positive;1:negative)
;gpio config: <&pio for cpu or &r_pio for cpus, port, port num, pio function,
pull up or pull down(default 0), driver level(default 1), data>
;For dual link lvds: use lvds2link_pins_a and lvds2link_pins_b instead
;For rgb24: use rgb24_pins_a and rgb24_pins_b instead
;For lvds1: use lvds1_pins_a and lvds1_pins_b instead
;For lvds0: use lvds0_pins_a and lvds0_pins_b instead
;----------------------------------------------------------------------------------*/
lcd0: lcd0@01c0c000 {
lcd_used = <1>;
lcd_driver_name = "default_lcd";
lcd_if = <3>;
lcd_hv_if = <0>;
lcd_width = <70>;
lcd_height = <72>;
lcd_x = <1024>;
lcd_y = <768>;
lcd_dclk_freq = <65>;
lcd_hbp = <160>;
lcd_ht = <1344>;
lcd_hspw = <10>;
lcd_vbp = <29>;
lcd_vt = <806>;
lcd_vspw = <5>;
lcd_lvds_ch = <0>;
lcd_lvds_mode = <1>;
lcd_lvds_bitwidth = <0>;
lcd_lvds_io_cross = <0>;
lcd_backlight = <50>;
lcd_pwm_used = <1>;
lcd_pwm_ch = <7>;
lcd_pwm_freq = <20000>;
lcd_pwm_pol = <1>;
lcd_bright_curve_en = <0>;
lcd_frm = <1>;
lcd_io_phase = <0x0000>;
lcd_gamma_en = <0>;
lcd_cmap_en = <0>;
lcd_hv_clk_phase = <1>;
lcd_hv_sync_polarity= <0>;
lcd_rb_swap = <0>;
//lcd_bl_en = <&pio PI 7 1 1 3 1>;
/*
lcd_gpio_0 = <&pio PJ 16 1 1 3 1>;//reset
lcd_gpio_1 = <&pio PJ 17 1 1 3 1>;//cs
lcd_gpio_2 = <&pio PC 2 1 1 3 1>;//sdi
lcd_gpio_3 = <&pio PC 12 1 1 3 1>;//scl
*/
lcd_pin_power;
lcd_power;
pinctrl-0 = <&lvds0_pins_a>;
pinctrl-1 = <&lvds0_pins_b>;
status = "okay";
};
lcd1: lcd1@01c0c001 {
lcd_used = <1>;
lcd_driver_name = "st7701s_rgb";
lcd_if = <0>;
lcd_hv_if = <0>;
lcd_width = <70>;
lcd_height = <72>;
lcd_x = <480>;
lcd_y = <480>;
lcd_dclk_freq = <11>;
lcd_hbp = <60>;
lcd_ht = <612>;
lcd_hspw = <12>;
lcd_vbp = <18>;
lcd_vt = <520>;
lcd_vspw = <4>;
lcd_backlight = <250>;// 0 ~ 255
lcd_pwm_used = <1>;
lcd_pwm_ch = <8>;
lcd_pwm_freq = <20000>;
lcd_pwm_pol = <1>;
lcd_pwm_max_limit = <255>;
lcd_bright_curve_en = <0>;
lcd_frm = <1>;
lcd_io_phase = <0x0000>;
lcd_gamma_en = <0>;
lcd_cmap_en = <0>;
lcd_hv_clk_phase = <1>;
lcd_hv_sync_polarity= <0>;
lcd_rb_swap = <0>;
//lcd_bl_en = <&pio PI 7 1 1 3 1>;
lcd_gpio_0 = <&pio PJ 16 1 1 3 1>;//reset
lcd_gpio_1 = <&pio PJ 17 1 1 3 1>;//cs
lcd_gpio_2 = <&pio PC 2 1 1 3 1>;//sdi
lcd_gpio_3 = <&pio PC 12 1 1 3 1>;//scl
/*
lcd_gpio_2 = <&r_pio PL 2 1 1 3 1>;//sdi
lcd_gpio_3 = <&r_pio PL 3 1 1 3 1>;//scl
*/
lcd_pin_power;
lcd_power;
pinctrl-0 = <&rgb18_pins_c>;
pinctrl-1 = <&rgb18_pins_d>;
status = "okay";
};这是修改的地方：
dev0_output_type = <1>;
dev0_output_mode = <4>;
dev0_screen_id = <1>;
dev0_do_hpd = <0>;
dev1_output_type = <1>;
dev1_output_mode = <4>;
dev1_screen_id = <0>;
dev1_do_hpd = <0>;dev0_screen_id 0 改 1
dev1_screen_id 1 改 0
日志：
[37]HELLO! BOOT0 is starting!
[40]BOOT0 commit : dc54be6
[43]set pll start
[45]periph0 has been enabled
[48]set pll end
[50][pmu]: bus read error
[52][pmu]: bus read error
[60]vaild para:1 select dram para0
[63]board init ok
[65]DRAM BOOT DRIVE INFO: V0.19
[68]the chip id is 0x2400
[71]the chip id is 0x2400
[73]the chip id is 0x2400
[76]the chip id is 0x2400
[79]the chip id is 0x2400
[81]chip id check OK
[83]DRAM_VCC set to 1100 mv
[86]DRAM CLK =792 MHZ
[88]DRAM Type =8 (3:DDR3,4:DDR4,7:LPDDR3,8:LPDDR4)
[96]DRAM SIZE =1024 MBytes, para1 = 30fa, para2 = 4000000, dram_tpr13 = 6063
[109]DRAM simple test OK.
[111]dram size =1024
[113]chipid = 53002400
[115]nsi init ok 2020-4-7
[119]card no is 2
[120]sdcard 2 line count 8
[123][mmc]: mmc driver ver 2020-05-25 09:40
[133][mmc]: Wrong media type 0x0
[136][mmc]: ***Try SD card 2***
[140][mmc]: mmc 2 cmd 8 timeout, err 100
[144][mmc]: mmc 2 cmd 8 err 100
[147][mmc]: mmc 2 send if cond failed
[152][mmc]: mmc 2 cmd 55 timeout, err 100
[156][mmc]: mmc 2 cmd 55 err 100
[159][mmc]: mmc 2 send app cmd failed
[163][mmc]: ***Try MMC card 2***
[187][mmc]: RMCA OK!
[189][mmc]: mmc 2 bias 4
[192][mmc]: MMC 5.1
[194][mmc]: HSSDR52/SDR25 8 bit
[197][mmc]: 50000000 Hz
[200][mmc]: 14910 MB
[202][mmc]: ***SD/MMC 2 init OK!!!***
[258]Loading boot-pkg Succeed(index=0).
[262]Entry_name = u-boot
[269]Entry_name = monitor
[273]Entry_name = scp
[281]set arisc reset to de-assert state
[285]Entry_name = dtb
[288]tunning data addr:0x4a0003e8
[292]Jump to second Boot.
NOTICE: BL3-1: v1.0(debug):cc1f5d7
NOTICE: BL3-1: Built : 10:23:25, 2020-04-08
NOTICE: BL3-1 commit: 8
ERROR: Error initializing runtime service tspd_fast
NOTICE: BL3-1: Preparing for EL3 exit to normal world
NOTICE: BL3-1: Next image address = 0x4a000000
NOTICE: BL3-1: Next image spsr = 0x1d3
U-Boot 2018.05 (Apr 17 2022 - 05:02:05 +0000) Allwinner Technology
[00.371]CPU: Allwinner Family
[00.374]Model: sun50iw10
I2C: ready
[00.625]DRAM: 1 GiB
[00.628]Relocation Offset is: 35f13000
[00.658]secure enable bit: 0
[00.661][ARISC] :arisc initialize
[00.666][ARISC ERROR] :get [allwinner,sunxi-hwspinlock] device node error
CACHE: Misaligned operation at range [7ffa6d88, 7ffa70a0]
[00.677][ARISC] :arisc para ok
[SCP] :sunxi-arisc driver begin startup 2
[SCP] :0x1
[SCP] :arisc version: [ca79327ac09021f1a13c79dd97da281c7be9a63arid-]
[SCP] :arisc startup ready
[SCP] :arisc startup notify message feedback
[SCP] :send hard sync feedback message: 0x900200
[SCP] :sunxi-arisc driver v1.10 is starting
[00.708][ARISC] :sunxi-arisc driver startup succeeded
[00.714]pmu_axp81X_probe pmic_bus_read fail
[00.718]pmu_axp858_probe pmic_bus_read fail
[00.722]PMU: no found
[00.724]CPU=1008 MHz,PLL6=600 Mhz,AHB=200 Mhz, APB1=100Mhz MBus=400Mhz
[00.731]init_clocks:finish
[00.733]not need merged sunxi overlay
[00.736]drv_disp_init
request pwm success, pwm7:pwm7:0x300a000.
request pwm success, pwm8:pwm8:0x300a000.
[00.775]drv_disp_init finish
[00.783]gic: sec monitor mode
[00.785]flash init start
[00.787]workmode = 0,storage type = 2
[00.791][mmc]: mmc driver ver uboot2018:2020-5-25 9:26:00-20201021190
[00.805][mmc]: SUNXI SDMMC Controller Version:0x50300
[00.830][mmc]: Best spd md: 2-HSDDR52/DDR50, freq: 2-50000000, Bus width: 8
[00.836]sunxi flash init ok
[00.840]Loading Environment from SUNXI_FLASH... OK
[00.848]no secure os for keybox operation
[00.851]try to burn key
[00.854]out of usb burn from boot: not need burn key
[00.859]boot_gui_init:start
[00.863]set disp.dev2_output_type fail. using defval=0
[00.868]ST7701 =====================LCD_open_flow
[00.873]disp 1, clk: pll(176000000),clk(176000000),dclk(11000000) dsi_rate(176000000)
clk real:pll(288000000),clk(288000000),dclk(18000000) dsi_rate(0)
[00.886]ST7701 =====================LCD_open_flow
[00.891]ST7701 =====================LCD_power_on
[01.199]switch device: sel=1, type=1, mode=4, format=0, bits=0, eotf=4, cs=260
[01.206]boot_gui_init:finish
partno erro : can't find partition bootloader
[01.219]ST7701 =====================LCD_open_flow
[01.223]2022-06-19 22:37 build ST7701 =====================LCD_panel_init
[01.229]2022-06-19 22:37 build ST7701 =====================LCD_panel_init
[01.236]2022-06-19 22:37 build ST7701 =====================LCD_panel_init
[01.242]2022-06-19 22:37 build ST7701 =====================LCD_panel_init
[01.249]2022-06-19 22:37 build ST7701 =====================LCD_panel_init
[01.255]2022-06-19 22:37 build ST7701 =====================LCD_panel_init
691254 bytes read in 244 ms (2.7 MiB/s)
[01.470]read item0 copy0
[01.473]Item0 (Map) magic is bad
[01.475]the secure storage item0 copy0 magic is bad
[01.480]Item0 (Map) m[01.482]ST7701 =====================LCD_open_flow
[01.486]soc ic_ver:0x0, qa_val:0x0, markid:0x53002400 dclk[0-9999]
agic is bad
[01.493]the secure storage item0 copy1 magic is bad
[01.498]Item0 (Map) magic is bad
[01.501]the secure storage map is empty
[01.504]no item name device_unlock in the map
[01.508]no item name fastboot_status_flag in the map
[01.513]sunxi secure storage has no flag
[01.519][mmc]: delete mmc-hs400-1_8v from dtb
[01.523][mmc]: delete mmc-hs200-1_8v from dtb
[01.527][mmc]: get max-frequency ok 50000000 Hz
[01.533](weak)update dtb dram start
[01.537]update dtb dram end
[01.539]update dts
[01.541]no item name snum in the map
partno erro : can't find partition private
[01.551]no item name mac in the map
partno erro : can't find partition private
[01.561]no item name wifi_mac in the map
partno erro : can't find partition private
[01.571]no item name bt_mac in the map
partno erro : can't find partition private
[01.581]no item name specialstr in the map
partno erro : can't find partition private
[01.592]ST7701 =====================LCD_open_flow
[01.596]ST7701 =====================LCD_bl_open
[01.604]ST7701 =====================LCD_open_flow
[01.608]ST7701 =====================LCD_open_flow
[01.612]LCD open finish
[01.616]update part info
[01.619]key 0
[01.622]no misc partition is found
[01.625]update bootcmd
[01.627]serial num is: 0c001415a0c086d218d
Hit any key to stop autoboot: 0
[01.640]partinfo: name boot, start 0x22000, size 0x10000
[01.805]in boot normal mode,pass normal para to cmdline
[01.810]android.hardware = sun50iw10p1
[01.814]androidboot.dtbo_idx can't findAndroid's image name: sun50i_arm64
[01.883]Starting kernel ...
[01.885][mmc]: mmc exit start
[01.905][mmc]: mmc 2 exit ok
[ 0.000000] Booting Linux on physical CPU 0x0
[ 0.000000] Linux version 4.9.170 (whycan@ubuntu) (gcc version 5.3.1 20160412 (Linaro GCC 5.3-2016.05) ) #9 SMP PREEMPT Sun Jun 26 21:55:05 CST 2022
[ 0.000000] Boot CPU: AArch64 Processor [410fd034]
[ 0.000000] bootconsole [earlycon0] enabled
[ 0.000000] disp reserve base 0x7bf61080 ,size 0x300000
[ 0.000000] cma: Reserved 8 MiB at 0x000000007f800000
[ 0.000000] On node 0 totalpages: 262144
[ 0.000000] DMA zone: 4096 pages used for memmap
[ 0.000000] DMA zone: 0 pages reserved
[ 0.000000] DMA zone: 262144 pages, LIFO batch:31
[ 0.000000] psci: probing for conduit method from DT.
[ 0.000000] psci: PSCIv1.0 detected in firmware.
[ 0.000000] psci: Using standard PSCI v0.2 function IDs
[ 0.000000] psci: Trusted OS migration not required
[ 0.000000] psci: SMC Calling Convention v1.0
[ 0.000000] percpu: Embedded 21 pages/cpu @ffffffc03f70b000 s45696 r8192 d32128 u86016
[ 0.000000] pcpu-alloc: s45696 r8192 d32128 u86016 alloc=21*4096
[ 0.000000] pcpu-alloc: [0] 0 [0] 1 [0] 2 [0] 3
[ 0.000000] Detected VIPT I-cache on CPU0
[ 0.000000] CPU features: enabling workaround for ARM erratum 845719
[ 0.000000] Built 1 zonelists in Zone order, mobility grouping on. Total pages: 258048
[ 0.000000] Kernel command line: earlyprintk=sunxi-uart,0x05000000 initcall_debug=0 console=ttyS0,115200 loglevel=8 root=/dev/mmcblk0p4 init=/init partitions=boot-resource@mmcblk0p1:env@mmcblk0p2:boot@mmcblk0p3:rootfs@mmcblk0p4:klog@mmcblk0p5:UDISK@mmcblk0p6 cma=8M snum=0c001415a0c086d218d mac_addr= wifi_mac= bt_mac= specialstr= gpt=1 androidboot.mode=normal androidboot.serialno=0c001415a0c086d218d androidboot.hardware=sun50iw10p1 boot_type=2 androidboot.boot_type=2 androidboot.secure_os_exist=0 androidboot.trustchain=false gpt=1 uboot_message=2018.05(04/17/2022-05:02:05) disp_reserve=3145728,0x7bf61080 bootreason=unknow
[ 0.000000] log_buf_len individual max cpu contribution: 4096 bytes
[ 0.000000] log_buf_len total cpu_extra contributions: 12288 bytes
[ 0.000000] log_buf_len min size: 16384 bytes
[ 0.000000] log_buf_len: 32768 bytes
[ 0.000000] early log buf free: 14220(86%)
[ 0.000000] PID hash table entries: 4096 (order: 3, 32768 bytes)
[ 0.000000] Dentry cache hash table entries: 131072 (order: 8, 1048576 bytes)
[ 0.000000] Inode-cache hash table entries: 65536 (order: 7, 524288 bytes)
[ 0.000000] Memory: 988592K/1048576K available (6590K kernel code, 1310K rwdata, 2020K rodata, 448K init, 267K bss, 51792K reserved, 8192K cma-reserved)
[ 0.000000] Virtual kernel memory layout:
[ 0.000000] modules : 0xffffff8000000000 - 0xffffff8008000000 ( 128 MB)
[ 0.000000] vmalloc : 0xffffff8008000000 - 0xffffffbebfff0000 ( 250 GB)
[ 0.000000] .text : 0xffffff8008080000 - 0xffffff80086f0000 ( 6592 KB)
[ 0.000000] .rodata : 0xffffff80086f0000 - 0xffffff80088f0000 ( 2048 KB)
[ 0.000000] .init : 0xffffff80088f0000 - 0xffffff8008960000 ( 448 KB)
[ 0.000000] .data : 0xffffff8008960000 - 0xffffff8008aa7808 ( 1311 KB)
[ 0.000000] .bss : 0xffffff8008aa7808 - 0xffffff8008aea4c8 ( 268 KB)
[ 0.000000] fixed : 0xffffffbefe7fb000 - 0xffffffbefec00000 ( 4116 KB)
[ 0.000000] PCI I/O : 0xffffffbefee00000 - 0xffffffbeffe00000 ( 16 MB)
[ 0.000000] vmemmap : 0xffffffbf00000000 - 0xffffffc000000000 ( 4 GB maximum)
[ 0.000000] 0xffffffbf00000000 - 0xffffffbf01000000 ( 16 MB actual)
[ 0.000000] memory : 0xffffffc000000000 - 0xffffffc040000000 ( 1024 MB)
[ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1
[ 0.000000] Preemptible hierarchical RCU implementation.
[ 0.000000] Build-time adjustment of leaf fanout to 64.
[ 0.000000] NR_IRQS:64 nr_irqs:64 0
[ 0.000000] arm_arch_timer: Architected cp15 timer(s) running at 24.00MHz (virt).
[ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns
[ 0.000004] sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns
[ 0.008202] Console: colour dummy device 80x25
[ 0.012414] Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=96000)
[ 0.022619] pid_max: default: 32768 minimum: 301
[ 0.027665] Mount-cache hash table entries: 2048 (order: 2, 16384 bytes)
[ 0.033898] Mountpoint-cache hash table entries: 2048 (order: 2, 16384 bytes)
[ 0.043982] sched-energy: CPU device node has no sched-energy-costs
[ 0.047280] Invalid sched_group_energy for CPU0
[ 0.051749] CPU0: update cpu_capacity 1024
[ 0.067889] ASID allocator initialised with 32768 entries
[ 0.124100] Detected VIPT I-cache on CPU1
[ 0.124152] Invalid sched_group_energy for CPU1
[ 0.124156] CPU1: update cpu_capacity 1024
[ 0.124159] CPU1: Booted secondary processor [410fd034]
[ 0.152144] Detected VIPT I-cache on CPU2
[ 0.152177] Invalid sched_group_energy for CPU2
[ 0.152179] CPU2: update cpu_capacity 1024
[ 0.152182] CPU2: Booted secondary processor [410fd034]
[ 0.180208] Detected VIPT I-cache on CPU3
[ 0.180237] Invalid sched_group_energy for CPU3
[ 0.180239] CPU3: update cpu_capacity 1024
[ 0.180242] CPU3: Booted secondary processor [410fd034]
[ 0.180315] Brought up 4 CPUs
[ 0.230952] SMP: Total of 4 processors activated.
[ 0.235641] CPU features: detected feature: 32-bit EL0 Support
[ 0.241446] CPU features: detected feature: Kernel page table isolation (KPTI)
[ 0.251467] CPU: All CPU(s) started at EL1
[ 0.252726] alternatives: patching kernel code
[ 0.257624] Invalid sched_group_energy for CPU3
[ 0.261644] Invalid sched_group_energy for Cluster3
[ 0.266493] Invalid sched_group_energy for CPU2
[ 0.270999] Invalid sched_group_energy for Cluster2
[ 0.275851] Invalid sched_group_energy for CPU1
[ 0.280359] Invalid sched_group_energy for Cluster1
[ 0.285212] Invalid sched_group_energy for CPU0
[ 0.289719] Invalid sched_group_energy for Cluster0
[ 0.295710] devtmpfs: initialized
[ 0.541840] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041785100000 ns
[ 0.545968] futex hash table entries: 1024 (order: 5, 131072 bytes)
[ 0.552807] atomic64_test: passed
[ 0.555471] pinctrl core: initialized pinctrl subsystem
[ 0.565438] NET: Registered protocol family 16
[ 0.569299] dump_class_init,861, success
[ 0.572679] sunxi iommu: irq = 8
[ 0.573483] vdso: 2 pages (1 code @ ffffff80086f7000, 1 data @ ffffff8008964000)
[ 0.580935] DMA: preallocated 256 KiB pool for atomic allocations
[ 0.597736] sun50iw10p1-r-pinctrl r_pio: initialized sunXi PIO driver
[ 0.672207] sun50iw10p1-pinctrl pio: initialized sunXi PIO driver
[ 0.685099] iommu: Adding device 1c0e000.ve to group 0
[ 0.703331] iommu: Adding device 6000000.disp to group 0
[ 0.705866] iommu: Adding device 6480000.g2d to group 0
[ 0.722257] iommu: Adding device csi0 to group 0
[ 0.723492] iommu: Adding device csi1 to group 0
[ 0.728754] iommu: Adding device 2108000.tdm to group 0
[ 0.732235] iommu: Adding device 2100000.isp to group 0
[ 0.737456] iommu: Adding device 2102000.isp to group 0
[ 0.742280] iommu: Adding device 2110000.scaler to group 0
[ 0.747760] iommu: Adding device 2110400.scaler to group 0
[ 0.753185] iommu: Adding device 2110800.scaler to group 0
[ 0.758660] iommu: Adding device 2110c00.scaler to group 0
[ 0.846693] pwm module init!
[ 0.856899] sunxi-pm debug v3.10
[ 0.863280] SCSI subsystem initialized
[ 0.865254] usbcore: registered new interface driver usbfs
[ 0.867215] usbcore: registered new interface driver hub
[ 0.872402] usbcore: registered new device driver usb
[ 0.877775] sunxi_i2c_adap_init()2649 - init
[ 0.882674] sunxi_i2c_probe()2372 - [i2c5] twi_drv_used = 0
[ 0.886989] sunxi_i2c_probe()2379 - [i2c5] twi_pkt_interval = 0
[ 0.892881] twi5 supply twi not found, using dummy regulator
[ 0.898755] twi_request_gpio()458 - [i2c5] init name: (null)
[ 0.906214] media: Linux media interface: v0.10
[ 0.908888] Linux video capture interface: v2.00
[ 0.915604] ion_parse_dt_heap_common: id 0 type 0 name sys_user align 1000
[ 0.920726] ion_parse_dt_heap_common: id 4 type 4 name cma align 1000
[ 0.927092] ion_parse_dt_heap_common: id 6 type 6 name secure align 1000
[ 0.934085] ion_heap_create: Invalid heap type 6
[ 0.938248] Advanced Linux Sound Architecture Driver Initialized.
[ 0.946765] Bluetooth: Core ver 2.22
[ 0.947507] NET: Registered protocol family 31
[ 0.951808] Bluetooth: HCI device and connection manager initialized
[ 0.958166] Bluetooth: HCI socket layer initialized
[ 0.963011] Bluetooth: L2CAP socket layer initialized
[ 0.968167] Bluetooth: SCO socket layer initialized
[ 0.975474] clocksource: Switched to clocksource arch_sys_counter
[ 1.031966] udc_init,0
[ 1.032377] NET: Registered protocol family 2
[ 1.051973] TCP established hash table entries: 8192 (order: 4, 65536 bytes)
[ 1.053459] TCP bind hash table entries: 8192 (order: 5, 131072 bytes)
[ 1.060079] TCP: Hash tables configured (established 8192 bind 8192)
[ 1.066362] UDP hash table entries: 512 (order: 2, 16384 bytes)
[ 1.072146] UDP-Lite hash table entries: 512 (order: 2, 16384 bytes)
[ 1.079207] NET: Registered protocol family 1
[ 1.083522] Unpacking initramfs...
[ 1.290632] Freeing initrd memory: 2544K
[ 1.298073] workingset: timestamp_bits=61 max_order=18 bucket_order=0
[ 1.388434] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[ 1.390423] ntfs: driver 2.1.32 [Flags: R/W].
[ 1.401817] io scheduler noop registered
[ 1.401860] io scheduler deadline registered
[ 1.406430] io scheduler cfq registered (default)
[ 1.415162] [DISP]disp_module_init
[ 1.417461] [DISP] disp_init,line:2260:
[ 1.417500] smooth display screen:1 type:1 mode:4
[ 1.497251] screen_id=0, output_type=1, lcd_reg=1,hdmi_reg=0
[ 1.497997] [DISP] lcd_clk_config,line:665:[ 1.500622] [DISP]disp_module_init finish
[ 1.505291] disp 0, clk: pll(455000000),clk(455000000),dclk(65000000) dsi_rate(455000000)
[ 1.505291] clk real:pll(456000000),clk(456000000),dclk(65142857) dsi_rate(0)
[ 1.524101] uart uart0: get regulator failed
[ 1.525370] uart0 supply uart not found, using dummy regulator
[ 1.531906] uart0: ttyS0 at MMIO 0x5000000 (irq = 349, base_baud = 1500000) is a SUNXI
[ 1.539078] sw_console_▒[ 1.547005] console [ttyS0] enabled
[ 1.547005] console [ttyS0] enabled
[ 1.550990] bootconsole [earlycon0] disabled
[ 1.550990] bootconsole [earlycon0] disabled
[ 1.561430] uart uart1: get regulator failed
[ 1.568271] uart1 supply uart not found, using dummy regulator
[ 1.575374] uart1: ttyS1 at MMIO 0x5000400 (irq = 350, base_baud = 1500000) is a SUNXI
[ 1.586855] misc dump reg init
[ 1.594182] [drm] Initialized
[ 1.598291] Unable to detect cache hierarchy for CPU 0
[ 1.604258] [NAND][NE] Not found valid nand node on dts
[ 1.610610] sunxi-bt soc@03000000:bt@0: Missing bt_power.
[ 1.616714] sunxi-bt soc@03000000:bt@0: bt_power_name ((null))
[ 1.623291] sunxi-bt soc@03000000:bt@0: Missing bt_io_regulator.
[ 1.630064] sunxi-bt soc@03000000:bt@0: io_regulator_name ((null))
[ 1.637059] sunxi-bt soc@03000000:bt@0: bt_rst gpio=357 mul-sel=1 pull=-1 drv_level=-1 data=0
[ 1.647222] sunxi-bt soc@03000000:bt@0: devm_pinctrl_get() failed!
[ 1.655787] sunxi-wlan soc@03000000:wlan@0: wlan_busnum (1)
[ 1.662072] sunxi-wlan soc@03000000:wlan@0: Missing wlan_power.
[ 1.668742] sunxi-wlan soc@03000000:wlan@0: wlan_power_name ((null))
[ 1.675900] sunxi-wlan soc@03000000:wlan@0: Missing wlan_io_regulator.
[ 1.683258] sunxi-wlan soc@03000000:wlan@0: io_regulator_name ((null))
[ 1.690640] sunxi-wlan soc@03000000:wlan@0: wlan_regon gpio=362 mul-sel=1 pull=-1 drv_level=-1 data=0
[ 1.701459] sunxi-wlan soc@03000000:wlan@0: get gpio chip_en failed
[ 1.708521] sunxi-wlan soc@03000000:wlan@0: get gpio power_en failed
[ 1.715695] sunxi-wlan soc@03000000:wlan@0: wlan_hostwake gpio=359 mul-sel=1 pull=-1 drv_level=-1 data=0
[ 1.720044] [DISP] disp_device_attached_and_enable,line:223:
[ 1.720044] attached ok, mgr0<-->dev0
[ 1.720054] [DISP] disp_device_attached_and_enable,line:236:
[ 1.720054] type:1,mode:0,fmt:rgb,bits:8bits,eotf:4,cs:257 dvi_hdmi:2, range:2 scan:0 ratio:8
[ 1.720060] screen_id=1, output_type=1, lcd_reg=1,hdmi_reg=0
[ 1.720860] [DISP] lcd_clk_config,line:665:
[ 1.720861] disp 1, clk: pll(176000000),clk(176000000),dclk(11000000) dsi_rate(176000000)
[ 1.720861] clk real:pll(288000000),clk(288000000),dclk(18000000) dsi_rate(0)
[ 1.720922] =====================LCD_open_flow
[ 1.720926] drivers/video/fbdev/sunxi/disp2/disp/lcd/st7701s_rgb.c LCD_open_flow line 158: 11111111111111111111111111
[ 1.720930] =====================LCD_power_on
[ 1.720934] drivers/video/fbdev/sunxi/disp2/disp/lcd/st7701s_rgb.c LCD_power_on line 189: 11111111111111111111111111
[ 1.815988] sunxi-wlan soc@03000000:wlan@0: clk not config
[ 1.822173] sunxi-wlan soc@03000000:wlan@0: dcxo not config
[ 1.828546] sunxi-wlan soc@03000000:wlan@0: pinctrl_lookup_state(default) failed! return ffffffffffffffed
[ 1.841450] [ADDR_MGT] addr_mgt_probe: success.
[ 1.849939] libphy: Fixed MDIO Bus: probed
[ 1.854565] tun: Universal TUN/TAP device driver, 1.6
[ 1.860253] tun: (C) 1999-2004 Max Krasnyansky <maxk@qualcomm.com>
[ 1.870689] gmac-power0: NULL
[ 1.874049] gmac-power1: NULL
[ 1.877395] gmac-power2: NULL
[ 1.883864] PPP generic driver version 2.4.2
[ 1.889655] PPP BSD Compression module registered
[ 1.894968] PPP Deflate Compression module registered
[ 1.900696] PPP MPPE Compression module registered
[ 1.906099] NET: Registered protocol family 24
[ 1.911169] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[ 1.918987] get ehci0-controller, regulator_io is no nocare
[ 1.925266] get ehci0-controller wakeup-source is fail.
[ 1.931497] sunxi ehci0-controller don't init wakeup source
[ 1.937780] [sunxi-ehci0]: probe, pdev->name: 5101000.ehci0-controller, sunxi_ehci: 0xffffff8008adc048, 0x:ffffff8008b13000, irq_no:161
[ 1.951482] [sunxi-ehci0]: Not init ehci0
[ 1.956221] get ehci1-controller, regulator_io is no nocare
[ 1.962996] [sunxi-ehci1]: probe, pdev->name: 5200000.ehci1-controller, sunxi_ehci: 0xffffff8008adc758, 0x:ffffff8008b1d000, irq_no:163
[ 1.976753] 5200000.ehci1-controller supply drvvbus not found, using dummy regulator
[ 1.985742] sunxi-ehci 5200000.ehci1-controller: SW USB2.0 'Enhanced' Host Controller (EHCI) Driver
[ 1.996009] sunxi-ehci 5200000.ehci1-controller: new USB bus registered, assigned bus number 1
[ 2.010708] sunxi-ehci 5200000.ehci1-controller: irq 355, io mem 0xffffff80088f0458
[ 2.031493] sunxi-ehci 5200000.ehci1-controller: USB 0.0 started, EHCI 1.00
[ 2.043148] hub 1-0:1.0: USB hub found
[ 2.047496] hub 1-0:1.0: 1 port detected
[ 2.054456] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
[ 2.059482] =====================LCD_panel_init
[ 2.067015] get ohci0-controller, regulator_io is no nocare
[ 2.073293] get ohci0-controller wakeup-source is fail.
[ 2.079491] sunxi ohci0-controller don't init wakeup source
[ 2.085926] [sunxi-ohci0]: probe, pdev->name: 5101000.ohci0-controller, sunxi_ohci: 0xffffff8008adc3d0
[ 2.096410] [sunxi-ohci0]: Not init ohci0
[ 2.101162] get ohci1-controller, regulator_io is no nocare
[ 2.108045] [sunxi-ohci1]: probe, pdev->name: 5200000.ohci1-controller, sunxi_ohci: 0xffffff8008adcae0
[ 2.118577] 5200000.ohci1-controller supply drvvbus not found, using dummy regulator
[ 2.127629] sunxi-ohci 5200000.ohci1-controller: SW USB2.0 'Open' Host Controller (OHCI) Driver
[ 2.137499] sunxi-ohci 5200000.ohci1-controller: new USB bus registered, assigned bus number 2
[ 2.147458] sunxi-ohci 5200000.ohci1-controller: irq 356, io mem 0xffffff80088f0458
[ 2.223115] hub 2-0:1.0: USB hub found
[ 2.227451] hub 2-0:1.0: 1 port detected
[ 2.234813] usbcore: registered new interface driver uas
[ 2.241180] usbcore: registered new interface driver usb-storage
[ 2.248134] usbcore: registered new interface driver ums-alauda
[ 2.254977] usbcore: registered new interface driver ums-cypress
[ 2.261920] usbcore: registered new interface driver ums-datafab
[ 2.268872] usbcore: registered new interface driver ums_eneub6250
[ 2.276014] usbcore: registered new interface driver ums-freecom
[ 2.282959] usbcore: registered new interface driver ums-isd200
[ 2.289806] usbcore: registered new interface driver ums-jumpshot
[ 2.296854] usbcore: registered new interface driver ums-karma
[ 2.303625] usbcore: registered new interface driver ums-onetouch
[ 2.310796] usbcore: registered new interface driver ums-realtek
[ 2.317745] usbcore: registered new interface driver ums-sddr09
[ 2.324615] usbcore: registered new interface driver ums-sddr55
[ 2.331481] usbcore: registered new interface driver ums-usbat
[ 2.338359] usb_serial_number:20080411
[ 2.343968] sunxikbd_key_init: key0 vol= 210 code= 115
[ 2.349764] sunxikbd_key_init: key1 vol= 410 code= 114
[ 2.355555] sunxikbd_key_init: key2 vol= 590 code= 139
[ 2.361348] sunxikbd_key_init: key3 vol= 750 code= 28
[ 2.367041] sunxikbd_key_init: key4 vol= 880 code= 102
[ 2.374188] input: sunxi-keyboard as /devices/virtual/input/input0
[ 2.382830] sun50iw10p1-pinctrl pio: pin PH3 already requested by gmac0; cannot claim for ir0
[ 2.392441] sun50iw10p1-pinctrl pio: pin-227 (ir0) status -22
[ 2.398921] sun50iw10p1-pinctrl pio: could not request pin 227 (PH3) from group PH3 on device pio
[ 2.407478] =====================LCD_bl_open
[ 2.407483] drivers/video/fbdev/sunxi/disp2/disp/lcd/st7701s_rgb.c LCD_bl_open line 215: 11111111111111111111111111
[ 2.408055] [DISP] disp_device_attached_and_enable,line:223:
[ 2.408055] attached ok, mgr1<-->dev1
[ 2.408065] [DISP] disp_device_attached_and_enable,line:236:
[ 2.408065] type:1,mode:4,fmt:rgb,bits:8bits,eotf:4,cs:260 dvi_hdmi:2, range:2 scan:0 ratio:8
[ 2.452005] sunxi-ir-tx ir0: Error applying setting, reverse things back
[ 2.459657] sunxi-ir-tx: probe of ir0 failed with error -22
[ 2.467858] sunxi_gpadc_init,1536, success
[ 2.474165] input: sunxi-gpadc0 as /devices/virtual/input/input1
[ 2.484012] sunxi-rtc rtc: rtc core: registered sunxi-rtc as rtc0
[ 2.491120] sunxi-rtc rtc: RTC enabled
[ 2.495862] i2c /dev entries driver
[ 2.500952] IR NEC protocol handler initialized
[ 2.506063] IR RC5(x/sz) protocol handler initialized
[ 2.511756] IR RC6 protocol handler initialized
[ 2.516858] IR JVC protocol handler initialized
[ 2.521964] IR Sony protocol handler initialized
[ 2.527165] IR SANYO protocol handler initialized
[ 2.532467] IR Sharp protocol handler initialized
[ 2.537765] IR MCE Keyboard/mouse protocol handler initialized
[ 2.544335] IR XMP protocol handler initialized
[ 2.549831] usbcore: registered new interface driver uvcvideo
[ 2.556309] USB Video Class driver (1.1.1)
[ 2.560923] sunxi cedar version 0.1
[ 2.565129] VE: install start!!!
[ 2.565129]
[ 2.570642] cedar_ve: cedar-ve the get irq is 347
[ 2.577147] VE: get debugfs_mpp_root is NULL, please check mpp
[ 2.577147]
[ 2.585381] VE: sunxi ve debug register driver failed!
[ 2.585381]
[ 2.594399] Bluetooth: HCI UART driver ver 2.3
[ 2.599413] Bluetooth: HCI UART protocol H4 registered
[ 2.605211] Bluetooth: HCI UART protocol Three-wire (H5) registered
[ 2.615610] sunxi-mmc sdc2: SD/MMC/SDIO Host Controller Driver(v3.46 2020-6-1 11:33-202006021635)
[ 2.625893] sunxi-mmc sdc2: No vmmc regulator found
[ 2.631396] sunxi-mmc sdc2: No vqmmc regulator found
[ 2.636990] sunxi-mmc sdc2: No vdmmc regulator found
[ 2.642586] sunxi-mmc sdc2: No vd33sw regulator found
[ 2.648277] sunxi-mmc sdc2: No vd18sw regulator found
[ 2.653970] sunxi-mmc sdc2: No vq33sw regulator found
[ 2.654170] random: fast init done
[ 2.663491] sunxi-mmc sdc2: No vq18sw regulator found
[ 2.670026] sunxi-mmc sdc2: set host busy
[ 2.674641] mmc:failed to get gpios
[ 2.679322] sunxi-mmc sdc2: sdc set ios:clk 0Hz bm PP pm UP vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.707493] sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.735503] sunxi-mmc sdc2: detmode:alway in(non removable)
[ 2.735525] sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.743907] sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.744997] sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm OD pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.755861] sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm OD pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.755947] sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm OD pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.768809] sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm OD pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.813637] sun50iw10p1-pinctrl pio: expect_func as:uart0_jtag, but muxsel(3) is func:jtag0
[ 2.823051] sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.833947] sun50iw10p1-pinctrl pio: expect_func as:uart0_jtag, but muxsel(3) is func:jtag0
[ 2.833958] sun50iw10p1-pinctrl pio: expect_func as:uart0_jtag, but muxsel(3) is func:uart0
[ 2.833969] sun50iw10p1-pinctrl pio: expect_func as:uart0_jtag, but muxsel(3) is func:jtag0
[ 2.833980] sun50iw10p1-pinctrl pio: expect_func as:uart0_jtag, but muxsel(3) is func:uart0
[ 2.833991] sun50iw10p1-pinctrl pio: expect_func as:uart0_jtag, but muxsel(3) is func:jtag0
[ 2.834731] sunxi-mmc sdc0: SD/MMC/SDIO Host Controller Driver(v3.46 2020-6-1 11:33-202006021635)
[ 2.834884] sunxi-mmc sdc0: ***ctl-spec-caps*** 8
[ 2.834945] sunxi-mmc sdc0: No vmmc regulator found
[ 2.834950] sunxi-mmc sdc0: No vqmmc regulator found
[ 2.834954] sunxi-mmc sdc0: No vdmmc regulator found
[ 2.834959] sunxi-mmc sdc0: No vd33sw regulator found
[ 2.834963] sunxi-mmc sdc0: No vd18sw regulator found
[ 2.834967] sunxi-mmc sdc0: No vq33sw regulator found
[ 2.834972] sunxi-mmc sdc0: No vq18sw regulator found
[ 2.835803] sunxi-mmc sdc0: set host busy
[ 2.835883] sunxi-mmc sdc0: Got CD GPIO
[ 2.836760] sunxi-mmc sdc0: sdc set ios:clk 0Hz bm PP pm UP vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.836784] sunxi-mmc sdc0: no vqmmc,Check if there is regulator
[ 2.855496] sunxi-mmc sdc0: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.875940] sunxi-mmc sdc0: detmode:gpio irq
[ 2.875961] sunxi-mmc sdc0: sdc set ios:clk 0Hz bm PP pm OFF vdd 0 width 1 timing LEGACY(SDR12) dt B
[ 2.878092] sunxi-mmc sdc1: SD/MMC/SDIO Host Controller Driver(v3.46 2020-6-1 11:33-202006021635)
[ 2.878214] sunxi-mmc sdc1: ***ctl-spec-caps*** 8
[ 2.878272] sunxi-mmc sdc1: No vmmc regulator found
[ 2.878277] sunxi-mmc sdc1: No vqmmc regulator found
[ 2.878281] sunxi-mmc sdc1: No vdmmc regulator found
[ 2.878286] sunxi-mmc sdc1: No vd33sw regulator found
[ 2.878290] sunxi-mmc sdc1: No vd18sw regulator found
[ 2.878294] sunxi-mmc sdc1: No vq33sw regulator found
[ 2.878299] sunxi-mmc sdc1: No vq18sw regulator found
[ 2.879118] sunxi-mmc sdc1: set host busy
[ 2.879220] mmc:failed to get gpios
[ 2.879247] sunxi-mmc sdc1: min-frequency:400000
[ 2.879949] sunxi-mmc sdc1: sdc set ios:clk 0Hz bm PP pm UP vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.879972] sunxi-mmc sdc1: no vqmmc,Check if there is regulator
[ 2.891067] sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing MMC-HS(SDR20) dt B
[ 2.896396] sunxi-mmc sdc2: sdc set ios:clk 50000000Hz bm PP pm ON vdd 21 width 1 timing MMC-HS(SDR20) dt B
[ 2.899494] sunxi-mmc sdc1: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.901908] sunxi-mmc sdc2: sdc set ios:clk 50000000Hz bm PP pm ON vdd 21 width 8 timing MMC-HS(SDR20) dt B
[ 2.918817] sunxi-mmc sdc2: sdc set ios:clk 50000000Hz bm PP pm ON vdd 21 width 8 timing MMC-DDR52 dt B
[ 2.919500] sunxi-mmc sdc1: detmode:manually by software
[ 2.922040] usbcore: registered new interface driver usbhid
[ 2.922043] usbhid: USB HID core driver
[ 2.925022] codec supply avcc not found, using dummy regulator
[ 2.925232] [sunxi_internal_codec_probe]: audiocodec avcc set vol failed
[ 2.925242] codec supply cpvin not found, using dummy regulator
[ 2.925454] [sunxi_internal_codec_probe]: audiocodec cpvin set vol failed
[ 2.926127] sunxi-internal-codec codec: pa_power_always_on get failed and set it off.
[ 2.926134] digital_vol:0, lineout_vol:26, mic1gain:31, mic2gain:31 pa_msleep:120, pa_level:1, pa_power_always_on:0
[ 2.926142] adcdrc_cfg:0, adchpf_cfg:0, dacdrc_cfg:0, dachpf:0
[ 2.926330] sunxi-internal-codec codec: [sunxi_internal_codec_probe] codec probe finished.
[ 2.928176] [sunxi_card_init] card init finished.
[ 2.928587] Audio: [soc_new_pcm] -> 2699
[ 2.928591] Audio: [soc_new_pcm] -> 2718
[ 2.929273] Audio: [soc_new_pcm] -> 2746
[ 2.930332] sunxi-mmc sdc1: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.930368] mmc0: new DDR MMC card at address 0001
[ 2.931750] sunxi-codec-machine sndcodec: sun50iw10codec <-> codec mapping ok
[ 2.932801] mmcblk0: mmc0:0001 AJTD4R 14.6 GiB
[ 2.937032] sunxi-mmc sdc1: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.937544] mmcblk0boot0: mmc0:0001 AJTD4R partition 1 4.00 MiB
[ 2.938820] input: sun50iw10-codec sunxi Audio Jack as /devices/platform/soc/sndcodec/sound/card0/input2
[ 2.940259] [audio] hp_detect_case: 0
[ 2.940613] sunxi-mmc sdc1: card claims to support voltages below defined range
[ 2.940789] sunxi-codec-machine sndcodec: [sunxi_card_dev_probe] register card finished.
[ 2.941338] u32 classifier
[ 2.941340] Actions configured
[ 2.941347] Netfilter messages via NETLINK v0.30.
[ 2.942246] mmcblk0boot1: mmc0:0001 AJTD4R partition 2 4.00 MiB
[ 2.942417] nf_conntrack version 0.5.0 (8192 buckets, 32768 max)
[ 2.942935] mmcblk0rpmb: mmc0:0001 AJTD4R partition 3 4.00 MiB
[ 2.943752] ctnetlink v0.93: registering with nfnetlink.
[ 2.973103] ip_tables: (C) 2000-2006 Netfilter Core Team
[ 2.977765] Initializing XFRM netlink socket
[ 2.977834] mmcblk0: p1 p2 p3 p4 p5 p6
[ 2.985598] NET: Registered protocol family 10
[ 2.996896] NET: Registered protocol family 17
[ 2.997912] 8021q: 802.1Q VLAN Support v1.8
[ 3.039124] get usb_detect_mode is fail, 22
[ 3.043125] sunxi-rtc rtc: setting system clock to 1970-01-01 00:00:04 UTC (4)
[ 3.043887] usb1-vbus: disabling
[ 3.043892] vdd_3v3: disabling
[ 3.043896] ALSA device list:
[ 3.043900] #0: sun50iw10-codec
[ 3.044260] Freeing unused kernel memory: 448K
[ 3.151393] sunxi-mmc sdc1: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing SD-HS(SDR25) dt B
[ 3.151553] sunxi-mmc sdc1: sdc set ios:clk 50000000Hz bm PP pm ON vdd 21 width 1 timing SD-HS(SDR25) dt B
[ 3.165620] sunxi-mmc sdc1: sdc set ios:clk 50000000Hz bm PP pm ON vdd 21 width 4 timing SD-HS(SDR25) dt B
[ 3.429174] mmc2: new high speed SDIO card at address 0001
[/init]: getty is ttyS0
[/init]: RootDevice is "/dev/mmcblk0p4" , GPT_SUPPORT=1
[/init]: Try to load EMMC ...
e2fsck 1.42.12 (29-Aug-2014)
/dev/mmcblk0p4: recovering journal
Setting free inodes count to 8006 (was 8021)
Setting free blocks count to 4108 (was 4116)
/dev/mmcblk0p4: clean, 1210/9216 files, 32756/368[ 3.517906] EXT4-fs (mmcblk0p4): barriers disabled
64 blocks
[ 3.528455] EXT4-fs (mmcblk0p4): mounted filesystem with ordered data mode. Opts: noauto_da_alloc,barrier=0,data=ordered
mount: mounting proc on /proc failed: Device or resource busy
mount: mounting sysfs on /sys fa[ 3.674268] EXT4-fs (mmcblk0p4): re-mounted. Opts: nobarrier,noauto_da_alloc,data=ordered
iled: Device or resource busy
insmod: can't insert '/lib/modules/4.9.170/disp.ko': No such file or directory
boot-res device: /dev/mmcblk0p1
[ 3.725401] FAT-fs (mmcblk0p1): Volume was not properly unmounted. Some data may be corrupt. Please run fsck.
login[908]: root login on 'ttyS0'
nand activated #0
[ 3.896568] get ctp_power is fail, -22
[ 3.900824] sunxi_ctp_startup: ctp_power_io is invalid.
[ 3.906748] get ctp_gesture_wakeup fail, no gesture wakeup
[ 3.912945] 5-0014 supply ctp not found, using dummy regulator
[ 4.067737] sunxi_i2c_do_xfer()1923 - [i2c5] incomplete xfer (status: 0x20, dev addr: 0x14)
[ 4.077318] sunxi_i2c_do_xfer()1923 - [i2c5] incomplete xfer (status: 0x20, dev addr: 0x14)
[ 4.086892] sunxi_i2c_do_xfer()1923 - [i2c5] incomplete xfer (status: 0x20, dev addr: 0x14)
[ 4.096505] sunxi_i2c_do_xfer()1923 - [i2c5] incomplete xfer (status: 0x20, dev addr: 0x14)
[ 4.106072] sunxi_i2c_do_xfer()1923 - [i2c5] incomplete xfer (status: 0x20, dev addr: 0x14)
[ 4.115496] <<-GTP-ERROR->> I2C Read: 0x8140, 6 bytes failed, errcode: -70! Process reset.
[ 4.231522] <<-GTP-ERROR->> GTP read version failed
[ 4.237023] Read version failed.
[ 4.264639] input: gt9xxnew_ts as /devices/virtual/input/input3
script_fetch device name is ft6236
[ 9.519493]
[ 9.519493] insmod_device_driver
[ 9.519493]
-------swith to adb....
[ 9.926255] file system registered
init adb main
[ 9.966383] read descriptors
Handling main()
[ 9.969965] read strings
Time out,can not find tp event num /dev/input/event
camera activated #0
camera not activated
root@dragonboard:~# dragonboard(msg): core: parse script /boot/test_config.fex...
dragonboard(debug): the length of script is 10137
dragonboard(debug): script shmid = 0
dragonboard(msg): core: init script...
dragonboard(debug): script: main key count #23
dragonboard(msg): script: V1.0.0
dragonboard(msg): core: init view...
dragonboard(msg): core: parse test case from script...
dragonboard(msg): core: total test cases #10
dragonboard(msg): core: total test cases_auto #6
dragonboard(msg): core: total test cases_manual #4
dragonboard(debug): view: init...
dragonboard(msg): directfb view init...
dragonboard(msg): disp_output_type=1
~~~~~~~~~~~~~~~~~~~~~~~~~~| DirectFB 1.4.11 |~~~~~~~~~~~~~~~~~~~~~~~~~~
(c) 2001-2010 The world wide DirectFB Open Source Community
(c) 2000-2004 Convergence (integrated media) GmbH
----------------------------------------------------------------
(*) DirectFB/Core: Single Application Core. (2012-05-04 09:52)
(*) Direct/Memcpy: Using libc memcpy()
(*) DirectFB/FBDev: Found '' (ID 0) with frame buffer at 0xffe00000, 1800k (MMIO 0x00000000, 0k)
(*) Direct/Thread: Started 'Keyboard Input' (-1) [INPUT OTHER/OTHER 0/0] <8388608>...
(*) DirectFB/Input: Keyboard 0.9 (directfb.org)
(*) DirectFB/Graphics: Generic Software Rasterizer 0.6 (directfb.org)
(*) DirectFB/Core/WM: Default 0.3 (directfb.org)
(*) FBDev/Mode: Setting 480x480 RGB32
(*) FBDev/Mode: Switched to 480x480 (virtual 480x480) at 32 bit (RGB32), pitch 1920
(*) FBDev/Mode: Setting 480x480 RGB32
(*) FBDev/Mode: Switched to 480x480 (virtual 480x480) at 32 bit (RGB32), pitch 1920
dragonboard(msg): screen_width: 480, sceen_height: 480
(*) Direct/Interface: Loaded 'FT2' implementation of 'IDirectFBFont'.
dragonboard(debug): manual test case window init...
dragonboard(debug): manual_window.desc.height=188
dragonboard(debug): auto test case window init...
dragonboard(debug): misc window init...
dragonboard(debug): reboot button init...
dragonboard(debug): poweroff button init...
dragonboard(debug): mic window init...
dragonboard(debug): wifi list window init...
this is the mic_audio_receive thread...
this is the wifi_hot_point_proccess thread...
dragonboard(msg): ########screen_width=1024
dragonboard(msg): ########screen_height=768
dragonboard(msg): tp draw color: 0xffffffff
------------- to open video node
-------swith to adb done!
[ 11.136600] sunxi_set_cur_vol_work()403 WARN: get power supply failed
[ 11.227726] android_work: sent uevent USB_STATE=CONNECTED
[ 11.233834] sunxi_set_cur_vol_work()403 WARN: get power supply failed
[ 11.358399] configfs-gadget gadget: high-speed config #1: c
[ 11.364798] android_work: sent uevent USB_STATE=CONFIGURED
[ 12.824098] adbd (1025): /proc/1025/oom_adj is deprecated, please use /proc/1025/oom_score_adj instead.
[ 13.392090] random: crng init done
dragonboard(error): Can't not open /dev/video0
dragonboard(msg): buildin_tc_init...
view/df_view_pad.c <2071>:
(#) DirectFBError [dfb->GetInputDevice(dfb, 1, &tp_dev)]: Requested ID not found!
(!!!) *** WARNING [Application exited without deinitialization of DirectFB!] *** [core.c:881 in dfb_core_deinit_check()]
(!!!) *** WARNING [still objects in 'Window Pool'] *** [object.c:241 in fusion_object_pool_destroy()]
(!!!) *** WARNING [still objects in 'Layer Region Pool'] *** [object.c:241 in fusion_object_pool_destroy()]
(!!!) *** WARNING [still objects in 'Layer Context Pool'] *** [object.c:241 in fusion_object_pool_destroy()]
(!!!) *** WARNING [still objects in 'Surface Pool'] *** [object.c:241 in fusion_object_pool_destroy()]
root@dragonboard:~#
root@dragonboard:~#开机画面在 ST7701，
cat /dev/urandom > /dev/fb0 ST7701有雪花
cat /dev/urandom > /dev/fb1 ST7701无反应
#26 全志 SOC » 收到小智SW106开发板到手，试着玩一玩 » 2022-06-27 09:35:32
- yixiuge
- 回复： 15
board.dts 部分配置：
disp init configuration
disp_mode (0:screen0<screen0,fb0>)
screenx_output_type (0:none; 1:lcd; 2:tv; 3:hdmi;5:vdpo)
screenx_output_mode (used for hdmi output, 0:480i 1:576i 2:480p 3:576p 4:720p50)
(5:720p60 6:1080i50 7:1080i60 8:1080p24 9:1080p50 10:1080p60)
screenx_output_format (for hdmi, 0:RGB 1:yuv444 2:yuv422 3:yuv420)
screenx_output_bits (for hdmi, 0:8bit 1:10bit 2:12bit 2:16bit)
screenx_output_eotf (for hdmi, 0:reserve 4:SDR 16:HDR10 18:HLG)
screenx_output_cs (for hdmi, 0:undefined 257:BT709 260:BT601 263:BT2020)
screenx_output_dvi_hdmi (for hdmi, 0:undefined 1:dvi mode 2:hdmi mode)
screen0_output_range (for hdmi, 0:default 1:full 2:limited)
screen0_output_scan (for hdmi, 0:no data 1:overscan 2:underscan)
screen0_output_aspect_ratio (for hdmi, 8-same as original picture 9-4:3 10-16:9 11-14:9)
fbx format (4:RGB655 5:RGB565 6:RGB556 7:ARGB1555 8:RGBA5551 9:RGB888 10:ARGB8888 12:ARGB4444)
fbx pixel sequence (0:ARGB 1:BGRA 2:ABGR 3:RGBA)
fb0_scaler_mode_enable(scaler mode enable, used FE)
fbx_width,fbx_height (framebuffer horizontal/vertical pixels, fix to output resolution while equal 0)
lcdx_backlight (lcd init backlight,the range:[0,256],default:197
lcdx_yy (lcd init screen bright/contrast/saturation/hue, value:0~100, default:50/50/57/50)
lcd0_contrast (LCD contrast, 0~100)
lcd0_saturation (LCD saturation, 0~100)
lcd0_hue (LCD hue, 0~100)
framebuffer software rotation setting:
disp_rotation_used: (0:disable; 1:enable,you must set fbX_width to lcd_y,
set fbX_height to lcd_x)
degreeX: (X:screen index; 0:0 degree; 1:90 degree; 3:270 degree)
degreeX_Y: (X:screen index; Y:layer index 0~15; 0:0 degree; 1:90 degree; 3:270 degree)
devX_output_type : config output type in bootGUI framework in UBOOT-2018.
(0:none; 1:lcd; 2:tv; 4:hdmi;)
devX_output_mode : config output resolution(see include/video/sunxi_display2.h) of bootGUI framework in UBOOT-2018
devX_screen_id : config display index of bootGUI framework in UBOOT-2018
devX_do_hpd : whether do hpd detectation or not in UBOOT-2018
chn_cfg_mode : Hardware DE channel allocation config. 0:single display with 6
channel, 1:dual display with 4 channel in main display and 2 channel in second
display, 2:dual display with 3 channel in main display and 3 channel in second
in display.
----------------------------------------------------------------------------------*/
disp: disp@06000000 {
disp_init_enable = <1>;
disp_mode = <3>;
screen0_output_type = <1>;
screen0_output_mode = <4>;
screen0_output_format = <0>;
screen0_output_bits = <0>;
screen0_output_eotf = <4>;
screen0_output_cs = <257>;
screen0_output_dvi_hdmi = <2>;
screen0_output_range = <2>;
screen0_output_scan = <0>;
screen0_output_aspect_ratio = <8>;
screen1_output_type = <1>;
screen1_output_mode = <4>;
screen1_output_format = <0>;
screen1_output_bits = <0>;
screen1_output_eotf = <4>;
screen1_output_cs = <257>;
screen1_output_dvi_hdmi = <2>;
screen1_output_range = <2>;
screen1_output_scan = <0>;
screen1_output_aspect_ratio = <8>;
dev0_output_type = <1>;
dev0_output_mode = <4>;
dev0_screen_id = <0>;
dev0_do_hpd = <0>;
dev1_output_type = <1>;
dev1_output_mode = <4>;
dev1_screen_id = <1>;
dev1_do_hpd = <1>;
def_output_dev = <0>;
hdmi_mode_check = <1>;
fb0_format = <0>;
fb0_width = <0>;
fb0_height = <0>;
fb1_format = <0>;
fb1_width = <0>;
fb1_height = <0>;
chn_cfg_mode = <1>;
disp_para_zone = <1>;
/*VCC-LCD*/
dc1sw-supply = <>;
/*VCC-DSI*/
eldo3-supply = <>;
/*VCC-PD*/
dcdc1-supply = <>;
status = "okay";
};
/*----------------------------------------------------------------------------------
;lcd0 configuration
;lcd_if: 0:hv(sync+de); 1:8080; 2:ttl; 3:lvds; 4:dsi; 5:edp; 6:extend dsi
;lcd_hv_if 0:Parallel RGB; 8:Serial RGB; 10:Dummy RGB; 11: RGB Dummy;12:CCIR656
;lcd_hv_clk_phase 0:0 degree;1:90 degree;2:180 degree;3:270 degree
;lcd_hv_sync_polarity 0:vs low,hs low; 1:vs high,hslow; 2:vs low,hs high; 3:vs high,hs high
;lcd_hv_syuv_seq 0:YUYV; 1:YVYU; 2:UYVY; 3:VYUY
;lcd_cpu_if 0:18bit/1 cycle parallel(RGB666); 4:16bit/1cycle parallel (RGB565)
; 6:18bit/3 cycle parallel(RGB666); 7:16bit/2cycle parallel (RGB565)
;lcd_cpu_te 0:frame auto trigger; 1:frame triggered by te rising edge; 2:frame triggered by te falling edge;
;lcd_dsi_if 0:video mode; 1: Command mode; 2:video burst mode
;lcd_dsi_te 0:frame auto trigger; 1:frame triggered by te rising edge; 2:frame triggered by te falling edge;
;lcd_x: lcd horizontal resolution
;lcd_y: lcd vertical resolution
;lcd_width: width of lcd in mm
;lcd_height: height of lcd in mm
;lcd_dclk_freq: in MHZ unit
;lcd_pwm_freq: in HZ unit
;lcd_pwm_pol: lcd backlight PWM polarity
;lcd_pwm_max_limit lcd backlight PWM max limit(<=255)
;lcd_hbp: hsync back porch(pixel) + hsync plus width(pixel);
;lcd_ht: hsync total cycle(pixel)
;lcd_vbp: vsync back porch(line) + vysnc plus width(line)
;lcd_vt: vysnc total cycle(line)
;lcd_hspw: hsync plus width(pixel)
;lcd_vspw: vysnc plus width(pixel)
;lcd_lvds_if: 0:single link; 1:dual link(odd and even); 2:dual link(same pixel)
;lcd_lvds_colordepth: 0:8bit; 1:6bit
;lcd_lvds_mode: 0:NS mode; 1:JEIDA mode
;lcd_frm: 0:disable; 1:enable rgb666 dither; 2:enable rgb656 dither
;lcd_io_phase: 0:noraml; 1:intert phase(0~3bit: vsync phase; 4~7bit:hsync phase;
; 8~11bit:dclk phase; 12~15bit:de phase)
;lcd_gamma_en lcd gamma correction enable
;lcd_bright_curve_en lcd bright curve correction enable
;lcd_cmap_en lcd color map function enable
;deu_mode 0:smoll lcd screen; 1:large lcd screen(larger than 10inch)
;lcdgamma4iep: Smart Backlight parameter, lcd gamma vale * 10;
; decrease it while lcd is not bright enough; increase while lcd is too bright
;smart_color 90:normal lcd screen 65:retina lcd screen(9.7inch)
;Pin setting for special function ie.LVDS, RGB data or vsync
; name(donot care) = port:PD12<pin function><pull up or pull down><drive ability><output level>
;Pin setting for gpio:
; lcd_gpio_X = port:PD12<pin function><pull up or pull down><drive ability><output level>
;Pin setting for backlight enable pin
; lcd_bl_en = port:PD12<pin function><pull up or pull down><drive ability><output level>
;fsync setting, pulse to csi
;lcd_fsync_en (0:disable fsync,1:enable)
;lcd_fsync_act_time (active time of fsync, unit:pixel)
;lcd_fsync_dis_time (disactive time of fsync, unit:pixel)
;lcd_fsync_pol (0:positive;1:negative)
;gpio config: <&pio for cpu or &r_pio for cpus, port, port num, pio function,
pull up or pull down(default 0), driver level(default 1), data>
;For dual link lvds: use lvds2link_pins_a and lvds2link_pins_b instead
;For rgb24: use rgb24_pins_a and rgb24_pins_b instead
;For lvds1: use lvds1_pins_a and lvds1_pins_b instead
;For lvds0: use lvds0_pins_a and lvds0_pins_b instead
;----------------------------------------------------------------------------------*/
lcd0: lcd0@01c0c000 {
lcd_used = <1>;
lcd_driver_name = "default_lcd";
lcd_if = <3>;
lcd_hv_if = <0>;
lcd_width = <70>;
lcd_height = <72>;
lcd_x = <1024>;
lcd_y = <768>;
lcd_dclk_freq = <65>;
lcd_hbp = <160>;
lcd_ht = <1344>;
lcd_hspw = <10>;
lcd_vbp = <29>;
lcd_vt = <806>;
lcd_vspw = <5>;
lcd_lvds_ch = <0>;
lcd_lvds_mode = <1>;
lcd_lvds_bitwidth = <0>;
lcd_lvds_io_cross = <0>;
lcd_backlight = <50>;
lcd_pwm_used = <1>;
lcd_pwm_ch = <7>;
lcd_pwm_freq = <20000>;
lcd_pwm_pol = <1>;
lcd_bright_curve_en = <0>;
lcd_frm = <1>;
lcd_io_phase = <0x0000>;
lcd_gamma_en = <0>;
lcd_cmap_en = <0>;
lcd_hv_clk_phase = <1>;
lcd_hv_sync_polarity= <0>;
lcd_rb_swap = <0>;
//lcd_bl_en = <&pio PI 7 1 1 3 1>;
/*
lcd_gpio_0 = <&pio PJ 16 1 1 3 1>;//reset
lcd_gpio_1 = <&pio PJ 17 1 1 3 1>;//cs
lcd_gpio_2 = <&pio PC 2 1 1 3 1>;//sdi
lcd_gpio_3 = <&pio PC 12 1 1 3 1>;//scl
*/
lcd_pin_power;
lcd_power;
pinctrl-0 = <&lvds0_pins_a>;
pinctrl-1 = <&lvds0_pins_b>;
status = "okay";
};
lcd1: lcd1@01c0c001 {
lcd_used = <1>;
lcd_driver_name = "st7701s_rgb";
lcd_if = <0>;
lcd_hv_if = <0>;
lcd_width = <70>;
lcd_height = <72>;
lcd_x = <480>;
lcd_y = <480>;
lcd_dclk_freq = <11>;
lcd_hbp = <60>;
lcd_ht = <612>;
lcd_hspw = <12>;
lcd_vbp = <18>;
lcd_vt = <520>;
lcd_vspw = <4>;
lcd_backlight = <250>;// 0 ~ 255
lcd_pwm_used = <1>;
lcd_pwm_ch = <8>;
lcd_pwm_freq = <20000>;
lcd_pwm_pol = <1>;
lcd_pwm_max_limit = <255>;
lcd_bright_curve_en = <0>;
lcd_frm = <1>;
lcd_io_phase = <0x0000>;
lcd_gamma_en = <0>;
lcd_cmap_en = <0>;
lcd_hv_clk_phase = <1>;
lcd_hv_sync_polarity= <0>;
lcd_rb_swap = <0>;
//lcd_bl_en = <&pio PI 7 1 1 3 1>;
lcd_gpio_0 = <&pio PJ 16 1 1 3 1>;//reset
lcd_gpio_1 = <&pio PJ 17 1 1 3 1>;//cs
lcd_gpio_2 = <&pio PC 2 1 1 3 1>;//sdi
lcd_gpio_3 = <&pio PC 12 1 1 3 1>;//scl
/*
lcd_gpio_2 = <&r_pio PL 2 1 1 3 1>;//sdi
lcd_gpio_3 = <&r_pio PL 3 1 1 3 1>;//scl
*/
lcd_pin_power;
lcd_power;
pinctrl-0 = <&rgb18_pins_c>;
pinctrl-1 = <&rgb18_pins_d>;
status = "okay";
};日志：
[37]HELLO! BOOT0 is starting!
[40]BOOT0 commit : dc54be6
[43]set pll start
[45]periph0 has been enabled
[48]set pll end
[50][pmu]: bus read error
[52][pmu]: bus read error
[60]vaild para:1 select dram para0
[63]board init ok
[65]DRAM BOOT DRIVE INFO: V0.19
[68]the chip id is 0x2400
[71]the chip id is 0x2400
[73]the chip id is 0x2400
[76]the chip id is 0x2400
[79]the chip id is 0x2400
[81]chip id check OK
[83]DRAM_VCC set to 1100 mv
[86]DRAM CLK =792 MHZ
[88]DRAM Type =8 (3:DDR3,4:DDR4,7:LPDDR3,8:LPDDR4)
[96]DRAM SIZE =1024 MBytes, para1 = 30fa, para2 = 4000000, dram_tpr13 = 6063
[109]DRAM simple test OK.
[111]dram size =1024
[113]chipid = 53002400
[115]nsi init ok 2020-4-7
[119]card no is 2
[120]sdcard 2 line count 8
[123][mmc]: mmc driver ver 2020-05-25 09:40
[133][mmc]: Wrong media type 0x0
[136][mmc]: ***Try SD card 2***
[140][mmc]: mmc 2 cmd 8 timeout, err 100
[144][mmc]: mmc 2 cmd 8 err 100
[147][mmc]: mmc 2 send if cond failed
[152][mmc]: mmc 2 cmd 55 timeout, err 100
[156][mmc]: mmc 2 cmd 55 err 100
[159][mmc]: mmc 2 send app cmd failed
[163][mmc]: ***Try MMC card 2***
[187][mmc]: RMCA OK!
[189][mmc]: mmc 2 bias 4
[192][mmc]: MMC 5.1
[194][mmc]: HSSDR52/SDR25 8 bit
[197][mmc]: 50000000 Hz
[200][mmc]: 14910 MB
[202][mmc]: ***SD/MMC 2 init OK!!!***
[258]Loading boot-pkg Succeed(index=0).
[262]Entry_name = u-boot
[269]Entry_name = monitor
[273]Entry_name = scp
[281]set arisc reset to de-assert state
[285]Entry_name = dtb
[288]tunning data addr:0x4a0003e8
[292]Jump to second Boot.
NOTICE: BL3-1: v1.0(debug):cc1f5d7
NOTICE: BL3-1: Built : 10:23:25, 2020-04-08
NOTICE: BL3-1 commit: 8
ERROR: Error initializing runtime service tspd_fast
NOTICE: BL3-1: Preparing for EL3 exit to normal world
NOTICE: BL3-1: Next image address = 0x4a000000
NOTICE: BL3-1: Next image spsr = 0x1d3
U-Boot 2018.05 (Apr 17 2022 - 05:02:05 +0000) Allwinner Technology
[00.370]CPU: Allwinner Family
[00.373]Model: sun50iw10
I2C: ready
[00.619]DRAM: 1 GiB
[00.622]Relocation Offset is: 35f13000
[00.652]secure enable bit: 0
[00.654][ARISC] :arisc initialize
[00.659][ARISC ERROR] :get [allwinner,sunxi-hwspinlock] device node error
CACHE: Misaligned operation at range [7ffa6d88, 7ffa70a0]
[00.671][ARISC] :arisc para ok
[SCP] :sunxi-arisc driver begin startup 2
[SCP] :0x1
[SCP] :arisc version: [ca79327ac09021f1a13c79dd97da281c7be9a63arid-]
[SCP] :arisc startup ready
[SCP] :arisc startup notify message feedback
[SCP] :send hard sync feedback message: 0x900200
[SCP] :sunxi-arisc driver v1.10 is starting
[00.702][ARISC] :sunxi-arisc driver startup succeeded
[00.708]pmu_axp81X_probe pmic_bus_read fail
[00.712]pmu_axp858_probe pmic_bus_read fail
[00.716]PMU: no found
[00.718]CPU=1008 MHz,PLL6=600 Mhz,AHB=200 Mhz, APB1=100Mhz MBus=400Mhz
[00.725]init_clocks:finish
[00.727]not need merged sunxi overlay
[00.730]drv_disp_init
request pwm success, pwm7:pwm7:0x300a000.
request pwm success, pwm8:pwm8:0x300a000.
[00.769]drv_disp_init finish
[00.777]gic: sec monitor mode
[00.779]flash init start
[00.781]workmode = 0,storage type = 2
[00.785][mmc]: mmc driver ver uboot2018:2020-5-25 9:26:00-20201021190
[00.799][mmc]: SUNXI SDMMC Controller Version:0x50300
[00.824][mmc]: Best spd md: 2-HSDDR52/DDR50, freq: 2-50000000, Bus width: 8
[00.830]sunxi flash init ok
[00.834]Loading Environment from SUNXI_FLASH... OK
[00.842]no secure os for keybox operation
[00.845]try to burn key
[00.848]out of usb burn from boot: not need burn key
[00.853]boot_gui_init:start
[00.857]set disp.dev2_output_type fail. using defval=0
[00.862]disp 0, clk: pll(455000000),clk(455000000),dclk(65000000) dsi_rate(455000000)
clk real:pll(456000000),clk(456000000),dclk(65142857) dsi_rate(0)
[00.879]switch device: sel=0, type=1, mode=4, format=0, bits=0, eotf=4, cs=260
[00.886]boot_gui_init:finish
partno erro : can't find partition bootloader
691254 bytes read in 9 ms (73.2 MiB/s)
[00.915]read item0 copy0
[00.917]Item0 (Map) magic is bad
[00.920]the secure storage item0 copy0 magic is bad
[00.925]Item0 (Map) magic is bad
[00.927]the secure storage item0 copy1 magic is bad
[00.932]Item0 (Map) magic is bad
[00.935]the secure storage map is empty
[00.939]no item name device_unlock in the map
[00.943]no item name fastboot_status_flag in the map
[00.947]sunxi secure storage has no flag
[00.953][mmc]: delete mmc-hs400-1_8v from dtb
[00.957][mmc]: delete mmc-hs20[00.959]soc ic_ver:0x0, qa_val:0x0, markid:0x53002400 dclk[0-9999]
0-1_8v from dtb
[00.967][mmc]: get max-frequency ok 50000000 Hz
[00.973](weak)update dtb dram start
[00.977]update dtb dram end
[00.979]update dts
[00.981]no item name snum in the map
partno erro : can't find partition private
[00.991]no item name mac in the map
partno erro : can't find partition private
[01.001]no item name wifi_mac in the map
partno erro : can't find partition private
[01.012]no item name bt_mac in the map
partno erro : can't find partition private
[01.022]no item name specialstr in the map
partno erro : can't find partition private
[01.035]update part info
[01.038]key 0
[01.041]no misc partition is found
[01.044]update bootcmd
[01.046]serial num is: 0c001415a0c086d218d
Hit any key to stop autoboot: 0
[01.059]partinfo: name boot, start 0x22000, size 0x10000
[01.068]LCD open finish
[01.229]in boot normal mode,pass normal para to cmdline
[01.235]android.hardware = sun50iw10p1
[01.238]androidboot.dtbo_idx can't findAndroid's image name: sun50i_arm64
[01.307]Starting kernel ...
[01.310][mmc]: mmc exit start
[01.329][mmc]: mmc 2 exit ok
[ 0.000000] Booting Linux on physical CPU 0x0
[ 0.000000] Linux version 4.9.170 (whycan@ubuntu) (gcc version 5.3.1 20160412 (Linaro GCC 5.3-2016.05) ) #9 SMP PREEMPT Sun Jun 26 21:55:05 CST 2022
[ 0.000000] Boot CPU: AArch64 Processor [410fd034]
[ 0.000000] bootconsole [earlycon0] enabled
[ 0.000000] disp reserve base 0x7bf61080 ,size 0x300000
[ 0.000000] cma: Reserved 8 MiB at 0x000000007f800000
[ 0.000000] On node 0 totalpages: 262144
[ 0.000000] DMA zone: 4096 pages used for memmap
[ 0.000000] DMA zone: 0 pages reserved
[ 0.000000] DMA zone: 262144 pages, LIFO batch:31
[ 0.000000] psci: probing for conduit method from DT.
[ 0.000000] psci: PSCIv1.0 detected in firmware.
[ 0.000000] psci: Using standard PSCI v0.2 function IDs
[ 0.000000] psci: Trusted OS migration not required
[ 0.000000] psci: SMC Calling Convention v1.0
[ 0.000000] percpu: Embedded 21 pages/cpu @ffffffc03f70b000 s45696 r8192 d32128 u86016
[ 0.000000] pcpu-alloc: s45696 r8192 d32128 u86016 alloc=21*4096
[ 0.000000] pcpu-alloc: [0] 0 [0] 1 [0] 2 [0] 3
[ 0.000000] Detected VIPT I-cache on CPU0
[ 0.000000] CPU features: enabling workaround for ARM erratum 845719
[ 0.000000] Built 1 zonelists in Zone order, mobility grouping on. Total pages: 258048
[ 0.000000] Kernel command line: earlyprintk=sunxi-uart,0x05000000 initcall_debug=0 console=ttyS0,115200 loglevel=8 root=/dev/mmcblk0p4 init=/init partitions=boot-resource@mmcblk0p1:env@mmcblk0p2:boot@mmcblk0p3:rootfs@mmcblk0p4:klog@mmcblk0p5:UDISK@mmcblk0p6 cma=8M snum=0c001415a0c086d218d mac_addr= wifi_mac= bt_mac= specialstr= gpt=1 androidboot.mode=normal androidboot.serialno=0c001415a0c086d218d androidboot.hardware=sun50iw10p1 boot_type=2 androidboot.boot_type=2 androidboot.secure_os_exist=0 androidboot.trustchain=false gpt=1 uboot_message=2018.05(04/17/2022-05:02:05) disp_reserve=3145728,0x7bf61080 bootreason=unknow
[ 0.000000] log_buf_len individual max cpu contribution: 4096 bytes
[ 0.000000] log_buf_len total cpu_extra contributions: 12288 bytes
[ 0.000000] log_buf_len min size: 16384 bytes
[ 0.000000] log_buf_len: 32768 bytes
[ 0.000000] early log buf free: 14220(86%)
[ 0.000000] PID hash table entries: 4096 (order: 3, 32768 bytes)
[ 0.000000] Dentry cache hash table entries: 131072 (order: 8, 1048576 bytes)
[ 0.000000] Inode-cache hash table entries: 65536 (order: 7, 524288 bytes)
[ 0.000000] Memory: 988592K/1048576K available (6590K kernel code, 1310K rwdata, 2020K rodata, 448K init, 267K bss, 51792K reserved, 8192K cma-reserved)
[ 0.000000] Virtual kernel memory layout:
[ 0.000000] modules : 0xffffff8000000000 - 0xffffff8008000000 ( 128 MB)
[ 0.000000] vmalloc : 0xffffff8008000000 - 0xffffffbebfff0000 ( 250 GB)
[ 0.000000] .text : 0xffffff8008080000 - 0xffffff80086f0000 ( 6592 KB)
[ 0.000000] .rodata : 0xffffff80086f0000 - 0xffffff80088f0000 ( 2048 KB)
[ 0.000000] .init : 0xffffff80088f0000 - 0xffffff8008960000 ( 448 KB)
[ 0.000000] .data : 0xffffff8008960000 - 0xffffff8008aa7808 ( 1311 KB)
[ 0.000000] .bss : 0xffffff8008aa7808 - 0xffffff8008aea4c8 ( 268 KB)
[ 0.000000] fixed : 0xffffffbefe7fb000 - 0xffffffbefec00000 ( 4116 KB)
[ 0.000000] PCI I/O : 0xffffffbefee00000 - 0xffffffbeffe00000 ( 16 MB)
[ 0.000000] vmemmap : 0xffffffbf00000000 - 0xffffffc000000000 ( 4 GB maximum)
[ 0.000000] 0xffffffbf00000000 - 0xffffffbf01000000 ( 16 MB actual)
[ 0.000000] memory : 0xffffffc000000000 - 0xffffffc040000000 ( 1024 MB)
[ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1
[ 0.000000] Preemptible hierarchical RCU implementation.
[ 0.000000] Build-time adjustment of leaf fanout to 64.
[ 0.000000] NR_IRQS:64 nr_irqs:64 0
[ 0.000000] arm_arch_timer: Architected cp15 timer(s) running at 24.00MHz (virt).
[ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns
[ 0.000004] sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns
[ 0.008201] Console: colour dummy device 80x25
[ 0.012413] Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=96000)
[ 0.022619] pid_max: default: 32768 minimum: 301
[ 0.027668] Mount-cache hash table entries: 2048 (order: 2, 16384 bytes)
[ 0.033897] Mountpoint-cache hash table entries: 2048 (order: 2, 16384 bytes)
[ 0.043989] sched-energy: CPU device node has no sched-energy-costs
[ 0.047280] Invalid sched_group_energy for CPU0
[ 0.051748] CPU0: update cpu_capacity 1024
[ 0.067887] ASID allocator initialised with 32768 entries
[ 0.124101] Detected VIPT I-cache on CPU1
[ 0.124154] Invalid sched_group_energy for CPU1
[ 0.124158] CPU1: update cpu_capacity 1024
[ 0.124161] CPU1: Booted secondary processor [410fd034]
[ 0.152143] Detected VIPT I-cache on CPU2
[ 0.152174] Invalid sched_group_energy for CPU2
[ 0.152176] CPU2: update cpu_capacity 1024
[ 0.152179] CPU2: Booted secondary processor [410fd034]
[ 0.180207] Detected VIPT I-cache on CPU3
[ 0.180236] Invalid sched_group_energy for CPU3
[ 0.180238] CPU3: update cpu_capacity 1024
[ 0.180241] CPU3: Booted secondary processor [410fd034]
[ 0.180315] Brought up 4 CPUs
[ 0.230951] SMP: Total of 4 processors activated.
[ 0.235640] CPU features: detected feature: 32-bit EL0 Support
[ 0.241445] CPU features: detected feature: Kernel page table isolation (KPTI)
[ 0.251498] CPU: All CPU(s) started at EL1
[ 0.252726] alternatives: patching kernel code
[ 0.257629] Invalid sched_group_energy for CPU3
[ 0.261643] Invalid sched_group_energy for Cluster3
[ 0.266492] Invalid sched_group_energy for CPU2
[ 0.270999] Invalid sched_group_energy for Cluster2
[ 0.275851] Invalid sched_group_energy for CPU1
[ 0.280358] Invalid sched_group_energy for Cluster1
[ 0.285211] Invalid sched_group_energy for CPU0
[ 0.289718] Invalid sched_group_energy for Cluster0
[ 0.295713] devtmpfs: initialized
[ 0.541959] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041785100000 ns
[ 0.546086] futex hash table entries: 1024 (order: 5, 131072 bytes)
[ 0.552930] atomic64_test: passed
[ 0.555589] pinctrl core: initialized pinctrl subsystem
[ 0.565572] NET: Registered protocol family 16
[ 0.569471] dump_class_init,861, success
[ 0.572746] sunxi iommu: irq = 8
[ 0.573529] vdso: 2 pages (1 code @ ffffff80086f7000, 1 data @ ffffff8008964000)
[ 0.581010] DMA: preallocated 256 KiB pool for atomic allocations
[ 0.597850] sun50iw10p1-r-pinctrl r_pio: initialized sunXi PIO driver
[ 0.673205] sun50iw10p1-pinctrl pio: initialized sunXi PIO driver
[ 0.686192] iommu: Adding device 1c0e000.ve to group 0
[ 0.704462] iommu: Adding device 6000000.disp to group 0
[ 0.707036] iommu: Adding device 6480000.g2d to group 0
[ 0.723364] iommu: Adding device csi0 to group 0
[ 0.724591] iommu: Adding device csi1 to group 0
[ 0.729903] iommu: Adding device 2108000.tdm to group 0
[ 0.733332] iommu: Adding device 2100000.isp to group 0
[ 0.738586] iommu: Adding device 2102000.isp to group 0
[ 0.743365] iommu: Adding device 2110000.scaler to group 0
[ 0.748905] iommu: Adding device 2110400.scaler to group 0
[ 0.754307] iommu: Adding device 2110800.scaler to group 0
[ 0.759738] iommu: Adding device 2110c00.scaler to group 0
[ 0.847317] pwm module init!
[ 0.857738] sunxi-pm debug v3.10
[ 0.864311] SCSI subsystem initialized
[ 0.866419] usbcore: registered new interface driver usbfs
[ 0.868222] usbcore: registered new interface driver hub
[ 0.873428] usbcore: registered new device driver usb
[ 0.878811] sunxi_i2c_adap_init()2649 - init
[ 0.883689] sunxi_i2c_probe()2372 - [i2c5] twi_drv_used = 0
[ 0.888016] sunxi_i2c_probe()2379 - [i2c5] twi_pkt_interval = 0
[ 0.893918] twi5 supply twi not found, using dummy regulator
[ 0.899786] twi_request_gpio()458 - [i2c5] init name: (null)
[ 0.907235] media: Linux media interface: v0.10
[ 0.909914] Linux video capture interface: v2.00
[ 0.916642] ion_parse_dt_heap_common: id 0 type 0 name sys_user align 1000
[ 0.921751] ion_parse_dt_heap_common: id 4 type 4 name cma align 1000
[ 0.928126] ion_parse_dt_heap_common: id 6 type 6 name secure align 1000
[ 0.935082] ion_heap_create: Invalid heap type 6
[ 0.939309] Advanced Linux Sound Architecture Driver Initialized.
[ 0.947808] Bluetooth: Core ver 2.22
[ 0.948536] NET: Registered protocol family 31
[ 0.952843] Bluetooth: HCI device and connection manager initialized
[ 0.959195] Bluetooth: HCI socket layer initialized
[ 0.964049] Bluetooth: L2CAP socket layer initialized
[ 0.969191] Bluetooth: SCO socket layer initialized
[ 0.976530] clocksource: Switched to clocksource arch_sys_counter
[ 1.032582] udc_init,0
[ 1.032996] NET: Registered protocol family 2
[ 1.061013] TCP established hash table entries: 8192 (order: 4, 65536 bytes)
[ 1.062500] TCP bind hash table entries: 8192 (order: 5, 131072 bytes)
[ 1.069113] TCP: Hash tables configured (established 8192 bind 8192)
[ 1.075402] UDP hash table entries: 512 (order: 2, 16384 bytes)
[ 1.081185] UDP-Lite hash table entries: 512 (order: 2, 16384 bytes)
[ 1.088242] NET: Registered protocol family 1
[ 1.092576] Unpacking initramfs...
[ 1.299711] Freeing initrd memory: 2544K
[ 1.307211] workingset: timestamp_bits=61 max_order=18 bucket_order=0
[ 1.398046] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[ 1.400045] ntfs: driver 2.1.32 [Flags: R/W].
[ 1.411615] io scheduler noop registered
[ 1.411659] io scheduler deadline registered
[ 1.416295] io scheduler cfq registered (default)
[ 1.425081] [DISP]disp_module_init
[ 1.427235] [DISP] disp_init,line:2260:
[ 1.427272] smooth display screen:0 type:1 mode:4
[ 1.510409] screen_id=0, output_type=1, lcd_reg=1,hdmi_reg=0
[ 1.511160] [DISP] lcd_clk_config,line:665:[ 1.513685] [DISP]disp_module_init finish
[ 1.518434] disp 0, clk: pll(455000000),clk(455000000),dclk(65000000) dsi_rate(455000000)
[ 1.518434] clk real:pll(456000000),clk(456000000),dclk(65142857) dsi_rate(0)
[ 1.536803] uart uart0: get regulator failed
[ 1.538528] uart0 supply uart not found, using dummy regulator
[ 1.544908] uart0: ttyS0 at MMIO 0x5000000 (irq = 349, base_baud = 1500000) is a SUNXI
[ 1.552245] sw_console_▒[ 1.560162] console [ttyS0] enabled
[ 1.560162] console [ttyS0] enabled
[ 1.564122] bootconsole [earlycon0] disabled
[ 1.564122] bootconsole [earlycon0] disabled
[ 1.574605] uart uart1: get regulator failed
[ 1.581431] uart1 supply uart not found, using dummy regulator
[ 1.588551] uart1: ttyS1 at MMIO 0x5000400 (irq = 350, base_baud = 1500000) is a SUNXI
[ 1.600035] misc dump reg init
[ 1.607375] [drm] Initialized
[ 1.611493] Unable to detect cache hierarchy for CPU 0
[ 1.617455] [NAND][NE] Not found valid nand node on dts
[ 1.623815] sunxi-bt soc@03000000:bt@0: Missing bt_power.
[ 1.629913] sunxi-bt soc@03000000:bt@0: bt_power_name ((null))
[ 1.636496] sunxi-bt soc@03000000:bt@0: Missing bt_io_regulator.
[ 1.643263] sunxi-bt soc@03000000:bt@0: io_regulator_name ((null))
[ 1.650260] sunxi-bt soc@03000000:bt@0: bt_rst gpio=357 mul-sel=1 pull=-1 drv_level=-1 data=0
[ 1.660420] sunxi-bt soc@03000000:bt@0: devm_pinctrl_get() failed!
[ 1.668969] sunxi-wlan soc@03000000:wlan@0: wlan_busnum (1)
[ 1.675254] sunxi-wlan soc@03000000:wlan@0: Missing wlan_power.
[ 1.681924] sunxi-wlan soc@03000000:wlan@0: wlan_power_name ((null))
[ 1.689082] sunxi-wlan soc@03000000:wlan@0: Missing wlan_io_regulator.
[ 1.696439] sunxi-wlan soc@03000000:wlan@0: io_regulator_name ((null))
[ 1.703822] sunxi-wlan soc@03000000:wlan@0: wlan_regon gpio=362 mul-sel=1 pull=-1 drv_level=-1 data=0
[ 1.714640] sunxi-wlan soc@03000000:wlan@0: get gpio chip_en failed
[ 1.721702] sunxi-wlan soc@03000000:wlan@0: get gpio power_en failed
[ 1.728875] sunxi-wlan soc@03000000:wlan@0: wlan_hostwake gpio=359 mul-sel=1 pull=-1 drv_level=-1 data=0
[ 1.733094] [DISP] disp_device_attached_and_enable,line:223:
[ 1.733094] attached ok, mgr0<-->dev0
[ 1.733104] [DISP] disp_device_attached_and_enable,line:236:
[ 1.733104] type:1,mode:4,fmt:rgb,bits:8bits,eotf:4,cs:260 dvi_hdmi:2, range:2 scan:0 ratio:8
[ 1.733109] screen_id=1, output_type=1, lcd_reg=1,hdmi_reg=0
[ 1.733900] [DISP] lcd_clk_config,line:665:
[ 1.733901] disp 1, clk: pll(176000000),clk(176000000),dclk(11000000) dsi_rate(176000000)
[ 1.733901] clk real:pll(288000000),clk(288000000),dclk(18000000) dsi_rate(0)
[ 1.733962] =====================LCD_open_flow
[ 1.733966] drivers/video/fbdev/sunxi/disp2/disp/lcd/st7701s_rgb.c LCD_open_flow line 158: 11111111111111111111111111
[ 1.733970] =====================LCD_power_on
[ 1.733974] drivers/video/fbdev/sunxi/disp2/disp/lcd/st7701s_rgb.c LCD_power_on line 189: 11111111111111111111111111
[ 1.829180] sunxi-wlan soc@03000000:wlan@0: clk not config
[ 1.835364] sunxi-wlan soc@03000000:wlan@0: dcxo not config
[ 1.841737] sunxi-wlan soc@03000000:wlan@0: pinctrl_lookup_state(default) failed! return ffffffffffffffed
[ 1.854652] [ADDR_MGT] addr_mgt_probe: success.
[ 1.863115] libphy: Fixed MDIO Bus: probed
[ 1.867766] tun: Universal TUN/TAP device driver, 1.6
[ 1.873461] tun: (C) 1999-2004 Max Krasnyansky <maxk@qualcomm.com>
[ 1.883901] gmac-power0: NULL
[ 1.887267] gmac-power1: NULL
[ 1.890611] gmac-power2: NULL
[ 1.897214] PPP generic driver version 2.4.2
[ 1.902989] PPP BSD Compression module registered
[ 1.908308] PPP Deflate Compression module registered
[ 1.914057] PPP MPPE Compression module registered
[ 1.919461] NET: Registered protocol family 24
[ 1.924543] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[ 1.932364] get ehci0-controller, regulator_io is no nocare
[ 1.938647] get ehci0-controller wakeup-source is fail.
[ 1.944863] sunxi ehci0-controller don't init wakeup source
[ 1.951162] [sunxi-ehci0]: probe, pdev->name: 5101000.ehci0-controller, sunxi_ehci: 0xffffff8008adc048, 0x:ffffff8008b03000, irq_no:161
[ 1.964873] [sunxi-ehci0]: Not init ehci0
[ 1.969608] get ehci1-controller, regulator_io is no nocare
[ 1.976372] [sunxi-ehci1]: probe, pdev->name: 5200000.ehci1-controller, sunxi_ehci: 0xffffff8008adc758, 0x:ffffff8008b0d000, irq_no:163
[ 1.990134] 5200000.ehci1-controller supply drvvbus not found, using dummy regulator
[ 1.999136] sunxi-ehci 5200000.ehci1-controller: SW USB2.0 'Enhanced' Host Controller (EHCI) Driver
[ 2.009404] sunxi-ehci 5200000.ehci1-controller: new USB bus registered, assigned bus number 1
[ 2.020102] sunxi-ehci 5200000.ehci1-controller: irq 355, io mem 0xffffff80088f0458
[ 2.044547] sunxi-ehci 5200000.ehci1-controller: USB 0.0 started, EHCI 1.00
[ 2.056145] hub 1-0:1.0: USB hub found
[ 2.060470] hub 1-0:1.0: 1 port detected
[ 2.067484] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
[ 2.072542] =====================LCD_panel_init
[ 2.080093] get ohci0-controller, regulator_io is no nocare
[ 2.086375] get ohci0-controller wakeup-source is fail.
[ 2.092590] sunxi ohci0-controller don't init wakeup source
[ 2.099018] [sunxi-ohci0]: probe, pdev->name: 5101000.ohci0-controller, sunxi_ohci: 0xffffff8008adc3d0
[ 2.109496] [sunxi-ohci0]: Not init ohci0
[ 2.114281] get ohci1-controller, regulator_io is no nocare
[ 2.121153] [sunxi-ohci1]: probe, pdev->name: 5200000.ohci1-controller, sunxi_ohci: 0xffffff8008adcae0
[ 2.131687] 5200000.ohci1-controller supply drvvbus not found, using dummy regulator
[ 2.140697] sunxi-ohci 5200000.ohci1-controller: SW USB2.0 'Open' Host Controller (OHCI) Driver
[ 2.150594] sunxi-ohci 5200000.ohci1-controller: new USB bus registered, assigned bus number 2
[ 2.160565] sunxi-ohci 5200000.ohci1-controller: irq 356, io mem 0xffffff80088f0458
[ 2.236148] hub 2-0:1.0: USB hub found
[ 2.240480] hub 2-0:1.0: 1 port detected
[ 2.247871] usbcore: registered new interface driver uas
[ 2.254242] usbcore: registered new interface driver usb-storage
[ 2.261195] usbcore: registered new interface driver ums-alauda
[ 2.268055] usbcore: registered new interface driver ums-cypress
[ 2.274996] usbcore: registered new interface driver ums-datafab
[ 2.281958] usbcore: registered new interface driver ums_eneub6250
[ 2.289101] usbcore: registered new interface driver ums-freecom
[ 2.296070] usbcore: registered new interface driver ums-isd200
[ 2.302914] usbcore: registered new interface driver ums-jumpshot
[ 2.309960] usbcore: registered new interface driver ums-karma
[ 2.316720] usbcore: registered new interface driver ums-onetouch
[ 2.323865] usbcore: registered new interface driver ums-realtek
[ 2.330833] usbcore: registered new interface driver ums-sddr09
[ 2.337688] usbcore: registered new interface driver ums-sddr55
[ 2.344547] usbcore: registered new interface driver ums-usbat
[ 2.351428] usb_serial_number:20080411
[ 2.357055] sunxikbd_key_init: key0 vol= 210 code= 115
[ 2.362869] sunxikbd_key_init: key1 vol= 410 code= 114
[ 2.368671] sunxikbd_key_init: key2 vol= 590 code= 139
[ 2.374460] sunxikbd_key_init: key3 vol= 750 code= 28
[ 2.380161] sunxikbd_key_init: key4 vol= 880 code= 102
[ 2.387337] input: sunxi-keyboard as /devices/virtual/input/input0
[ 2.396025] sun50iw10p1-pinctrl pio: pin PH3 already requested by gmac0; cannot claim for ir0
[ 2.405645] sun50iw10p1-pinctrl pio: pin-227 (ir0) status -22
[ 2.412145] sun50iw10p1-pinctrl pio: could not request pin 227 (PH3) from group PH3 on device pio
[ 2.416532] =====================LCD_bl_open
[ 2.416537] drivers/video/fbdev/sunxi/disp2/disp/lcd/st7701s_rgb.c LCD_bl_open line 215: 11111111111111111111111111
[ 2.417113] [DISP] disp_device_attached_and_enable,line:223:
[ 2.417113] attached ok, mgr1<-->dev1
[ 2.417123] [DISP] disp_device_attached_and_enable,line:236:
[ 2.417123] type:1,mode:0,fmt:rgb,bits:8bits,eotf:4,cs:257 dvi_hdmi:2, range:2 scan:0 ratio:8
[ 2.465268] sunxi-ir-tx ir0: Error applying setting, reverse things back
[ 2.472925] sunxi-ir-tx: probe of ir0 failed with error -22
[ 2.481148] sunxi_gpadc_init,1536, success
[ 2.487473] input: sunxi-gpadc0 as /devices/virtual/input/input1
[ 2.497441] sunxi-rtc rtc: rtc core: registered sunxi-rtc as rtc0
[ 2.504612] sunxi-rtc rtc: RTC enabled
[ 2.509351] i2c /dev entries driver
[ 2.514483] IR NEC protocol handler initialized
[ 2.519600] IR RC5(x/sz) protocol handler initialized
[ 2.525323] IR RC6 protocol handler initialized
[ 2.530440] IR JVC protocol handler initialized
[ 2.535547] IR Sony protocol handler initialized
[ 2.540751] IR SANYO protocol handler initialized
[ 2.546068] IR Sharp protocol handler initialized
[ 2.551371] IR MCE Keyboard/mouse protocol handler initialized
[ 2.557947] IR XMP protocol handler initialized
[ 2.563469] usbcore: registered new interface driver uvcvideo
[ 2.569947] USB Video Class driver (1.1.1)
[ 2.574565] sunxi cedar version 0.1
[ 2.578799] VE: install start!!!
[ 2.578799]
[ 2.584312] cedar_ve: cedar-ve the get irq is 347
[ 2.590838] VE: get debugfs_mpp_root is NULL, please check mpp
[ 2.590838]
[ 2.599096] VE: sunxi ve debug register driver failed!
[ 2.599096]
[ 2.608134] Bluetooth: HCI UART driver ver 2.3
[ 2.613188] Bluetooth: HCI UART protocol H4 registered
[ 2.618989] Bluetooth: HCI UART protocol Three-wire (H5) registered
[ 2.629477] sunxi-mmc sdc2: SD/MMC/SDIO Host Controller Driver(v3.46 2020-6-1 11:33-202006021635)
[ 2.639767] sunxi-mmc sdc2: No vmmc regulator found
[ 2.645300] sunxi-mmc sdc2: No vqmmc regulator found
[ 2.650904] sunxi-mmc sdc2: No vdmmc regulator found
[ 2.656504] sunxi-mmc sdc2: No vd33sw regulator found
[ 2.662206] sunxi-mmc sdc2: No vd18sw regulator found
[ 2.667909] sunxi-mmc sdc2: No vq33sw regulator found
[ 2.673604] sunxi-mmc sdc2: No vq18sw regulator found
[ 2.680177] sunxi-mmc sdc2: set host busy
[ 2.684808] mmc:failed to get gpios
[ 2.689495] sunxi-mmc sdc2: sdc set ios:clk 0Hz bm PP pm UP vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.716549] sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.744558] sunxi-mmc sdc2: detmode:alway in(non removable)
[ 2.744579] sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.752993] sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.754082] sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm OD pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.764981] sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm OD pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.765068] sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm OD pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.778046] sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm OD pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.823087] sun50iw10p1-pinctrl pio: expect_func as:uart0_jtag, but muxsel(3) is func:jtag0
[ 2.832536] sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.843453] sun50iw10p1-pinctrl pio: expect_func as:uart0_jtag, but muxsel(3) is func:jtag0
[ 2.852949] sun50iw10p1-pinctrl pio: expect_func as:uart0_jtag, but muxsel(3) is func:uart0
[ 2.862377] sun50iw10p1-pinctrl pio: expect_func as:uart0_jtag, but muxsel(3) is func:jtag0
[ 2.871828] sun50iw10p1-pinctrl pio: expect_func as:uart0_jtag, but muxsel(3) is func:uart0
[ 2.881277] sun50iw10p1-pinctrl pio: expect_func as:uart0_jtag, but muxsel(3) is func:jtag0
[ 2.891038] sunxi-mmc sdc2: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing MMC-HS(SDR20) dt B
[ 2.902232] sunxi-mmc sdc0: SD/MMC/SDIO Host Controller Driver(v3.46 2020-6-1 11:33-202006021635)
[ 2.902289] sunxi-mmc sdc2: sdc set ios:clk 50000000Hz bm PP pm ON vdd 21 width 1 timing MMC-HS(SDR20) dt B
[ 2.902603] sunxi-mmc sdc2: sdc set ios:clk 50000000Hz bm PP pm ON vdd 21 width 8 timing MMC-HS(SDR20) dt B
[ 2.912270] sunxi-mmc sdc2: sdc set ios:clk 50000000Hz bm PP pm ON vdd 21 width 8 timing MMC-DDR52 dt B
[ 2.912549] mmc0: new DDR MMC card at address 0001
[ 2.914962] mmcblk0: mmc0:0001 AJTD4R 14.6 GiB
[ 2.915499] random: fast init done
[ 2.919740] mmcblk0boot0: mmc0:0001 AJTD4R partition 1 4.00 MiB
[ 2.924381] mmcblk0boot1: mmc0:0001 AJTD4R partition 2 4.00 MiB
[ 2.929061] mmcblk0rpmb: mmc0:0001 AJTD4R partition 3 4.00 MiB
[ 2.932324] mmcblk0: p1 p2 p3 p4 p5 p6
[ 2.983532] sunxi-mmc sdc0: ***ctl-spec-caps*** 8
[ 2.988900] sunxi-mmc sdc0: No vmmc regulator found
[ 2.994400] sunxi-mmc sdc0: No vqmmc regulator found
[ 2.999993] sunxi-mmc sdc0: No vdmmc regulator found
[ 3.005590] sunxi-mmc sdc0: No vd33sw regulator found
[ 3.011279] sunxi-mmc sdc0: No vd18sw regulator found
[ 3.016971] sunxi-mmc sdc0: No vq33sw regulator found
[ 3.022655] sunxi-mmc sdc0: No vq18sw regulator found
[ 3.029315] sunxi-mmc sdc0: set host busy
[ 3.033923] sunxi-mmc sdc0: Got CD GPIO
[ 3.039119] sunxi-mmc sdc0: sdc set ios:clk 0Hz bm PP pm UP vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 3.049428] sunxi-mmc sdc0: no vqmmc,Check if there is regulator
[ 3.072549] sunxi-mmc sdc0: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 3.100932] sunxi-mmc sdc0: detmode:gpio irq
[ 3.106864] sunxi-mmc sdc1: SD/MMC/SDIO Host Controller Driver(v3.46 2020-6-1 11:33-202006021635)
[ 3.116988] sunxi-mmc sdc1: ***ctl-spec-caps*** 8
[ 3.122345] sunxi-mmc sdc1: No vmmc regulator found
[ 3.127840] sunxi-mmc sdc1: No vqmmc regulator found
[ 3.133434] sunxi-mmc sdc1: No vdmmc regulator found
[ 3.139026] sunxi-mmc sdc1: No vd33sw regulator found
[ 3.144714] sunxi-mmc sdc1: No vd18sw regulator found
[ 3.150404] sunxi-mmc sdc1: No vq33sw regulator found
[ 3.150408] sunxi-mmc sdc1: No vq18sw regulator found
[ 3.151257] sunxi-mmc sdc1: set host busy
[ 3.151363] mmc:failed to get gpios
[ 3.151389] sunxi-mmc sdc1: min-frequency:400000
[ 3.152117] sunxi-mmc sdc1: sdc set ios:clk 0Hz bm PP pm UP vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 3.152139] sunxi-mmc sdc1: no vqmmc,Check if there is regulator
[ 3.168550] sunxi-mmc sdc1: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 3.188556] sunxi-mmc sdc1: detmode:manually by software
[ 3.191028] usbcore: registered new interface driver usbhid
[ 3.191031] usbhid: USB HID core driver
[ 3.194049] codec supply avcc not found, using dummy regulator
[ 3.194300] [sunxi_internal_codec_probe]: audiocodec avcc set vol failed
[ 3.194310] codec supply cpvin not found, using dummy regulator
[ 3.194504] [sunxi_internal_codec_probe]: audiocodec cpvin set vol failed
[ 3.195168] sunxi-internal-codec codec: pa_power_always_on get failed and set it off.
[ 3.195175] digital_vol:0, lineout_vol:26, mic1gain:31, mic2gain:31 pa_msleep:120, pa_level:1, pa_power_always_on:0
[ 3.195183] adcdrc_cfg:0, adchpf_cfg:0, dacdrc_cfg:0, dachpf:0
[ 3.195354] sunxi-internal-codec codec: [sunxi_internal_codec_probe] codec probe finished.
[ 3.197128] [sunxi_card_init] card init finished.
[ 3.197567] Audio: [soc_new_pcm] -> 2699
[ 3.197572] Audio: [soc_new_pcm] -> 2718
[ 3.198311] Audio: [soc_new_pcm] -> 2746
[ 3.199586] sunxi-codec-machine sndcodec: sun50iw10codec <-> codec mapping ok
[ 3.203383] sunxi-mmc sdc1: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 3.205593] input: sun50iw10-codec sunxi Audio Jack as /devices/platform/soc/sndcodec/sound/card0/input2
[ 3.206730] [audio] hp_detect_case: 0
[ 3.207218] sunxi-codec-machine sndcodec: [sunxi_card_dev_probe] register card finished.
[ 3.207775] u32 classifier
[ 3.207778] Actions configured
[ 3.207785] Netfilter messages via NETLINK v0.30.
[ 3.208889] nf_conntrack version 0.5.0 (8192 buckets, 32768 max)
[ 3.210407] sunxi-mmc sdc1: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 3.212285] ctnetlink v0.93: registering with nfnetlink.
[ 3.215702] sunxi-mmc sdc1: card claims to support voltages below defined range
[ 3.241051] ip_tables: (C) 2000-2006 Netfilter Core Team
[ 3.248561] Initializing XFRM netlink socket
[ 3.255379] NET: Registered protocol family 10
[ 3.261743] NET: Registered protocol family 17
[ 3.262740] 8021q: 802.1Q VLAN Support v1.8
[ 3.303973] get usb_detect_mode is fail, 22
[ 3.311888] sunxi-rtc rtc: setting system clock to 1970-01-01 00:00:04 UTC (4)
[ 3.312626] usb1-vbus: disabling
[ 3.312632] vdd_3v3: disabling
[ 3.312636] ALSA device list:
[ 3.312640] #0: sun50iw10-codec
[ 3.312998] Freeing unused kernel memory: 448K
[ 3.411653] sunxi-mmc sdc1: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing SD-HS(SDR25) dt B
[ 3.411792] sunxi-mmc sdc1: sdc set ios:clk 50000000Hz bm PP pm ON vdd 21 width 1 timing SD-HS(SDR25) dt B
[ 3.421084] sunxi-mmc sdc1: sdc set ios:clk 50000000Hz bm PP pm ON vdd 21 width 4 timing SD-HS(SDR25) dt B
[ 3.480983] sunxi-mmc sdc0: sdc set ios:clk 0Hz bm PP pm OFF vdd 0 width 1 timing LEGACY(SDR12) dt B
[ 3.481484] mmc2: new high speed SDIO card at address 0001
[/init]: getty is ttyS0
[/init]: RootDevice is "/dev/mmcblk0p4" , GPT_SUPPORT=1
[/init]: Try to load EMMC ...
e2fsck 1.42.12 (29-Aug-2014)
/dev/mmcblk0p4: recovering journal
Setting free inodes count to 8007 (was 8021)
Setting free blocks count to 4107 (was 4116)
/dev/mmcblk0p4: clean, 1209/9216 files, 32757/368[ 3.568993] EXT4-fs (mmcblk0p4): barriers disabled
64 blocks
[ 3.579243] EXT4-fs (mmcblk0p4): mounted filesystem with ordered data mode. Opts: noauto_da_alloc,barrier=0,data=ordered
mount: mounting proc on /proc failed: Device or resource busy
mount: mounting sysfs on /sys fa[ 3.725695] EXT4-fs (mmcblk0p4): re-mounted. Opts: nobarrier,noauto_da_alloc,data=ordered
iled: Device or resource busy
insmod: can't insert '/lib/modules/4.9.170/disp.ko': No such file or directory
boot-res device: /dev/mmcblk0p1
[ 3.777093] FAT-fs (mmcblk0p1): Volume was not properly unmounted. Some data may be corrupt. Please run fsck.
login[908]: root login on 'ttyS0'
nand activated #0
[ 3.948973] get ctp_power is fail, -22
[ 3.953298] sunxi_ctp_startup: ctp_power_io is invalid.
[ 3.959228] get ctp_gesture_wakeup fail, no gesture wakeup
[ 3.965421] 5-0014 supply ctp not found, using dummy regulator
[ 4.116759] sunxi_i2c_do_xfer()1923 - [i2c5] incomplete xfer (status: 0x20, dev addr: 0x14)
[ 4.126338] sunxi_i2c_do_xfer()1923 - [i2c5] incomplete xfer (status: 0x20, dev addr: 0x14)
[ 4.135947] sunxi_i2c_do_xfer()1923 - [i2c5] incomplete xfer (status: 0x20, dev addr: 0x14)
[ 4.145525] sunxi_i2c_do_xfer()1923 - [i2c5] incomplete xfer (status: 0x20, dev addr: 0x14)
[ 4.155096] sunxi_i2c_do_xfer()1923 - [i2c5] incomplete xfer (status: 0x20, dev addr: 0x14)
[ 4.164514] <<-GTP-ERROR->> I2C Read: 0x8140, 6 bytes failed, errcode: -70! Process reset.
[ 4.280579] <<-GTP-ERROR->> GTP read version failed
[ 4.286082] Read version failed.
[ 4.313694] input: gt9xxnew_ts as /devices/virtual/input/input3
script_fetch device name is ft6236
[ 9.776542]
[ 9.776542] insmod_device_driver
[ 9.776542]
-------swith to adb....
[ 9.976461] file system registered
init adb main
[ 10.016993] read descriptors
Handling main()
[ 10.020482] read strings
Time out,can not find tp event num /dev/input/event
camera activated #0
camera not activated
root@dragonboard:~# dragonboard(msg): core: parse script /boot/test_config.fex...
dragonboard(debug): the length of script is 10137
dragonboard(debug): script shmid = 0
dragonboard(msg): core: init script...
dragonboard(debug): script: main key count #23
dragonboard(msg): script: V1.0.0
dragonboard(msg): core: init view...
dragonboard(msg): core: parse test case from script...
dragonboard(msg): core: total test cases #10
dragonboard(msg): core: total test cases_auto #6
dragonboard(msg): core: total test cases_manual #4
dragonboard(debug): view: init...
dragonboard(msg): directfb view init...
dragonboard(msg): disp_output_type=1
~~~~~~~~~~~~~~~~~~~~~~~~~~| DirectFB 1.4.11 |~~~~~~~~~~~~~~~~~~~~~~~~~~
(c) 2001-2010 The world wide DirectFB Open Source Community
(c) 2000-2004 Convergence (integrated media) GmbH
----------------------------------------------------------------
(*) DirectFB/Core: Single Application Core. (2012-05-04 09:52)
(*) Direct/Memcpy: Using libc memcpy()
(*) DirectFB/FBDev: Found '' (ID 0) with frame buffer at 0xff800000, 6144k (MMIO 0x00000000, 0k)
(*) Direct/Thread: Started 'Keyboard Input' (-1) [INPUT OTHER/OTHER 0/0] <8388608>...
(*) DirectFB/Input: Keyboard 0.9 (directfb.org)
(*) DirectFB/Graphics: Generic Software Rasterizer 0.6 (directfb.org)
(*) DirectFB/Core/WM: Default 0.3 (directfb.org)
(*) FBDev/Mode: Setting 1024x768 RGB32
(*) FBDev/Mode: Switched to 1024x768 (virtual 1024x768) at 32 bit (RGB32), pitch 4096
(!) [ 1015: 0.000] --> Caught signal 7 (at 0xf7121000, non-existent physical address) <--
(!!!) *** WARNING [still objects in 'Layer Region Pool'] *** [object.c:241 in fusion_object_pool_destroy()]
(!!!) *** WARNING [still objects in 'Layer Context Pool'] *** [object.c:241 in fusion_object_pool_destroy()]
(!!!) *** WARNING [still objects in 'Surface Pool'] *** [object.c:241 in fusion_object_pool_destroy()]
-------swith to adb done!
[ 11.187035] sunxi_set_cur_vol_work()403 WARN: get power supply failed
[ 11.277497] android_work: sent uevent USB_STATE=CONNECTED
[ 11.283598] sunxi_set_cur_vol_work()403 WARN: get power supply failed
[ 11.408143] configfs-gadget gadget: high-speed config #1: c
[ 11.414666] android_work: sent uevent USB_STATE=CONFIGURED
[ 12.494920] adbd (1023): /proc/1023/oom_adj is deprecated, please use /proc/1023/oom_score_adj instead.
[ 13.520402] random: crng init done
root@dragonboard:~#
root@dragonboard:~#ST7701 显示屏上面有启动画面，但是比较乱，进入Linux后白屏，
cat /dev/urandom > /dev/fb0 ST7701无反应
cat /dev/urandom > /dev/fb1 ST7701有雪花
#27 Re: 上海航芯 » 航芯 ACM32F403RET7 官方开发板玩起来了 » 2022-06-25 19:35:27
drwxr-xr-x 1 Administrator 197121 0 Jun 25 16:00 ADC/
drwxr-xr-x 1 Administrator 197121 0 Jun 25 16:00 AES/
drwxr-xr-x 1 Administrator 197121 0 Jun 25 16:00 CAN/
drwxr-xr-x 1 Administrator 197121 0 Jun 25 16:00 COMP/
drwxr-xr-x 1 Administrator 197121 0 Jun 25 16:00 CRC/
drwxr-xr-x 1 Administrator 197121 0 Jun 25 16:00 Core_Drivers/
drwxr-xr-x 1 Administrator 197121 0 Jun 25 16:00 DAC/
drwxr-xr-x 1 Administrator 197121 0 Jun 25 16:00 DMA/
drwxr-xr-x 1 Administrator 197121 0 Jun 25 16:00 DSP/
drwxr-xr-x 1 Administrator 197121 0 Jun 25 16:00 EFlash/
drwxr-xr-x 1 Administrator 197121 0 Jun 25 16:00 EXTI/
drwxr-xr-x 1 Administrator 197121 0 Jun 25 16:00 FAU/
drwxr-xr-x 1 Administrator 197121 0 Jun 25 16:00 FSUSB/
drwxr-xr-x 1 Administrator 197121 0 Jun 25 16:00 GPIO/
drwxr-xr-x 1 Administrator 197121 0 Jun 25 16:00 HASH/
drwxr-xr-x 1 Administrator 197121 0 Jun 25 16:00 HRNG/
drwxr-xr-x 1 Administrator 197121 0 Jun 25 16:00 I2C/
drwxr-xr-x 1 Administrator 197121 0 Jun 25 16:00 I2S/
drwxr-xr-x 1 Administrator 197121 0 Jun 25 16:00 IWDT/
drwxr-xr-x 1 Administrator 197121 0 Jun 25 16:00 LIN/
drwxr-xr-x 1 Administrator 197121 0 Jun 25 16:00 LPUART/
drwxr-xr-x 1 Administrator 197121 0 Jun 25 16:00 MPU/
drwxr-xr-x 1 Administrator 197121 0 Jun 25 16:00 OPA/
drwxr-xr-x 1 Administrator 197121 0 Jun 25 16:00 POWER/
drwxr-xr-x 1 Administrator 197121 0 Jun 25 16:00 RTC/
drwxr-xr-x 1 Administrator 197121 0 Jun 25 16:00 SN/
drwxr-xr-x 1 Administrator 197121 0 Jun 25 16:00 SPI/
drwxr-xr-x 1 Administrator 197121 0 Jun 25 16:00 TIMER/
drwxr-xr-x 1 Administrator 197121 0 Jun 25 16:00 UART/
drwxr-xr-x 1 Administrator 197121 0 Jun 25 16:00 WDT/为何没有USB DEMO呢？
#28 Re: 上海航芯 » 航芯 ACM32F403RET7 官方开发板玩起来了 » 2022-06-25 19:02:45
SDK外设demo: Core_ModulesDemo_Rev2.0.1
MDK 打开工程 ModulesDemo_Rev1.0.8\ModulesDemo\GPIO\demo\MDK_Project\Project.uvprojx ，编译下载烧录，就会看到LED灯闪起来了。
#29 Re: 上海航芯 » 航芯 ACM32F403RET7 官方开发板玩起来了 » 2022-06-25 18:53:01
#30 上海航芯 » 航芯 ACM32F403RET7 官方开发板玩起来了 » 2022-06-25 18:51:31
- yixiuge
- 回复： 10
开发板购买： https://item.taobao.com/item.htm?id=676884740298
ACM32F0 / ACM32F4 单片机购买： https://item.taobao.com/item.htm?id=677910339647 （开源送三片芯片包邮，先拍分享后加微信whycan_cn 退款退运费）
原厂资料： http://www.aisinochip.com/index.php/product/detail/id/50.html
原理图： ACM32F403RET7_CORE_V1.2.pdf
MDK： MDK537.EXE
MDK pack： Aisinochip.ACM32F4.Keil.pack （一定要安装，芯片配置和烧录算法都在这里面）
SDK外设demo: Core_ModulesDemo_Rev2.0.1
#33 Re: DIY/综合/Arduino/写字机/3D打印机/智能小车/平衡车/四轴飞行/MQTT/物联网 » hanshow2.13黑白电子价签局部刷新代码 » 2022-06-05 00:35:51
#35 Re: 全志 SOC » 各位大神求教--（全志）门前转悠 » 2022-05-07 16:16:21
#37 Re: DIY/综合/Arduino/写字机/3D打印机/智能小车/平衡车/四轴飞行/MQTT/物联网 » 拆完这台树莓派A + 收银机 二维码扫描器, 简直都要吐了 » 2022-05-04 17:09:16
#38 Re: DIY/综合/Arduino/写字机/3D打印机/智能小车/平衡车/四轴飞行/MQTT/物联网 » 发个树莓派 ov5647 摄像头资料 » 2022-05-04 14:26:59
低音炮 说：
微凉VeiLiang 说：可以，我买了这个，直接可以用在荔枝派的mipi接口上，还能对焦。 https://item.taobao.com/item.htm?id=566547808242
感谢！找了好久才能找到一个好的摄像头
这个对焦怎么玩呢？
#39 Re: 全志 SOC » 发一个 荔枝派zero 能跑的 camdroid 固件, ov5647摄像头， 视频效果相当暗，很难看清楚. » 2022-05-01 22:20:50
奇怪，一个荔枝派核心板底板分离板子可以检测到 ov5647 mipi，一个荔枝派一体的板子检测不到ov5647 mipi
HELLO! BOOT0 is starting!
get_ifm reg_val=7
setting pmu vol system core 1.1 v
===i2c gpio === 22777777
axp read fail, maybe no pmu
set pmu vol failed,maybe no pmu
DRAM DRIVE INFO: V0.7
DRAM Type = 2 (2:DDR2,3:DDR3,6:LPDDR2,7:LPDDR3)
DRAM CLK = 360 MHz
DRAM zq value: 000039bb
DRAM size = 64 MB
Succeed in reading Boot1 file head.
Jump to secend Boot.
[ 0.093]
U-Boot 2011.09-rc1-dirty (Jun 16 2015 - 13:24:18) Allwinner Technology
[ 0.101]version: 1.1.0
[ 0.106]pmbus:
===i2c gpio === 22777777
ready
axp read error
probe axp20x failed
axp_probe fail,run clock=1008
set power on vol to default
axp_set_power_supply_output dcdc2_vol = 1200
axp set dcdc2_vol to 1200 failed
axp_set_power_supply_output dcdc3_vol = 3300
axp set dcdc3_vol to 3300 failed
axp_set_power_supply_output aldo2_vol = 2500
axp set aldo2_vol to 2500 failed
axp_set_power_supply_output aldo3_vol = 3000
axp set aldo3_vol to 3000 failed
axp_set_power_supply_output ldo1_vol = 3300
axp set ldo1_vol to 3300 failed
axp_set_power_supply_output ldo2_vol = 3000
axp set ldo2_vol to 3000 failed
[ 0.166]DRAM: 64 MiB
[debug_jaosn]:use the clock in sys_config
OK
[ 0.188]sunxi flash init ok
hello @flash_speed=1
env_relocate_spec storage_type = 3
In: serial
Out: serial
Err: serial
WORK_MODE_BOOT
read bootlogo partition successful,start_block=0x6420,rblock=0x100 ,ret=256
Use decode 1x1 sampling
sunxi_read_bootlogo: jpg convert argb
[ 0.373]Hit any key to stop autoboot: 0
read boot or recovery all
[ 0.659]sunxi flash read :offset 4000, 4194815 bytes OK
[ 0.665]ready to boot
[ 0.667]
Starting kernel ...
[ 0.000000] Booting Linux on physical CPU 0
[ 0.000000] Linux version 3.4.39 (root@whycan.com) (gcc version 4.6.3 20120201 (prerelease) (crosstool-NG linaro-1.13.1-2012.02-20120222 - Linaro GCC 2012.02) ) #2 Mon May 2 10:01:21 CST 2022
[ 0.000000] CPU: ARMv7 Processor [410fc075] revision 5 (ARMv7), cr=10c5387d
[ 0.000000] CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache
[ 0.000000] Machine: sun8i
[ 0.000000] Initialized persistent memory from 41d20800-41d307ff
[ 0.000000] Memory policy: ECC disabled, Data cache writeback
[ 0.000000] On node 0 totalpages: 16384
[ 0.000000] free_area_init_node: node 0, pgdat c0520ae4, node_mem_map c05bb000
[ 0.000000] Normal zone: 128 pages used for memmap
[ 0.000000] Normal zone: 0 pages reserved
[ 0.000000] Normal zone: 16256 pages, LIFO batch:3
[ 0.000000] script_init enter!
[ 0.000000] script_init exit!
[ 0.000000] pcpu-alloc: s0 r0 d32768 u32768 alloc=1*32768
[ 0.000000] pcpu-alloc: [0] 0
[ 0.000000] Built 1 zonelists in Zone order, mobility grouping on. Total pages: 16256
[ 0.000000] Kernel command line: console=ttyS0,115200 root=/dev/nor1 init=/init loglevel=8 partitions= mac_addr= uid=1234567890 kmemleak=on fb_base=0x41b00000 boot_type=3 config_size=32360
[ 0.000000] PID hash table entries: 256 (order: -2, 1024 bytes)
[ 0.000000] Dentry cache hash table entries: 8192 (order: 3, 32768 bytes)
[ 0.000000] Inode-cache hash table entries: 4096 (order: 2, 16384 bytes)
[ 0.000000] Memory: 64MB = 64MB total
[ 0.000000] Memory: 29928k/29928k available, 35608k reserved, 0K highmem
[ 0.000000] Virtual kernel memory layout:
[ 0.000000] vector : 0xffff0000 - 0xffff1000 ( 4 kB)
[ 0.000000] fixmap : 0xfff00000 - 0xfffe0000 ( 896 kB)
[ 0.000000] vmalloc : 0xc4800000 - 0xff000000 ( 936 MB)
[ 0.000000] lowmem : 0xc0000000 - 0xc4000000 ( 64 MB)
[ 0.000000] modules : 0xbf000000 - 0xc0000000 ( 16 MB)
[ 0.000000] .text : 0xc0008000 - 0xc048d000 (4628 kB)
[ 0.000000] .init : 0xc048d000 - 0xc04b0000 ( 140 kB)
[ 0.000000] .data : 0xc04b0000 - 0xc0521220 ( 453 kB)
[ 0.000000] .bss : 0xc0521244 - 0xc05ba964 ( 614 kB)
[ 0.000000] NR_IRQS:544
[ 0.000000] 524 ahb1 set parent pll_periph0d2
[ 0.000000] Architected local timer running at 24.00MHz.
[ 0.000000] Switching to timer-based delay loop
[ 0.000000] sched_clock: 32 bits at 24MHz, resolution 41ns, wraps every 178956ms
[ 0.000000] Console: colour dummy device 80x30
[ 0.000156] Calibrating delay loop (skipped), value calculated using timer frequency.. 4800.00 BogoMIPS (lpj=24000000)
[ 0.000178] pid_max: default: 32768 minimum: 301
[ 0.000315] Mount-cache hash table entries: 512
[ 0.000821] CPU: Testing write buffer coherency: ok
[ 0.001088] Setting up static identity map for 0x40366de8 - 0x40366e40
[ 0.001740] devtmpfs: initialized
[ 0.003619] pinctrl core: initialized pinctrl subsystem
[ 0.004102] NET: Registered protocol family 16
[ 0.004513] DMA: preallocated 128 KiB pool for atomic coherent allocations
[ 0.004566] script_sysfs_init success
[ 0.004601] sunxi_dump_init success
[ 0.005327] gpiochip_add: registered GPIOs 0 to 223 on device: sunxi-pinctrl
[ 0.006219] sunxi-pinctrl sunxi-pinctrl: initialized sunXi PIO driver
[ 0.006579] gpiochip_add: registered GPIOs 1024 to 1031 on device: axp-pinctrl
[ 0.007526] persistent_ram: uncorrectable error in header
[ 0.007543] persistent_ram: no valid data in buffer (sig = 0x77275521)
[ 0.013823] console [ram-1] enabled
[ 0.014225] [sunxi-module]: [sunxi-module.0] probe success
[ 0.014524] axp driver uning configuration failed(801)
[ 0.014632] axp driver uning configuration failed(808)
[ 0.015014] Not Found clk pll_isp in script
[ 0.015210] Not Found clk pll_video in script
[ 0.015314] Not Found clk pll_ve in script
[ 0.015503] Not Found clk pll_periph0 in script
[ 0.015607] Not Found clk pll_de in script
[ 0.015709] sunxi_default_clk_init
[ 0.015897] try to set pll6ahb1 to 200000000
[ 0.016009] Error not get clk pll6ahb1
[ 0.016117] Error not get clk pll6ahb1try to set ahb1 to 200000000
[ 0.016419] try to set apb1 to 100000000
[ 0.016837] ===fe3o4==== sunxi_root_procfs_attach ret:0
[ 0.020565] bio: create slab <bio-0> at 0
[ 0.020922] pwm module init!
[ 0.023136] SCSI subsystem initialized
[ 0.023555] usbcore: registered new interface driver usbfs
[ 0.023729] usbcore: registered new interface driver hub
[ 0.024059] usbcore: registered new device driver usb
[ 0.024298] twi_chan_cfg()340 - [twi0] has no twi_regulator.
[ 0.024493] twi_chan_cfg()340 - [twi1] has no twi_regulator.
[ 0.025274] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x34)
[ 0.025485] axp20_board 0-0034: failed reading at 0x03
[ 0.025591] [AXP20-MFD] try to read chip id failed!
[ 0.025778] axp mfd register failed
[ 0.025894] axp20_board: probe of 0-0034 failed with error -70
[ 0.026043] Linux video capture interface: v2.00
[ 0.026321] gpiochip_add: gpios 1024..1028 (axp_pin) failed to register
[ 0.026427] axp pinctrl used,skip
[ 0.026943] Advanced Linux Sound Architecture Driver Version 1.0.25.
[ 0.027931] cfg80211: Calling CRDA to update world regulatory domain
[ 0.029074] Switching to clocksource arch_sys_counter
[ 0.029983] NET: Registered protocol family 2
[ 0.029983] IP route cache hash table entries: 1024 (order: 0, 4096 bytes)
[ 0.029983] TCP established hash table entries: 2048 (order: 2, 16384 bytes)
[ 0.030188] TCP bind hash table entries: 2048 (order: 1, 8192 bytes)
[ 0.030314] TCP: Hash tables configured (established 2048 bind 2048)
[ 0.030420] TCP: reno registered
[ 0.030528] UDP hash table entries: 256 (order: 0, 4096 bytes)
[ 0.030729] UDP-Lite hash table entries: 256 (order: 0, 4096 bytes)
[ 0.031095] NET: Registered protocol family 1
[ 0.031486] Unpacking initramfs...
[ 0.046204] Freeing initrd memory: 220K
[ 0.046539] [pm]aw_pm_init!
[ 0.046732] standby_mode = 1.
[ 0.046835] wakeup src cnt is : 3.
[ 0.046944] pmu name: pmu1_para .
[ 0.047140] pmu1_enable = 0x1.
[ 0.047243] pmux_id = 0x1.
[ 0.047349] pmu name: pmu2_para .
[ 0.047452] config_pmux_para: script_parser_fetch err.
[ 0.047643] pmu2_enable = 0x0.
[ 0.047750] add_sys_pwr_dm: get ldo name failed
[ 0.047854] add_sys_pwr_dm: get ldo name failed
[ 0.048043] add_sys_pwr_dm: get ldo name failed
[ 0.048147] add_sys_pwr_dm: get ldo name failed
[ 0.048337] add_sys_pwr_dm: get ldo name failed
[ 0.048441] add_sys_pwr_dm: get ldo name failed
[ 0.048544] add_sys_pwr_dm: get ldo name failed
[ 0.048732] add_sys_pwr_dm: get ldo name failed
[ 0.048837] add_sys_pwr_dm: get ldo name failed
[ 0.049027] add_sys_pwr_dm: get ldo name failed
[ 0.049130] after inited: sys_mask config = 0x0.
[ 0.049235] dynamic_standby enalbe = 0x0.
[ 0.049481] sunxi_reg_init enter
[ 0.051458] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[ 0.051702] jffs2: version 2.2. (NAND) (SUMMARY) © 2001-2006 Red Hat, Inc.
[ 0.051979] msgmni has been set to 58
[ 0.053111] io scheduler noop registered
[ 0.053232] io scheduler deadline registered
[ 0.053416] io scheduler cfq registered (default)
[ 0.054013] [DISP]disp_module_init
[ 0.054520] cmdline,disp=
[ 0.055135] rotation_sw module is config as no used
[ 0.055350] [DISP] disp_get_rotation_sw,line:68:disp 0 out of range? g_rot_sw=0
[ 0.055558] [DISP] disp_init_connections,line:289:NULL pointer: 0, 0
[ 0.073525] [DISP] disp_sys_power_enable,line:387:some error happen, fail to get regulator
[ 0.073839] [DISP] disp_sys_gpio_set_value,line:374:OSAL_GPIO_DevWRITE_ONEPIN_DATA, hdl is NULL
[ 0.074758] [DISP]disp_module_init finish
[ 0.075246] sw_uart_get_devinfo()1503 - uart0 has no uart_regulator.
[ 0.075367] sw_uart_get_devinfo()1503 - uart2 has no uart_regulator.
[ 0.076008] uart0: ttyS0 at MMIO 0x1c28000 (irq = 32) is a SUNXI
[ 0.076127] sw_uart_pm()890 - uart0 clk is already enable
[ 0.076330] sw_console_setup()1233 - console setup baud 115200 parity n bits 8, flow n
[ 0.172404] console [ttyS0] enabled
[ 0.915230] uart: probe of uart2 failed with error -22
[ 0.922357] sunxi_spi_chan_cfg()1376 - [spi-0] has no spi_regulator.
[ 0.930191] spi spi0: master is unqueued, this is deprecated
[ 0.936830] m25p_probe()967 - Use the Dual Mode Read.
[ 0.942643] NorFlash ID: 0xef4019 - 0x0
[ 0.947102] m25p80 spi0.0: found W25q256, expected at25df641
[ 0.953520] m25p80 spi0.0: W25q256 (16384 Kbytes)
[ 0.960413] @@@[debug_jaosn]: Invalid partitions count: 4 9
[ 0.967173] Creating 8 MTD partitions on "spi0.0":
[ 0.972639] 0x000000000000-0x000000040000 : "uboot"
[ 0.979237] 0x000000040000-0x000000440000 : "boot"
[ 0.985581] 0x000000440000-0x000000c40000 : "system"
[ 0.992202] 0x000000c40000-0x000000cc0000 : "cfg"
[ 0.998408] 0x000000cc0000-0x000000ce0000 : "boot_logo"
[ 1.005380] 0x000000ce0000-0x000000d00000 : "shutdown_logo"
[ 1.012883] 0x000000d00000-0x000000d10000 : "env"
[ 1.019127] 0x000000d10000-0x000000d20000 : "private"
[ 1.027350] Failed to alloc md5
[ 1.031071] eth0: Use random mac address
[ 1.035671] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[ 1.063267] sunxi-ehci sunxi-ehci.1: SW USB2.0 'Enhanced' Host Controller (EHCI) Driver
[ 1.072400] sunxi-ehci sunxi-ehci.1: new USB bus registered, assigned bus number 1
[ 1.081127] sunxi-ehci sunxi-ehci.1: irq 104, io mem 0xf1c1a000
[ 1.100039] sunxi-ehci sunxi-ehci.1: USB 0.0 started, EHCI 1.00
[ 1.107505] hub 1-0:1.0: USB hub found
[ 1.111851] hub 1-0:1.0: 1 port detected
[ 1.116744] sunxi-ehci sunxi-ehci.1: remove, state 1
[ 1.122488] usb usb1: USB disconnect, device number 1
[ 1.422901] sunxi-ehci sunxi-ehci.1: USB bus 1 deregistered
[ 1.439400] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
[ 1.466488] sunxi-ohci sunxi-ohci.1: SW USB2.0 'Open' Host Controller (OHCI) Driver
[ 1.475217] sunxi-ohci sunxi-ohci.1: new USB bus registered, assigned bus number 1
[ 1.483902] sunxi-ohci sunxi-ohci.1: irq 105, io mem 0xf1c1a400
[ 1.554632] hub 1-0:1.0: USB hub found
[ 1.558916] hub 1-0:1.0: 1 port detected
[ 1.563871] sunxi-ohci sunxi-ohci.1: remove, state 1
[ 1.569517] usb usb1: USB disconnect, device number 1
[ 1.575910] sunxi-ohci sunxi-ohci.1: USB bus 1 deregistered
[ 1.592335] Initializing USB Mass Storage driver...
[ 1.598019] usbcore: registered new interface driver usb-storage
[ 1.604802] USB Mass Storage support registered.
[ 1.610327] file system registered
[ 1.615764] android_usb gadget: Mass Storage Function, version: 2009/09/11
[ 1.623558] android_usb gadget: Number of LUNs=1
[ 1.628867] lun0: LUN: removable file: (no medium)
[ 1.634879] android_usb gadget: android_usb ready
[ 1.640452] sunxikbd_script_init: key para not found, used default para.
[ 1.649083] sunxi-rtc sunxi-rtc: rtc core: registered sunxi-rtc as rtc0
[ 1.656832] sunxi cedar version 0.1
[ 1.660962] [cedar]: install start!!!
[ 1.665405] [cedar]: install end!!!
[ 1.669912] platform reg-20-cs-dcdc2: Driver reg-20-cs-dcdc2 requests probe deferral
[ 1.678884] platform reg-20-cs-dcdc3: Driver reg-20-cs-dcdc3 requests probe deferral
[ 1.687813] platform reg-20-cs-ldo1: Driver reg-20-cs-ldo1 requests probe deferral
[ 1.696545] platform reg-20-cs-ldo2: Driver reg-20-cs-ldo2 requests probe deferral
[ 1.705184] platform reg-20-cs-ldo3: Driver reg-20-cs-ldo3 requests probe deferral
[ 1.713903] platform reg-20-cs-ldo4: Driver reg-20-cs-ldo4 requests probe deferral
[ 1.722613] platform reg-20-cs-ldoio0: Driver reg-20-cs-ldoio0 requests probe deferral
[ 1.731523] sunxi_wdt_init_module: sunxi WatchDog Timer Driver v1.0
[ 1.738841] sunxi_wdt_probe: devm_ioremap return wdt_reg 0xf1c20ca0, res->start 0x01c20ca0, res->end 0x01c20cbf
[ 1.750270] sunxi_wdt_probe: initialized (g_timeout=16s, g_nowayout=0)
[ 1.757994] wdt_enable, write reg 0xf1c20cb8 val 0x00000000
[ 1.764311] wdt_set_tmout, write 0x000000b0 to mode reg 0xf1c20cb8, actual timeout 16 sec
[ 1.774150] [mmc]: SD/MMC/SDIO Host Controller Driver(v1.114 2015-6-2 10:21) Compiled in May 2 2022 at 01:42:31
[ 1.785718] [mmc]: get mmc0's sdc_power failed
[ 1.790777] [mmc]: get mmc1's sdc_power failed
[ 1.795818] [mmc]: MMC host used card: 0x3, boot card: 0x1, io_card 2
[ 1.804000] [mmc]: sdc0 set ios: clk 0Hz bm OD pm OFF vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 1.815143] [mmc]: sdc0 set ios: clk 0Hz bm PP pm UP vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 1.825602] [mmc]: sdc1 set ios: clk 0Hz bm OD pm OFF vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 1.835523] [mmc]: sdc0 power_supply is null
[ 1.843384] sunxi_leds_fetch_sysconfig_para leds is not used in config
[ 1.850758] =========script_get_err============
[ 1.856207] usbcore: registered new interface driver usbhid
[ 1.862542] usbhid: USB HID core driver
[ 1.866996] [mmc]: sdc0 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 1.877880] ashmem: initialized
[ 1.881761] logger: created 256K log 'log_main'
[ 1.886994] logger: created 32K log 'log_events'
[ 1.892573] logger: created 32K log 'log_radio'
[ 1.897895] logger: created 32K log 'log_system'
[ 1.904600] script_get_item return audio_pa_ctrl type err
[ 1.911709] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 52, RTO !!
[ 1.920281] asoc: sndcodec <-> sunxi-codec mapping ok
[ 1.926092] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 52, RTO !!
[ 1.934459] [mmc]: sdc0 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 1.946837] TCP: cubic registered
[ 1.950769] NET: Registered protocol family 17
[ 1.956060] VFP support v0.3: implementor 41 architecture 2 part 30 variant 7 rev 5
[ 1.964867] ThumbEE CPU extension supported.
[ 1.970924] Registering SWP/SWPB emulation handler
[ 1.977378] [mmc]: sdc0 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 1.988683] platform reg-20-cs-ldoio0: Driver reg-20-cs-ldoio0 requests probe deferral
[ 1.997810] platform reg-20-cs-ldo4: Driver reg-20-cs-ldo4 requests probe deferral
[ 2.007681] platform reg-20-cs-ldo3: Driver reg-20-cs-ldo3 requests probe deferral
[ 2.016220] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 8, RTO !!
[ 2.024562] *******************Try sdio*******************
[ 2.030820] platform reg-20-cs-ldo2: Driver reg-20-cs-ldo2 requests probe deferral
[ 2.039418] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 5, RTO !!
[ 2.047794] platform reg-20-cs-ldo1: Driver reg-20-cs-ldo1 requests probe deferral
[ 2.056313] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 5, RTO !!
[ 2.064677] platform reg-20-cs-dcdc3: Driver reg-20-cs-dcdc3 requests probe deferral
[ 2.073473] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 5, RTO !!
[ 2.081746] platform reg-20-cs-dcdc2: Driver reg-20-cs-dcdc2 requests probe deferral
[ 2.090543] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 5, RTO !!
[ 2.098852] *******************Try sd *******************
[ 2.105045] sunxi-rtc sunxi-rtc: setting system clock to 1970-01-01 00:00:03 UTC (3)
[ 2.113842] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 55, RTO !!
[ 2.123002] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 55, RTO !!
[ 2.132034] [wifi module_pm]: failed to fetch wifi configuration!
[ 2.139030] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 55, RTO !!
[ 2.147402] [wifi module_pm]: regulator on.
[ 2.152258] [wifi_pm]: no wifi used in configuration
[ 2.157865]
[ 2.157869] *****May 2 2022 01:42:38 EAGLE DRIVER VER:75be56bfbaf7*****
[ 2.157875]
[ 2.169157] =======================================================
[ 2.176334] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 55, RTO !!
[ 2.184714] ==== Launching Wi-Fi driver! (Powered by Rockchip) ====
[ 2.191860] =======================================================
[ 2.198913] Espressif ESP8089 SDIO WiFi driver (Powered by Rockchip, Ver2.25(01/22/2016),Drv: 2.26) init.
[ 2.209727] [wifi_pm]: wrong module select 0 !
[ 2.314962] *******************Try mmc*******************
[ 2.321075] [mmc]: sdc0 set ios: clk 400000Hz bm OD pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 2.332379] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 1, RTO !!
[ 2.340626] [mmc]: sdc0 set ios: clk 0Hz bm OD pm OFF vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 2.350724] [mmc]: sdc0 power_supply is null
[ 2.358236] [mmc]: sdc0 set ios: clk 0Hz bm PP pm UP vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 2.369518] [mmc]: sdc0 power_supply is null
[ 2.390029] [mmc]: sdc0 set ios: clk 300000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 2.421111] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 52, RTO !!
[ 2.430516] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 52, RTO !!
[ 2.438924] [mmc]: sdc0 set ios: clk 300000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 2.451883] [mmc]: sdc0 set ios: clk 300000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 2.464330] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 8, RTO !!
[ 2.472639] *******************Try sdio*******************
[ 2.479990] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 5, RTO !!
[ 2.489286] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 5, RTO !!
[ 2.498673] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 5, RTO !!
[ 2.508080] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 5, RTO !!
[ 2.516301] *******************Try sd *******************
[ 2.523560] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 55, RTO !!
[ 2.532956] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 55, RTO !!
[ 2.542443] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 55, RTO !!
[ 2.551922] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 55, RTO !!
[ 2.560243] *******************Try mmc*******************
[ 2.561894] [mmc]: sdc0 set ios: clk 300000Hz bm OD pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 2.577951] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 1, RTO !!
[ 2.586181] [mmc]: sdc0 set ios: clk 0Hz bm OD pm OFF vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 2.596261] [mmc]: sdc0 power_supply is null
[ 2.603683] [mmc]: sdc0 set ios: clk 0Hz bm PP pm UP vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 2.615050] [mmc]: sdc0 power_supply is null
[ 2.640022] [mmc]: sdc0 set ios: clk 200000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 2.671635] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 52, RTO !!
[ 2.681658] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 52, RTO !!
[ 2.690075] [mmc]: sdc0 set ios: clk 200000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 2.703205] [mmc]: sdc0 set ios: clk 200000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 2.716300] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 8, RTO !!
[ 2.724616] *******************Try sdio*******************
[ 2.732424] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 5, RTO !!
[ 2.742354] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 5, RTO !!
[ 2.752295] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 5, RTO !!
[ 2.762129] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 5, RTO !!
[ 2.770442] *******************Try sd *******************
[ 2.778144] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 55, RTO !!
[ 2.788169] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 55, RTO !!
[ 2.798189] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 55, RTO !!
[ 2.808124] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 55, RTO !!
[ 2.816534] *******************Try mmc*******************
[ 2.822631] [mmc]: sdc0 set ios: clk 200000Hz bm OD pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 2.834725] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 1, RTO !!
[ 2.843041] [mmc]: sdc0 set ios: clk 0Hz bm OD pm OFF vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 2.853120] [mmc]: sdc0 power_supply is null
[ 2.860534] [mmc]: sdc0 set ios: clk 0Hz bm PP pm UP vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 2.871892] [mmc]: sdc0 power_supply is null
[ 2.890025] [mmc]: sdc0 set ios: clk 150000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 2.921097] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 52, RTO !!
[ 2.930597] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 52, RTO !!
[ 2.938916] [mmc]: sdc0 set ios: clk 150000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 2.951869] [mmc]: sdc0 set ios: clk 150000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 2.964400] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 8, RTO !!
[ 2.972705] *******************Try sdio*******************
[ 2.979967] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 5, RTO !!
[ 2.989263] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 5, RTO !!
[ 2.998563] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 5, RTO !!
[ 3.007946] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 5, RTO !!
[ 3.016257] *******************Try sd *******************
[ 3.023427] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 55, RTO !!
[ 3.032913] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 55, RTO !!
[ 3.042456] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 55, RTO !!
[ 3.051948] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 55, RTO !!
[ 3.060361] *******************Try mmc*******************
[ 3.061919] [mmc]: sdc0 set ios: clk 150000Hz bm OD pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 3.077999] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 0 err, cmd 1, RTO !!
[ 3.086322] [mmc]: sdc0 set ios: clk 0Hz bm OD pm OFF vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 3.096317] [mmc]: sdc0 power_supply is null
[ 3.103840] [mmc]: sdc1 set ios: clk 0Hz bm PP pm UP vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 3.115207] [mmc]: sdc1 power_supply is null
[ 3.140020] [mmc]: sdc1 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 3.172341] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 52, RTO !!
[ 3.181467] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 52, RTO !!
[ 3.189877] [mmc]: sdc1 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 3.202701] [mmc]: sdc1 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 3.214956] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 8, RTO !!
[ 3.223184] *******************Try sdio*******************
[ 3.230255] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 3.239278] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 3.248385] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 3.257518] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 3.265737] *******************Try sd *******************
[ 3.272725] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 3.281848] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 3.291058] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 3.300260] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 3.308581] *******************Try mmc*******************
[ 3.314764] [mmc]: sdc1 set ios: clk 400000Hz bm OD pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 3.326014] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 1, RTO !!
[ 3.334241] [mmc]: sdc1 set ios: clk 0Hz bm OD pm OFF vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 3.344333] [mmc]: sdc1 power_supply is null
[ 3.351845] [mmc]: sdc1 set ios: clk 0Hz bm PP pm UP vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 3.363120] [mmc]: sdc1 power_supply is null
[ 3.380026] [mmc]: sdc1 set ios: clk 300000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 3.412602] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 52, RTO !!
[ 3.422084] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 52, RTO !!
[ 3.430490] [mmc]: sdc1 set ios: clk 300000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 3.443440] [mmc]: sdc1 set ios: clk 300000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 3.455882] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 8, RTO !!
[ 3.464191] *******************Try sdio*******************
[ 3.471545] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 3.480838] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 3.490221] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 3.499511] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 3.507817] *******************Try sd *******************
[ 3.515078] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 3.524471] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 3.533962] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 3.543351] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 3.551672] *******************Try mmc*******************
[ 3.553323] [mmc]: sdc1 set ios: clk 300000Hz bm OD pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 3.569293] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 1, RTO !!
[ 3.577606] [mmc]: sdc1 set ios: clk 0Hz bm OD pm OFF vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 3.587694] [mmc]: sdc1 power_supply is null
[ 3.595120] [mmc]: sdc1 set ios: clk 0Hz bm PP pm UP vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 3.606480] [mmc]: sdc1 power_supply is null
[ 3.630020] [mmc]: sdc1 set ios: clk 200000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 3.663133] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 52, RTO !!
[ 3.673147] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 52, RTO !!
[ 3.681475] [mmc]: sdc1 set ios: clk 200000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 3.694694] [mmc]: sdc1 set ios: clk 200000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 3.707784] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 8, RTO !!
[ 3.716104] *******************Try sdio*******************
[ 3.723898] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 3.733813] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 3.743728] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 3.753553] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 3.761863] *******************Try sd *******************
[ 3.769553] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 3.779563] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 3.789569] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 3.799493] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 3.807902] *******************Try mmc*******************
[ 3.813997] [mmc]: sdc1 set ios: clk 200000Hz bm OD pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 3.826084] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 1, RTO !!
[ 3.834401] [mmc]: sdc1 set ios: clk 0Hz bm OD pm OFF vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 3.844489] [mmc]: sdc1 power_supply is null
[ 3.851913] [mmc]: sdc1 set ios: clk 0Hz bm PP pm UP vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 3.863275] [mmc]: sdc1 power_supply is null
[ 3.880021] [mmc]: sdc1 set ios: clk 150000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 3.912600] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 52, RTO !!
[ 3.922079] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 52, RTO !!
[ 3.930401] [mmc]: sdc1 set ios: clk 150000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 3.943352] [mmc]: sdc1 set ios: clk 150000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 3.955884] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 8, RTO !!
[ 3.964106] *******************Try sdio*******************
[ 3.971453] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 3.980827] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 3.990120] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 3.999490] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 4.007800] *******************Try sd *******************
[ 4.014960] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 4.024440] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 4.033827] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 4.043300] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 4.051890] *******************Try mmc*******************
[ 4.057984] [mmc]: sdc1 set ios: clk 150000Hz bm OD pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 4.069542] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 1, RTO !!
[ 4.077867] [mmc]: sdc1 set ios: clk 0Hz bm OD pm OFF vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 4.087883] [mmc]: sdc1 power_supply is null
[ 13.310035] esp_sdio_init ------ RETRY ------
[ 13.315134] =======================================================
[ 13.322312] ==== Dislaunching Wi-Fi driver! (Powered by Rockchip) ====
[ 13.329650] =======================================================
[ 13.336795] Espressif ESP8089 SDIO WiFi driver (Powered by Rockchip, Ver2.26(01/22/2016),Drv: 2.26) exit.
[ 13.347608] [wifi_pm]: wrong module select 0 !
[ 13.452641] =======================================================
[ 13.459775] ==== Launching Wi-Fi driver! (Powered by Rockchip) ====
[ 13.466829] =======================================================
[ 13.473971] Espressif ESP8089 SDIO WiFi driver (Powered by Rockchip, Ver2.25(01/22/2016),Drv: 2.26) init.
[ 13.484791] [wifi_pm]: wrong module select 0 !
[ 13.589842] [mmc]: sdc1 set ios: clk 0Hz bm PP pm UP vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 13.601225] [mmc]: sdc1 power_supply is null
[ 13.620035] [mmc]: sdc1 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 13.652342] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 52, RTO !!
[ 13.661559] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 52, RTO !!
[ 13.669890] [mmc]: sdc1 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 13.682744] [mmc]: sdc1 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 13.694993] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 8, RTO !!
[ 13.703226] *******************Try sdio*******************
[ 13.710297] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 13.719412] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 13.728435] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 13.737547] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 13.745771] *******************Try sd *******************
[ 13.752758] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 13.761985] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 13.771107] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 13.780315] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 13.788718] *******************Try mmc*******************
[ 13.794820] [mmc]: sdc1 set ios: clk 400000Hz bm OD pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 13.806071] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 1, RTO !!
[ 13.814301] [mmc]: sdc1 set ios: clk 0Hz bm OD pm OFF vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 13.824392] [mmc]: sdc1 power_supply is null
[ 13.831908] [mmc]: sdc1 set ios: clk 0Hz bm PP pm UP vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 13.843177] [mmc]: sdc1 power_supply is null
[ 13.860020] [mmc]: sdc1 set ios: clk 300000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 13.892606] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 52, RTO !!
[ 13.901998] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 52, RTO !!
[ 13.910421] [mmc]: sdc1 set ios: clk 300000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 13.923375] [mmc]: sdc1 set ios: clk 300000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 13.935912] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 8, RTO !!
[ 13.944140] *******************Try sdio*******************
[ 13.951485] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 13.960778] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 13.970155] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 13.979535] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 13.987754] *******************Try sd *******************
[ 13.995009] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 14.004396] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 14.013875] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 14.023355] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 14.031673] *******************Try mmc*******************
[ 14.033327] [mmc]: sdc1 set ios: clk 300000Hz bm OD pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 14.049380] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 1, RTO !!
[ 14.057614] [mmc]: sdc1 set ios: clk 0Hz bm OD pm OFF vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 14.067703] [mmc]: sdc1 power_supply is null
[ 14.075139] [mmc]: sdc1 set ios: clk 0Hz bm PP pm UP vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 14.086501] [mmc]: sdc1 power_supply is null
[ 14.110021] [mmc]: sdc1 set ios: clk 200000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 14.143133] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 52, RTO !!
[ 14.153152] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 52, RTO !!
[ 14.161561] [mmc]: sdc1 set ios: clk 200000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 14.174684] [mmc]: sdc1 set ios: clk 200000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 14.187773] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 8, RTO !!
[ 14.196082] *******************Try sdio*******************
[ 14.203878] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 14.213793] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 14.223708] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 14.233558] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 14.241869] *******************Try sd *******************
[ 14.249573] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 14.259583] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 14.269508] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 14.279428] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 14.287837] *******************Try mmc*******************
[ 14.293934] [mmc]: sdc1 set ios: clk 200000Hz bm OD pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 14.306024] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 1, RTO !!
[ 14.314343] [mmc]: sdc1 set ios: clk 0Hz bm OD pm OFF vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 14.324426] [mmc]: sdc1 power_supply is null
[ 14.331871] [mmc]: sdc1 set ios: clk 0Hz bm PP pm UP vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 14.343231] [mmc]: sdc1 power_supply is null
[ 14.360023] [mmc]: sdc1 set ios: clk 150000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 14.392603] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 52, RTO !!
[ 14.402089] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 52, RTO !!
[ 14.410427] [mmc]: sdc1 set ios: clk 150000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 14.423376] [mmc]: sdc1 set ios: clk 150000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 14.435903] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 8, RTO !!
[ 14.444217] *******************Try sdio*******************
[ 14.451476] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 14.460873] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 14.470159] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 14.479549] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 14.487855] *******************Try sd *******************
[ 14.495023] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 14.504496] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 14.513886] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 14.523359] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 14.531766] *******************Try mmc*******************
[ 14.533331] [mmc]: sdc1 set ios: clk 150000Hz bm OD pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 14.549380] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 1, RTO !!
[ 14.557699] [mmc]: sdc1 set ios: clk 0Hz bm OD pm OFF vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 14.567695] [mmc]: sdc1 power_supply is null
[ 24.590031] esp_sdio_init ------ RETRY ------
[ 24.595145] =======================================================
[ 24.602303] ==== Dislaunching Wi-Fi driver! (Powered by Rockchip) ====
[ 24.609663] =======================================================
[ 24.616811] Espressif ESP8089 SDIO WiFi driver (Powered by Rockchip, Ver2.26(01/22/2016),Drv: 2.26) exit.
[ 24.627624] [wifi_pm]: wrong module select 0 !
[ 24.732657] =======================================================
[ 24.739797] ==== Launching Wi-Fi driver! (Powered by Rockchip) ====
[ 24.746850] =======================================================
[ 24.753988] Espressif ESP8089 SDIO WiFi driver (Powered by Rockchip, Ver2.25(01/22/2016),Drv: 2.26) init.
[ 24.764804] [wifi_pm]: wrong module select 0 !
[ 24.869860] [mmc]: sdc1 set ios: clk 0Hz bm PP pm UP vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 24.881232] [mmc]: sdc1 power_supply is null
[ 24.900038] [mmc]: sdc1 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 24.932349] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 52, RTO !!
[ 24.941578] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 52, RTO !!
[ 24.949898] [mmc]: sdc1 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 24.962732] [mmc]: sdc1 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 24.974992] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 8, RTO !!
[ 24.983332] *******************Try sdio*******************
[ 24.990316] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 24.999424] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 25.008448] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 25.017563] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 25.025870] *******************Try sd *******************
[ 25.032781] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 25.041991] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 25.051114] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 25.060316] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 25.068722] *******************Try mmc*******************
[ 25.074824] [mmc]: sdc1 set ios: clk 400000Hz bm OD pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 25.086165] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 1, RTO !!
[ 25.094485] [mmc]: sdc1 set ios: clk 0Hz bm OD pm OFF vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 25.104507] [mmc]: sdc1 power_supply is null
[ 25.112023] [mmc]: sdc1 set ios: clk 0Hz bm PP pm UP vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 25.123389] [mmc]: sdc1 power_supply is null
[ 25.140029] [mmc]: sdc1 set ios: clk 300000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 25.172605] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 52, RTO !!
[ 25.182024] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 52, RTO !!
[ 25.190436] [mmc]: sdc1 set ios: clk 300000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 25.203396] [mmc]: sdc1 set ios: clk 300000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 25.215931] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 8, RTO !!
[ 25.224155] *******************Try sdio*******************
[ 25.231507] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 25.240794] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 25.250178] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 25.259465] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 25.267688] *******************Try sd *******************
[ 25.274938] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 25.284334] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 25.293814] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 25.303288] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 25.311607] *******************Try mmc*******************
[ 25.313259] [mmc]: sdc1 set ios: clk 300000Hz bm OD pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 25.329312] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 1, RTO !!
[ 25.337540] [mmc]: sdc1 set ios: clk 0Hz bm OD pm OFF vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 25.347631] [mmc]: sdc1 power_supply is null
[ 25.355057] [mmc]: sdc1 set ios: clk 0Hz bm PP pm UP vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 25.366330] [mmc]: sdc1 power_supply is null
[ 25.390019] [mmc]: sdc1 set ios: clk 200000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 25.423135] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 52, RTO !!
[ 25.433149] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 52, RTO !!
[ 25.441560] [mmc]: sdc1 set ios: clk 200000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 25.454769] [mmc]: sdc1 set ios: clk 200000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 25.467770] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 8, RTO !!
[ 25.476084] *******************Try sdio*******************
[ 25.483965] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 25.493794] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 25.503705] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 25.513534] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 25.521859] *******************Try sd *******************
[ 25.529634] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 25.539575] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 25.549585] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 25.559509] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 25.567928] *******************Try mmc*******************
[ 25.574114] [mmc]: sdc1 set ios: clk 200000Hz bm OD pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 25.586115] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 1, RTO !!
[ 25.594428] [mmc]: sdc1 set ios: clk 0Hz bm OD pm OFF vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 25.604518] [mmc]: sdc1 power_supply is null
[ 25.611945] [mmc]: sdc1 set ios: clk 0Hz bm PP pm UP vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 25.623306] [mmc]: sdc1 power_supply is null
[ 25.640021] [mmc]: sdc1 set ios: clk 150000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 25.672601] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 52, RTO !!
[ 25.682100] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 52, RTO !!
[ 25.690422] [mmc]: sdc1 set ios: clk 150000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 25.703373] [mmc]: sdc1 set ios: clk 150000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 25.715918] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 8, RTO !!
[ 25.724229] *******************Try sdio*******************
[ 25.731504] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 25.740878] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 25.750268] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 25.759554] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 25.767865] *******************Try sd *******************
[ 25.775027] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 25.784507] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 25.793981] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 25.803374] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 25.811780] *******************Try mmc*******************
[ 25.813345] [mmc]: sdc1 set ios: clk 150000Hz bm OD pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 25.829391] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 1, RTO !!
[ 25.837707] [mmc]: sdc1 set ios: clk 0Hz bm OD pm OFF vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 25.847796] [mmc]: sdc1 power_supply is null
[ 35.870028] esp_sdio_init ------ RETRY ------
[ 35.875133] =======================================================
[ 35.882299] ==== Dislaunching Wi-Fi driver! (Powered by Rockchip) ====
[ 35.889635] =======================================================
[ 35.896783] Espressif ESP8089 SDIO WiFi driver (Powered by Rockchip, Ver2.26(01/22/2016),Drv: 2.26) exit.
[ 35.907590] [wifi_pm]: wrong module select 0 !
[ 36.012641] =======================================================
[ 36.019777] ==== Launching Wi-Fi driver! (Powered by Rockchip) ====
[ 36.026834] =======================================================
[ 36.033974] Espressif ESP8089 SDIO WiFi driver (Powered by Rockchip, Ver2.25(01/22/2016),Drv: 2.26) init.
[ 36.044793] [wifi_pm]: wrong module select 0 !
[ 36.149847] [mmc]: sdc1 set ios: clk 0Hz bm PP pm UP vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 36.161230] [mmc]: sdc1 power_supply is null
[ 36.180028] [mmc]: sdc1 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 36.212343] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 52, RTO !!
[ 36.221583] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 52, RTO !!
[ 36.229904] [mmc]: sdc1 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 36.242740] [mmc]: sdc1 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 36.255019] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 8, RTO !!
[ 36.263245] *******************Try sdio*******************
[ 36.270241] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 36.279347] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 36.288376] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 36.297485] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 36.305794] *******************Try sd *******************
[ 36.312693] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 36.321918] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 36.331123] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 36.340245] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 36.348647] *******************Try mmc*******************
[ 36.354750] [mmc]: sdc1 set ios: clk 400000Hz bm OD pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 36.365999] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 1, RTO !!
[ 36.374314] [mmc]: sdc1 set ios: clk 0Hz bm OD pm OFF vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 36.384405] [mmc]: sdc1 power_supply is null
[ 36.391828] [mmc]: sdc1 set ios: clk 0Hz bm PP pm UP vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 36.403190] [mmc]: sdc1 power_supply is null
[ 36.420021] [mmc]: sdc1 set ios: clk 300000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 36.452600] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 52, RTO !!
[ 36.462075] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 52, RTO !!
[ 36.470403] [mmc]: sdc1 set ios: clk 300000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 36.483373] [mmc]: sdc1 set ios: clk 300000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 36.495900] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 8, RTO !!
[ 36.504129] *******************Try sdio*******************
[ 36.511476] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 36.520857] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 36.530147] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 36.539526] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 36.547751] *******************Try sd *******************
[ 36.554999] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 36.564469] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 36.573843] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 36.583313] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 36.591715] *******************Try mmc*******************
[ 36.593284] [mmc]: sdc1 set ios: clk 300000Hz bm OD pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 36.609337] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 1, RTO !!
[ 36.617653] [mmc]: sdc1 set ios: clk 0Hz bm OD pm OFF vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 36.627654] [mmc]: sdc1 power_supply is null
[ 36.635167] [mmc]: sdc1 set ios: clk 0Hz bm PP pm UP vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 36.646441] [mmc]: sdc1 power_supply is null
[ 36.670024] [mmc]: sdc1 set ios: clk 200000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 36.703133] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 52, RTO !!
[ 36.713083] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 52, RTO !!
[ 36.721491] [mmc]: sdc1 set ios: clk 200000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 36.734710] [mmc]: sdc1 set ios: clk 200000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 36.747798] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 8, RTO !!
[ 36.756020] *******************Try sdio*******************
[ 36.763902] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 36.773728] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 36.783642] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 36.793572] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 36.801795] *******************Try sd *******************
[ 36.809577] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 36.819498] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 36.829512] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 36.839528] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 36.847846] *******************Try mmc*******************
[ 36.854039] [mmc]: sdc1 set ios: clk 200000Hz bm OD pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 36.866133] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 1, RTO !!
[ 36.874367] [mmc]: sdc1 set ios: clk 0Hz bm OD pm OFF vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 36.884455] [mmc]: sdc1 power_supply is null
[ 36.891885] [mmc]: sdc1 set ios: clk 0Hz bm PP pm UP vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 36.903241] [mmc]: sdc1 power_supply is null
[ 36.920017] [mmc]: sdc1 set ios: clk 150000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 36.952604] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 52, RTO !!
[ 36.962084] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 52, RTO !!
[ 36.970409] [mmc]: sdc1 set ios: clk 150000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 36.983355] [mmc]: sdc1 set ios: clk 150000Hz bm PP pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 36.995797] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 8, RTO !!
[ 37.004110] *******************Try sdio*******************
[ 37.011367] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 37.020764] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 37.030137] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 37.039430] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 5, RTO !!
[ 37.047737] *******************Try sd *******************
[ 37.054909] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 37.064305] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 37.073787] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 37.083204] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 55, RTO !!
[ 37.091609] *******************Try mmc*******************
[ 37.093175] [mmc]: sdc1 set ios: clk 150000Hz bm OD pm ON vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 37.109255] [mmc]: *** sunxi_mci_dump_errinfo(L826): smc 1 err, cmd 1, RTO !!
[ 37.117581] [mmc]: sdc1 set ios: clk 0Hz bm OD pm OFF vdd 3.3V width 1 timing LEGACY(SDR12) dt B
[ 37.127670] [mmc]: sdc1 power_supply is null
[ 47.150027] esp_sdio_init ------ RETRY ------
[ 47.155225] =======================================================
[ 47.162296] ==== Dislaunching Wi-Fi driver! (Powered by Rockchip) ====
[ 47.169725] =======================================================
[ 47.176782] Espressif ESP8089 SDIO WiFi driver (Powered by Rockchip, Ver2.26(01/22/2016),Drv: 2.26) exit.
[ 47.187591] [wifi_pm]: wrong module select 0 !
[ 47.292623] eagle sdio can not power up!
[ 47.297078] ALSA device list:
[ 47.300467] #0: audiocodec
[ 47.304240] Freeing init memory: 140K
[ 47.310514] init: skipping insecure file '/default.prop'
[ 47.316684] init: skipping insecure file '/init.rc'
[ 47.322682] init: /init.rc: 127: invalid option 'root'
[ 47.328546] init: skipping insecure file '/init.sun8i.rc'
[ 47.334840] init: /init.sun8i.rc: 54: invalid option 'root'
[ 47.341198] init: skipping insecure file 'init.sun8i.usb.rc'
[ 47.348226] init: command 'loglevel' r=0
[ 47.354249] init: skipping insecure file '/ueventd.rc'
[ 47.360228] init: command 'export' r=0
[ 47.364617] init: command 'export' r=0
[ 47.368879] init: command 'export' r=0
[ 47.373413] init: skipping insecure file '/ueventd.sun8i.rc'
[ 47.390342] init: command 'export' r=0
[ 47.394749] init: command 'symlink' r=0
[ 47.399136] init: command 'symlink' r=0
[ 47.410416] init: command 'symlink' r=0
[ 47.414887] init: command 'mkdir' r=0
[ 47.419090] init: command 'mkdir' r=0
[ 47.440393] init: command 'mkdir' r=0
[ 47.444652] init: command 'mkdir' r=-2
[ 47.448920] init: processing action 0x1981138 (init)
[ 47.467036] init: command 'export' r=0
[ 47.471409] init: command 'export' r=0
[ 47.475785] init: command 'export' r=0
[ 47.480169] init: command 'export' r=0
[ 47.484431] init: processing action 0x197fc28 (early-fs)
[ 47.490615] init: command 'mkdir' r=0
[ 47.494839] init: command 'mkdir' r=0
[ 47.499032] init: command 'mkdir' r=0
[ 47.503312] init: processing action 0x19823d8 (console_init)
[ 47.510059] init: command 'console_init' r=0
[ 47.514924] init: processing action 0x197ff30 (fs)
[ 47.520485] init: command 'wait' r=0
[ 47.525181] init: command 'setupfs' r=1
[ 47.529695] init: out of loopback devices source = /dev/block/mtdblock2
[ 47.537192] init: out of loopback devices target = /system
[ 47.543497] init: out of loopback devices system = squashfs
[ 47.549779] init: out of loopback devices options = (null)
[ 47.559409] init: command 'mount' r=0
[ 47.563730] init: command 'wait' r=0
[ 47.567807] init: out of loopback devices source = /dev/block/mtdblock3
[ 47.575377] init: out of loopback devices target = /data
[ 47.581384] init: out of loopback devices system = jffs2
[ 47.587460] init: out of loopback devices options = (null)
[ 47.602933] init: command 'mount' r=0
[ 47.607296] init: processing action 0x1980010 (post-fs)
[ 47.613245] init: out of loopback devices source = rootfs
[ 47.619335] init: out of loopback devices target = /
[ 47.625054] init: out of loopback devices system = rootfs
[ 47.631151] init: out of loopback devices options = (null)
[ 47.637555] init: command 'mount' r=0
[ 47.641756] init: processing action 0x1980070 (post-fs-data)
[ 47.648574] init: command 'chown' r=0
[ 47.653903] init: command 'chmod' r=0
[ 47.658150] init: command 'chmod' r=-2
[ 47.663813] init: command 'mkdir' r=0
[ 47.668005] init: command 'restorecon' r=0
[ 47.673998] init: command 'mkdir' r=0
[ 47.679211] init: command 'mkdir' r=0
[ 47.684903] init: processing action 0x1980e20 (post-fs-data)
[ 47.695286] init: skipping insecure file '/system/vendor/modules/videobuf-core.ko'
[ 47.717418] init: command 'insmod' r=0
[ 47.721953] init: skipping insecure file '/system/vendor/modules/videobuf-dma-contig.ko'
[ 47.731999] init: command 'insmod' r=0
[ 47.736518] init: skipping insecure file '/system/vendor/modules/cci.ko'
[ 47.772405] [VFE]cci probe start cci_sel = 0!
[ 47.777397] [VFE]cci probe end cci_sel = 0!
[ 47.782284] platform reg-20-cs-dcdc2: Driver reg-20-cs-dcdc2 requests probe deferral
[ 47.791199] [VFE]cci_init end
[ 47.794728] init: command 'insmod' r=0
[ 47.799161] init: skipping insecure file '/system/vendor/modules/vfe_os.ko'
[ 47.807248] platform reg-20-cs-dcdc3: Driver reg-20-cs-dcdc3 requests probe deferral
[ 47.817940] platform reg-20-cs-ldo1: Driver reg-20-cs-ldo1 requests probe deferral
[ 47.828138] platform reg-20-cs-ldo2: Driver reg-20-cs-ldo2 requests probe deferral
[ 47.837726] platform reg-20-cs-ldo3: Driver reg-20-cs-ldo3 requests probe deferral
[ 47.847043] platform reg-20-cs-ldo4: Driver reg-20-cs-ldo4 requests probe deferral
[ 47.856503] platform reg-20-cs-ldoio0: Driver reg-20-cs-ldoio0 requests probe deferral
[ 47.890876] init: command 'insmod' r=0
[ 47.895311] init: skipping insecure file '/system/vendor/modules/vfe_subdev.ko'
[ 47.904600] init: command 'insmod' r=0
[ 47.909006] init: skipping insecure file '/system/vendor/modules/ar0330_mipi.ko'
[ 47.918556] init: command 'insmod' r=0
[ 47.923027] init: skipping insecure file '/system/vendor/modules/ov2710_mipi.ko'
[ 47.932583] init: command 'insmod' r=0
[ 47.937017] init: skipping insecure file '/system/vendor/modules/ov5647_mipi.ko'
[ 47.946648] init: command 'insmod' r=0
[ 47.951122] init: skipping insecure file '/system/vendor/modules/vfe_v4l2.ko'
[ 48.095510] [VFE]Welcome to Video Front End driver
[ 48.101570] [VFE]pdev->id = 0
[ 48.104967] [VFE]dev->mipi_sel = 0
[ 48.108995] [VFE]dev->vip_sel = 0
[ 48.112807] [VFE]dev->isp_sel = 0
[ 48.122823] [VFE_WARN]vfe vpu clock is null
[ 48.134158] [ISP] isp platform_id = 6!
[ 48.138585] platform reg-20-cs-ldoio0: Driver reg-20-cs-ldoio0 requests probe deferral
[ 48.147635] [VFE]probe_work_handle start!
[ 48.152196] [VFE]..........................vfe clk open!.......................
[ 48.160610] [VFE]vfe_init end
[ 48.164444] init: command 'insmod' r=0
[ 48.168857] init: skipping insecure file '/system/vendor/modules/uvcvideo.ko'
[ 48.177161] platform reg-20-cs-ldo4: Driver reg-20-cs-ldo4 requests probe deferral
[ 48.186120] [VFE]v4l2 subdev register input_num = 0
[ 48.191663] [VFE]vfe sensor detect start! input_num = 0
[ 48.197562] [VFE]Find sensor name is "ov5647_mipi", i2c address is 6c, type is "RAW" !
[ 48.206577] [VFE]Sub device register "ov5647_mipi" i2c_addr = 0x6c start!
[ 48.214311] [VFE]v4l2_device_register_subdev return 0
[ 48.220016] [VFE]registered sensor subdev is OK!
[ 48.225321] [VFE]Check sensor!
[ 48.228799] [VFE]Sub device register "ov5647_mipi" is OK!
[ 48.237598] platform reg-20-cs-ldo3: Driver reg-20-cs-ldo3 requests probe deferral
[ 48.246413] uvcvideo: Adding mapping Brightness to control 00000000-0000-0000-0000-000000000101/2.
[ 48.256637] platform reg-20-cs-ldo2: Driver reg-20-cs-ldo2 requests probe deferral
[ 48.265160] uvcvideo: Adding mapping Contrast to control 00000000-0000-0000-0000-000000000101/3.
[ 48.275079] platform reg-20-cs-ldo1: Driver reg-20-cs-ldo1 requests probe deferral
[ 48.283687] uvcvideo: Adding mapping Hue to control 00000000-0000-0000-0000-000000000101/6.
[ 48.293198] platform reg-20-cs-dcdc3: Driver reg-20-cs-dcdc3 requests probe deferral
[ 48.301906] uvcvideo: Adding mapping Saturation to control 00000000-0000-0000-0000-000000000101/7.
[ 48.312086] platform reg-20-cs-dcdc2: Driver reg-20-cs-dcdc2 requests probe deferral
[ 48.320882] uvcvideo: Adding mapping Sharpness to control 00000000-0000-0000-0000-000000000101/8.
[ 48.331469] uvcvideo: Adding mapping Gamma to control 00000000-0000-0000-0000-000000000101/9.
[ 48.341224] uvcvideo: Adding mapping Backlight Compensation to control 00000000-0000-0000-0000-000000000101/1.
[ 48.353235] uvcvideo: Adding mapping Gain to control 00000000-0000-0000-0000-000000000101/4.
[ 48.362934] uvcvideo: Adding mapping Power Line Frequency to control 00000000-0000-0000-0000-000000000101/5.
[ 48.374969] [VFE]Check open /system/etc/hawkview/ov5647_mipi/isp_test_param.ini failed!
[ 48.374981] Match isp cfg start!
[ 48.387945] [VFE]Match isp cfg ok
[ 48.391823] uvcvideo: Adding mapping Hue, Auto to control 00000000-0000-0000-0000-000000000101/16.
[ 48.401993] uvcvideo: Adding mapping Exposure, Auto to control 00000000-0000-0000-0000-000000000001/2.
[ 48.413050] [VFE]V4L2 device registered as video0
[ 48.418449] [VFE]..........................vfe clk close!.......................
[ 48.426914] uvcvideo: Adding mapping Exposure, Auto Priority to control 00000000-0000-0000-0000-000000000001/3.
[ 48.438331] [VFE]probe_work_handle end!
[ 48.442712] uvcvideo: Adding mapping Exposure (Absolute) to control 00000000-0000-0000-0000-000000000001/4.
[ 48.453725] uvcvideo: Adding mapping White Balance Temperature, Auto to control 00000000-0000-0000-0000-000000000101/11.
[ 48.466043] uvcvideo: Adding mapping White Balance Temperature to control 00000000-0000-0000-0000-000000000101/10.
[ 48.477732] uvcvideo: Adding mapping White Balance Component, Auto to control 00000000-0000-0000-0000-000000000101/13.
[ 48.489805] uvcvideo: Adding mapping White Balance Blue Component to control 00000000-0000-0000-0000-000000000101/12.
[ 48.501780] uvcvideo: Adding mapping White Balance Red Component to control 00000000-0000-0000-0000-000000000101/12.
[ 48.513653] uvcvideo: Adding mapping Focus (absolute) to control 00000000-0000-0000-0000-000000000001/6.
[ 48.524373] uvcvideo: Adding mapping Focus, Auto to control 00000000-0000-0000-0000-000000000001/8.
[ 48.534518] uvcvideo: Adding mapping Zoom, Absolute to control 00000000-0000-0000-0000-000000000001/11.
[ 48.545137] uvcvideo: Adding mapping Zoom, Continuous to control 00000000-0000-0000-0000-000000000001/12.
[ 48.555952] uvcvideo: Adding mapping Privacy to control 00000000-0000-0000-0000-000000000001/17.
[ 48.566107] usbcore: registered new interface driver uvcvideo
[ 48.572609] USB Video Class driver (v1.0.8_SONiX_v2.6.36.04)
[ 48.579136] init: command 'insmod' r=0
[ 48.583563] init: skipping insecure file '/system/vendor/modules/da380.ko'
[ 48.592608] step1 : gsensor_fetch_sysconfig_para
[ 48.597895] step2 : gsensor_fetch_sysconfig_para
[ 48.603253] step3 : gsensor_fetch_sysconfig_para
[ 48.608468] step4 : mir3da_init
[ 48.612347] i2c-core: driver [da380] using legacy suspend method
[ 48.619202] i2c-core: driver [da380] using legacy resume method
[ 48.625913] richard mir3da_detect: mir3da_detect:bus[0] addr[0x27]
[ 48.638312] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x27)
[ 48.652850] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x27)
[ 48.667280] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x27)
[ 48.676641] [MIR3DA] Can't find Mir3da gsensor!!
[ 48.682022] init: command 'insmod' r=0
[ 48.686420] init: skipping insecure file '/system/vendor/modules/sw-device.ko'
[ 48.698311] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x18)
[ 48.707861] init: command 'insmod' r=0
[ 48.712279] init: processing action 0x1982420 (property_service_init)
[ 48.719639] init: skipping insecure file '/system/build.prop'
[ 48.726462] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x18)
[ 48.750908] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x18)
[ 48.775835] init: Created socket '/dev/socket/property_service' with mode '666', user '0', group '0'
[ 48.786439] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x18)
[ 48.795873] init: command 'property_service_init' r=0
[ 48.801622] init: processing action 0x1982468 (signal_init)
[ 48.808059] init: command 'signal_init' r=0
[ 48.812985] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x18)
[ 48.822361] init: processing action 0x19824b0 (check_startup)
[ 48.828906] init: command 'check_startup' r=0
[ 48.833949] init: processing action 0x19801c8 (boot)
[ 48.840251] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x19)
[ 48.849673] init: command 'ifup' r=0
[ 48.853925] init: command 'hostname' r=0
[ 48.858461] init: command 'domainname' r=0
[ 48.863398] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x19)
[ 48.872725] init: command 'setrlimit' r=0
[ 48.877455] init: command 'chown' r=0
[ 48.881766] init: starting 'servicemanager'
[ 48.887095] init: starting 'vold'
[ 48.891153] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x19)
[ 48.906434] init: starting 'media'
[ 48.917355] init: Created socket '/dev/socket/vold' with mode '660', user '0', group '1009'
[ 48.931490] init: starting 'startupSound'
[ 48.936424] init: command 'class_start' r=0
[ 48.942307] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x19)
[ 48.973012] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x19)
[ 48.984550] init: starting 'ccdr'
[ 48.993695] init: command 'class_start' r=0
[ 48.999071] init: processing action 0x1980fd0 (boot)
[ 49.006023] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x8)
[ 49.016203] init: starting 'adbd'
[ 49.024740] init: command 'start' r=0
[ 49.044873] init: Created socket '/dev/socket/adbd' with mode '660', user '1000', group '1000'
[ 49.057784] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x8)
[ 49.068878] init: starting 'debuggerd'
[ 49.078355] init: command 'start' r=0
[ 49.083460] init: starting 'standby'
[ 49.088003] init: command 'start' r=0
[ 49.099203] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x8)
[ 49.115871] adb_open
[ 49.121784] init: processing action 0x19824f8 (queue_property_triggers)
[ 49.130125] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x8)
[ 49.140967] init: command 'queue_property_triggers' r=0
[ 49.147601] init: processing action 0x19804a8 (property:ro.debuggable=1)
[ 49.155626] init: starting 'console'
[ 49.160071] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x8)
[ 49.170066] init: command 'start' r=0
[ 49.174365] init: processing action 0x1981e10 (property:sys.usb.config=mass_storage,adb)
[ 49.184816] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x38)
[ 49.196557] android_usb: already disabled
[ 49.201930] init: command 'write' r=0
[ 49.208399] init: command 'write' r=0
[ 49.212909] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x38)
[ 49.222981] init: command 'write' r=0
[ 49.227255] init: command 'write' r=0
[ 49.232444] ep_matches, wrn: endpoint already claimed, ep(0xc050f9b4, 0xc1a65ac0, ep1in-bulk)
[ 49.242346] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x38)
[ 49.251801] adb_bind_config
[ 49.255013] ep_matches, wrn: endpoint already claimed, ep(0xc050f9b4, 0xc1a65ac0, ep1in-bulk)
[ 49.264682] ep_matches, wrn: endpoint already claimed, ep(0xc050fa00, 0xc1a65ac0, ep1out-bulk)
[ 49.274436] ep_matches, wrn: endpoint already claimed, ep(0xc050f9b4, 0xc1a65ac0, ep1in-bulk)
[ 49.284007] ep_matches, wrn: endpoint already claimed, ep(0xc050fa00, 0xc1a65ac0, ep1out-bulk)
[ 49.293752] ep_matches, wrn: endpoint already claimed, ep(0xc050fa4c, 0xc1a7ed40, ep2in-bulk)
[ 49.304032] init: command 'write' r=0
[ 49.308294] init: command 'setprop' r=0
[ 49.312977] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x38)
[ 49.341102] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x38)
[ 49.370244] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x27)
[ 49.390272] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x27)
[ 49.410602] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x27)
[ 49.430511] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x27)
[ 49.451696] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x27)
[ 49.480556] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x26)
[ 49.500816] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x26)
[ 49.530678] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x26)
[ 49.562222] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x26)
[ 49.590910] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x26)
[ 49.622568] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x1c)
[ 49.650437] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x1c)
[ 49.670619] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x1c)
[ 49.698647] android_usb gadget: high-speed config #1: android
[ 49.706159] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x1c)
[ 49.730910] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x1c)
[ 49.760259] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x1d)
[ 49.780840] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x1d)
[ 49.810269] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x1d)
[ 49.830813] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x1d)
[ 49.860250] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x1d)
[ 49.881457] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x4c)
[ 49.910724] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x4c)
[ 49.941637] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x4c)
[ 49.970249] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x4c)
[ 49.990419] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x4c)
[ 50.010900] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x3d)
[ 50.041121] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x3d)
[ 50.070415] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x3d)
[ 50.090851] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x3d)
[ 50.122475] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x3d)
[ 50.150832] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x28)
[ 50.180607] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x28)
[ 50.211655] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x28)
[ 50.241779] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x28)
[ 50.287109] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x28)
[ 50.310935] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x29)
[ 50.340967] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x29)
[ 50.370350] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x29)
root@camdroid:/ # [ 50.403303] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x29)
[ 50.437020] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x29)
[ 50.470719] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0xf)
[ 50.500330] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0xf)
[ 50.531234] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0xf)
[ 50.572768] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0xf)
[ 50.600587] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0xf)
[ 50.627145] adbd (85): /proc/85/oom_adj is deprecated, please use /proc/85/oom_score_adj instead.
[ 50.641776] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x15)
[ 50.670656] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x15)
[ 50.716924] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x15)
[ 50.741155] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x15)
[ 50.770557] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x15)
[ 50.790692] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x1e)
[ 50.820387] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x1e)
[ 50.841088] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x1e)
[ 50.870305] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x1e)
[ 50.900634] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x1e)
[ 50.939060] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x1f)
[ 50.980923] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x1f)
[ 51.028191] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x1f)
[ 51.061231] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x1f)
[ 51.090252] sunxi_i2c_do_xfer()985 - [i2c0] incomplete xfer (status: 0x20, dev addr: 0x1f)
[ 51.980424] ▒newcdr▒▒▒▒: main entry
[ 51.984816] ▒newcdr▒▒▒▒: [Firmware Version: root@tiger_cdr 2022-05-02 10:31:08]
[ 52.011306] ▒newcdr▒▒▒▒: ===no need to check battery capacity ===
[ 52.018843] [VFE]vfe_open
[ 52.030001] [VFE]..........................vfe clk open!.......................
[ 52.041129] [VFE]vfe_open ok
[ 52.045229] [VFE]vfe_close
[ 52.048356] [VFE]vfe select input flag = 0, s_input have not be used .
[ 52.055853] [VFE]..........................vfe clk close!.......................
[ 52.064347] [VFE]vfe_close end
[ 52.067924] [VFE]vfe_open
[ 52.071105] [VFE]..........................vfe clk open!.......................
[ 52.079788] [VFE]vfe_open ok
[ 52.083246] [VFE]vfe_close
[ 52.086361] [VFE]vfe select input flag = 0, s_input have not be used .
[ 52.093827] [VFE]..........................vfe clk close!.......................
[ 52.102767] [VFE]vfe_close end
[ 52.982446] [DISP] ready enter pm_runtime_get_sync, device0
[ 53.251830] [VFE]vfe_open
[ 53.256252] [VFE]..........................vfe clk open!.......................
[ 53.266929] [VFE]vfe_open ok
[ 53.270468] [VFE]Set vfe core clk = 216000000, after Set vfe core clk = 297000000
[ 53.290575] [VFE]mclk on
[ 53.377034] [VFE]V4L2_MBUS_CSI2,2 lane,bus1 channel,rx 1 channel
[ 53.504854] [OV5647_mipi]s_fmt set width = 1280, height = 720
[ 53.541684] [VFE]width_input = 1280, height_input = 720, width = 1280, height = 720
[ 53.550425] [ISP] full_size width = 1280, height = 720.
[ 53.556333] [ISP] scale width = 480, height = 272
[ 53.561749] [VFE]dev->buf_byte_size = 1581056, double_ch_flag = 1
[ 53.569126] [ISP] VIDEO_MODE!
[ 53.633605] [VFE]buffer_setup, buffer count=5, size=1581056
[ 53.665882] ▒newcdr▒▒▒▒: startPreview finished
[ 53.705576] [VFE]capture video mode!
[ 53.738886] [VFE]capture video first frame done!
[ 53.750344] init: waitpid returned pid 67, status = 00000000
[ 53.767089] init: process 'startupSound', pid 67 exited
[ 54.232696] init: processing action 0x1981e10 (property:sys.usb.config=mass_storage,adb)
[ 54.251141] adb_release
[ 54.255495] init: command 'write' r=0
[ 54.259907] adb_open
[ 54.270721] init: command 'write' r=0
[ 54.285829] init: command 'write' r=0
[ 54.292578] init: command 'write' r=0
[ 54.297636] [VFE]vfe_open
[ 54.300761] [VFE_ERR]device open busy
[ 54.304931] [VFE]vfe_open busy
[ 54.310204] ep_matches, wrn: endpoint already claimed, ep(0xc050f9b4, 0xc1a65ac0, ep1in-bulk)
[ 54.337190] adb_bind_config
[ 54.340524] ep_matches, wrn: endpoint already claimed, ep(0xc050f9b4, 0xc1a65ac0, ep1in-bulk)
[ 54.350223] ep_matches, wrn: endpoint already claimed, ep(0xc050fa00, 0xc1a65ac0, ep1out-bulk)
[ 54.359980] ep_matches, wrn: endpoint already claimed, ep(0xc050f9b4, 0xc1a65ac0, ep1in-bulk)
[ 54.369643] ep_matches, wrn: endpoint already claimed, ep(0xc050fa00, 0xc1a65ac0, ep1out-bulk)
[ 54.379307] [VFE_WARN] Nobody is waiting on this video buffer,buf = 0xc0c70840
[ 54.387527] ep_matches, wrn: endpoint already claimed, ep(0xc050fa4c, 0xc1a7ed40, ep2in-bulk)
[ 54.401731] init: command 'write' r=0
[ 54.411275] init: command 'setprop' r=0
[ 54.791930] android_usb gadget: high-speed config #1: android#40 Re: 全志 SOC » 全志A40I切换Android6桌面奔溃现象 » 2022-04-25 03:44:09
(AllwinnerAlibs),line(914) : pCodecSpecificData :0x3fc407a910
(AllwinnerAlibs),line(915) : nFlags :0
(AllwinnerAlibs),line(916) : nBlockAlign :0
(AllwinnerAlibs),line(917) : *************pAudioStreamInfo end ******************
(AAC Decoder),line(36) : init successs...
(Allwinner Audio Middle Layer),line(614) : AUDIO DECODE INIT OK...0
started.
ERROR : awplayer <__LayerQueueBuffer:969>: *** picNode is full when queue buffer
ERROR : awplayer <__LayerQueueBuffer:969>: *** picNode is full when queue buffer
*****tplayer:video decoded width = 1024,height = 576
*****tplayerdemo:video decoded width = 1024,height = 576real set to display rect:w = 1024,h = 576
warning: unknown callback from Tinaplayer.
*****tplayer:video width = 1024,height = 576
warning: unknown callback from Tinaplayer.
****player(0x2a6e51c0): first video pts = 41708*****
ERROR : awplayer <__LayerQueueBuffer:969>: *** picNode is full when queue buffer
ERROR : fbm.c <FbmReturnPicture:1043>: invalid frame status, a picture being returned, but bUsedByRender=0, bInValidPictureQueue=0, bAlreadyDisplayed=0.
ERROR : fbm.c <FbmReturnPicture:1044>: **picture[0x3fc8001d98],id[7]
WARNING: cedarc <ReturnPicture:1698>: FbmReturnPicture return fail, it means the picture being returned it not one of this FBM.D1s tina v2.0 播放也出现内存不够的错误了。。。
#41 Re: 全志 SOC » 最近想开一个A133的坑，有人来一起填吗？ » 2022-04-21 14:02:47
#42 Re: NXP i.MX6UL/6ULL » 如何彻底擦除emmc上的Boot分区？ » 2022-04-21 12:36:16
A64 emmc boot0启动问题
https://whycan.com/t_4437.html
请教大家，A33 接了 eMMC, Linux识别到 boot0, boot1 是什么操作？eMMC特有的分区?
https://whycan.com/t_4735.html#p47906
帮不上忙， 找到了两个相关帖子，看有没有参考价值。
#43 Re: 全志 SOC » 最近想开一个A133的坑，有人来一起填吗？ » 2022-04-20 22:26:57
baidxi 说：
yixiuge 说：我是想彻底的用buildroot做一个，tina的坑太多了
以前我也是这么认为的，后来用习惯全志那套工具，觉得还真挺好用的。
#45 Re: 全志 SOC » 最近想开一个A133的坑，有人来一起填吗？ » 2022-04-19 16:42:39
#46 Re: 技术人生/软件使用技巧/破解经验/技术吐槽/灌水 » ext文件系统扩展: resize2fs。 开机自动给ext文件系统扩容。 » 2022-04-19 13:08:29
学到了， 刚刚ubuntu死活都起不来，发现文件系统只有1.7G，但是16G的eMMC都满了。
然后执行
resize2fs /dev/mmcblk0p4
重启就OK了
试一试用 全志 A133 LCD0 PD0-PD9 驱动 15寸的LVDS电脑显示屏
https://bbs.aw-ol.com/topic/1293/share/33
页次： 1
- 首页
- » 搜索
- » yixiuge 发表的帖子
感谢为中文互联网持续输出优质内容的各位老铁们。
QQ: 516333132, 微信(wechat): whycan_cn (哇酷网/挖坑网/填坑网) service@whycan.cn
