#1 Re: ESP32/ESP8266 » esp32 p4板子 » 2024-03-05 16:30:56

其他的都还可以,内存是里面最拉跨的地方,速度太慢了

#5 Re: 君正Ingenic/X1000/X2000/T10/T20/T30 » T31摄像头板 » 2023-09-20 10:50:24

板子价格还可以,买的少也只要20一个,量大可以15一个

#6 Re: 君正Ingenic/X1000/X2000/T10/T20/T30 » T31摄像头板 » 2023-09-20 10:49:26

原本固件的设计烧录方案是长按按键上电,uboot会控制sd卡上电然后读取sd卡中的固件进行更新,所以将控制sd卡上电的引脚飞线拉低就可以一开始就给sd卡供电,然后短接flash上电即可进入sd卡启动模式

#7 Re: 君正Ingenic/X1000/X2000/T10/T20/T30 » T31摄像头板 » 2023-09-20 10:46:41

cmos型号为sc3338,openipc项目有对sc3338的驱动

#9 Re: 君正Ingenic/X1000/X2000/T10/T20/T30 » 小白求助!君正T31N uboot启动卡住 » 2023-09-12 09:43:43

joeydeng 说:

@qlOvQlp
大佬的hdk能开源上来看一下吗?😀😀

lc那边有个开源的T31板子

#10 Re: 君正Ingenic/X1000/X2000/T10/T20/T30 » T31摄像头板 » 2023-09-11 10:13:28

T31 + 3861 IPC板
Wifi和主控之间使用的是1bit SDIO接口,CMOS芯片型号未知,SD卡供电收T31控制,但USB接口貌似没有引出,不知道设计这板的人是准备怎么烧录的

#12 Re: 全志 SOC » 使用docker环境arm交叉编译OpenCV出错 » 2023-08-24 13:39:51

这是链接的库不对吧,交叉编译链接到了本机的opencv

#13 Re: 全志 SOC » 有什么带MIPI CSI和MIPIDSI的低成本芯片么。 » 2023-08-16 09:35:48

wakulgz 说:
sjshe3326 说:

现在主流的高分屏幕和摄像头很多都是mipi的了。很多低成本方案还是DVP接口 8080/RGB接口。
有什么带MIPI CSI和MIPI DSI的低成本芯片么。 现在看的几个芯片都有点不足, v3S没有DSI接口。


ssc333
ssc337

这个没dsi吧,只是做IPC的带mipi csi的

#14 Re: 全志 SOC » 有什么带MIPI CSI和MIPIDSI的低成本芯片么。 » 2023-08-14 09:48:58

v851s,还带264和h265编解码器,就是完整的带编解码器可能得等官方支持,100ask那边提供的会报一点点错,不过也可以使用

#17 Re: ESP32/ESP8266 » 乐鑫要发的新芯片esp32-P4 » 2023-06-02 09:23:41

现在这芯片好像还没有一点其他的动静,到底什么时候出啊

#19 Re: 全志 SOC » tina_d1-h-nezha_uart0.img 烧不进去 » 2023-04-17 19:43:57

能烧,有编译过tina2.0 nor flash版本的,是不是编译的时候存储介质没选对,那个烧录软件好像只能烧录nor flash的吧

#20 Re: 全志 SOC » 在MQ-R(F133)上 进行全志Melis-4.0(rt-thread内核)环境搭建与初步编译介绍 (转载) » 2023-04-07 16:01:44

内核里面有个sys_init.c,里面有个app_init这么个,从这里跳到自己函数就OK了

#21 Re: 全志 SOC » Lichee_RV_DOCK简单上手小实验 » 2023-01-03 15:06:16

d1的sdk有点庞大,光下载下来都有10来个G了,编译完都15~20G,虚拟机有点顶不住,不知道里面是塞了些什么

#23 Re: 全志 SOC » F1C100S FreeRTOS工程,100%可用 » 2022-12-14 19:04:47

csdn:(
建议去CSDN发博客挂CSDN下载连接,要么就打包挂这里赚这里的积分

#24 Re: ESP32/ESP8266 » 各位亲, ESP32在最极端的情况下, WIFI通讯速度可以高达多少 Mbps? » 2022-11-16 10:19:29

udp的速度和tcp速度是不一样的,udp是能达到40mbps,但是tcp远远达不到

#26 Re: RISC-V » 博流智能将要推出杀手级芯片bl808(可以跑linux) » 2022-11-04 10:29:43

价格70的一个开发板也还能接受,就是sdk资料哪里能搞到,linux好像也还在开发中

#29 Re: 全志 SOC » 哪吒D1s V1.1 nor flash 测试固件 » 2022-10-08 11:28:08

今天才发现d1s也提供了melis开发环境,准备移到melis中开发,使用rt-thread对于flash大小更为友好,成本较低

#30 全志 SOC » 哪吒D1s V1.1 nor flash 测试固件 » 2022-10-08 11:26:37

lignin
回复: 1

使用的开发板为晕哥的哪吒d1s开发板v1.1版本,找了很多固件烧录进去都无法使用,索性就自己编译了个nor版本的固件,修改了debug串口,wifi引脚,gmac引脚配置,固件测试wifi和以太网正常使用,其他部分暂未测试
tina_d1s-nezha_nor_uart3_nor_20221008-1125.img

#31 Re: RK3288/RK3399/RK1108 » RV1103/RV1106 裸奔日记 » 2022-09-23 15:13:08

眼巴巴的看着rv1106,想玩,貌似功能蛮不错的,要是价格也美丽就好了

#33 Re: Xilinx/Altera/FPGA/CPLD/Verilog » PICO XVC下载器 » 2022-09-13 09:40:16

Fanserasery 说:

牛蛙牛蛙

都快被你扒光了

#35 Re: Xilinx/Altera/FPGA/CPLD/Verilog » PICO XVC下载器 » 2022-09-12 19:25:15

编译需要自行下载freertos源码,修改cmake文件中freertos路径,使用sdk master分支

#39 DIY/综合/Arduino/写字机/3D打印机/智能小车/平衡车/四轴飞行/MQTT/物联网 » PICO Use RNDIS with FreeRTOS » 2022-09-11 16:23:34

lignin
回复: 2

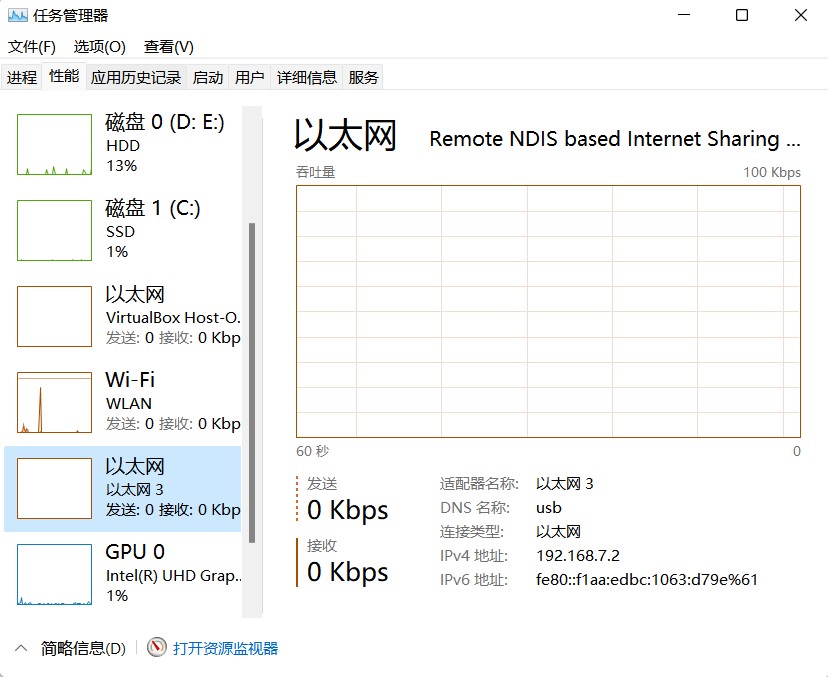

在pico中使用USB模拟RNDIS设备与电脑连接,已添加FreeRTOS相关配置,为下一步使用socket相关接口做准备,编译工程需自行添加FreeRTOS库的连接
主要使用到的库为pico_lwip和FreeRTOS-Kernel-Heap4,暂只模拟成功,具体使用待验证


https://github.com/Lign17314/pico-rndis-use-freerots.git

#40 Re: ESP32/ESP8266 » 发现乐鑫官方已经支持把esp32作为网卡来用了(支持linux和stm32) » 2022-09-09 18:45:22

可以做个低功耗的联网监控加上网芯片,就像hi3861加主控soc那种方案的ipc

#41 Re: 全志 SOC » F1C200s tina系统,硬解码mpeg2 ts码流CPU占用达99% » 2022-08-31 14:20:59

这还叫硬解码吗??这不cpu硬算吧,不可能占用率这么高的

#43 Re: 全志 SOC » 问下linux的i2c挂了很多传感器,多个应用可以同时操作i2c吗 » 2022-08-20 14:09:41

我的理解是这些设备经过驱动都虚拟成了文件,变成了对文件操作,那对文件操作多个应用就得一个应用关掉另外一个文件才能读写

#44 Re: 技术人生/软件使用技巧/破解经验/技术吐槽/灌水 » 新人水一帖 » 2022-08-19 17:42:51

大佬带我用f1c100玩webrtc,刚申请信用卡去支持aws

#45 Re: 感芯科技 » 【代码分享】hal库现在提供互斥锁 » 2022-08-17 17:31:28

大佬来搞个重入锁,可以多次锁,linux里面有提供这个,最近用rtos用用到这个功能

#52 Re: 技术人生/软件使用技巧/破解经验/技术吐槽/灌水 » 不拆SoC,不用X光机,利用已知IO探测未知的IO连接情况 » 2022-01-17 23:36:18

演技担当黄晓明 说:

JTAG工具.rar
用这个软件可以控制 支持JTAG扫描链的芯片的PIN脚输出输入

这个支持测试altera的引脚吗

#53 Re: DIY/综合/Arduino/写字机/3D打印机/智能小车/平衡车/四轴飞行/MQTT/物联网 » ep4ce6 + ad9365 » 2022-01-16 22:35:39

sblpp 说:

这么复杂的路由器啊

移动的室内信号增强的,前面是一个ar9331,后面是网口转射频

#55 DIY/综合/Arduino/写字机/3D打印机/智能小车/平衡车/四轴飞行/MQTT/物联网 » ep4ce6 + ad9365 » 2022-01-15 16:25:10

lignin
回复: 5

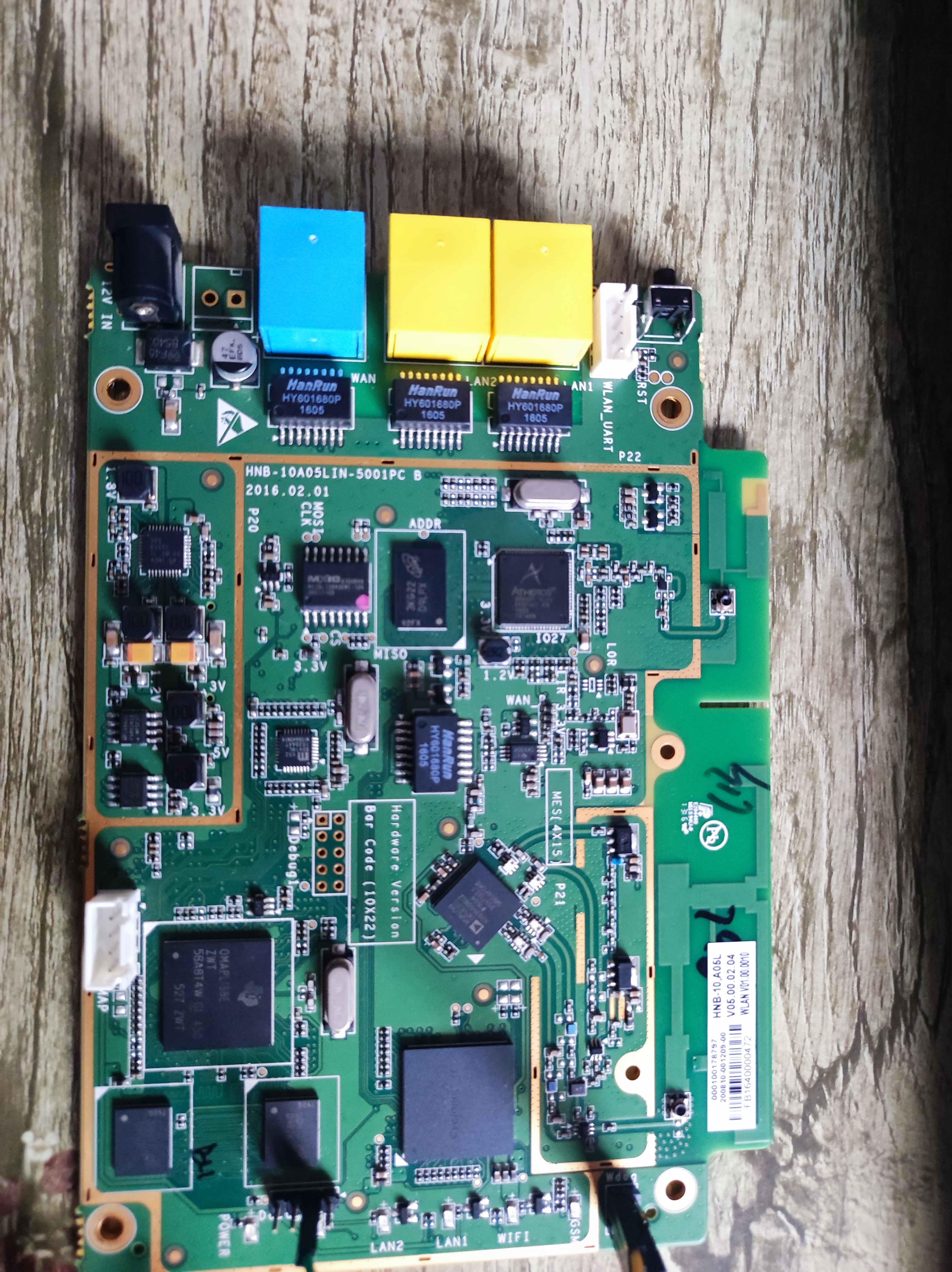

买的一个路由器,拆开是这样的,准备简单玩玩
fpga 接口顺序
5 3 1
GND TMS VREF
6 4 2
TDO TDI TCK

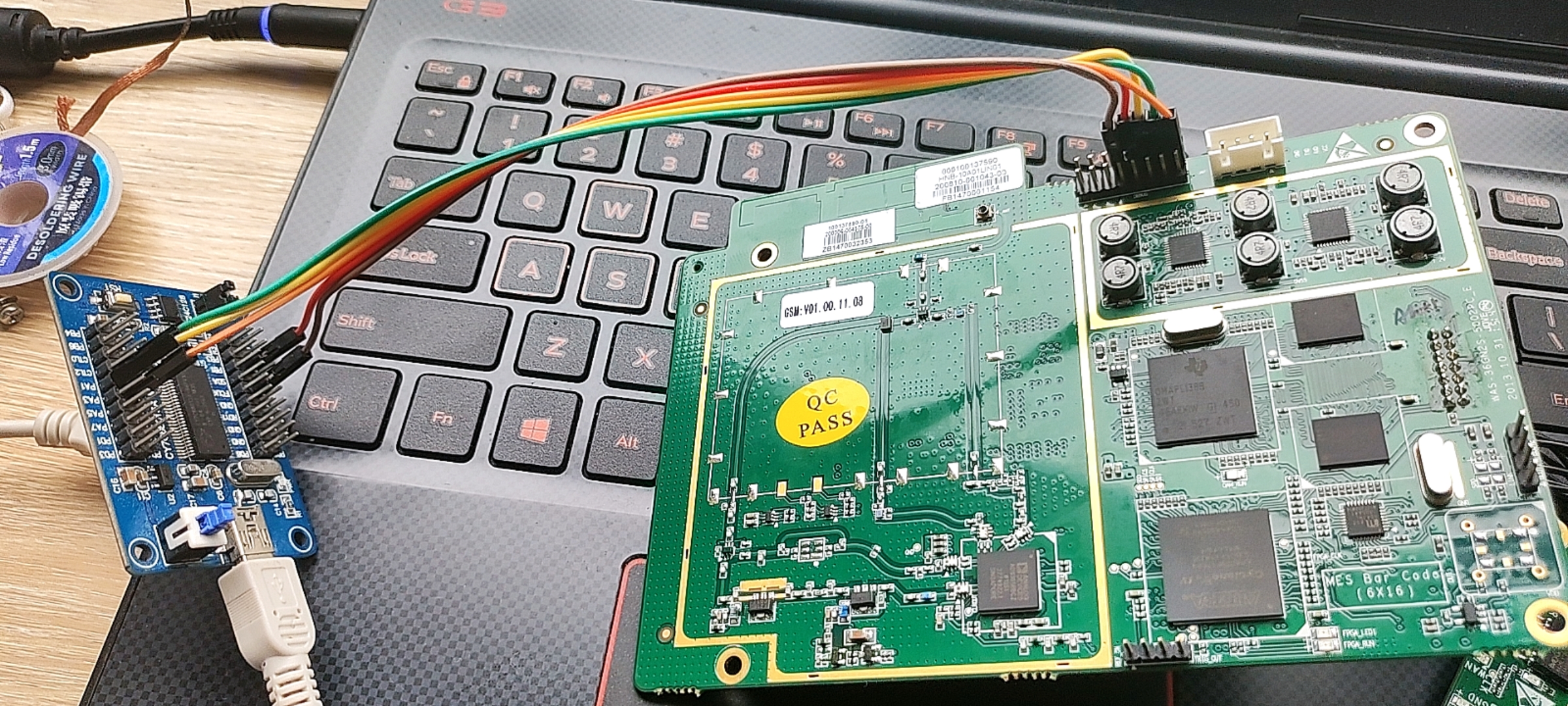

用的cy7c68013a制作的usb blaster 下载器,接法如下
1 VREF
2 TCK PA0
3 TMS PA1
4 TDI PA4
5 GND
6 TDO PB0
可以扫描的fpga

#56 Re: 全志 SOC » 点屏强芯全志D1s可以申请样片了,本站网友开源原理图与PCB送两片D1s(不能与其他网友作品雷同) » 2022-01-13 23:40:35

现在还可以申请样片吗,想拿它来控制一片fpga,不知道有没有合适的高速接口与fpga连接,本来准备用f1c100的,结果发现上面没emac,还是d1s强

#57 Re: Xilinx/Altera/FPGA/CPLD/Verilog » 求助FT232设置为xilinx的JTAG功能 » 2021-12-30 14:33:51

参考xilinx hs3下载器,搜索”xilinx ft232 下载器“会有很多相关教程,xilinx的jtag里面有校验码的,不能直接软件设置

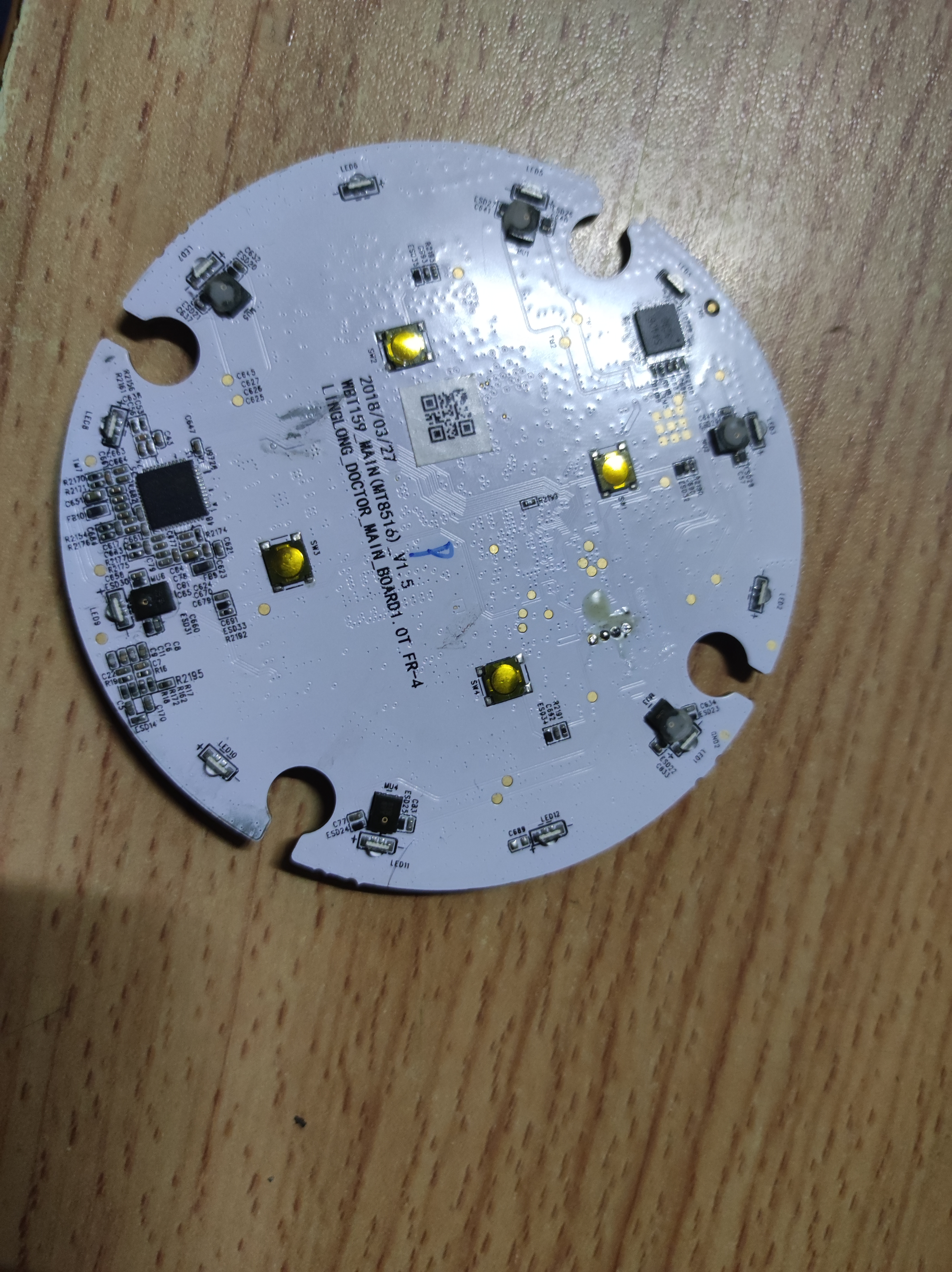

#60 DIY/综合/Arduino/写字机/3D打印机/智能小车/平衡车/四轴飞行/MQTT/物联网 » LINGLONG开机串口输出 » 2021-05-17 14:03:47

lignin
回复: 2
Watchdog Status: 0 , boot from normal
[EMI] MDL number = 0
[EMI] PCDDR3
get dram size from AUXADC1 515 1
[EMI] Use Common DDR3 x16 emi settings
[EMI] Config emi settings:
EMI_CONA=0x1010,   EMI_CONH=0x3
EMI_RAMK0=0x10000000, EMI_RAMK1=0x0
EMI_CONA=0x1010
EMI_CONF=0x4210000
EMI_CONH=0x3

[DramcSwImpedanceCal] FINAL: DRVP=7, DRVN=6

PCDDR3 Pinmux
SSC OFF
DRAM Clock: 1584MHz

[Write Leveling]
WriteLevelingMoveDQSInsteadOfCLK
===============================================================================
Dram Type= 4, Freqency= 1600, rank 0
odt_onoff= 0, Byte mode= 0, Read_DBI= 0, Write DBI= 0
===============================================================================
WL Clk delay = 0, CA CLK delay = 0
No need to update CA/CS delay because the CLK delay is small than CA training.
Final Clk output delay = 0
R0 FINAL: WriteLeveling DQS:(2, 0) OEN:(1, 2) DQS0 delay =  36
R0 FINAL: WriteLeveling DQS:(2, 0) OEN:(1, 2) DQS1 delay =  32
[DramcWriteLeveling] ====Done====

[Gating]
===============================================================================
Dram Type= 4, Freqency= 1600, rank 0
odt_onoff= 0, Byte mode= 0, Read_DBI= 0, Write DBI= 0
===============================================================================
[Byte 0]First pass (1, 3, 8)
[Byte 1]First pass (1, 3, 8)
[Byte 0]Bigger pass win(1, 4, 31)  Pass tap=55
[Byte 1]Bigger pass win(1, 5, 3)  Pass tap=59
===============================================================================
    dqs input gating widnow, final delay value
    Frequency=1600  rank=0
===============================================================================
R0 FINAL: GW best DQS0 P0 delay(2T, 0.5T, PI) = (1, 4, 3) [tap = 55]
R0 FINAL: GW best DQS1 P0 delay(2T, 0.5T, PI) = (1, 4, 5) [tap = 59]
R0 FINAL: GW best DQS0 P1 delay(2T, 0.5T, PI) = (1, 6, 3)
R0 FINAL: GW best DQS1 P1 delay(2T, 0.5T, PI) = (1, 6, 5)
[DramcRxdqsGatingCal] ====Done====

[DATLAT]
DATLAT Default value = 0xf
5, 0xFFFF, sum=0
6, 0xFFFF, sum=0
7, 0xFFFF, sum=0
8, 0xFFFF, sum=0
9, 0xFFFF, sum=0
10, 0xFFFF, sum=0
11, 0xFFFF, sum=0
12, 0xFFFF, sum=0
13, 0x0, sum=1
14, 0x0, sum=2
15, 0x0, sum=3
16, 0x0, sum=4
17, 0x0, sum=5
pattern=5 first_step=13 total pass=6 best_step=15
R0 FINAL: DATLAT = 15 [13 ~ 18]
[DramcRxdatlatCal] ====Done====

[RX]
===============================================================================
Dram Type= 4, Freqency= 1600, rank 0
odt_onoff= 0, Byte mode= 0, Read_DBI= 0, Write DBI= 0
===============================================================================
RX Window Sum 593
R0 FINAL: RX Bit 0, 11 (-8 ~ 31) 40
R0 FINAL: RX Bit 1, 10 (-8 ~ 28) 37
R0 FINAL: RX Bit 2, 11 (-7 ~ 30) 38
R0 FINAL: RX Bit 3, 8 (-11 ~ 27) 39
R0 FINAL: RX Bit 4, 13 (-5 ~ 31) 37
R0 FINAL: RX Bit 5, 14 (-5 ~ 33) 39
R0 FINAL: RX Bit 6, 14 (-4 ~ 33) 38
R0 FINAL: RX Bit 7, 14 (-4 ~ 33) 38
R0 FINAL: RX Bit 8, 15 (-3 ~ 34) 38
R0 FINAL: RX Bit 9, 15 (-3 ~ 33) 37
R0 FINAL: RX Bit 10, 13 (-4 ~ 31) 36
R0 FINAL: RX Bit 11, 13 (-5 ~ 32) 38
R0 FINAL: RX Bit 12, 15 (-3 ~ 34) 38
R0 FINAL: RX Bit 13, 12 (-7 ~ 32) 40
R0 FINAL: RX Bit 14, 15 (-4 ~ 34) 39
R0 FINAL: RX Bit 15, 15 (-3 ~ 33) 37
===============================================================================
Dram Type= 4, Freqency= 1600, rank 0
odt_onoff= 0, Byte mode= 0, Read_DBI= 0, Write DBI= 0
===============================================================================
DQS Delay :
DQS0 = 0, DQS1 = 0, DQS2 = 0, DQS3 = 0
DQM Delay :
DQM0 = 11, DQM1 = 14, DQM2 = 0, DQM3 = 0
DQ Delay :
DQ0 =11, DQ1 =10, DQ2 =11, DQ3 =8
DQ4 =13, DQ5 =14, DQ6 =14, DQ7 =14
DQ8 =15, DQ9 =15, DQ10 =13, DQ11 =13
DQ12 =15, DQ13 =12, DQ14 =15, DQ15 =15
________________________________________________________________________
[DramcRxWindowPerbitCal] ====Done====

[TX]
[DramcTxWindowPerbitCal] Frequency=1600, Rank=0, calType=2
[DramcTxWindowPerbitCal] Begin, TX DQ(2, 0),  DQ OEN(1, 2)
TX Window Sum 435
===============================================================================
Dram Type= 4, Freqency= 1600, rank 0
odt_onoff= 0, Byte mode= 0, Read_DBI= 0, Write DBI= 0
===============================================================================
R0 FINAL: TX Bit0 (37~64) 28 50,   Bit8 (37~63) 27 50,
R0 FINAL: TX Bit1 (35~62) 28 48,   Bit9 (37~64) 28 50,
R0 FINAL: TX Bit2 (37~64) 28 50,   Bit10 (36~63) 28 49,
R0 FINAL: TX Bit3 (35~63) 29 49,   Bit11 (37~63) 27 50,
R0 FINAL: TX Bit4 (38~64) 27 51,   Bit12 (38~64) 27 51,
R0 FINAL: TX Bit5 (39~64) 26 51,   Bit13 (36~63) 28 49,
R0 FINAL: TX Bit6 (39~64) 26 51,   Bit14 (38~64) 27 51,
R0 FINAL: TX Bit7 (40~64) 25 52,   Bit15 (38~63) 26 50,

==================================================================
Byte0, PI DQ Delay 50 Delay2 51
Final DQ PI Delay(LargeUI, SmallUI, PI) =(2 ,0, 51)
OEN DQ PI Delay(LargeUI, SmallUI, PI) =(1 ,2, 51)

Byte1, PI DQ Delay 50 Delay2 50
Final DQ PI Delay(LargeUI, SmallUI, PI) =(2 ,0, 50)
OEN DQ PI Delay(LargeUI, SmallUI, PI) =(1 ,2, 50)

[DramcTxWindowPerbitCal] ====Done====
[DramcRxdqsGatingPostProcess] p->frequency 1600
[DramcRxdqsGatingPostProcess] s1ChangeDQSINCTL 0, reg_TX_dly_DQSgated_min 3, u1TXDLY_Cal_min 3

Settings after calibration ...
=== [DramcRunTimeConfig] ===
ZQCS_ENABLE_LP3: ON
LOWPOWER_GOLDEN_SETTINGS(DCM): ON
SPM_CONTROL_AFTERK: ON
TEMP_SENSOR_ENABLE: OFF
ENABLE_PER_BANK_REFRESH: OFF
HW_SAVE_FOR_SR: OFF
=========================
0:dram_rank_size:10000000
dram size 0x10000000.
[MEM] complex R/W mem test pass
nand found [PN27G01BBGITG]
[nand] read page 49152 chip 0 UNCORRECT
block768 is a bad block!
[I2C] id=1,addr: 32, transfer error
[I2C] I2C_ACKERR
[I2C] I2C structure:
[I2C] Id=1,Dma_en=0,Auto_restart=0,Poll_en=1,Op=1
[I2C] Irq_stat=3,source_clk=68250,clk_div=5,speed=100
[I2C] base address 0xffff00000160a000
[I2C] I2C register:
[I2C] SLAVE_ADDR=64,INTR_MASK=f8,INTR_STAT=3,CONTROL=28
[I2C] TRANSFER_LEN=2,TRANSAC_LEN=1,DELAY_LEN=2
[I2C] TIMING=216,START=0,FIFO_STAT=1210,IO_CONFIG=3,HS=0
[I2C] DCM_EN=0,DEBUGSTAT=40,EXT_CONF=8001
[I2C] TRANSFER_LEN_AUX=1,FIFO_THRESH=700,RSV_DEBUG=0
[I2C] DEBUGCTRL=0,CLOCK_DIV=4,SCL_HL_RATIO=c3
[I2C] SCL_HS_HL_RATIO=41,SCL_MIS_COMP_POINT=0
[I2C] STA_STOP_AC_TIME=0,HS_STA_STOP_AC_TIME=0
[I2C] DATA_TIME=0
[I2C] mtk_i2c_write fails(-121).
starting app fitboot
open MISC successfully
lastboot = 0, use A = -1, use B = -1, current = 0
***last succeed boot from A system,upgrade B failed or no upgrade B***
***now boot from system A***
choose first boot partition:BOOTIMG1  , tee choose: TEE1
Verifying tz_ctl Sign
checking tz_ctl - kernel integrity
0:dram_rank_size:10000000
dram size 0x10000000.
checking tz_ctl - tee integrity
0:dram_rank_size:10000000
dram size 0x10000000.
Verifying bootimg_ctl Sign
checking bootimg_ctl - kernel integrity
0:dram_rank_size:10000000
dram size 0x10000000.
checking bootimg_ctl - fdt integrity
0:dram_rank_size:10000000
dram size 0x10000000.
Partition [DTBO] is not exist.
LK run time: 1880147 (us)
jump to tz 0x42ff6000

[ATF](0)[1.880730]INFO:    Kernel is AArch64
[ATF](0)[1.882018]NOTICE:  BL3-1: v1.2(debug):4ebda78
[ATF](0)[1.882592]NOTICE:  BL3-1: Built : 17:05:34, Jul 26 2018
[ATF](0)[1.883292]NOTICE:  BL31: v1.2(debug):4ebda78
[ATF](0)[1.883874]NOTICE:  BL31: Built : 17:05:34, Jul 26 2018
[ATF](0)[1.884564]INFO:    [spmc_init]change to SPMC mode !!!
[ATF](0)[1.885247]INFO:    ARM GICv2 driver initialized
[ATF](0)[1.885859]INFO:    BL31: Initializing runtime services
[ATF](0)[1.886558]INFO:    BL31: Initializing BL32
lEMI_MPUS = 20000120, EMI_MPUT = 100fffb0
[DAPC] [TEE] dapc_register_ext_handler is called by Type_2B slave(5)
[ATF](0)[1.888534]INFO:    BL31: Preparing for EL3 exit to normal world
[ATF](0)[1.889302]INFO:    Entry point address = 0x41e00000
[ATF](0)[1.889959]INFO:    SPSR = 0x3c9
[    0.000000] <0>-(0)[0:swapper]Booting Linux on physical CPU 0x0
[    0.000000] <0>-(0)[0:swapper]Initializing cgroup subsys cpu
[    0.000000] <0>-(0)[0:swapper]Initializing cgroup subsys cpuacct
[    0.000000] <0>-(0)[0:swapper]Linux version 4.4.22 (system@server3) (gcc version 6.2.0 (GCC) ) #1 SMP PREEMPT Thu Jul 26 17:07:54 CST 2018
[    0.000000] <0>-(0)[0:swapper]Boot CPU: AArch64 Processor [410fd041]
[    0.000000] <0>-(0)[0:swapper]earlycon: Early serial console at MMIO32 0x11005000 (options '')
[    0.000000] <0>-(0)[0:swapper]bootconsole [uart0] enabled
[    0.000000] <0>-(0)[0:swapper][PHY layout]atf-reserved-memory@43000000   :   0x43000000 - 0x4302ffff (0x30000)
[    0.000000] <0>-(0)[0:swapper][PHY layout]mtee-reserved-memory   :   0x4fd00000 - 0x4fffffff (0x300000)
[    0.000000] <0>-(0)[0:swapper][PHY layout]consys-reserve-memory   :   0x4fa00000 - 0x4fbfffff (0x200000)
[    0.000000] <0>-(0)[0:swapper][WMT-CONSYS-HW][W]reserve_memory_consys_fn: name: consys-reserve-memory, base: 0x4fa00000, size: 0x200000
[    0.000000] <0>-(0)[0:swapper]Reserved memory: initialized node consys-reserve-memory, compatible id mediatek,consys-reserve-memory
[    0.000000] <0>-(0)[0:swapper][memblock]ram_console-reserve-memory: 0x44400000 - 0x44410000 (0x10000)
[    0.000000] <0>-(0)[0:swapper]Reserved memory: initialized node ram_console-reserved-memory@44400000, compatible id mediatek,ram_console
[    0.000000] <0>-(0)[0:swapper][PHY layout]kernel   :   0x40000000 - 0x42ffffff (0x3000000)
[    0.000000] <0>-(0)[0:swapper][PHY layout]kernel   :   0x43030000 - 0x4f9fffff (0xc9d0000)
[    0.000000] <0>-(0)[0:swapper][PHY layout]kernel   :   0x4fc00000 - 0x4fcfffff (0x100000)
[    0.000000] <0>-(0)[0:swapper]psci: probing for conduit method from DT.
[    0.000000] <0>-(0)[0:swapper]psci: PSCIv1.0 detected in firmware.
[    0.000000] <0>-(0)[0:swapper]psci: Using standard PSCI v0.2 function IDs
[    0.000000] <0>-(0)[0:swapper]psci: Trusted OS migration not required
[    0.000000] <0>-(0)[0:swapper]PERCPU: Embedded 19 pages/cpu @ffffffc00fc6d000 s39832 r8192 d29800 u77824
[    0.000000] <0>-(0)[0:swapper]Detected VIPT I-cache on CPU0
[    0.000000] <0>-(0)[0:swapper]Built 1 zonelists in Zone order, mobility grouping on.  Total pages: 63196
[    0.000000] <0>-(0)[0:swapper][cpu_ntf] <00>ffffff8008116e24 (page_alloc_cpu_notify)
[    0.000000] <0>-(0)[0:swapper]Kernel command line: console=tty0 console=ttyS0,921600n1  earlycon=uart8250,mmio32,0x11005000 ubi.mtd=8 root=ubi0:aud8516p1v2-consys-slc-128-rootfs rootfstype=ubifs vmalloc=496M androidboot.hardware=aud8516p1_linux
[    0.000000] <0>-(0)[0:swapper]PID hash table entries: 1024 (order: 1, 8192 bytes)
[    0.000000] <0>-(0)[0:swapper]Dentry cache hash table entries: 32768 (order: 6, 262144 bytes)
[    0.000000] <0>-(0)[0:swapper]Inode-cache hash table entries: 16384 (order: 5, 131072 bytes)
[    0.000000] <0>-(0)[0:swapper]software IO TLB [mem 0x4f9c0000-0x4fa00000] (0MB) mapped at [ffffffc00f9c0000-ffffffc00f9fffff]
[    0.000000] <0>-(0)[0:swapper]Memory: 241460K/256832K available (5868K kernel code, 436K rwdata, 1956K rodata, 368K init, 1170K bss, 15372K reserved, 0K cma-reserved)
[    0.000000] <0>-(0)[0:swapper]Virtual kernel memory layout:
[    0.000000] <0>    modules : 0xffffff8000000000 - 0xffffff8008000000   (   128 MB)
[    0.000000] <0>    vmalloc : 0xffffff8008000000 - 0xffffffbdbfff0000   (   246 GB)
[    0.000000] <0>      .init : 0xffffff8008829000 - 0xffffff8008885000   (   368 KB)
[    0.000000] <0>      .text : 0xffffff8008080000 - 0xffffff800863c000   (  5872 KB)
[    0.000000] <0>    .rodata : 0xffffff800863c000 - 0xffffff8008829000   (  1972 KB)
[    0.000000] <0>      .data : 0xffffff8008885000 - 0xffffff80088f2140   (   437 KB)
[    0.000000] <0>    vmemmap : 0xffffffbdc0000000 - 0xffffffbfc0000000   (     8 GB maximum)
[    0.000000] <0>              0xffffffbdc0000000 - 0xffffffbdc03f4000   (     3 MB actual)
[    0.000000] <0>    fixed   : 0xffffffbffe7fd000 - 0xffffffbffec00000   (  4108 KB)
[    0.000000] <0>    PCI I/O : 0xffffffbffee00000 - 0xffffffbfffe00000   (    16 MB)
[    0.000000] <0>-(0)[0:swapper][cpu_ntf] <00>ffffff8008147eb0 (slab_cpuup_callback)
[    0.000000] <0>-(0)[0:swapper]SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1
[    0.000000] <0>-(0)[0:swapper/0][cpu_ntf] <00>ffffff80080bf1c4 (sched_ilb_notifier)
[    0.000000] <0>-(0)[0:swapper/0]Preemptible hierarchical RCU implementation.
[    0.000000] <0>-(0)[0:swapper/0]     Build-time adjustment of leaf fanout to 64.
[    0.000000] <0>-(0)[0:swapper/0][cpu_ntf] <00>ffffff80080e5240 (rcu_cpu_notify)
[    0.000000] <0>-(0)[0:swapper/0][cpu_ntf] <00>ffffff8008228b60 (radix_tree_callback)
[    0.000000] <0>-(0)[0:swapper/0]NR_IRQS:64 nr_irqs:64 0
[    0.000000] <0>-(0)[0:swapper/0][cpu_ntf] <00>ffffff80082454cc (gic_secondary_init)
[    0.000000] <0>-(0)[0:swapper/0][cpu_ntf] <00>ffffff80080e7bd4 (timer_cpu_notify)
[    0.000000] <0>-(0)[0:swapper/0][cpu_ntf] <00>ffffff80080e96d0 (hrtimer_cpu_notify)
[    0.000000] <0>-(0)[0:swapper/0][cpu_ntf] <00>ffffff8008455610 (arch_timer_cpu_notify)
[    0.000000] <0>-(0)[0:swapper/0]Architected cp15 timer(s) running at 13.00MHz (phys).
[    0.000000] <0>-(0)[0:swapper/0]clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x2ff89eacb, max_idle_ns: 440795202429 ns
[    0.000006] <0>-(0)[0:swapper/0]sched_clock: 56 bits at 13MHz, resolution 76ns, wraps every 4398046511101ns
[    0.001364] <0>-(0)[0:swapper/0]clocksource: timer: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 147020034397 ns
[    0.003075] <0>-(0)[0:swapper/0][cpu_ntf] <00>ffffff80080f9bec (hotplug_cfd)
[    0.004044] <0>.(0)[0:swapper/0]ram_console: buffer start: 0xffffff8008020000, size: 0x10000
[    0.012441] <0>.(0)[0:swapper/0]ram_console: CPU notifier status: 0, 0, 0x0, 0
[    0.013386] <0>.(0)[0:swapper/0]ram_console: last init function: 0x0
[    0.014640] <0>.(0)[0:swapper/0]console [ram-1] enabled
[    0.015332] Calibrating delay loop (skipped), value calculated using timer frequency.. 26.00 BogoMIPS (lpj=52000)
[    0.016688] <0>.(0)[0:swapper/0]pid_max: default: 32768 minimum: 301
[    0.017583] <0>.(0)[0:swapper/0][cpu_ntf] <00>ffffff8008179240 (buffer_cpu_notify)
[    0.018575] <0>.(0)[0:swapper/0]Security Framework initialized
[    0.019369] <0>.(0)[0:swapper/0]Mount-cache hash table entries: 512 (order: 0, 4096 bytes)
[    0.020462] <0>.(0)[0:swapper/0]Mountpoint-cache hash table entries: 512 (order: 0, 4096 bytes)
[    0.021813] <0>.(0)[0:swapper/0][cpu_ntf] <00>ffffff800811b648 (ratelimit_handler)
[    0.023087] <0>.(0)[0:swapper/0][cpu_ntf] <00>ffffff8008098cdc (smpboot_thread_call)
[    0.024219] <0>-(0)[0:swapper/0]init_heavy_tlb start.
[    0.024891] <0>-(0)[0:swapper/0]init_heavy_tlb: cid=-1 is out of nr=1
[    0.025737] <0>-(0)[0:swapper/0]init_heavy_tlb: cpu=0 thresh_l=0 thresh_h=0 max_capaicy=0
[    0.026807] <0>-(0)[0:swapper/0]init_heavy_tlb: cid=-1 is out of nr=1
[    0.027653] <0>-(0)[0:swapper/0]init_heavy_tlb: cpu=1 thresh_l=0 thresh_h=0 max_capaicy=0
[    0.028723] <0>-(0)[0:swapper/0]init_heavy_tlb: cid=-1 is out of nr=1
[    0.029569] <0>-(0)[0:swapper/0]init_heavy_tlb: cpu=2 thresh_l=0 thresh_h=0 max_capaicy=0
[    0.030639] <0>-(0)[0:swapper/0]init_heavy_tlb: cid=-1 is out of nr=1
[    0.031485] <0>-(0)[0:swapper/0]init_heavy_tlb: cpu=3 thresh_l=0 thresh_h=0 max_capaicy=0
[    0.032666] <0>.(0)[1:swapper/0]ASID allocator initialised with 65536 entries
[    0.033615] <0>.(0)[1:swapper/0][cpu_ntf] <00>ffffff800809cc90 (cpu_callback)
[    0.036607] <0>.(0)[1:swapper/0][cpu_ntf] <00>ffffff80080ae13c (workqueue_cpu_up_callback)
[    0.037694] <0>.(0)[1:swapper/0][cpu_ntf] <00>ffffff80080ae42c (workqueue_cpu_down_callback)
[    0.048676] <0>.(0)[1:swapper/0][cpu_ntf] <00>ffffff80080b8920 (migration_call)
[    0.049639] <0>.(0)[1:swapper/0][cpu_ntf] <00>ffffff80080b61e4 (sched_cpu_active)
[    0.050623] <0>.(0)[1:swapper/0][cpu_ntf] <00>ffffff80080b61b0 (sched_cpu_inactive)
[    0.053963] <0>.(0)[1:swapper/0]init_get_max_DRAM_size done. phone_dram_sz: 0x0, kernel_mem_sz: 0x10000000
[    0.055755] <0>.(0)[1:swapper/0][BOOT_REASON] 'boot_reason=' is not found
[    0.057185] <0>.(0)[1:swapper/0]'atag,devinfo' is not found
[    0.070543] <0>.(0)[1:swapper/0]Brought up 4 CPUs
[    0.071167] <0>.(0)[1:swapper/0]SMP: Total of 4 processors activated.
[    0.072018] <0>.(0)[1:swapper/0]CPU: All CPU(s) started at EL2
[    0.073113] <0>.(0)[1:swapper/0][cpu_ntf] <00>ffffff80080b5d00 (sched_domains_numa_masks_update)
[    0.074269] <0>.(0)[1:swapper/0][cpu_ntf] <00>ffffff80080bce74 (cpuset_cpu_active)
[    0.075263] <0>.(0)[1:swapper/0][cpu_ntf] <00>ffffff80080bcecc (cpuset_cpu_inactive)
[    0.076282] <0>.(0)[1:swapper/0][cpu_ntf] <00>ffffff80080b7170 (hotplug_hrtick)
[    0.077647] <0>.(0)[1:swapper/0]devtmpfs: initialized
[    0.078578] <0>.(0)[1:swapper/0][cpu_ntf] <00>ffffff80082792f4 (device_hotplug_notifier)
[    0.093688] <0>.(0)[1:swapper/0]clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041785100000 ns
[    0.095396] <0>.(0)[1:swapper/0]pinctrl core: initialized pinctrl subsystem
[    0.097213] <0>.(0)[1:swapper/0][BOOT_COMMON] 'atag,boot' is not found
[    0.098295] <0>.(0)[1:swapper/0]zone_movable_cma: uninited cma, start zone_movable_cma fail!
[    0.099821] <0>.(0)[1:swapper/0]NET: Registered protocol family 16
[    0.101199] <0>.(0)[1:swapper/0][SPM] spm_base = ffffff8008032000
[    0.102003] <0>.(0)[1:swapper/0][SPM] spm_irq_0 = 6, spm_irq_1 = 7, spm_irq_2 = 8, spm_irq_3 = 9
[    0.104133] <0>.(0)[1:swapper/0][Power/idle] node 'mediatek,mt8167-mfgcfg' not found!
[    0.115210] <1>.(1)[1:swapper/0]cpuidle: using governor mtk_governor
[    0.116178] <1>.(1)[1:swapper/0]vdso: 2 pages (1 code @ ffffff8008641000, 1 data @ ffffff800888d000)
[    0.117570] <1>.(1)[1:swapper/0]DMA: preallocated 256 KiB pool for atomic allocations
[    0.118665] <1>.(1)[1:swapper/0][SPM] PWAKE_EN:1, PCMWDT_EN:0, BYPASS_SYSPWREQ:0, I2C_CHANNEL:2
[    0.119806] <1>.(1)[1:swapper/0][SLP] SLEEP_DPIDLE_EN:1, REPLACE_DEF_WAKESRC:0, SUSPEND_LOG_EN:1
[    0.121140] <1>.(1)[1:swapper/0]### CIRQ init done. ###
[    0.124498] <1>-(1)[1:swapper/0]genirq: Setting trigger mode 2 for irq 17 failed (mtk_sysirq_set_type+0x0/0xc4)
[    0.127651] <1>.(1)[1:swapper/0]mtk_pctrl_init------ ok
[    0.146242] <1>.(1)[1:swapper/0][DAPC] [TEE] dapc_register_ext_handler is called by Type_2B slave(0)
[    0.147713] <1>.(1)[1:swapper/0][TZ_M4U]sec_pt_va=0x0x10a74000, pa=0x4fe74000, align=0x4000
[    0.148814] <1>.(1)[1:swapper/0][TZ_M4U]check port security larb_base: 0xf4016000 0x0
[    0.149845] <1>.(1)[1:swapper/0][TZ_M4U]check port security larb_base: 0xf5001000 0x0
[    0.150890] <1>.(1)[1:swapper/0][TZ_M4U]check port security larb_base: 0xf6010000 0x0
[    0.151935] <1>.(1)[1:swapper/0][TZ_M4U]init done.(secva0x10a25fe0-0x10a25fe0 pa0x4fe25fe0 sz2M)
[    0.153090] <1>.(1)[1:swapper/0][DAPC] [TEE] dapc_register_ext_handler is called by Type_2B slave(3)
[    0.154289] <1>.(1)[1:swapper/0][DAPC] [TEE] dapc_register_ext_handler is called by Type_2B slave(2)
[    0.155498] <1>.(1)[1:swapper/0][DAPC] [TEE] dapc_register_ext_handler is called by Type_2B slave(6)
[    0.170048] <1>.(1)[1:swapper/0][cpu_ntf] <00>ffffff8008210560 (blk_cpu_notify)
[    0.171024] <1>.(1)[1:swapper/0][cpu_ntf] <00>ffffff8008210c68 (blk_iopoll_cpu_notify)
[    0.172084] <1>.(1)[1:swapper/0][cpu_ntf] <00>ffffff8008216138 (blk_mq_main_cpu_notify)
[    0.173138] <1>.(1)[1:swapper/0][cpu_ntf] <00>ffffff8008213910 (blk_mq_queue_reinit_notify)
[    0.177876] <1>.(1)[1:swapper/0]usbcore: registered new interface driver usbfs
[    0.178891] <1>.(1)[1:swapper/0]usbcore: registered new interface driver hub
[    0.179920] <1>.(1)[1:swapper/0]usbcore: registered new device driver usb
[    0.182101] <1>.(1)[1:swapper/0]Advanced Linux Sound Architecture Driver Initialized.
[    0.183722] <1>.(1)[1:swapper/0][cpu_ntf] <00>ffffff80084dd7dc (dev_cpu_callback)
[    0.185497] <3>.(3)[1:swapper/0]clocksource: Switched to clocksource arch_sys_counter
[    0.188285] <3>.(3)[1:swapper/0]NET: Registered protocol family 2
[    0.189727] <3>.(3)[1:swapper/0]TCP established hash table entries: 2048 (order: 2, 16384 bytes)
[    0.190907] <3>.(3)[1:swapper/0]TCP bind hash table entries: 2048 (order: 3, 32768 bytes)
[    0.192006] <3>.(3)[1:swapper/0]TCP: Hash tables configured (established 2048 bind 2048)
[    0.193117] <3>.(3)[1:swapper/0]UDP hash table entries: 256 (order: 1, 8192 bytes)
[    0.194140] <3>.(3)[1:swapper/0]UDP-Lite hash table entries: 256 (order: 1, 8192 bytes)
[    0.195379] <3>.(3)[1:swapper/0]NET: Registered protocol family 1
[    0.198480] <3>.(3)[1:swapper/0]futex hash table entries: 1024 (order: 5, 131072 bytes)
[    0.199625] <3>.(3)[1:swapper/0]audit: initializing netlink subsys (disabled)
[    0.200610] <3>.(3)[1:swapper/0]audit: type=2000 audit(0.184:1): initialized
[    0.201664] <3>.(3)[1:swapper/0][cpu_ntf] <00>ffffff800811f050 (cpu_callback)
[    0.213132] <3>.(3)[1:swapper/0]io scheduler noop registered
[    0.213906] <3>.(3)[1:swapper/0]io scheduler deadline registered
[    0.214970] <3>.(3)[1:swapper/0]io scheduler cfq registered (default)
[    0.215857] <3>.(3)[1:swapper/0][cpu_ntf] <00>ffffff8008241b88 (percpu_counter_hotcpu_callback)
[    0.221702] <3>.(3)[1:swapper/0]Serial: 8250/16550 driver, 3 ports, IRQ sharing disabled

#62 Re: DIY/综合/Arduino/写字机/3D打印机/智能小车/平衡车/四轴飞行/MQTT/物联网 » 捡了个便宜的高级ZYNQ XC7Z010 开发板玩玩 » 2021-03-11 09:07:06

那是因为pynq会自动加载一个bit文件到pl端导致网络断掉,可以考虑关掉那个功能跑

lignin 说:

pynq系统成功进入系统,但是才进入一会儿后系统就没反应了,这是怎么回事呢,就按照教程在群里下载的那些文件

#63 Re: DIY/综合/Arduino/写字机/3D打印机/智能小车/平衡车/四轴飞行/MQTT/物联网 » 捡了个便宜的高级ZYNQ XC7Z010 开发板玩玩 » 2021-01-05 22:54:08

[FAILED] Failed to start Raise network interfaces.
网络出现问题了,这个要怎么办呢


U-Boot 2019.01-07011-g5ff8217-dirty (Mar 31 2019 - 08:09:08 +0800)

CPU:   Zynq 7z010
Silicon: v3.1
Model: Zynq MicroZED Board
I2C:   ready
DRAM:  ECC disabled 256 MiB
Watchdog: Started
NAND:  128 MiB
MMC:   mmc@e0100000: 0
In:    serial@e0001000
Out:   serial@e0001000
Err:   serial@e0001000
Net:   ZYNQ GEM: e000b000, phyaddr 0, interface mii
PHY is not detected
GEM PHY init failed
eth-1: ethernet@e000b000ZYNQ GEM: e000c000, phyaddr 1, interface rmii
mdio_register: non unique device name 'eth0'
, eth-1: ethernet@e000c000
384 bytes read in 13 ms (28.3 KiB/s)
Importing environment from SD ...
Hit any key to stop autoboot:  0
!!!
!!! Booting cmd is deprecated (will be removed in 2020).
!!! Please move to distro bootcmd.
!!!
Device: mmc@e0100000
Manufacturer ID: fe
OEM: 3432
Name: SD16G
Bus Speed: 50000000
Mode : SD High Speed (50MHz)
Rd Block Len: 512
SD version 3.0
High Capacity: Yes
Capacity: 29.1 GiB
Bus Width: 4-bit
Erase Group Size: 512 Bytes
384 bytes read in 10 ms (37.1 KiB/s)
Loaded environment from uEnv.txt
Importing environment from SD ...
Running uenvcmd ...
2083852 bytes read in 140 ms (14.2 MiB/s)
  design filename = "design_1_wrapper;UserID=0XFFFFFFFF;Version=2018.3"
  part number = "7z010clg400"
  date = "2019/03/31"
  time = "07:11:02"
  bytes in bitstream = 2083740
zynq_align_dma_buffer: Align buffer at 100070 to fff80(swap 1)
4487928 bytes read in 273 ms (15.7 MiB/s)
14305 bytes read in 21 ms (665 KiB/s)
## Booting kernel from Legacy Image at 02080000 ...
   Image Name:   Linux-4.4.30-xillinux-2.0
   Image Type:   ARM Linux Kernel Image (uncompressed)
   Data Size:    4487864 Bytes = 4.3 MiB
   Load Address: 00008000
   Entry Point:  00008000
   Verifying Checksum ... OK
## Flattened Device Tree blob at 02000000
   Booting using the fdt blob at 0x2000000
   Loading Kernel Image ... OK
   Loading Device Tree to 0eb10000, end 0eb167e0 ... OK

Starting kernel ...

Uncompressing Linux... done, booting the kernel.
[    0.000000] Booting Linux on physical CPU 0x0
[    0.000000] Initializing cgroup subsys cpuset
[    0.000000] Initializing cgroup subsys cpu
[    0.000000] Initializing cgroup subsys cpuacct
[    0.000000] Linux version 4.4.30-xillinux-2.0 (eli@ocho.localdomain) (gcc version 4.7.3 (Sourcery CodeBench Lite 2013.05-40) ) #1 SMP PREEMPT Tue Dec 5 11:54:25 IST 2017 ()
[    0.000000] CPU: ARMv7 Processor [413fc090] revision 0 (ARMv7), cr=18c5387d
[    0.000000] CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache
[    0.000000] Machine model: Zynq ebit board
[    0.000000] bootconsole [earlycon0] enabled
[    0.000000] Booting Linux on physical CPU 0x0
[    0.000000] Initializing cgroup subsys cpuset
[    0.000000] Initializing cgroup subsys cpu
[    0.000000] Initializing cgroup subsys cpuacct
[    0.000000] Linux version 4.4.30-xillinux-2.0 (eli@ocho.localdomain) (gcc version 4.7.3 (Sourcery CodeBench Lite 2013.05-40) ) #1 SMP PREEMPT Tue Dec 5 11:54:25 IST 2017 ()
[    0.000000] CPU: ARMv7 Processor [413fc090] revision 0 (ARMv7), cr=18c5387d
[    0.000000] CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache
[    0.000000] Machine model: Zynq ebit board
[    0.000000] bootconsole [earlycon0] enabled
[    0.000000] bootconsole [uart0] enabled
[    0.000000] bootconsole [uart0] enabled
[    0.000000] cma: Reserved 16 MiB at 0x0f000000
[    0.000000] cma: Reserved 16 MiB at 0x0f000000
[    0.000000] Memory policy: Data cache writealloc
[    0.000000] Memory policy: Data cache writealloc
[    0.000000] On node 0 totalpages: 65536
[    0.000000] On node 0 totalpages: 65536
[    0.000000] free_area_init_node: node 0, pgdat c08c6880, node_mem_map cedaf000
[    0.000000] free_area_init_node: node 0, pgdat c08c6880, node_mem_map cedaf000
[    0.000000]   Normal zone: 576 pages used for memmap
[    0.000000]   Normal zone: 576 pages used for memmap
[    0.000000]   Normal zone: 0 pages reserved
[    0.000000]   Normal zone: 0 pages reserved
[    0.000000]   Normal zone: 65536 pages, LIFO batch:15
[    0.000000]   Normal zone: 65536 pages, LIFO batch:15
[    0.000000] PERCPU: Embedded 12 pages/cpu @ced8b000 s18880 r8192 d22080 u49152
[    0.000000] PERCPU: Embedded 12 pages/cpu @ced8b000 s18880 r8192 d22080 u49152
[    0.000000] pcpu-alloc: s18880 r8192 d22080 u49152 alloc=12*4096[    0.000000] pcpu-alloc: s18880 r8192 d22080 u49152 alloc=12*4096

[    0.000000] pcpu-alloc: [    0.000000] pcpu-alloc: [0] [0] 0 0 [0] [0] 1 1

[    0.000000] Built 1 zonelists in Zone order, mobility grouping on.  Total pages: 64960
[    0.000000] Built 1 zonelists in Zone order, mobility grouping on.  Total pages: 64960
[    0.000000] Kernel command line: console=ttyPS0,115200 root=/dev/mmcblk0p2 rw earlyprintk earlycon loglevel=8 rootfstype=ext4 rootwait
[    0.000000] Kernel command line: console=ttyPS0,115200 root=/dev/mmcblk0p2 rw earlyprintk earlycon loglevel=8 rootfstype=ext4 rootwait
[    0.000000] PID hash table entries: 1024 (order: 0, 4096 bytes)
[    0.000000] PID hash table entries: 1024 (order: 0, 4096 bytes)
[    0.000000] Dentry cache hash table entries: 32768 (order: 5, 131072 bytes)
[    0.000000] Dentry cache hash table entries: 32768 (order: 5, 131072 bytes)
[    0.000000] Inode-cache hash table entries: 16384 (order: 4, 65536 bytes)
[    0.000000] Inode-cache hash table entries: 16384 (order: 4, 65536 bytes)
[    0.000000] Memory: 233572K/262144K available (6155K kernel code, 294K rwdata, 2192K rodata, 312K init, 472K bss, 12188K reserved, 16384K cma-reserved, 0K highmem)
[    0.000000] Memory: 233572K/262144K available (6155K kernel code, 294K rwdata, 2192K rodata, 312K init, 472K bss, 12188K reserved, 16384K cma-reserved, 0K highmem)
[    0.000000] Virtual kernel memory layout:
[    0.000000]     vector  : 0xffff0000 - 0xffff1000   (   4 kB)
[    0.000000]     fixmap  : 0xffc00000 - 0xfff00000   (3072 kB)
[    0.000000]     vmalloc : 0xd0800000 - 0xff800000   ( 752 MB)
[    0.000000]     lowmem  : 0xc0000000 - 0xd0000000   ( 256 MB)
[    0.000000]     pkmap   : 0xbfe00000 - 0xc0000000   (   2 MB)
[    0.000000]     modules : 0xbf000000 - 0xbfe00000   (  14 MB)
[    0.000000]       .text : 0xc0008000 - 0xc082f0c4   (8349 kB)
[    0.000000]       .init : 0xc0830000 - 0xc087e000   ( 312 kB)
[    0.000000]       .data : 0xc087e000 - 0xc08c7840   ( 295 kB)
[    0.000000]        .bss : 0xc08c7840 - 0xc093da38   ( 473 kB)
[    0.000000] Virtual kernel memory layout:
[    0.000000]     vector  : 0xffff0000 - 0xffff1000   (   4 kB)
[    0.000000]     fixmap  : 0xffc00000 - 0xfff00000   (3072 kB)
[    0.000000]     vmalloc : 0xd0800000 - 0xff800000   ( 752 MB)
[    0.000000]     lowmem  : 0xc0000000 - 0xd0000000   ( 256 MB)
[    0.000000]     pkmap   : 0xbfe00000 - 0xc0000000   (   2 MB)
[    0.000000]     modules : 0xbf000000 - 0xbfe00000   (  14 MB)
[    0.000000]       .text : 0xc0008000 - 0xc082f0c4   (8349 kB)
[    0.000000]       .init : 0xc0830000 - 0xc087e000   ( 312 kB)
[    0.000000]       .data : 0xc087e000 - 0xc08c7840   ( 295 kB)
[    0.000000]        .bss : 0xc08c7840 - 0xc093da38   ( 473 kB)
[    0.000000] Preemptible hierarchical RCU implementation.
[    0.000000] Preemptible hierarchical RCU implementation.
[    0.000000]  Build-time adjustment of leaf fanout to 32.
[    0.000000]  Build-time adjustment of leaf fanout to 32.
[    0.000000]  RCU restricting CPUs from NR_CPUS=4 to nr_cpu_ids=2.
[    0.000000]  RCU restricting CPUs from NR_CPUS=4 to nr_cpu_ids=2.
[    0.000000] RCU: Adjusting geometry for rcu_fanout_leaf=32, nr_cpu_ids=2
[    0.000000] RCU: Adjusting geometry for rcu_fanout_leaf=32, nr_cpu_ids=2
[    0.000000] NR_IRQS:16 nr_irqs:16 16
[    0.000000] NR_IRQS:16 nr_irqs:16 16
[    0.000000] slcr mapped to d0800000
[    0.000000] slcr mapped to d0800000
[    0.000000] L2C: platform modifies aux control register: 0x72360000 -> 0x72760000
[    0.000000] L2C: platform modifies aux control register: 0x72360000 -> 0x72760000
[    0.000000] L2C: DT/platform modifies aux control register: 0x72360000 -> 0x72760000
[    0.000000] L2C: DT/platform modifies aux control register: 0x72360000 -> 0x72760000
[    0.000000] L2C-310 erratum[    0.000000] L2C-310 erratum 769419 769419 enabled
 enabled
[    0.000000] L2C-310 enabling early BRESP for Cortex-A9
[    0.000000] L2C-310 enabling early BRESP for Cortex-A9
[    0.000000] L2C-310 full line of zeros enabled for Cortex-A9
[    0.000000] L2C-310 full line of zeros enabled for Cortex-A9
[    0.000000] L2C-310 ID prefetch enabled, offset 1 lines
[    0.000000] L2C-310 ID prefetch enabled, offset 1 lines
[    0.000000] L2C-310 dynamic clock gating enabled, standby mode enabled
[    0.000000] L2C-310 dynamic clock gating enabled, standby mode enabled
[    0.000000] L2C-310 cache controller enabled, 8 ways, 512 kB
[    0.000000] L2C-310 cache controller enabled, 8 ways, 512 kB
[    0.000000] L2C-310: CACHE_ID 0x410000c8, AUX_CTRL 0x76760001
[    0.000000] L2C-310: CACHE_ID 0x410000c8, AUX_CTRL 0x76760001
[    0.000000] zynq_clock_init: clkc starts at d0800100
[    0.000000] zynq_clock_init: clkc starts at d0800100
[    0.000000] Zynq clock init
[    0.000000] Zynq clock init
[    0.000011] sched_clock: 64 bits at 333MHz, resolution 3ns, wraps every 4398046511103ns
[    0.000011] sched_clock: 64 bits at 333MHz, resolution 3ns, wraps every 4398046511103ns
[    0.015865] clocksource: arm_global_timer: mask: 0xffffffffffffffff max_cycles: 0x4ce07af025, max_idle_ns: 440795209040 ns
[    0.015865] clocksource: arm_global_timer: mask: 0xffffffffffffffff max_cycles: 0x4ce07af025, max_idle_ns: 440795209040 ns
[    0.038011] clocksource: ttc_clocksource: mask: 0xffff max_cycles: 0xffff, max_idle_ns: 537538477 ns
[    0.038011] clocksource: ttc_clocksource: mask: 0xffff max_cycles: 0xffff, max_idle_ns: 537538477 ns
[    0.056183] timer #0 at d0808000, irq=17
[    0.056183] timer #0 at d0808000, irq=17
[    0.064441] Console: colour dummy device 80x30
[    0.064441] Console: colour dummy device 80x30
[    0.073204] Calibrating delay loop... [    0.073204] Calibrating delay loop... 1332.01 BogoMIPS (lpj=6660096)
1332.01 BogoMIPS (lpj=6660096)
[    0.169626] pid_max: default: 32768 minimum: 301
[    0.169626] pid_max: default: 32768 minimum: 301
[    0.178997] Security Framework initialized
[    0.178997] Security Framework initialized
[    0.187111] Yama: becoming mindful.
[    0.187111] Yama: becoming mindful.
[    0.194177] AppArmor: AppArmor initialized
[    0.194177] AppArmor: AppArmor initialized
[    0.202365] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes)
[    0.202365] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes)
[    0.215575] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes)
[    0.215575] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes)
[    0.230393] Initializing cgroup subsys io
[    0.230393] Initializing cgroup subsys io
[    0.238310] Initializing cgroup subsys memory
[    0.238310] Initializing cgroup subsys memory
[    0.247057] Initializing cgroup subsys devices
[    0.247057] Initializing cgroup subsys devices
[    0.255950] Initializing cgroup subsys freezer
[    0.255950] Initializing cgroup subsys freezer
[    0.264854] Initializing cgroup subsys net_cls
[    0.264854] Initializing cgroup subsys net_cls
[    0.273751] Initializing cgroup subsys perf_event
[    0.273751] Initializing cgroup subsys perf_event
[    0.283191] Initializing cgroup subsys net_prio
[    0.283191] Initializing cgroup subsys net_prio
[    0.292272] Initializing cgroup subsys pids
[    0.292272] Initializing cgroup subsys pids
[    0.300693] CPU: Testing write buffer coherency: [    0.300693] CPU: Testing write buffer coherency: ok
ok
[    0.310657] CPU0: thread -1, cpu 0, socket 0, mpidr 80000000
[    0.310657] CPU0: thread -1, cpu 0, socket 0, mpidr 80000000
[    0.321901] Setting up static identity map for 0x82c0 - 0x82f4
[    0.321901] Setting up static identity map for 0x82c0 - 0x82f4
[    0.504160] CPU1: thread -1, cpu 1, socket 0, mpidr 80000001
[    0.504160] CPU1: thread -1, cpu 1, socket 0, mpidr 80000001
[    0.504263] Brought up 2 CPUs
[    0.504263] Brought up 2 CPUs
[    0.521416] SMP: Total of 2 processors activated (2664.03 BogoMIPS).
[    0.521416] SMP: Total of 2 processors activated (2664.03 BogoMIPS).
[    0.534139] CPU: All CPU(s) started in SVC mode.
[    0.534139] CPU: All CPU(s) started in SVC mode.
[    0.544468] devtmpfs: initialized
[    0.544468] devtmpfs: initialized
[    0.555046] evm: security.selinux
[    0.555046] evm: security.selinux
[    0.561556] evm: security.SMACK64
[    0.561556] evm: security.SMACK64
[    0.568244] evm: security.SMACK64EXEC
[    0.568244] evm: security.SMACK64EXEC
[    0.575595] evm: security.SMACK64TRANSMUTE
[    0.575595] evm: security.SMACK64TRANSMUTE
[    0.583786] evm: security.SMACK64MMAP
[    0.583786] evm: security.SMACK64MMAP
[    0.591153] evm: security.ima
[    0.591153] evm: security.ima
[    0.597119] evm: security.capability
[    0.597119] evm: security.capability
[    0.604732] VFP support v0.3: [    0.604732] VFP support v0.3: implementor 41 architecture 3 part 30 variant 9 rev 4
implementor 41 architecture 3 part 30 variant 9 rev 4
[    0.620199] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
[    0.620199] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
[    0.640901] pinctrl core: initialized pinctrl subsystem
[    0.640901] pinctrl core: initialized pinctrl subsystem
[    0.652783] NET: Registered protocol family 16
[    0.652783] NET: Registered protocol family 16
[    0.663664] DMA: preallocated 256 KiB pool for atomic coherent allocations
[    0.663664] DMA: preallocated 256 KiB pool for atomic coherent allocations
[    0.689297] hw-breakpoint: found 5 (+1 reserved) breakpoint and 1 watchpoint registers.
[    0.689297] hw-breakpoint: found 5 (+1 reserved) breakpoint and 1 watchpoint registers.
[    0.705203] hw-breakpoint: maximum watchpoint size is 4 bytes.
[    0.705203] hw-breakpoint: maximum watchpoint size is 4 bytes.
[    0.717002] zynq-ocm f800c000.ocmc: ZYNQ OCM pool: 256 KiB @ 0xd0880000
[    0.717002] zynq-ocm f800c000.ocmc: ZYNQ OCM pool: 256 KiB @ 0xd0880000
[    0.730550] zynq-pinctrl 700.pinctrl: zynq pinctrl initialized
[    0.730550] zynq-pinctrl 700.pinctrl: zynq pinctrl initialized
[    0.787490] GPIO IRQ not connected
[    0.787490] GPIO IRQ not connected
[    0.794237] XGpio: /amba_pl/gpio@41200000: registered, base is 904
[    0.794237] XGpio: /amba_pl/gpio@41200000: registered, base is 904
[    0.806867] GPIO IRQ not connected
[    0.806867] GPIO IRQ not connected
[    0.813550] XGpio: /amba_pl/gpio@41210000: registered, base is 899
[    0.813550] XGpio: /amba_pl/gpio@41210000: registered, base is 899
[    0.827036] vgaarb: loaded
[    0.827036] vgaarb: loaded
[    0.835077] SCSI subsystem initialized
[    0.835077] SCSI subsystem initialized
[    0.842941] usbcore: registered new interface driver usbfs
[    0.842941] usbcore: registered new interface driver usbfs
[    0.853897] usbcore: registered new interface driver hub
[    0.853897] usbcore: registered new interface driver hub
[    0.864538] usbcore: registered new device driver usb
[    0.864538] usbcore: registered new device driver usb
[    0.874886] media: Linux media interface: v0.10
[    0.874886] media: Linux media interface: v0.10
[    0.883879] Linux video capture interface: v2.00
[    0.883879] Linux video capture interface: v2.00
[    0.893260] pps_core: LinuxPPS API ver. 1 registered
[    0.893260] pps_core: LinuxPPS API ver. 1 registered
[    0.903084] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>
[    0.903084] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>
[    0.921358] PTP clock support registered
[    0.921358] PTP clock support registered
[    0.929539] EDAC MC: Ver: 3.0.0
[    0.929539] EDAC MC: Ver: 3.0.0
[    0.955065] NetLabel: Initializing
[    0.955065] NetLabel: Initializing
[    0.961749] NetLabel:  domain hash size = 128
[    0.961749] NetLabel:  domain hash size = 128
[    0.970521] NetLabel:  protocols = UNLABELED CIPSOv4
[    0.970521] NetLabel:  protocols = UNLABELED CIPSOv4
[    0.980508] NetLabel:  unlabeled traffic allowed by default
[    0.980508] NetLabel:  unlabeled traffic allowed by default
[    0.992011] clocksource: Switched to clocksource arm_global_timer
[    0.992011] clocksource: Switched to clocksource arm_global_timer
[    1.004817] AppArmor: AppArmor Filesystem Enabled
[    1.004817] AppArmor: AppArmor Filesystem Enabled
[    1.027279] NET: Registered protocol family 2
[    1.027279] NET: Registered protocol family 2
[    1.036770] TCP established hash table entries: 2048 (order: 1, 8192 bytes)
[    1.036770] TCP established hash table entries: 2048 (order: 1, 8192 bytes)
[    1.050611] TCP bind hash table entries: 2048 (order: 2, 16384 bytes)
[    1.050611] TCP bind hash table entries: 2048 (order: 2, 16384 bytes)
[    1.063502] TCP: Hash tables configured (established 2048 bind 2048)
[    1.063502] TCP: Hash tables configured (established 2048 bind 2048)
[    1.076460] UDP hash table entries: 256 (order: 1, 8192 bytes)
[    1.076460] UDP hash table entries: 256 (order: 1, 8192 bytes)
[    1.088041] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes)
[    1.088041] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes)
[    1.100807] NET: Registered protocol family 1
[    1.100807] NET: Registered protocol family 1
[    1.109824] RPC: Registered named UNIX socket transport module.
[    1.109824] RPC: Registered named UNIX socket transport module.
[    1.121560] RPC: Registered udp transport module.
[    1.121560] RPC: Registered udp transport module.
[    1.130980] RPC: Registered tcp transport module.
[    1.130980] RPC: Registered tcp transport module.
[    1.140403] RPC: Registered tcp NFSv4.1 backchannel transport module.
[    1.140403] RPC: Registered tcp NFSv4.1 backchannel transport module.
[    1.153332] PCI: CLS 0 bytes, default 64
[    1.153332] PCI: CLS 0 bytes, default 64
[    1.161811] hw perfevents: enabled with armv7_cortex_a9 PMU driver, 7 counters available
[    1.161811] hw perfevents: enabled with armv7_cortex_a9 PMU driver, 7 counters available
[    1.179314] futex hash table entries: 512 (order: 3, 32768 bytes)
[    1.179314] futex hash table entries: 512 (order: 3, 32768 bytes)
[    1.191513] audit: initializing netlink subsys (disabled)
[    1.191513] audit: initializing netlink subsys (disabled)
[    1.202261] audit: type=2000 audit(1.069:1): initialized
[    1.202261] audit: type=2000 audit(1.069:1): initialized
[    1.213338] Initialise system trusted keyring
[    1.213338] Initialise system trusted keyring
[    1.222654] VFS: Disk quotas dquot_6.6.0
[    1.222654] VFS: Disk quotas dquot_6.6.0
[    1.230445] VFS: Dquot-cache hash table entries: 1024 (order 0, 4096 bytes)
[    1.230445] VFS: Dquot-cache hash table entries: 1024 (order 0, 4096 bytes)
[    1.244773] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[    1.244773] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[    1.257135] NFS: Registering the id_resolver key type
[    1.257135] NFS: Registering the id_resolver key type
[    1.267156] Key type id_resolver registered
[    1.267156] Key type id_resolver registered
[    1.275521] Key type id_legacy registered
[    1.275521] Key type id_legacy registered
[    1.283633] nfs4filelayout_init: NFSv4 File Layout Driver Registering...
[    1.283633] nfs4filelayout_init: NFSv4 File Layout Driver Registering...
[    1.297056] jffs2: version 2.2. (NAND) (SUMMARY)  © 2001-2006 Red Hat, Inc.
[    1.297056] jffs2: version 2.2. (NAND) (SUMMARY)  © 2001-2006 Red Hat, Inc.
[    1.311515] Allocating IMA MOK and blacklist keyrings.
[    1.311515] Allocating IMA MOK and blacklist keyrings.
[    1.323393] Key type asymmetric registered
[    1.323393] Key type asymmetric registered
[    1.331469] Asymmetric key parser 'x509' registered
[    1.331469] Asymmetric key parser 'x509' registered
[    1.341390] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 248)
[    1.341390] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 248)
[    1.356200] io scheduler noop registered
[    1.356200] io scheduler noop registered
[    1.363954] io scheduler deadline registered (default)
[    1.363954] io scheduler deadline registered (default)
[    1.374269] io scheduler cfq registered
[    1.374269] io scheduler cfq registered
[    1.393896] e0000000.serial: ttyPS1 at MMIO 0xe0000000 (irq = 145, base_baud = 6249999) is a xuartps
[    1.393896] e0000000.serial: ttyPS1 at MMIO 0xe0000000 (irq = 145, base_baud = 6249999) is a xuartps
[    1.412428] e0001000.serial: ttyPS0 at MMIO 0xe0001000 (irq = 146, base_baud = 6249999) is a xuartps
[    1.412428] e0001000.serial: ttyPS0 at MMIO 0xe0001000 (irq = 146, base_baud ▒[    1.430706] console [ttyPS0] enabled
[    1.430706] console [ttyPS0] enabled
[    1.430706] console [ttyPS0] enabled
[    1.441378] bootconsole [earlycon0] disabled
[    1.441378] bootconsole [earlycon0] disabled
[    1.441378] bootconsole [earlycon0] disabled
[    1.454227] bootconsole [uart0] disabled
[    1.454227] bootconsole [uart0] disabled
[    1.462932] xdevcfg f8007000.devcfg: ioremap 0xf8007000 to d0852000
[    1.485167] brd: module loaded
[    1.495591] loop: module loaded
[    1.517212] libphy: Fixed MDIO Bus: probed
[    1.521835] macb e000b000.ethernet: invalid hw address, using random
[    1.529455] libphy: MACB_mii_bus: probed
[    1.535271] macb e000b000.ethernet eth0: no PHY found
[    1.562379] macb e000c000.ethernet: invalid hw address, using random
[    1.569476] libphy: MACB_mii_bus: probed
[    1.652167] macb e000c000.ethernet eth0: Cadence GEM rev 0x00020118 at 0xe000c000 irq 151 (1a:df:a3:66:a0:e2)
[    1.662048] macb e000c000.ethernet eth0: attached PHY driver [Generic PHY] (mii_bus:phy_addr=e000c000.etherne:01, irq=-1)
[    1.674275] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[    1.680723] ehci-pci: EHCI PCI platform driver
[    1.685246] ehci-platform: EHCI generic platform driver
[    1.690597] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
[    1.696743] ohci-pci: OHCI PCI platform driver
[    1.701195] ohci-platform: OHCI generic platform driver
[    1.706533] uhci_hcd: USB Universal Host Controller Interface driver
[    1.713030] usbcore: registered new interface driver usb-storage
[    1.719416] mousedev: PS/2 mouse device common for all mice
[    1.735523] i2c /dev entries driver
[    1.740154] device-mapper: uevent: version 1.0.3
[    1.744999] device-mapper: ioctl: 4.34.0-ioctl (2015-10-28) initialised: dm-devel@redhat.com
[    1.753455] sdhci: Secure Digital Host Controller Interface driver
[    1.759547] sdhci: Copyright(c) Pierre Ossman
[    1.763926] sdhci-pltfm: SDHCI platform and OF driver helper
[    1.769962] sdhci-arasan e0100000.mmc: No vmmc regulator found
[    1.775739] sdhci-arasan e0100000.mmc: No vqmmc regulator found
[    1.822059] mmc0: SDHCI controller on e0100000.mmc [e0100000.mmc] using ADMA
[    1.829690] ledtrig-cpu: registered to indicate activity on CPUs
[    1.837154] Key type dns_resolver registered
[    1.841669] Registering SWP/SWPB emulation handler
[    1.847269] registered taskstats version 1
[    1.851290] Loading compiled-in X.509 certificates
[    1.857274] Key type encrypted registered
[    1.861224] AppArmor: AppArmor sha1 policy hashing enabled
[    1.866854] ima: No TPM chip found, activating TPM-bypass!
[    1.872420] evm: HMAC attrs: 0x1
[    1.876069] hctosys: unable to open rtc device (rtc0)
[    1.886851] md: Waiting for all devices to be available before autodetect
[    1.893638] md: If you don't use raid, use raid=noautodetect
[    1.899340] mmc0: new high speed SDHC card at address 0001
[    1.905392] mmcblk0: mmc0:0001 SD16G 29.1 GiB
[    1.910823]  mmcblk0: p1 p2
[    1.915575] md: Autodetecting RAID arrays.
[    1.919594] md: Scanned 0 and added 0 devices.
[    1.924058] md: autorun ...
[    1.926796] md: ... autorun DONE.
[    2.355765] EXT4-fs (mmcblk0p2): recovery complete
[    2.361886] EXT4-fs (mmcblk0p2): mounted filesystem with ordered data mode. Opts: (null)
[    2.369959] VFS: Mounted root (ext4 filesystem) on device 179:2.
[    2.377109] devtmpfs: mounted
[    2.380319] Freeing unused kernel memory: 312K (c0830000 - c087e000)
[    2.923904] systemd[1]: System time before build time, advancing clock.
[    2.966993] systemd[1]: Failed to insert module 'autofs4': No such file or di[    3.032693] systemd[1]: systemd 237 running in system mode. (+PAM +AUDIT +SELINUX +IMA +APPARMOR +SMACK +SYSVINIT +UTMP +LIBCRYPTSETUP +GCRYPT +GNUTLS +ACL +XZ +LZ4 +SECCOMP +BLKID +ELFUTILS +KMOD -IDN2 +IDN -PCRE2 default-hierarchy=hybr▒+▒r▒▒▒▒▒▒▒systemd[1]: Detected architecture arm.
Welcome to PynqLinux, based on Ubuntu 18.04!

[    3.573953] systemd[1]: File /lib/systemd/system/systemd-journald.service:36 configures an IP firewall (IPAddressDeny=any), but the local system does not sup▒+▒r▒ʂʲ▒▒systemd[1]: Proceeding WITHOUT firewalling in effect! (This warning is ▒+▒rʊ▒▒▒▒▒random: systemd: uninitialized urandom read (16 bytes read, 38 bits of[  OK  ] Created slice System Slice.ystem Slice.
[    3.952272] random: systemd: uninitialized urandom read (16 bytes read, 39 bi[  OK  ] Created slice system-getty.slice.getty.slice.
[    3.982191] random: systemd: uninitialized urandom read (16 bytes read, 39 bi[  OK  ] Listening on /dev/initctl Compatibility Named Pipe.y Named Pipe.
[    4.022213] random: systemd: uninitialized urandom read (16 bytes read, 39 bi[  OK  ] Listening on udev Control Socket.ntrol Socket.
[    4.052209] random: systemd: uninitialized urandom read (16 bytes read, 39 bi[  OK  ] Created slice system-serial\x2dgetty.slice.2dgetty.slice.
[    4.082726] random: systemd: uninitialized urandom read (16 bytes read, 39 bi[  OK  ] Listening on Journal Audit Socket.udit Socket.
[    4.112239] random: systemd: uninitialized urandom read (16 bytes read, 39 bi[  OK  ] Created slice User and Session Slice.Session Slice.
[    4.142190] random: systemd: uninitialized urandom read (16 bytes read, 39 bi[  OK  ] Reached target Remote File Systems.File Systems.
[    4.172304] random: systemd: uninitialized urandom read (16 bytes read, 39 bi▒+▒r▒▒▒▒▒systemd[1]: Started Dispatch Password Requests to Console Directory Wa[  OK  ] Started Dispatch Password Requests to Console Directory Watch.
[    4.212186] random: systemd: uninitialized urandom read (16 bytes read, 39 bi[  OK  ] Reached target Slices.arget Slices.
[  OK  ] Listening on udev Kernel Socket.dev Kernel Socket.
[  OK  ] Listening on Journal Socket.on Journal Socket.
         Starting Restore / save the current clock...e current clock...
         Mounting POSIX Message Queue File System...eue File System...
         Starting Remount Root and Kernel File Systems...el File Systems...
         Starting Nameserver information manager...rmation manager...
         Mounting Kernel Debug File System...bug File System...
[  OK  ] Listening on Journal Socket (/dev/log).Socket (/dev/log).
[  OK  ] Reached target System Time Synchronized.Time Synchronized.
[  OK  ] Listening on Syslog Socket. on Syslog Socket.
         Starting Journal Service...Journal Service...
[  OK  ] Started ntp-systemd-netif.path.ystemd-netif.path.
         Starting Create Static Device Nodes in /dev...e Nodes in /dev...
[    4.693006] systemd[1]: Started Forward Password Requests to Wall Directory W[  OK  ] Started Forward Password Requests to Wall Directory Watch.
[  OK  ] Reached target Local Encrypted Volumes.Encrypted Volumes.
         Starting Load Kernel Modules... Kernel Modules...
         Starting udev Coldplug all Devices...lug all Devices...
[  OK  ] Started Journal Service.d Journal Service.
[  OK  ] Started Restore / save the current clock.
[  OK  ] Mounted POSIX Message Queue File System.
[  OK  ] Started Remount Root and Kernel File Systems.
[  OK  ] Mounted Kernel Debug File System.
[  OK  ] Started Create Static Device Nodes in /dev.
[  OK  ] Started Load Kernel Modules.
[  OK  ] Started Nameserver information manager.
[  OK  ] Reached target Network (Pre).
         Starting Apply Kernel Variables...
[  OK  ] Reached target Local File Systems (Pre).
         Starting udev Kernel Device Manager...
[  OK  ] Reached target Local File Systems.
         Starting Enable support for additional executable binary formats...
         Starting Load/Save Random Seed...
         Activating swap /var/swap...
         Starting Flush Journal to Persistent Storage...
[  OK  ] Started Apply Kernel Variables.
[  OK  ] Started Enable support for additional executable binary formats.
         Starting Raise network interfaces...
[  OK  ] Started Load/Save Random Seed.
[  OK  ] Started udev Kernel Device Manager.
[  OK  ] Started udev Coldplug all Devices.
[  OK  ] Activated swap /var/swap.
[  OK  ] Reached target Swap.
[  OK  ] Found device /dev/ttyPS0.
[  OK  ] Started Flush Journal to Persistent Storage.
         Starting Create Volatile Files and Directories...
[  OK  ] Started Create Volatile Files and Directories.
         Starting Network Name Resolution...
         Starting Network Time Synchronization...
         Starting Update UTMP about System Boot/Shutdown...
[  OK  ] Started Update UTMP about System Boot/Shutdown.
[  OK  ] Started Network Name Resolution.
[  OK  ] Found device /sys/subsystem/net/devices/eth0.
[  OK  ] Started Network Time Synchronization.
[  OK  ] Started ifup for eth0.
[  OK  ] Reached target Host and Network Name Lookups.
[  OK  ] Reached target System Initialization.
[  OK  ] Started Discard unused blocks once a week.
[  OK  ] Started Message of the Day.
[  OK  ] Started Daily Cleanup of Temporary Directories.
[  OK  ] Started resolvconf-pull-resolved.path.
[  OK  ] Reached target Paths.
[  OK  ] Listening on D-Bus System Message Bus Socket.
[  OK  ] Reached target Sockets.
[  OK  ] Reached target Basic System.
         Starting System Logging Service...
         Starting PYNQ PL Server...
         Starting Login Service...
         Starting Resize Filesystem on SD card...
         Starting Jupyter Notebook Server...
         Starting resolvconf-pull-resolved.service...
[  OK  ] Started D-Bus System Message Bus.
[  OK  ] Started Login Service.
[  OK  ] Started Regular background program processing daemon.
[  OK  ] Started ntp-systemd-netif.service.
[  OK  ] Started Daily apt download activities.
[  OK  ] Started Daily apt upgrade and clean activities.
[  OK  ] Reached target Timers.
         Starting WPA supplicant...
[  OK  ] Started Set the CPU Frequency Scaling governor.
         Starting LSB: Load kernel modules needed to enable cpufreq scaling...
[  OK  ] Started System Logging Service.
[  OK  ] Started PYNQ PL Server.
[  OK  ] Started Resize Filesystem on SD card.
[  OK  ] Started resolvconf-pull-resolved.service.
[  OK  ] Started WPA supplicant.
[FAILED] Failed to start Raise network interfaces.
See 'systemctl status networking.service' for details.
[  OK  ] Reached target Network.
         Starting Permit User Sessions...
[  OK  ] Reached target Network is Online.
[  OK  ] Started ISC DHCP IPv6 server.
[  OK  ] Started ISC DHCP IPv4 server.
         Starting Samba NMB Daemon...
         Starting OpenBSD Secure Shell server...
[  OK  ] Started Unattended Upgrades Shutdown.
[  OK  ] Started Permit User Sessions.
[  OK  ] Started Getty on tty1.
[  OK  ] Started Serial Getty on ttyPS0.
[  OK  ] Reached target Login Prompts.
[  OK  ] Started LSB: Load kernel modules needed to enable cpufreq scaling.
         Starting LSB: set CPUFreq kernel parameters...
[  OK  ] Started LSB: set CPUFreq kernel parameters.
[  OK  ] Started OpenBSD Secure Shell server.
[  OK  ] Started Samba NMB Daemon.
         Starting Samba SMB Daemon...
[  OK  ] Started Samba SMB Daemon.
[  OK  ] Reached target Multi-User System.
[  OK  ] Reached target Graphical Interface.
         Starting Update UTMP about System Runlevel Changes...
[  OK  ] Started Update UTMP about System Runlevel Changes.

PYNQ Linux, based on Ubuntu 18.04 pynq ttyPS0

pynq login: xilinx (automatic login)

Last login: Mon Sep 10 19:44:12 UTC 2018 on ttyPS0
Welcome to PYNQ Linux, based on Ubuntu 18.04 (GNU/Linux 4.4.30-xillinux-2.0 armv7l)

#64 Re: DIY/综合/Arduino/写字机/3D打印机/智能小车/平衡车/四轴飞行/MQTT/物联网 » 捡了个便宜的高级ZYNQ XC7Z010 开发板玩玩 » 2021-01-05 22:06:22

pynq系统成功进入系统,但是才进入一会儿后系统就没反应了,这是怎么回事呢,就按照教程在群里下载的那些文件

#68 Re: 全志 SOC » 众人拾柴-F1C200S通过SPI使用ESP8089或ESP8266做无线网卡 » 2020-08-11 19:28:21

我也是,你的问题解决了吗

DoZh 说:

没辙了,怎么调试ESP8089/8266都没反应.

有没有哪位大佬能够指点一二?

用的是f1c100s的PA0-PA3做SPI1,ESP8089和8266都试过,换了几块板子了,感觉芯片都没有响应。。。

终端输出:

root@pop-os:~# insmod /lib/modules/5.2.0-licheepi-nano+/esp8089-spi.ko esp_reset_gpio=130 esp_cs0_pin=0 esp_interrupt=131
[  100.487205] esp8089_spi: loading out-of-tree module taints kernel.
[  100.502255] esp8089_spi: EAGLE DRIVER VER bdf5087c3deb
[  101.107979] esp8089_spi: esp_spi_dummy_probe enter
[  101.113372] esp8089_spi: register board OK
[  101.117707] esp8089_spi: sem_timeout = 0
[  101.339049] esp8089_spi: ESP8089 power up OK
[  101.344184] esp8089_spi: esp_spi_probe ENTER
[  101.348713] esp8089_spi: esp_setup_spi
[  101.352844] esp8089_spi: sif_spi_protocol_init
[  101.357535] esp8089_spi: /home/dozh/embedded_linux/f1c200s/ESP8089-SPI/spi_sif_esp.c, 1559
[  101.366256] esp8089_spi: fail_count = 0
[  101.484912] rx:[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00]
[  101.593085] esp8089_spi: /home/dozh/embedded_linux/f1c200s/ESP8089-SPI/spi_sif_esp.c, 1559
[  101.601821] esp8089_spi: fail_count = 1
[  101.711623] rx:[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00]
[  101.819797] esp8089_spi: /home/dozh/embedded_linux/f1c200s/ESP8089-SPI/spi_sif_esp.c, 1559
[  101.828460] esp8089_spi: fail_count = 2
[  101.938086] rx:[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00]
[  102.046329] esp8089_spi: /home/dozh/embedded_linux/f1c200s/ESP8089-SPI/spi_sif_esp.c, 1559
[  102.055057] esp8089_spi: fail_count = 3
[  102.170503] rx:[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00]
[  102.290458] esp8089_spi: /home/dozh/embedded_linux/f1c200s/ESP8089-SPI/spi_sif_esp.c, 1559
[  102.311082] esp8089_spi: fail_count = 4
[  102.427085] rx:[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00]
[  102.546976] esp8089_spi: /home/dozh/embedded_linux/f1c200s/ESP8089-SPI/spi_sif_esp.c, 1559
[  102.567478] esp8089_spi: fail_count = 5
[  102.683231] rx:[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00]
[  102.803629] esp8089_spi: /home/dozh/embedded_linux/f1c200s/ESP8089-SPI/spi_sif_esp.c, 1559
[  102.825123] esp8089_spi: fail_count = 6
[  102.941701] rx:[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00]
[  103.063014] esp8089_spi: /home/dozh/embedded_linux/f1c200s/ESP8089-SPI/spi_sif_esp.c, 1559
[  103.084966] esp8089_spi: fail_count = 7
[  103.201628] rx:[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00]
[  103.322898] esp8089_spi: /home/dozh/embedded_linux/f1c200s/ESP8089-SPI/spi_sif_esp.c, 1559
[  103.344858] esp8089_spi: fail_count = 8
[  103.461802] rx:[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00]
[  103.583043] esp8089_spi: /home/dozh/embedded_linux/f1c200s/ESP8089-SPI/spi_sif_esp.c, 1559
[  103.604976] esp8089_spi: fail_count = 9
[  103.721343] rx:[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00]
[  103.842613] esp8089_spi: /home/dozh/embedded_linux/f1c200s/ESP8089-SPI/spi_sif_esp.c, 1559
[  103.864570] esp8089_spi: fail_count = 10
[  103.981306] rx:[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00],[0x00]
[  104.102631] esp8089_spi: first error exit
[  104.113547] esp8089_spi: esp_spi_probe EXIT
[  104.124558] eagle: probe of spi1.0 failed with error -110
[  104.137024] esp8089_spi: sem_timeout = 0
[  104.147740] esp8089_spi: esp_spi_init err 0
root@pop-os:~#

原理图:
https://whycan.cn/files/members/2701/Snipaste_2020-07-28_22-35-28.png


逻辑分析仪吐出来的时序图:
https://whycan.cn/files/members/2701/Snipaste_2020-07-28_22-42-07.png
https://whycan.cn/files/members/2701/Snipaste_2020-07-28_22-48-52.png

ESP8266串口0输出的启动信息:

 ets Jan  8 2013,rst cause:1, boot mode:(6,2)


 ets Jan  8 2013,rst cause:1, boot mode:(6,6)

waiting for host

 ets Jan  8 2013,rst cause:1, boot mode:(6,6)

waiting for host

#69 Re: 全志 SOC » 众人拾柴-F1C200S通过SPI使用ESP8089或ESP8266做无线网卡 » 2020-08-11 18:49:48

我的几乎都是这样,可能几十次之中会有一个能够接受到数据的

root@lign-G3-3579:~# insmod esp8089-spi.ko esp_reset_gpio=100 esp_interrupt=101
[   40.118584] esp8089_spi: loading out-of-tree module taints kernel.
[   40.141832] esp8089_spi: EAGLE DRIVER VER bdf5087c3deb
[   40.747336] esp8089_spi: esp_spi_dummy_probe enter
[   40.752689] esp8089_spi: register board OK
[   40.757011] esp8089_spi: sem_timeout = 0
[   40.978375] esp8089_spi: ESP8089 power up OK
[   40.983429] esp8089_spi: esp_spi_probe ENTER
[   40.987947] esp8089_spi: esp_setup_spi
[   41.029403] esp8089_spi: sif_spi_protocol_init
[   41.034135] esp8089_spi: /home/lign/work/lichee/linux_sd/ESP8089-SPI/spi_sif_esp.c, 1559
[   41.042747] esp8089_spi: fail_count = 0
[   41.179144] rx:[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff]
[   41.287232] esp8089_spi: /home/lign/work/lichee/linux_sd/ESP8089-SPI/spi_sif_esp.c, 1559
[   41.295755] esp8089_spi: fail_count = 1
[   41.408015] rx:[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff]
[   41.516195] esp8089_spi: /home/lign/work/lichee/linux_sd/ESP8089-SPI/spi_sif_esp.c, 1559
[   41.524725] esp8089_spi: fail_count = 2
[   41.636543] rx:[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff]
[   41.744690] esp8089_spi: /home/lign/work/lichee/linux_sd/ESP8089-SPI/spi_sif_esp.c, 1559
[   41.753208] esp8089_spi: fail_count = 3
[   41.866619] rx:[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff]
[   41.974690] esp8089_spi: /home/lign/work/lichee/linux_sd/ESP8089-SPI/spi_sif_esp.c, 1559
[   41.994558] esp8089_spi: fail_count = 4
[   42.115036] rx:[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff]
[   42.234544] esp8089_spi: /home/lign/work/lichee/linux_sd/ESP8089-SPI/spi_sif_esp.c, 1559
[   42.254508] esp8089_spi: fail_count = 5
[   42.383613] rx:[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff]
[   42.503734] esp8089_spi: /home/lign/work/lichee/linux_sd/ESP8089-SPI/spi_sif_esp.c, 1559
[   42.524648] esp8089_spi: fail_count = 6
[   42.649902] rx:[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff]
[   42.770822] esp8089_spi: /home/lign/work/lichee/linux_sd/ESP8089-SPI/spi_sif_esp.c, 1559
[   42.792176] esp8089_spi: fail_count = 7
[   42.913071] rx:[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff]
[   43.033852] esp8089_spi: /home/lign/work/lichee/linux_sd/ESP8089-SPI/spi_sif_esp.c, 1559
[   43.055174] esp8089_spi: fail_count = 8
[   43.173997] rx:[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff]
[   43.294812] esp8089_spi: /home/lign/work/lichee/linux_sd/ESP8089-SPI/spi_sif_esp.c, 1559
[   43.316164] esp8089_spi: fail_count = 9
[   43.513360] rx:[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff]
[   43.634279] esp8089_spi: /home/lign/work/lichee/linux_sd/ESP8089-SPI/spi_sif_esp.c, 1559
[   43.655658] esp8089_spi: fail_count = 10
[   43.775698] rx:[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff],[0xff]
[   43.896530] esp8089_spi: first error exit
[   43.907218] esp8089_spi: esp_spi_probe EXIT
[   43.918009] eagle: probe of spi1.0 failed with error -110
[   43.930260] esp8089_spi: sem_timeout = 0
[   43.940746] esp8089_spi: esp_spi_init err 0

#70 Re: 全志 SOC » F1C100 使用GPIO模拟SPI 驱动 st7789手表屏 » 2020-08-05 10:47:28

没直接插那座子的屏幕。等之后有了在调那边的接口

#71 Re: 全志 SOC » Debian 9.9 (stretch) 文件系统制作 » 2020-08-04 23:44:43

如果要编译应用程序或者驱动,要使用什么交叉编译链呢?难道只能在板子里依靠debian编译吗?

#72 Re: 全志 SOC » 众人拾柴-F1C200S文件系统构建 » 2020-08-04 21:18:27

在这里存一个我的debian系统启动日志,在ubuntu20.04LTS编译的,里面还有一堆问题,慢慢解决吧

U-Boot SPL 2018.01-05679-g013ca457fd (Aug 04 2020 - 19:41:13)
DRAM: 32 MiB
Trying to boot from MMC1


U-Boot 2018.01-05679-g013ca457fd (Aug 04 2020 - 19:41:13 +0800) Allwinner Technology

CPU:   Allwinner F Series (SUNIV)
Model: Lichee Pi Nano
DRAM:  32 MiB
MMC:   SUNXI SD/MMC: 0
*** Warning - bad CRC, using default environment

In:    serial@1c25000
Out:   serial@1c25000
Err:   serial@1c25000
Net:   No ethernet found.
starting USB...
No controllers found
Hit any key to stop autoboot:  0
switch to partitions #0, OK
mmc0 is current device
Scanning mmc 0:1...
Found U-Boot script /boot.scr
reading /boot.scr
279 bytes read in 15 ms (17.6 KiB/s)
## Executing script at 80c50000
reading suniv-f1c100s-licheepi-nano.dtb
7583 bytes read in 26 ms (284.2 KiB/s)
reading zImage
3836280 bytes read in 202 ms (18.1 MiB/s)
## Flattened Device Tree blob at 80c00000
   Booting using the fdt blob at 0x80c00000
   Loading Device Tree to 816fb000, end 816ffd9e ... OK

Starting kernel ...

[    0.000000] Booting Linux on physical CPU 0x0
[    0.000000] Linux version 4.15.0-rc8-licheepi-nano+ (lign@lign-G3-3579) (gcc version 7.2.1 20171011 (Lina0
[    0.000000] CPU: ARM926EJ-S [41069265] revision 5 (ARMv5TEJ), cr=0005317f
[    0.000000] CPU: VIVT data cache, VIVT instruction cache
[    0.000000] OF: fdt: Machine model: Lichee Pi Nano
[    0.000000] Memory policy: Data cache writeback
[    0.000000] random: fast init done
[    0.000000] Built 1 zonelists, mobility grouping on.  Total pages: 8128
[    0.000000] Kernel command line: console=tty0 console=ttyS0,115200 panic=5 rootwait root=/dev/mmcblk0p2 rw
[    0.000000] Dentry cache hash table entries: 4096 (order: 2, 16384 bytes)
[    0.000000] Inode-cache hash table entries: 2048 (order: 1, 8192 bytes)
[    0.000000] Memory: 22684K/32768K available (6144K kernel code, 236K rwdata, 1388K rodata, 1024K init, 24)
[    0.000000] Virtual kernel memory layout:
[    0.000000]     vector  : 0xffff0000 - 0xffff1000   (   4 kB)
[    0.000000]     fixmap  : 0xffc00000 - 0xfff00000   (3072 kB)
[    0.000000]     vmalloc : 0xc2800000 - 0xff800000   ( 976 MB)
[    0.000000]     lowmem  : 0xc0000000 - 0xc2000000   (  32 MB)
[    0.000000]     pkmap   : 0xbfe00000 - 0xc0000000   (   2 MB)
[    0.000000]     modules : 0xbf000000 - 0xbfe00000   (  14 MB)
[    0.000000]       .text : 0x(ptrval) - 0x(ptrval)   (7136 kB)
[    0.000000]       .init : 0x(ptrval) - 0x(ptrval)   (1024 kB)
[    0.000000]       .data : 0x(ptrval) - 0x(ptrval)   ( 237 kB)
[    0.000000]        .bss : 0x(ptrval) - 0x(ptrval)   ( 245 kB)
[    0.000000] SLUB: HWalign=32, Order=0-3, MinObjects=0, CPUs=1, Nodes=1
[    0.000000] NR_IRQS: 16, nr_irqs: 16, preallocated irqs: 16
[    0.000045] sched_clock: 32 bits at 24MHz, resolution 41ns, wraps every 89478484971ns
[    0.000109] clocksource: timer: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 79635851949 ns
[    0.000632] Console: colour dummy device 80x30
[    0.001541] console [tty0] enabled
[    0.001646] Calibrating delay loop... 203.16 BogoMIPS (lpj=1015808)
[    0.070279] pid_max: default: 32768 minimum: 301
[    0.070614] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes)
[    0.070708] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes)
[    0.072156] CPU: Testing write buffer coherency: ok
[    0.073847] Setting up static identity map for 0x80100000 - 0x80100058
[    0.076430] devtmpfs: initialized
[    0.082710] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000s
[    0.082874] futex hash table entries: 256 (order: -1, 3072 bytes)
[    0.083179] pinctrl core: initialized pinctrl subsystem
[    0.085175] NET: Registered protocol family 16
[    0.086605] DMA: preallocated 256 KiB pool for atomic coherent allocations
[    0.088461] cpuidle: using governor menu
[    0.113667] SCSI subsystem initialized
[    0.114081] usbcore: registered new interface driver usbfs
[    0.114284] usbcore: registered new interface driver hub
[    0.114536] usbcore: registered new device driver usb
[    0.115023] pps_core: LinuxPPS API ver. 1 registered
[    0.115102] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>
[    0.115226] PTP clock support registered
[    0.115711] Advanced Linux Sound Architecture Driver Initialized.
[    0.117263] clocksource: Switched to clocksource timer
[    0.142997] NET: Registered protocol family 2
[    0.144457] TCP established hash table entries: 1024 (order: 0, 4096 bytes)
[    0.144610] TCP bind hash table entries: 1024 (order: 0, 4096 bytes)
[    0.144698] TCP: Hash tables configured (established 1024 bind 1024)
[    0.145008] UDP hash table entries: 256 (order: 0, 4096 bytes)
[    0.145116] UDP-Lite hash table entries: 256 (order: 0, 4096 bytes)
[    0.145623] NET: Registered protocol family 1
[    0.146863] RPC: Registered named UNIX socket transport module.
[    0.146973] RPC: Registered udp transport module.
[    0.147022] RPC: Registered tcp transport module.
[    0.147069] RPC: Registered tcp NFSv4.1 backchannel transport module.
[    0.149374] NetWinder Floating Point Emulator V0.97 (double precision)
[    0.151230] Initialise system trusted keyrings
[    0.151847] workingset: timestamp_bits=30 max_order=13 bucket_order=0
[    0.169096] NFS: Registering the id_resolver key type
[    0.169266] Key type id_resolver registered
[    0.169324] Key type id_legacy registered
[    0.182591] Key type asymmetric registered
[    0.182700] Asymmetric key parser 'x509' registered
[    0.182939] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 251)
[    0.183034] io scheduler noop registered
[    0.183081] io scheduler deadline registered
[    0.183856] io scheduler cfq registered (default)
[    0.183952] io scheduler mq-deadline registered
[    0.184006] io scheduler kyber registered
[    0.185120] sun4i-usb-phy 1c13400.phy: Couldn't request ID GPIO
[    0.194687] suniv-pinctrl 1c20800.pinctrl: initialized sunXi PIO driver
[    0.360320] Serial: 8250/16550 driver, 8 ports, IRQ sharing disabled
[    0.366874] console [ttyS0] disabled
[    0.387192] 1c25000.serial: ttyS0 at MMIO 0x1c25000 (irq = 23, base_baud = 6250000) is a 16550A
[    0.858334] console [ttyS0] enabled
[    0.868820] panel-simple panel: panel supply power not found, using dummy regulator
[    0.878297] SCSI Media Changer driver v0.25
[    0.885945] m25p80 spi0.0: w25q128 (16384 Kbytes)
[    0.893356] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[    0.900090] ehci-platform: EHCI generic platform driver
[    0.905660] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
[    0.912020] ohci-platform: OHCI generic platform driver
[    0.917753] usbcore: registered new interface driver usb-storage
[    0.924746] udc-core: couldn't find an available UDC - added [g_cdc] to list of pending drivers
[    0.933893] i2c /dev entries driver
[    0.997390] sunxi-mmc 1c0f000.mmc: base:0x19fc4356 irq:19
[    1.004869] usbcore: registered new interface driver usbhid
[    1.010644] usbhid: USB HID core driver
[    1.032408] NET: Registered protocol family 17
[    1.037187] Key type dns_resolver registered
[    1.043918] Loading compiled-in X.509 certificates
[    1.059894] sun4i-drm display-engine: bound 1e60000.display-backend (ops 0xc0739498)
[    1.068873] sun4i-drm display-engine: bound 1c0c000.lcd-controller (ops 0xc073877c)
[    1.076627] [drm] Supports vblank timestamp caching Rev 2 (21.10.2013).
[    1.083392] [drm] No driver support for vblank timestamp query.
[    1.139881] Console: switching to colour frame buffer device 60x34
[    1.142302] mmc0: host does not support reading read-only switch, assuming write-enable
[    1.144425] mmc0: new high speed SDHC card at address aaaa
[    1.145530] mmcblk0: mmc0:aaaa SU04G 3.69 GiB
[    1.147775]  mmcblk0: p1 p2
[    1.210025] sun4i-drm display-engine: fb0:  frame buffer device
[    1.229452] [drm] Initialized sun4i-drm 1.0.0 20150629 for display-engine on minor 0
[    1.251131] usb_phy_generic usb_phy_generic.0.auto: usb_phy_generic.0.auto supply vcc not found, using dur
[    1.281958] musb-hdrc musb-hdrc.1.auto: MUSB HDRC host driver
[    1.300729] musb-hdrc musb-hdrc.1.auto: new USB bus registered, assigned bus number 1
[    1.323889] hub 1-0:1.0: USB hub found
[    1.334487] hub 1-0:1.0: 1 port detected
[    1.346660] using random self ethernet address
[    1.357775] using random host ethernet address
[    1.370414] usb0: HOST MAC 9e:9e:f1:32:4e:96
[    1.381226] usb0: MAC 7a:14:56:71:d9:b6
[    1.391517] g_cdc gadget: CDC Composite Gadget, version: King Kamehameha Day 2008
[    1.411527] g_cdc gadget: g_cdc ready
[    1.422311] cfg80211: Loading compiled-in X.509 certificates for regulatory database
[    1.452108] cfg80211: Loaded X.509 cert 'sforshee: 00b28ddf47aef9cea7'
[    1.471288] ALSA device list:
[    1.480526]   #0: Loopback 1
[    1.490371] platform regulatory.0: Direct firmware load for regulatory.db failed with error -2
[    1.511183] cfg80211: failed to load regulatory.db
[    1.525074] EXT4-fs (mmcblk0p2): couldn't mount as ext3 due to feature incompatibilities
[    4.375320] random: crng init done
[   13.218522] EXT4-fs (mmcblk0p2): recovery complete
[   13.231022] EXT4-fs (mmcblk0p2): mounted filesystem with ordered data mode. Opts: (null)
[   13.251163] VFS: Mounted root (ext4 filesystem) on device 179:2.
[   13.269447] devtmpfs: mounted
[   13.283054] Freeing unused kernel memory: 1024K
[   13.806441] systemd[1]: System time before build time, advancing clock.
[   13.843921] systemd[1]: Failed to insert module 'autofs4': No such file or directory
[   13.907908] systemd[1]: systemd 232 running in system mode. (+PAM +AUDIT +SELINUX +IMA +APPARMOR +SMACK +)
[   13.951686] systemd[1]: Detected architecture arm.

Welcome to Debian GNU/Linux 9 (stretch)!

[   13.999607] systemd[1]: Set hostname to <lign-G3-3579>.
[   15.579686] systemd[1]: Started Dispatch Password Requests to Console Directory Watch.
[  OK  ] Started Dispatch Password Requests to Console Directory Watch.
[   15.639666] systemd[1]: Created slice System Slice.
[  OK  ] Created slice System Slice.
[   15.695221] systemd[1]: Mounting Debug File System...
         Mounting Debug File System...
[   15.717544] systemd[1]: Created slice system-serial\x2dgetty.slice.
[  OK  ] Created slice system-serial\x2dgetty.slice.
[   15.781726] systemd[1]: Listening on Journal Socket.
[  OK  ] Listening on Journal Socket.
[   15.834835] systemd[1]: Starting Remount Root and Kernel File Systems...
         Starting Remount Root and Kernel File Systems...
[   15.965658] systemd[1]: Starting Load Kernel Modules...
         Starting Load Kernel Modules...
[  OK  ] Reached target Swap.
[  OK  ] Listening on Journal Socket (/dev/log).
[  OK  ] Listening on udev Kernel Socket.
[  OK  ] Listening on udev Control Socket.
[  OK  ] Started Forward Password Requests to Wall Directory Watch.
[  OK  ] Reached target Paths.
         Starting Create Static Device Nodes in /dev...
[  OK  ] Created slice system-getty.slice.
[  OK  ] Reached target Encrypted Volumes.
[  OK  ] Listening on Syslog Socket.
         Starting Journal Service...
[  OK  ] Reached target Remote File Systems.
[  OK  ] Listening on /dev/initctl Compatibility Named Pipe.
[  OK  ] Reached target Sockets.
[  OK  ] Reached target Slices.
[  OK  ] Mounted Debug File System.
[  OK  ] Started Remount Root and Kernel File Systems.
[  OK  ] Started Load Kernel Modules.
[  OK  ] Started Create Static Device Nodes in /dev.
         Starting udev Kernel Device Manager...
         Mounting Configuration File System...
         Starting Apply Kernel Variables...
         Starting Load/Save Random Seed...
         Starting udev Coldplug all Devices...
[  OK  ] Reached target Local File Systems (Pre).
[  OK  ] Reached target Local File Systems.
[  OK  ] Mounted Configuration File System.
[  OK  ] Started Apply Kernel Variables.
         Starting Raise network interfaces...
[  OK  ] Started Load/Save Random Seed.
[  OK  ] Started udev Kernel Device Manager.
[  OK  ] Started Journal Service.
         Starting Flush Journal to Persistent Storage...
[   18.629046] systemd-journald[78]: Received request to flush runtime journal from PID 1
[  OK  ] Started Flush Journal to Persistent Storage.
         Starting Create Volatile Files and Directories...
[  OK  ] Started Create Volatile Files and Directories.
         Starting Update UTMP about System Boot/Shutdown...
         Starting Network Time Synchronization...
[  OK  ] Started Network Time Synchronization.
[  OK  ] Started Update UTMP about System Boot/Shutdown.
[  OK  ] Started Raise network interfaces.
[  OK  ] Reached target Network.
[  OK  ] Reached target System Time Synchronized.
[  OK  ] Reached target Sound Card.
[  OK  ] Started udev Coldplug all Devices.
[  OK  ] Reached target System Initialization.
[  OK  ] Started Daily Cleanup of Temporary Directories.
[  OK  ] Reached target Basic System.
         Starting getty on tty2-tty6 if dbus and logind are not available...
[  OK  ] Started Regular background program processing daemon.
         Starting System Logging Service...
         Starting Permit User Sessions...
[  OK  ] Started Daily apt download activities.
[  OK  ] Started Daily apt upgrade and clean activities.
[  OK  ] Reached target Timers.
[  OK  ] Found device /dev/ttyS0.
[  OK  ] Started System Logging Service.
[  OK  ] Started Permit User Sessions.
[  OK  ] Started getty on tty2-tty6 if dbus and logind are not available.
[  OK  ] Started Getty on tty6.
[  OK  ] Started Getty on tty5.
[  OK  ] Started Getty on tty4.
[  OK  ] Started Getty on tty3.
[  OK  ] Started Getty on tty2.
[  OK  ] Started Getty on tty1.
[  OK  ] Started Serial Getty on ttyS0.
[  OK  ] Reached target Login Prompts.
[  OK  ] Reached target Multi-User System.
[  OK  ] Reached target Graphical Interface.
         Starting Update UTMP about System Runlevel Changes...
[  OK  ] Started Update UTMP about System Runlevel Changes.

Debian GNU/Linux 9 lign-G3-3579 ttyS0

lign-G3-3579 login: lign
Password:

Login incorrect
lign-G3-3579 login: root
Password:
Linux lign-G3-3579 4.15.0-rc8-licheepi-nano+ #1 Tue Aug 4 10:58:22 CST 2020 armv5tejl

The programs included with the Debian GNU/Linux system are free software;
the exact distribution terms for each program are described in the
individual files in /usr/share/doc/*/copyright.

Debian GNU/Linux comes with ABSOLUTELY NO WARRANTY, to the extent
permitted by applicable law.
root@lign-G3-3579:~#

#73 Re: 全志 SOC » 成功在f1c100s上运行debian系统 » 2020-08-04 10:35:06

https://mirrors.tuna.tsinghua.edu.cn/debian/
楼主那个网址我使用了没反应,然后我就进入那个网址,它自动跳到了这个网址,我就直接使用了这个

#74 Re: 全志 SOC » F1C100 使用GPIO模拟SPI 驱动 st7789手表屏 » 2020-08-03 18:17:20

成功了,现在是成功初始化,显示白色,但是我不会让它显示其他东西,还在学

smartcar 说:

按上面这个配置,驱动9bit st7789成功了吗?

#75 Re: 全志 SOC » F1C100 使用GPIO模拟SPI 驱动 st7789手表屏 » 2020-08-02 23:17:22

然后在fbtft的源码里发现可以用8位的spi去模拟,这才明白,下一版就会接到硬件spi上

#76 Re: 全志 SOC » F1C100 使用GPIO模拟SPI 驱动 st7789手表屏 » 2020-08-02 23:16:01

开始是因为屏是用9位spi,而f1c100s不支持9位,就没想着去用硬件spi,画板子就直接就近找的引脚,为了方便我就用了模拟spi,不用再跳线

#77 Re: 全志 SOC » F1C100 使用GPIO模拟SPI 驱动 st7789手表屏 » 2020-08-02 22:18:36

才学linux几天,驱动还不怎么会写,还在看 tongue

#78 Re: 全志 SOC » F1C100 使用GPIO模拟SPI 驱动 st7789手表屏 » 2020-08-02 22:16:53

最后是fbtft的设置:
内核配置

Device Drivers  --->
    [*] Staging driverst  --->
        <*>   Support for small TFT LCD display modules --->
                  <*> FB driver for the ST7789V LCD Controller
                  <*> Generic ....
                  <*> Module .....

把这些都编译进内核,修改dts文件,添加st7789的节点(参考的荔枝派 zero的点屏之SPI屏
根节点下/

spi2:spi2{
		compatible = "spi-gpio";
		#address-cells = <0x1>;
        #size-cells = <0>;
		//ranges;
		gpio-miso = <&pio 3 3 1>;
		gpio-mosi = <&pio 3 4 1>;
        gpio-sck  = <&pio 3 5 1>;
		cs-gpios  = <&pio 3 6 1>;
		num-chipselects = <1>;

        pinctrl-names = "default";
        pinctrl-0 = <&spi2_pins_a>;
        spidev2 {
            status="disable";
            #address-cells = <1>;
            #size-cells = <0>;
            compatible = "rohm,dh2228fv";
            spi-max-frequency = <20000000>;
            reg = <0>;

        };
        st7789 {
            compatible = "sitronix,st7789v";
            reg = <0>;

            spi-max-frequency = <50000000>;
            rotate = <270>;
            bgr;
            width=<240>;
            height=<240>;
            fps = <30>;
            buswidth = <9>;
            reset-gpios = <&pio 3 0 GPIO_ACTIVE_LOW>;
            //dc-gpios = <&pio 1 5 GPIO_ACTIVE_LOW>;
            debug = <0>;
    };

pio节点里

&pio{

    spi2_pins_a: spi2-pins-pc {
				pins = "PD3", "PD4", "PD5", "PD6";
				function = "gpio_out";
                 bias-pull-up;
			};
};

可以看这个修改屏幕的一些参数FBTFT devices tree

烧录进去后屏幕会在内核启动时初始化为白色,启动日志中有fb相关的启动

#79 Re: 全志 SOC » F1C100 使用GPIO模拟SPI 驱动 st7789手表屏 » 2020-08-02 22:02:42

首先是gpio模拟spi,在linux的

Device Drivers  --->
    [*] SPI support  --->
        <*>   GPIO-based bitbanging SPI Master

这里开启,然后在设备树的根节点下添加节点

 spi2:spi2{
		compatible = "spi-gpio";
		#address-cells = <0x1>;
        #size-cells = <0>;
		//ranges;
		gpio-miso = <&pio 3 3 1>;
		gpio-mosi = <&pio 3 4 1>;
        gpio-sck  = <&pio 3 5 1>;
		cs-gpios  = <&pio 3 6 1>;
		num-chipselects = <1>;

        pinctrl-names = "default";
        pinctrl-0 = <&spi2_pins_a>;
        spidev2 {
            status="disable";
            #address-cells = <1>;
            #size-cells = <0>;
            compatible = "rohm,dh2228fv";
            spi-max-frequency = <20000000>;
            reg = <0>;

        };


	};

这里添加了一个测试设备,可以用tools/spi里面的测试文件进行测试spi是否配置成功
其中pinctrl是这么配置的

&pio{
    spi2_pins_a: spi2-pins-pc {
				pins = "PD3", "PD4", "PD5", "PD6";
				function = "gpio_out";
                 bias-pull-up;
			};
};

只在spi2那里面设置引脚是并不能直接使用的,虽然能在系统中找到设备,但是连接miso和mosi后操作spi发送信息并不会收到任何信息,gpio的表现为没有配置,没有任何变化

#80 全志 SOC » F1C100 使用GPIO模拟SPI 驱动 st7789手表屏 » 2020-08-02 21:52:47

lignin
回复: 18

研究了好几天,终于驱动成功了,一堆问题,发个帖子来记录下
spi:使用linux提供的GPIO-based bitbanging SPI Master ,然后在dts文件里添加spi节点
tft:使用的是fbtft提供的屏幕驱动,挂在上面生成的模拟spi下面
还存在很多问题,但暂时是可以将屏幕初始化了,可以参考一下

#81 Re: 全志 SOC » v3s 怎么使用gpio模拟iic » 2020-08-02 20:03:27

在pinctrl里面要声明使用的引脚,然后在使用它gpio模拟iic的,应该是类似的
可以参考一下这个gpio模拟spi的例子

在根节点下加入
    spi2:spi2{
        compatible = "spi-gpio";
        #address-cells = <0x1>;
        #size-cells = <0>;
        //ranges;
        gpio-sck = <&pio 3 0 1>;
        gpio-miso = <&pio 3 1 1>;
        gpio-mosi = <&pio 3 2 1>;
        cs-gpios = <&pio 3 3 1>;
        num-chipselects = <1>;

        pinctrl-names = "default";//注意这两排
        pinctrl-0 = <&spi2_pins_a>;//
        spidev2 {
             #address-cells = <1>;
            #size-cells = <0>;
            compatible = "rohm,dh2228fv";
            spi-max-frequency = <20000000>;
            reg = <0>;

        };

    };


在pinctrl里面加入
&pio{

    spi2_pins_a: spi2-pins-pc {
                pins = "PD0", "PD1", "PD2", "PD3";
                function = "gpio_out";
                                bias-pull-up;
            };
};

#82 Re: 全志 SOC » F1C100s的USB可以直接当U盘插在电脑上用吗 » 2020-07-25 10:46:18

现在使用的是lrzsz来传输文件,现在板子中输入lrz然后在使用串口发送文件到板子上,终于不用重新烧录文件了

#83 Re: 全志 SOC » F1C200S 移植完Linux后怎么做应用开发 » 2020-07-25 01:36:26

我也在学,在看b站的视频,先跟着学一下基础,后面再自己看文档

#84 全志 SOC » 使用F1C100学习linux驱动开发 » 2020-07-24 22:57:04

lignin
回复: 1

一、linux驱动入门之hello驱动
按照B站的韦东山的视频学习的,入门linux
【韦东山】韦东山升级版全系列嵌入式视频_快速入门篇
文件中使用的是

CROSS_COMPILE=arm-linux-

编译的,此编译链来自buildroot,已经生成了ko文件和应用程序可执行文件,可下载到板子上运行
(需要先将编译链加入path)

export PATH=$PATH:/home/lign/work/lichee/buildroot-2018.11-rc3/output/host/bin

直接使用make命令生成(使用buildroot的编译链,在makefile中可更改)
linux文件夹的位置也需要更改


01_hello_drv.zip

#86 Re: 全志 SOC » 写了一个f1c100s gpio工具,方便命令行操作gpio,开源分享 » 2020-07-24 12:42:06

我也才开始学,看的b站的视频,还有荔枝派zero的文档学,向大佬学习

kekemuyu 说:

感谢分享,很有用。大神能不能打包一个f1c100s的带所有常用外设驱动的spi-flash镜像,我等小白刚买的licheepi开发板官方镜像外设只有gpio能用,编译内核对于新手太复杂了,得慢慢学,有个可用的镜像就好了

#87 Re: 全志 SOC » F1C100s的USB可以直接当U盘插在电脑上用吗 » 2020-07-24 11:38:46

或者直接使用tf卡来传?(我的系统只使用了spi falsh)

#88 全志 SOC » F1C100s的USB可以直接当U盘插在电脑上用吗 » 2020-07-24 11:16:52

lignin
回复: 4

想向F1C100s里面传文件,有好的方式吗?没有网络,只有一片F1C100s,多次擦写flash似乎也不太好,就是传一些自己写的模块什么的,比较小

#89 Re: 全志 SOC » 荔枝派nano烧写16M的spiflash后启动异常 » 2020-07-23 23:33:51

我按照韦东山的教程编译了个hello world驱动,,因为编译链的原因,要么显示line 1: syntax error: word unexpected (expecting ") .再不就是找不到这个文件,明明文件就在这里。最后还是看到晕哥写的这个才注意到buildroot使用的是自己的编译链,弄了一个下午加晚上,总算是会写helloworld了

#90 Re: 全志 SOC » buildroot到底用哪个版本不需要下载很多资源包?? » 2020-07-19 14:59:31

自己配置的很精简的那种就不会下载很多,出来的文件大小也很小

#91 Re: 全志 SOC » F1C100S原理图PCB可直接打样 » 2020-07-07 08:50:51

板上就一个flash和SD卡插口,不过这个对我这种第一次画的人有很大的借鉴意义,感谢大佬

#92 Re: ESP32/ESP8266 » 穷得只剩下ESP32开发板了. » 2020-05-24 23:11:34

,,,我就只有一个esp32和一个esp8266,,
现在esp320-s2出来了,可以去玩玩,多了很多东西

#93 Re: ESP32/ESP8266 » I2S信号正确的标准是什么? » 2020-05-24 23:09:49

我从stm32学的I2S,stm32的SPI可以弄成I2S,不过我没有按照他那样配置,而是直接cubeMX初始话的
多了一根WS线,用于左右声道的选择,一般要配置的就是频率还有数据的位宽,这两个我现在觉得比较重要,我也才开始玩音频芯片

#94 Re: 全志 SOC » F1C100S做的串口屏硬件图纸分享,有需要的可以联系,坛友优惠价 » 2020-05-24 23:02:27

这个不错,正准备画个板子,向大佬学习
这个的屏幕接线是RGB接口的吗

#95 Re: 全志 SOC » 尝试从零构建F1C100s开发环境 » 2020-04-19 17:02:08

我也想玩F1C100S了,正在找相关原理图看看怎么设计,支持楼主

#97 DIY/综合/Arduino/写字机/3D打印机/智能小车/平衡车/四轴飞行/MQTT/物联网 » SV6266 -汉枫LPD100 » 2020-04-19 16:56:57

lignin
回复: 3

南方硅谷的SV6266 一款双频WIFi,可以使用AliOS Thing,有一起玩的吗,有完整的SDK和下载工具

#98 Re: Cortex M0/M3/M4/M7 » 请问你们写stm32时,用寄存器,还是库函数? » 2020-04-19 16:53:44

用库函数,不需要经常去翻文档,方便在不同板子之间移植

页脚

工信部备案:粤ICP备20025096号 Powered by FluxBB

感谢为中文互联网持续输出优质内容的各位老铁们。 QQ: 516333132, 微信(wechat): whycan_cn (哇酷网/挖坑网/填坑网) service@whycan.cn
