适用于启明云端的SSD201,SSD202核心板，引出了双USB接口，网口，TF卡接口，调试串口通过CH340G转micro USB引出，剩下两个串口通过4pinXH2.0插座引出，液晶屏引出50pin标准RGB接口，引出电阻触摸屏接口，板子可以配套淘宝上2元一个的PLC工控盒壳体哦，

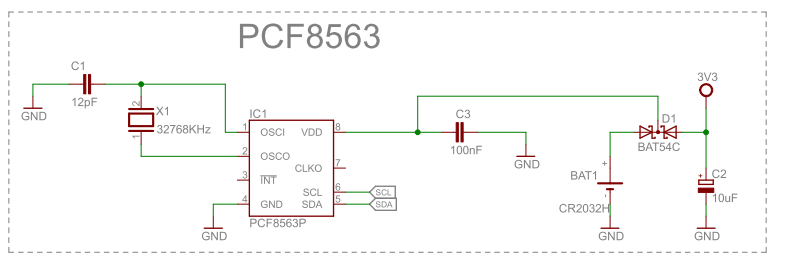

，另外板子大小控制在10*10以内，可以薅嘉立创5元羊毛哦，RTC部份没画好，暂时没时间改，这个月我的薅羊毛机会也用完了，等下个月出实物了，这里提前分享一下。

modprobe usbserial
echo 1782 4e00 > /sys/bus/usb-serial/drivers/generic/new_id

查看设备:

# ls /dev/ttyUSB* -l
crw-rw----    1 root     dialout   188,   0 Jan  1 00:01 /dev/ttyUSB0
crw-rw----    1 root     dialout   188,   1 Jan  1 00:01 /dev/ttyUSB1
crw--w----    1 root     root      188,   2 Jan  1 00:01 /dev/ttyUSB2
crw--w----    1 root     root      188,   3 Jan  1 00:01 /dev/ttyUSB3

Modbus TCPIP协议Client-Server端C++源代码.zip
有需要的大佬可以看看

电池要到-40摄氏度比较难，一般-40摄氏度的时候电池很难向外供电。

KingJin 说：

用海华的pin2pin兼容

请教具体是什么型号呢?

aozima 说：

我这边是在WIFI SOC中写个固件，然后更新驱动程序。不过研发成本比较高。

ESP8266/ESP32?

核心板出了吗

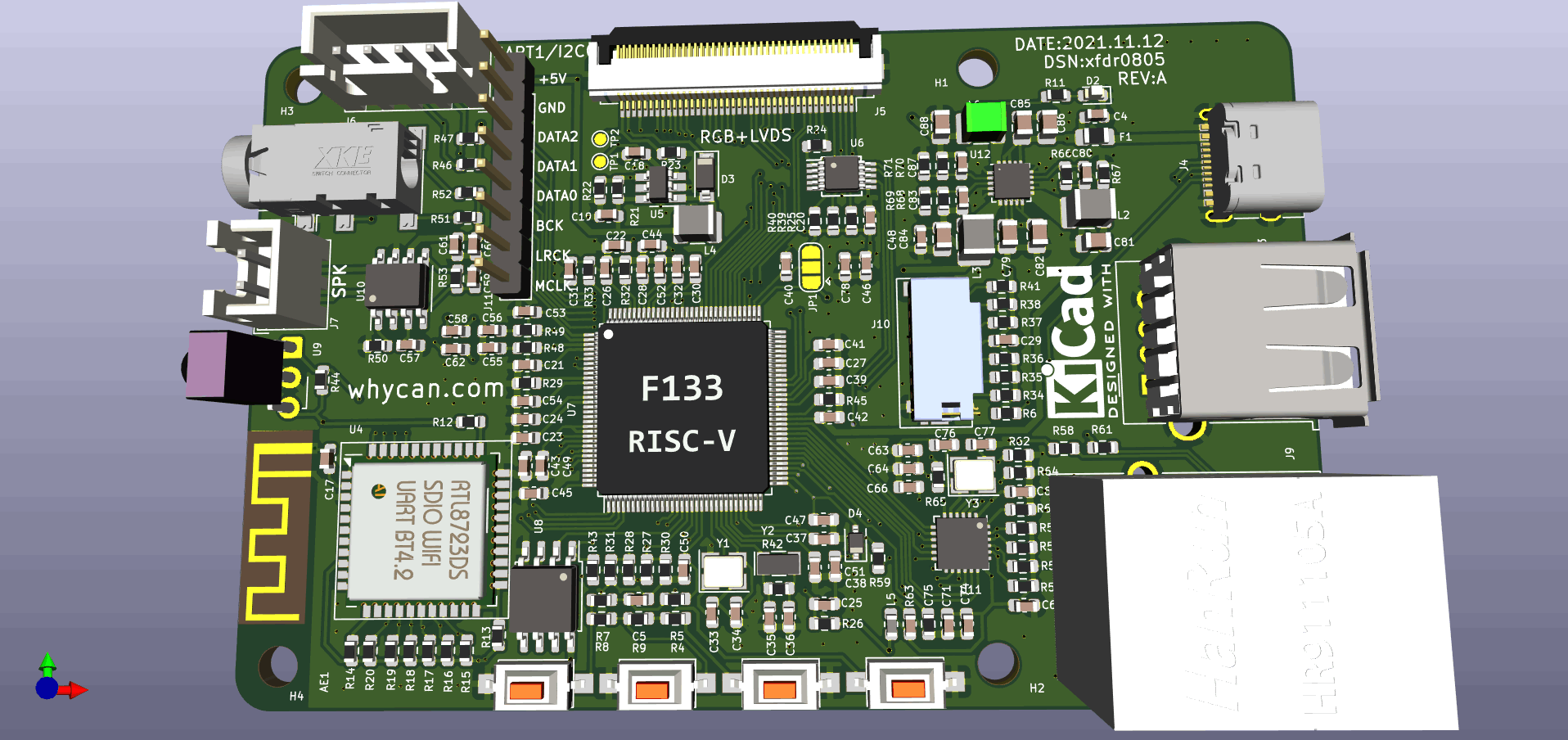

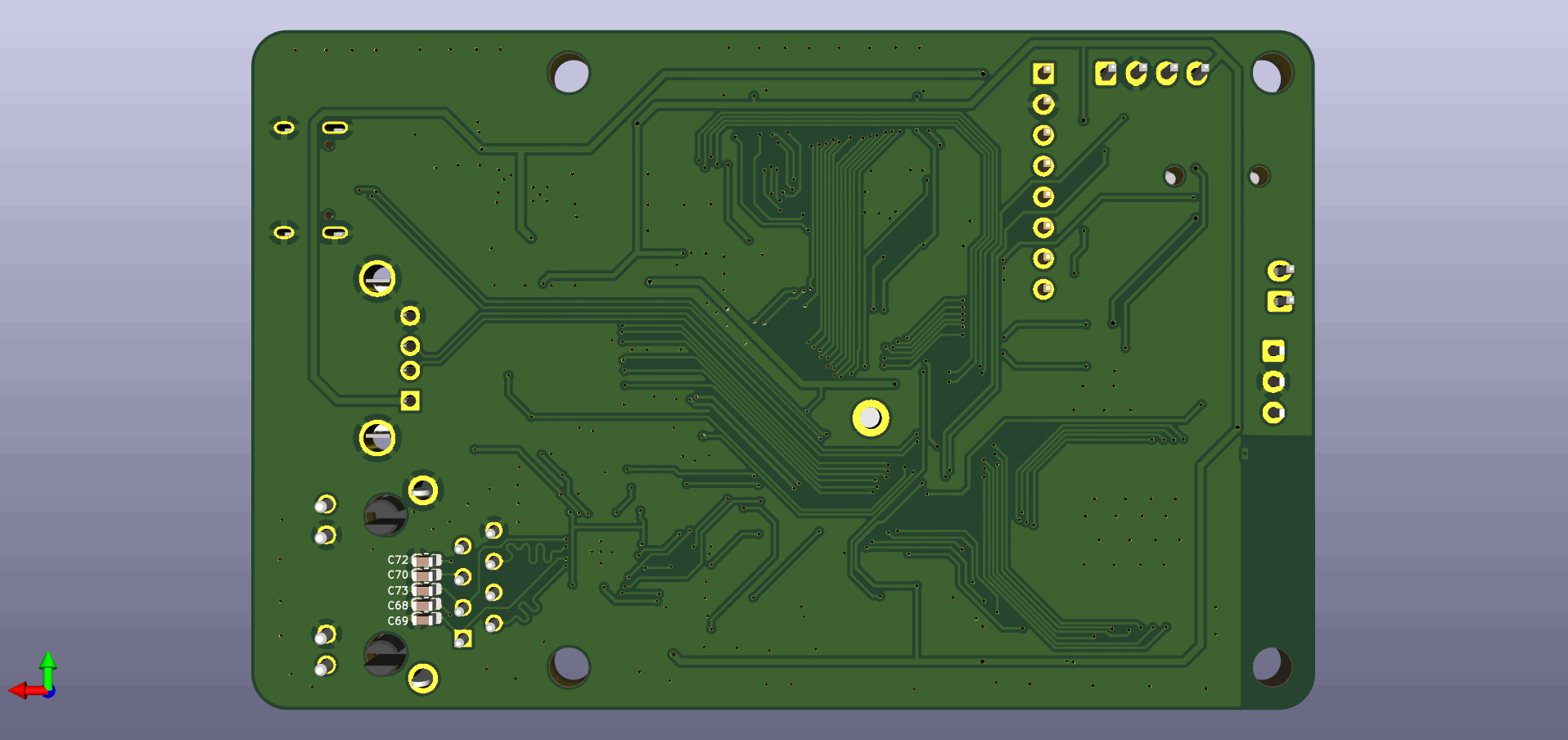

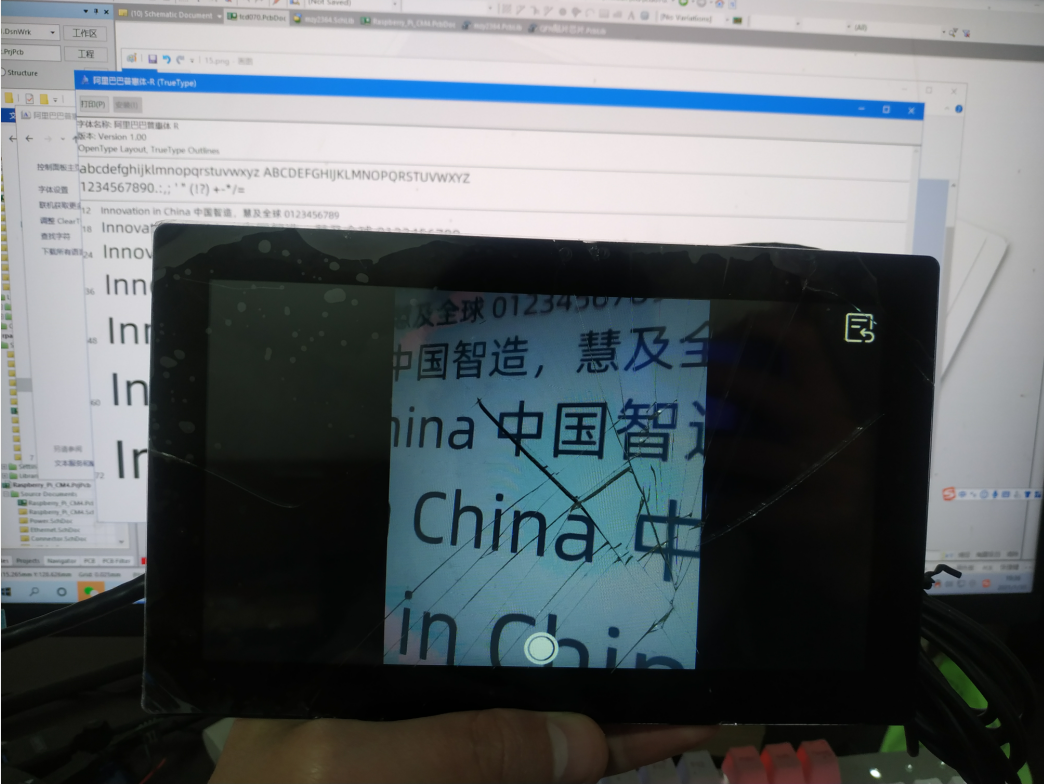

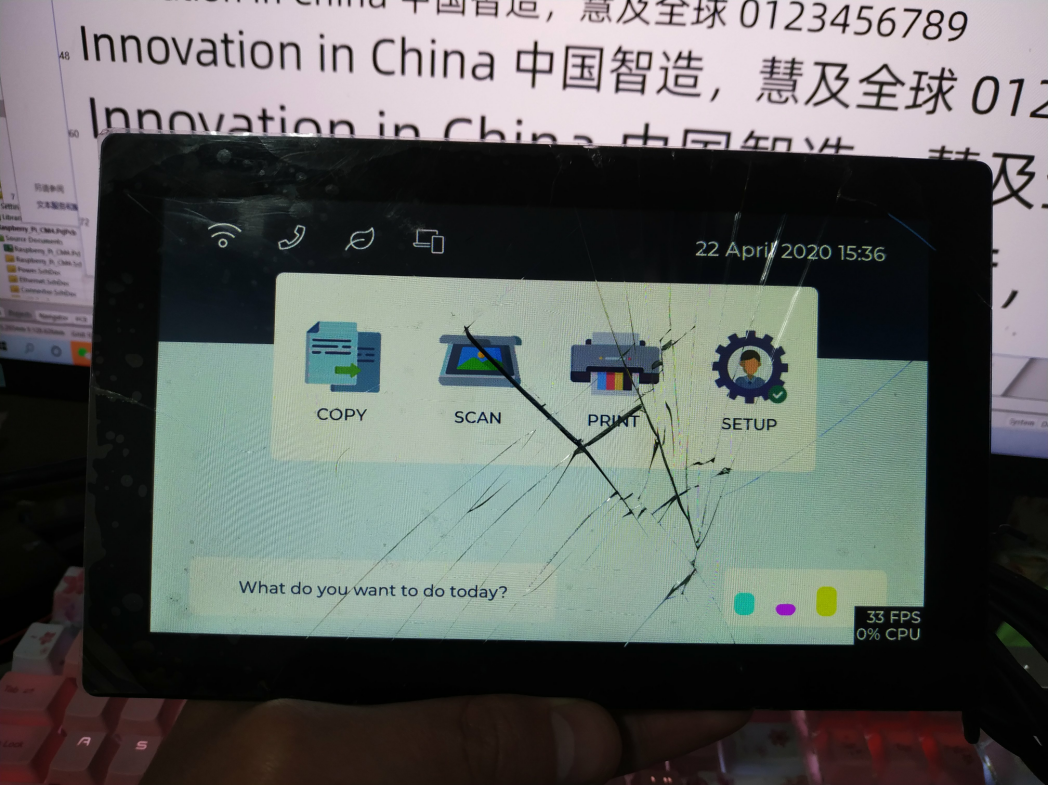

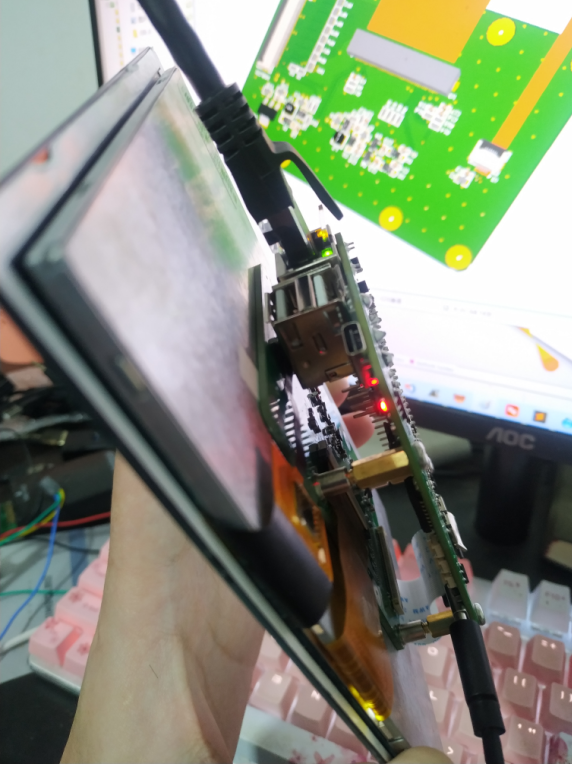

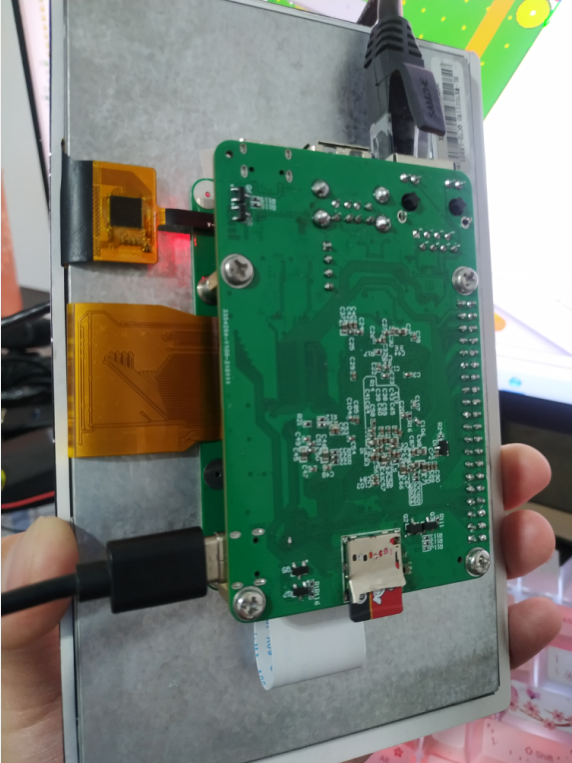

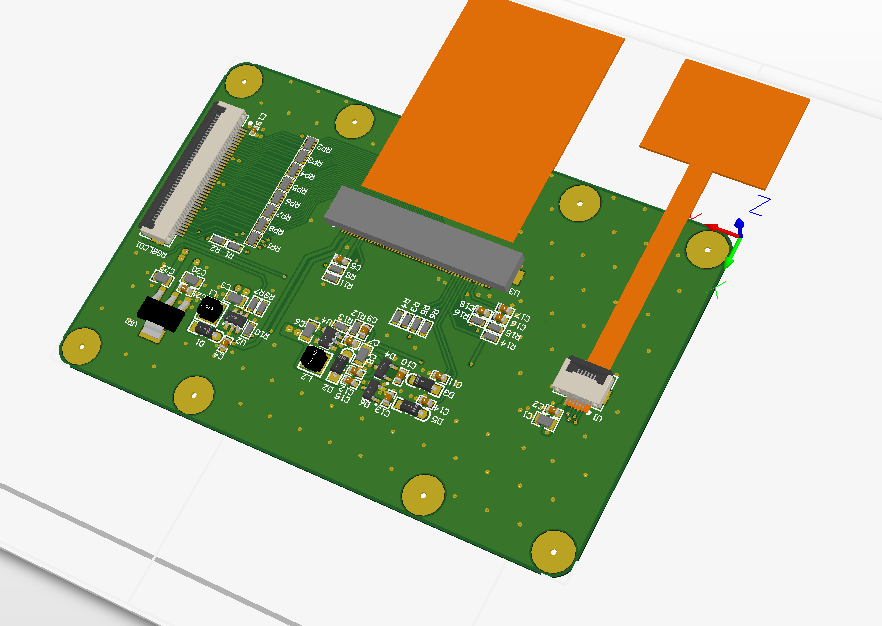

LCD验证OK了
https://whycan.com/files/members/2487/15.png
https://whycan.com/files/members/2487/19.png
https://whycan.com/files/members/2487/18.png
https://whycan.com/files/members/2487/17.png
https://whycan.com/files/members/2487/16.png

九重天 说：

JUN626 说：

20201221
今天是冬至，大家节日快乐。
自己上手包了几碗饺子，刚刚折腾完。
试了下降低DDR频率，果然可以很稳定的启动

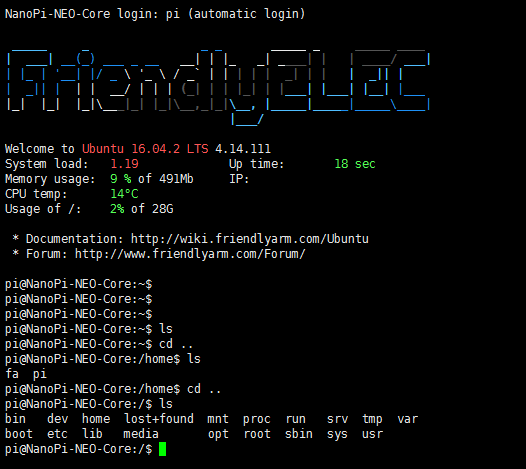

https://whycan.com/files/members/5522/035.png
这是正常启动的样子

恭喜哇, 这是正常操作, 中科世为的A33板子一样DDR要降频才能启动,达不到主线uboot的默认配置速度.

恩，我决定再优化一波，毕竟一个1000多M的DDR，跑出个两三百M,还是有点丢人了
目前打算是一个邮票孔+一个金手指的底板，这样就可以到处插了

20201201

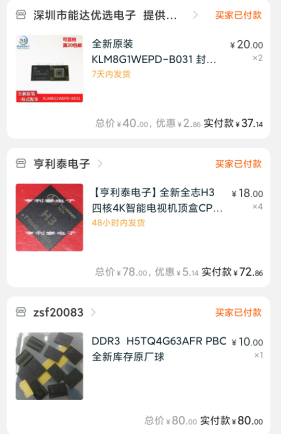

https://whycan.com/files/members/5522/004.png
芯片到手
大概算了下
打板30,5片
全志H3四片，72
DDR买了11片，80
EMMC两片，40
其它缺的料，合计是63
总计是285

642242855 说：

wlcccccc 说：

板子已入手,画块底板玩一下.看文档里是有视频软编码的. 最好买大内存的测试

好像这个月 卖家25号就会有底板卖，主板+底板才100多，我原来也是准备自己搞底板，看有得买就不搞了

刚才问了一下 现在他们也需要钱NDA了. mmp

是啊，主要做了 AP 测试，MT7601u / RTL8818CUS 模块出现的问题是一样的。刚重新用 19.07 源码编译了，下午看看。。

阿黄 说：

Iron 说：

可能还是驱动问题，感觉坑越来越深。。。十一全在搬家了，东西都找不到了，感觉要弃坑了。

别啊，好不容易找到个一起玩V3S的OP的，我这个就是用的自带的MT7601u驱动，一开始报的信息和你截出来的一模一样，无线里面80211bgn没有信号强度，显示设备未激活，但是能搜到其他热点。后来把master禁用掉就好了。

你是要当AP热点？

你需要外接32K有源信号，内部的不OK

sy373466062 说：

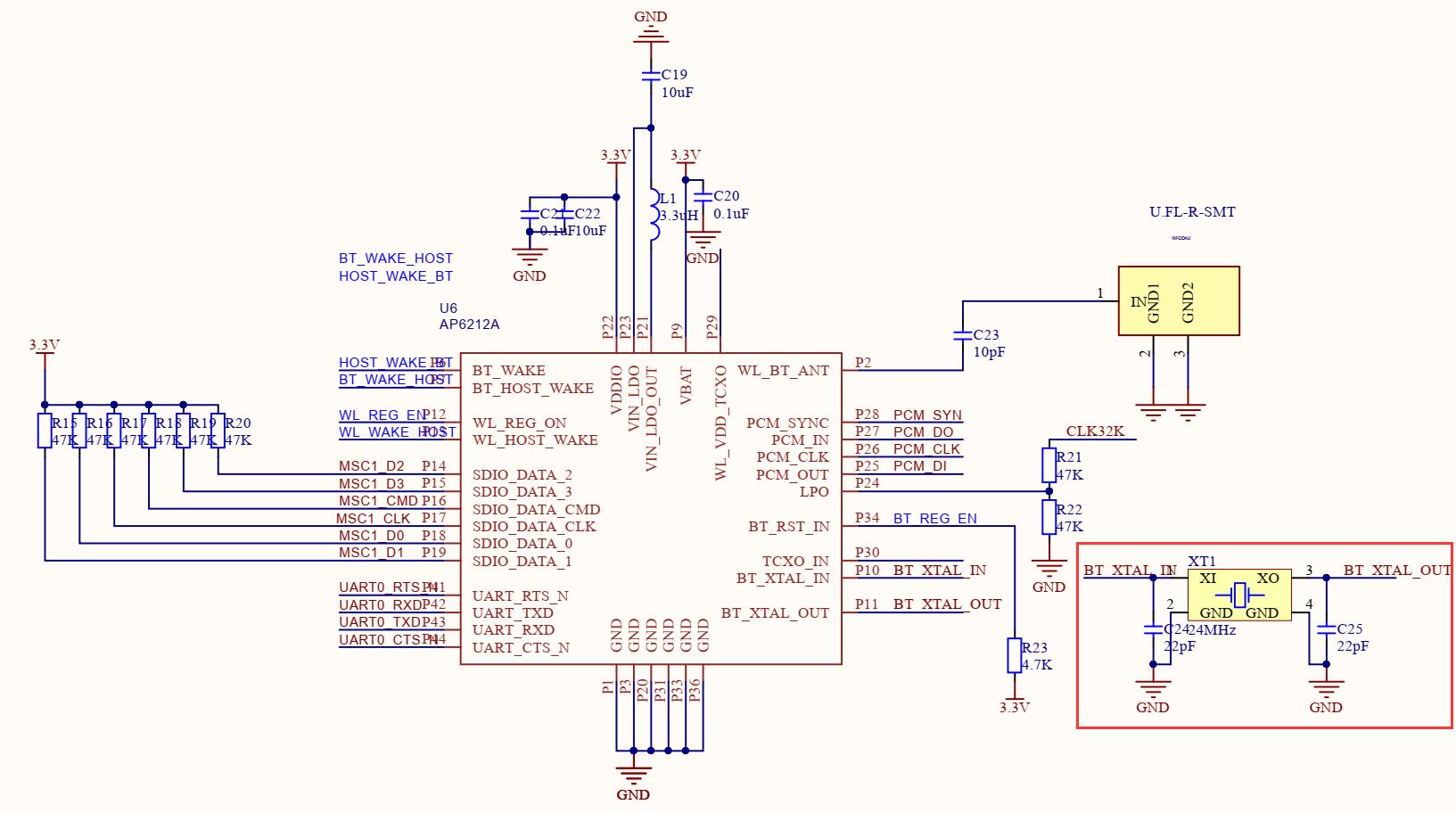

LPO这个接地了，使用的是内部32K clk

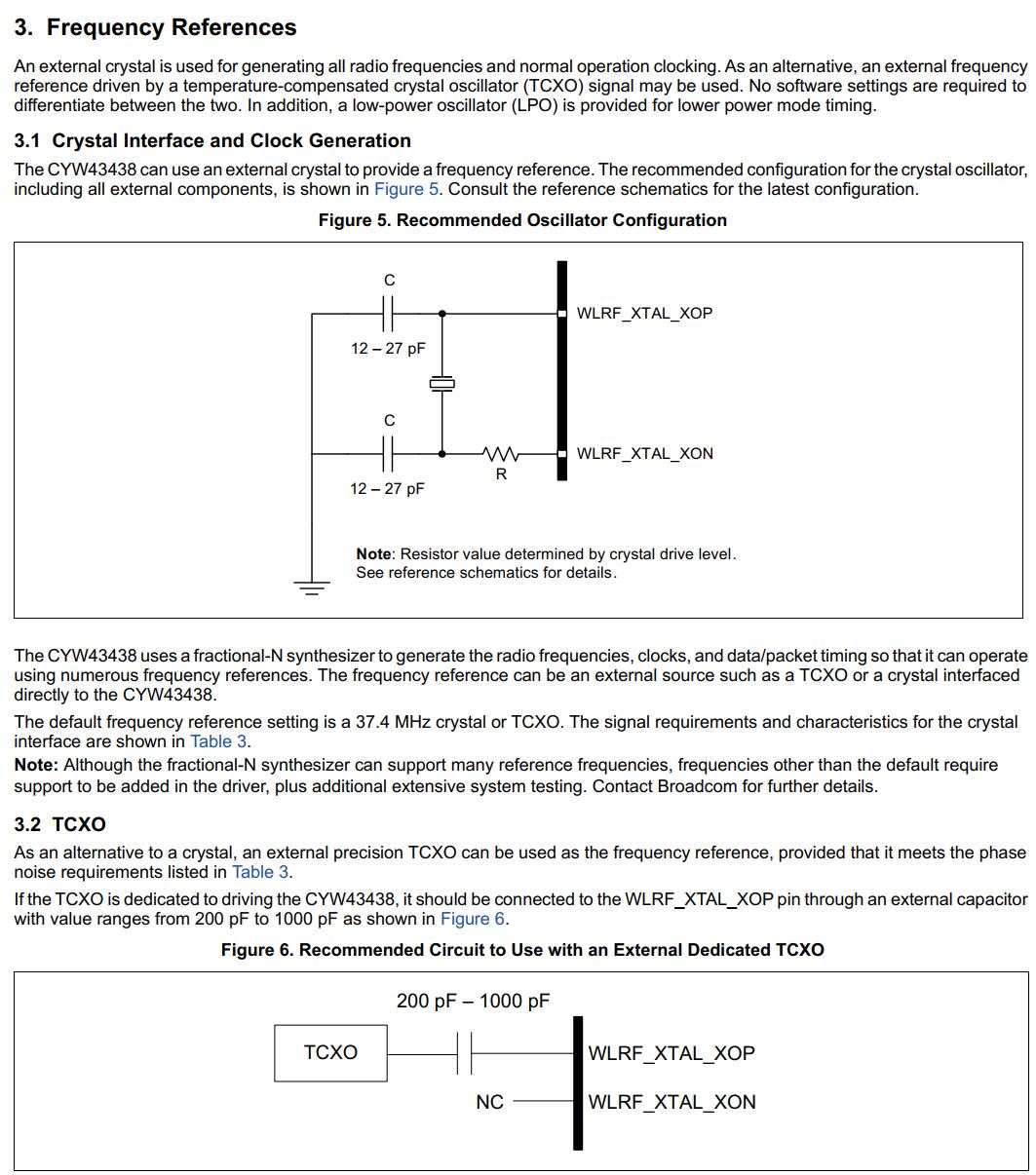

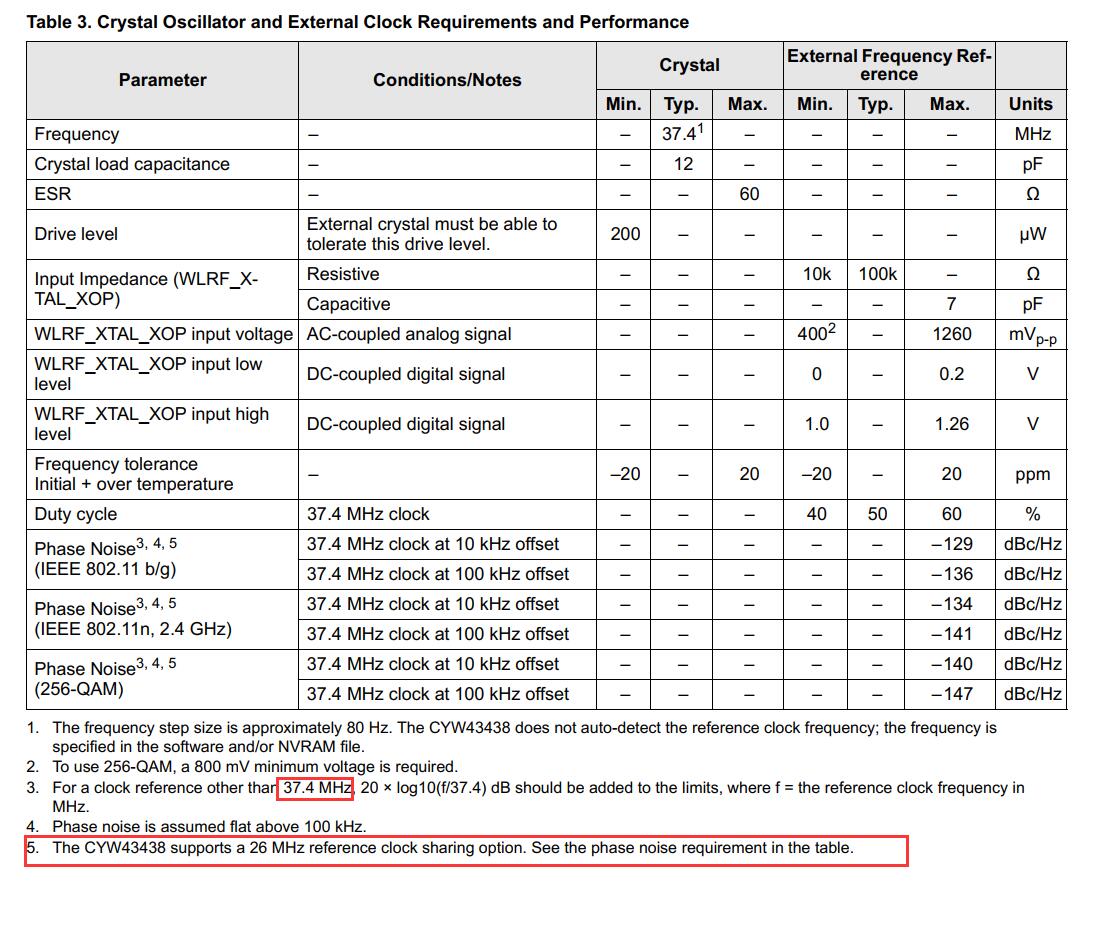

你的LPO管脚是否提供了32.768Khz的时钟？这个非常重要

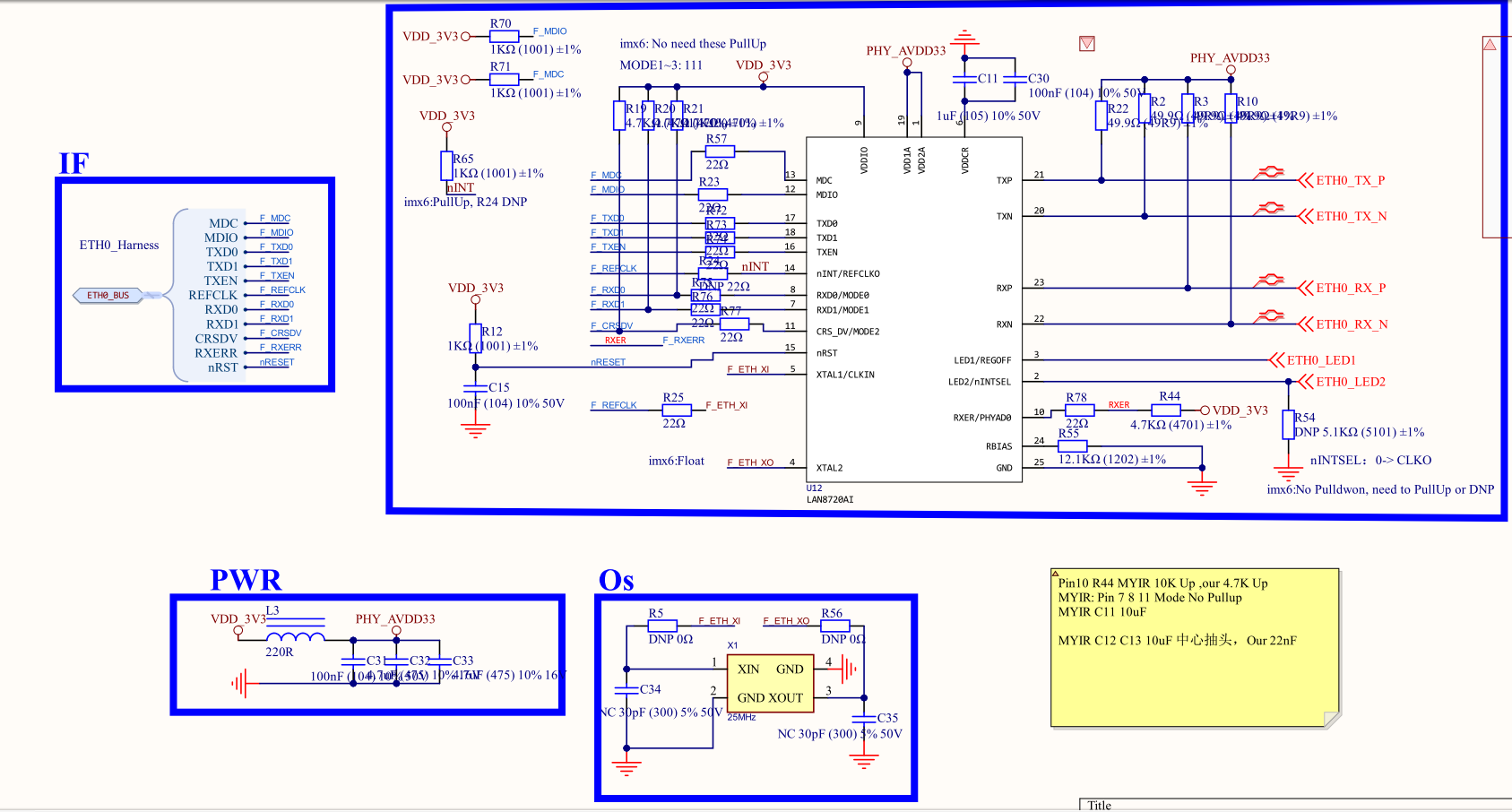

方便飞线的话，可以淘宝买个lan8720模块怼上去看疗效。

R19,R20,R10,R24四个49.9的上拉电阻去掉试一试。

画的板子 启动不了了  后面边学边搞吧

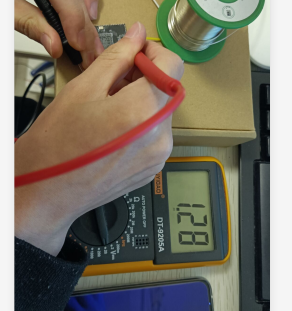

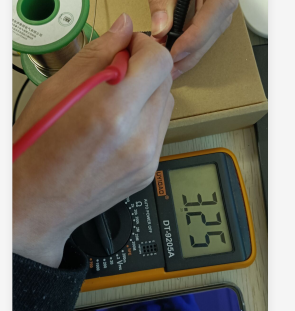

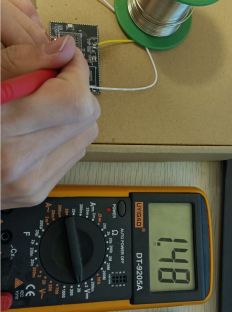

tf卡插上CMD一直是0V   emmc的CMD一直是3.3V
怀疑系统从emmc启动  可是里面没系统  估计是电路哪块有问题
我再慢慢排查吧

下面是文件 直接下载即可
share.zip

89元的链接呢

这样问题就不大了

前几天找了一下这款BeagleBone Black开发板，找着找着找到这玩意，买了2块回来，一块70元（带电源、原理图、补焊了USB），一块25元（缺usb外围原件）

CPU：AM3352
内存：256M
ROM： 256M NAND
百兆网口

跟中国版BeagleBone Black有什么区别？
1、阉割HDMI，保留RGB；
2、eMMC改为NAND，GPMC挂着NAND，GPMC挂并口设备爽啊！

我的用处：GPMC接口挂NAND和2片CH438 8串口芯片，一共16串口。
目标：
刷回原来的uboot以及内核，官方的SDK
挂上2片ch438，实现外挂16串口。

原理图
https://whycan.cn/files/members/1261/LS_BBB_SCH.pdf

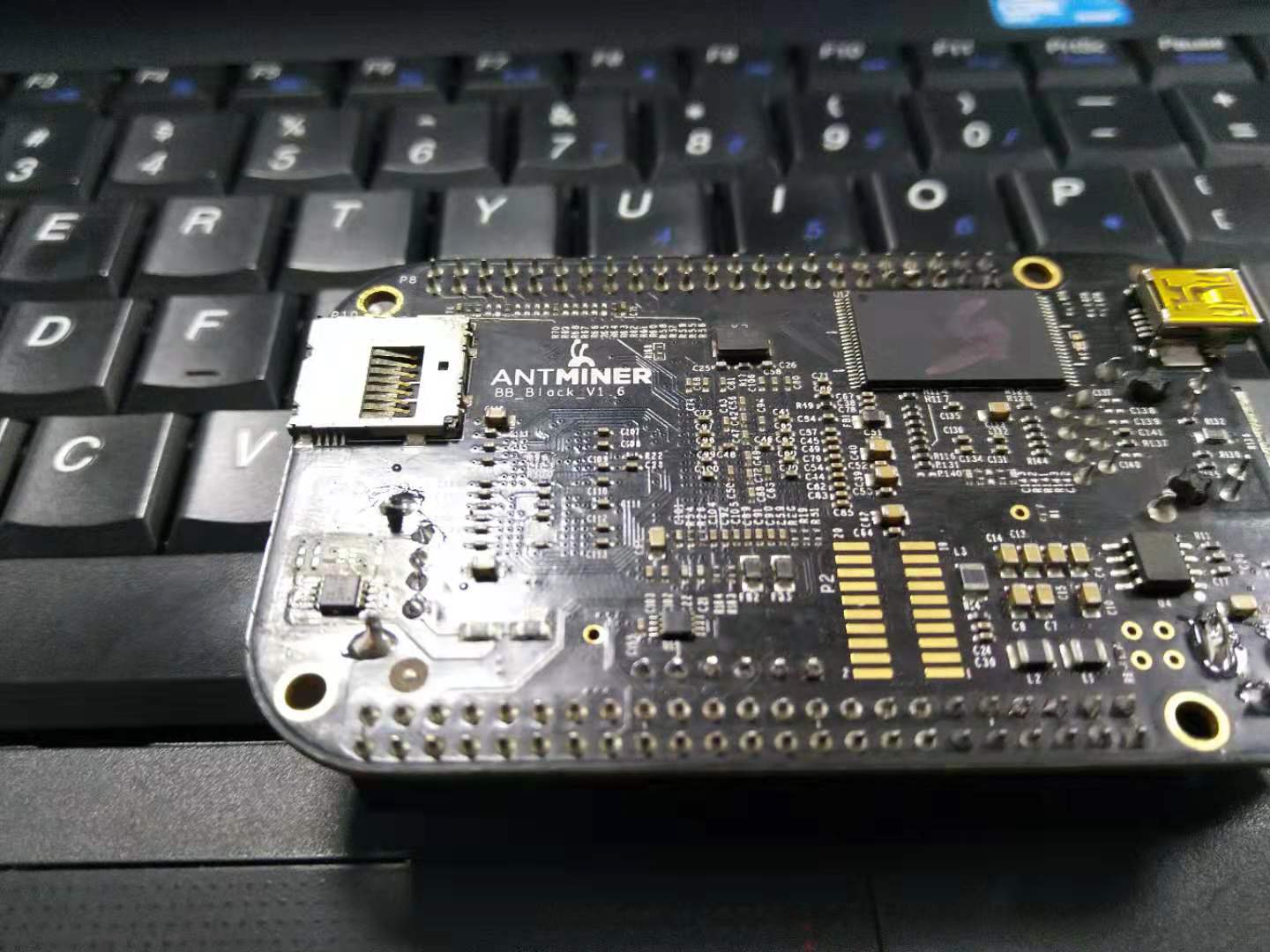

实物图

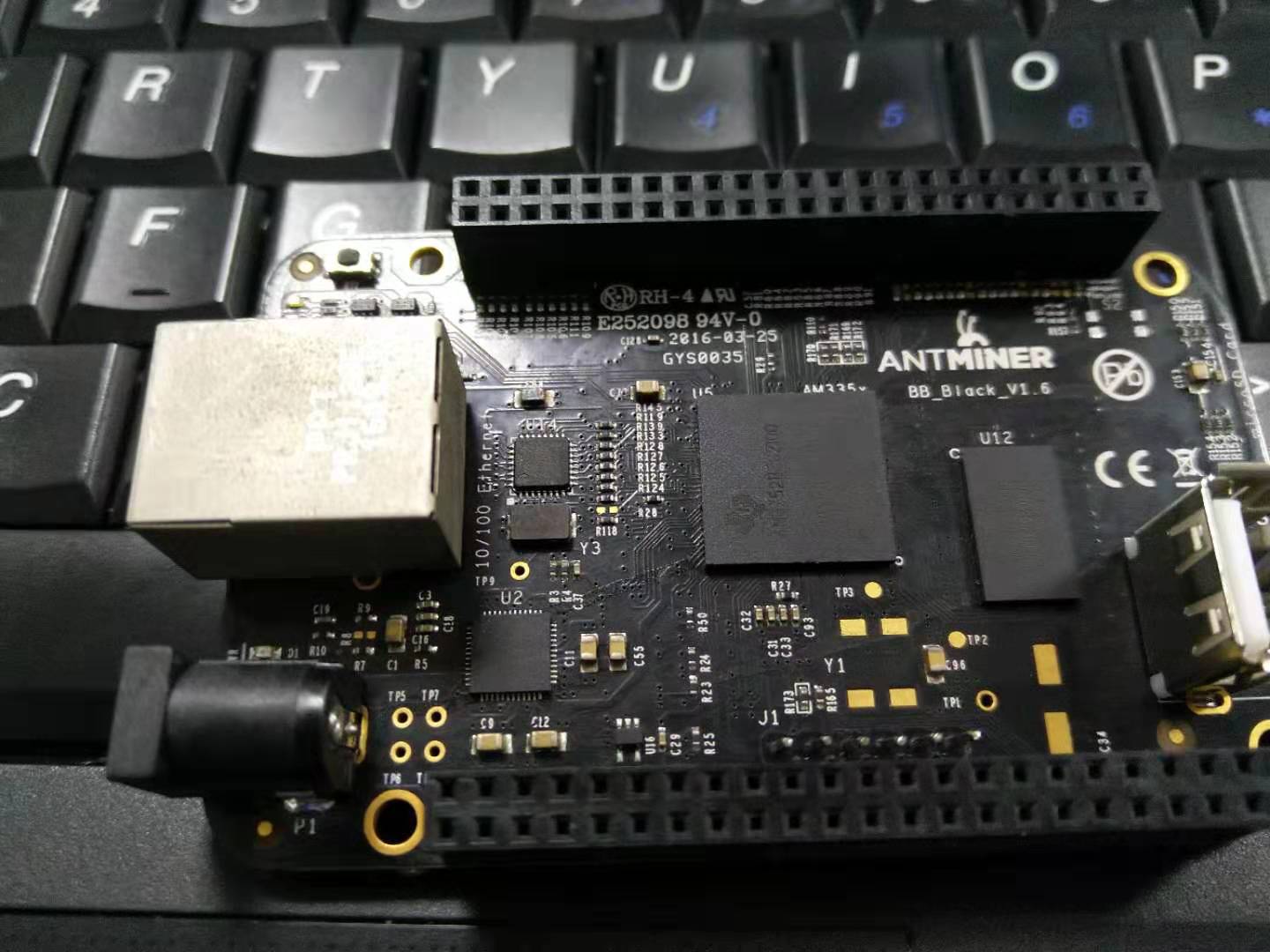

https://whycan.cn/files/members/1261/_20190710144724.jpg

https://whycan.cn/files/members/1261/_20190710144731.jpg

TTL启动信息，启动内核后，省略了。

U-Boot SPL 2013.04-dirty (Aug 04 2014 - 11:06:44)
Control_status {00420313}
Could not probe the EEPROM; something fundamentally wrong on the I2C bus.
Could not get board ID.
default->A335BNLT.
musb-hdrc: ConfigData=0xde (UTMI-8, dyn FIFOs, HB-ISO Rx, HB-ISO Tx, SoftConn)
musb-hdrc: MHDRC RTL version 2.0
musb-hdrc: setup fifo_mode 4
musb-hdrc: 28/31 max ep, 16384/16384 memory
USB Peripheral mode controller at 47401000 using PIO, IRQ 0
musb-hdrc: ConfigData=0xde (UTMI-8, dyn FIFOs, HB-ISO Rx, HB-ISO Tx, SoftConn)
musb-hdrc: MHDRC RTL version 2.0
musb-hdrc: setup fifo_mode 4
musb-hdrc: 28/31 max ep, 16384/16384 memory
USB Host mode controller at 47401800 using PIO, IRQ 0
CONFIG_SYS_NAND_U_BOOT_OFFS:80000
CONFIG_SYS_NAND_PAGE_SIZE:800
spl_image.size:5cd2c
spl_image.load_addr:807fffc0
image entry point: 0x80800000


U-Boot 2013.04-dirty (Jan 04 2015 - 17:08:05)

I2C:   ready
DRAM:  256 MiB
WARNING: Caches not enabled
Could not probe the EEPROM; something fundamentally wrong on the I2C bus.
Could not get board ID.
NAND:  256 MiB
MMC:   OMAP SD/MMC: 0, OMAP SD/MMC: 1
*** Warning - bad CRC, using default environment

musb-hdrc: ConfigData=0xde (UTMI-8, dyn FIFOs, HB-ISO Rx, HB-ISO Tx, SoftConn)
musb-hdrc: MHDRC RTL version 2.0
musb-hdrc: setup fifo_mode 4
musb-hdrc: 28/31 max ep, 16384/16384 memory
USB Peripheral mode controller at 47401000 using PIO, IRQ 0
musb-hdrc: ConfigData=0xde (UTMI-8, dyn FIFOs, HB-ISO Rx, HB-ISO Tx, SoftConn)
musb-hdrc: MHDRC RTL version 2.0
musb-hdrc: setup fifo_mode 4
musb-hdrc: 28/31 max ep, 16384/16384 memory
USB Host mode controller at 47401800 using PIO, IRQ 0
Net:   <ethaddr> not set. Validating first E-fuse MAC
cpsw, usb_ether
Press ESC to abort autoboot in 1 seconds
gpio: pin 53 (gpio 53) value is 1
Card did not respond to voltage select!
mmc0(part 0) is current device
Card did not respond to voltage select!
No micro SD card found, setting mmcdev to 1
mmc_send_cmd : timeout: No status update
Card did not respond to voltage select!
mmc1(part 0) is current device
Card did not respond to voltage select!
Booting from nand ...

NAND read: device 0 offset 0x280000, size 0x500000
 5242880 bytes read: OK
gpio: pin 54 (gpio 54) value is 1

NAND read: device 0 offset 0x800000, size 0x1400000
 20971520 bytes read: OK
gpio: pin 55 (gpio 55) value is 1

NAND read: device 0 offset 0x260000, size 0x20000
 131072 bytes read: OK
gpio: pin 56 (gpio 56) value is 1
## Booting kernel from Legacy Image at 80200000 ...
   Image Name:   Linux-3.8.13
   Image Type:   ARM Linux Kernel Image (uncompressed)
   Data Size:    4403504 Bytes = 4.2 MiB
   Load Address: 80008000
   Entry Point:  80008000
   Verifying Checksum ... OK
## Loading init Ramdisk from Legacy Image at 81000000 ...
   Image Name:   Angstrom-antminer_mm-eglibc-ipk-
   Image Type:   ARM Linux RAMDisk Image (gzip compressed)
   Data Size:    15146094 Bytes = 14.4 MiB
   Load Address: 00000000
   Entry Point:  00000000
   Verifying Checksum ... OK
## Flattened Device Tree blob at 80f80000
   Booting using the fdt blob at 0x80f80000
   Loading Kernel Image ... OK
OK
   Loading Ramdisk to 8e3c5000, end 8f236c6e ... OK
   Using Device Tree in place at 80f80000, end 80f886ed

Starting kernel ...

Uncompressing Linux... done, booting the kernel.
[    0.000000] Booting Linux on physical CPU 0x0
[    0.000000] Initializing cgroup subsys cpu
[    0.000000] Linux version 3.8.13 (xxl@armdev01) (gcc version 4.7.4 20130626 (prerelease) (Linaro GCC 4.7-2013.07) ) #22 SMP Tue Dec 2 15:26:11 CST 2014
[    0.000000] CPU: ARMv7 Processor [413fc082] revision 2 (ARMv7), cr=50c5387d
[    0.000000] CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache
[    0.000000] Machine: Generic AM33XX (Flattened Device Tree), model: TI AM335x BeagleBone
[    0.000000] Memory policy: ECC disabled, Data cache writeback
[    0.000000] AM335X ES1.0 (neon )
[    0.000000] PERCPU: Embedded 8 pages/cpu @c0934000 s9408 r8192 d15168 u32768
[    0.000000] Built 1 zonelists in Zone order, mobility grouping on.  Total pages: 64768
[    0.000000] Kernel command line: console=ttyO0,115200n8 init=/sbin/init
[    0.000000] PID hash table entries: 1024 (order: 0, 4096 bytes)
[    0.000000] Dentry cache hash table entries: 32768 (order: 5, 131072 bytes)
[    0.000000] Inode-cache hash table entries: 16384 (order: 4, 65536 bytes)
[    0.000000] __ex_table already sorted, skipping sort
[    0.000000] allocated 524288 bytes of page_cgroup
[    0.000000] please try 'cgroup_disable=memory' option if you don't want memory cgroups
[    0.000000] Memory: 255MB = 255MB total
[    0.000000] Memory: 236120k/236120k available, 26024k reserved, 0K highmem
[    0.000000] Virtual kernel memory layout:
[    0.000000]     vector  : 0xffff0000 - 0xffff1000   (   4 kB)
[    0.000000]     fixmap  : 0xfff00000 - 0xfffe0000   ( 896 kB)
[    0.000000]     vmalloc : 0xd0800000 - 0xff000000   ( 744 MB)
[    0.000000]     lowmem  : 0xc0000000 - 0xd0000000   ( 256 MB)
[    0.000000]     pkmap   : 0xbfe00000 - 0xc0000000   (   2 MB)
[    0.000000]     modules : 0xbf800000 - 0xbfe00000   (   6 MB)
[    0.000000]       .text : 0xc0008000 - 0xc0612cf0   (6188 kB)
[    0.000000]       .init : 0xc0613000 - 0xc06554c0   ( 266 kB)
[    0.000000]       .data : 0xc0656000 - 0xc06cc020   ( 473 kB)
[    0.000000]        .bss : 0xc06cc020 - 0xc0725e3c   ( 360 kB)
[    0.000000] Hierarchical RCU implementation.
[    0.000000]  RCU restricting CPUs from NR_CPUS=4 to nr_cpu_ids=1.
[    0.000000] NR_IRQS:16 nr_irqs:16 16
[    0.000000] IRQ: Found an INTC at 0xfa200000 (revision 5.0) with 128 interrupts
[    0.000000] Total of 128 interrupts on 1 active controller
[    0.000000] OMAP clockevent source: GPTIMER1 at 24000000 Hz
[    0.000000] sched_clock: 32 bits at 24MHz, resolution 41ns, wraps every 178956ms
[    0.000000] OMAP clocksource: GPTIMER2 at 24000000 Hz
[    0.000000] Console: colour dummy device 80x30
[    0.000354] Calibrating delay loop... 545.07 BogoMIPS (lpj=531968)
[    0.015410] pid_max: default: 32768 minimum: 301
[    0.015639] Security Framework initialized
[    0.015734] Mount-cache hash table entries: 512
[    0.025665] Initializing cgroup subsys cpuacct
[    0.025697] Initializing cgroup subsys memory
[    0.025761] Initializing cgroup subsys blkio
[    0.025907] CPU: Testing write buffer coherency: ok
[    0.026435] CPU0: thread -1, cpu 0, socket -1, mpidr 0
[    0.026510] Setting up static identity map for 0x8038c820 - 0x8038c86c
[    0.027897] Brought up 1 CPUs
[    0.027922] SMP: Total of 1 processors activated (545.07 BogoMIPS).
[    0.029221] devtmpfs: initialized
[    0.093751] pinctrl core: initialized pinctrl subsystem
[    0.093968] rstctl core: initialized rstctl subsystem
[    0.094459] regulator-dummy: no parameters
[    0.094968] NET: Registered protocol family 16
[    0.095734] DMA: preallocated 256 KiB pool for atomic coherent allocations
[    0.105515] pinctrl-single 44e10800.pinmux: 142 pins at pa f9e10800 size 568
[    0.106286] platform 49000000.edma: alias fck already exists
[    0.106319] platform 49000000.edma: alias fck already exists
[    0.106347] platform 49000000.edma: alias fck already exists
[    0.107740] OMAP GPIO hardware version 0.1
[    0.112423] gpio-rctrl rstctl.3: loaded OK
[    0.117241] omap-gpmc 50000000.gpmc: GPMC revision 6.0
[    0.120488] hw-breakpoint: debug architecture 0x4 unsupported.
[    0.122691] cpsw.0: No hwaddr in dt. Using 88:c2:55:85:c5:a7 from efuse
[    0.122723] cpsw.1: No hwaddr in dt. Using 88:c2:55:85:c5:a9 from efuse
[    0.138241] bio: create slab <bio-0> at 0
[    0.150432] edma-dma-engine edma-dma-engine.0: TI EDMA DMA engine driver
[    0.150886] vmmcsd_fixed: 3300 mV
[    0.153952] SCSI subsystem initialized
[    0.154443] usbcore: registered new interface driver usbfs
[    0.154576] usbcore: registered new interface driver hub
[    0.154849] usbcore: registered new device driver usb
[    0.156910] omap_i2c 44e0b000.i2c: bus 0 rev0.11 at 400 kHz
[    0.158434] input: tps65217_pwr_but as /devices/ocp.2/44e0b000.i2c/i2c-0/0-0024/input/input0
[    0.160657] DCDC1: at 1500 mV
[    0.161801] vdd_mpu: 925 <--> 1325 mV at 1100 mV
[    0.162990] vdd_core: 925 <--> 1150 mV at 1100 mV
[    0.164095] LDO1: at 1800 mV
[    0.165170] LDO2: at 3300 mV
[    0.167113] LDO3: 1800 mV
[    0.168231] LDO4: at 3300 mV
[    0.169220] tps65217 0-0024: TPS65217 ID 0xe version 1.2
[    0.169970] omap_i2c 44e0b000.i2c: unable to select pin group
[    0.170702] omap_i2c 4819c000.i2c: bus 1 rev0.11 at 100 kHz
[    0.173047] omap_i2c 4819c000.i2c: unable to select pin group
[    0.173289] media: Linux media interface: v0.10
[    0.173393] Linux video capture interface: v2.00
[    0.173516] pps_core: LinuxPPS API ver. 1 registered
[    0.173532] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>
[    0.174364] Advanced Linux Sound Architecture Driver Initialized.
[    0.175513] Switching to clocksource gp_timer
[    0.193853] NET: Registered protocol family 2
[    0.194864] TCP established hash table entries: 2048 (order: 2, 16384 bytes)
[    0.194954] TCP bind hash table entries: 2048 (order: 3, 40960 bytes)
[    0.195045] TCP: Hash tables configured (established 2048 bind 2048)
[    0.195139] TCP: reno registered
[    0.195233] UDP hash table entries: 256 (order: 1, 12288 bytes)
[    0.195283] UDP-Lite hash table entries: 256 (order: 1, 12288 bytes)
[    0.195701] NET: Registered protocol family 1
[    0.196264] RPC: Registered named UNIX socket transport module.
[    0.196285] RPC: Registered udp transport module.
[    0.196299] RPC: Registered tcp transport module.
[    0.196312] RPC: Registered tcp NFSv4.1 backchannel transport module.
[    0.196687] Trying to unpack rootfs image as initramfs...
[    2.123757] Freeing initrd memory: 14788K
[    2.124427] CPU PMU: probing PMU on CPU 0
[    2.124460] hw perfevents: enabled with ARMv7 Cortex-A8 PMU driver, 5 counters available
[    2.125068] omap2_mbox_probe: platform not supported
[    2.128961] VFS: Disk quotas dquot_6.5.2
[    2.129197] Dquot-cache hash table entries: 1024 (order 0, 4096 bytes)
[    2.130494] NFS: Registering the id_resolver key type
[    2.130588] Key type id_resolver registered
[    2.130606] Key type id_legacy registered
[    2.130674] jffs2: version 2.2. (NAND) (SUMMARY)  © 2001-2006 Red Hat, Inc.
[    2.131197] msgmni has been set to 490
[    2.133992] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 249)
[    2.134017] io scheduler noop registered
[    2.134033] io scheduler deadline registered
[    2.134084] io scheduler cfq registered (default)
[    2.135885] tps65217-bl tps65217-bl: no platform data provided
[    2.135925] tps65217-bl: probe of tps65217-bl failed with error -22
[    2.136889] Serial: 8250/16550 driver, 4 ports, IRQ sharing enabled
[    2.139518] omap_uart 44e09000.serial: did not get pins for uart0 error: -19
[    2.139808] 44e09000.serial: ttyO0 at MMIO 0x44e09000 (irq = 88) is a OMAP UART0
[    2.856985] console [ttyO0] enabled
[    2.861845] [drm] Initialized drm 1.1.0 20060810
[    2.880479] brd: module loaded
[    2.890794] loop: module loaded
[    2.894253] at24 0-0050: 32768 byte 24c256 EEPROM, writable, 1 bytes/write
[    2.901541] at24 1-0054: 32768 byte 24c256 EEPROM, writable, 1 bytes/write
[    2.908811] at24 1-0055: 32768 byte 24c256 EEPROM, writable, 1 bytes/write
[    2.916079] at24 1-0056: 32768 byte 24c256 EEPROM, writable, 1 bytes/write
[    2.923348] at24 1-0057: 32768 byte 24c256 EEPROM, writable, 1 bytes/write
[    2.958895] bone-capemgr bone_capemgr.8: bone: scan failed (1 time)

zhenfanhei 说：

@smartcar, 没有啊，f1c200s是16块多， v3s/s3是27块吧
@晕哥， 啊啊，我以为f1c200s已经跑起来了呢，

S3L 我记得22元未税，V3s也差不多这个价格。

对，现在问题是找到编解码器demo, 软编解码帧率可能到不到 20fps@720p

Touchgfx designer能跨平台就好了，lib库既然做了linux版，macOS也顺带能编译一份出来就更好了。

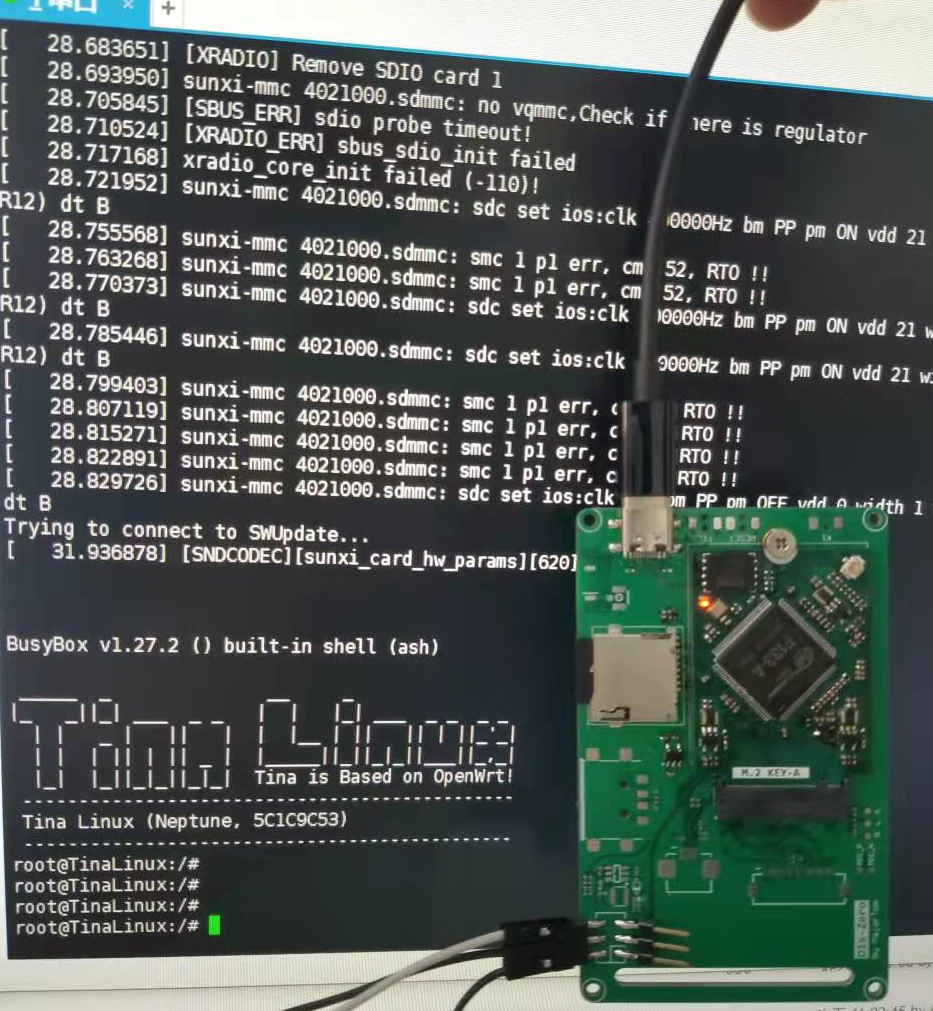

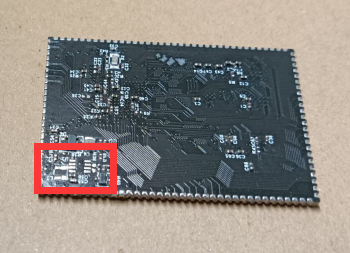

底部电源画错了，不过好在大神的帮助下改了线，能用TF卡启动了。
